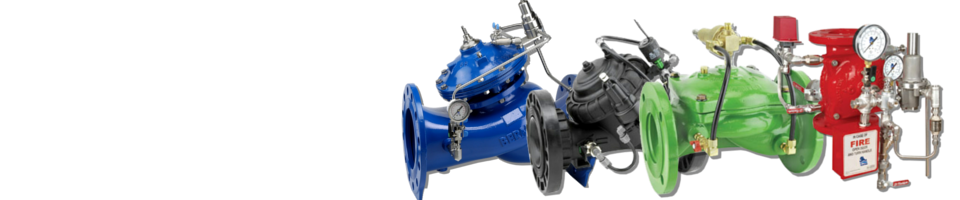

Bermad Control Valves

Industrial & Municipal - Fire Protection Valves

Bermad Logo

Throughout our history Deeco have built an extensive and comprehensive knowledge of the requirements and demands of New Zealand customers. This experience has allowed Deeco to introduce to NZ and the Pacific the complete valve range of Bermad Israel. Unique in the world, Deeco represents each valve division for all market sectors, modified to suit New Zealand conditions. These valves are assembled on-site in our Wellington facility to meet each of our customers' specific requirements.

Bermad unique design allows for over one thousand control function variations to be fitted to the basic hydraulic valve:

  • Pressure reducing valve,
  • Pressure sustaining valve,
  • Quick acting pressure relief valve,
  • Solenoid valve
  • Reservoir/tank level control
  • ...

Deeco offers a full application valve design and assembly services for industrial and waterworks applications on 100, 200, 300, 400, 700, 800 and 900 Series as well as on-site commissioning and valve warrant of fitness annual service programs.

Due to the wide range of options available and criteria for correct model selection, pricing of industrial spec valves is available on application only. Please Contact Us and we can supply information and pricing.

For the complete, current product range available to order please see the BERMAD WEBSITE.

Bermad 700 series

Bermad 700 Series Control valves

Optimally-Engineered Waterworks Valve

The basic valve design (globe or angle) results in lower pressure loss, reduced weight, and higher resistance to cavitation damage compared to that of a conventional control valve.

Each valve is available in sizes 1 1/2”- 32” (40-800 mm), threaded or flanged, with pressure ratings up to ANSI Class 300 psi (ISO 25). The valves are hydraulically operated by means of diaphragm actuators (except for high-pressure application piston actuators). Principally, the valves are constructed of ductile cast iron or steel (optional: other alloys) and are available with various protective coatings.


The 700 Series double chambered valve operation is independent of valve differential pressure since the line pressure actually serves as the actuator differential pressure. This develops maximum power, ensuring immediate valve response. The upper control chamber is pressurized to close, and vented to open the valve. The lower control chamber is usually vented to the atmosphere, but can also be pressurized to power the valve open.

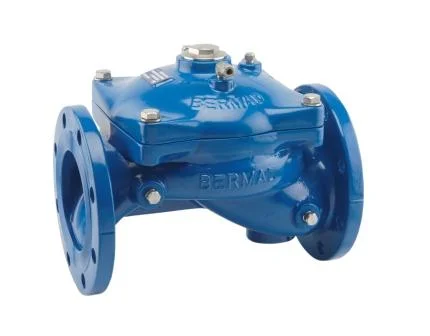

Bermad 400 Series

Bermad 400 Series Control valves

Leading Edge of Control Valve Design

  • Simple and reliable construction with superior performance.
  • The design of the body include a full bore seat with unobstructed flow path, free of any in-line ribs, supporting cage, or shafts.
  • The unique hydro-dynamic globe design provides high flow capabilities with minimum head loss.
  • Long-life and controlled actuation even under harsh conditions.
  • Download the technical brochure

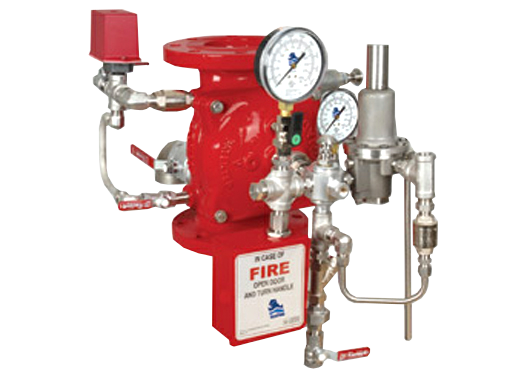

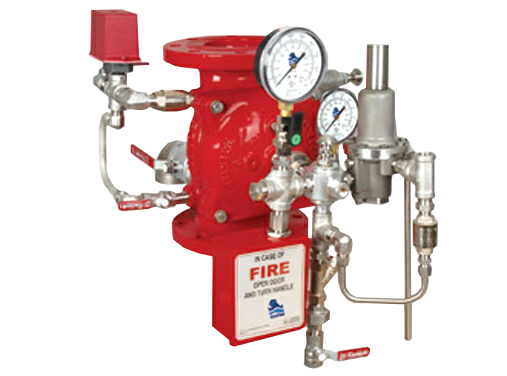

Bermad Fire Valves

Bermad Fire Protection valves

  • Simple design
  • One piece, solid elastomeric assembly
  • Obstacle free, full bore
  • In-line serviceable
  • Large approved size range of sizes & applications
  • Vertical & horizontal installation
  • Ability to control pressure during operation
  • Flange, Groove & threaded connections
  • Download the technical brochure
