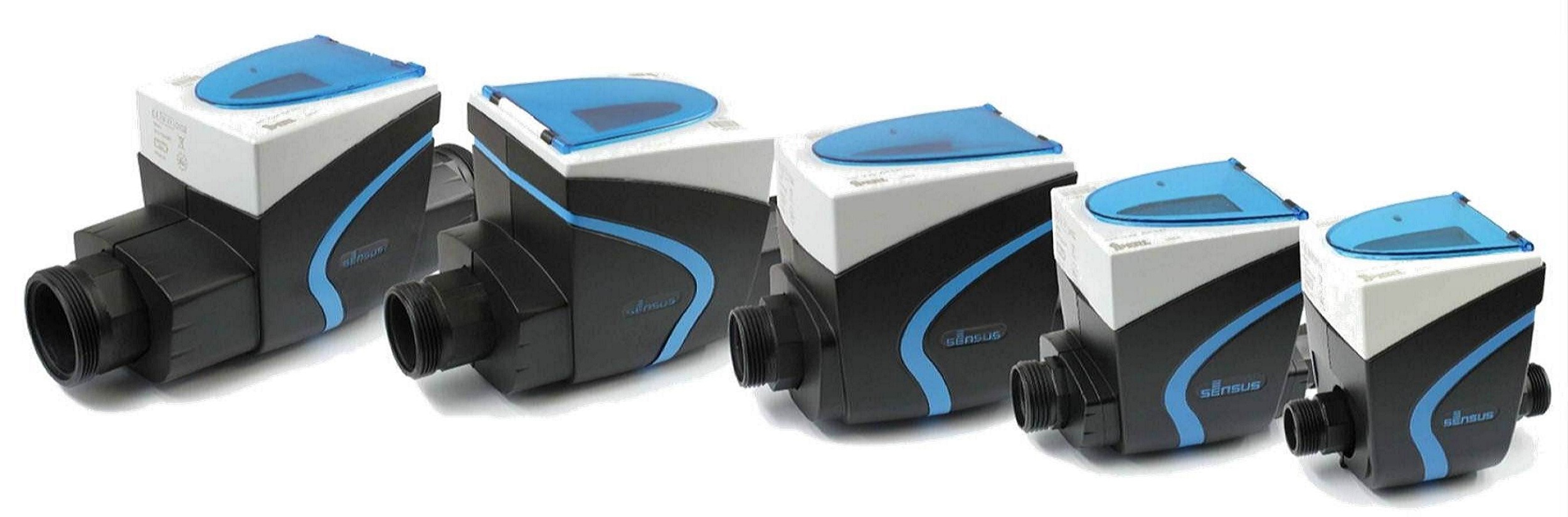

Sensus - 620 C - Inline Composite - Water Meter

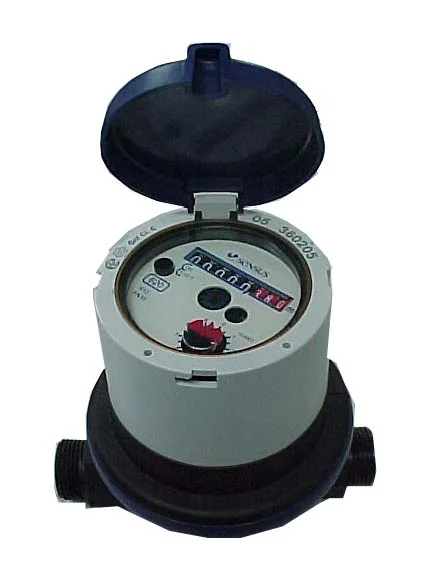

The MID-approved 620C is a high-accuracy meter, thanks to its unique piston measuring chamber that detects even the lowest flow rates. It is available in sizes from 15 to 20mm.

You can choose between a register with an integrated wiper or a sealed copper-glass version. For a more comfortable readout, the 620C is prepared for AMR.

The 620C with composite body is compatible with all new and planned regulations for potable water. Designed with recyclability in mind, it helps reduce your carbon footprint.

Features & Benefits

• DN 15 to 20, PN16
• Light and easy to handle
• Compatibility with all new and planned regulations
• for potable water
• Unrivalled accuracy and measuring range
• High resistance to impurities and aggressive water
• Quiet operation

Applications

• The 620C is a high-precision meter.
• Due to its unique piston-measuring chamber, even drops of water are counted.
• With the 620C you are assured of continuously good metrology.
• A clear view is either provided through a register with an integrated wiper or a sealed metal/glass register that does not fog. For a faster and more comfortable readout, the 620C is prepared for AMR
• Due to our broad product range of system solutions, you can adapt the 620C to all your AMR needs.
• Not least by its tamper-proof design and its long life span, you can be confident in selecting the 620C.

Approvals

EC type-examination certificate in conformity with

• 2014/32/EU (MID)
• OIML R49:2013
• EN 14154:2005+A2:2011
• ISO 4064:2014

Q3 2.5 DE-07-MI001-PTB002

Q3 4 DE-09-MI001-PTB004

Certificate of compliance for potable drinking water

KTW/DVGW (D) ACS (F)

WRAS (UK) Hydro check (B)

KIWA ATA (NL)

Performance Data

Metrological characteristics in accordance with Measuring Instruments Directive

Metrological characteristics

Typical Accuracy Curve

Typical Head Loss Curve

Typical Marking

Accuracy and reliability

Thanks to the advanced design of its measuring chamber the meter has an extremely low starting flow. It can be supplied with a metrological seal according to the MID regulation 2014/32/EU with a ratio R up to 400.

Foreign matter present in the water is filtered out by either the tubular strainer on the inlet or the seat strainer. Particles can go through the meter without damage; the patented elastic pivot enables the particles to pass between the piston and the measuring chamber. All the gears are situated in the dry register, which eliminates any risk of blockage due to suspended particles in the water.

The 620C/620MC water meter keeps its metrological accuracy for many years of operation, even in very difficult working conditions.

Legibility

The display on 8 drums (5 for m3, 3 for liters) and 1 pointer ensures perfect readability. The lowest resolution is 0.05 liters. The dial has a central disc whose rotation indicates the passage of water. This indicator can be used to reveal a downstream leak. The plastic dial is equipped with a wiper for optimum legibility under all conditions. The 620C/620MC water meter can operate in any position and its dry dial register can be rotated up to 350º. The dial can therefore be easily read under all conditions of use. As an option, the meter can be supplied with a metal/glass register, making it perfectly water-tight (IP 68).

AMR fitting

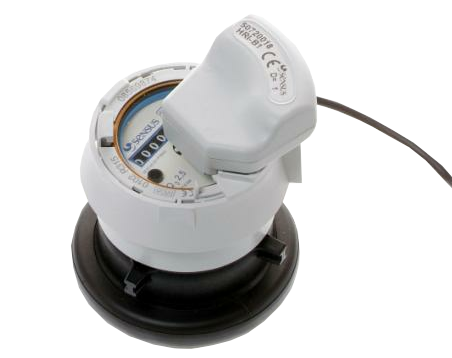

The dial of the meter is equipped as standard with a pointer able to activate the HRI sensor. By detecting the rotation of the pointer and its direction, the electronic circuitry of the HRI converts this into reliable electrical output signals. For more information refer to Sensus - HRI

The HRI is available in two variants:

1) HRI-A Pulse Unit

This gives a pulse output that can be used for reliable counting of the volume.

2) HRI-B Data Unit

The HRI Data unit is a data interface that supplies the meter reading as well as the serial or customer number. This version additionally provides a pulse output as described above.

The HRI data Unit can be connected to an M-Bus network for remote reading or a MiniPad for mobile inductive reading (Minibus). both in accordance with the IEC 870 protocol.
