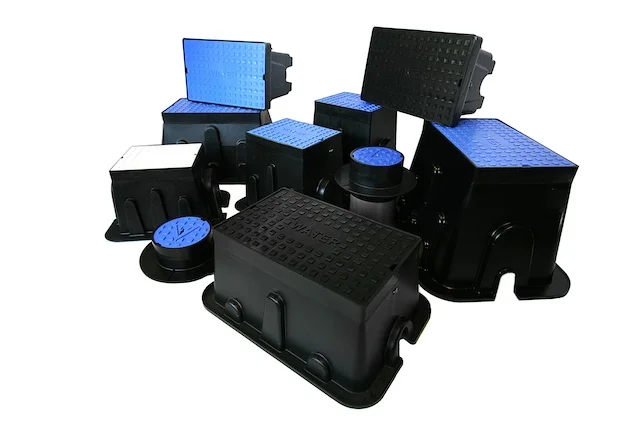

In Ground Polypropylene Boxes

Superior Strength Polypropylene, Large top & bottom flange for max strength underload, Stainless flexi cable to secure lid + metal detection rods, Superior antislip pedestrian tread pattern design exceeds AS/NZ 3661:1. Square corners provides for better compaction and ease of paving, Extensive optional base range adds strength while securing and protecting components, Polypropylene lid option strength replaces need for aluminium.

MINI TOBY BOX RANGE

                           Dimensions

                                 Lid 160mm

                                 Internal 165mm (will fit 150mm pipe)

                                 Height 125mm

                                 Optional Base Available to suit 150mm PVC connector

                                                                                                                                               Download Toby Brochure

MIDI BOX RANGE

  Internal Box Dimensions

                      L            W           H

AMB200 - 300mm x 260mm x 235mm

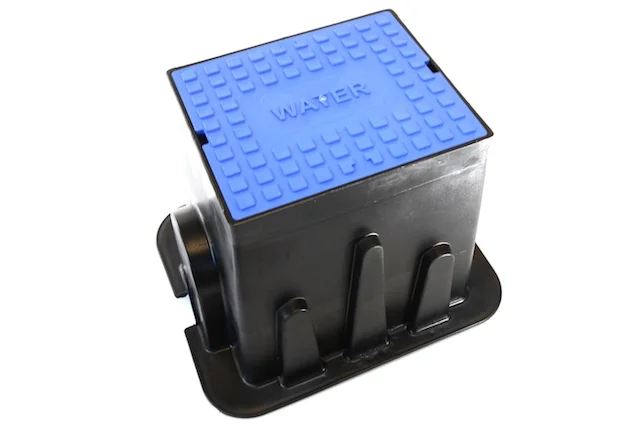

AMB300 - 300mm x 260mm x 305mm

AMB350 - 300mm x 260mm x 350mm

 Download Midi Box Brochure

JUMBO BOX RANGE

Internal Box Dimensions

                         L             W            H

 AMBJ200 - 520mm x 315mm x 180mm

 AMBJ250 - 560mm x 355mm x 240mm

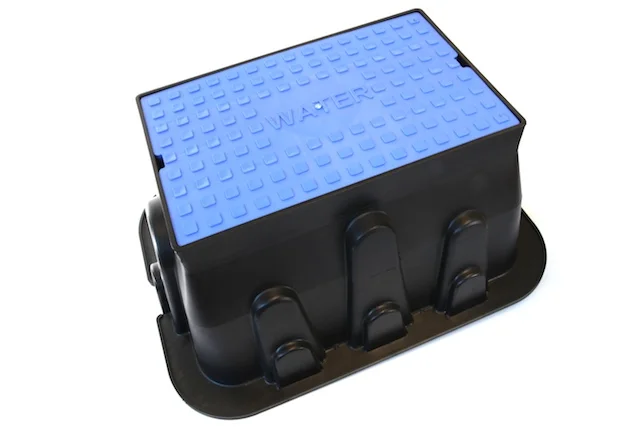

 AMBJ320 - 560mm x 355mm x 310mm

 Download Jumbo Box Brochure

TAPER BOX RANGE

Internal Box Dimensions

                          L             W            H

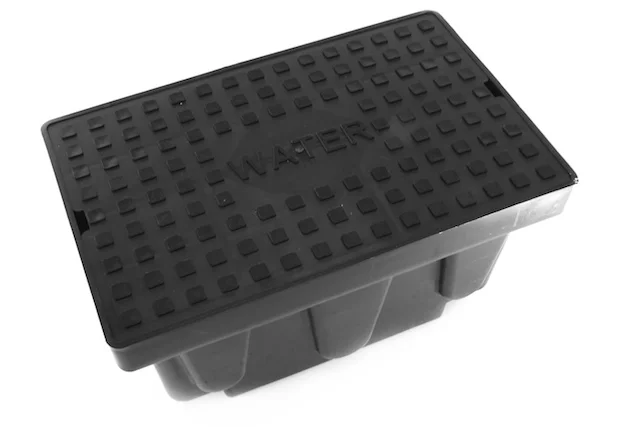

  AMBT240 - 420mm x 260mm x 240mm

  AMBT285 - 420mm x 260mm x 285mm

 Polypropylene lids are available in a varity of colours
