| Brand: | Zurn Wilkins |
| Category: | Pressure Regulators, Pressure Reducing Valves |
| Size Range: | 15, 20mm |
| Connection: | 15, 20mm - Threaded Male / Female BSPT |
Product Description
Designed for installation on cold water service lines as a means of protection against excessive pressure buildup. These devices are for pressure only and should be used in conjunction with other temperature limiting devices. Also suitable for static relief, low capacity pump relief, passive solar, thermal expansion relief and other similar uses in commercial and industrial applications.
Technical Data

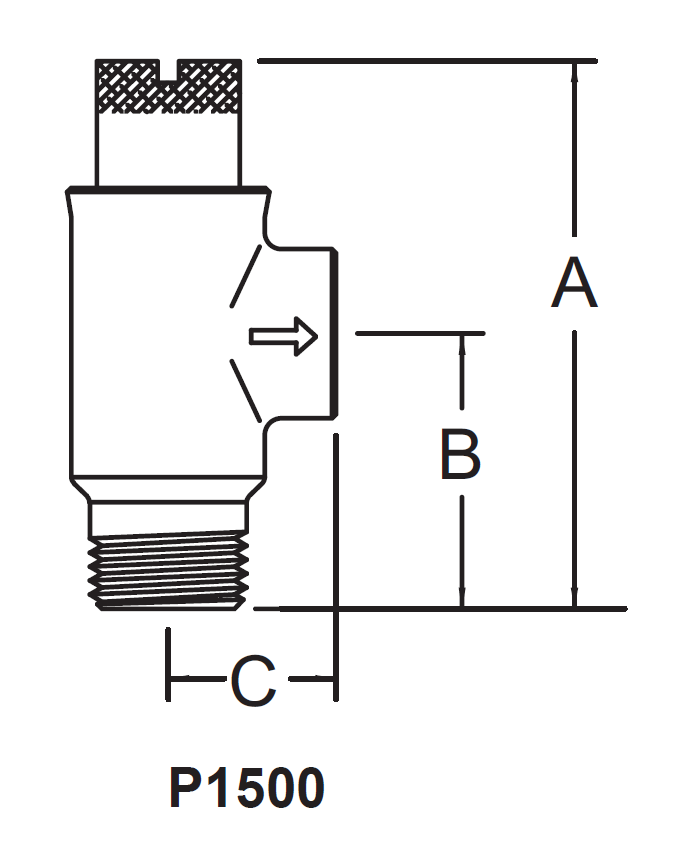

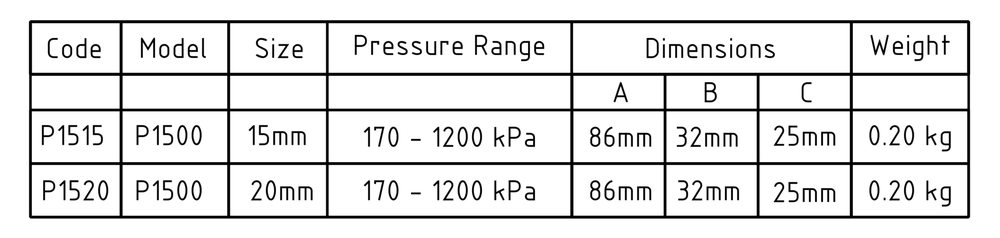

Dimensions & Weights
Technical Specifications
Materials
- Main valve body: Cast Bronze
- Access covers: Brass
- Internals: Stainless Steel / Brass
- Elastomers: Silicone / Buna Nitrile
- Springs: Stainless steel

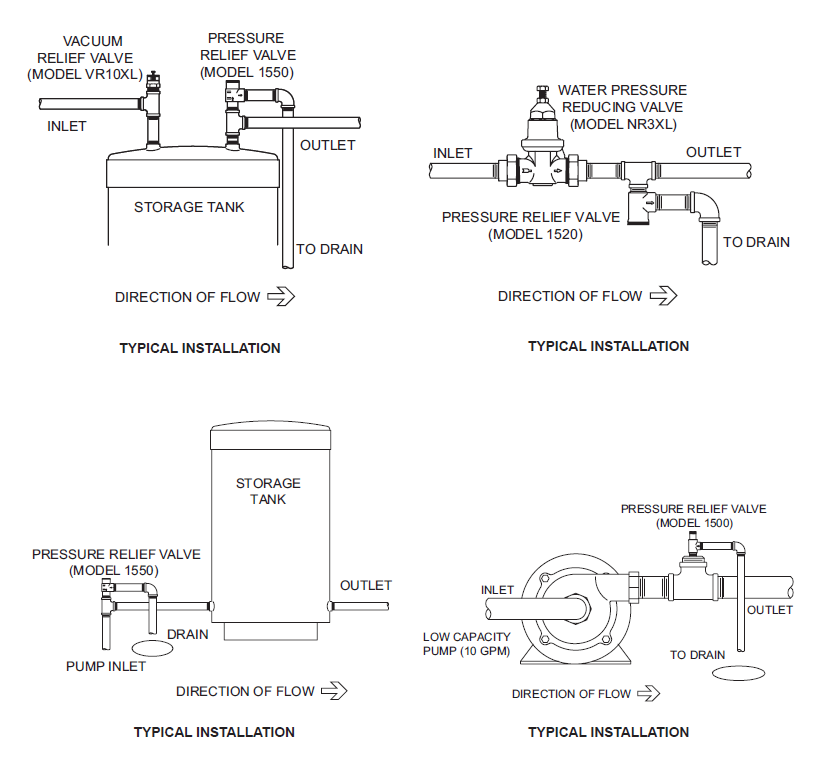

Typical Installation
Local codes shall govern installation requirements. Unless otherwise specified, the assembly shall be mounted in accordance with the manufacturers’ instructions and the latest edition of the Uniform Plumbing Code. Assembly shall be installed with adequate drain and sufficient side clearance for testing and maintenance. The installation shall be made so that no part of the unit can be submerged or where relief valve discharge could cause damage.
Features and Benefits
- Maximum working water pressure 12 Bar
- Maximum working water temperature 98°c
- Hydrostatic test pressure 12 Bar
Zurn Wikins - P1500 - Pressure Relief Valves

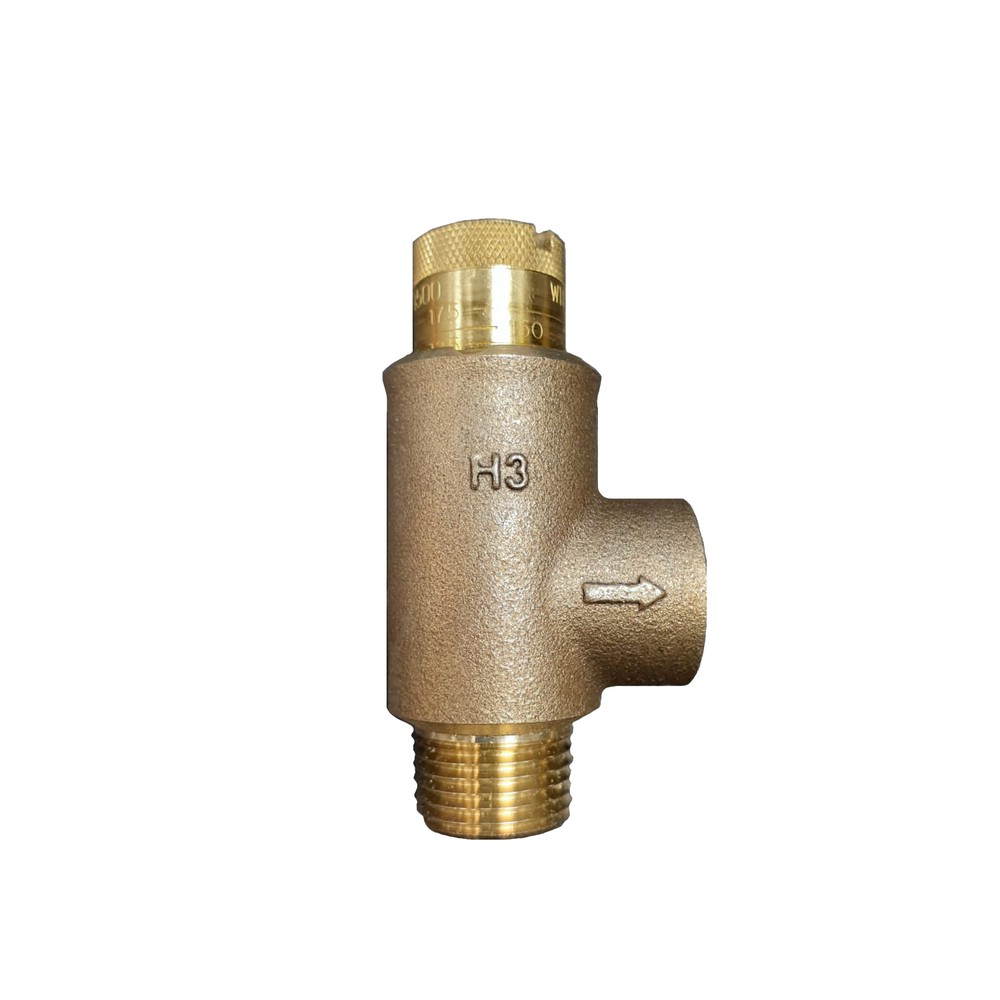

Zurn Wilkins - P1515

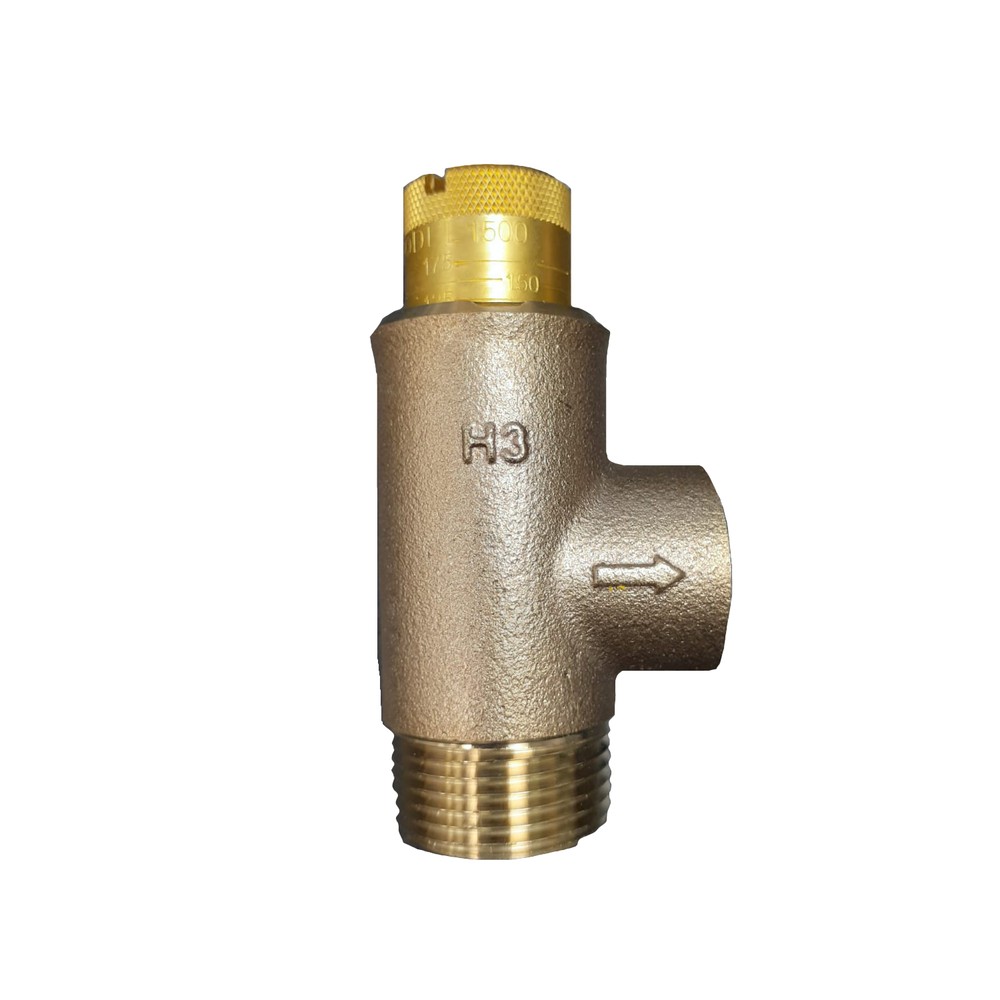

Zurn Wilkins - P1520
| Product Code | Size | Desciption |
|---|---|---|
| P1515 | 15mm | Angle Relief Valve Calibrated Adjustment 17 to 100m |
| P1520 | 20mm | Angle Relief Valve Calibrated Adjustment 17 to 100m |
