Product Description
The BERMAD Adjustable Direct Acting Pressure Reducer is actuated by a pressure-responsive diaphragm, which seeks to reach an equilibrium between hydraulic and set spring force.
The BERMAD Model PRV is built of reinforced plastic that endows it with excellent hydraulic performance capabilities and high mechanical strength. It reduces higher upstream pressure to lower constant downstream pressure regardless of fluctuating demand or varying upstream pressure.
Features & Benefits
- Advanced Construction Materials
- High mechanical strength
- Proven pressure, flow, and weather resistance
- Adjustable Direct Acting Pressure Reducer
- Constant downstream pressure
- Immediate response
- Settable according to season and stage
- Plastic Body and Trim
- Highly durable, chemical and cavitation resistant
- Minimizes friction
- Unitized Rolling Diaphragm and Guided Plug
- Accurate and stable regulation
- Prevents diaphragm distortion
- User-Friendly Design
- Can be installed at any orientation
- Simple in-line inspection and service
Technical Data
Operation

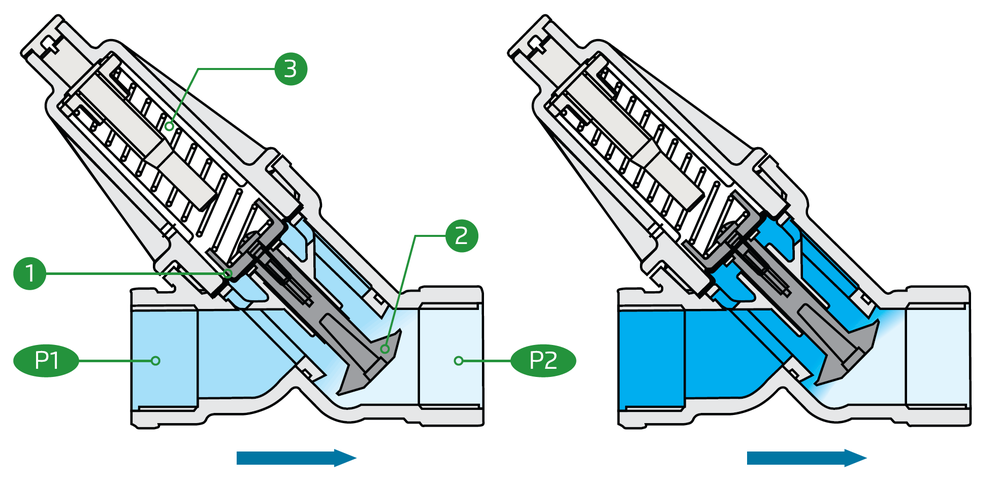

The Upstream Pressure P1 applies balanced opening and closing hydraulic forces under Diaphragm 1 and above the Plug 2. The Downstream Pressure P2 applies hydraulic closing force under the plug, which seeks to reach equilibrium with the Set Spring 3 force. Should P2 rise above the setting, the hydraulic closing forces rise above the mechanical force of the spring, pushing the plug to modulate closed, and reducing P2 back to setting.
Materials
Body, Cover, and Actuator Assembly:
- Glass fiber reinforced
- Polyamide 6
Diaphragm:
- NBR (Buna-N),
- Nylon fabric reinforced
Spring:
- Stainless Steel
Size
- 1½”; DN40
End Connections
- Female Threads BSP; NPT
Flow Range
- 0.45-18m³/h; 2-80 gpm
Pressure Ratings
- 10 bar
Operating Pressure Range
- 0.7-9 bar
Temperature
- Water up to 60°C

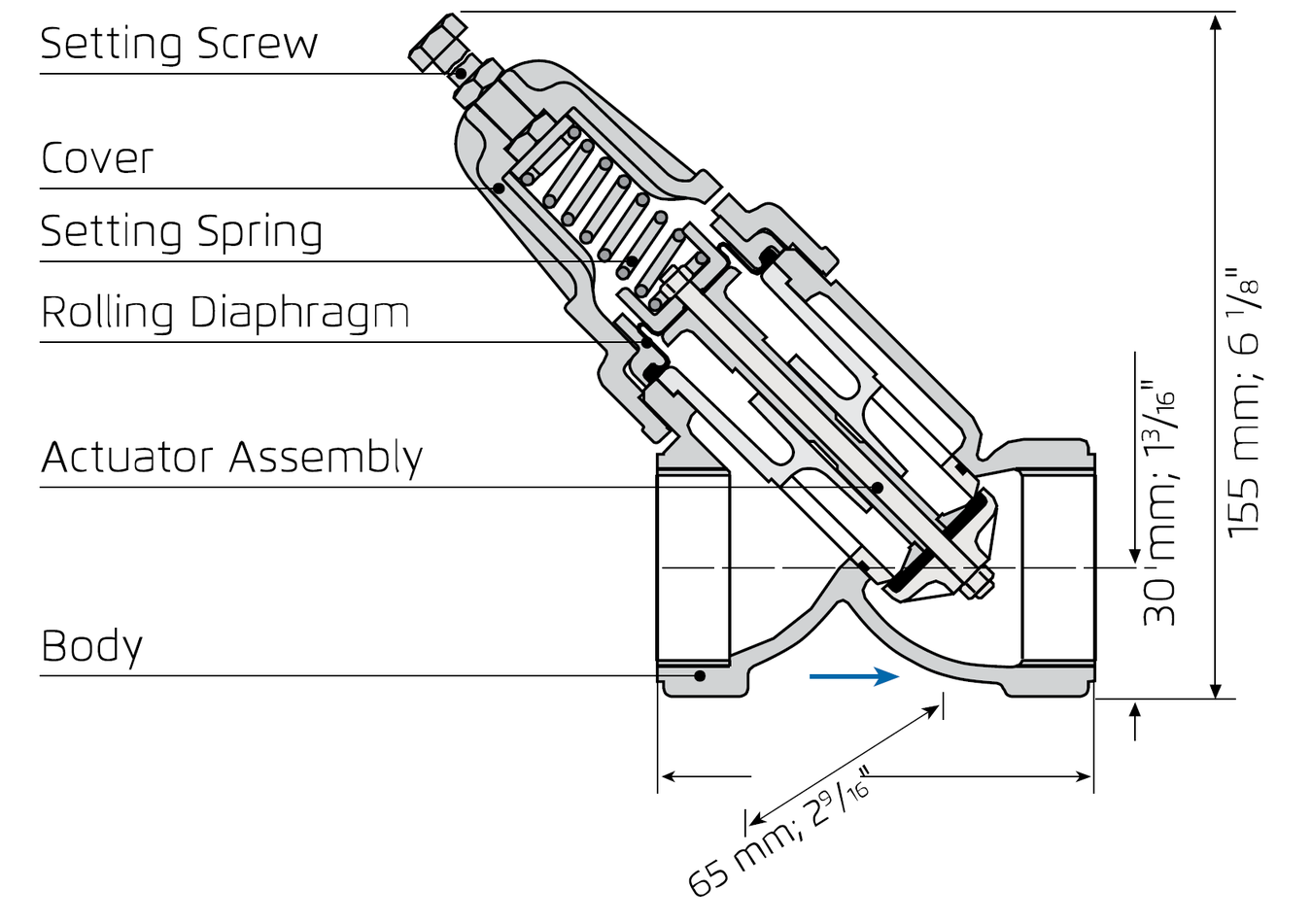

Technical Specifications
Bermad - Adjustable Direct Acting Pressure Reducing Valve
Product Code | Size | Description |
---|---|---|
PRV020 | 20mm | Direct Acting PRV, Adjustment 8 - 40m, Pressure Rating 9 bar |
PRV025 | 25mm | Direct Acting PRV, Adjustment 5 - 55m, Pressure Rating 9 bar |
PRV040 | 40mm | Direct Acting PRV, Adjustment 5 - 55m, Pressure Rating 9 bar |
Adjustable Spring Range option to be specified with order:
20mm
White 'B' Spring (8-25m)
Red 'C' Spring (20-40m)
25-40mm
White B' Spring (5-12m)
Red 'C' Spring (10-20m)
Black 'D' Spring (15-35m)
Brown 'Q' Spring (30-55m)
