Bermad - Delta - Cloud Based Pressure Controller

The DELTA is a stand-out pressure management controller for system optimization. It provides a calmer network, improved efficiency, and a reduction of leakage and bursts. The result is a reliable water supply and better service for the client. The DELTA is a fully remote-controlled fail-safe battery-operated controller. The DELTA logs the data and uses cyber-secured technology to transmit the data to a user-friendly cloud platform.

Features and Benefits

• Up to 16 time or flow windows
• Highly accurate and stable regulation
• Latch override to fully open the valve at insufficient pressure supply, or fully close in the event of a pipe burst
• 5 years internal battery operated or external power
• Large capacity data logging
• Full communication via the cloud for monitoring and remote setting
• Intuitive and user-friendly platform
• Advanced modern graphs and reports
• Alert and notifications via: E-mail, WhatsApp, SMS

Applications

• Full modulation pressure reduction with the DELTA internal solenoids and a BIAS chamber
• 2 pressure regimes by switching between “Low” to “High” set points according to flow rate or time windows

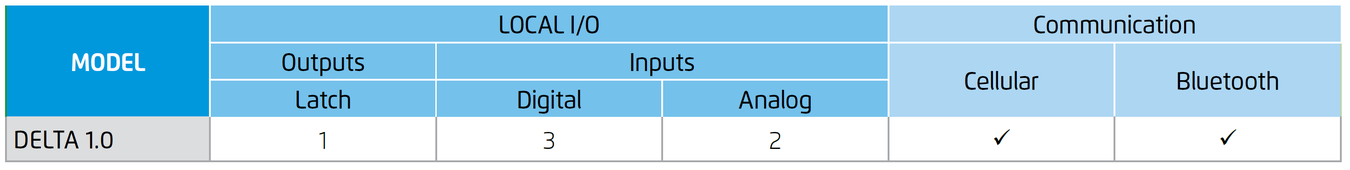

Bermad Delta Series

Bermad Cloud

BERMAD Cloud offers web-based internet access to your pressure management system:

• Global management of all your DELTA controllers
• User-friendly and intuitive control features
• Real-time status and monitoring

Bermad Cloud Features

• Cyber-protected login:
  • Multi-user connectivity for enhanced management and technical support
  • Individual access level authorization
• Global Account Management:
  • Language and time zone selection
  • User privileges
  • Unit selection (Metric, Imperial)
• Dynamic dashboard:
  • Geo-referenced map with a global view of your pressure management project
    • Current status of DELTA controllers
    • Up-to-date pressure & flow settings
  • Quick access to the DELTA management tools
    • Setup and programming
    • Wizard for guided unit config
• Alert control:
  • Alert status log and WhatsApp, email, SMS notification
  • Alert management tools:
    • Controller reaction to each type of alert
    • Alert notification settings per user
• Log information:
  • System state, operation events & alerts
  • Periodic sensor data acquisition
    • Water meter flow & accumulations
    • Pressures
    • Analog sensor data
    • Battery voltage level
• Report generator:
  • Personalized reports for operation and traceability
  • Export to Excel and PDF

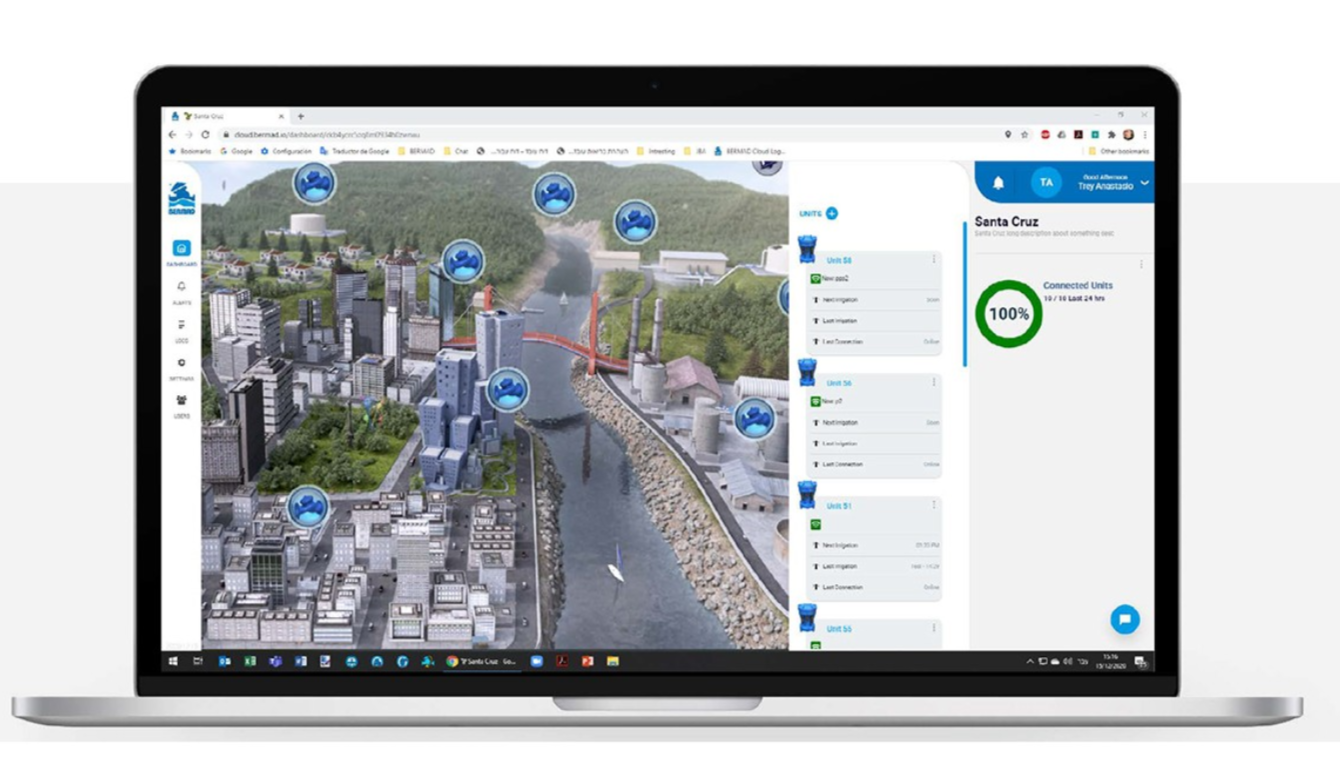

Dynamic Dashboard

Main Features

• Valve is “Normally Low” in event of mechanical failure
• Manual override to open and close the valve
• For optimal operation allow to set
  • Fast & slow regulation intervals
  • Dead-band from set-point
• Sensors calibration for all physical units
• Internals
  • 2 clog-free high-speed internal solenoids for BIAS chamber operation
  • 2 accurate internal pressure sensors +/- 0.1%
• Local I/O:
  • 1 Latch outputs (16V DC; 100 ms pulse) for Day/Night control or venting the valve chamber
  • 3 digital inputs for metering and discrete sensors
  • 2 analog inputs for 4-20mA or 0-10VDC sensors for pressure, level, and metering

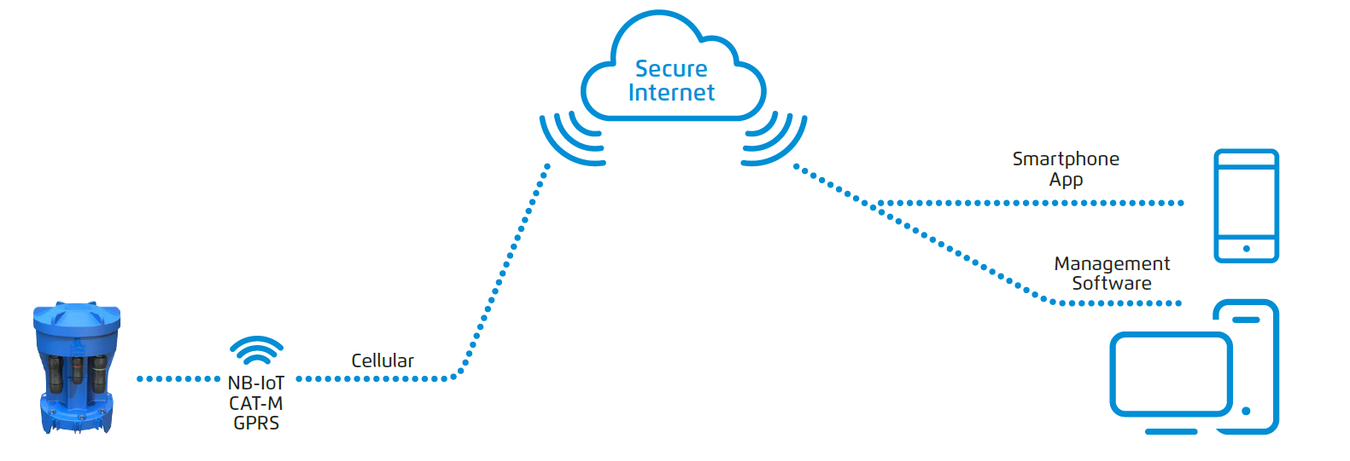

Connectivity

• Built-in 4G Modem with 2G fallback
  • Global data sim card for worldwide plug-and-play internet connectivity
  • Supports NB-IoT, CAT-M & GPRS communication protocols
• Bluetooth communication for technician mode tasks

Operation Modes

• Online mode: 24/7 connection between controller and cloud (require external power source)
• Offline mode:
  • Autonomous control operation, predefined cloud communication, and real-time alerts
  • Designed for power saving when using internal batteries

Power Source

• 2 Lithium batteries for operation in offline mode
• 9-24VDC external power input for online mode operation (solar panel, grid power, etc.)

An integral Data Logger with more than 150K records, enables a comprehensive log registry that can cover long periods of offline operation

Periodic over-the-air firmware upgrades (FOTA)

Outdoor installation: IP68 rated with UV protection

Standard Compliance: CE

Industrial-grade electronic components: -35°C to 75°C

Push-type connectors for quick and easy wiring without the need for special tools

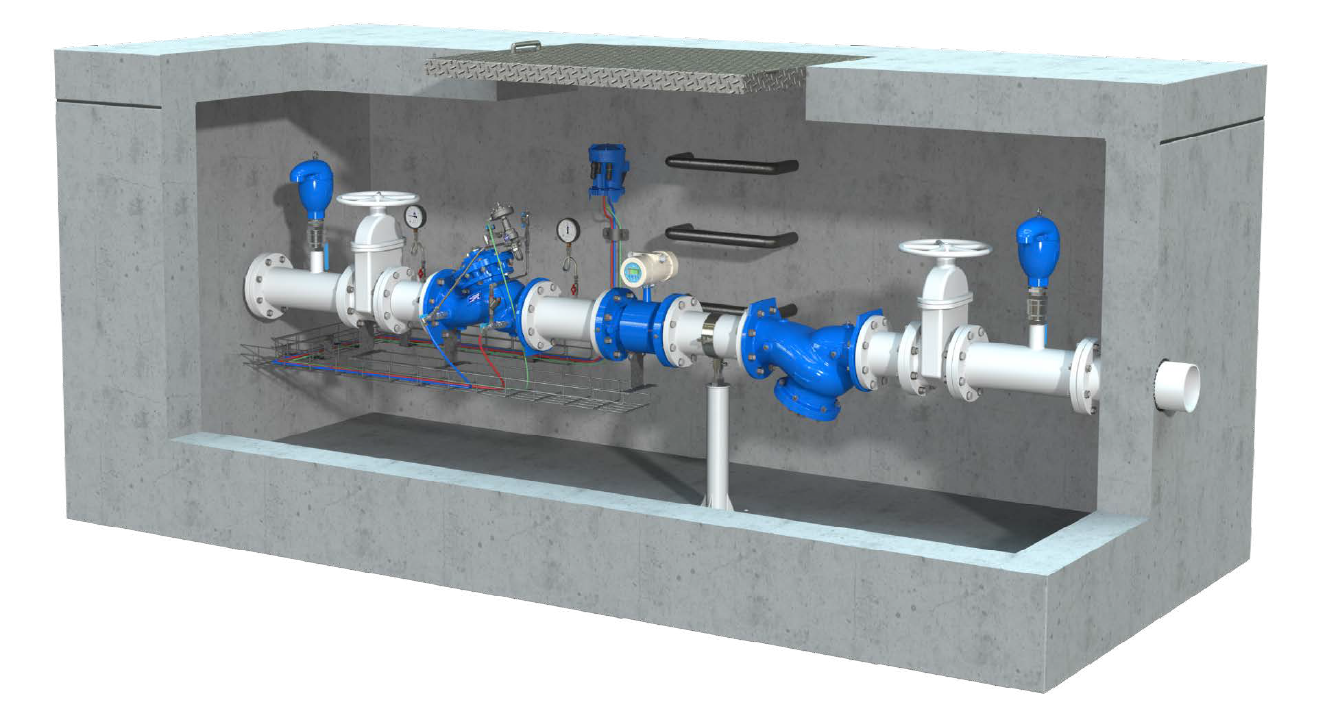

Typical Installation
