Bermad - Green App - Smart Irrigation Controller

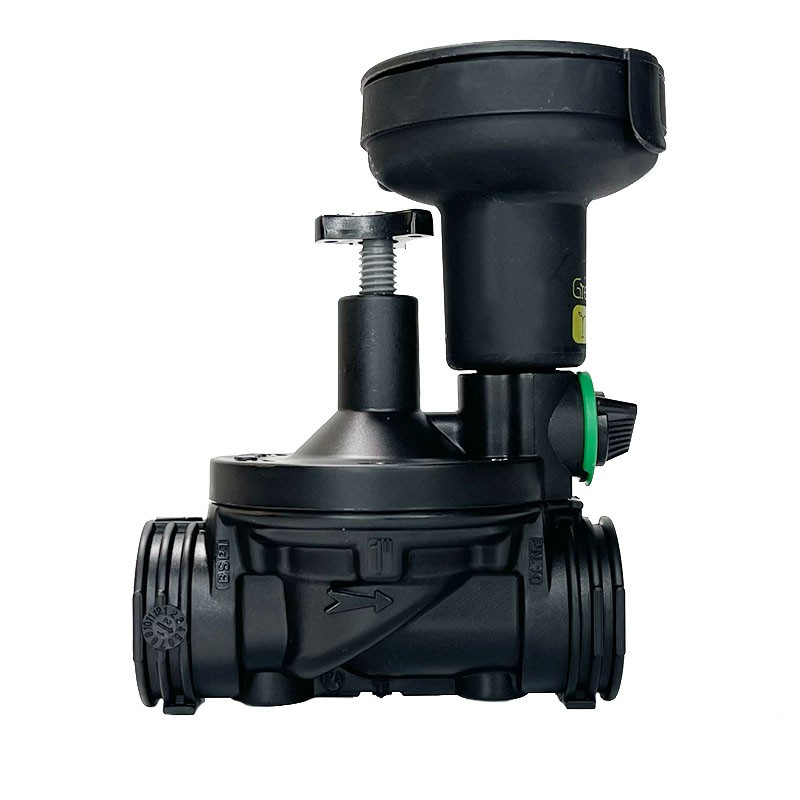

Bermad - Green-App-Irrigation-Controller - Product Image
Brand: Bermad
Category: Irrigation-Automation, Irrigation Controllers
Size Range:


Pressure Rating:

10 bar


Female Threaded BSP

Product Description

The BERMAD Green App is a smart, flexible, easy-to-use, Bluetooth single-station irrigation controller integrated with a solenoid actuator for easy and compact installation on any control valve. Your gardening and irrigation just got so much easier. With the BERMAD Green App, you can connect to a free (Android and iOS) user-friendly app and manage your irrigation from your smartphone or tablet. How convenient!

Features and Benefits

  • Easy to install, simple to operate.
    • Install the valve – the controller is already included.
    • Intuitive - intuitive app provides easy programming.
  • Perfect solution for hidden or underground box installation
    • Change settings using the app from 10-30m; 30-90f.
    • No wires and no screen – the keypad is in your pocket.
    • Fully water protected IP68
    • Durable in all environmental conditions
  • Low power consumption
    • Two standard replaceable 1.5v AA batteries
    • Bluetooth 4.0 communication requires ultra-low energy.
    • Up to three years of continuous operation
  • Irrigation cycles control by days and hours
    • Irrigation duration from 1 minute to 24 hours
    • Weekly and cyclical programming
    • Option of naming and managing multiple controllers
  • Manual operations
    • TRIO 3-position Manual override: Open, Automatic, Close
    • Manual setting of valve maximum flow

Typical Applications

  • Drip, sprinklers and micro-sprinklers agriculture plots valves
  • Drip, sprinklers and micro-sprinklers landscape irrigation systems
  • Irrigation of flowerpots and window boxes
  • Rooftops and balconies systems
  • Public, roadside, and traffic islands landscaping.

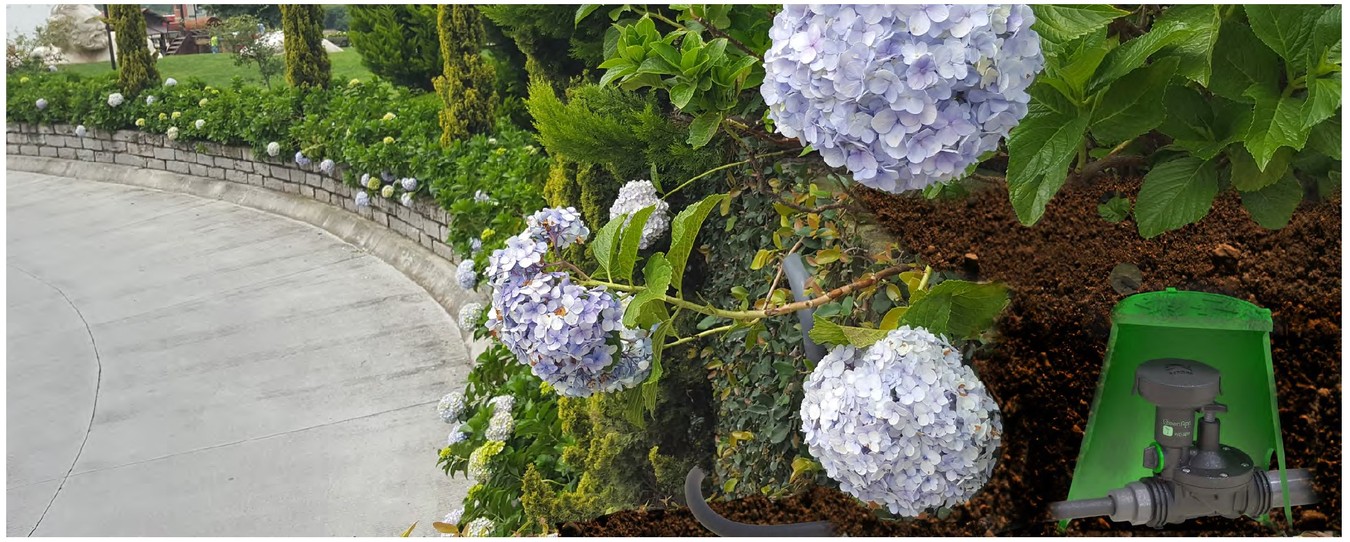

Bermad - Green-App-Irrigation-Controller - Typical Application

Green Mobile App

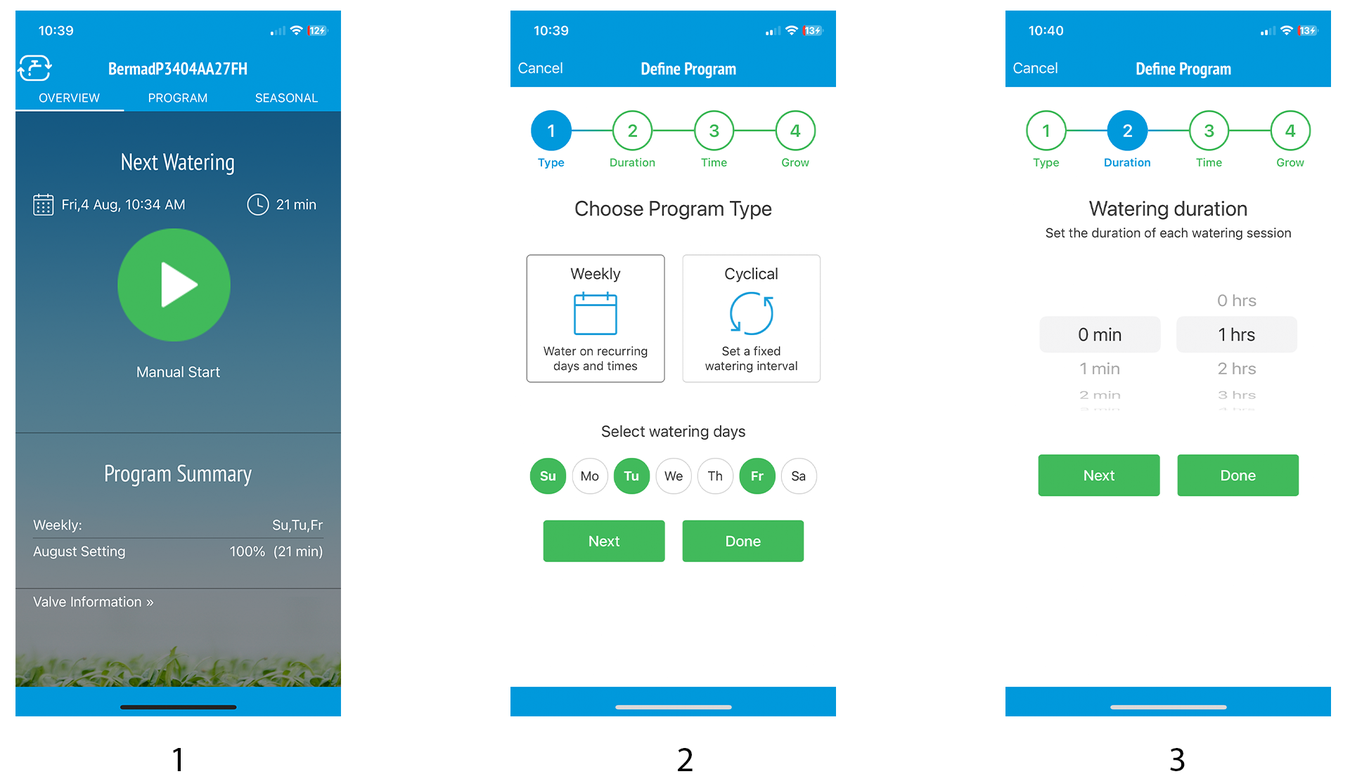

Bermad - Green App - MobileApp1

1 - Overview Screen

2 - Choose a Program: Weekly or Cyclical

3 - Set Irrigation duration: 1 minute to 24 hours

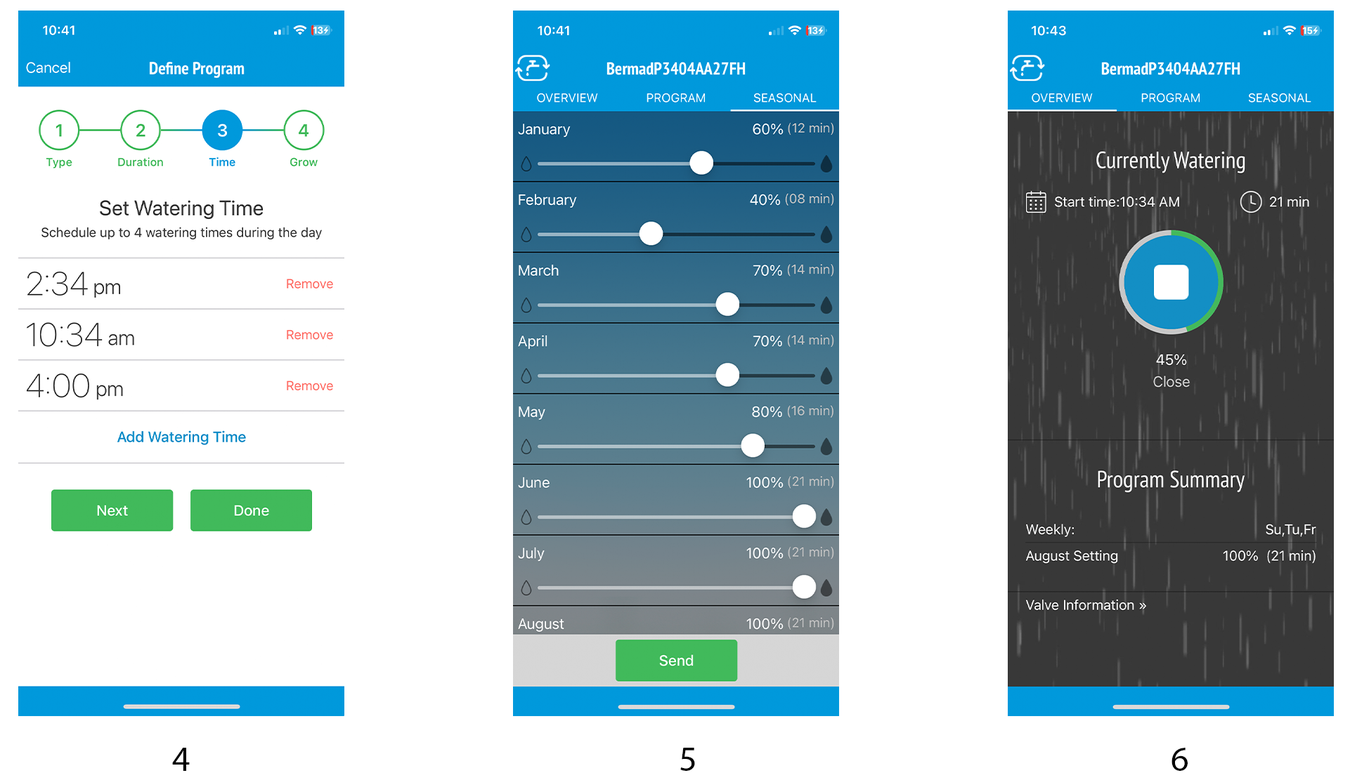

Bermad - Green App - MobileApp2

4 - set up to 4 Irrigation start times per day

5 - Set Irrigation Coefficient (%) by month

6 - Overview Screen Irrigation Status

Technical Specifications

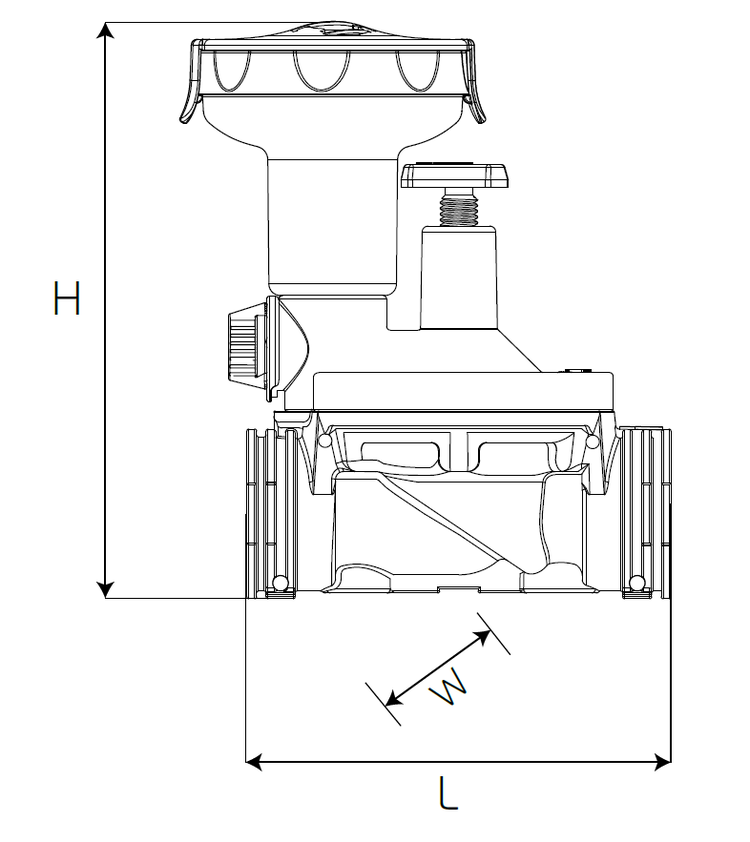

Bermad - Green App - Dimensional Drawing
Bermad - Green App - Dimensions

Bermad - Green App - Smart Irrigation Controller

Bermad - Green-App-Irrigation-Controller - Product Image
Product Code Size Description
GREENAPP15 15mm Bermad - GreenApp Bluetooth Controller - 15mm Bermad 210 Trio Solenoid Valve
GREENAPP20 20mm Bermad - GreenApp Bluetooth Controller - 20mm Bermad 210 Trio Solenoid Valve
GREENAPP25 25mm Bermad - GreenApp Bluetooth Controller - 25mm Bermad 210 Trio Solenoid Valve
GREENAPP40 40mm Bermad - GreenApp Bluetooth Controller - 40mm Bermad 210 Trio Solenoid Valve
GREENAPP50 50mm Bermad - GreenApp Bluetooth Controller - 50mm Bermad 210 Trio Solenoid Valve

The Bermad GreenApp 3way version can be applied to any 3-way valve.

Product Code Description

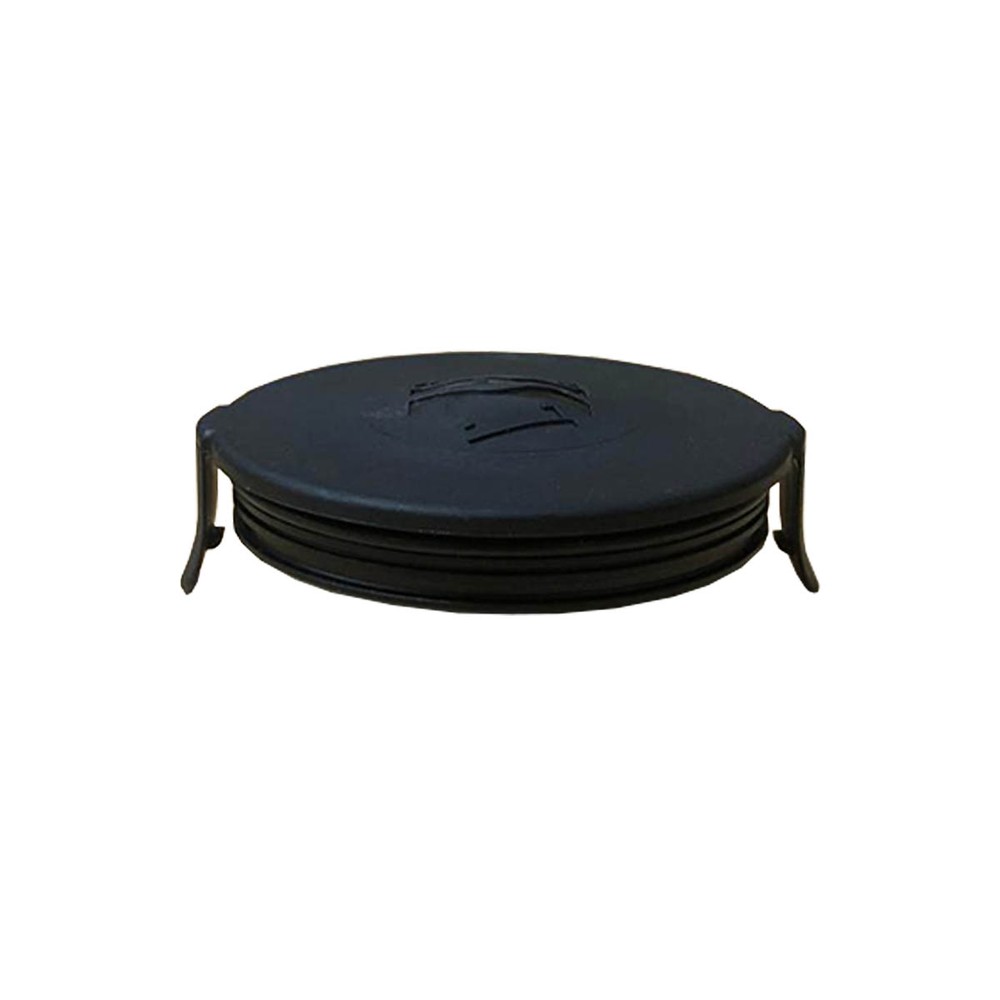

GREENAPP-CO Bermad - Controller only - To suit 2 way Bermad 210 Trio Solenoid Valve

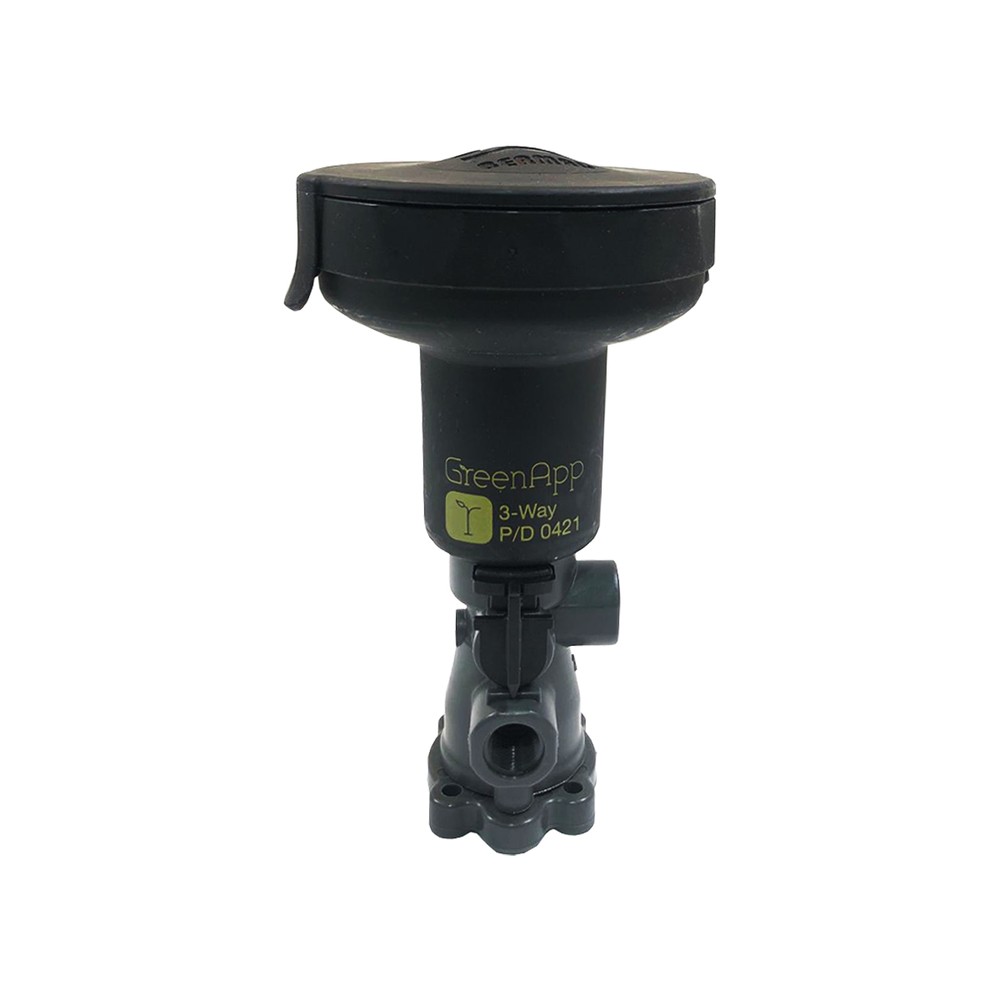

GREENAPP3W Bermad - GreenApp Bluetooth Controller - 3 way Base (not including valve)
