Bermad - Model 2 - Brass - 2 Way Pressure Reducing Pilot

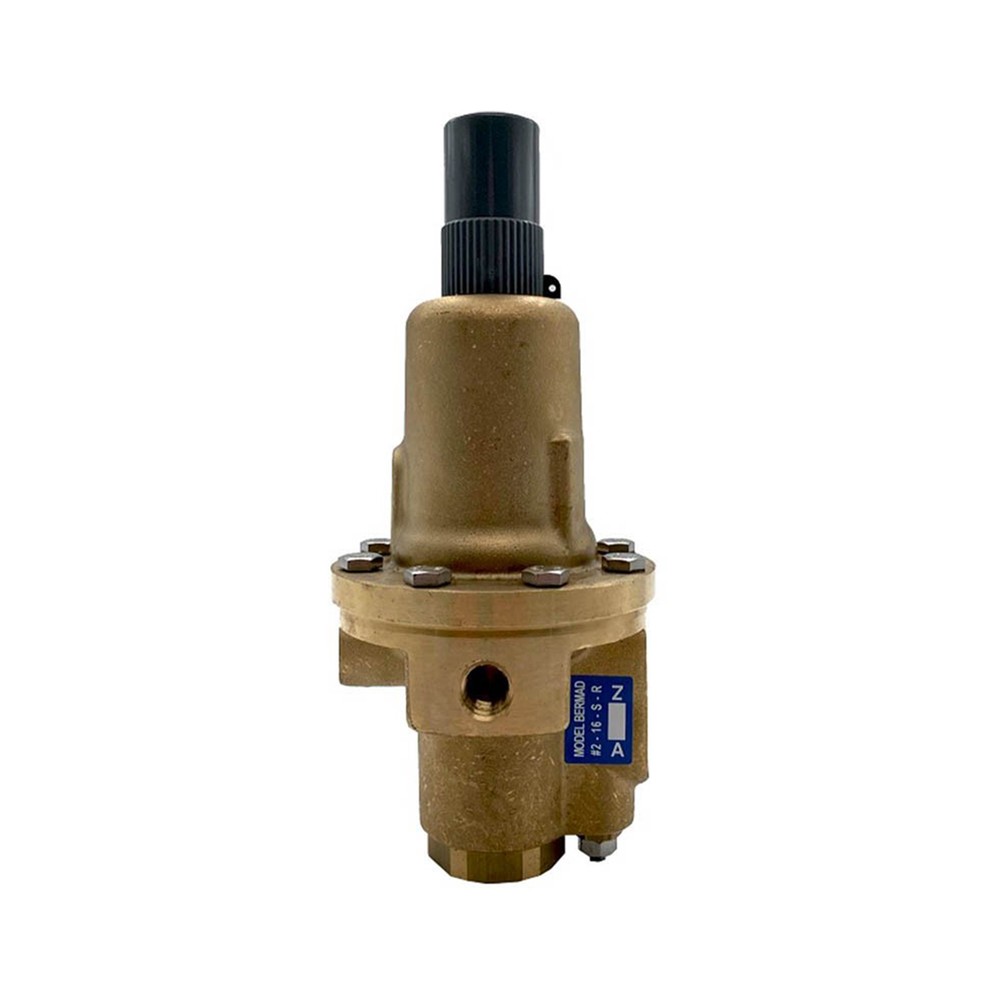

Bermad - Model 2- Product Image
Brand: Bermad
Category: Control Valves, PN16 Metal Pilots
Pressure Range:

1-16 Bar

Product Description

This pilot integrates all principal functions of a 2-way control circuit in a single assembly. It is a direct-acting valve, actuated by a pressure-responsive diaphragm, which tends to reach equilibrium with the set spring force. When used in a pressure-reducing circuit, the pilot modulates closed as downstream pressure rises above the set point. An integral needle valve acts as an upstream flow restrictor as well as a closing speed control.


  • Integral needle valve
  • Internal or external pressure sensing
  • Differential pressure sensing
  • Direct pressure gauge installation

Typical Applications

  • Pressure Reducing Valves sizes (Standard model #2)
  • Flow Control Valves (Modified to differential sensing #2-DR)
  • Surge Anticipating Valves as a low-pressure pilot (Modified to external pressure sensing #2-R)
  • Surge control closing additional feature 49 (Modified to external pressure sensing #2-R)

Technical Data

Pressure Rating

  • 40 bar; 600 psi

Working Temperature

  • Water up to 60°C; 150°F

Flow Factor

  • Kv 1.0; Cv 1.2

Valve Size Range

  • Medium

Standard Materials

Body & cover: Brass

Elastomers: NBR

Internals: Stainless Steel & Brass

Spring: Galvanized Steel

Optional Materials:

  • Metal Parts: Stainless Steel, Nickel Aluminum Bronze, Hastalloy
  • Elastomers: FPM (Viton®)

Adjustment Range

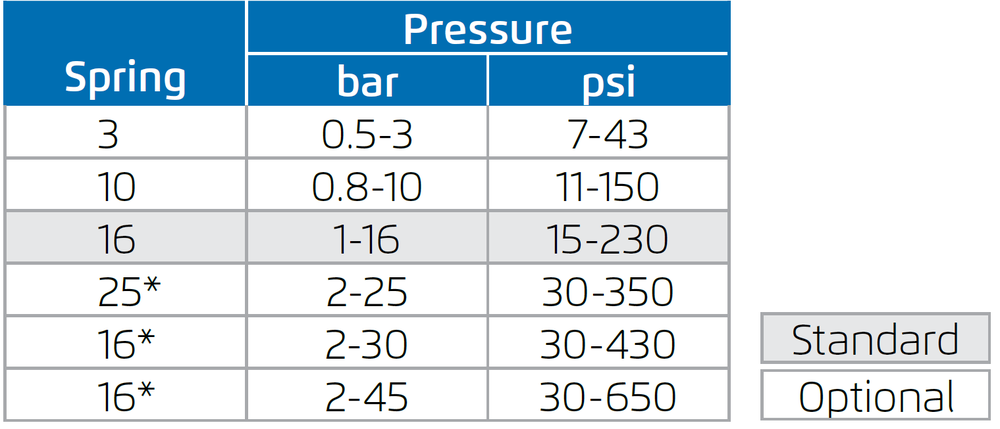

Bermad - Model 2 - Adjustment Range

* With high pressure setting kit


Z - Upstream

A - Valve control chamber

C - Downstream

F/D - External sensing/pressure gauge

Technical Specifications

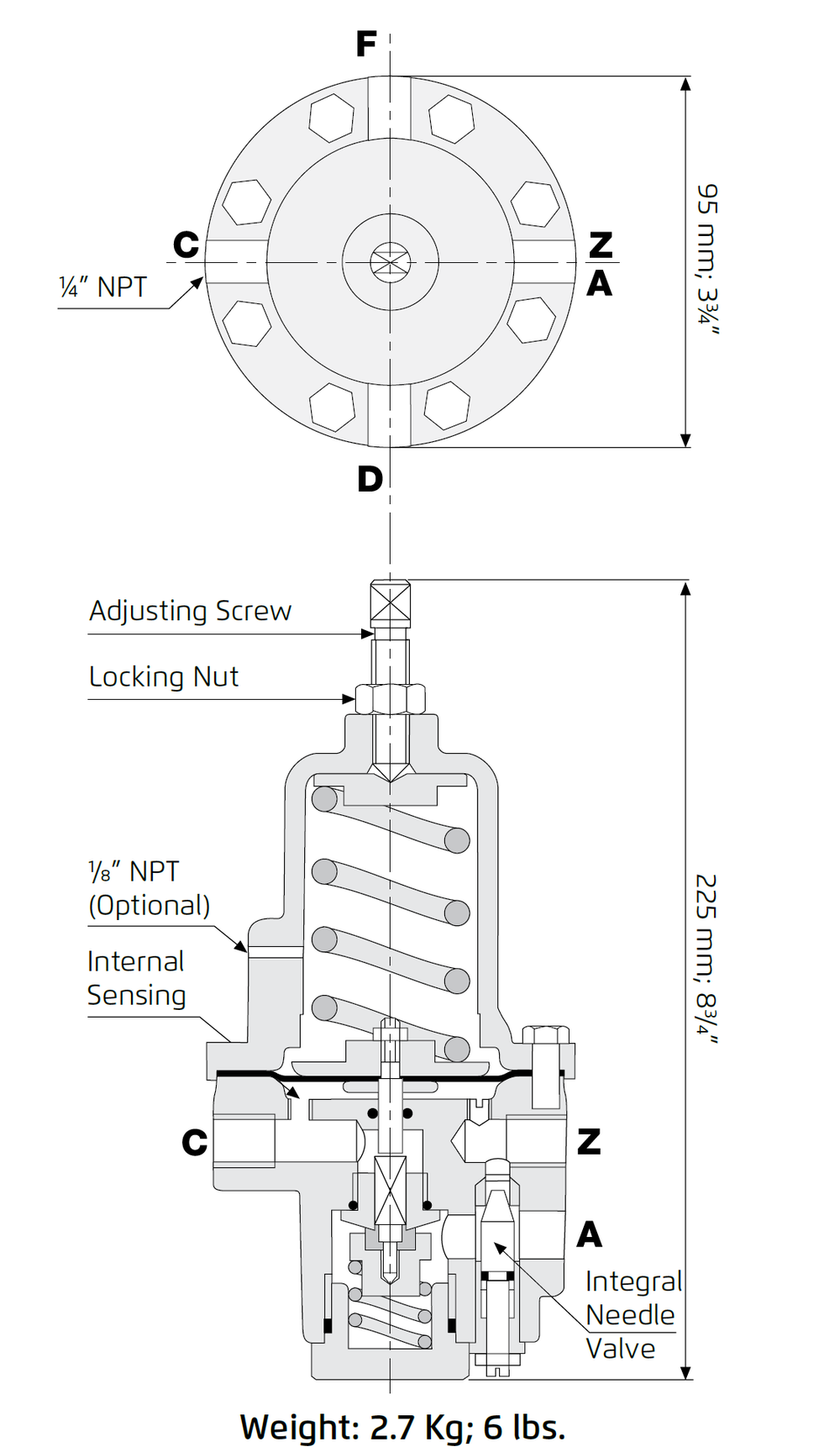

Bermad - Model 2 - Technical Specifications

High-pressure setting kit add 128; mm; 5” to pilot height.

Repair Kit

Product Code Description
7002-RK Repair Kit for Brass Bermad #2 2 Way Pressure Reducing Pilot

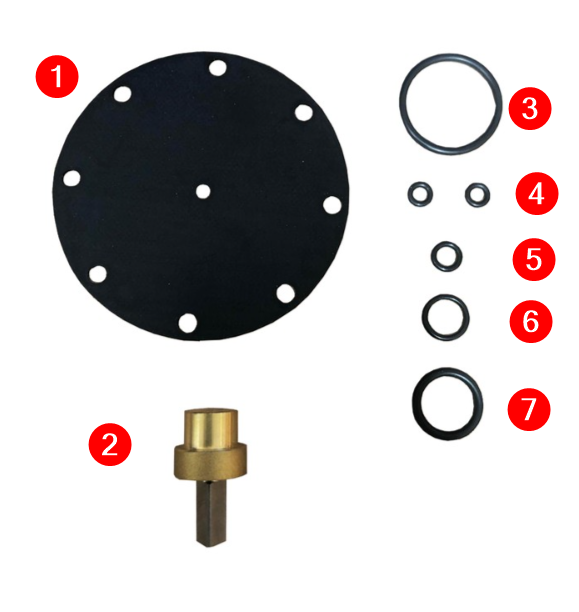

7002-rk -Image
Pos. Description Qty
1 Diaphragm 1
2 O-Ring 1
3 O-Ring 2
4 O-Ring 1
5 O-Ring 1
6 O-Ring 1
7 O-Ring 1

Bermad - Model 2 - Brass - 2 Way Pressure Reducing Pilot

Product Code Rating Description
#2 PN16 Brass Bermad #2 2 Way Pressure Reducing Pilot (1-16 Bar Spring)
