Bermad Model 410 - 3 way Solenoid Valve

The Bermad Solenoid Controlled Valve is a hydraulically operated, diaphragm actuated control valve that opens and shuts in response to an electric signal.

PRODUCT CODE:
410-3W-XXX
SIZE RANGE:
25-250mm

Features and Benefits

  • Hydraulic Control Valve with Solenoid Control
    - Line pressure driven
    - Electrically controlled On/Off
    - Suitable also for remote and / or elevated systems
  • Advanced Globe Hydro-Efficient Design
    - Unobstructed flow path
    - Single moving part
    - High flow Capacity
  • Fully Supported & Balanced Diaphragm
    - Requires low actuation pressure
    - Progressively restrains Valve closing
    - Prevents diaphragm distortion
  • User-Friendly Design
    - Simple in-line inspection
    - Easy addition of control features

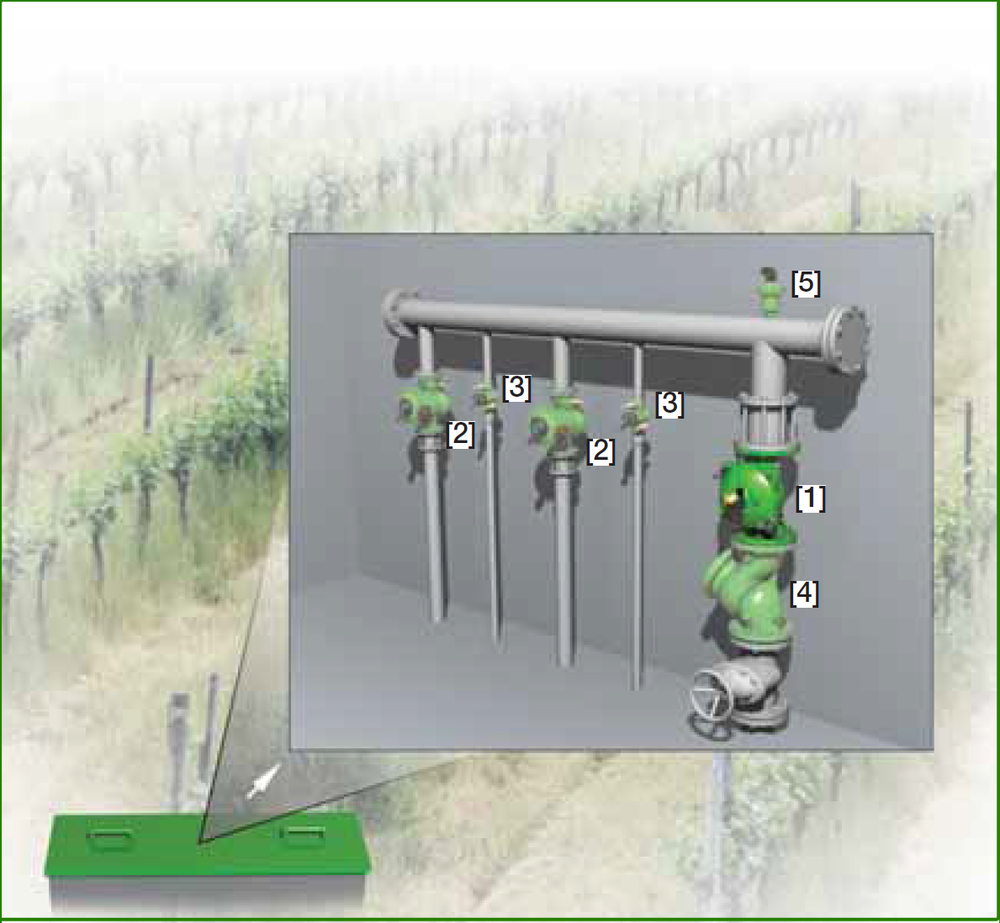

[1] Bermad Model IR-410X opens in response to an electric signal
[2] Bermad pressure Reducing & Flow Controlled Hydrometer Model IR-927-M0-RV
[3] Bermad Pressure Reducing & flow Control Hydrometer Model IR-927-M0-RV
[4] Bermad Strainer Model 70F
[5] Bermad Air Balbe Model ARC-A-I-I

Typical Applications

  • Computerized Irrigation Systems
  • Remote and/or Elevated Systems
  • Distribution Centres
  • Irrigation Machines
  • Low Supplied Pressure Irrigation Systems

Technical Specifications

Dimensions and Weights

Bermad Model 410 - 3 way Solenoid Valve - Dimensions and Weights

Technical Data

Valve Configurations & Size:

Patterns and Sizes: Globe: 3-16"; DN80-400

Angle: 3-4"; DN80-100

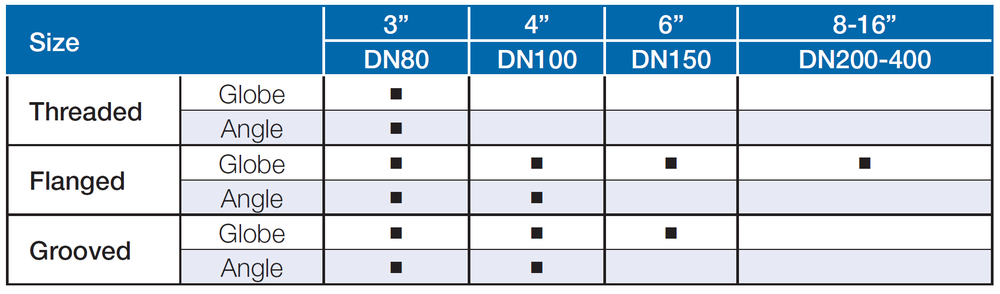

End Connections:

Pressure Rating:

16 bar; 232 psi

Operating Pressure Range:

0.5-16 bar; 7-232 psi For lower pressure requirements please contact us.

Materials:

Body and Cover: Polyester Coated Cast or (10"; DN250 and larger) Ductile Iron

Diaphragm: NR, Nylon Fabric Reinforced with rugged insert

Cover Bolts: Zinc-Cobalt plated steel

Control Accessories: Brass

Tubing and Fittings: Reinforced Plastic and Brass

Solenoid Voltage Range

S-390 & S-400: 24VAC, 24 VDC
S-392 & S-402: 9-20VDC , Latch

S-982 & S-985: 12-50VDC, Latch

Other Voltages available

Flow Chart

Bermad Model 410 - 3 Way Solenoid Valve - Flow Chart

Operation

Bermad Model 410 - 3 way Solenoid Valve - Operation

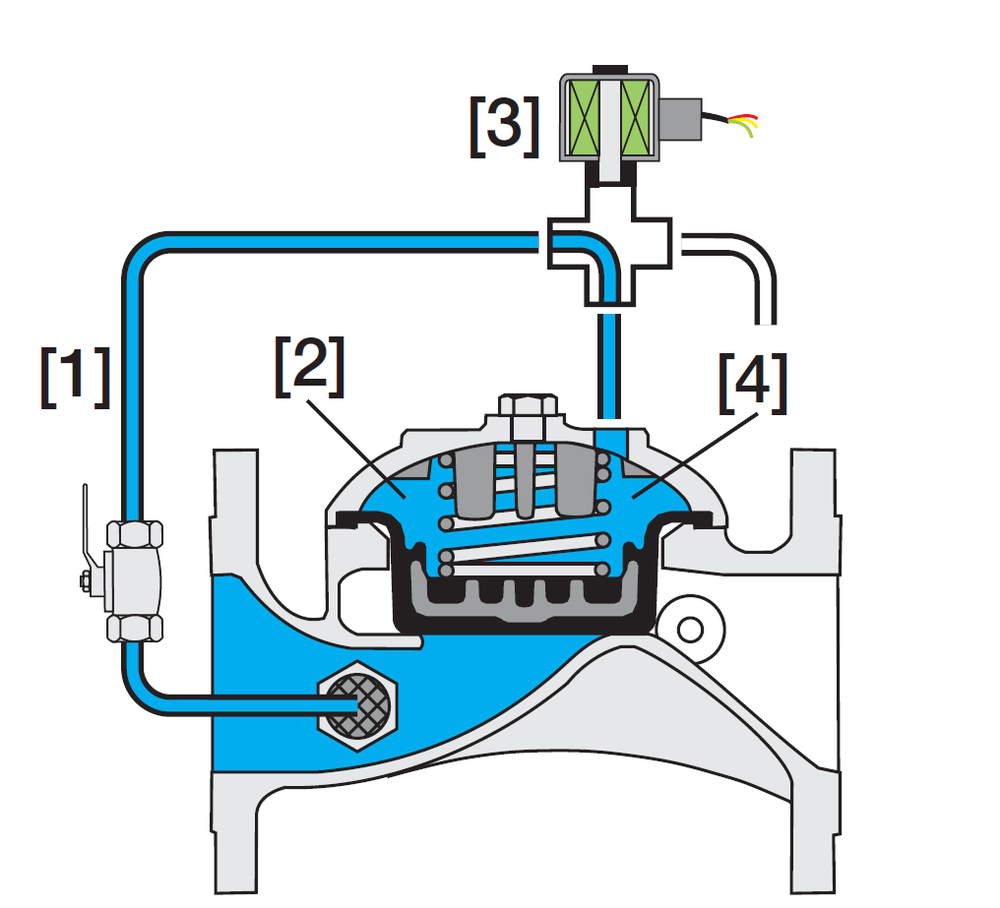

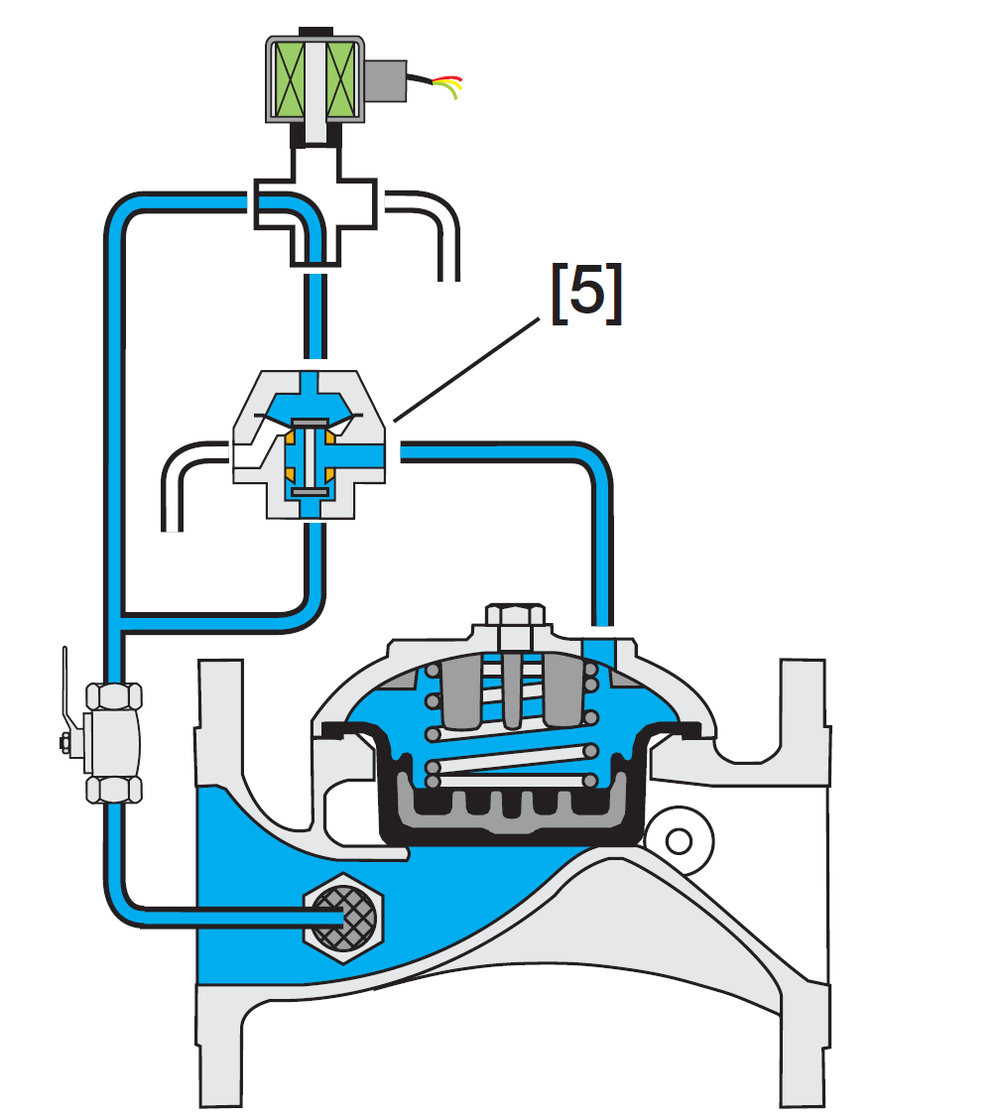

Line Pressure [1] is applied to the Control Chamber [2] through the opened 3-way Solenoid [3]. This creates superior closing force that moves the Diaphragm Assembly [4] toward a closed position. Closing the solenoid causes it to discharge pressure from the Valve control chamber, thereby opening it. For 8"; DN200 valves and larger, a 3-way Hydraulic Relay Valve [5] quickens Valve response.
