Brand: | Bermad |
Category: | Control Valves, PN16 Metal Pilots |
Pressure Range: | 1-16 Bar |
Product Description
This multi-purpose, direct-acting, 3-Way positioning pilot is actuated by a pressure-responsive diaphragm, which tends to reach equilibrium with the set spring force. The pilot directs flow and pressure between its ports:
- When sensed pressure is above the set point, it connects port “C” to “0”
- When sensed pressure is equal to the set point, it blocks connections between all ports.
- When sensed pressure is the below-set point, it connects port “C” with “A” and “Z”. An integral needle valve restricts flow through port “Z”.
Typical Applications
- Pressure Reducing Valves
- Pressure Sustaining Valves
- Adjustable hydraulic relay (N.O. or N.C.)
- Automatic regulation override (feature 09)
Technical Data
Pressure Rating
- 25 bar; 400 psi
Working Temperature
- Water up to 60°C; 150°F
Flow Factor
- Closing (0 to C): Kv 0.26; Cv 0.3
- Opening (C to A): Kv 0.35; Cv 0.4
Valve Size Range
- Small - Medium
Standard Materials
Body & cover: Brass
Elastomers: NBR
Internals: Stainless Steel & Brass
Spring: Galvanized Steel
Optional Materials
- Metal Parts: Stainless Steel, Nickel Aluminum Bronze, Hastalloy
- Elastomers: FPM (Viton®)

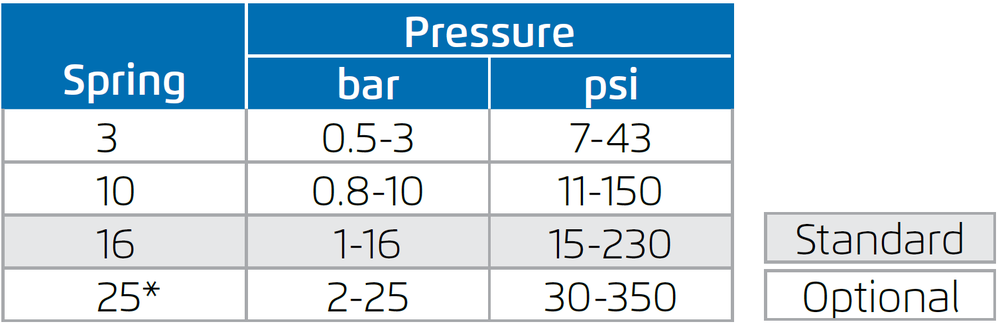

Adjustment Range
![Bermad - Model X - Adjustment Range](https://deeco-production.s3.amazonaws.com/images/Bermad_-_Model_X_-_Adjustment_Range.width-1000.png)
* With high pressure setting kit
Connections
0 - Upstream for reducing, vent for sustaining
C - Valve control chamber
A/Z - Vent for reducing, upstream for sustaining.
F/D - Sensing/pressure gauge

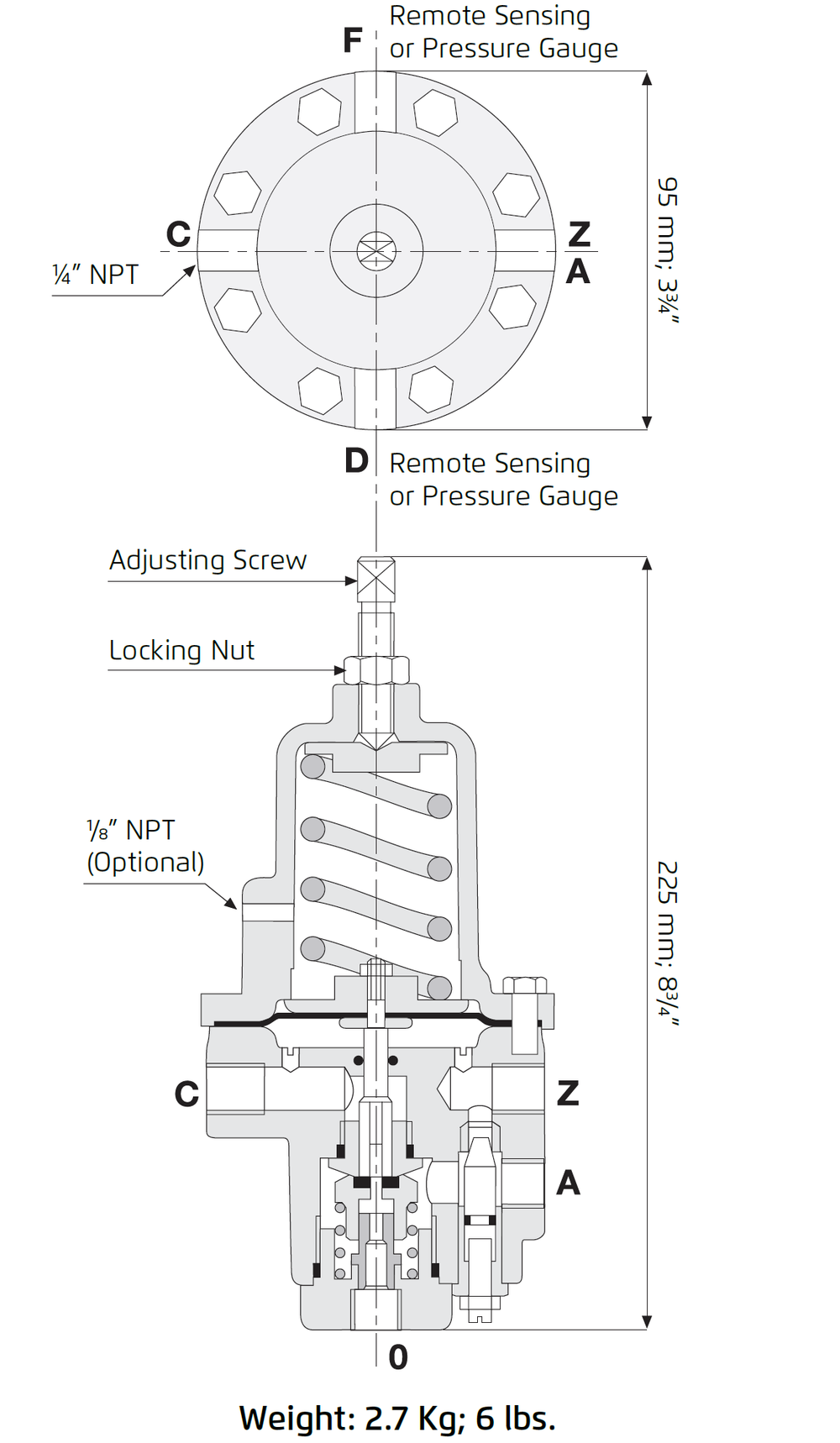

Technical Specifications
![Bermad - Model X - Technical Specifications](https://deeco-production.s3.amazonaws.com/images/Bermad_-_Model_X_-_Technical_Specifications.width-1000.png)
High pressure setting kit add 128 mm; 5” to pilot height

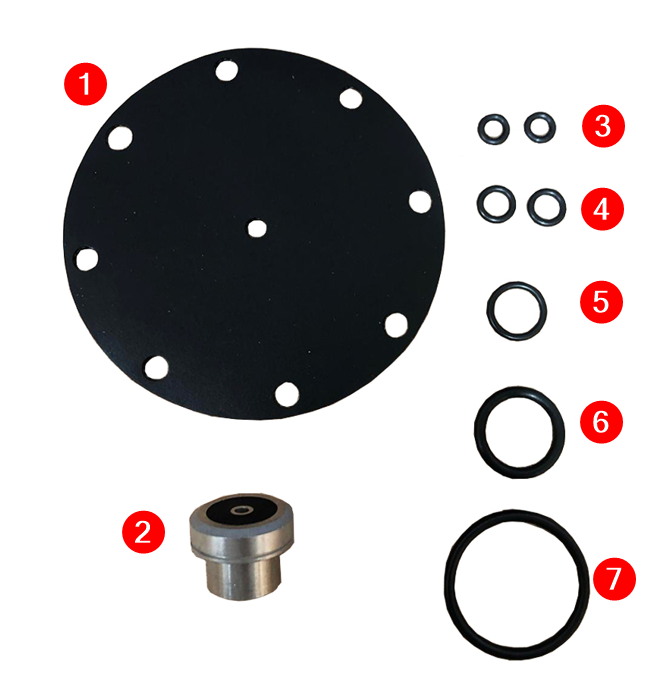

Repair Kit
Product Code | Description |
---|---|
700X-RK | Repair Kit for Brass Bermad #X 3 Way Universal Pilot |
![700X-RK - Image](https://deeco-production.s3.amazonaws.com/images/700X-RK_-_Image.width-750.png)
Pos. | Decsription | Quantity |
---|---|---|
1 | Diaphragm | 1 |
2 | Vulcanised Seal | 1 |
3 | O-Ring | 2 |
4 | O-Ring | 2 |
5 | O-Ring | 1 |
6 | O-Ring | 1 |
7 | O-Ring | 1 |

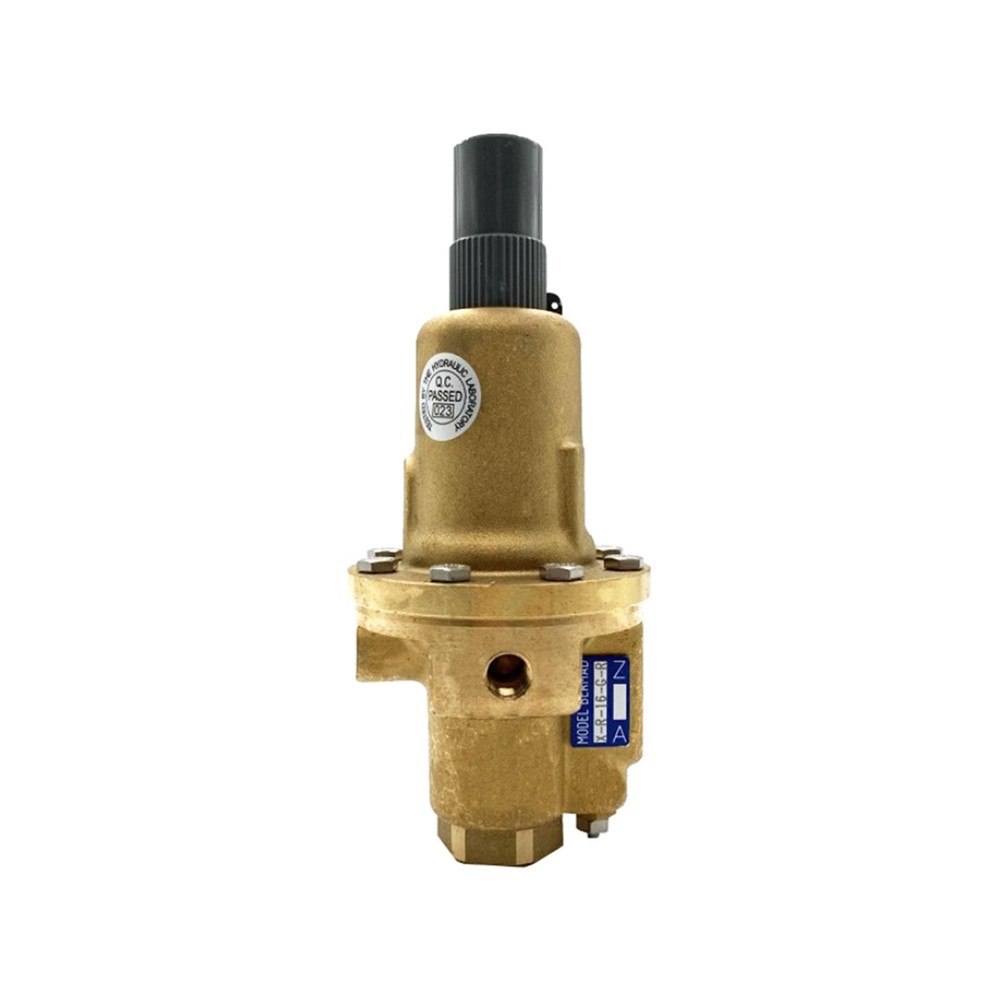

Bermad - Model X - Brass - 3 Way Universal Pilot
![Model -X](https://deeco-production.s3.amazonaws.com/images/Model_-X.2e16d0ba.fill-1000x1000.jpg)
Bermad - #X
Product Code | Rating | Description |
---|---|---|
#X | PN16 | Brass Bermad #X 3 Way Universal Pilot (1-16 Bar) Spring |
