NaanDanJain - Fogger - Micro Sprinkler

Copy Page Link
Fogger - Product Image
Brand: NaanDanJain
Category: Sprinklers, Micro Sprinklers

Product Description

The fogger micro sprinkler is a reliable solution for cooling or humidifying greenhouses. With an extra-fine droplet size of 55 microns at 4.0 bar, it ensures precise water distribution and coverage.

The broad range of flow rates caters to different precipitation rates, while its chemical-resistant raw materials, ensure durability and reliability. Featuring PE and PVC connections, the Fogger facilitates easy installation and service. It includes a Leakage Prevention Device (LPD) for simultaneous startup and shut-down, offering flexibility in system operation. The Fogger can be used in many applications, such as reducing greenhouse temperature, increasing humidity, and creating ideal conditions for plant propagation, while the “T” assembly is specifically designed for pesticide application.

Features & Benefits

  • Extra fine droplet size
  • High water distribution uniformity and coverage
  • Easy installation and service

Applications

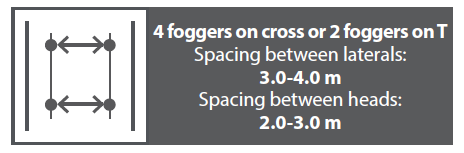

  • Cooling and humidifying:
Fogger - App1

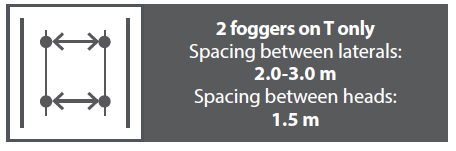

  • Cooling, humidifying and spraying
Fogger - App2

Technical Data

Recommended Working Pressure

  • 4.0 bar

Droplet size average

  • 55 microns (at 4.0 bar)

Filtration requirements

  • 130 microns

Minimum height above the crop

  • 1.0 m

Maximum distance of lateral from bench edge

  • 2.0 m

Operating Pressure

  • 3.0 bar

Closing Pressure

  • 1.5 bar

Droplet size

  • 69 microns (at 3.0 bar)

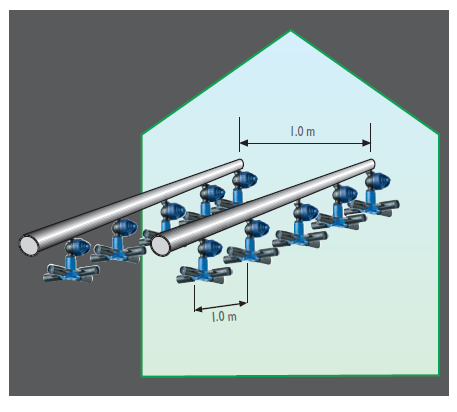

diagram

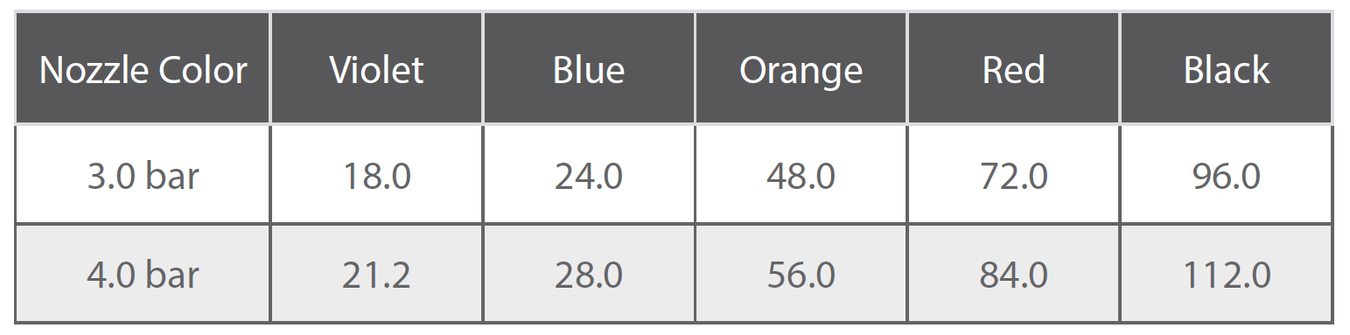

Flow Rate on Cross (l/h)

Fogger - flow rate pon cross

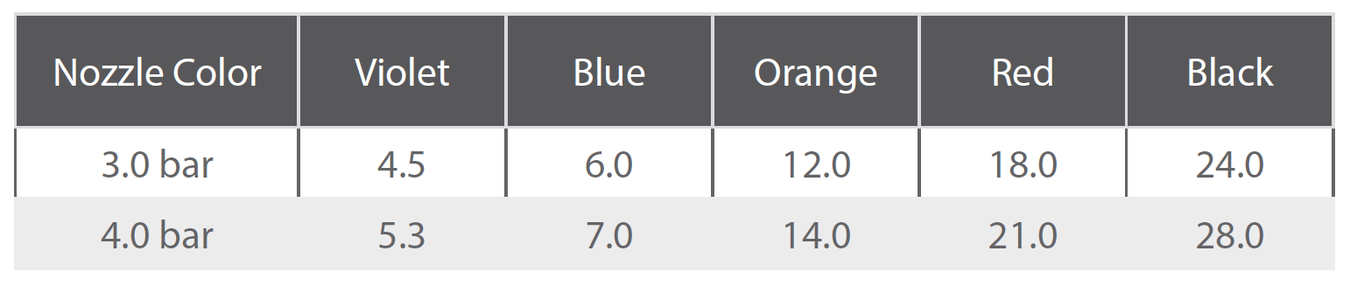

Optional Nozzles Flow Rate (l/h)

Fogger - Optional Nozzles flow rate

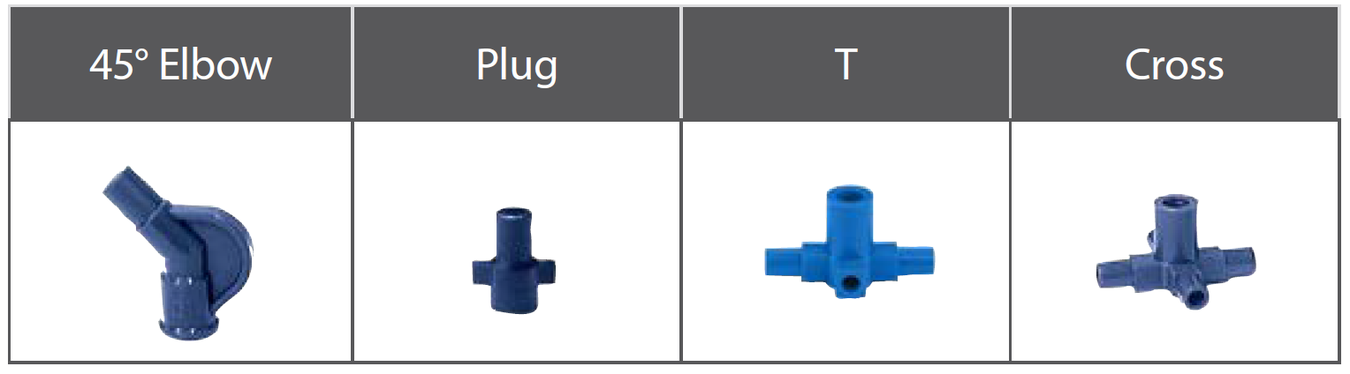

Fogger Accessories

Fogger - Accessories

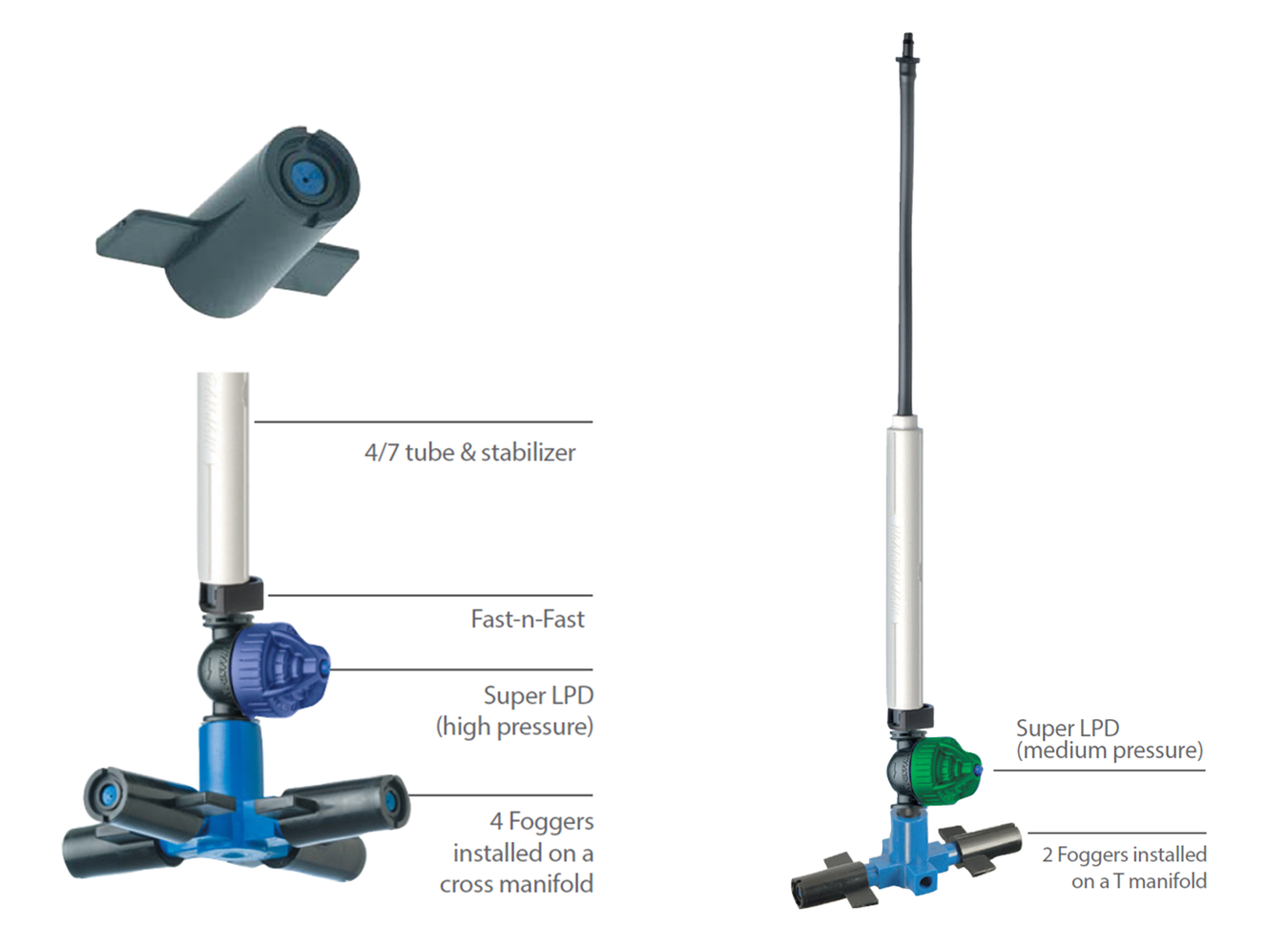

Product Components

fogger - Product Components

Fogger

Product Code Description Colour
192804 1 Fogger 5.3 lph violet nozzle Violet
192803 1 Fogger 7lph, blue nozzle Blue
192805 1 Fogger 14 lph, orange nozzle Orange
192807 1 Fogger 21 lph, red nozzle Red
192808 1 Fogger 28 lph, black nozzle Black
195803 2 Foggers 7 lph blue nozzle on tee Blue
191803 4 Foggers 7 lph blue nozzle on cross Blue
192863 1 Fogger 7 lph on blue super LPD 4/7 barb Blue
195863 2 Foggers 7 lph on T on blue super LPD 4/7 barb Blue
191863 4 Foggers 7 lph on cross on blue super LPD barb Blue



Suspended Tube Assemblies

4/7 barb inlet with stabilizer

Product Code Description Outlet Connection
797136 Suspended stand 20cm, butterfly, suit push fit base Push fit
797140 Suspended stand 30cm, butterfly, suit push fit base Push fit
797143 Suspended stand 60cm, butterfly, suit push fit base Push fit
797122 Suspended stand 20cm, fast-n-fast, suit 4/7 barbed base F-N-F
797124 Suspended stand 30cm, fast-n-fast, suit 4/7 barbed base F-N-F
797129 Suspended stand 60cm, fast-n-fast, suit 4/7 barbed base F-N-F
797443 Suspended stand 30cm, + Super LPD, suit push fit base Push fit
797446 Suspended stand 60cm, + Super LPD, suit push fit base Push fit
Product Code Description Outlet Connection
797179 Suspended stand 20cm, butterfly, suit push fit base Push fit
797180 Suspended stand 30cm, butterfly, suit push fit base Push fit
797182 Suspended stand 60cm, butterfly, suit push fit base Push fit
797189 Suspended stand 20cm, fast-n-fast, suit 4/7 barbed base F-N-F
797190 Suspended stand 30cm, fast-n-fast, suit 4/7 barbed base F-N-F
797192 Suspended stand 60cm, fast-n-fast, suit 4/7 barbed base F-N-F
797473 Suspended stand 30cm + Super LPD, suit push fit base Push fit
797476 Suspended stand 60cm + Super LPD, suit push fit base Push fit
Product Code Description Outlet Connection
797431 Suspended stand 20cm, male bayonet + butterfly, suit push fit base Push fit
797430 Suspended stand 30cm, male bayonet + butterfly, suit push fit base Push fit
797125 Suspended stand 30cm, male bayonet + fast-n-fast, suit 4/7 barb base F-N-F
797126 Suspended stand 60cm, male bayonet + fast-n-fast, suit 4/7 barb base F-N-F
484921 Adaptor 1/2" MBSP x female bayonet

*must order adaptor and suspended stand.
