Sensus - Pulse Output Module for Sensus Wireless Meters - POM-433

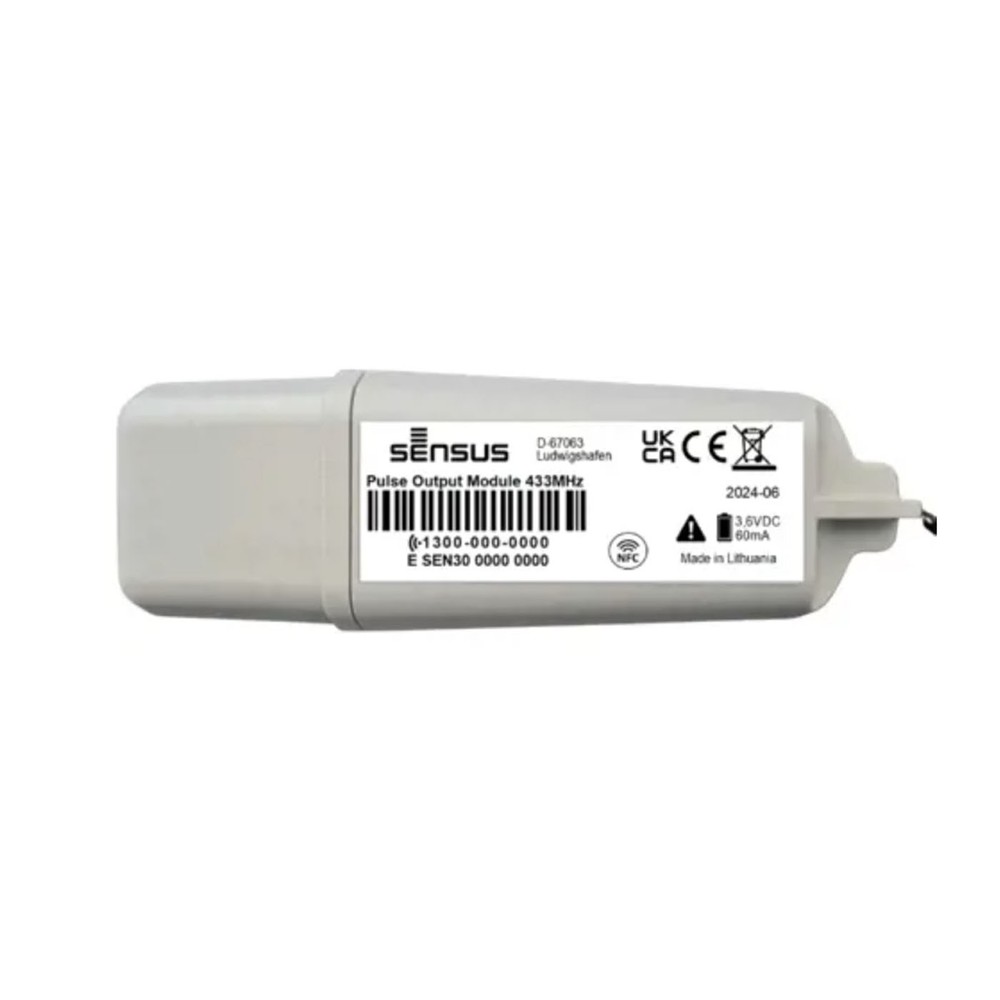

The Sensus POM-433 (Pulse output Module) provides a solution to add pulse output functionality to Sensus radio-enabled meters in AMR or AMI mode. It allows third party data loggers to be connected to the wireless meters for customer analysis and allows integration to Building Management systems via the pulse output.

It uses the periodically transmitted consumption data from the meter to generate a corresponding number of pulses, which can be transmitted to any pulse input compatible devices.

The device provides a 4-wire pulse interface, which is configurable depending on requirements.

Features and Benefits

• Pulse output for wireless Sensus meters
• Configurable receive interval (1 minute – 15 minutes)
• Different pulse length and weight options to suit different data logger types
• Flow direction output capable
• Spread pulses option
• IP68 construction
• Up to 10 years battery life
• Integrates radio-only meters into a wired system, without having to change out the meter
• Allows AMR, AMI and Pulse readings - from the same meter
• Ideal for pit applications and hard-to-reach meters due to radio-based communication

Meter Compatibility

The following Sensus meters are compatible with the Diavaso system, subject to firmware version and production date:

• Sensus iPERL
  • Units produced after January 2022
  • Firmware v2.712 or higher is compatible with OMSV4A
  • Firmware v2.721 or higher is compatible with OMWV4B

• Sensus 640C/MC
  • Units produced after August 2024
  • Marked with production code 2024-28 or later
  • Must have Firmware v0.1 and Checksum: 8816

• Sensus MS+ RF
  • Units produced after October 2024

Mounting bracket

The module can be fixed on a wall or pit lid with a mounting bracket which is part of the consignment

Max distance between meter and device

10 m (Free Line of Sight)

Recycling

Has to be recycled according to national rules for electronic devices with lithium batteries

** Recommended standard pulse lenght

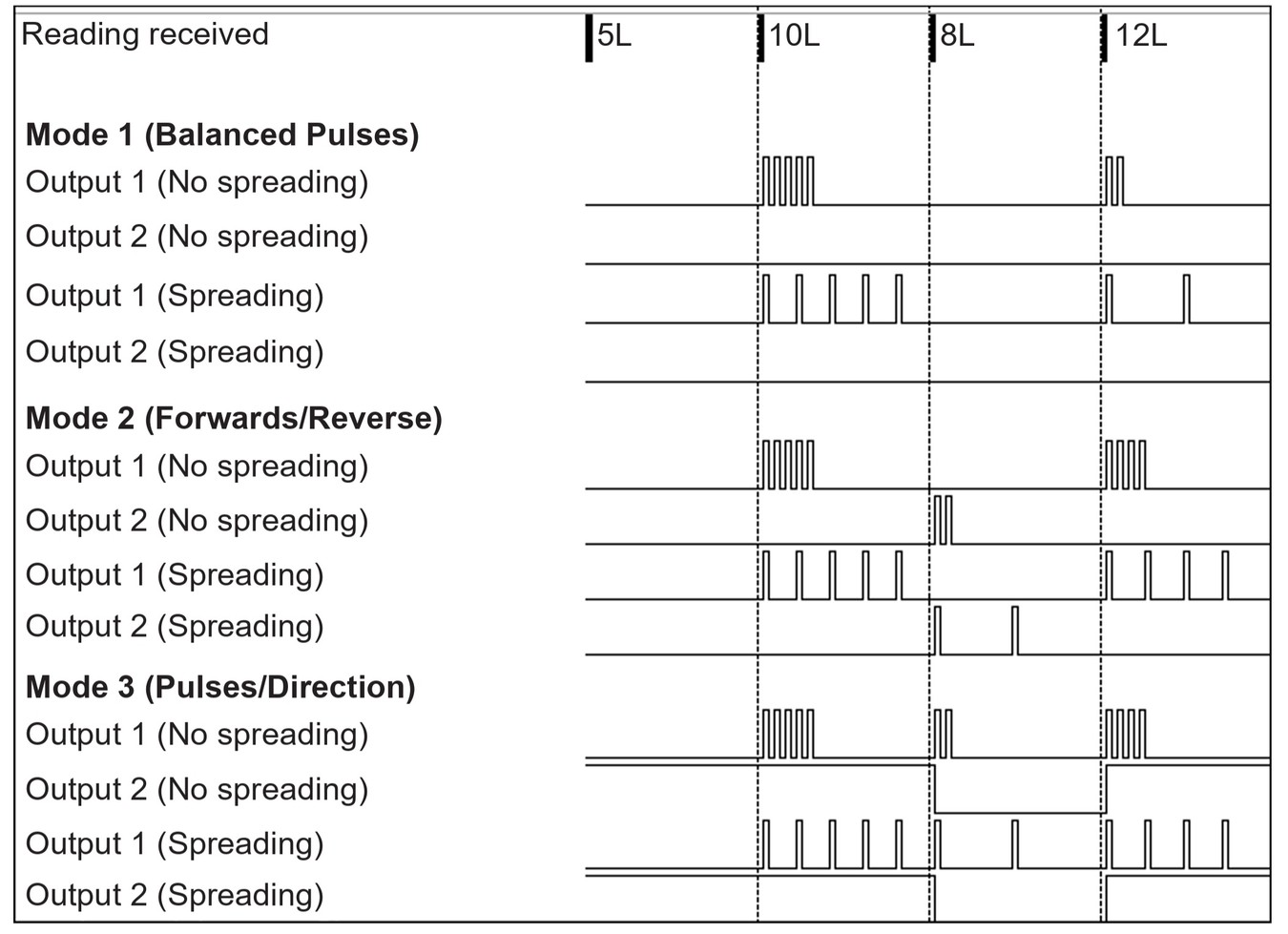

Pulse Behaviour

Pulse Modes

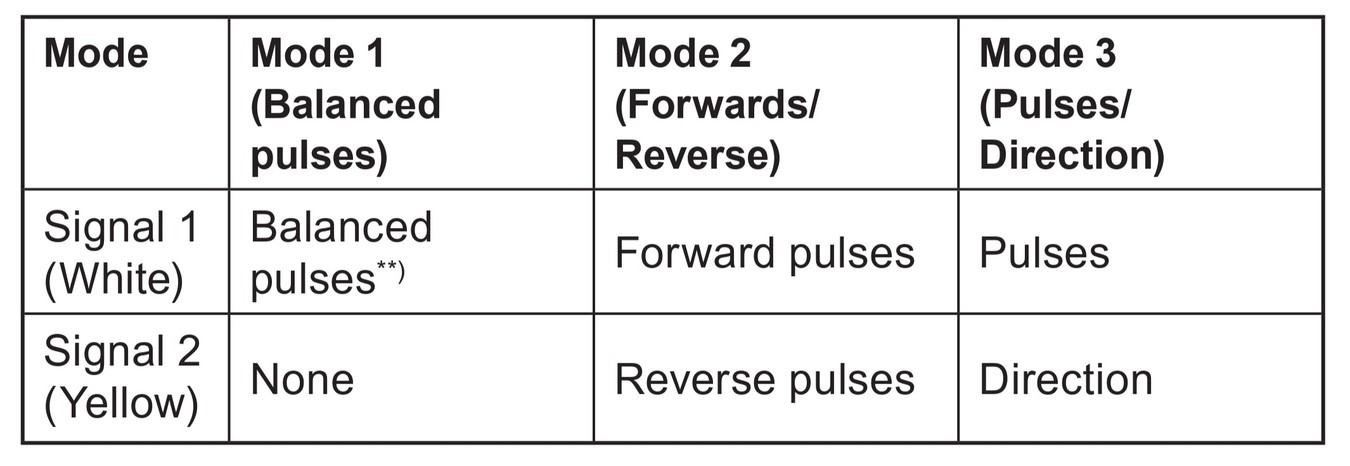

The Pulse Output Module can be configured for three different pulse output modes, as per the table below:

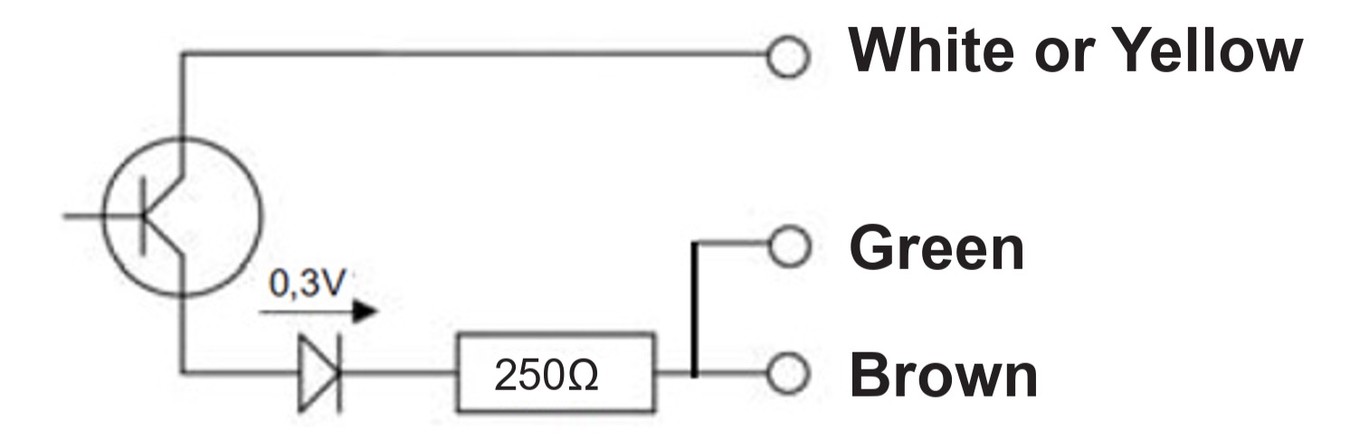

Pulse Interface Overview

The device features a configurable 4-wire pulse interface, designed to meet various integration requirements.

• White – Primary pulse output*

• Yellow – Secondary pulse output or flow direction*

• Green/Brown – Ground or cable cut detection (normally closed contact)


*Functionality of the white and yellow wires depends on the selected pulse configuration.

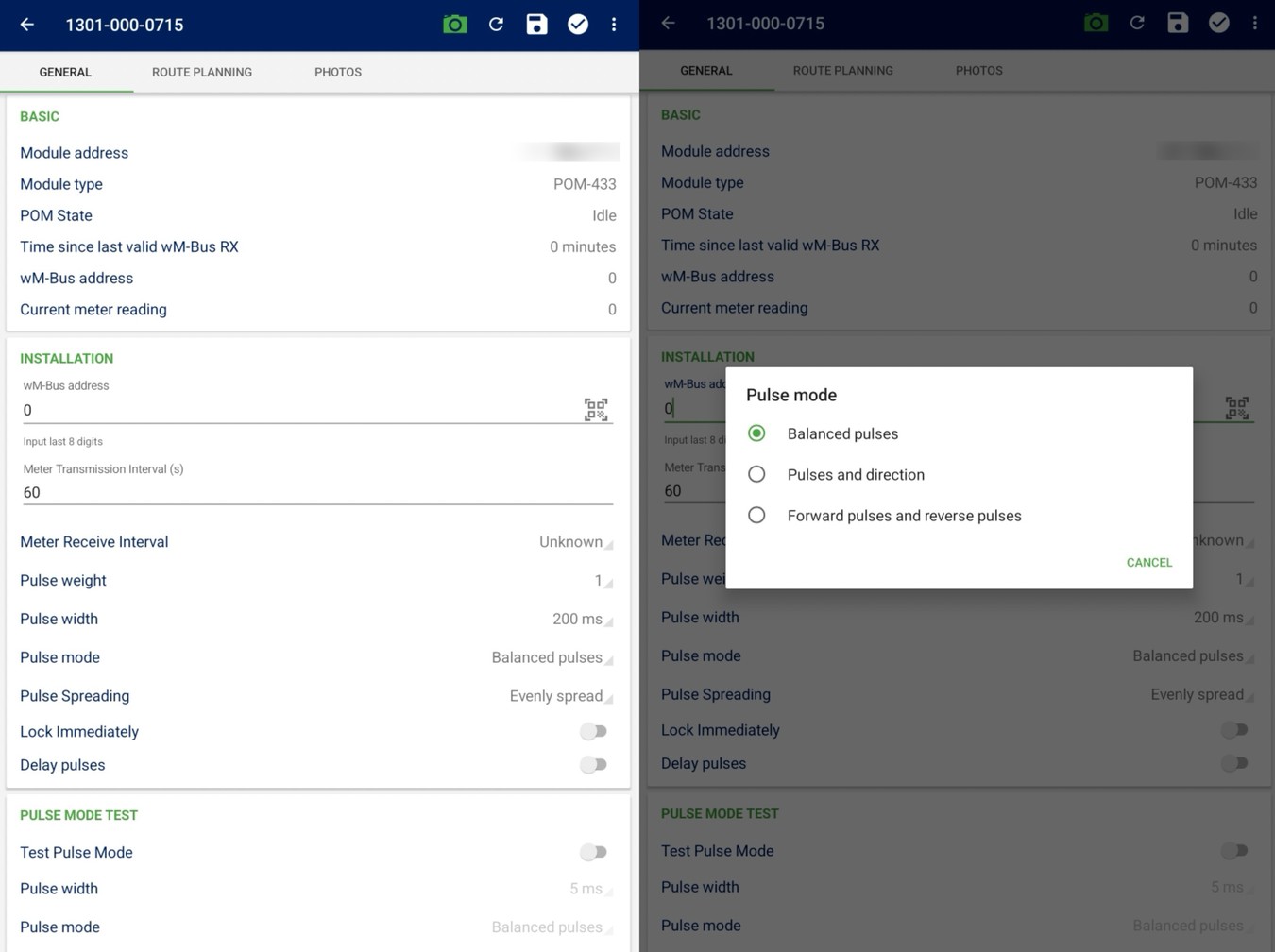

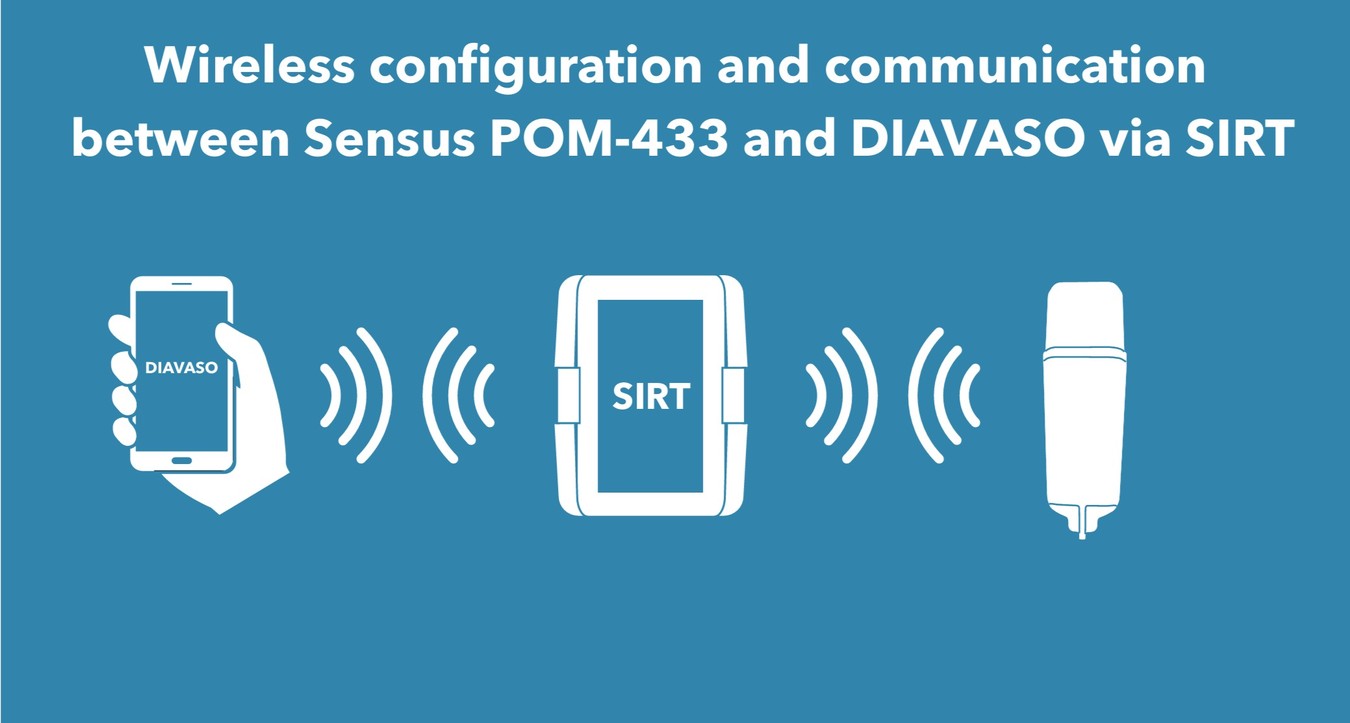

Meter and device configuration is performed using the SIRT (Sensus Interface Radio Tool) together with an Android device running the Diavaso Configuration app. This tool enables straightforward setup and programming of Sensus meters and repeaters directly in the field.

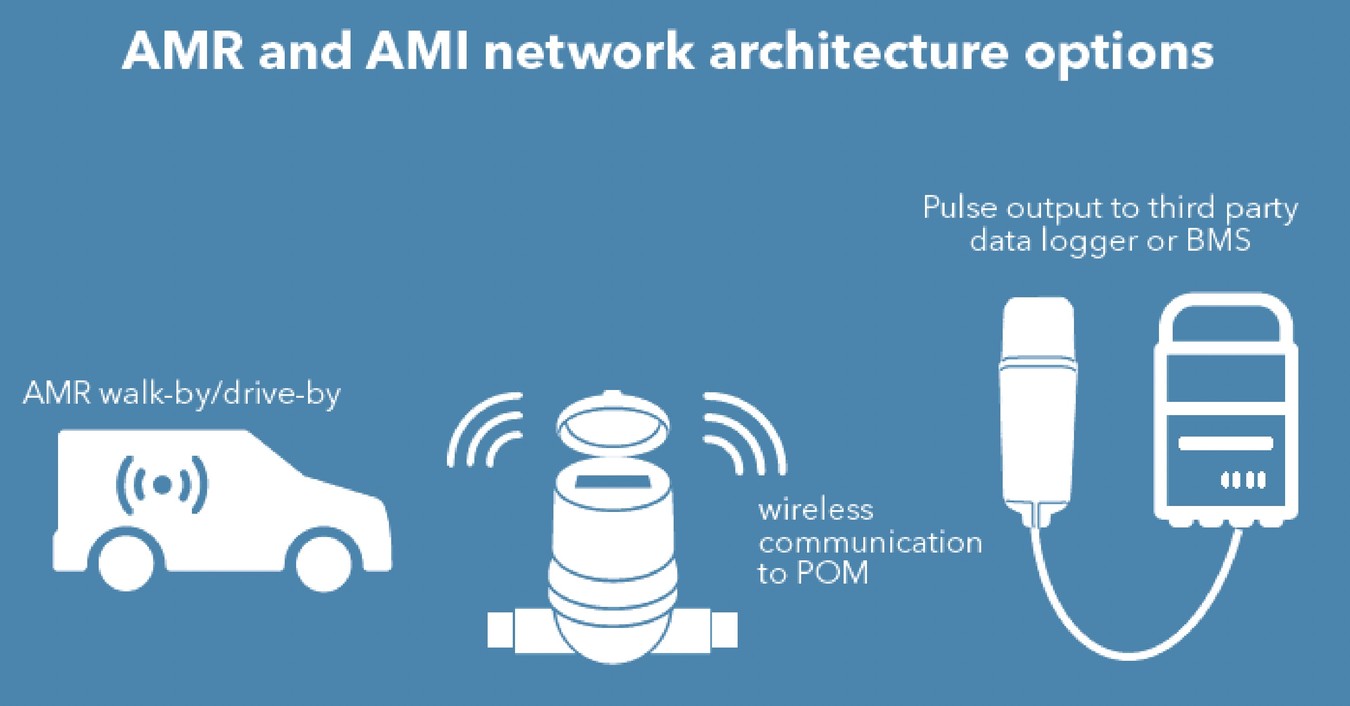

The Sensus POM-433 device operates alongside existing AMR (walk-by/drive-by) and AMI (SmartPoint-based) systems without disrupting current data collection methods. It can also be retrofitted to selected existing meters, eliminating the need to specify a pulse output at the time of meter purchase.

Once installed, the POM-433 receives meter data via SensusRF and outputs pulses to third-party systems such as data loggers or Building Management Systems (BMS), enabling seamless integration with external monitoring or analytics platforms.
