Diavaso is a suite of apps for remote meter reading using smartphones or tablets. The Diavaso app suite consists of 5 individual apps; Essential, Collection Station, Collection Mobile, Configuration & Service, and Data Logger. These can be used individually or in combination depending on your requirements for remote meter reading (AMR) or small-scale fixed networks (AMR+). The mobile applications run on an AndroidTM device and communicate with the SensusRF radio transceiver SIRT (Sensus Interface Radio Tool). The Diavaso apps are compatible with all SensusRF meters and repeaters.
The Diavaso apps are designed to be used for meter installation, remote reading, maintenance and configuration of meters and repeaters. The Collection Mobile also includes a server-based interface (web portal) for managing the meter reading workflow, reporting as well as data exchange with the billing system.

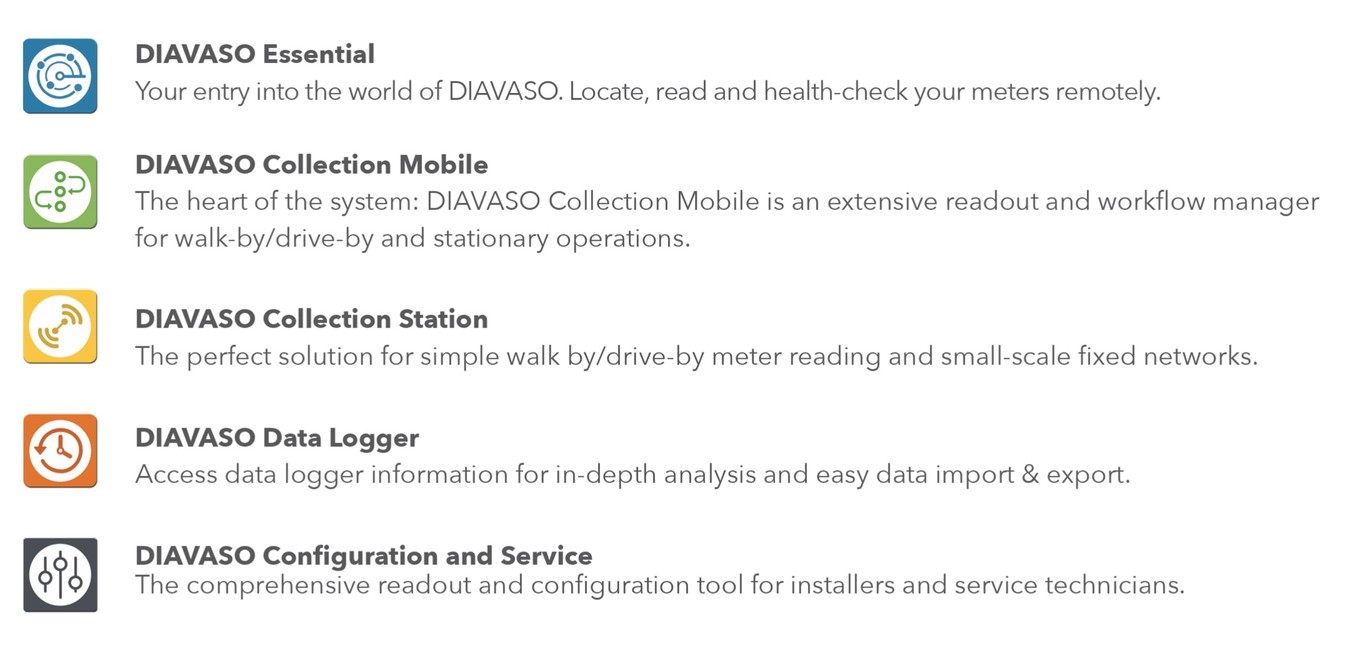

The DIAVASO mobile application suite for SensusRF includes:
- Manage any SensusRF radio endpoints
- Readout and workflow management for walk-by/drive-by
- Locate, read and health check your meter
- Access data logger information for in-depth Analysis
- Designed for meter installers, meter readers, route managers and administrators to make your mobile meter reading easier to manage
- Available as a hosted solution

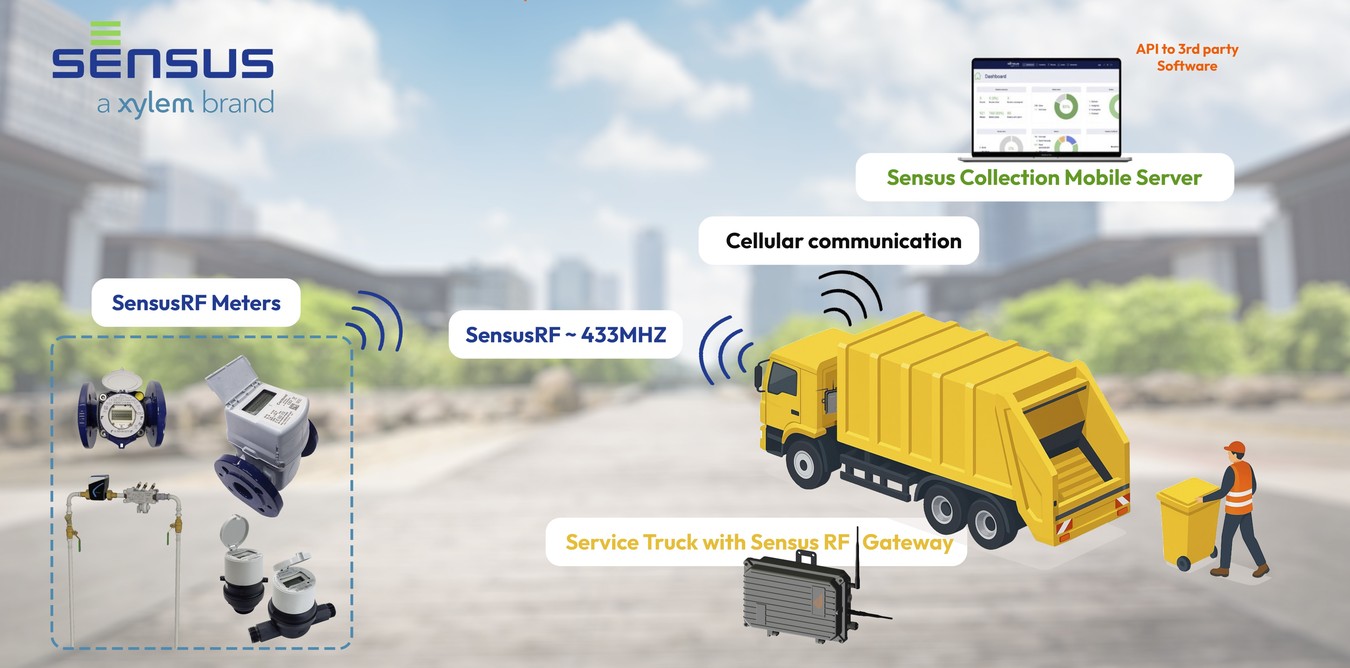

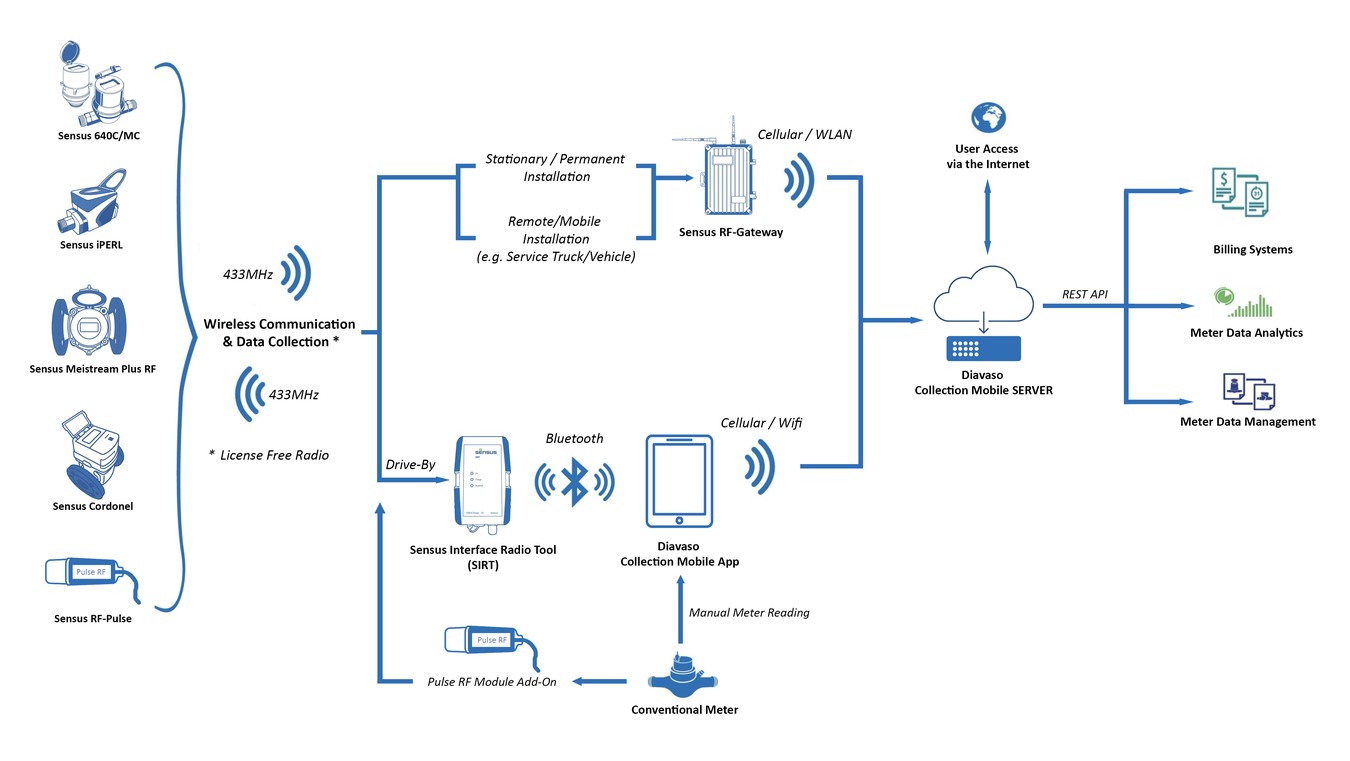

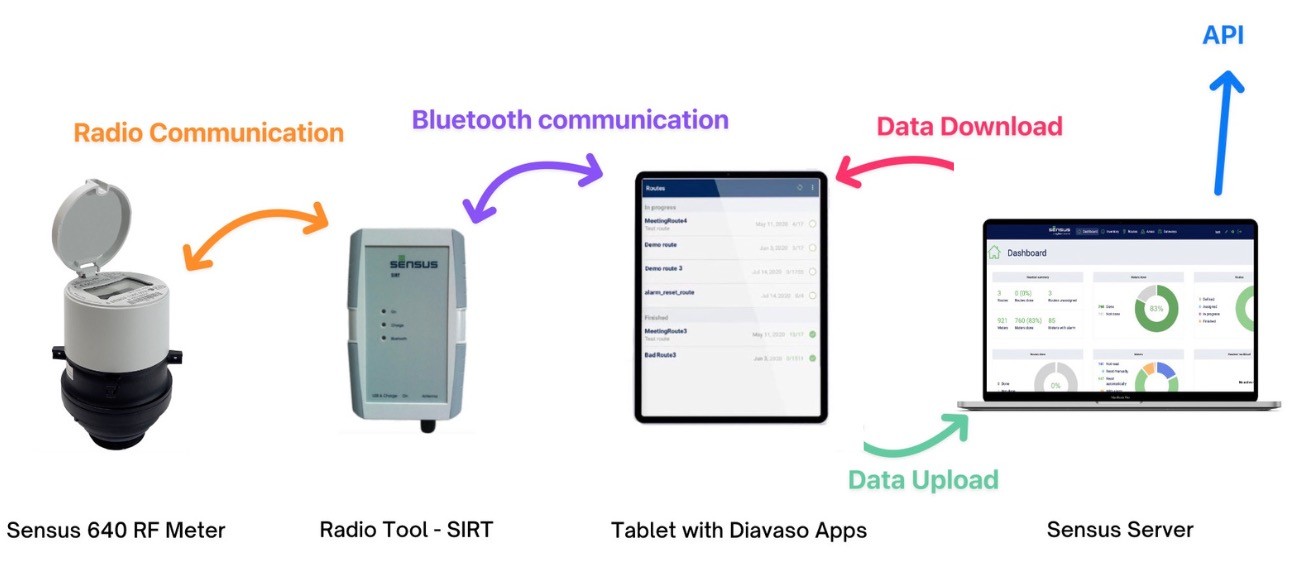

Basic operation principle of Sensus RF System.
This can be used with any Sensus RF Meter. (Sensus 640 is used only as an example).

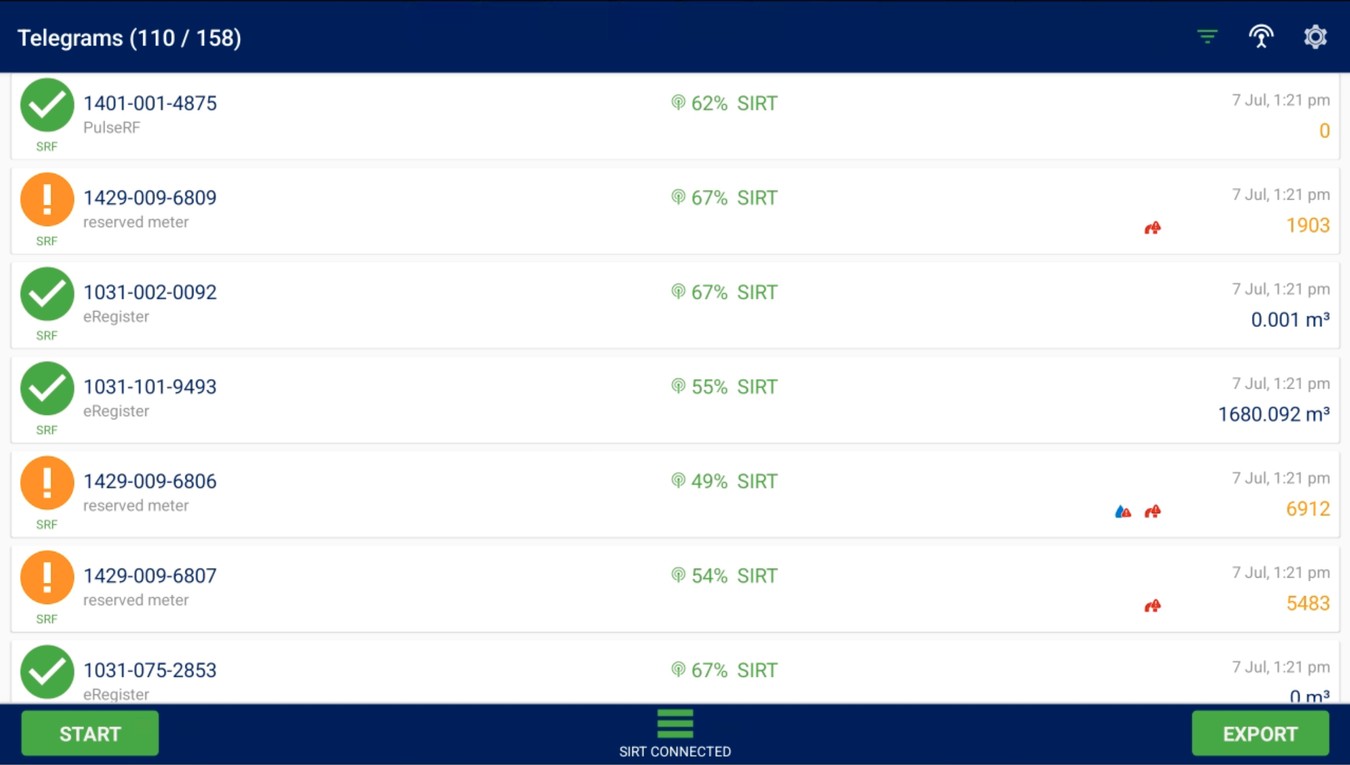

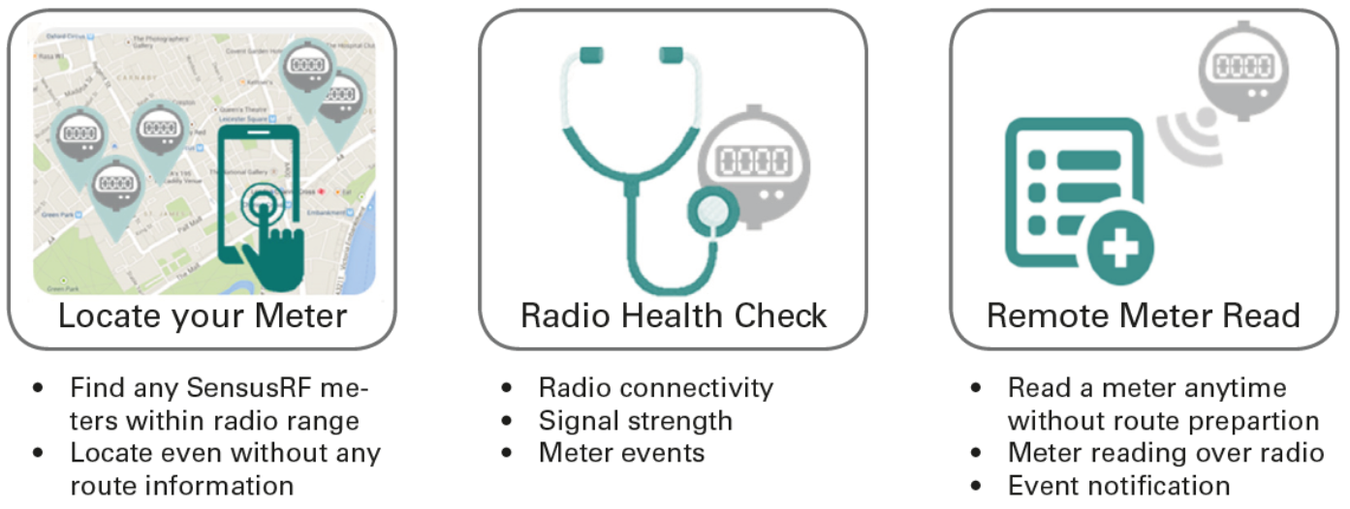

Diavaso - Essential App

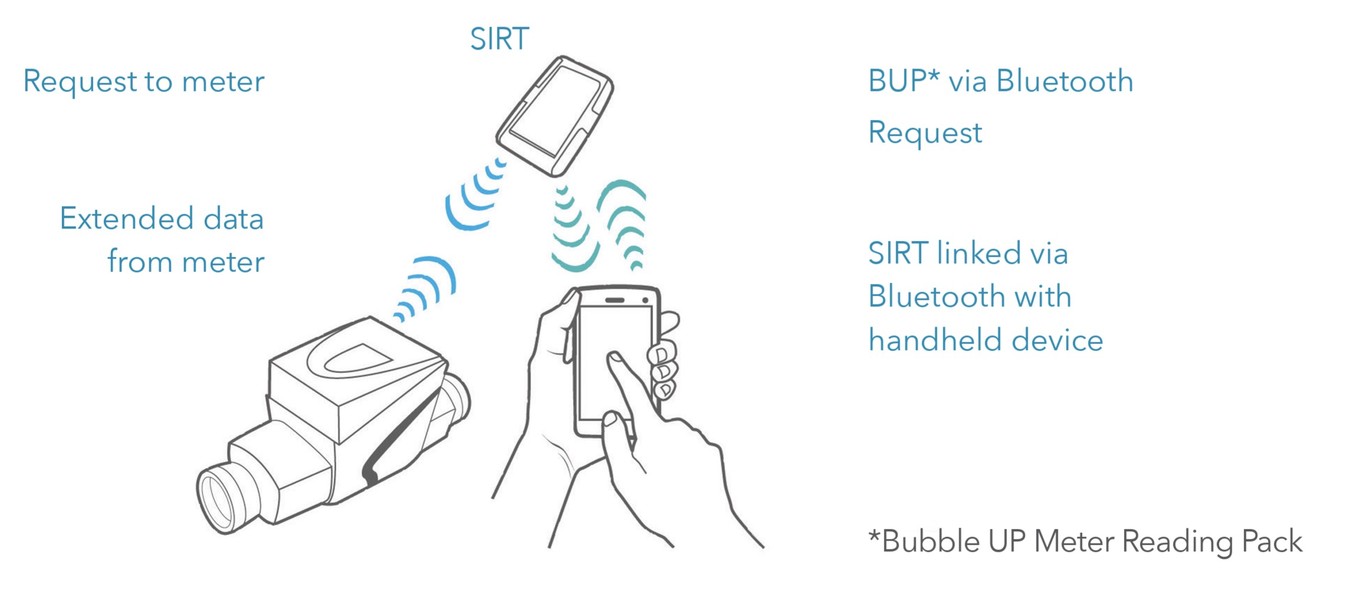

Detect, locate, and read any meter within the SensusRF radio transceiver SIRT range. View all SensusRF meters and repeaters via the app and check the meter readout status, radio connectivity, and event notifications.

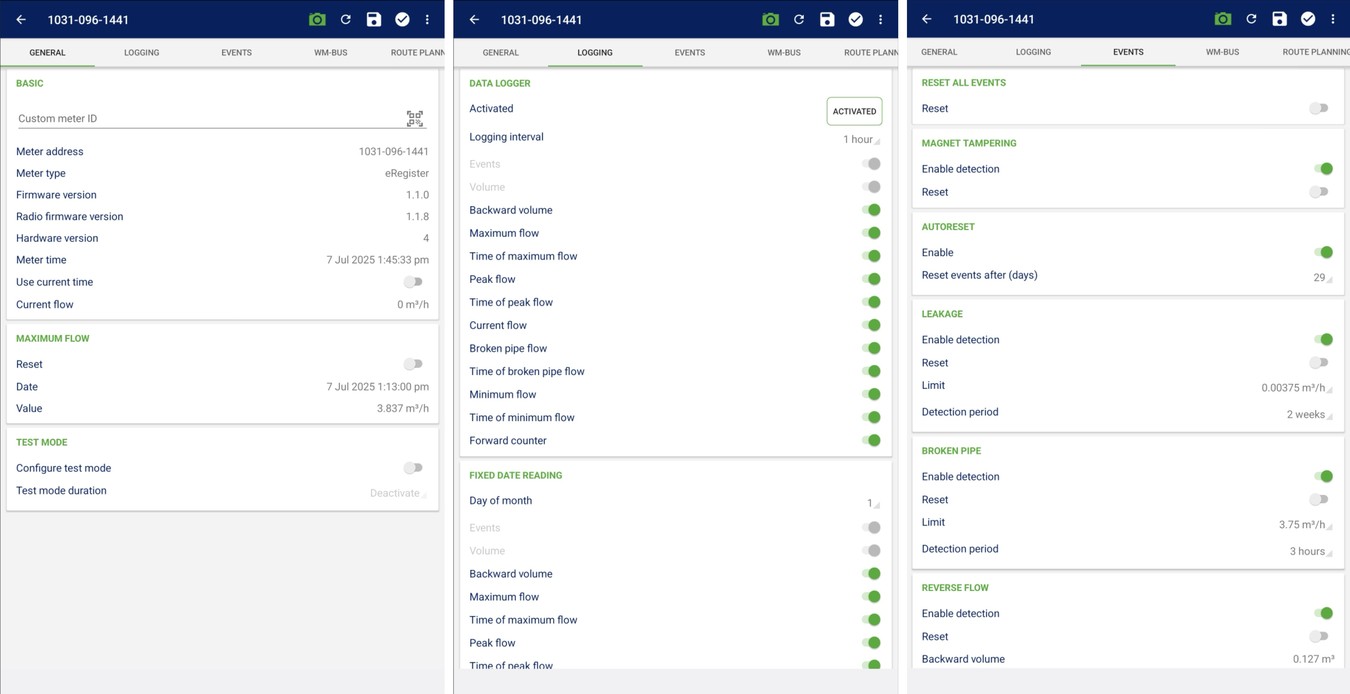

Diavaso - Configure App
Meter readout and configuration tool for meter installers and service technicians.

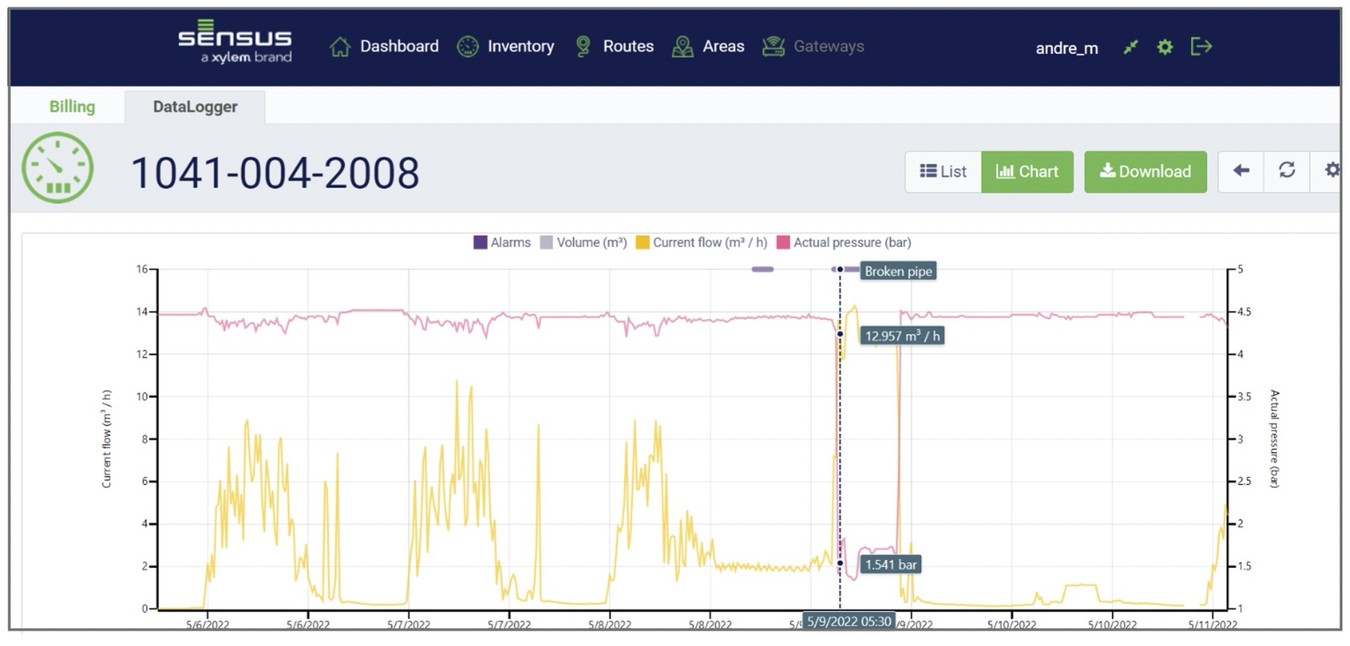

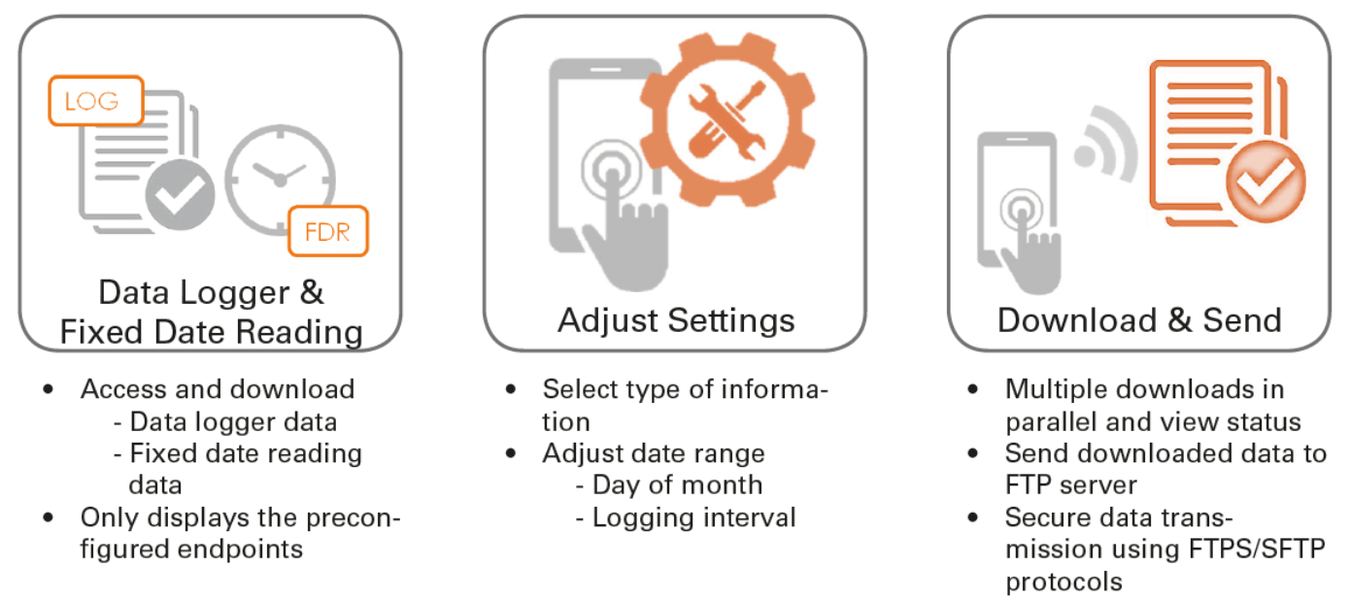

Diavaso - Data Logger App

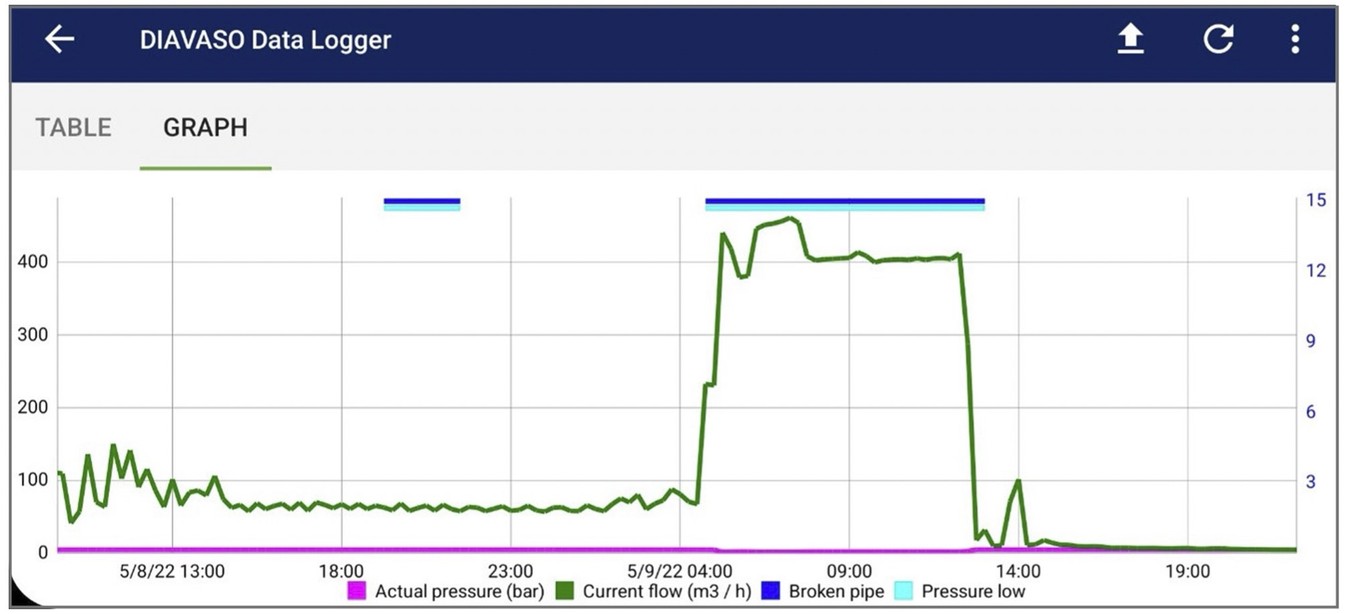

Data Logger App allows the collection of in-depth data from Sensus water meters.
Installation Types and Users
Licensing and Registration
Software registration using the license key is required in order to access the full functionality of the applications. License keys are unique to each Android device as they are generated according to the device serial ID.
Security and Data Protection
All sensitive data stored and transmitted using Diavaso are encrypted and protected against unauthorized access. There are no plain data sets stored on the tablet that may be accessible. Please refer to the manuals of each Diavaso application for further details.
Collection Mobile - Mobile App
Client - Server-based solution aimed to simplify the management of the meter readout process.
The application consists of two elements;
CM Server - Server-based solution aimed to simplify the management of the meter readout process.
Collection Mobile App - (Android-based) and web portal (webserver).
The web server provides an interface to manage the meter reading process, assign work and manage workflow, DIAVASO settings, reporting and data exchange with the billing system. The Android client provides a way to collect the meter data and upload it back to the server.

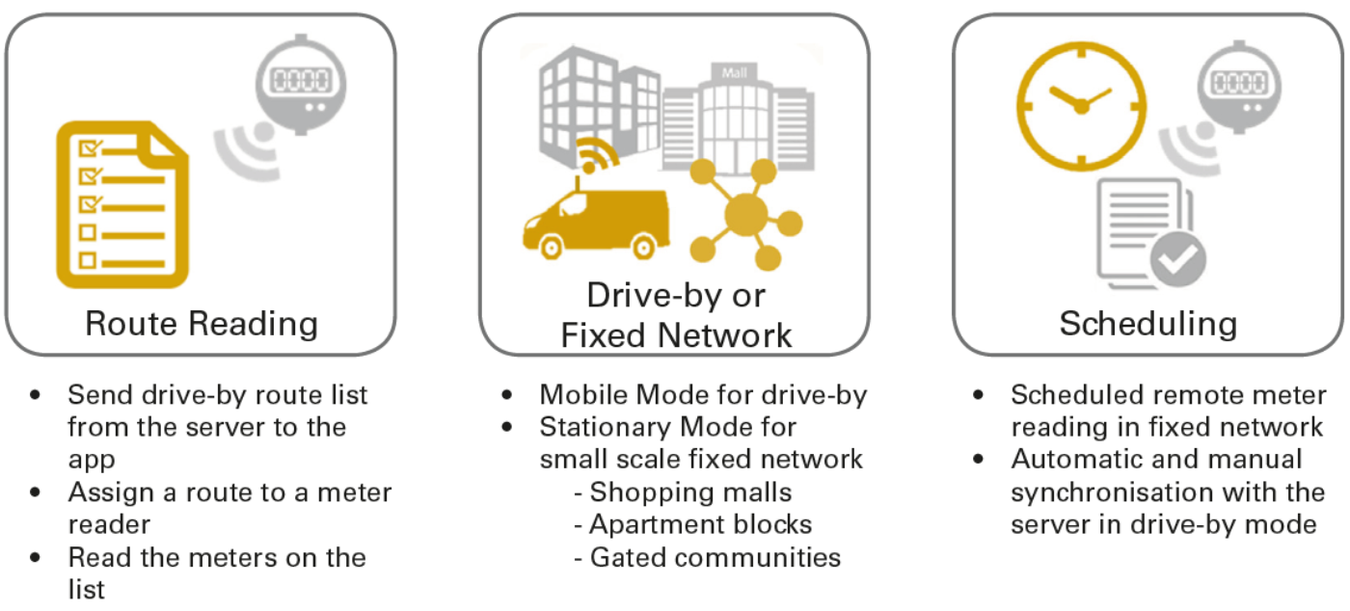

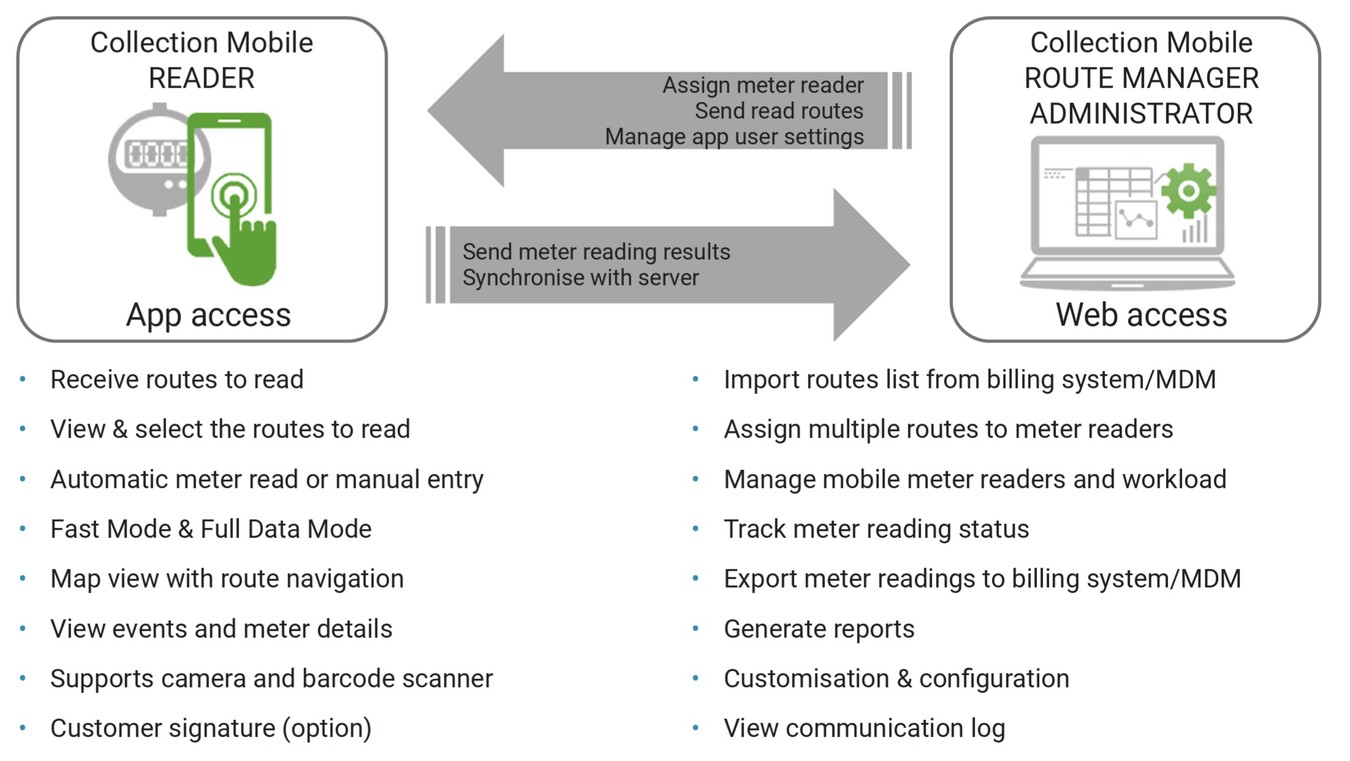

Collection Mobile - Route Reading Principle

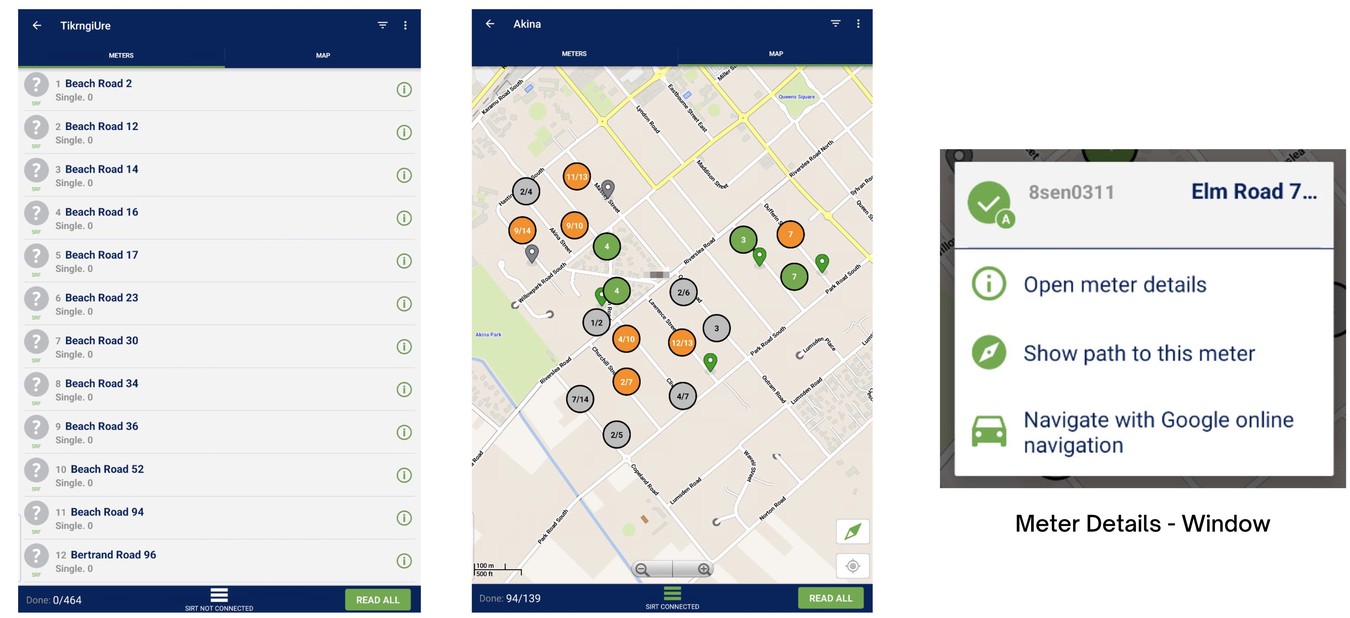

Collection Mobile App - Route - Meters - List & Map Preview
Collection Mobile - Server
Collection Mobile - Server - Inventory preview
Diavaso - Collection Station App
Automatic route read for drive-by meter reading or automated meter reading in small-scale fixed networks. In drive-by ‘Mobile Mode’, the meter data from the route read can be synchronized with the server automatically or manually. The route list can be sent from the server to the app and assigned a route to a meter reader. In fixed network ‘Stationary Mode’, it can be programmed to provide a scheduled meter reading.

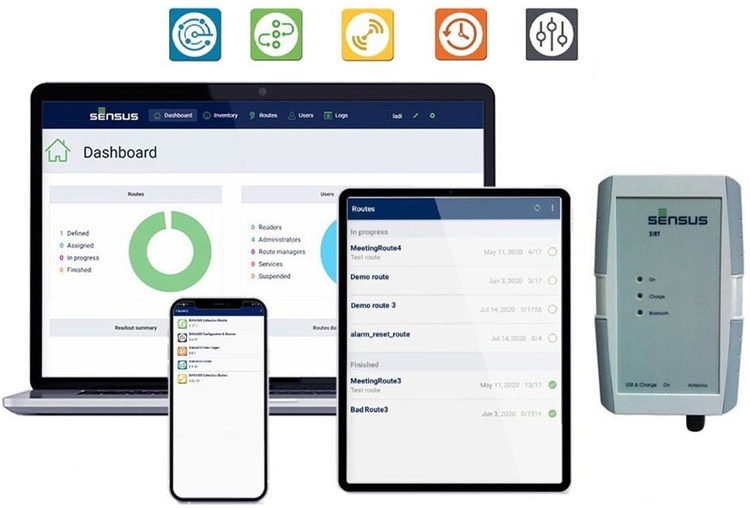

Sensus - Diavaso - App Suite
|RF - ESSENTIAL||Finder: Location Finder, Remote On-Demand Meter Read, Check Alarm Status. Send to Server.|
|RF - CONFIG||Configuration: Location Finder, Remote On-Demand Meter Read, Check Alarm Status. Send to server. Check and Reset Parameters.|
|RF - DATALOG||Data Logger: Download Logged Files and Fixed Rate Reading, Configure Settings, and Send to Server.|
|RF - CS||Collection Station: Automatic route read for drive-by meter reading or automated meter reading in small-scale fixed networks.|
|RF - CM CLOUD||Collection Mobile Option: Cloud Hosted - Sensus Server (500 - 100,000 meters)|
|RF - COLLECT||Collection Mobile Option: Software License for Self Hosting|
