Zurn Wilkins - 600HLR - Direct Acting Type Pressure Reducing Valve

Copy Page Link

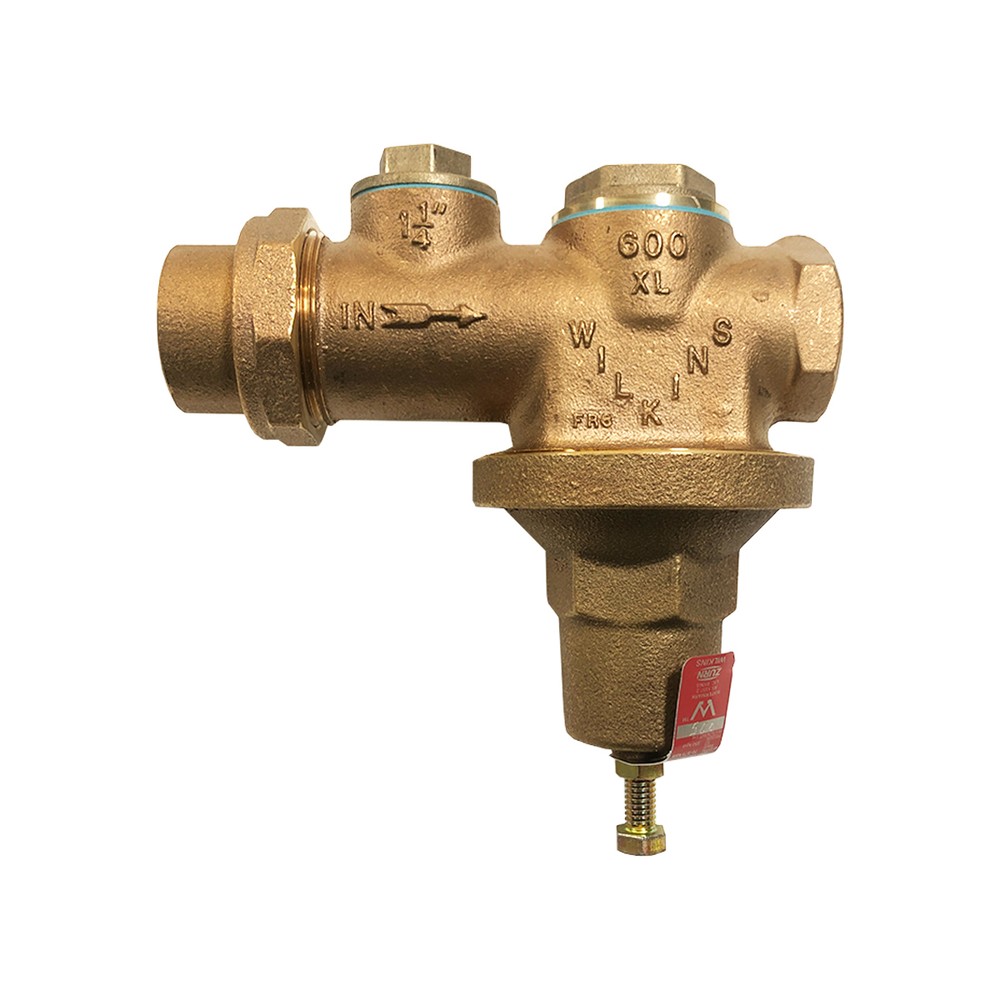

Deeco - 600HLR - Product Image
Brand: Zurn Wilkins
Category: Pressure Regulators, Pressure Reducing Valves
Size Range:

15-50mm
Connection:

Female Threaded BSPT

Product Description

Designed for installation on potable water lines to reduce high inlet pressure to a lower outlet pressure. The integral strainer makes this device most suitable for residential and commercial water systems requiring frequent cleaning because of sediment and debris.

Features and Benefits

  • Prevents buildup of excessive system pressure caused by thermal expansion
  • Smooth and responsive manner to changes in system flow demand
  • Installation in any position
  • Model 600HT (High Temp) available by request
  • Factory Preset 350kPa
  • Maximum Reduction 4 to 1
  • Australian Watermark Approved Lic. 1965
  • Max. Working Water Pressure 2100kPa
  • Max. Working Temperature 60 Celsius
  • Reduced Pressure Range 70-800kPa

Typical Application

  • For use on potable water lines to reduce high inlet pressure to a lower outlet pressure
  • Suits both residential & commercial water systems requiring frequent cleaning because of sediment & debris
  • Integral strainer
  • Integral bypass design prevents build-up of excessive system pressure caused by thermal expansion
  • Balanced piston design

Standards Compliance

  • Watermark Approved WM-001965
Zurn WIlkins - NR3 - Watermark 2

Technical Data

  • Max. working water pressure: 2100kPa
  • Max. working water temp (600HLR): 60°C
  • Max. working water temp (600HLRHT): 82°C
  • Reduced pressure range: 70-800kPa
  • Factory preset: 350kPa
  • Maximum reduction: 4 to 1

Construction Materials

  • Valve body DZR Brass
  • Fastener Stainless Steel
  • Stem & Plunger DZR Brass
  • Elastomers AS 4020
  • Strainer Stainless Steel

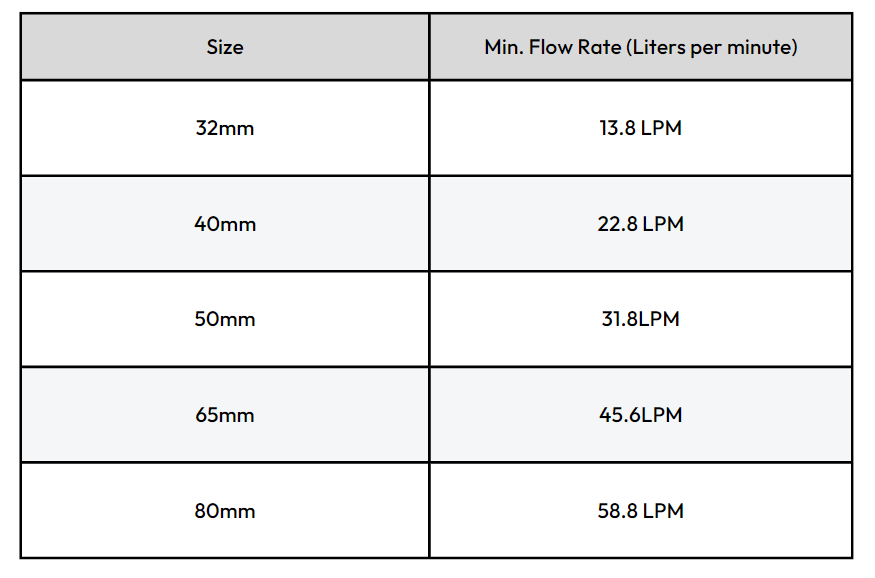

Minimum Flow Rates

Deeco - 600HLR - Flow Rate

CAUTION: The maximum reduction a pressure-reducing valve can deliver is 4 to 1 eg. 2000kPa to 500kPa. Additional reduction will require the use of another valve to step the pressure down.

NOTE: In most installations, one 20mm valve will accommodate the low flow rates of a 32mm to 50mm valve. If in doubt please discuss your installation with Deeco.

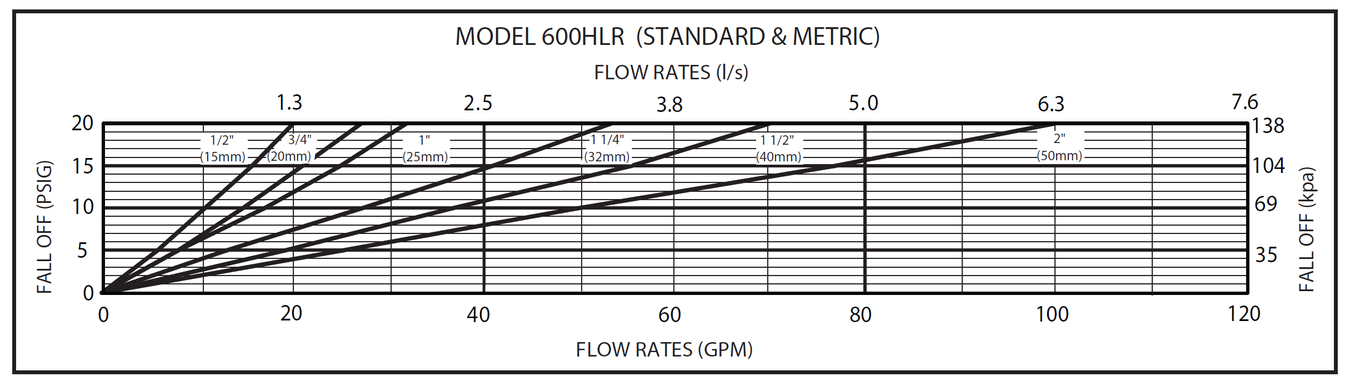

Flow Characteristics

Deeco - 600HLR - Flow Chart

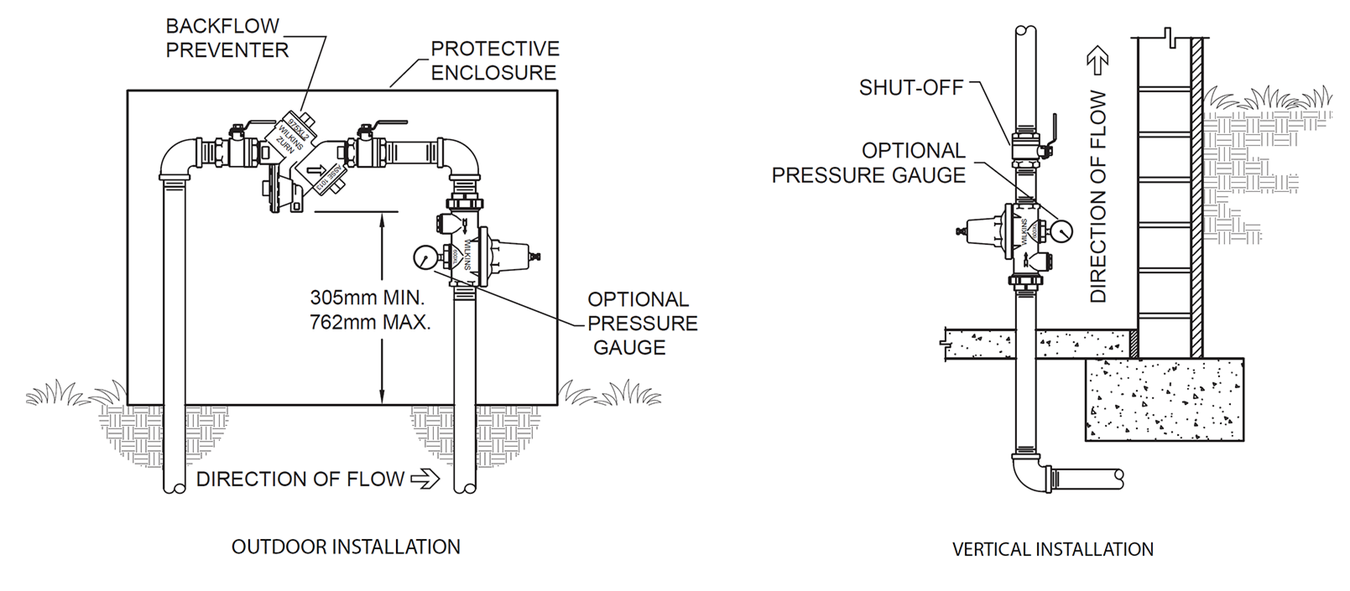

Typical Installation

Unless otherwise specified, the assembly should be mounted at a minimum of 305mm and a maximum of 762mm above adequate drains with sufficient side clearance for testing and maintenance.

Deeco - 600HLR - Typical Installation

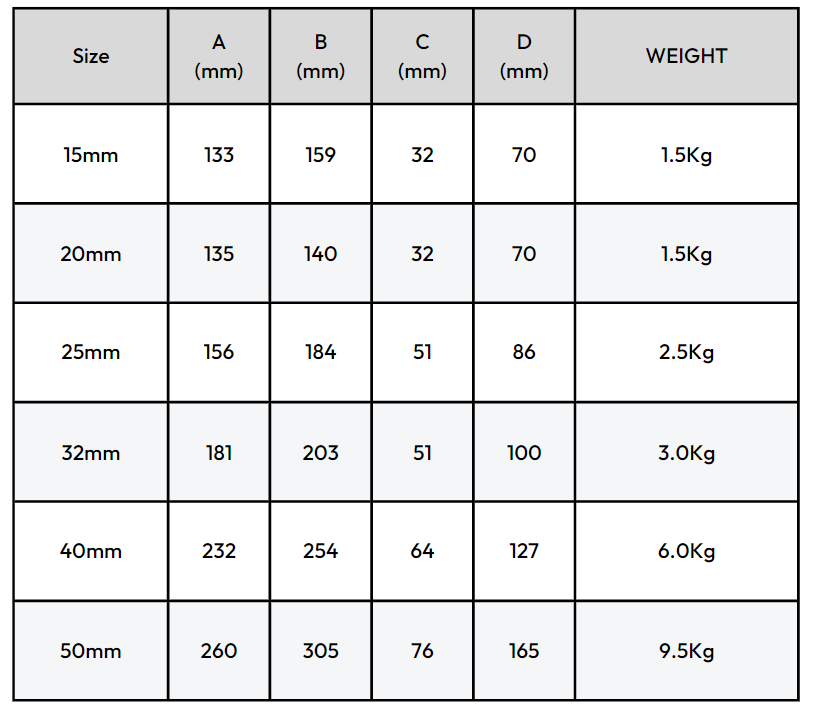

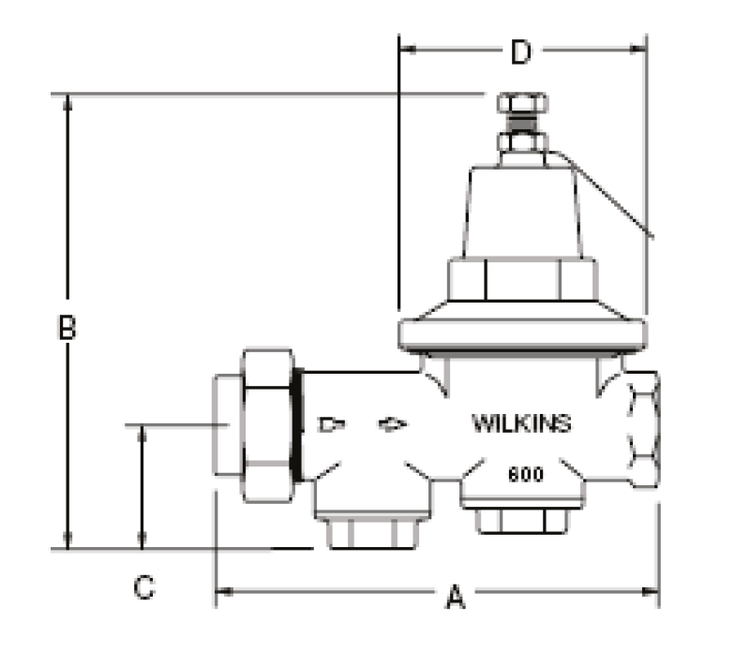

Dimensions and Weight

Deeco - 600HLR - Dimensions
600HLR - Dimensions

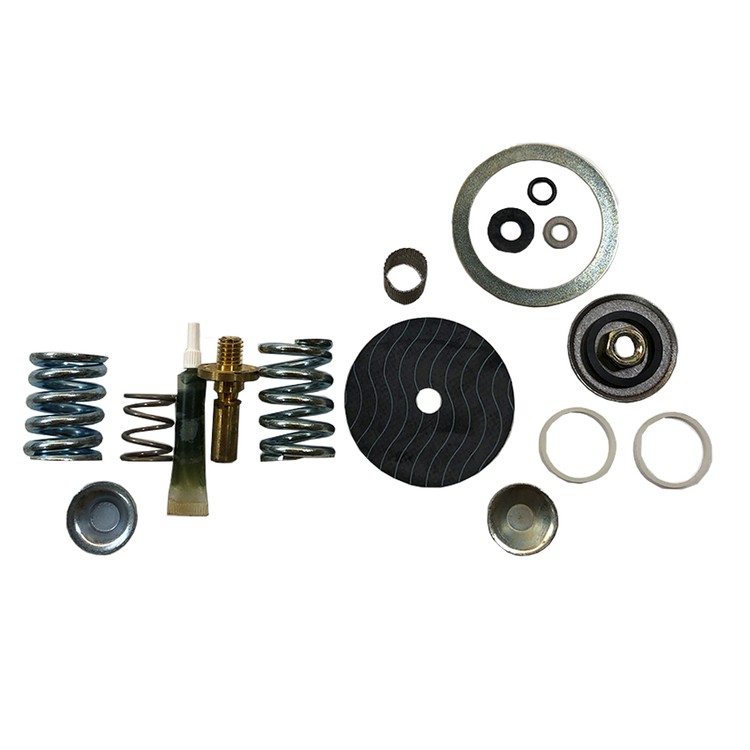

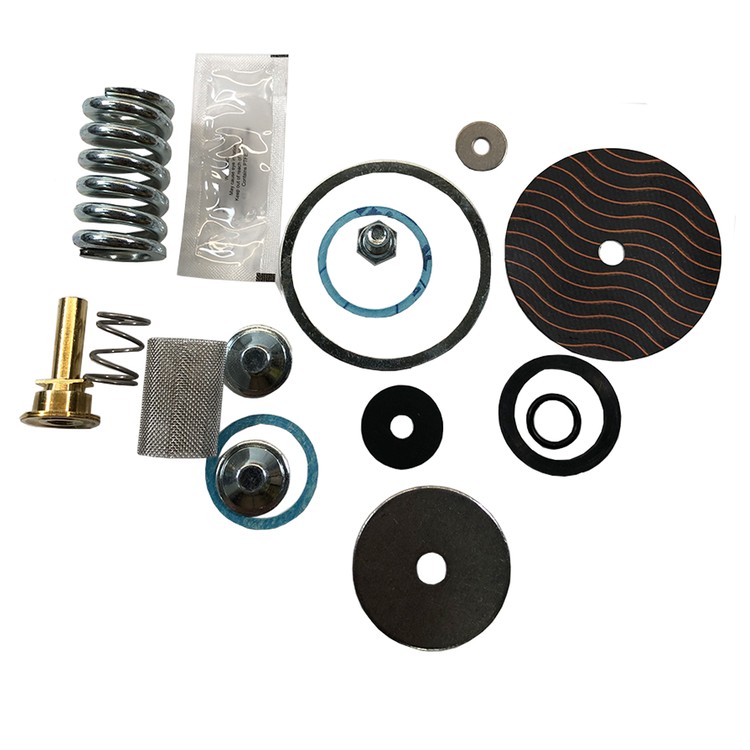

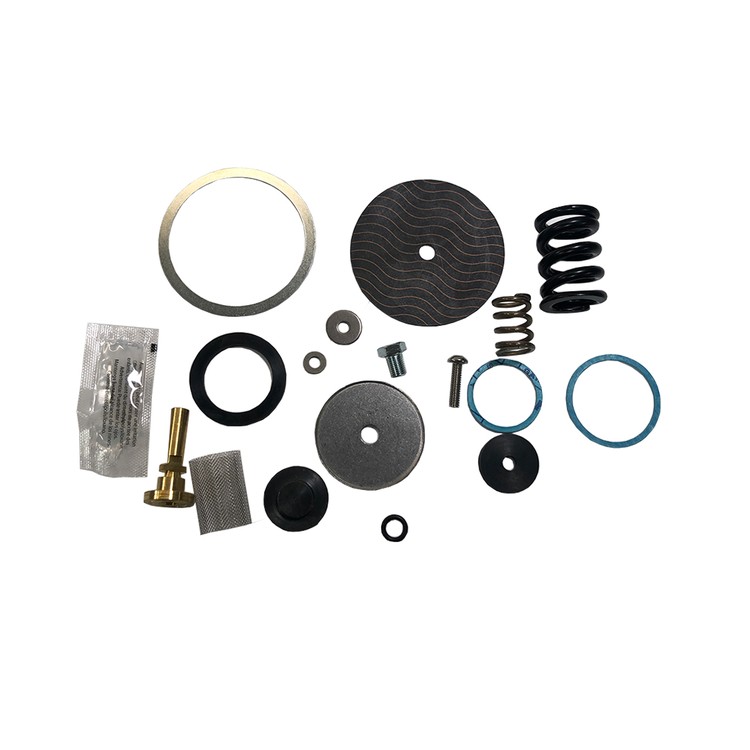

Repair Kits

Product Code Size Description
RK12-600HLR 15mm Internal Operator Repair Kit - 600HLR
RK34-600HLR 20mm Internal Operator Repair Kit - 600HLR
RK1-600HLR 25mm Internal Operator Repair Kit - 600HLR
RK114-600HLR 32mm Internal Operator Repair Kit - 600HLR
RK112-600HLR 40mm Internal Operator Repair Kit - 600HLR
RK2-600HLR 50mm Internal Operator Repair Kit - 600HLR

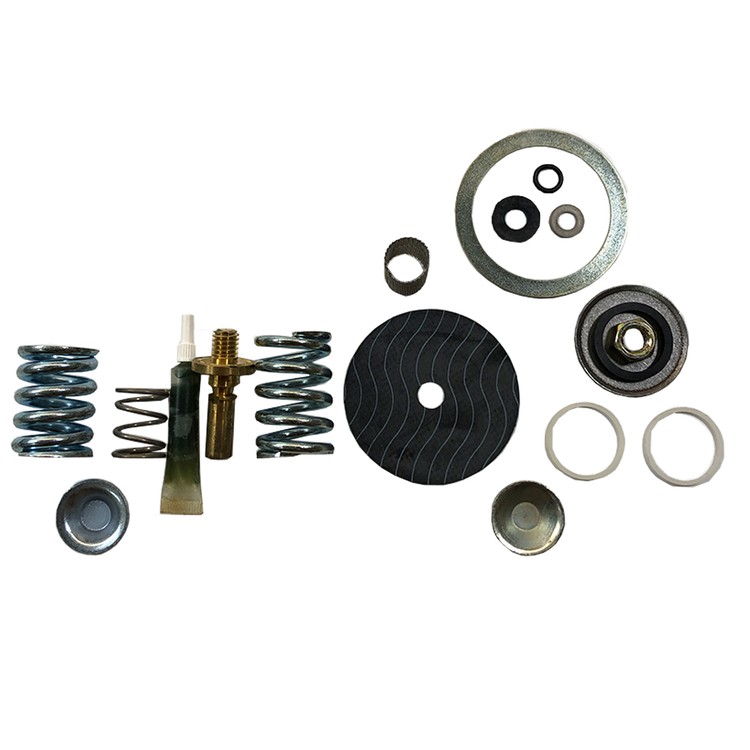

RK12-600HLR copy

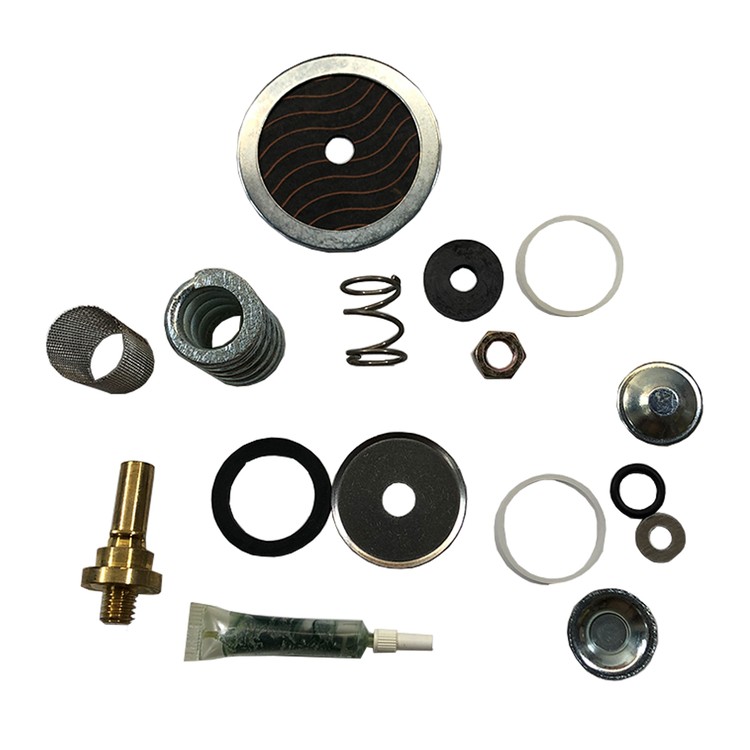

RK34-600HLR copy
RK1-600HLR copy
RK114-600HLR
RK12-600HLR 2 copy

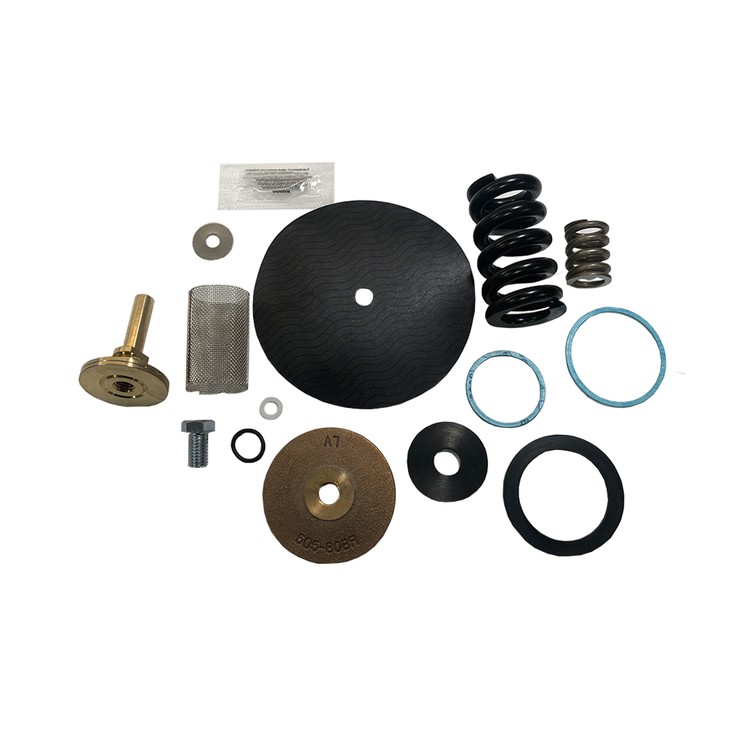

RK2-600HLR

Zurn Wilkins - 600HLR - Direct Acting Type Pressure Reducing Valve

Bronze body and bell housing with replaceable stainless steel seat, built-in bypass, and integral strainer.

Product Code Size Description
600HLR015 15mm Direct Acting PRV, Adjustment 0.7 - 8.5 Bar, Rating 20 Bar
600HLR020 20mm Direct Acting PRV, Adjustment 0.7 - 8.5 Bar, Rating 20 Bar
600HLR025 25mm Direct Acting PRV, Adjustment 0.7 - 8.5 Bar, Rating 20 Bar
600HLR032 32mm Direct Acting PRV, Adjustment 0.7 - 8.5 Bar, Rating 20 Bar
600HLR040 40mm Direct Acting PRV, Adjustment 0.7 - 8.5 Bar, Rating 20 Bar
600HLR050 50mm Direct Acting PRV, Adjustment 0.7 - 8.5 Bar, Rating 20 Bar
