Azud - Modular 300 - Manual Screen Filters

Deeco - Azud - Modular 300 - Product Image
Brand: Azud
Category: Filtration, Manual Filters
Filtration Degree:

100-200 micron

Product Description

AZUD MODULAR 300 is the range of manual filters for exclusive use in water filtration for irrigation, based on maximum filtration safety.
Optimized performance combined with minimum maintenance frequency and intensity.

Features and Benefits

  • Modularity, Versatility, and Compatibility: The system permits a wide range of possibilities with a minimal number of components.
  • Manufactured in technical plastic materials
  • Low and easy maintenance: No tools required.
  • Water and energy saving
  • Filtration with screen filter element: The material of construction of the screen is stainless steel. Filtration degrees 100, 130, and 200 micron.

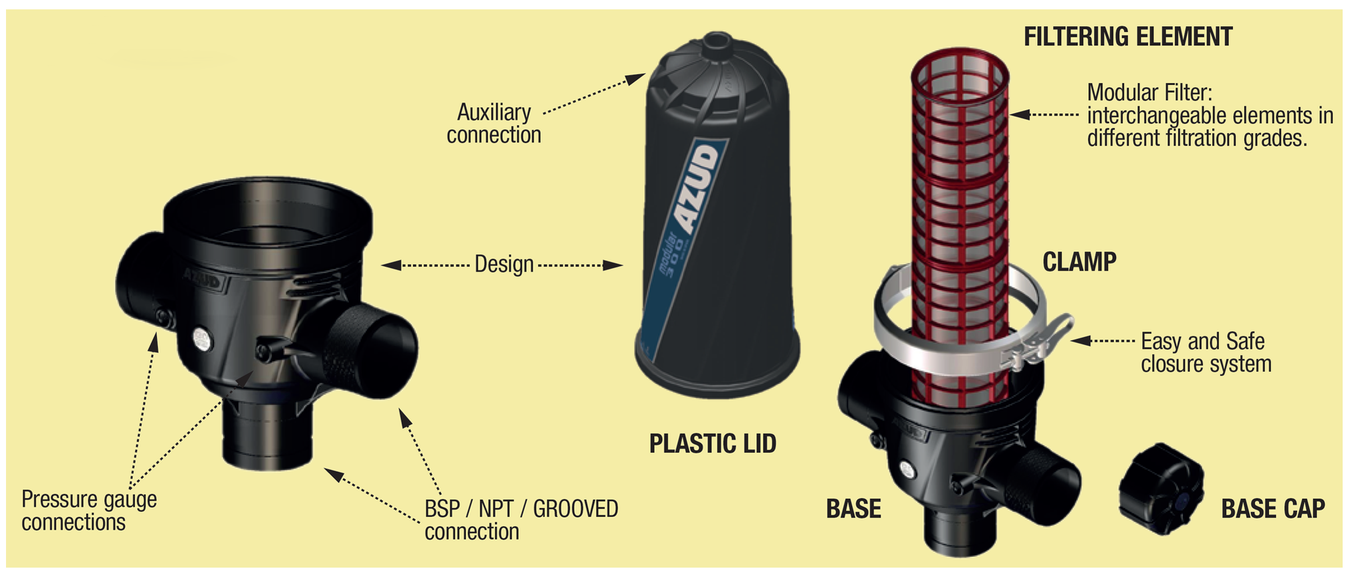

Technology

Deeco - Modular 300 - Technology

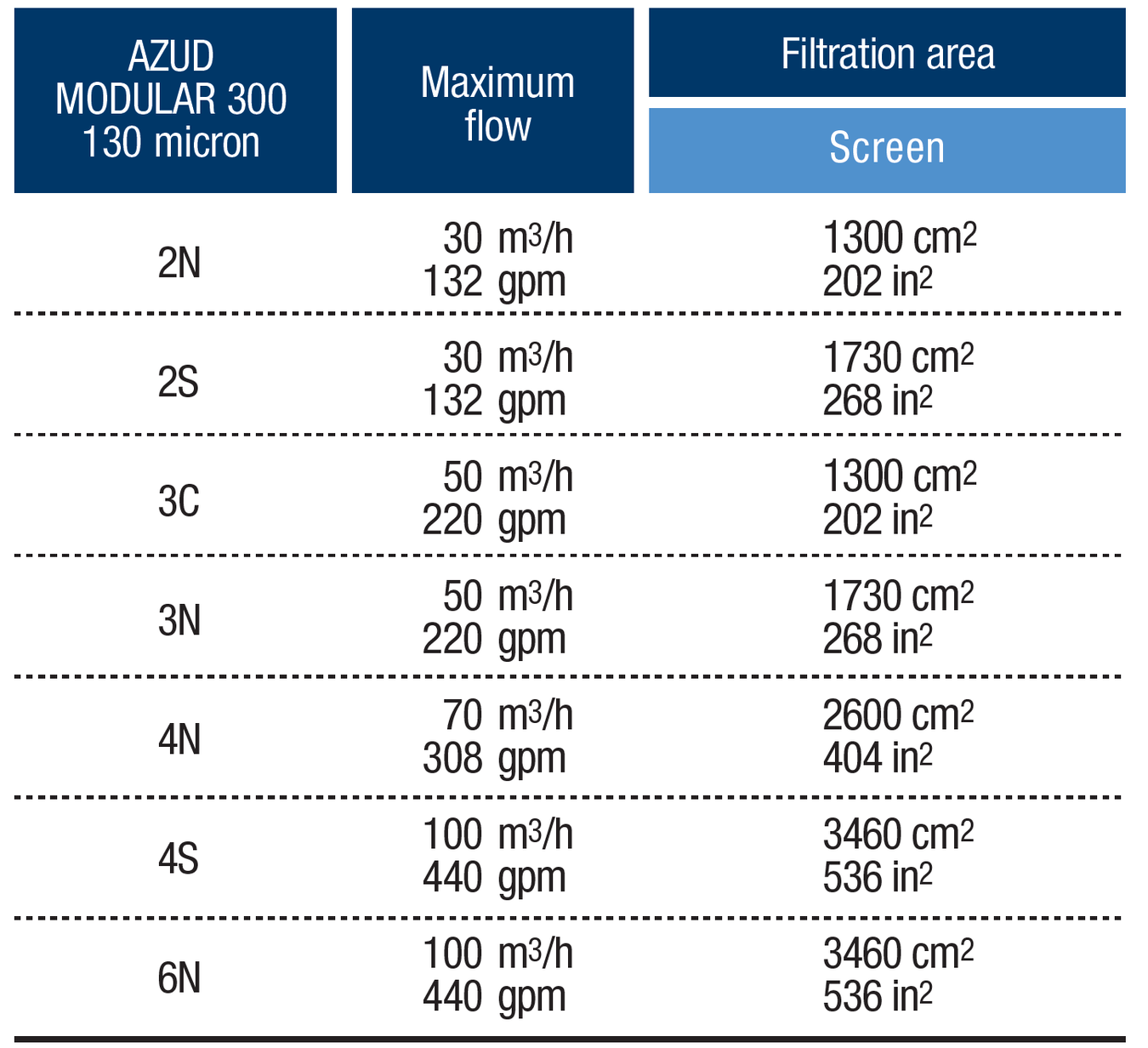

Technical Data

Deeco - Modular 300 - Technical Data

Other filtration grades are available on request

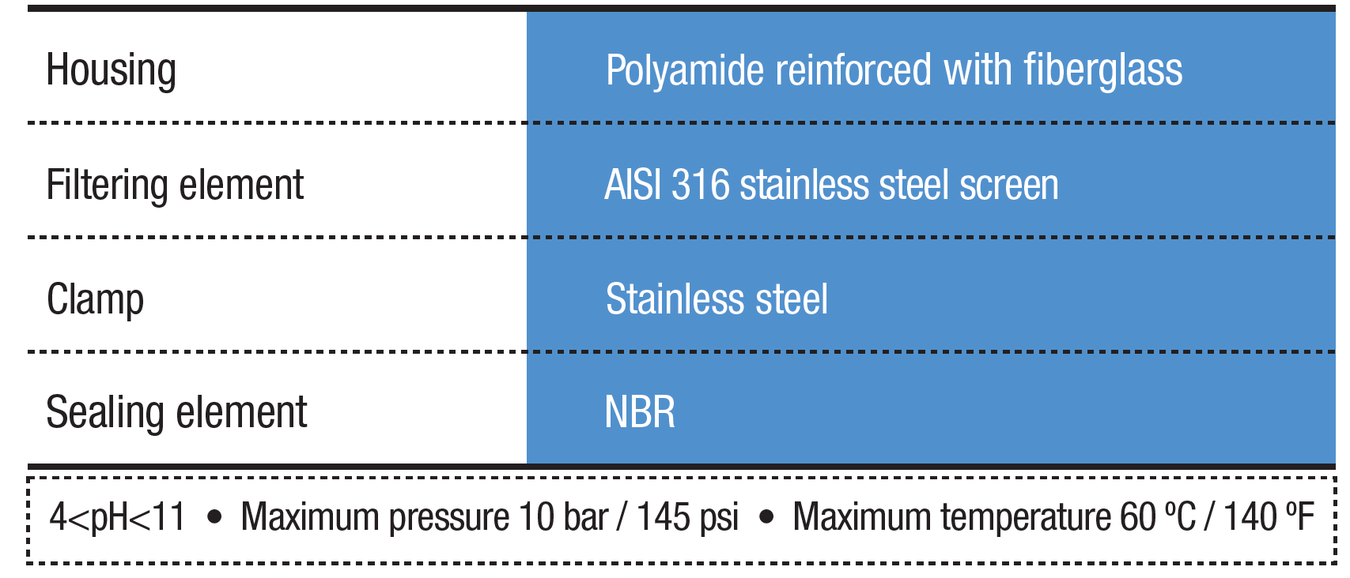

Construction Materials

Deeco - Modular 300 - Construction Materials

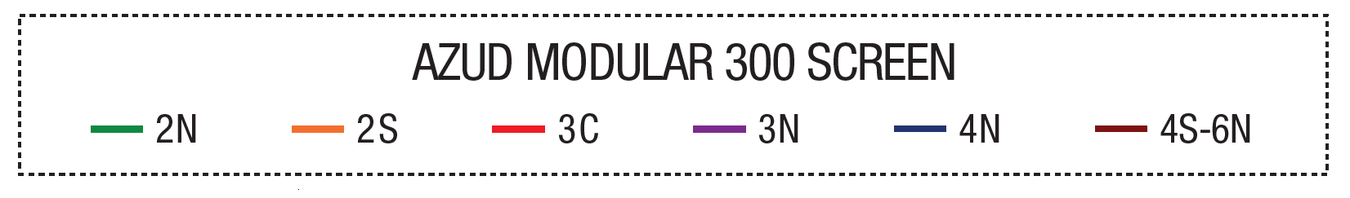

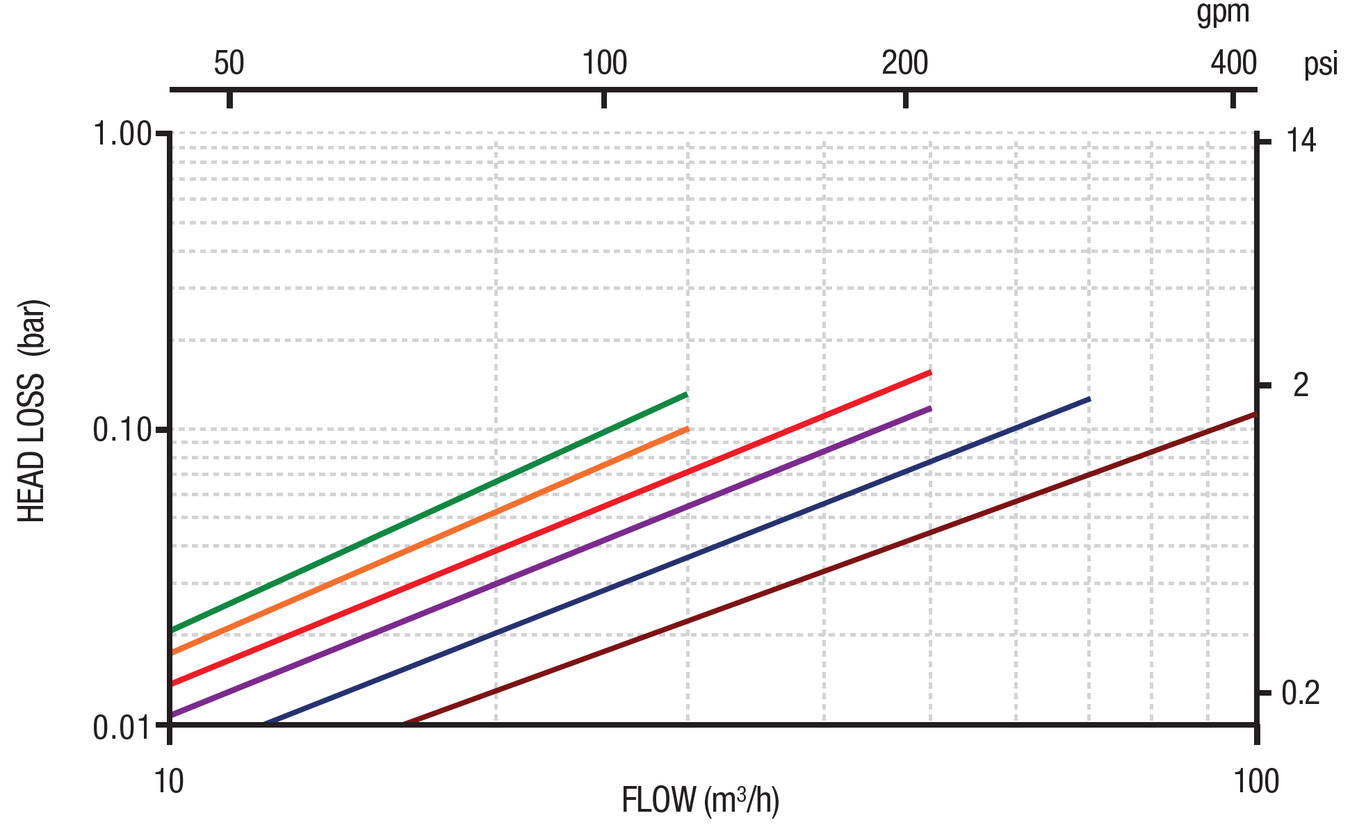

Head Loss Graph

130 micron

Deeco - Modular 300 - Head Loss
Deeco - Modular 300 - Head Loss1

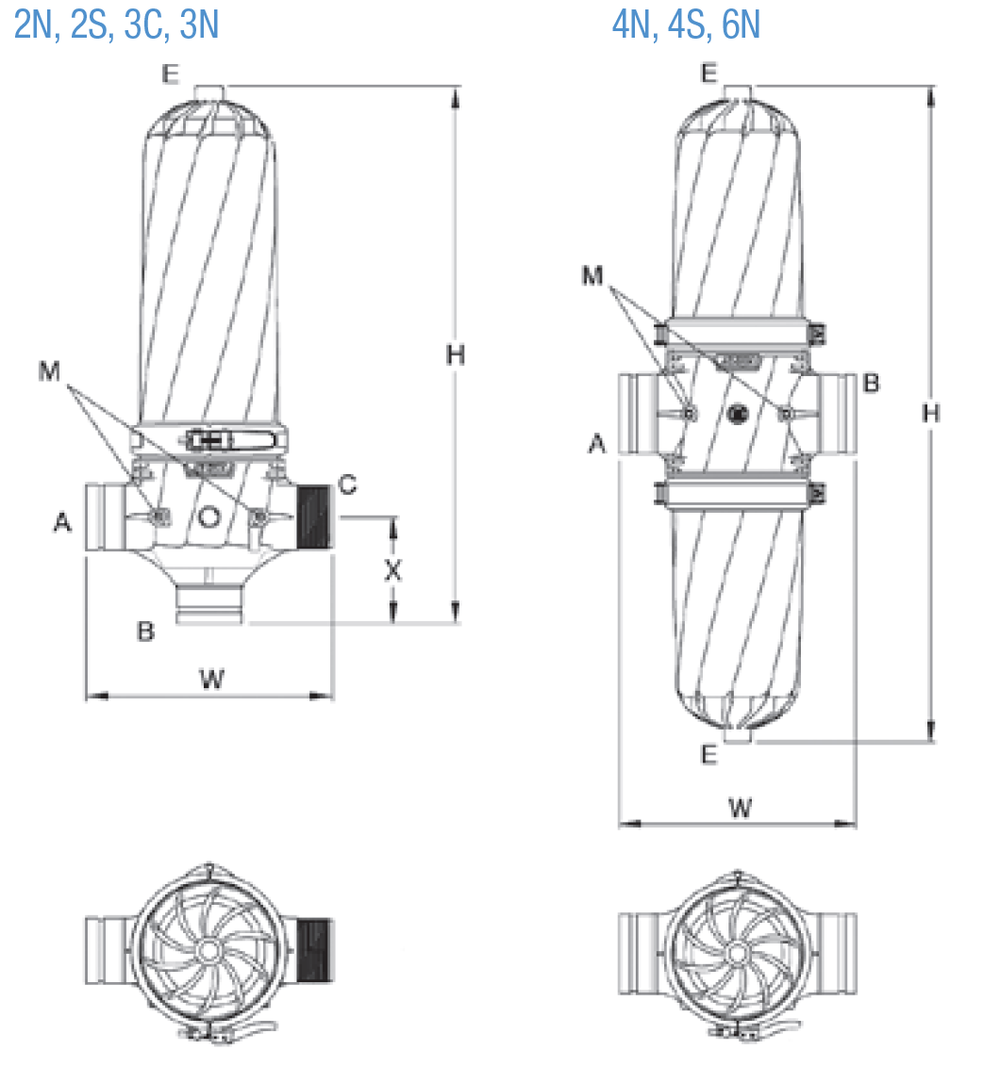

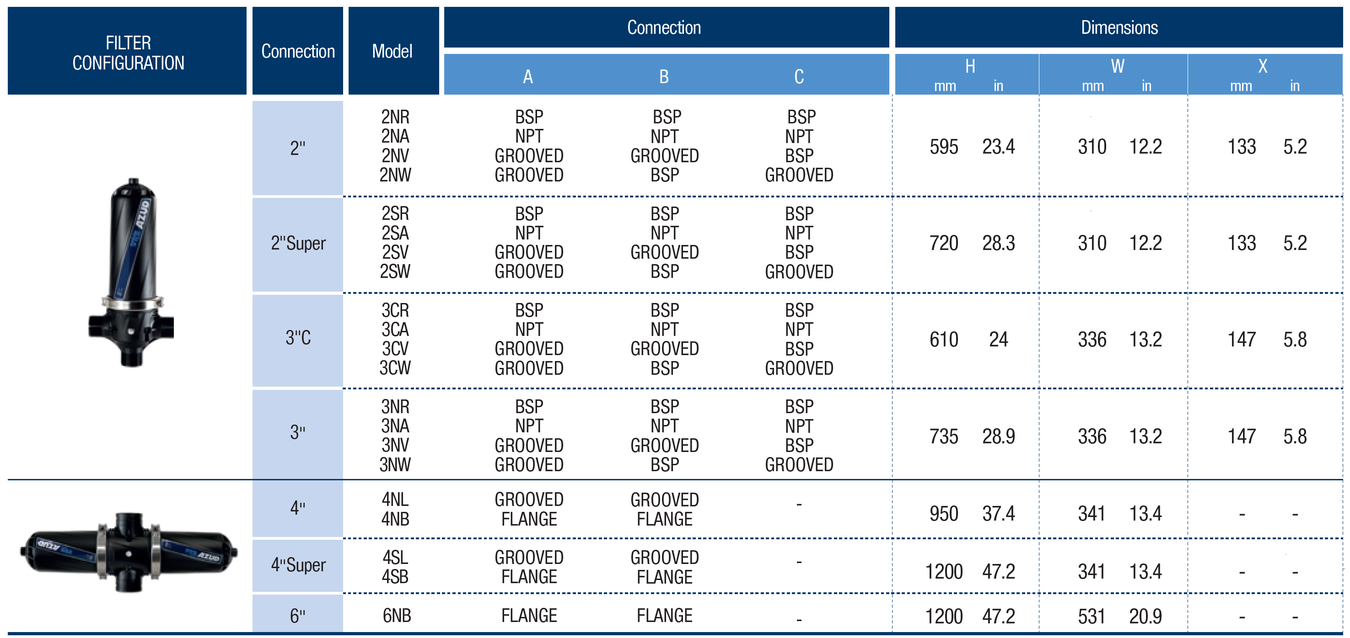

Dimensions and Weights

Deeco - Modular 300 - Dimensionsal Drawing
Deeco - Modular 300 - Dimensions

Azud - Modular 300 - Manual Screen Filters

Mod 300
Product Code Size Pressure Rating Description
17A2NR-XXX 50mm 10 Bar M300 Screen Filter 100, 130 or 200μm - BSP Threaded
17A2SR-XXX 80Smm 10 Bar M300 Super Screen Filter 100, 130 or 200μm - BSP Threaded
17A4N-XXX 100mm 10 Bar M300 Screen Filter 100, 130 or 200μm - Flanged

XXX - Please Specify Filtration Grade (100, 130 or 200μm).
