![Bermad - Model 60 - Product Image](https://deeco-production.s3.amazonaws.com/images/Deeco_-_Bermad_-_Model-60_-_Produc.2e16d0ba.fill-500x500.jpg)
Brand: | Bermad |
Category: | Control Valves, Float/Level Control Pilots |
Pressure Range: | 0-16 Bar |
Product Description
This 2-Way Modulating Horizontal Float is actuated by a float either pulling the float pilot arm down when leveling drops; or floating it up when the level rises. The float pilot throttles closed as the level rises towards a set point, eventually closing drip-tight.
Technical Data
Pressure Rating
- 16 bar; 230 psi
Working Temperature
- Water up to 50˚C; 125˚F
Flow Factor
- Kv 1.4; Cv 1.6
Ports
- ½” ISO-7-Rp
Standard Materials
Pilot Body: Stainless Steel
Internals: Plastic
Float: Stainless Steel
Float Rod: Stainless Steel
Elastomer: Silicon
Special Materials for Drinking water.
- Internals: POM-C
- Elastomer: EPDM
Notes:
Float hydraulic connections: ½” or larger tube.

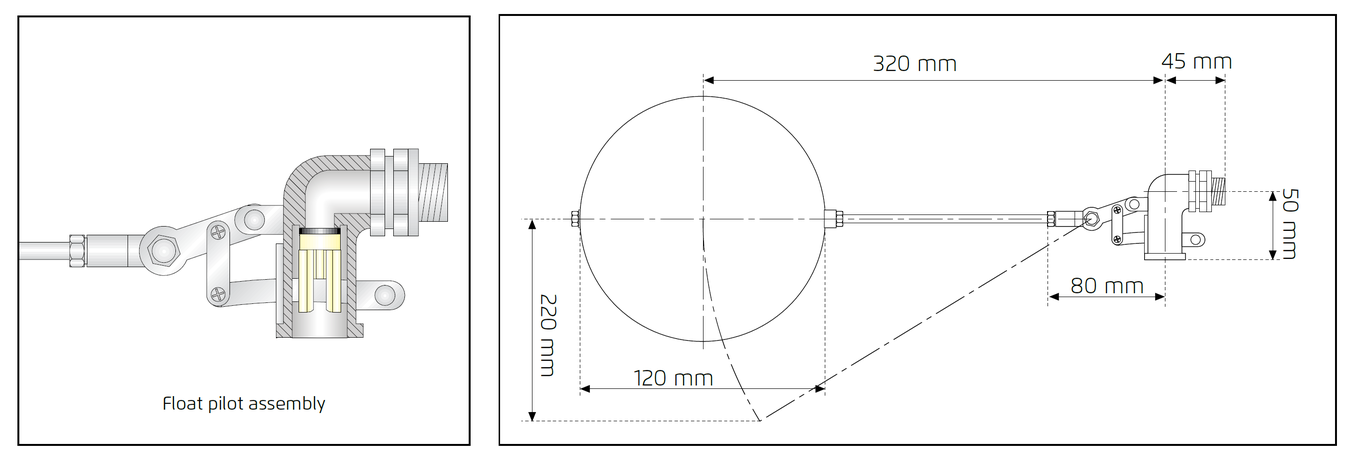

Technical Specifications
![Bermad - Model 60 - Technical Specifications](https://deeco-production.s3.amazonaws.com/images/Bermad_-_Model_60_-_Technical_Specifications.width-1350.png)
Bermad - Model 60 - Technical Specifications
Bermad - Model 60 - Modulating Float Pilot

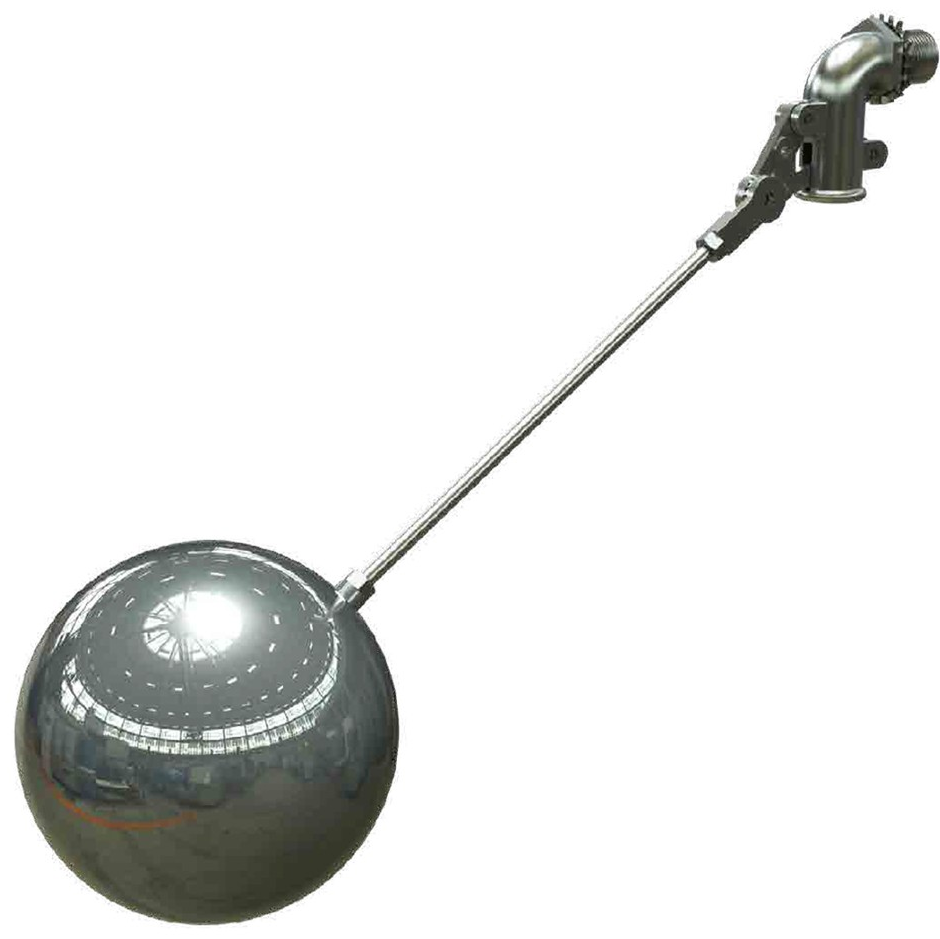

![Bermad - Model-60 - How to Order](https://deeco-production.s3.amazonaws.com/images/Bermad_-_Model-60_-_How_to_Order.2e16d0ba.fill-1000x1000.png)
Bermad - #60
Product Code | Rating | Description |
---|---|---|
#60 | PN16 | 60 Type Modulating Float for Level Control Valve |
