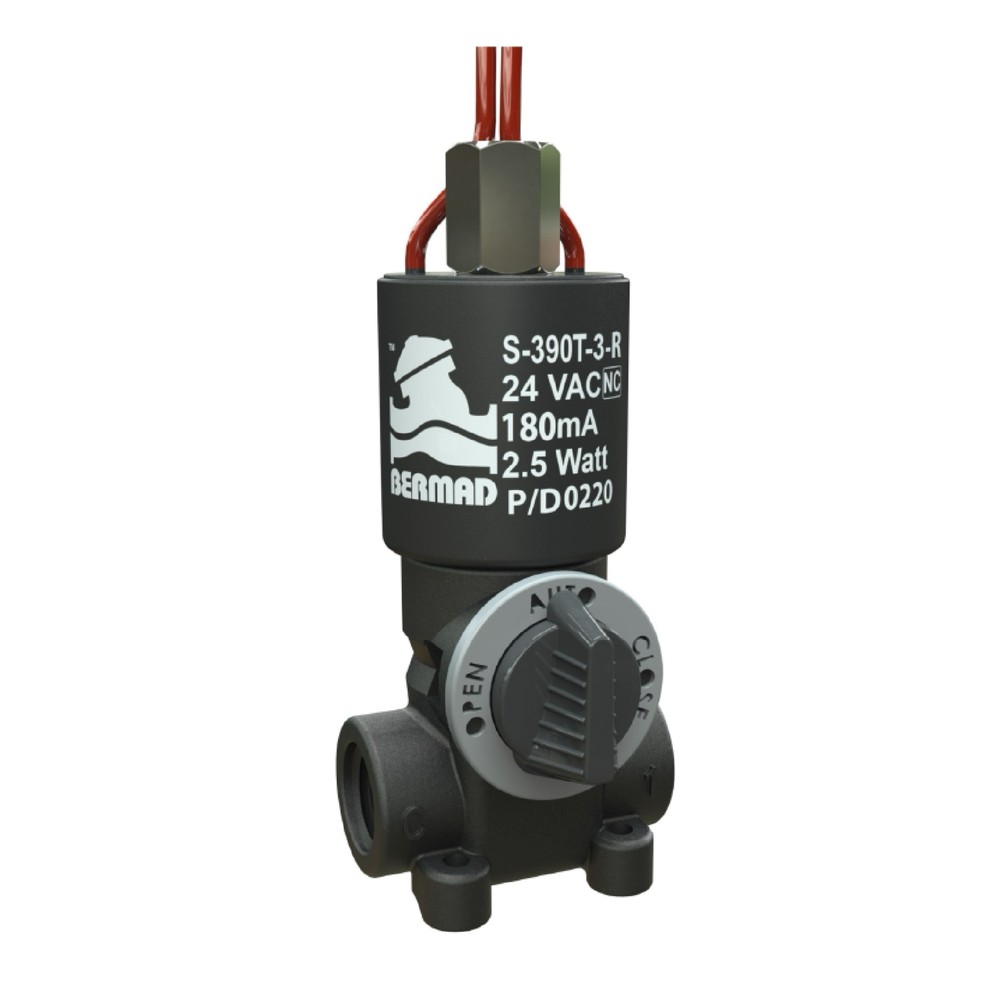

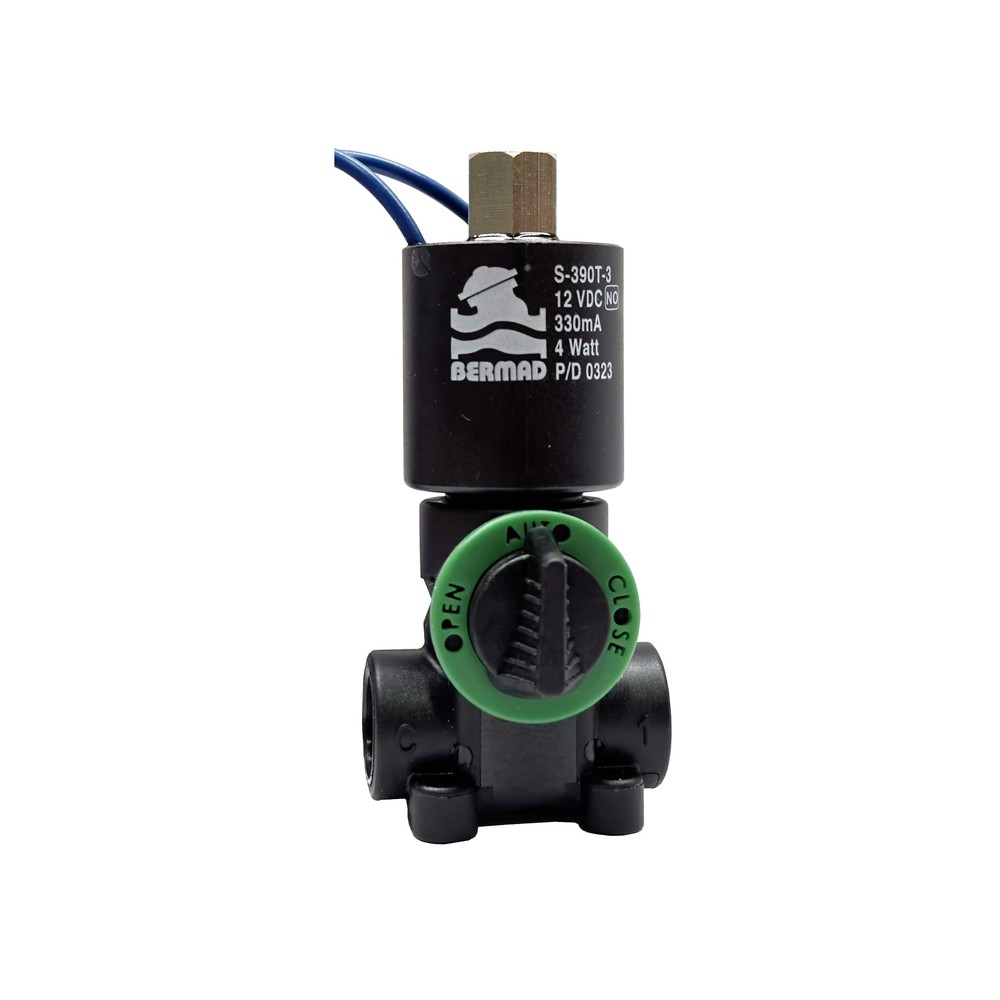

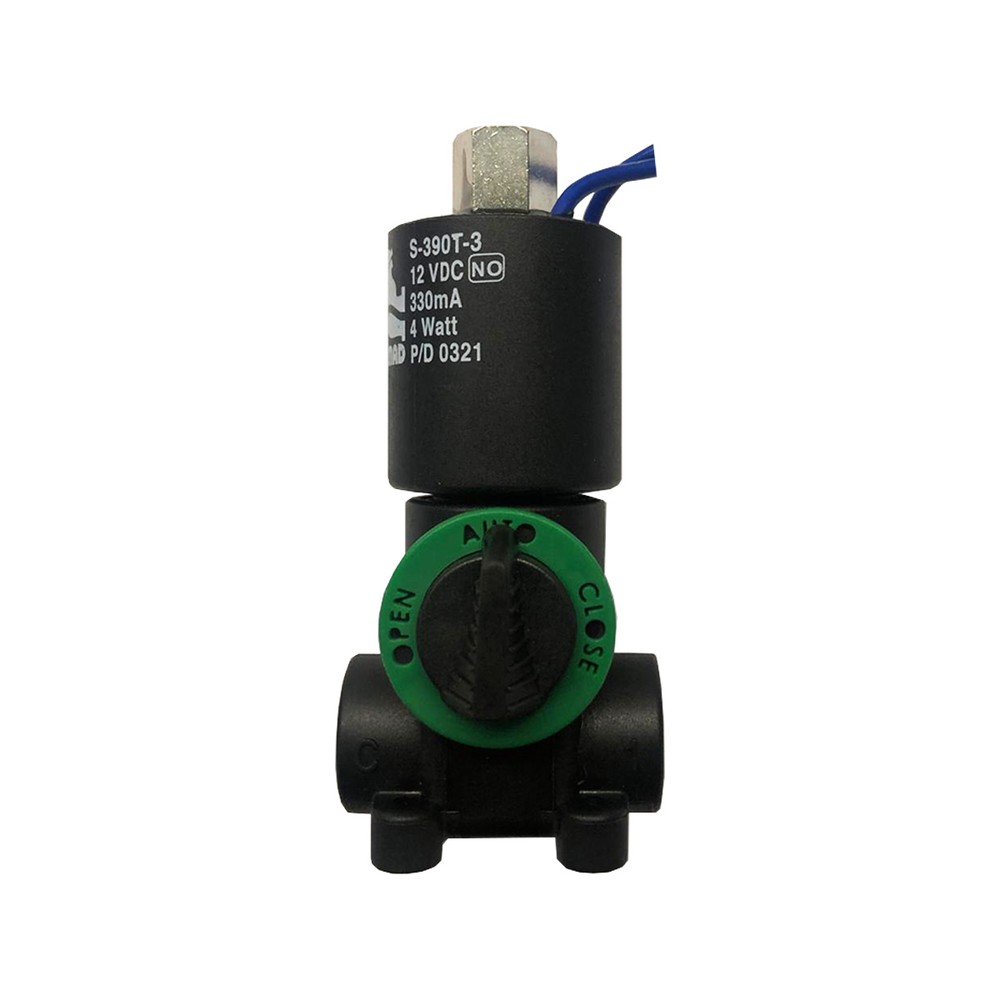

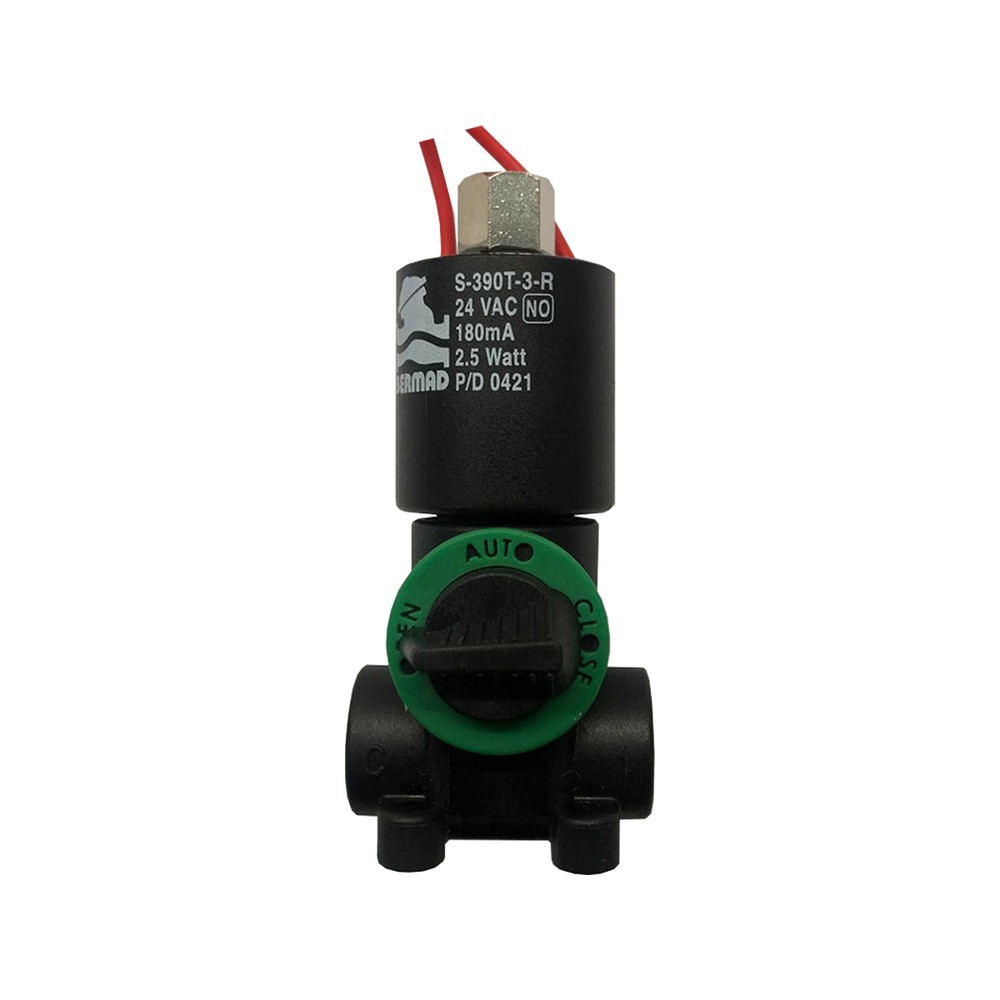

Bermad - Model S390T 3 Way - Normally Open or Closed TRIO Solenoid

The BERMAD S390T-3W is a compact 3-way Solenoid in NO or NC specially designed for reliable long-life service in irrigation systems controlled by Continuous Current Controllers. The BERMAD solenoid can control valves independently or in combination with other control circuit accessories.

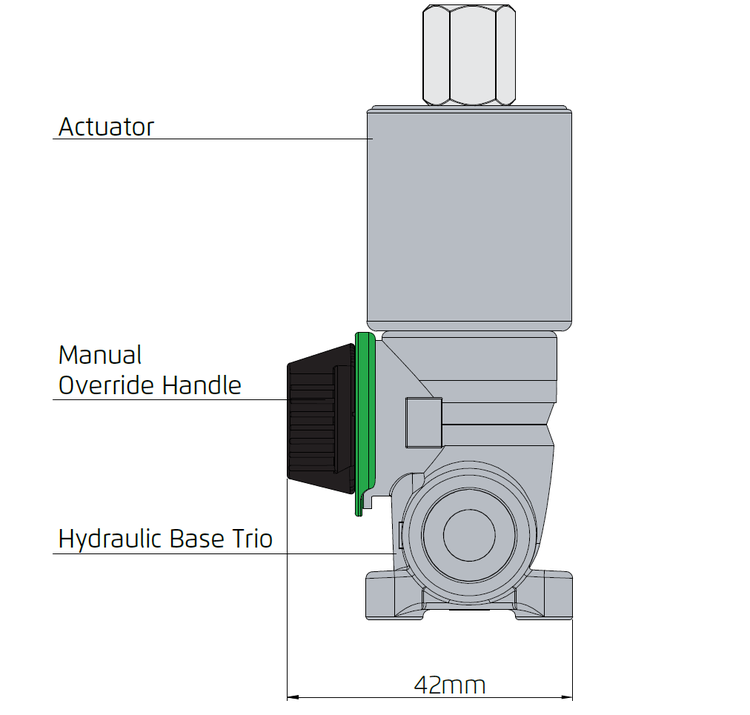

Model S390T-3W is compliant with all Continuous Current Controllers on the market. It excels in its low power consumption and low dirt and voltage variations sensitivity. The hydraulic base features a three-position TRIO manual override and includes a bracket for attaching to the valve or a solenoid manifold.

Features and Benefits

• Advanced Construction Materials, Unique Plastic Casing
  • Proven pressure, voltage, and weather resistance
  • Highly durable in corrosive environments
  • High mechanical strength
  • Protection Class - ip68; NEMA Type 6D
• Superb Internal Design and Finish
  • Reliable operation under dirt-loaded water
  • Low sensitivity to voltage variations
• Low Power Consumption
  • Low coil heating and sediment damage
  • Saves wires and infrastructure costs
  • Suites all Continuous Current Controllers on the market
• Angled Plastic Base with Installation Bracket
  • High flow capacity quickens valve response
  • 3-position TRIO manual override (Open, Auto, and Close)
  • Simple installation to valve or manifold
• Sֺimple Installation, Operation and Maintenance
• Reliable and Durable Product that Bears the Stamp of BERMAD Quality

Applications

• Solenoid controlled on/off valves
• Solenoid-controlled pressure and flow control valves
• Multiple valve systems
• Systems distanced from control center

Ports:

Actuator Port - (1/8” NPT) - Pressure (N.O.); Vent (N.C.)
Base Port - 1 (¼" NPT) - Vent (N.O.); Pressure (N.C.)
Base Port - C (¼" NPT) - Valve Control Chamber (Common)

Solenoid to Base Connection: ¾”; 20 UNEF Male Threaded

Base Flow Factor:

Kv = 0.08 m3/h @ 1 bar DP
Cv = 0.09 GPM @1 psi DP

Leads: 2 leads x 0.32 mm2 x 80 cm

Operating Pressure Range: 0-10 bar

Base Orifice Diameter: 1.8 mm (N.O.) Green status Ring

Base Orifice Diameter: 1.6 mm (N.C.) Gray status Ring

Actuator Orifice Diameter: 1.6 mm

Materials

Actuator Casing: Nylon

Seals: NBR

Wetted parts: Stainless steel 400 and polyamide

Base: Nylon

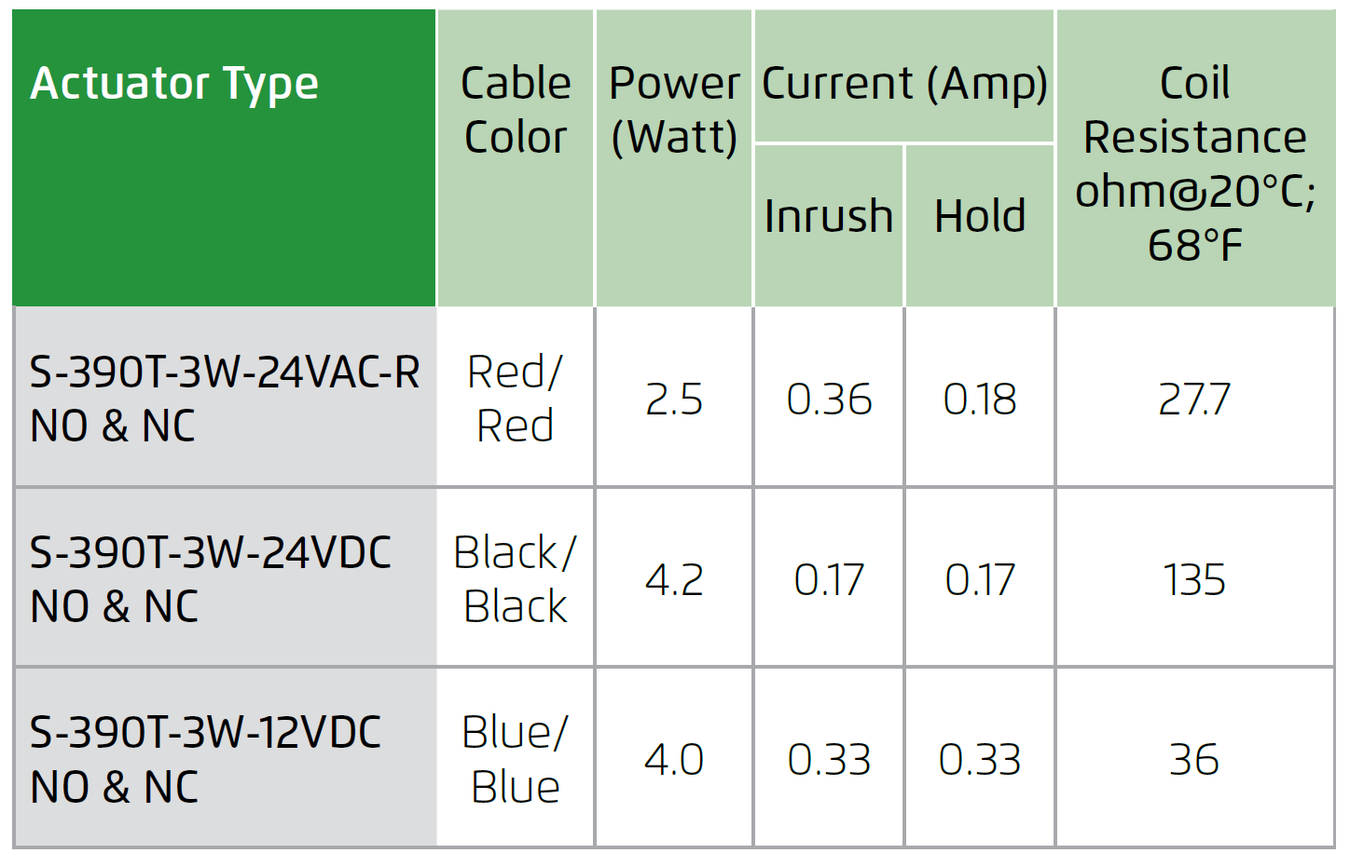

Electrical Data
