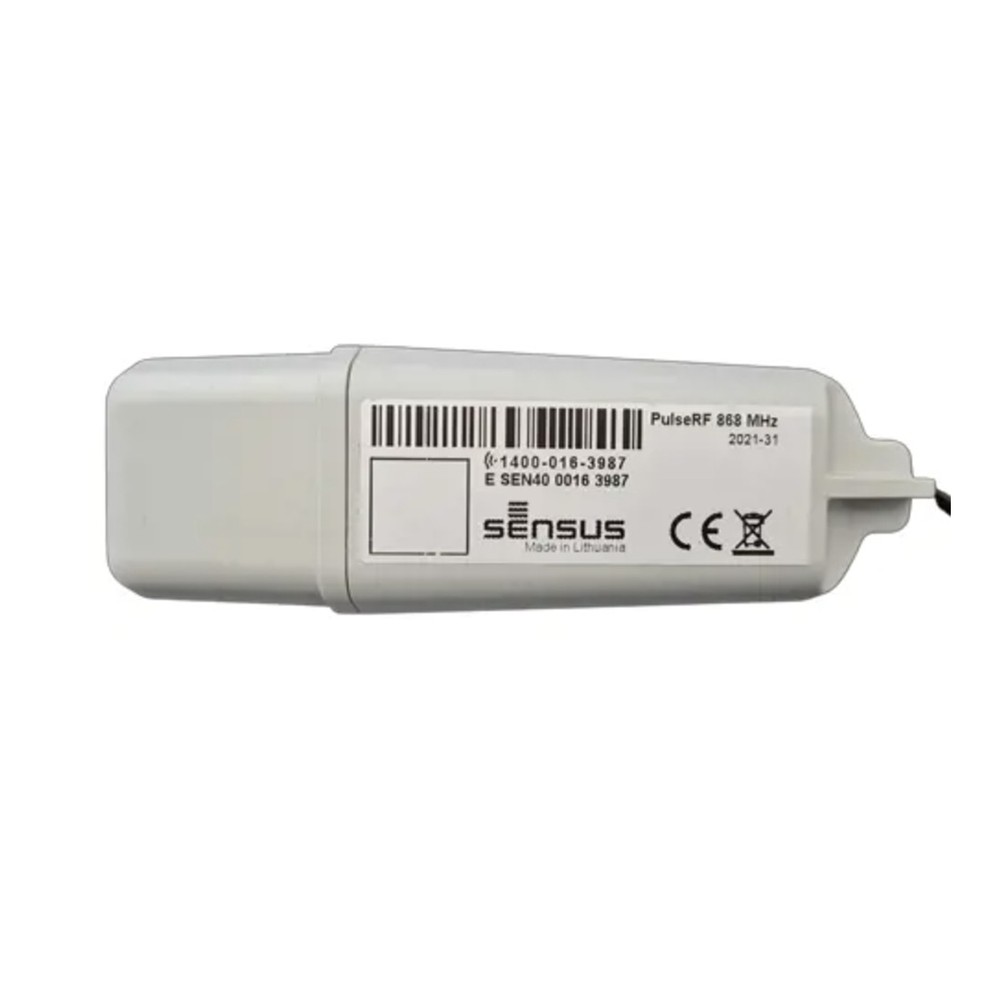

The Sensus PulseRF module allows you to integrate meters with a pulse output into the Sensus RF radio system. It is mainly used with C&I water meters, but can also be used with thermal energy, gas, and electricity meters. It is designed to transmit meter data frequently or on request to mobile readout devices, or to a Sensus RF fixed radio network. The PulseRF module creates data out of incoming pulses and transmits them to an external data management system (such as a meter index, alarms or additional information as Fixed Date Reading or data logger). In addition to transmitting the meter index, the module has numerous smart functions that provide added customer value.
Features and Benefits
- Transmission of consumption values
- Data Logging (by steps of 1 min to 24h)
- Active alarm status (cable cut or removal, leakage, broken pipe, reverse flow
- low battery
- Pulse Input
- Flow Direction Input
- Units for Energy and Volume

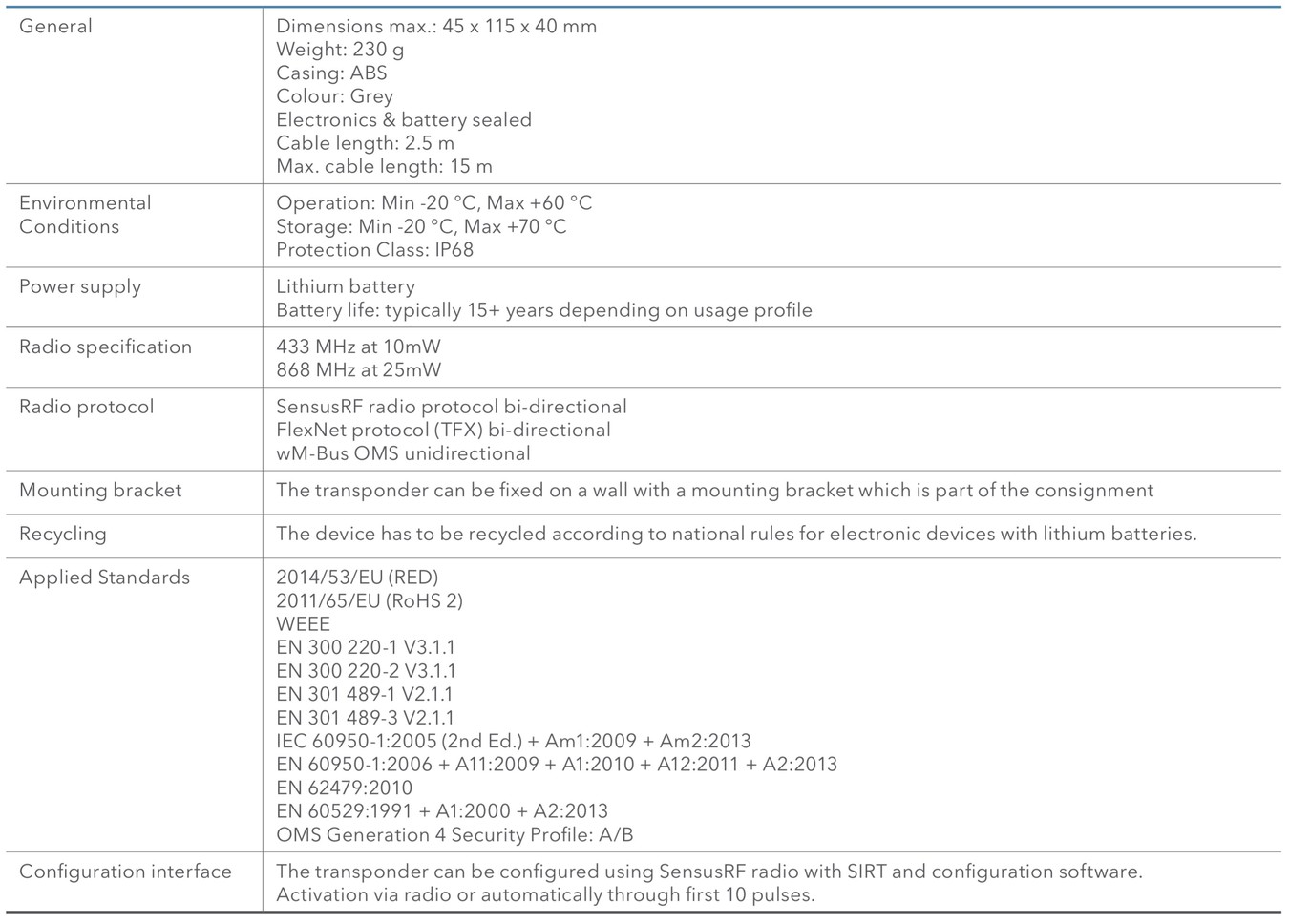

Dimensions max.: 45 x 115 x 40 mm
Weight: 230 g
Electronics & battery sealed.
Cable length: 2.5 m
Max. cable length: 15 m
Battery life: typically, 15+ years depending on
433 MHz at 10mW
SensusRF radio protocol bi-directional
FlexNet protocol (TFX) bi-directional
wMBus OMS unidirectional
Operation: min –20 °C / max +60 °C
Storage: min –20 °C / max +70 °C
Protection rating: IP68
The transponder can be fixed on a wall with a
mounting bracket which is part of the consignment
Has to be recycled according to national rules for
electronic devices with lithium batteries
EN 62479; EN 60950-1;
Radiofrequency: EN 300 220-1/-2
EMC: EN 301 489-1/-3
To connect Sensus PulseRF to a meter with pulse.
unit we recommend:
Jointing sleeve IP 68, order no. 18 17 84
Connector IP68 for two cables up to 5 wires

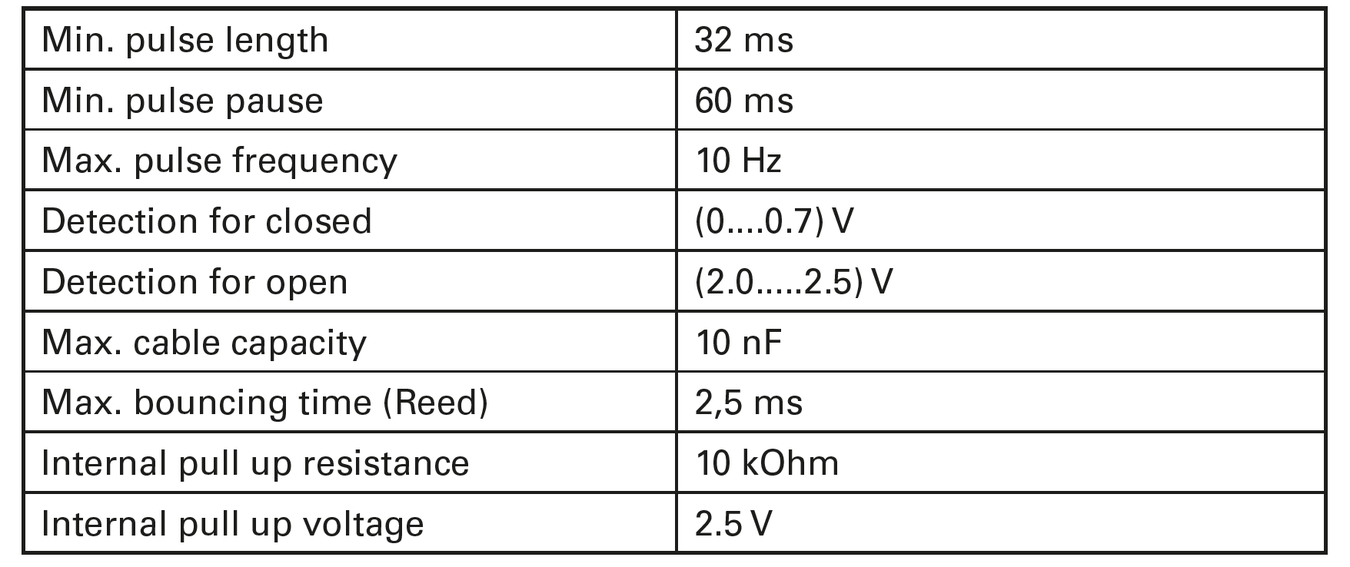

Meters with a pulse output, as an open collector or reed switch, can be connected. The Sensus PulseRF has one 4-wire input enabling the following functions.
- Pulse input (+) (white)
- Cable cut (green)*
- Direction (yellow)*
- Ground (-) (brown)

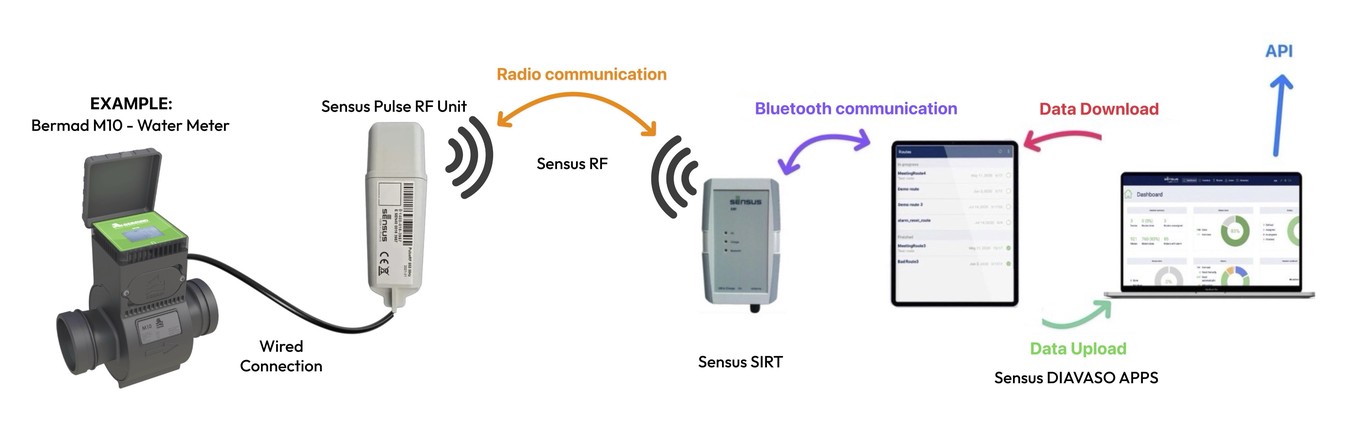

The transponder can be configured using SensusRF radio with SIRT and configuration software. Activation via radio or automatically through the first 10 pulses.
- Meter ID
- Meter Reading
- Alarms (leak, cable cut*, reverse flow*, broken pipe, internal errors,
- low battery)
- Fixed Date Reading
- Data Logger
* Depending on the connected pulse device

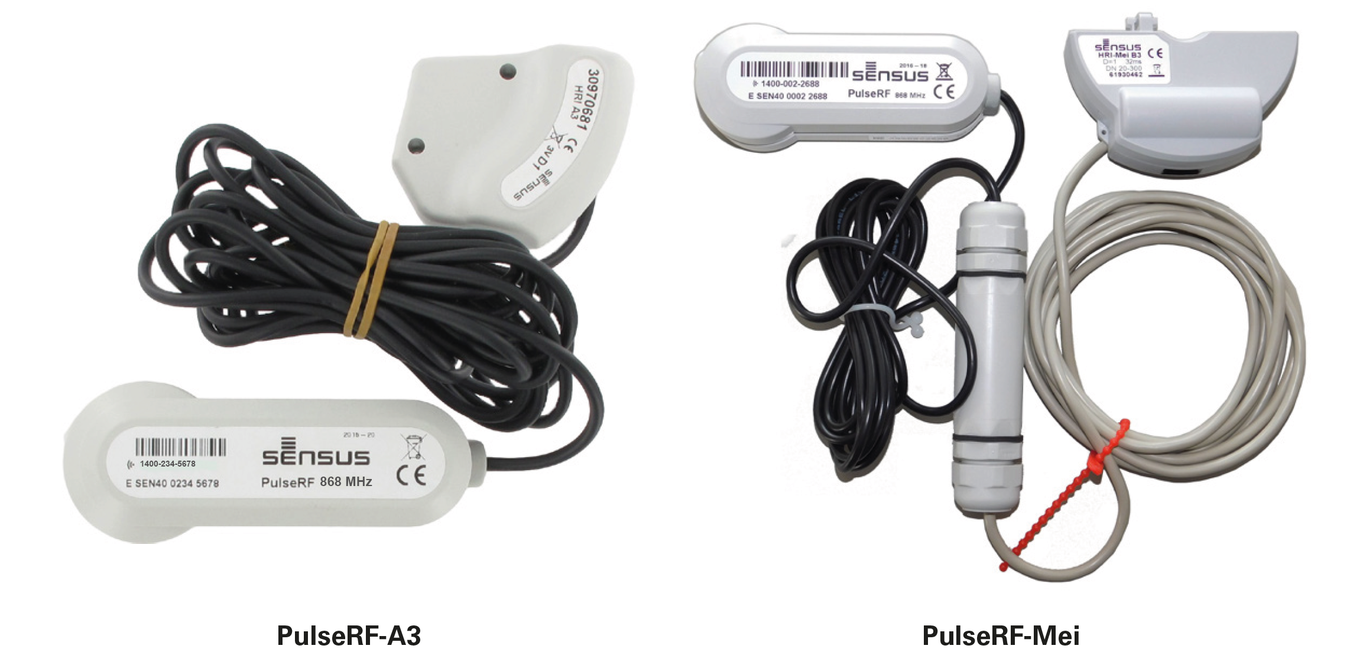

For Sensus mechanical water meters prepared for HRI or HRI-Mei pick-up an assembly with connected pulser exists.
Sensus - RF Pulse Unit
|RF Pulse Unit||All||RF endpoint for addition to any pulse output c/w OMS wMBUS T1 communication output.|
