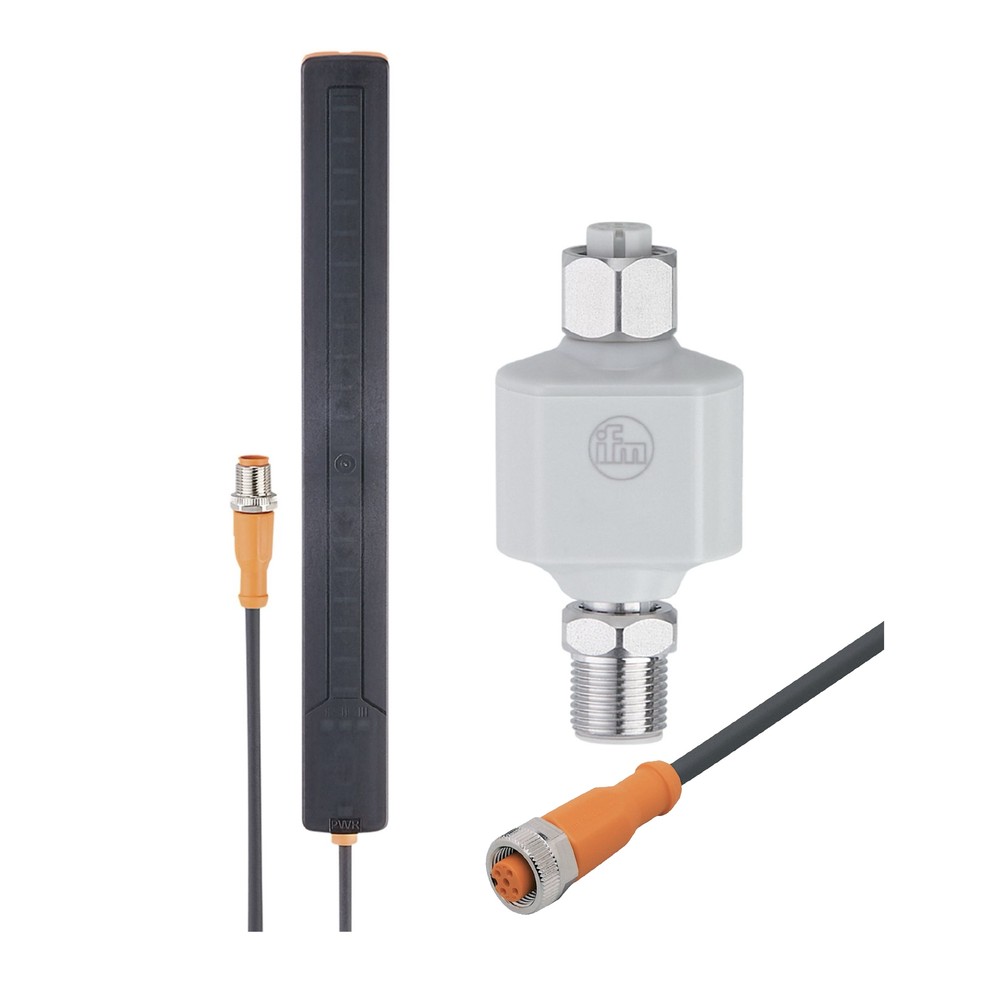

Talgil - Analog Sensor - Continuous Level Sensor with LED Display

• Continuous level measurement behind non-metallic and non-conductive surfaces
• No stress caused by the medium thanks to non-contact detection
• Three point level sensors in one unit

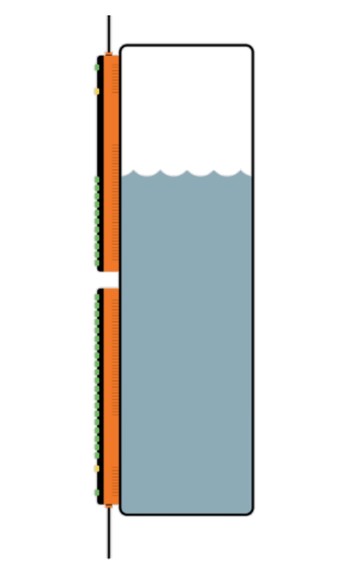

Continuously monitor empty and overflow condition

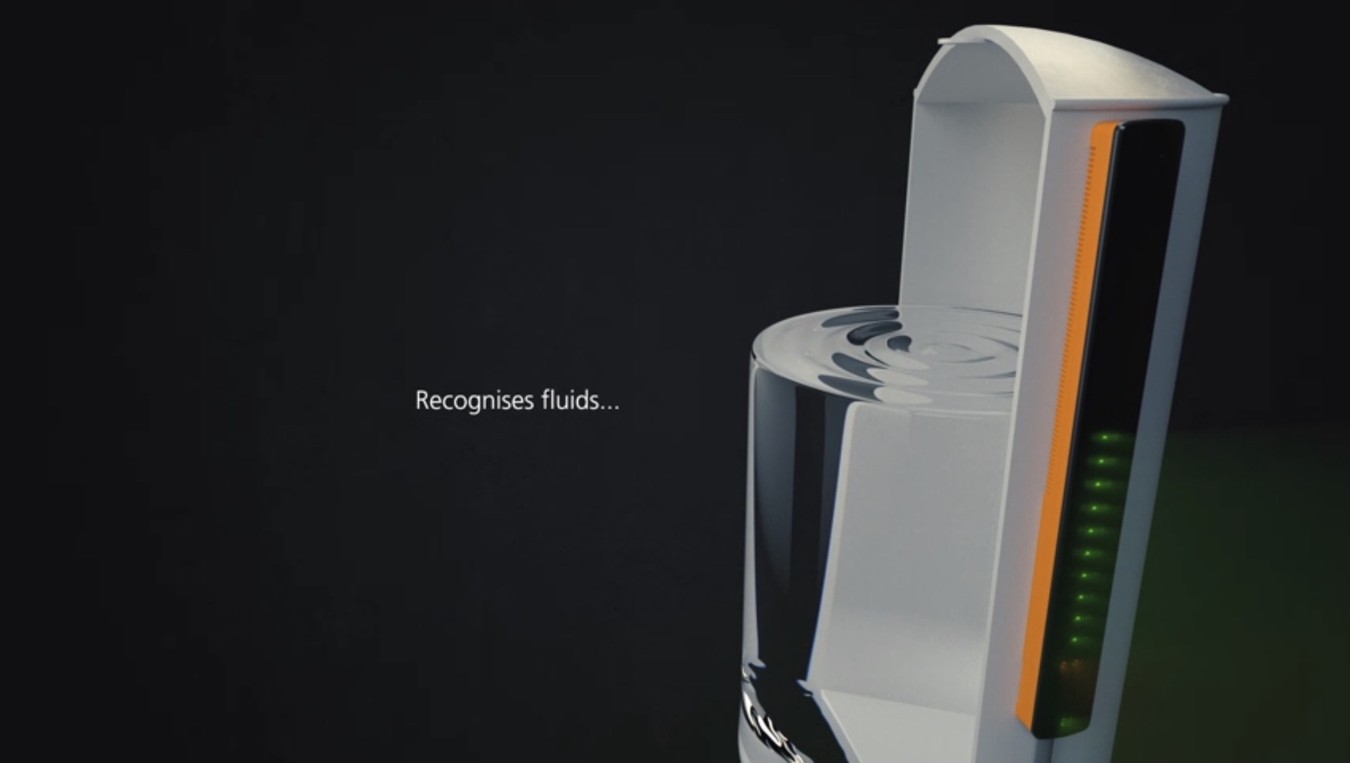

The new capacitive sensor can “see” through all non-conductive walls, detect ing bulk materials or liquids without contact. So no maintenance is necessary.

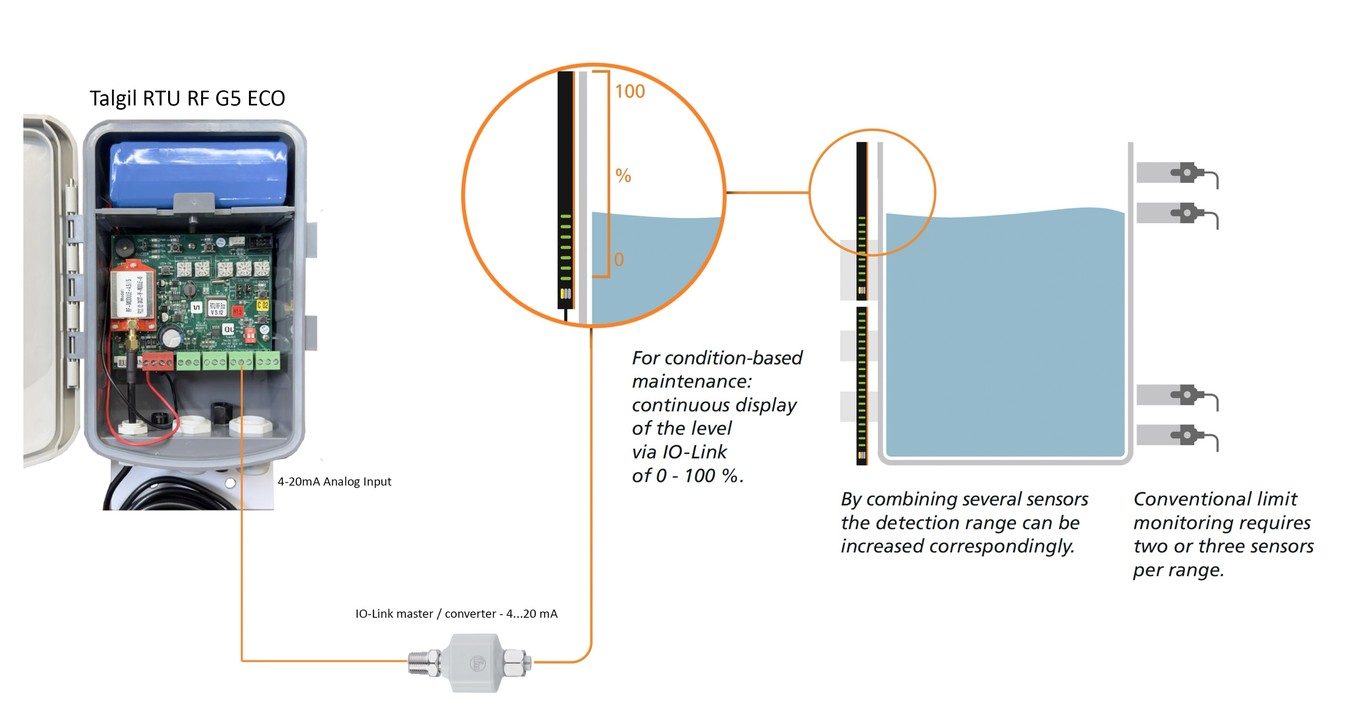

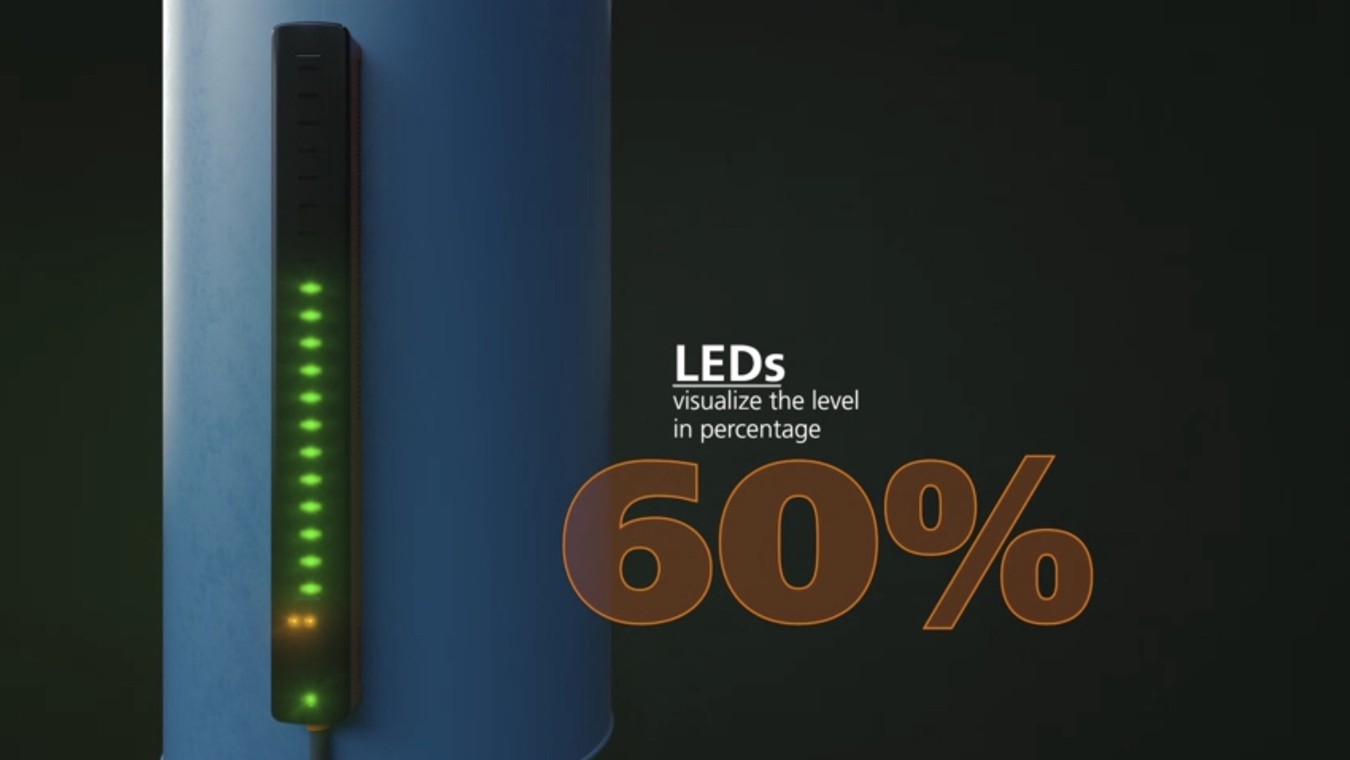

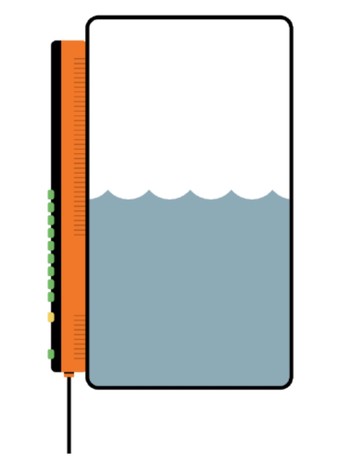

Process values of 0...100 % can continuously be transferred via IO-Link in ranges of 250 mm without dead band. 20 LEDs display the real level inside the tank directly at the sensor.

By setting the sensitivity, the sensor can detect media with good conductive properties such as water or acids and also poorly conducting media such as oils or granulates. Furthermore, it is possible to suppress zones so as to restrict the detection range to a non-conductive sight glass even with conductive vessels.

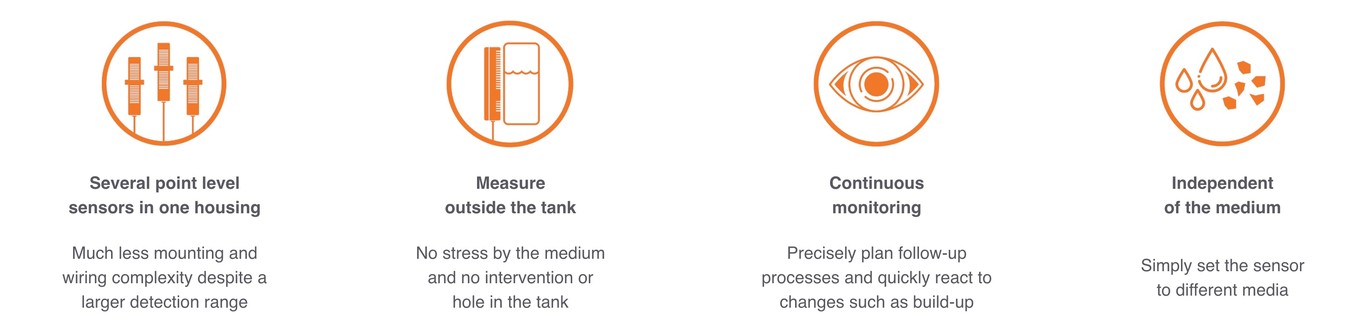

Features and Benefits

Typical Applications

Small tanks

Industry

• Printers (glass, ceramics, 3D etc.)
• Plastics processing
• Fertigation Tanks

Advantages

• No mechanical or chemical stress by the medium
• Exact level measurement along the whole sensor length
• No hole in the tank
• Predictive calculation – how much can I still produce?

Large tanks

Medium

• Liquids
• Granulates

Advantages

• Independent of the tank size
• Several sensors can be linked via IO-Link
• One KQ10 replaces several point level sensors for empty and overflow monitoring
• Increasing build-up is reliably detected and signalled

Bypasses / pipes

Medium

• Liquids
• Granulates

Advantages

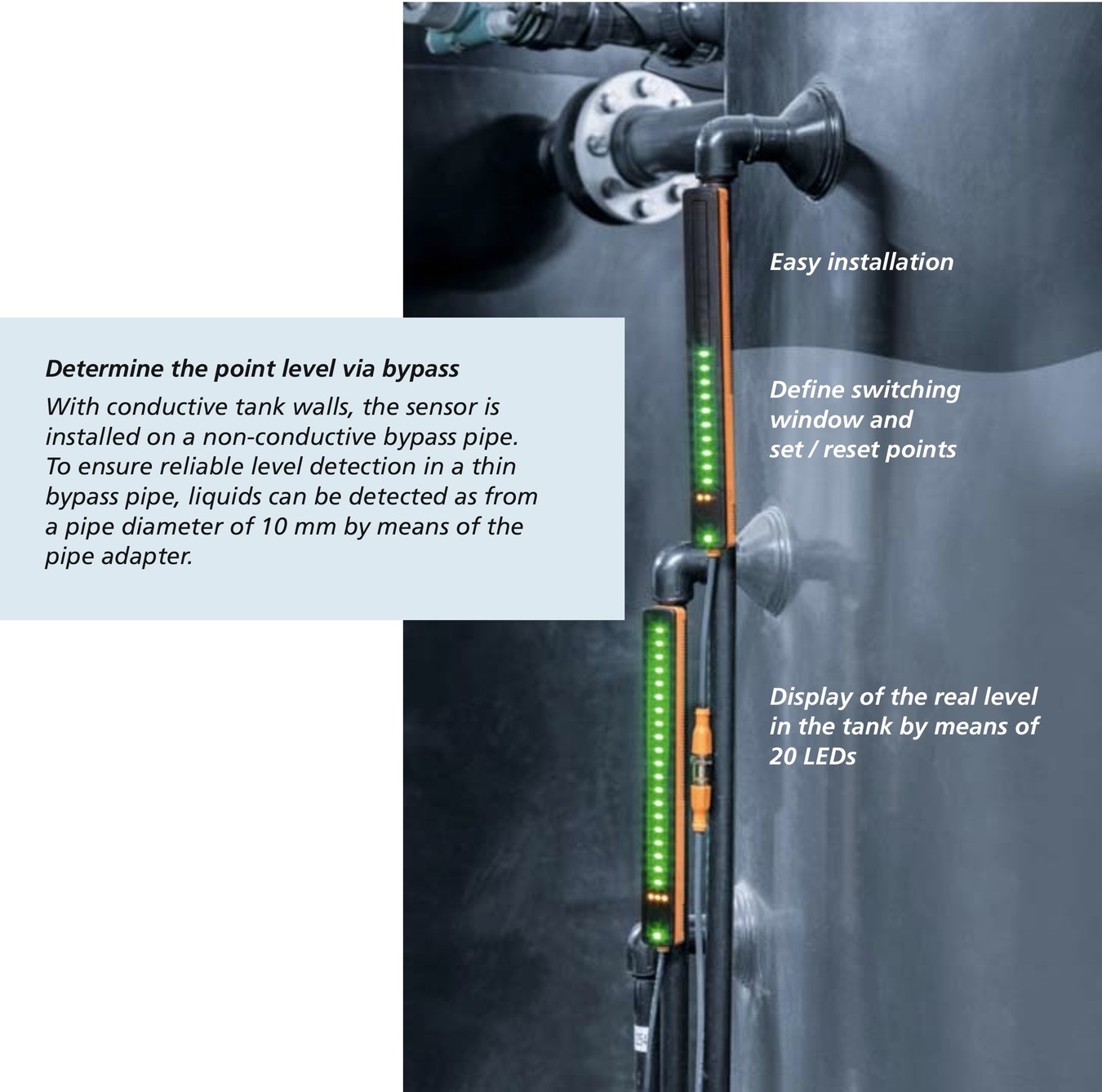

• Simple mounting at bypasses
• Continuous monitoring even at very narrow pipes from a diameter of 10 mm
• Clearly visible LEDs indicate the level even at non-transparent pipes

Product Characteristics

Electrical design: PNP/NPN; (parameterisable)

Housing: rectangular

Dimensions[mm]: 255 x 28 x 16.7

Application

Application: Continuous level measurement behind non-metallic and non-conductive surfaces

Media: dry bulk material; aqueous solutions; oils

Cannot be used for: highly adhesive media

Electrical Data

Operating voltage[V]: 10...30 DC

Current consumption[mA]: < 50

Reverse polarity protection: yes

Measuring principle: capacitive

Detection zone & Measuring/setting range

Measuring range[mm]: <200
