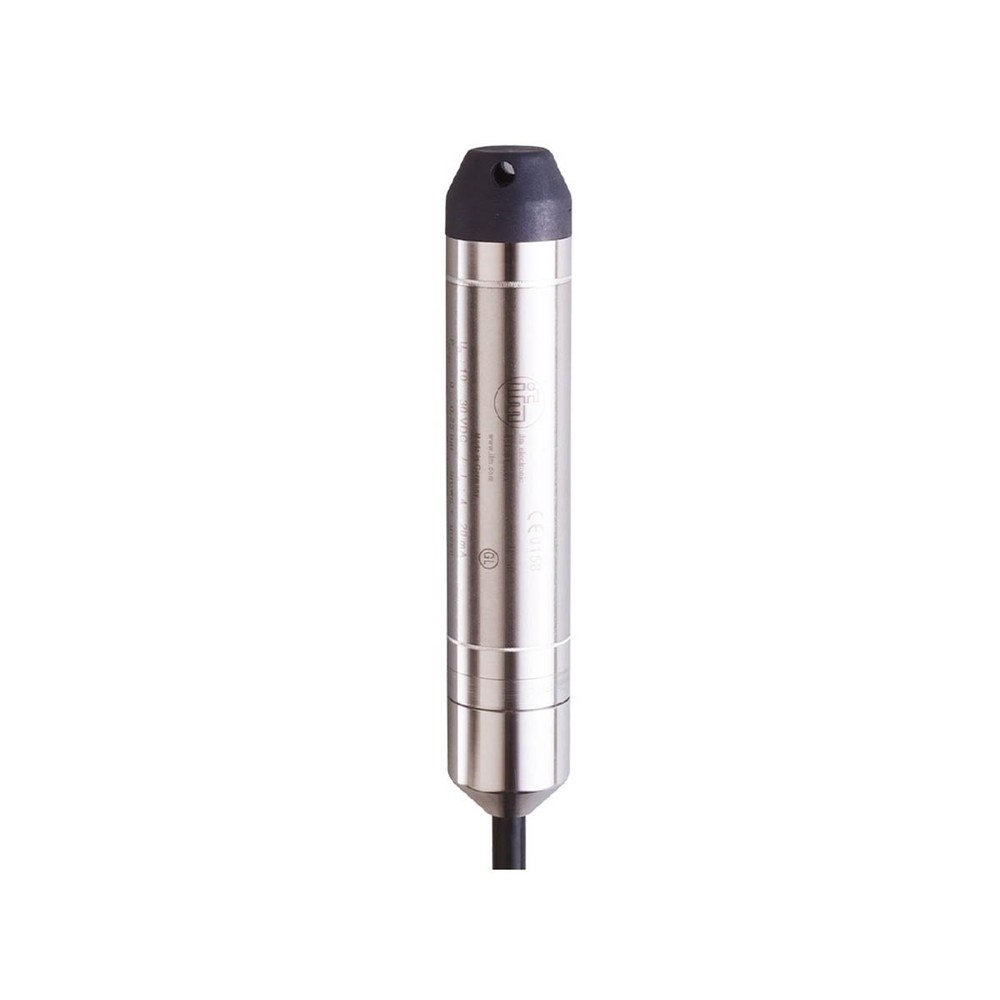

Talgil - Analog Sensor - Hydrostatic Submersible Pressure Transmitter

• Low-cost, simple level measurement
• Pressure compensation via internally vented cable
• Reduced wiring complexity when operated as a two-wire current loop
• High overall accuracy and long-term stability
• Robust stainless steel housing with high ingress resistance

Product Characteristics

Number of inputs and outputs: Number of analog outputs: 1

Measuring range:

• 0...1 bar
• 0...1000 mbar
• 0...14.5 psi
• 0...401.5 in H2O
• 0...100 KPa

Application

Design: with a capillary tube for pressure compensation

Application: for industrial applications

Media: Liquids

Medium temperature [°C]: 10...85

Min. bursting pressure: 6 bar, 87 psi, 600 KPa

Pressure rating: 5 bar, 72.5 psi, 500 KPa

Type of pressure: relative pressure

Mechanical Data

Weight [g]: 1388.5

Materials: stainless steel (1.4571/316Ti); PA

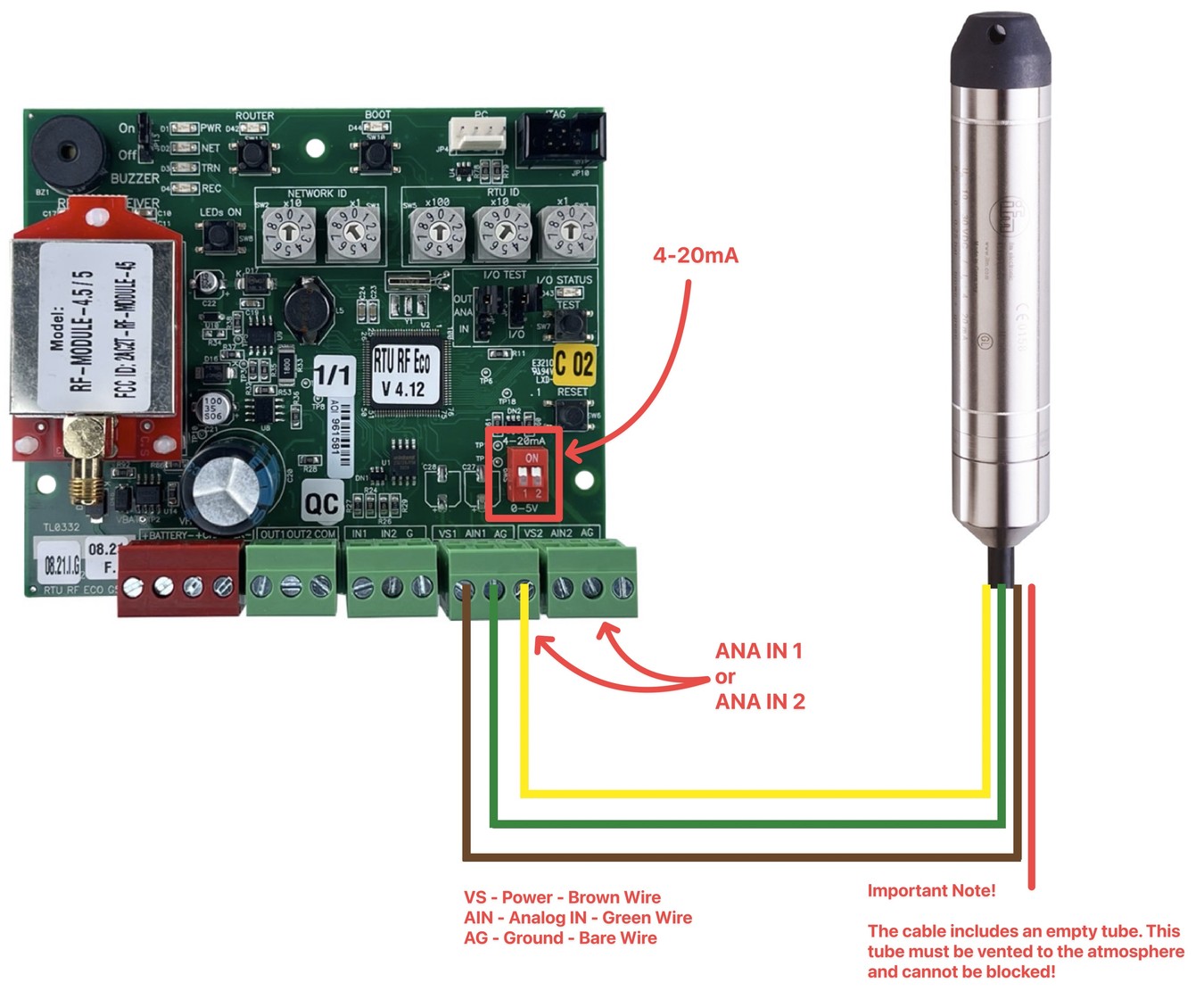

RTU RF G5 ECO - 222 or 112 (OUT / IN / ANA IN)

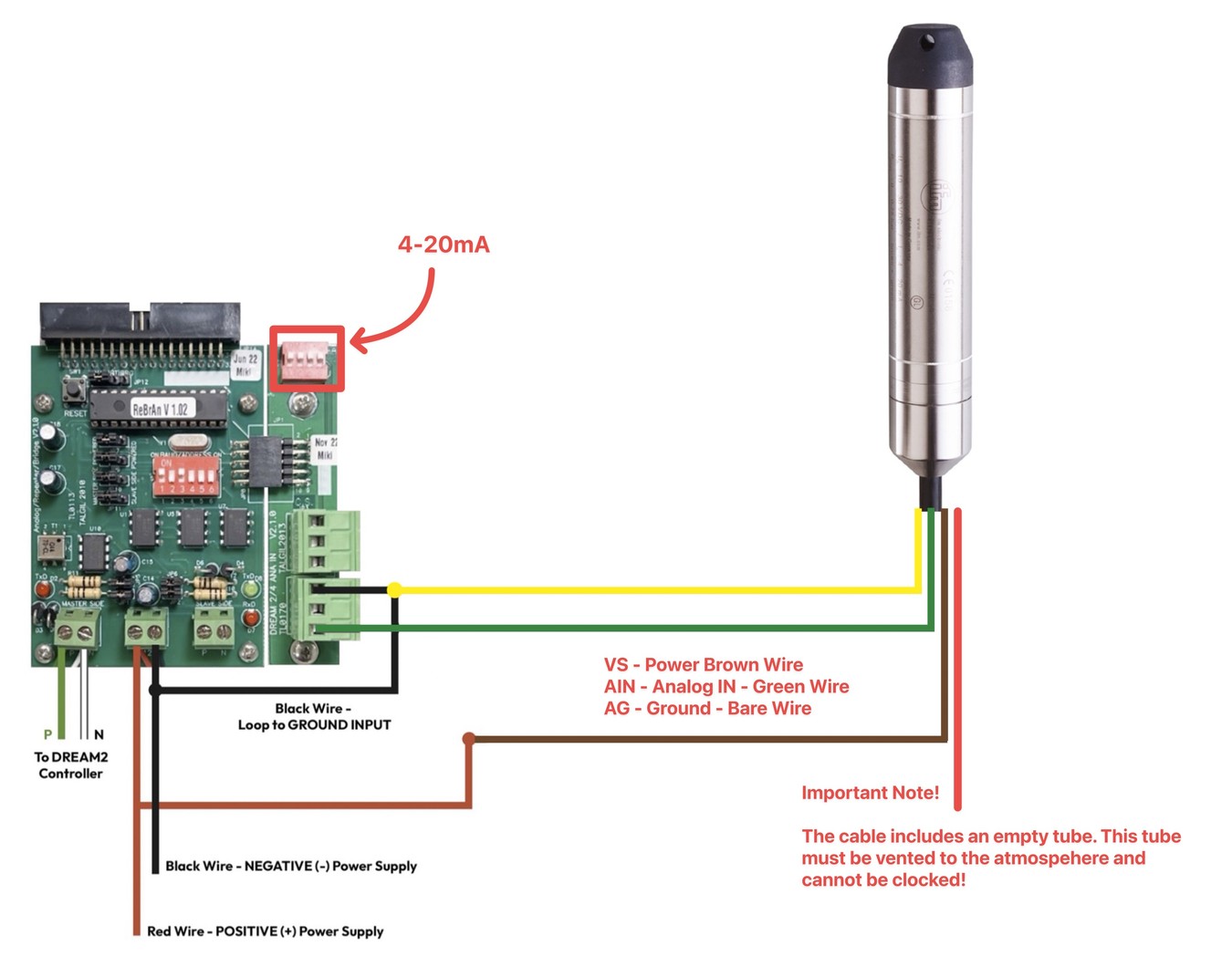

Analog Interface - 4 ANA / 2 ANA IN for Talgil DREAM2 Controller

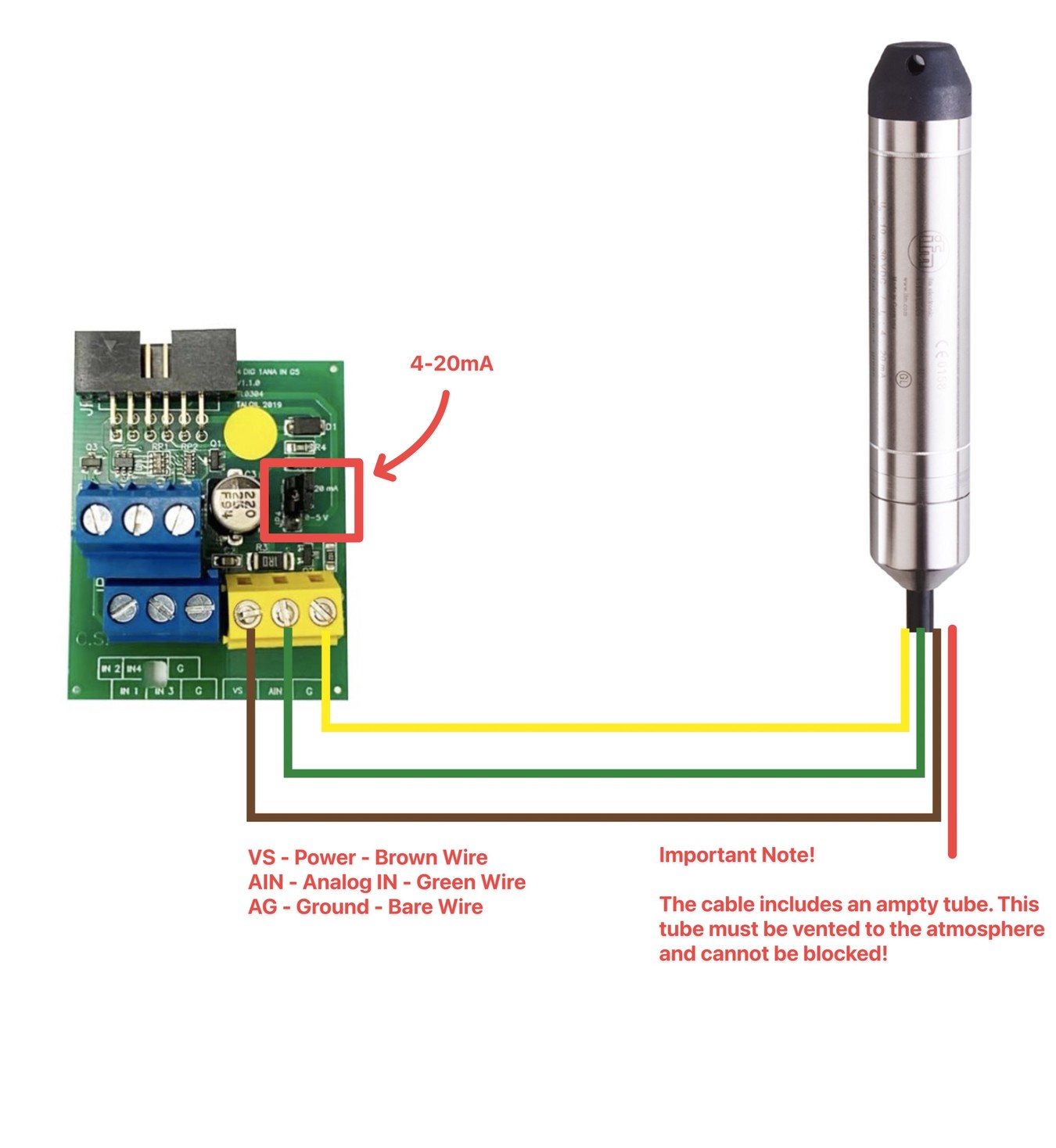

Expansion Card - 4 Digital IN & 1 ANA IN for Talgil RTU RF G5 MODULAR

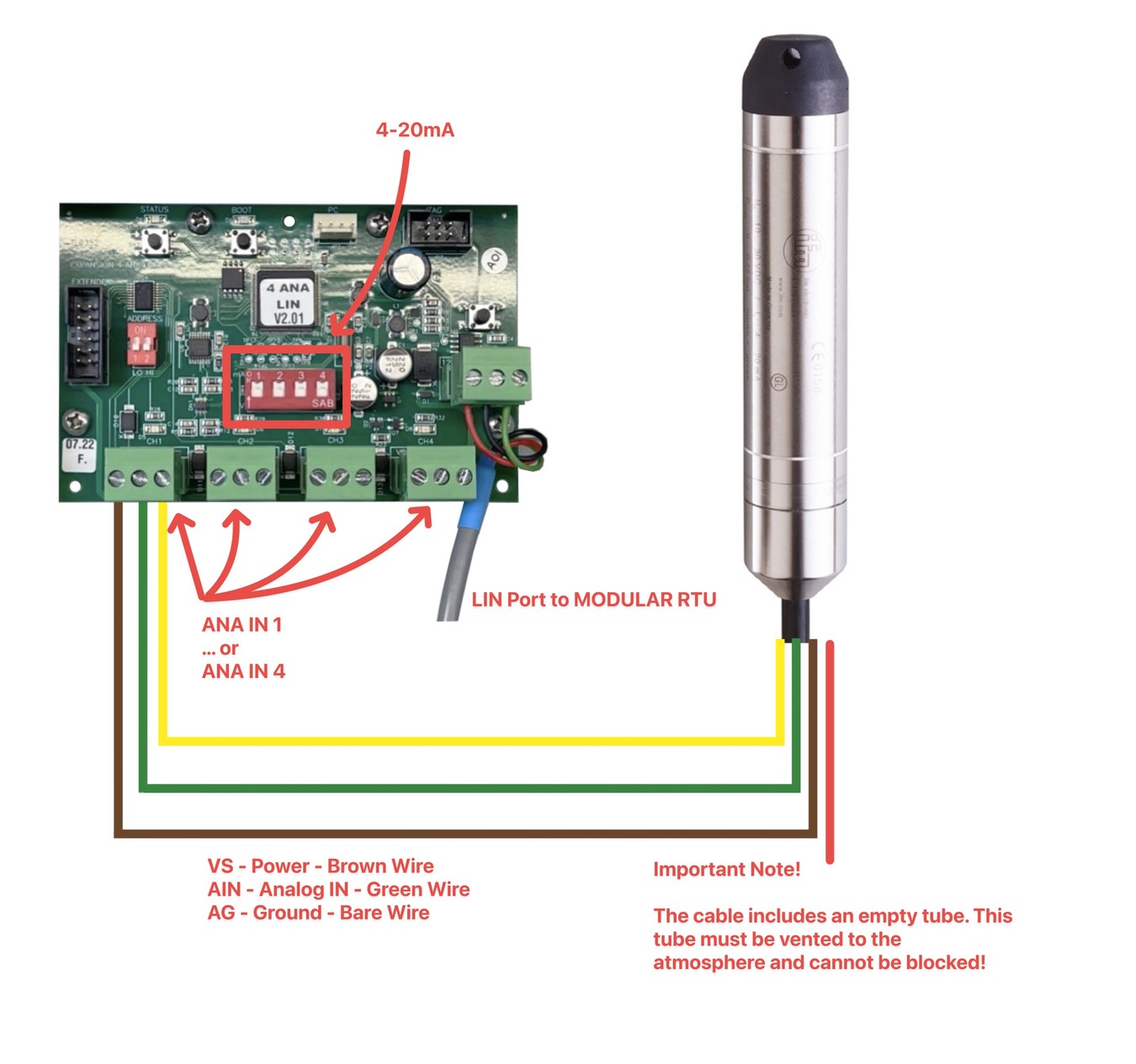

Expansion Module - 4 ANA LIN for RTU G5 MODULAR

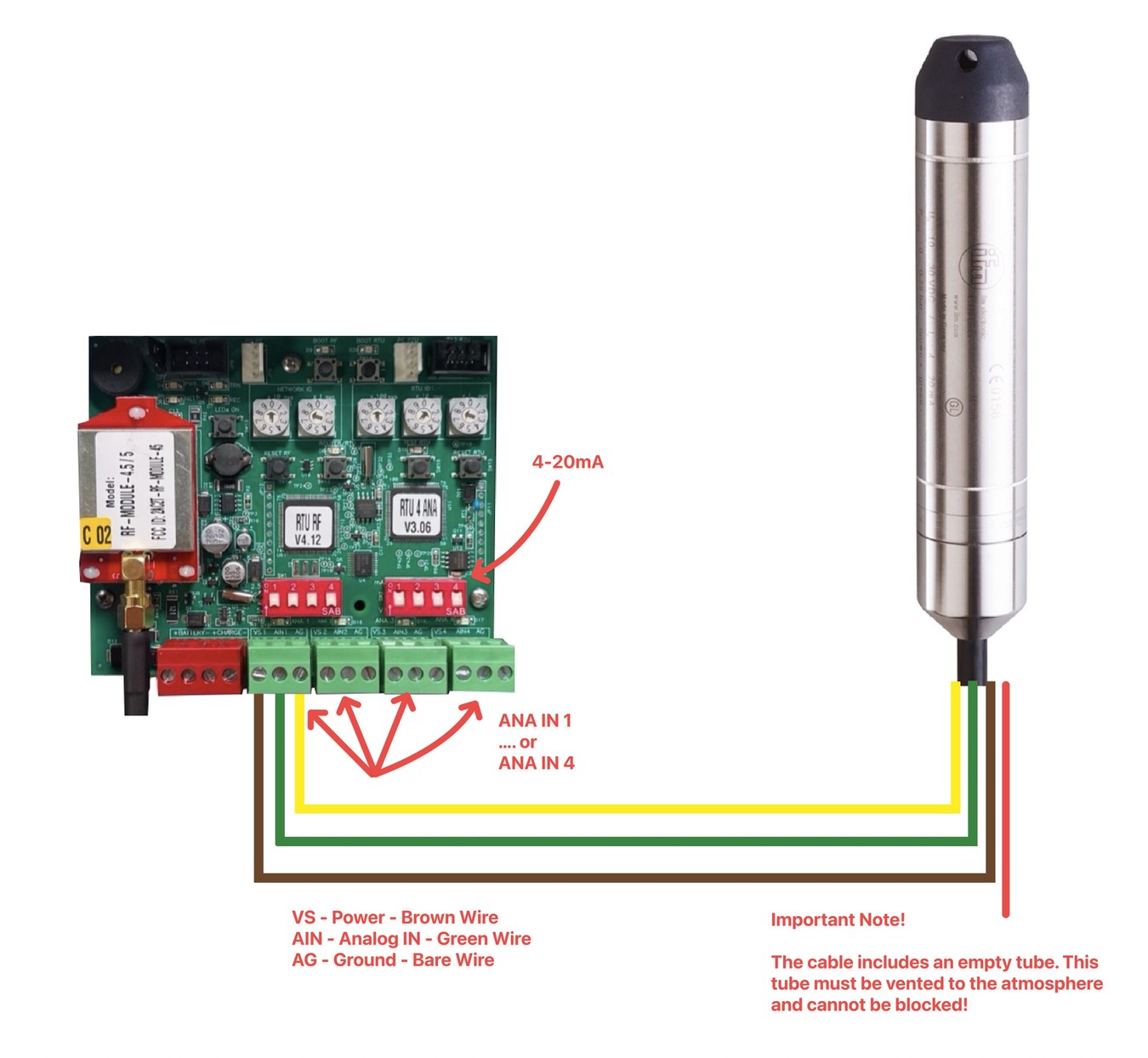

RTU RF G5 4ANA IN - Stand alone 4 ANA RF RTU

Electrical Data

Operating voltage [V]: 10...30 DC

Protection class: III

Reverse polarity protection: Yes

Measuring principle: hydrostatic

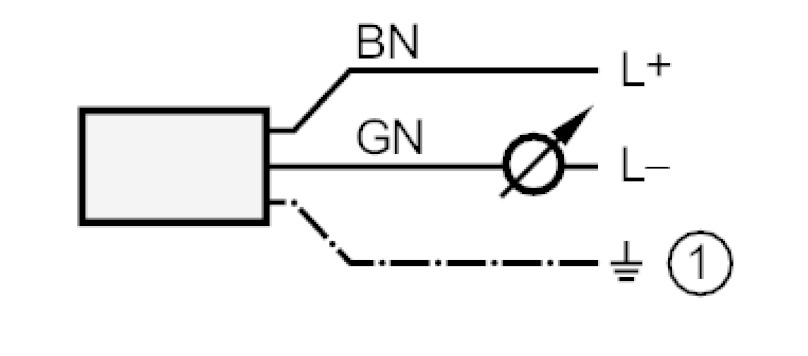

Outputs

Total number of outputs: 1

Output signal: analog signal

Number of analog outputs: 1

Analog current output [mA]: 4...20

Max. load [Ω]: 700; (Ub = 24 V; (Ub - 10 V) / 20 mA)

Short-circuit protection: Yes

Accuracy and Deviations

Repeatability [% of the span]: < 0,1; (with temperature fluctuations < 10 K)

Characteristics deviation [% of the span]: < 0,25 (BFSL) / 0,5; (incl. linearity, zero and span error (limit value setting))

Linearity deviation [% of the span]: < 0,2 (BFSL)

Long-term stability [% of the span]: < 0,2; (per year)

Temperature coefficient zero point [% of the span / 10 K]: < ± 0,2; (0...50 °C)

Temperature coefficient span [% of the span / 10 K]: < ± 0,2; (0...50 °C)

Operating conditions

Ambient temperature [°C]: -10...85

Storage temperature [°C]: -30...80

Protection: IP 68

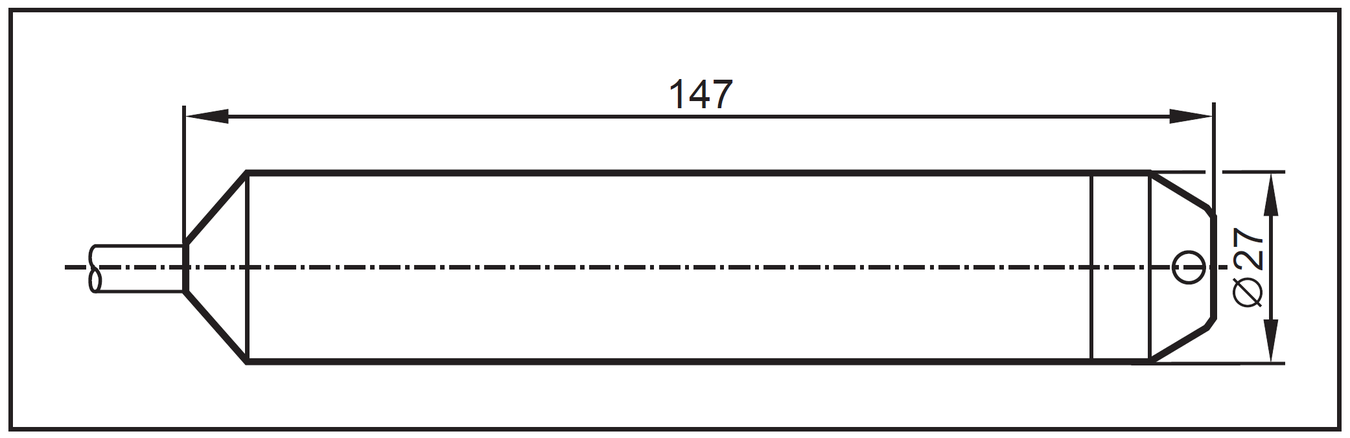

Dimensions(mm)
