Bermad - 470 - Flow Control Valve

Deeco - IR-470 - Product Image
Brand: Bermad
Category: Control Valves, 400 Series
Engineering Data:

Bermad - Model 400 - Engineering Data

Size Range:



40-80mm - Female Threaded BSP

80-100mm - Flanged

Product Description

The BERMAD Flow Control Valve is a hydraulically operated, diaphragm-actuated control valve that limits system demand to a constant preset maximum flow rate.

Features and Benefits

  • Line Pressure Driven, Hydraulically Controlled
    • Limits fill-up rate and consumer over-demand
  • Advanced Globe Hydro-Efficient Design
    • Unobstructed flow path
    • Single moving part
    • High flow capacity
  • Fully Supported & Balanced Diaphragm
    • Requires low opening and actuation pressure
    • Excellent low-flow regulation performance
    • Progressively restrains valve closing
    • Prevents diaphragm distortion
  • Hydraulic Flow Sensor (upstream installation)
    • No moving parts
    • No need for flow straightening
  • User-Friendly Design
    • Easy pressure setting
    • Simple in-line inspection and service
    • Easy addition of control features

Bermad - 47- Features

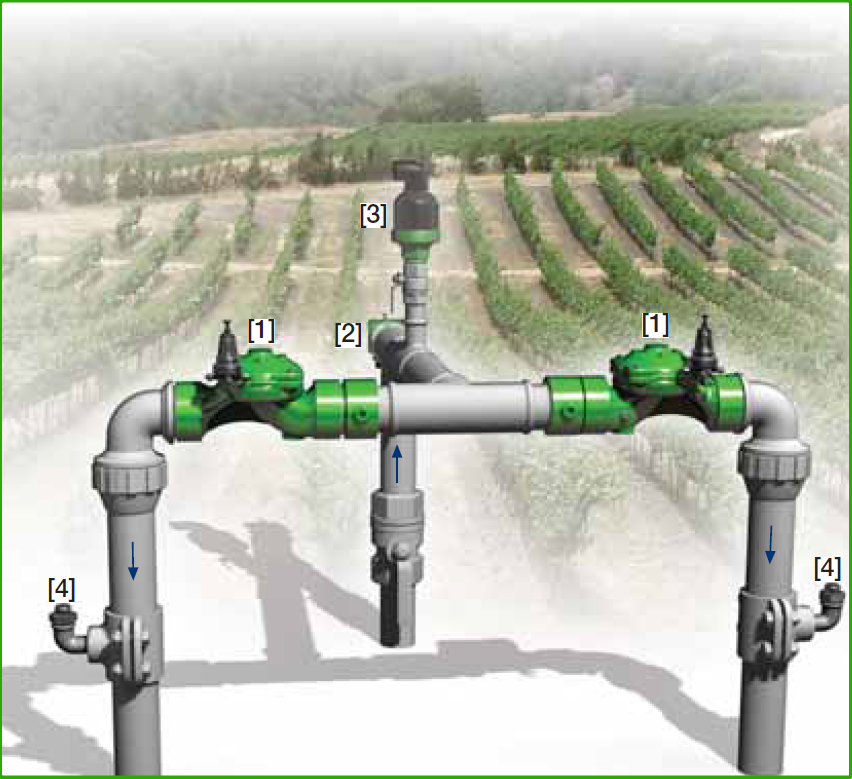

1. BERMAD Model IR-470-bKUZ limits fill-up rate and system over-demand.

2. BERMAD Relief Valve Model IR 43Q-R

3. BERMAD Air Valve Model ARA-A-P-P

4. BERMAD Vacuum Breaker Model ½"-ARV

Typical Applications

  • Multiple Independent Consumer Systems
  • Line Fill-Up Control Solutions
  • Systems Subject to Varying Supply Pressure

Technical Data


Bermad - 47- Operation

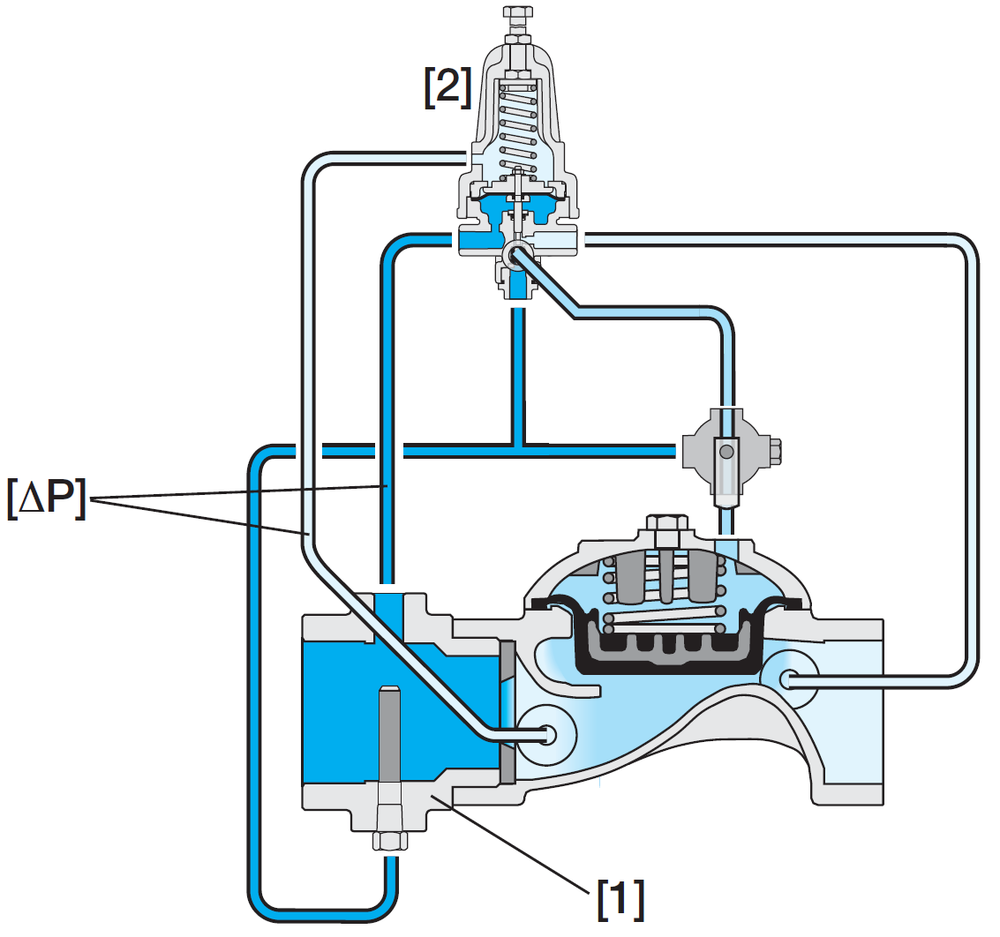

Pressure Differential [ΔP] across the Orifice Assembly [1] is in direct proportion to demand. The Flow Pilot [2] continuously senses [ΔP] and commands the Valve to throttle closed should demand rise above the pilot setting and to modulate open when demand drops below the setting. The Manual Selector [3] enables local manual closing.

Pressure Rating

  • 10 bar; 145 psi

Operating Pressure Range

  • 0.5-10 bar; 7-145 psi

For a lower pressure rating, consult Deeco.

Setting Range

  • ±20% from valve predetermined flow Orifice diameter is calculated in accordance with desired ΔP at predetermined flow.
    Although the standard calculated ΔP is 0.4 bar; 5.5 psi, the actual head loss is 0.2 bar; 2.8 psi.

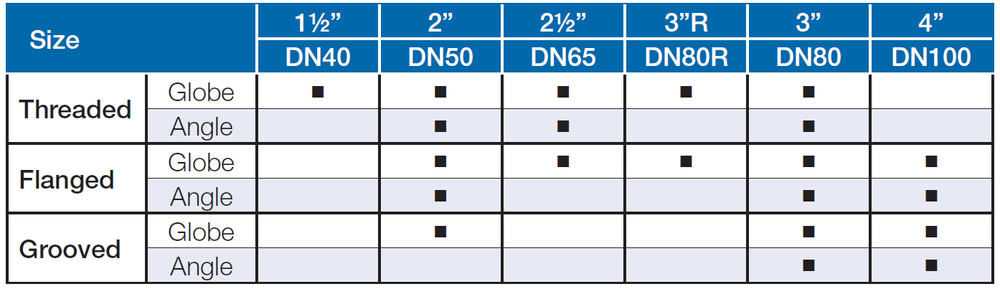

End Connections

Bermad - 470 - End Connections

Technical Specifications

For technical specifications (Flow charts, valve characteristics, dimensions, etc.) - Please refer to the Engineering Data:

Bermad - Model 400 - Engineering Data

Due to the wide range of options available and criteria for correct model selection, pricing and configuration are available on application only.

Please consult with Deeco engineers for more information.
