Brand: | Bermad |
Category: | Control Valves, 100 Series |
Size Range: | 40-150mm |
Connection: | 40-80mm - Female Threaded BSP 80-150mm - Flanged |
Engineering Data: |
Product Description
The BERMAD Model 100-X 3 Way Solenoid Controlled Valve is a hydraulically operated, diaphragm-actuated control valve that opens and shuts in response to an electric signal
Features & Benefits
- Hydraulic Control Valve with Solenoid Control
- Line pressure driven
- Electrically controlled On/Off
- Engineered Plastic Valve with Industrial Grade Design
- Adaptable on-site to a wide range of end connection sizes and types
- Articulated flange connections eliminate mechanical and hydraulic stresses
- Highly durable, chemical and cavitation resistant
- hYflow ‘Y’ Valve Body with “Look Through” Design
- Ultra-high flow capacity -Low-pressure loss
- Unitized "Flexible Super Travel" (FST) Diaphragm and Guided Plug
- Smooth closing
- Requires low actuation pressure
- Prevents diaphragm erosion and distortion
- User-friendly Design
- Simple in-line inspection and service
![Bermad - 110 - 3 Way - Features and Benefits](https://deeco-production.s3.amazonaws.com/images/Bermad_-_110_-_3_Way_-_Features_and_Benefits.width-1000.png)

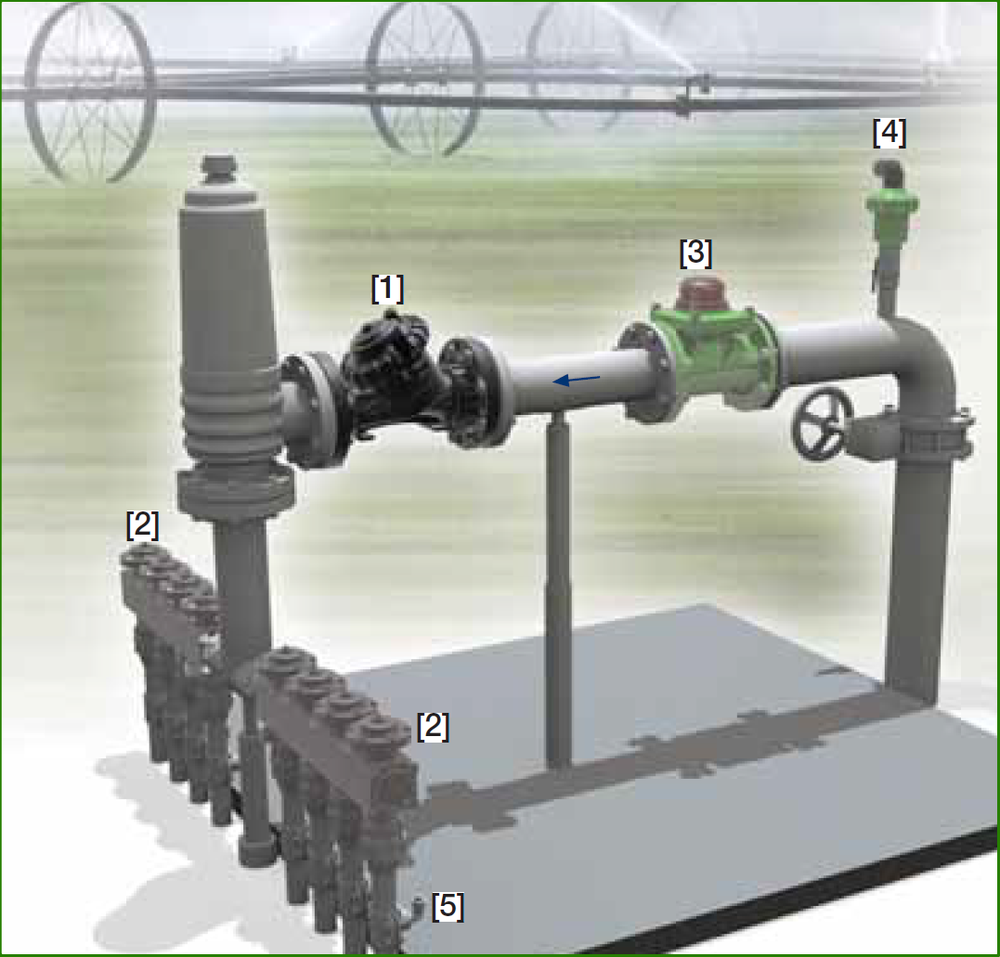

1. BERMAD Model IR-110-X opens in response to an electric signal
2. BERMAD Manifold Valve Model IR-MVS-30540-KIT
3. BERMAD Water Meter Model WPH
4. BERMAD Air Valve Model ARC-A-P-I
5. BERMAD Vacuum Breaker Model ½" ARV
Typical Applications
- Computerized Irrigation Systems
- Remote and/or Elevated Systems
- Distribution Centers
- Low Supplied Pressure Irrigation Systems
- Energy-saving Irrigation Systems
Technical Data
Operation
![Bermad - 110 - 3 Way - Operation](https://deeco-production.s3.amazonaws.com/images/Bermad_-_110_-_3_Way_-_Operation.width-1000.png)

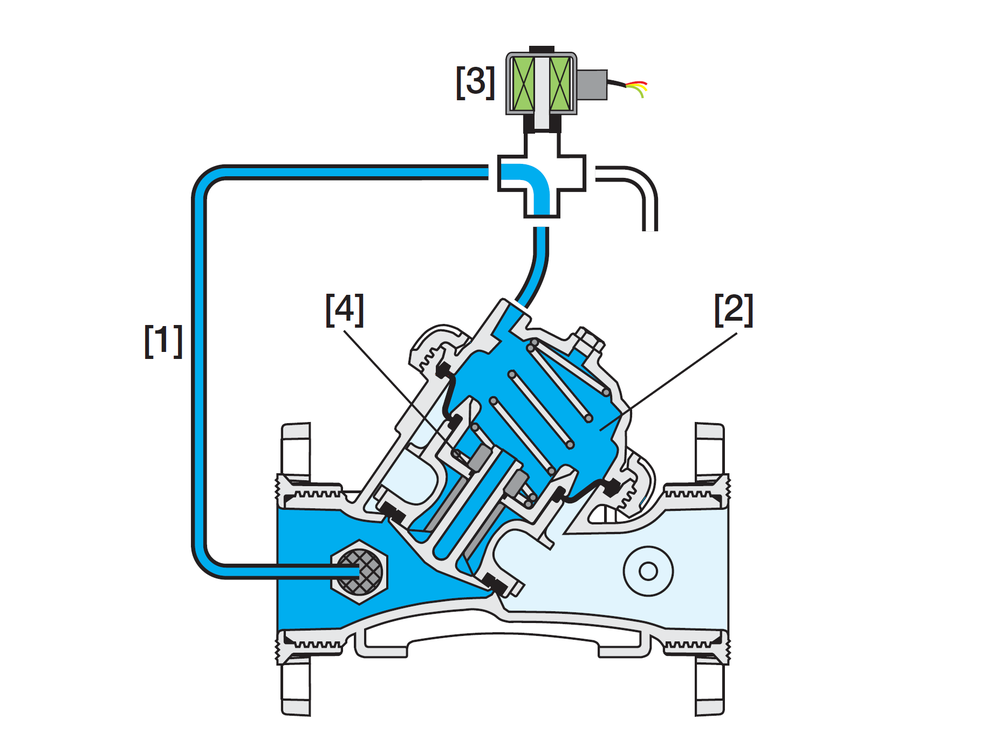

Line Pressure [1] is applied to the Control Chamber [2] through the opened 3-Way Solenoid [3]. This creates superior closing force that moves the Diaphragm Assembly [4] toward a closed position. Closing the solenoid causes it to discharge pressure from the control chamber, thereby opening the valve.
Materials
Body, Cover and Plug
- Glass-Filled Nylon
Diaphragm
- NR, Nylon fabric reinforced
Seals
- NR
Spring
- Stainless Steel
Control Accessories
- Plastic
Tubing and Fittings
- Plastic
Sizes
- DN40, 50, 50L, 80, 80L, 100, 100L, 150R, 150L
Patterns
- Oblique: DN40, 50, 50L, 80, 80L, 100, 100L, 150R, 150L
- Angle: DN50, 80, 80L, 100
End Connections
- 40-80mm - Female Threaded BSP
- 80-100mm - Flanged
Pressure Rating
- 10 bar
Operating Pressure Range
- 0.35-10 bar
Solenoid Voltage Range
- S-390 & S-400: 24 VAC, 12 VDC, 24 VDC
- S-392 & S-402: 9-20 VDC Latch
- S-982 & S-985: 12-50 VDC Latch
Other voltages are available

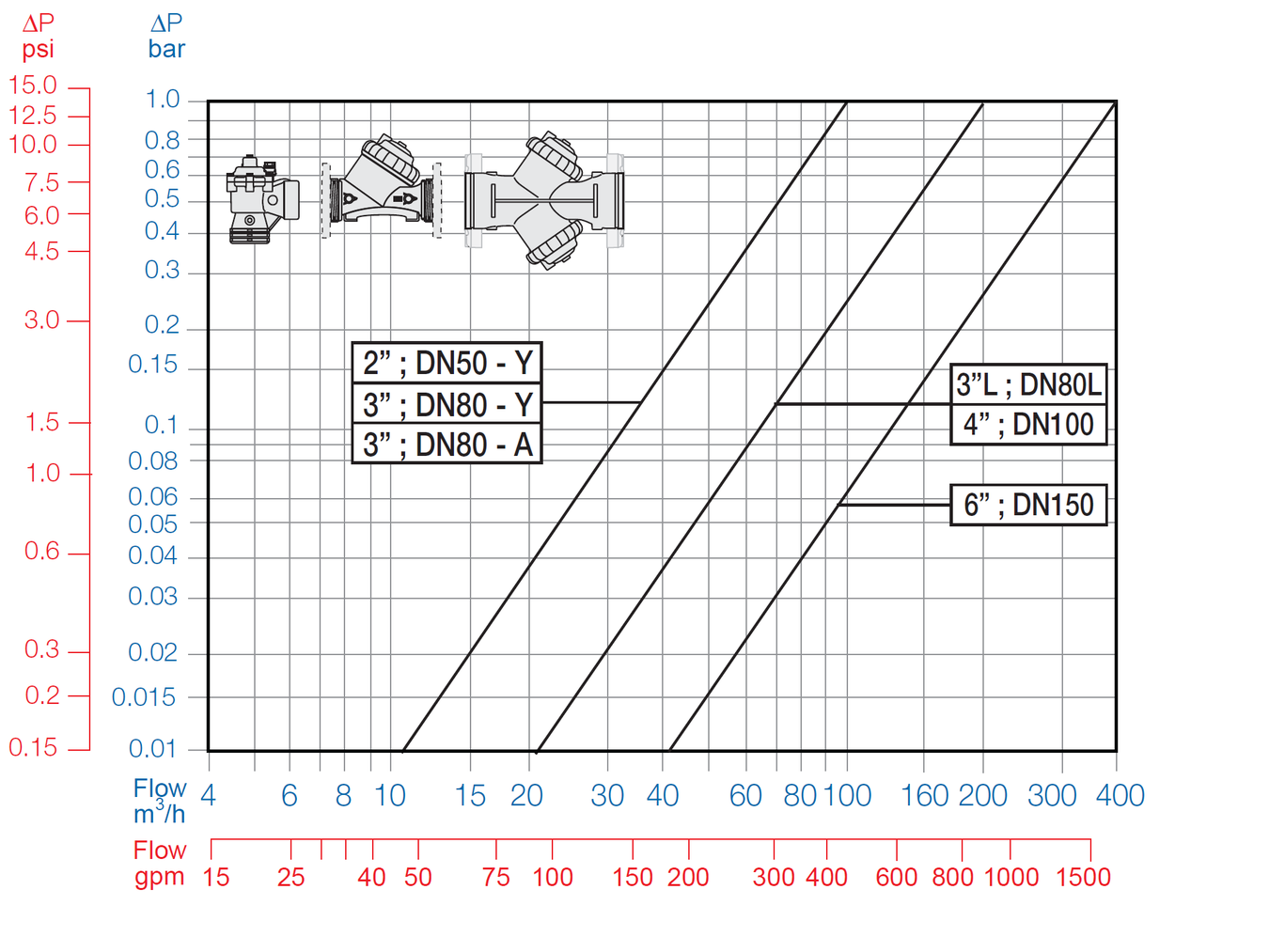

Flow Chart
![Bermad - 110 - 3 Way - Flow Chart](https://deeco-production.s3.amazonaws.com/images/Bermad_-_110_-_3_Way_-_Flow_Chart.width-1350.png)
Bermad - 110 - 3 Way - Flow Chart
Technical Specifications
Dimensions and Weights
![Bermad - 120 -3 Way - Technical Specifications](https://deeco-production.s3.amazonaws.com/images/Bermad_-_120_-3_Way_-_Technical_Specification.width-1350.png)
![Bermad - 120-3 Way - Dimensions and Weights 1](https://deeco-production.s3.amazonaws.com/images/Bermad_-_120-3_Way_-_Dimensions_and_Weights_1.width-1350.png)
![Bermad - 120-3 Way - Dimensions and Weights 2](https://deeco-production.s3.amazonaws.com/images/Bermad_-_120-3_Way_-_Dimensions_and_Weights_2.width-1350.png)
CCDV = Control Chamber Displacement Volume • BSP.T = Internal Threaded • BSP.F = External Threaded • Other End Connections are available on request. For dimensions and weights of adapters or valve with adapters please consult with customer service
For Spare Parts & Repair Kits - Please refer to the base model:
Due to the wide range of options available and criteria for correct model selection, pricing and configuration are available on application only.
Please consult with Deeco engineers for more information.
![Bermad Model 100 Series - How to Order Guide](https://deeco-production.s3.amazonaws.com/images/Deeco-Bermad-100-Series-Ordering-Guide.width-1750.png)
