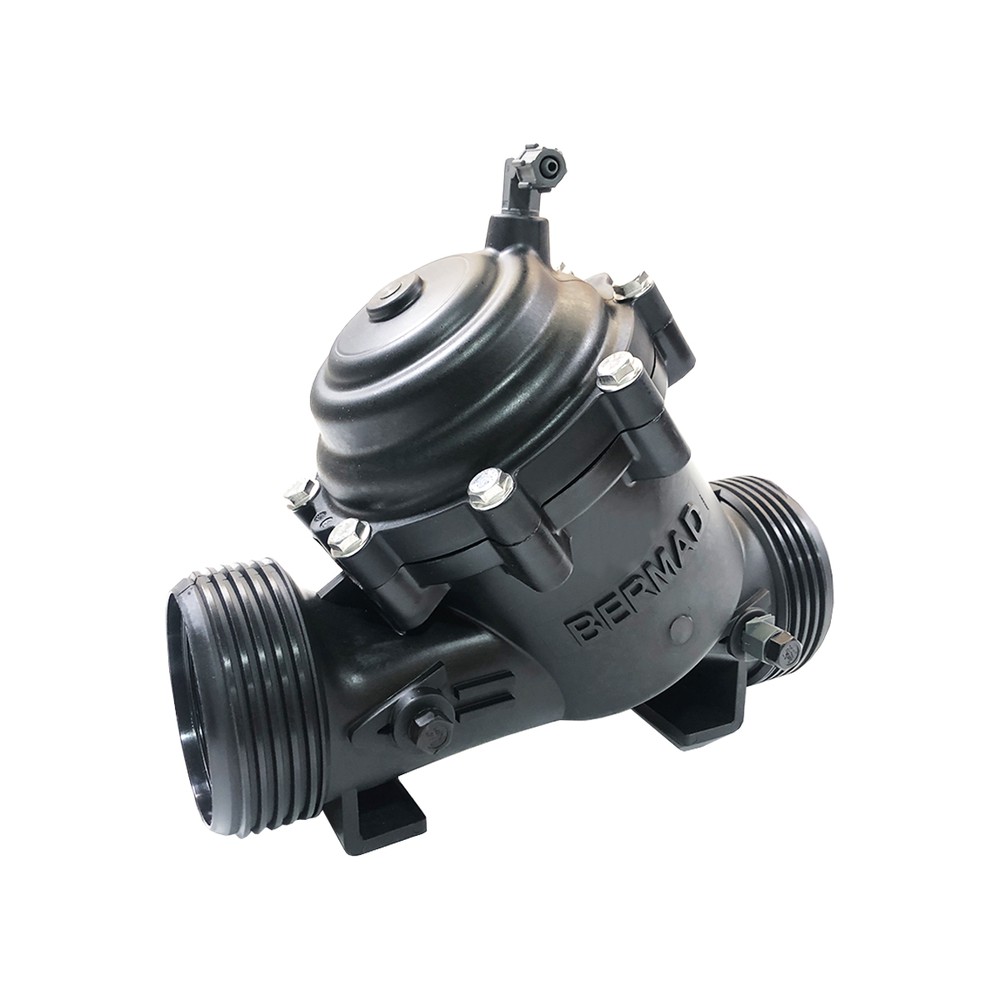

Bermad - Model 105 - Basic Hydraulic Valve

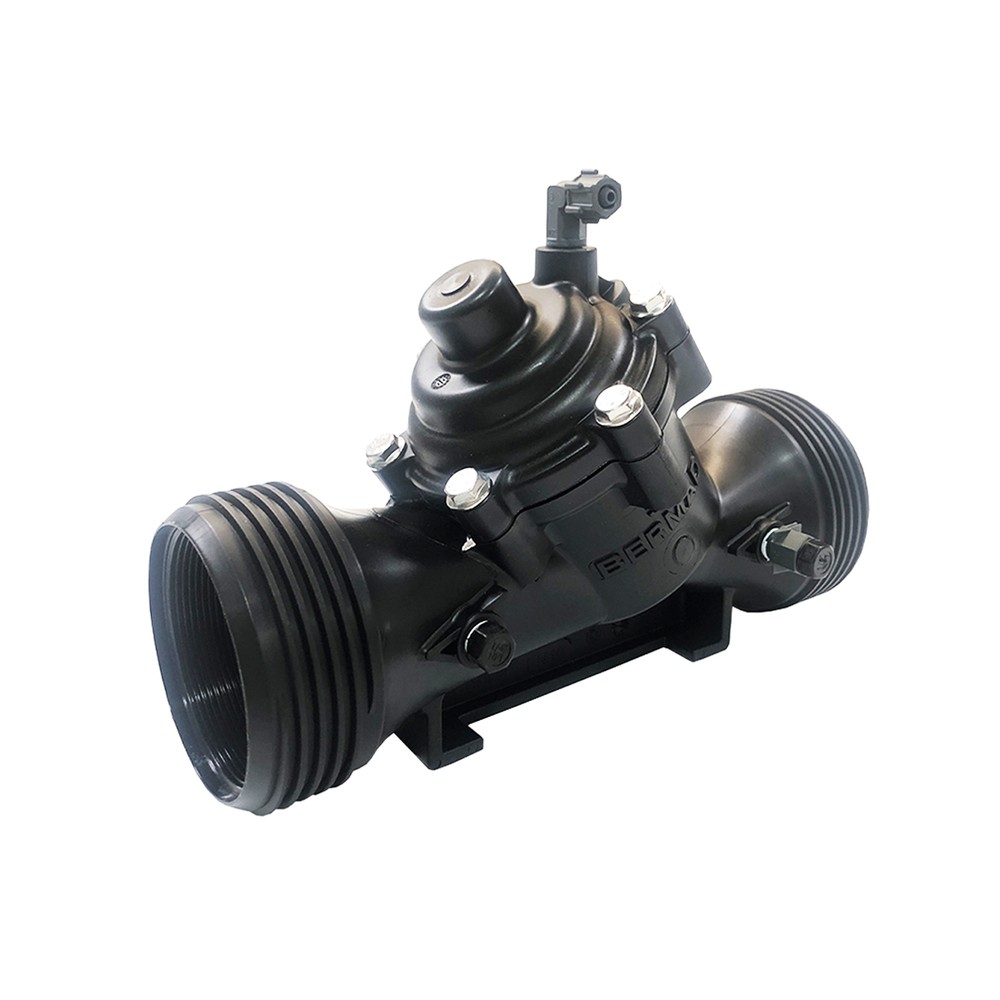

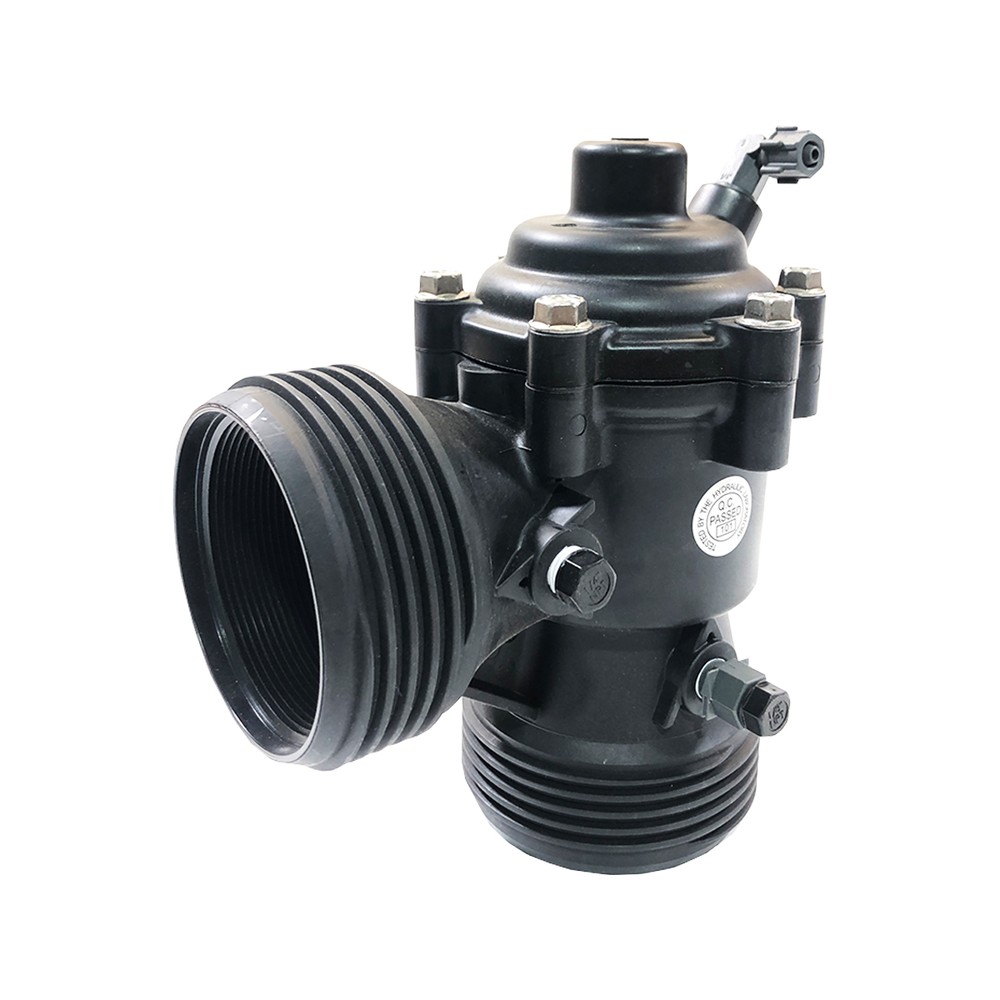

105-basic valve - Product Image
Brand: Bermad
Category: Control Valves, 100 Series
Size Range:

40-150mm

Connections:

40-80mm - Female Threaded BSP

80-150mm - Flanged

Product Description

The BERMAD Model 105 Hydraulic Control Valve is a hydraulically operated, diaphragm-actuated control valve that opens and shuts in response to a local or remote pressure command.

Features & Benefits

  • Hydraulic Control Valve
    • Line Pressure Driven
    • Hydraulically controlled On/Off

  • Engineered Plastic Valve with Industrial Grade Design
    • Adaptable on-site to a wide range of end connection sizes and types
    • Highly durable, chemical & cavitation resistant

  • hYflow ‘Y’ Valve Body with “Look Through” Design
    • Ultra-high flow capacity at Low-pressure loss

  • Unitized Flexible Super Travel Diaphragm with a Guided Plug
    • Accurate and stable regulation with a smooth closing
    • Requires low actuation pressure
    • Prevents diaphragm erosion and distortion
    • Simple In-Line Inspection and Service

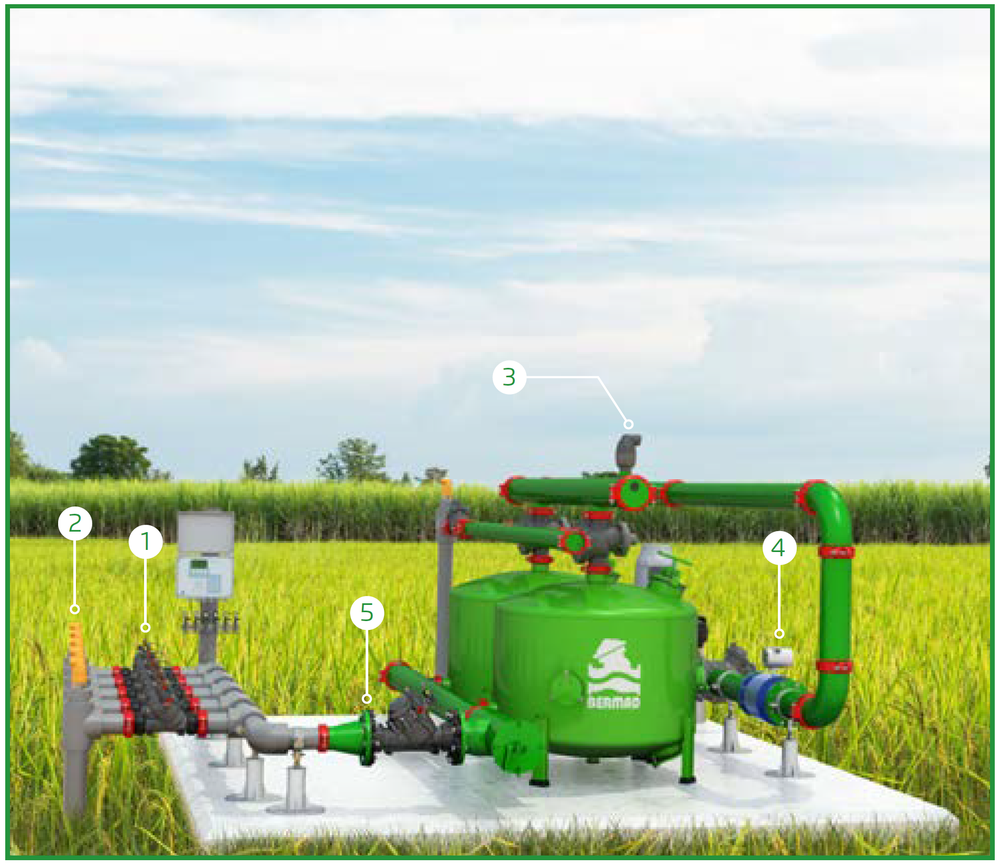

Bermad - Model 105 - Features and Benefits

1. BERMAD Model IR-105-Z opens upon local manual command

2 . Kinetic Air Valve

3. Combination Air Valve

4. Electromagnetic Water Meter

5. Pressure Reducing Valve

Technical Data

Operation

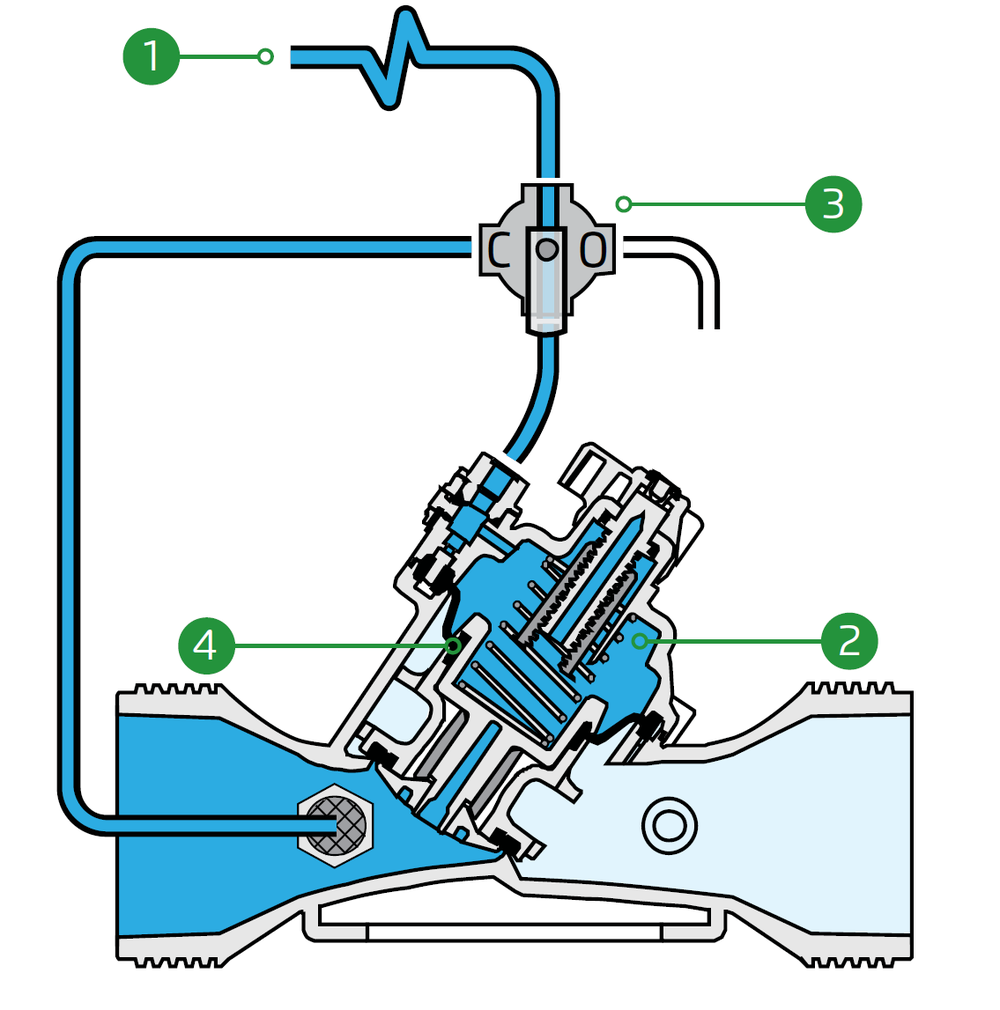

Bermad - Model 105 - Operation

Hydraulic Command 1 is applied to Control Chamber 2 through the Manual Selector 3. This creates a superior closing force that moves the Diaphragm Assembly 4 to a closed position. Discharging of pressure from the control chamber, by turning the manual selector, causes the line pressure acting on the lower side of the diaphragm assembly to move the valve to an open position.

Materials

Body, Cover and Plug

  • Polyamid 6 & 30% GF

Diaphragm

  • NR, Nylon fabric reinforced

Seal

  • NR

Spring

  • Stainless Steel

Cover Bolts

  • Stainless Steel

Pressure Rating

  • 10 bar

Operating Pressure Range

  • 0.5-10 bar

Control Accessories

Tubing and Fittings

  • Plastic

Flow Properties

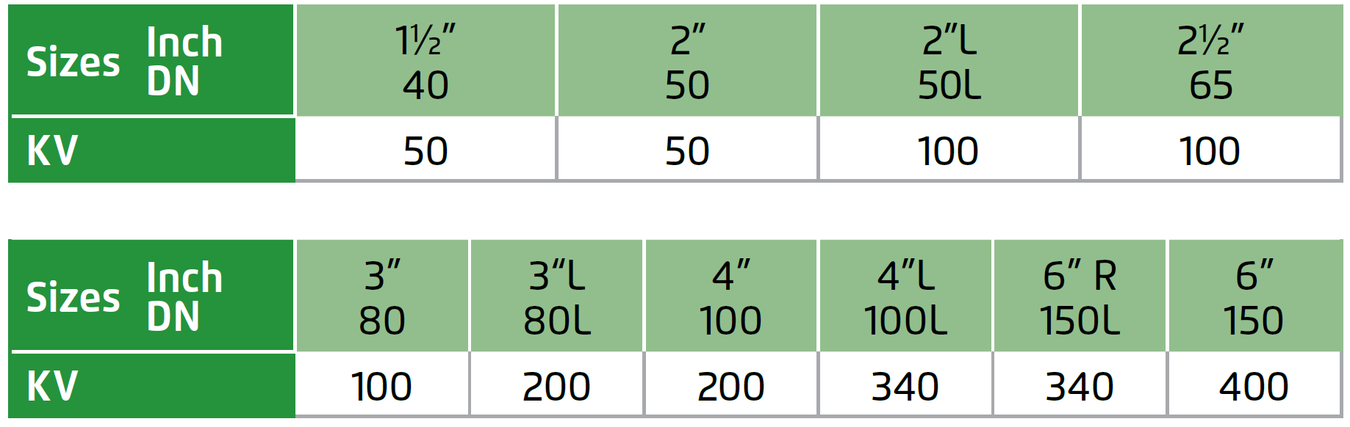

Bermad - Model 105 - Flow Properties

Bermad - Model 105 - Flow Properties

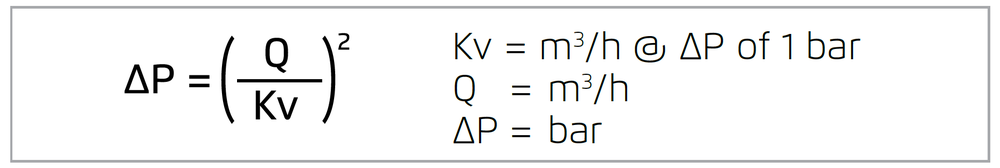

Valve Flow Coefficient

Bermad - Model 105 - Valve Flow Coefficient

Bermad - Model 105 - Valve Flow Coefficient

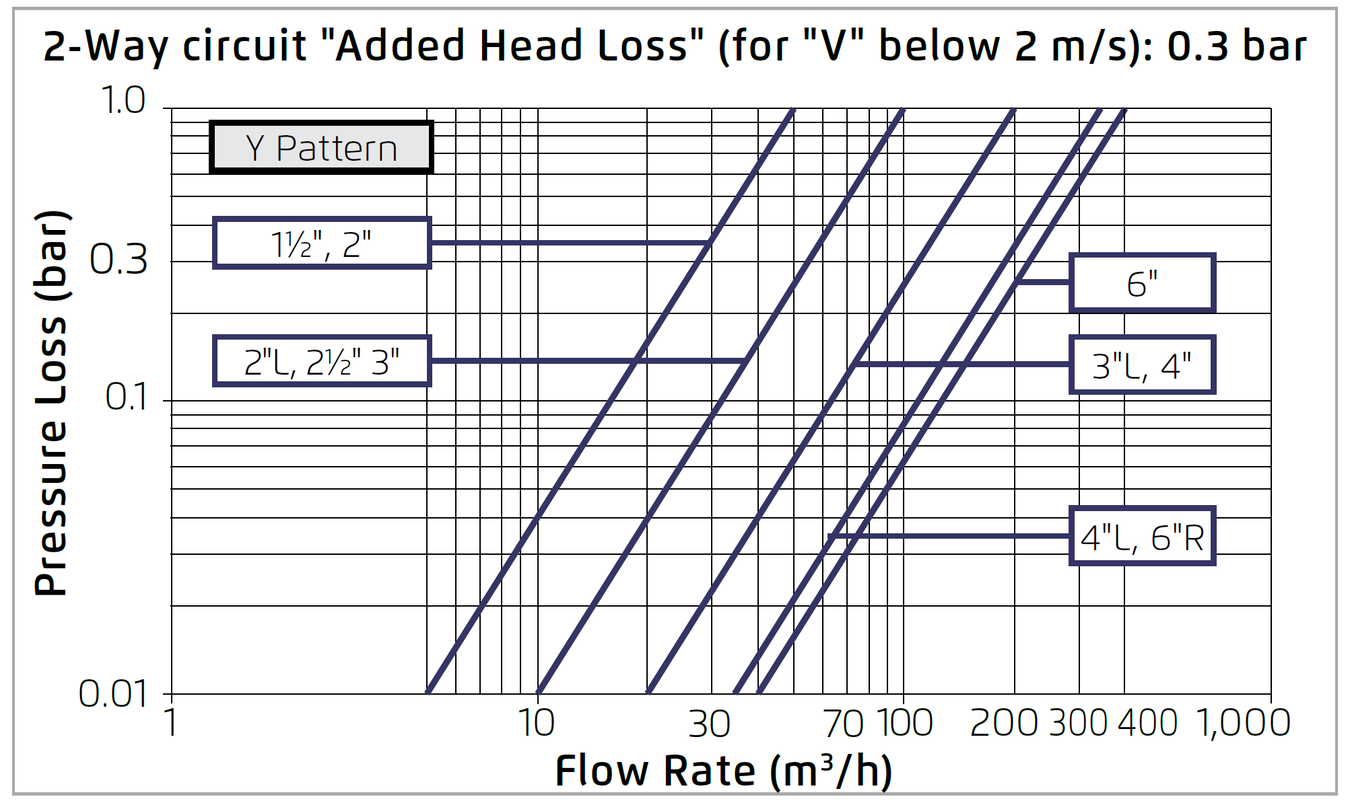

Flow Chart

Bermad - Model 105 - Flow Chart

Bermad - Model 105 - Flow Chart

Technical Specifications

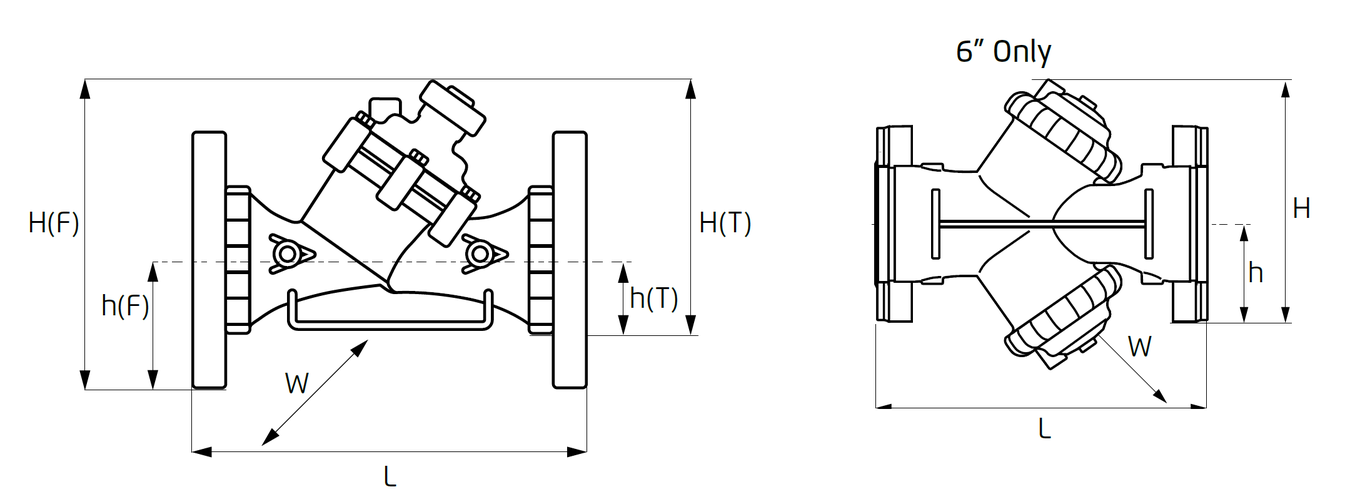

Y Pattern Valves Dimensions & Weights

Bermad - Model 105 - Technical Specifications

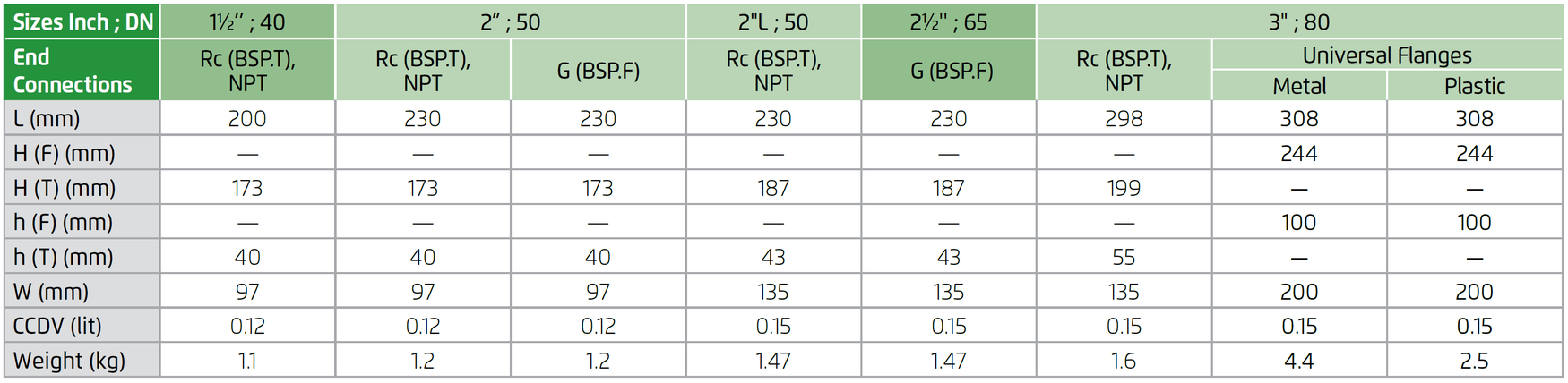

Bermad - Model 105 - Dimensions and Weight 1

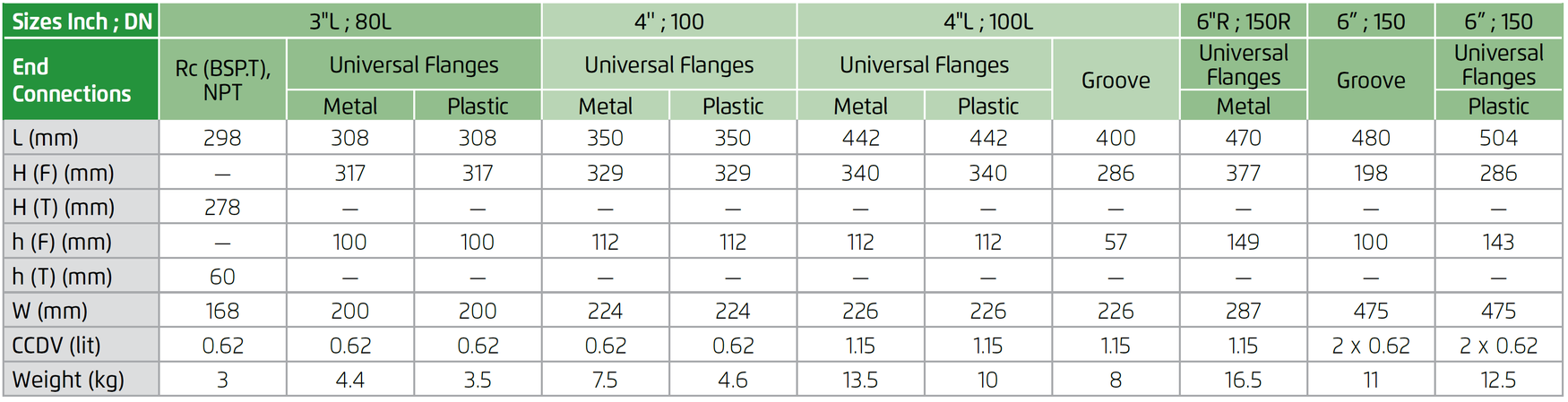

Bermad - Model 105 - Dimensions and Weight 2

CCDV = Control Chamber Displacement Volume

BSP.T = Internal Threaded

BSP.F = External Threaded

Other End Connections are available on request. For dimensions and weights of adapters or valves with adapters please consult with Deeco.

Spare Parts

Pos. Product Code Size Description

1

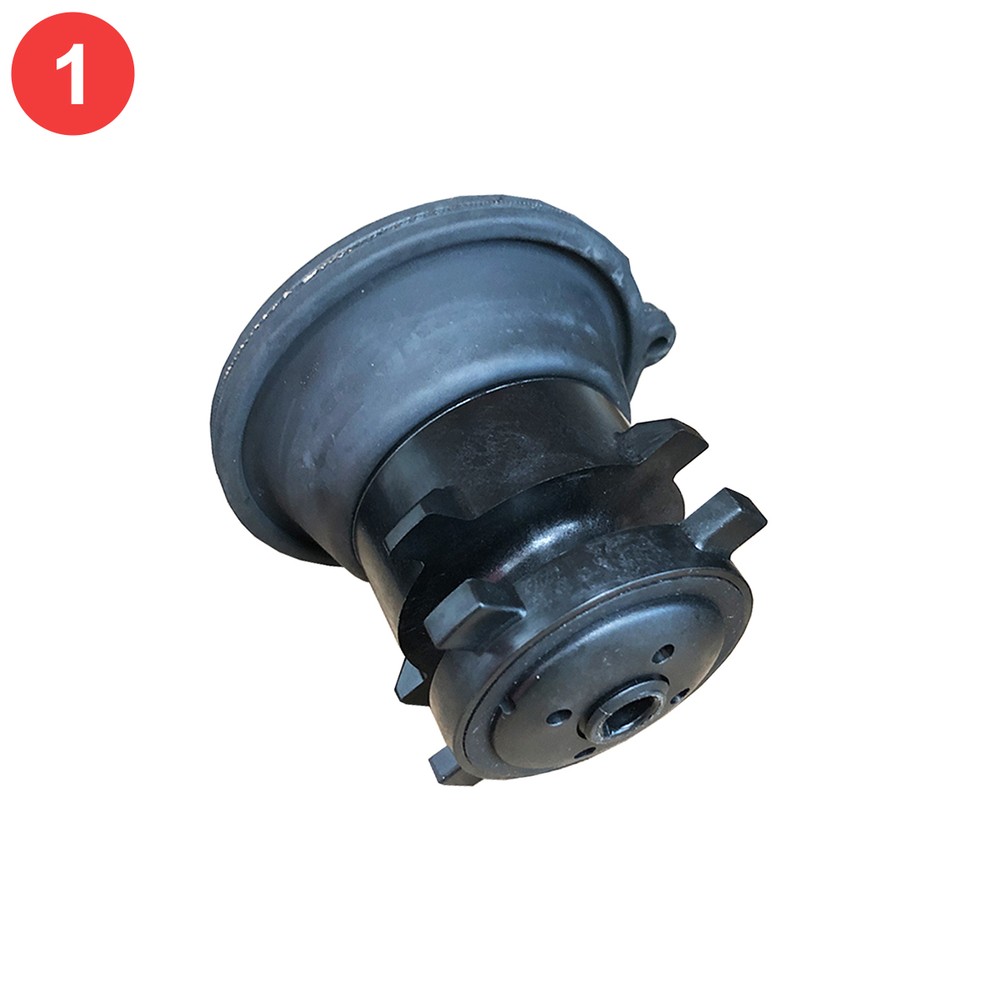

105040-90

40-50mm

Diaphragm Assembly for 100 Series Hydraulic Valve

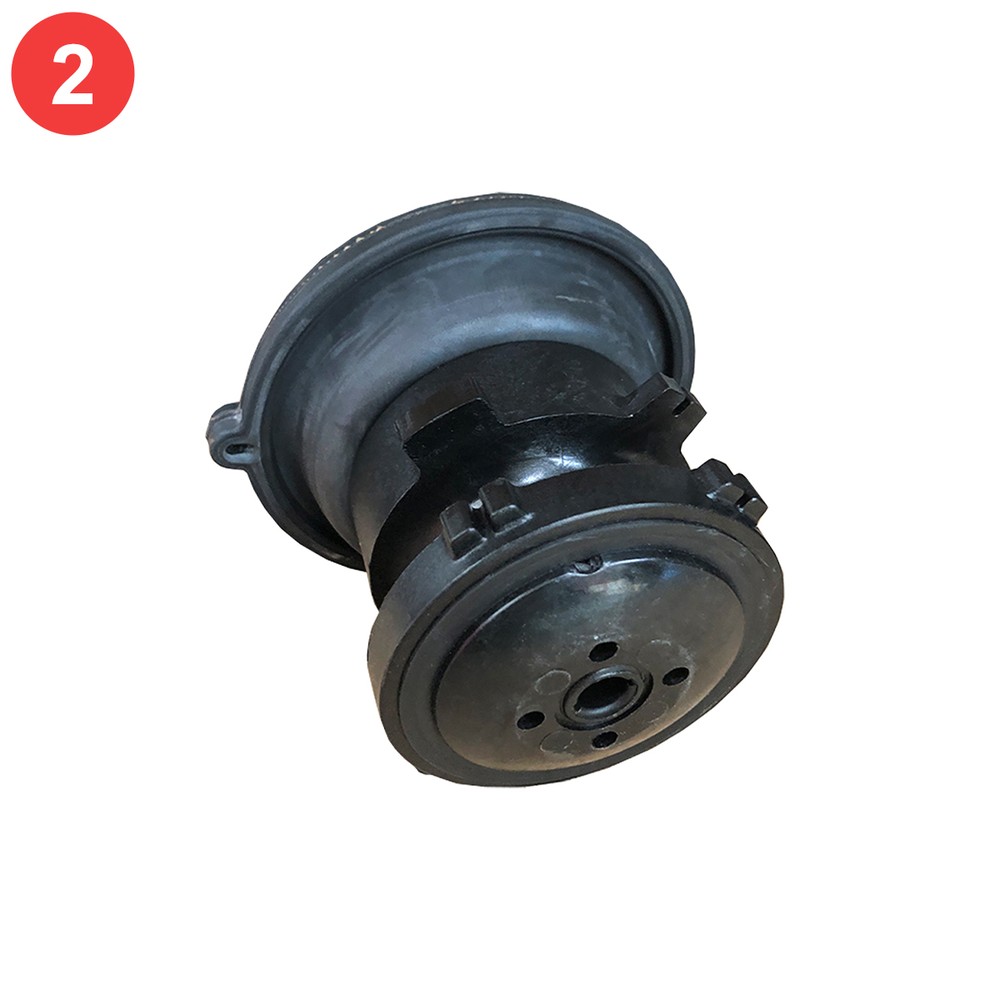

2

105050L-90

50L-80mm

Diaphragm Assembly for 100 Series Hydraulic Valve

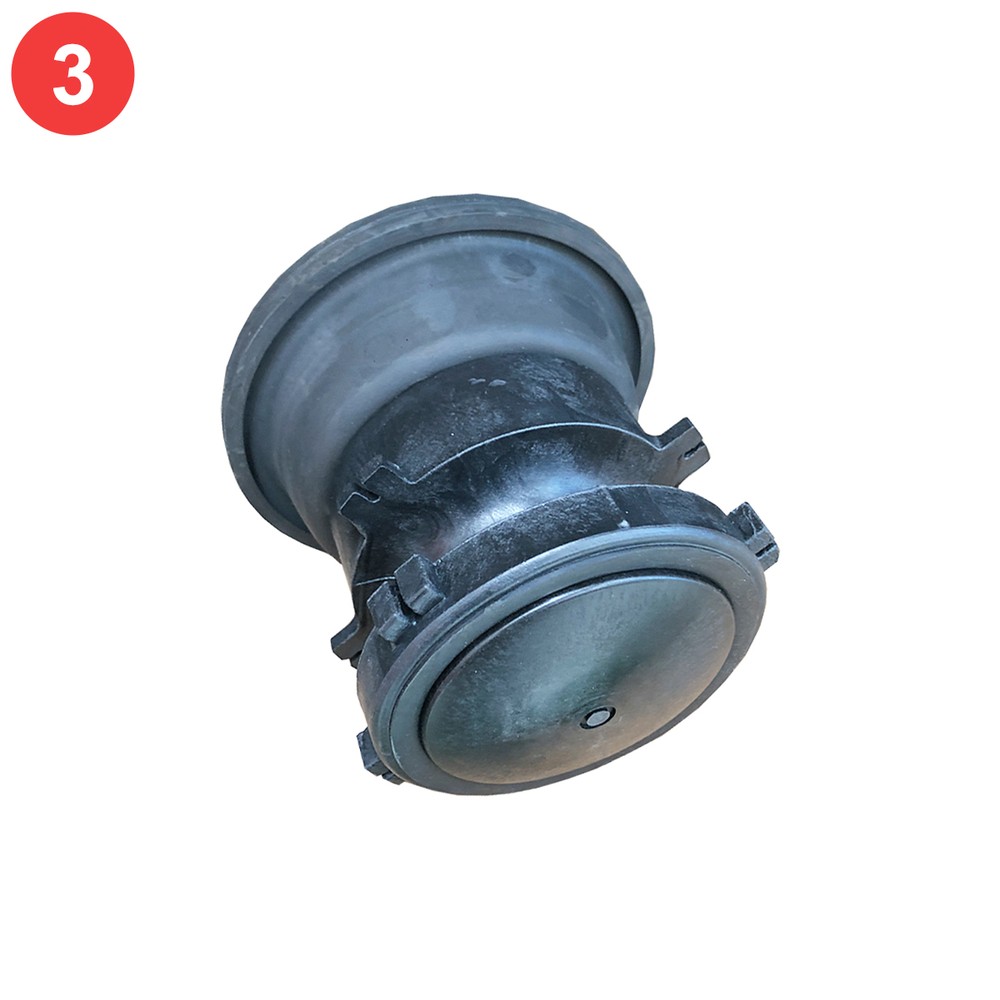

3

105080L-90B

80L-100mm

Diaphragm Assembly for 100 Series Hydraulic Valve - Bolted Cover

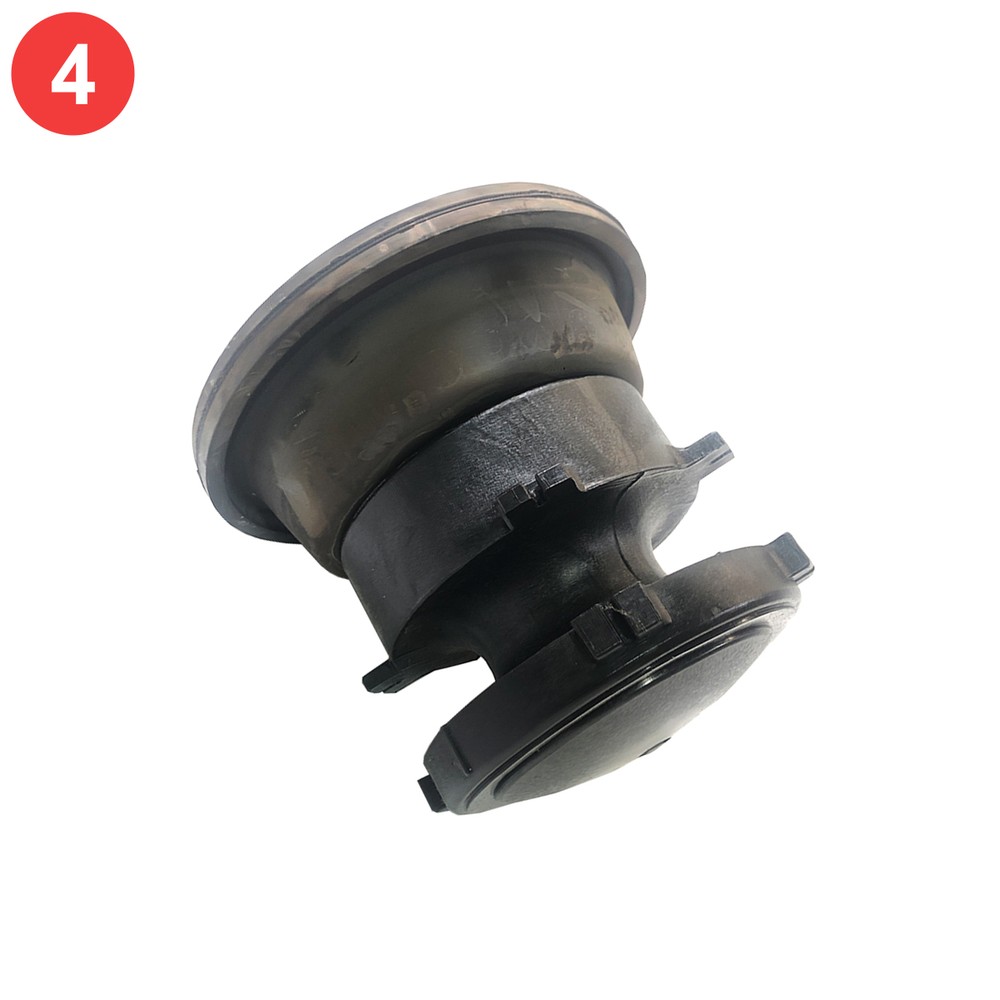

4

105080L-90R

80L-150mm

Diaphragm Assembly for 100 Series Hydraulic Valve - Ring Cover

5

105100L-90

100L-150Rmm

Diaphragm Assembly for 100 Series Hydraulic Valve

6

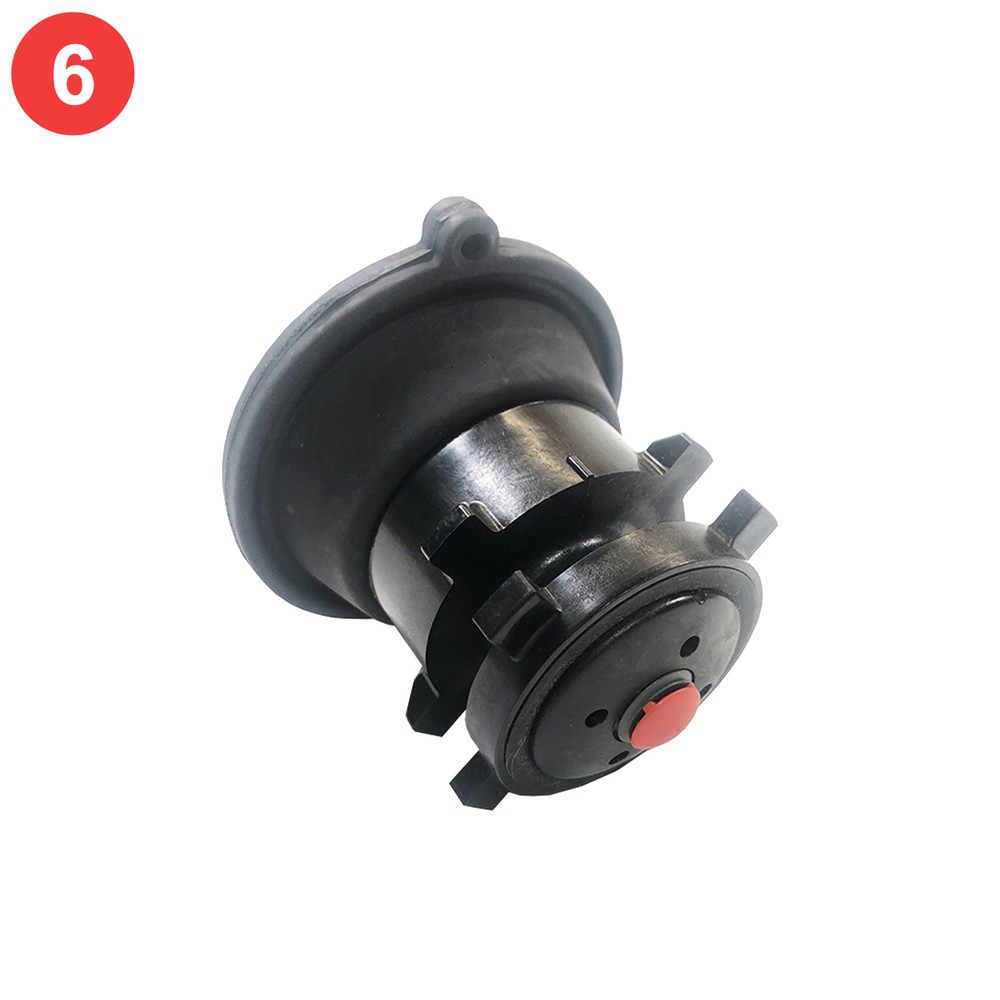

110040-90

40-50mm

Diaphragm Assembly for 110 Series Solenoid Valve

7

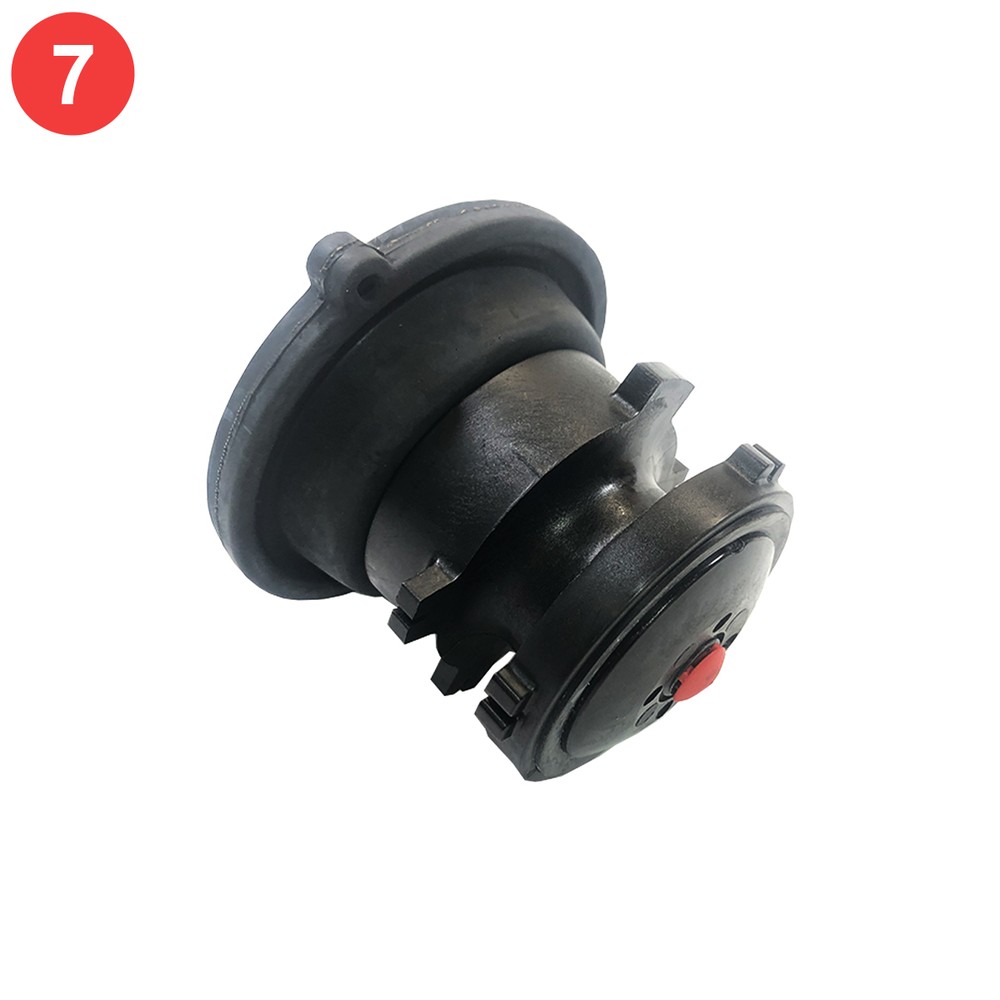

110050L-90

50L-80mm

Diaphragm Assembly for 110 Series Solenoid Valve

Pos. Product Code Size Description

1

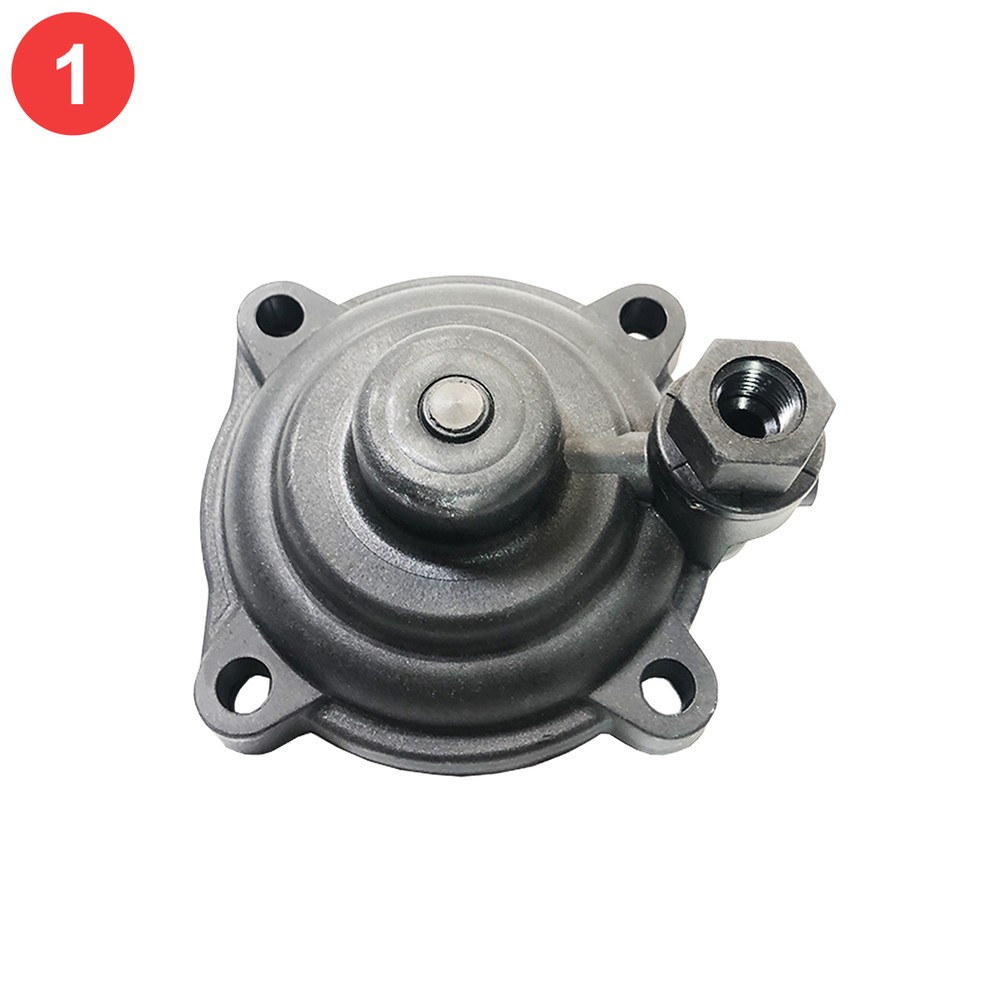

105050-92

50mm

Cover Assembly for 100 Series Hydraulic Valve

2

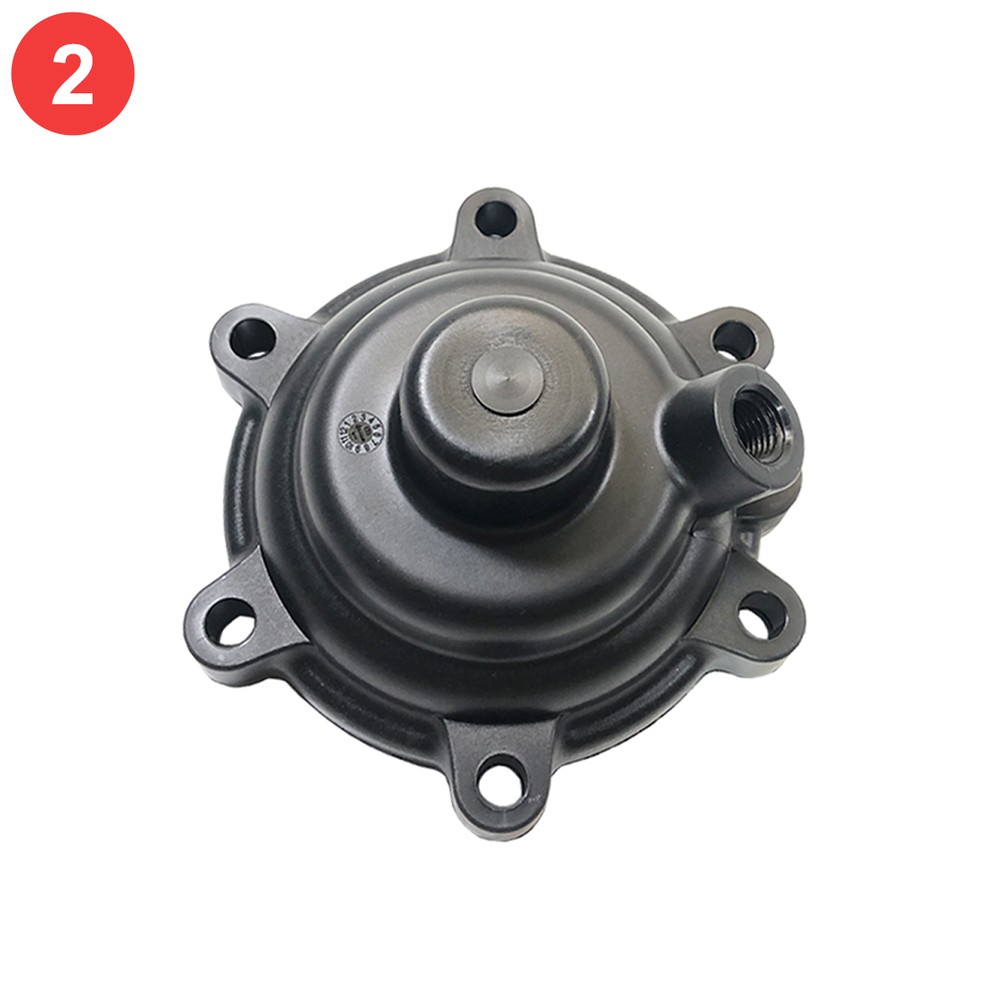

105050L-92

50L-80mm

Cover Assembly for 100 Series Hydraulic Valve

3

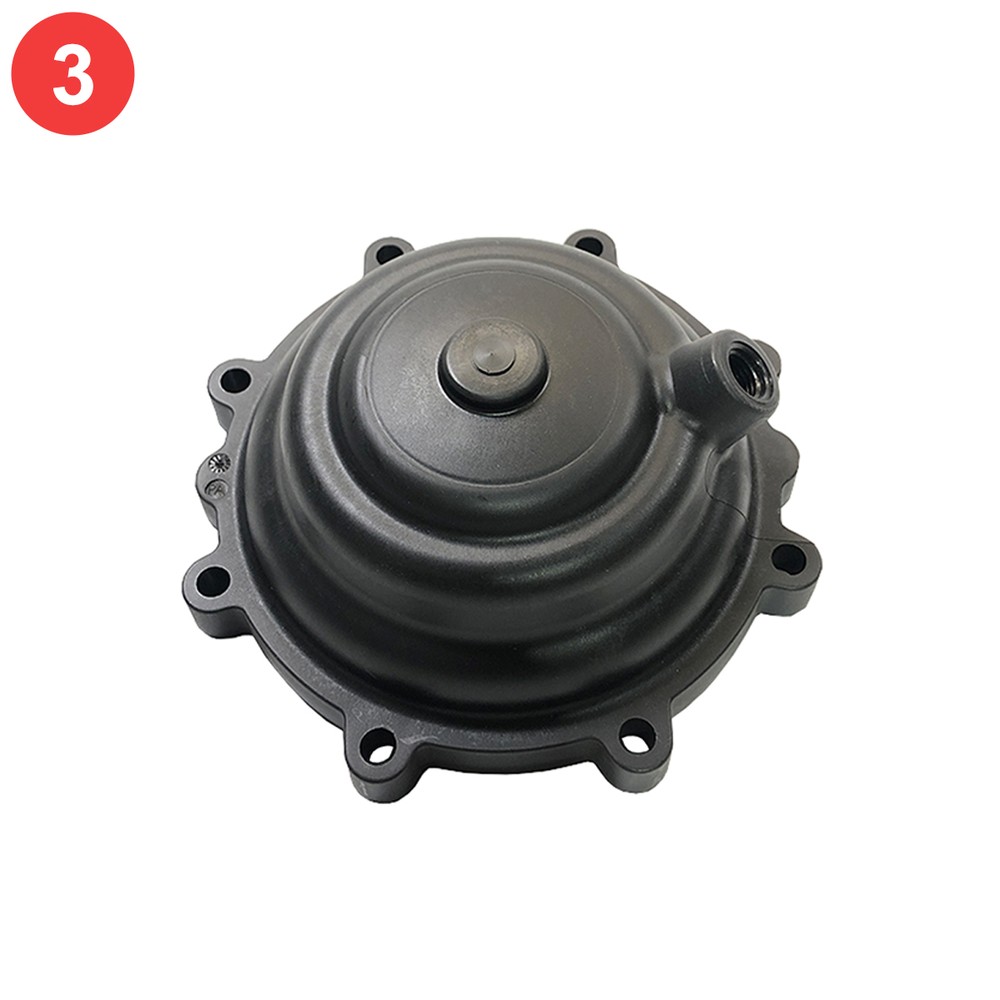

105080L-92

80L-100mm

Cover - Bolted for 100 Series Hydraulic Valve

4

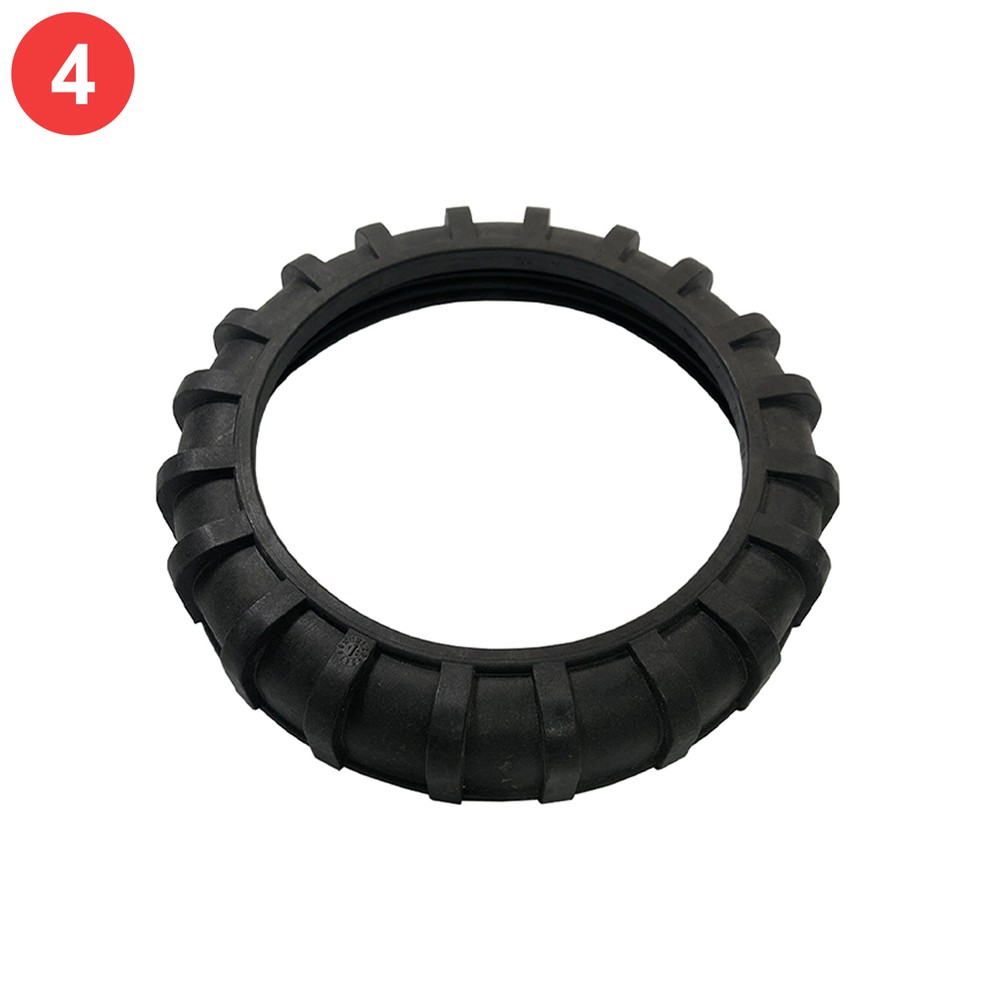

105080L-3

80L-150mm

Cover - Ring for 100 Series Hydraulic Valve

5

105100-80

80L-150mm

Cover Ring Key for 100 Series Hydraulic Valve

6

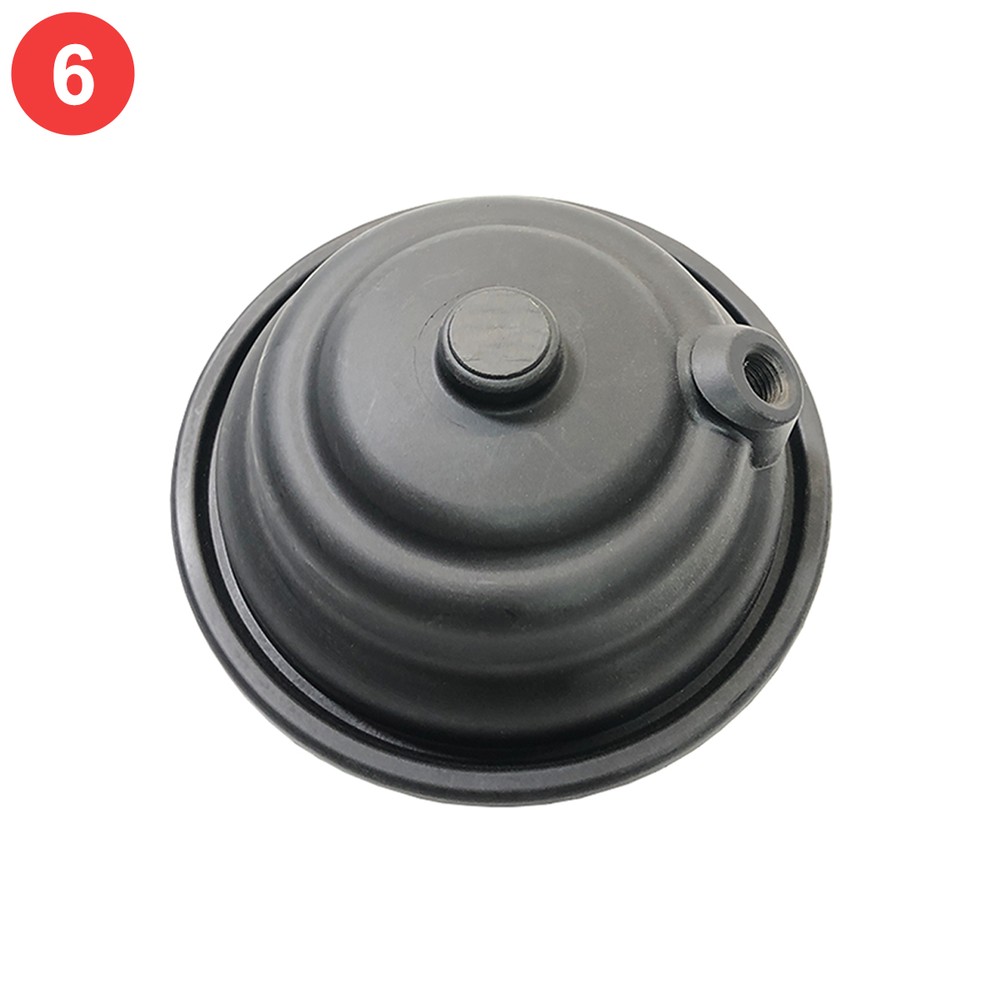

105080L-2

80L-150mm

Cover Ring type + O-Ring for 100 Series Hydraulic Valve

Pos. Product Code Size Description

1

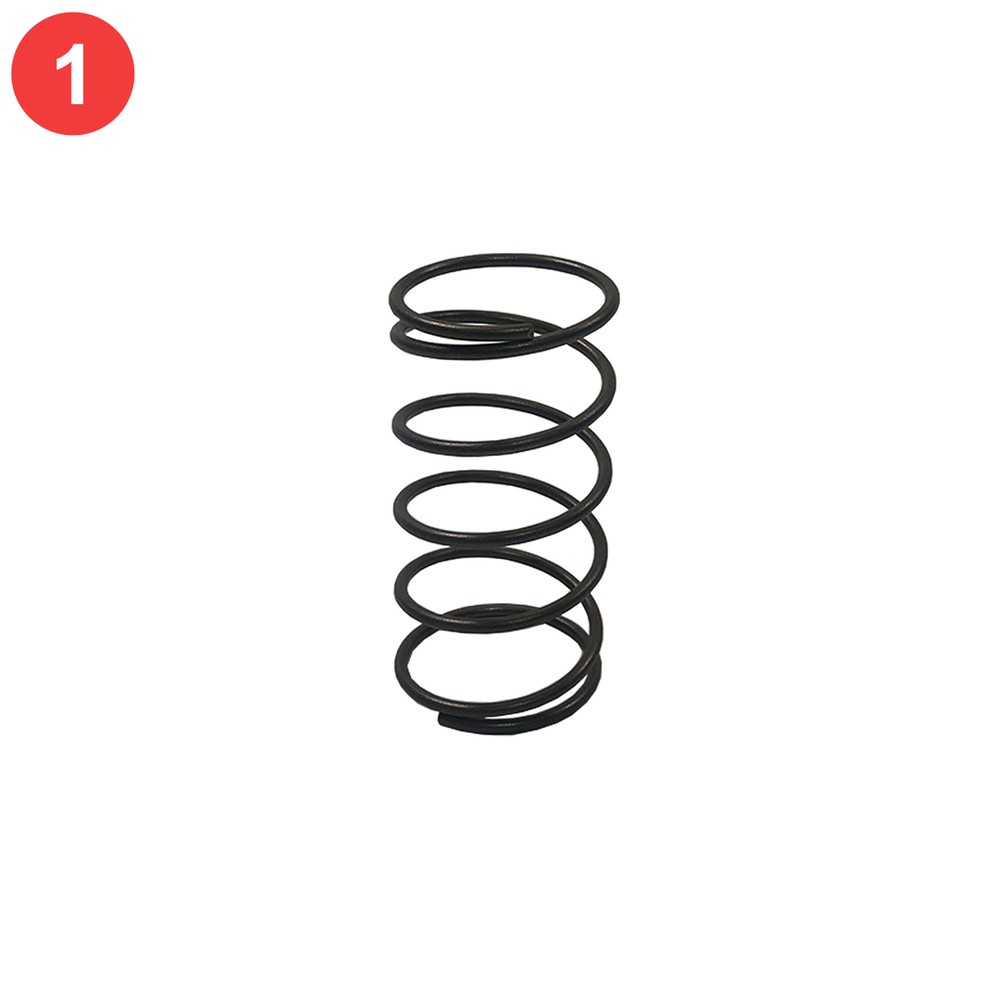

105040-6

40-50mm

Spring - 100 Series Valve

2

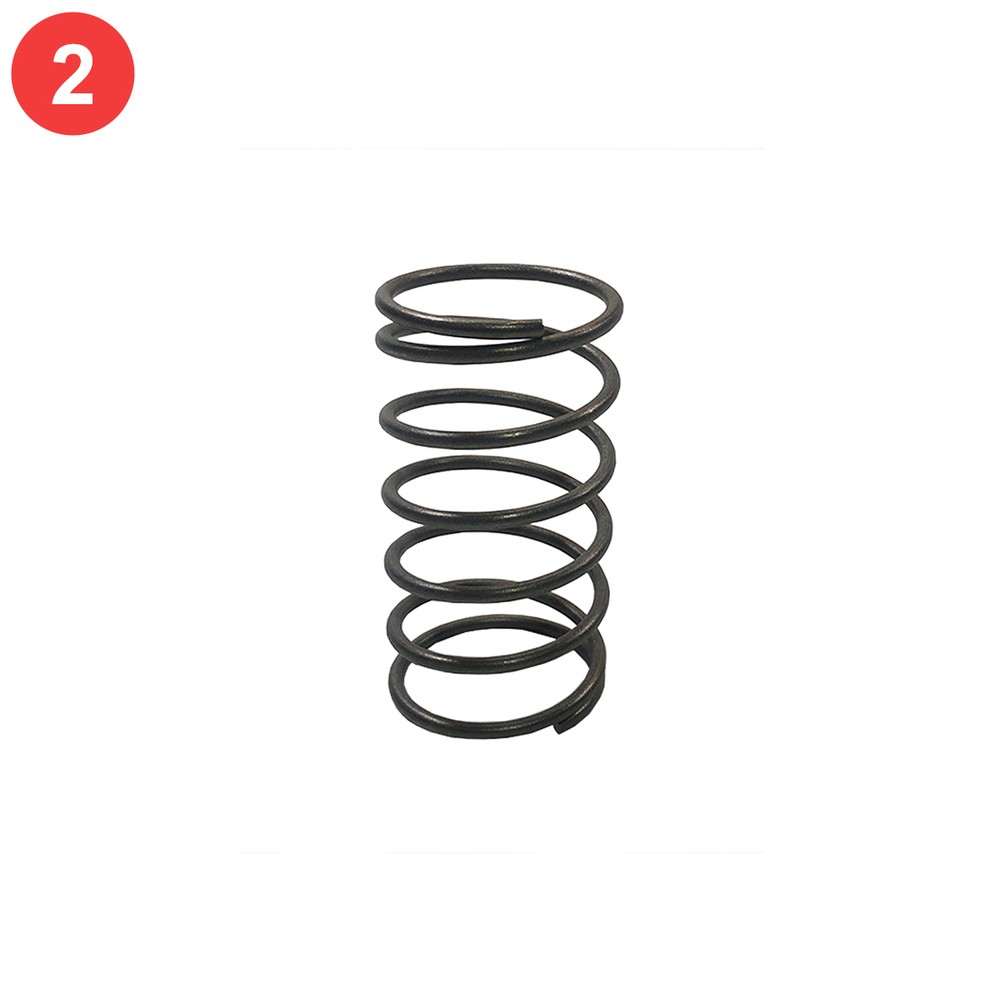

105050L-6

50L-80mm

Spring - 100 Series Valve

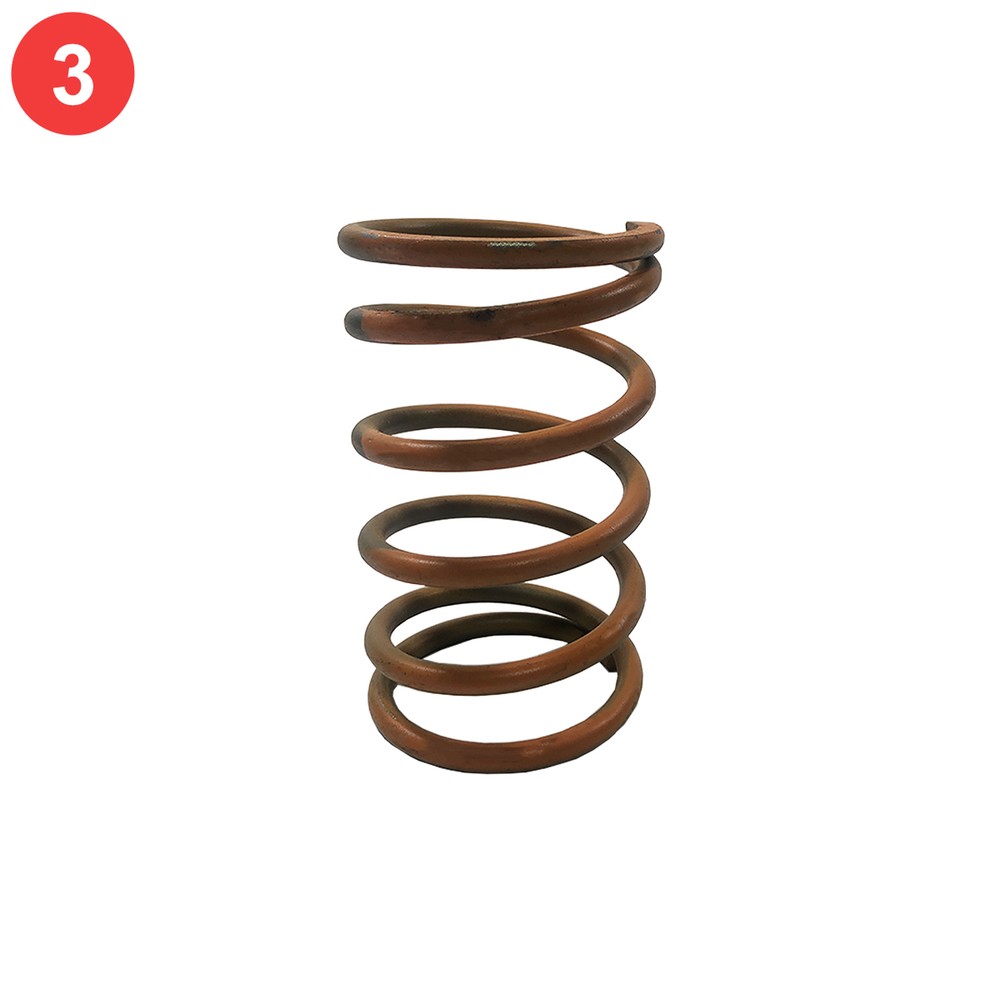

3

105080L-6

80L-150mm

Spring - 100 Series Valve

4

105100L-6

100L-150Rmm

Spring - 100 Series Valve

Pos. Product Code Description

1

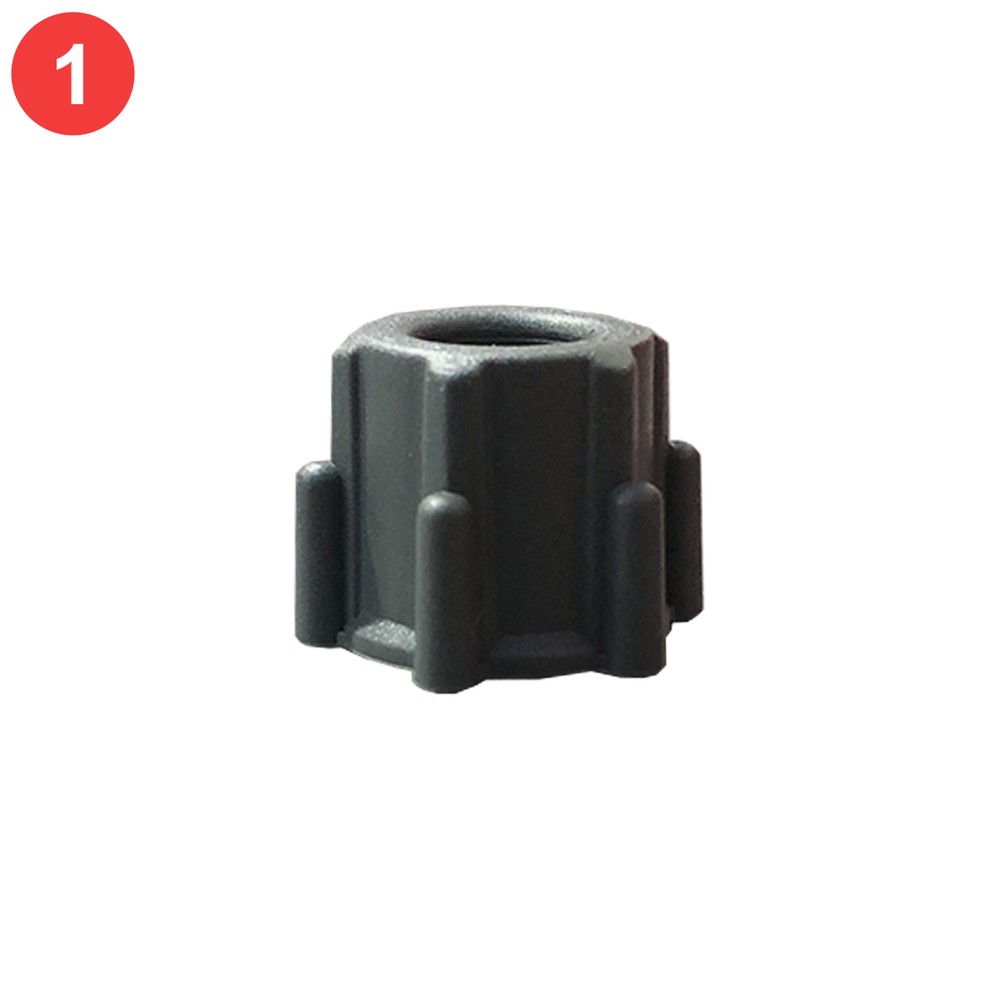

FT8

Bermad 8mm PE Control Valve Tubing - Per Meter

2

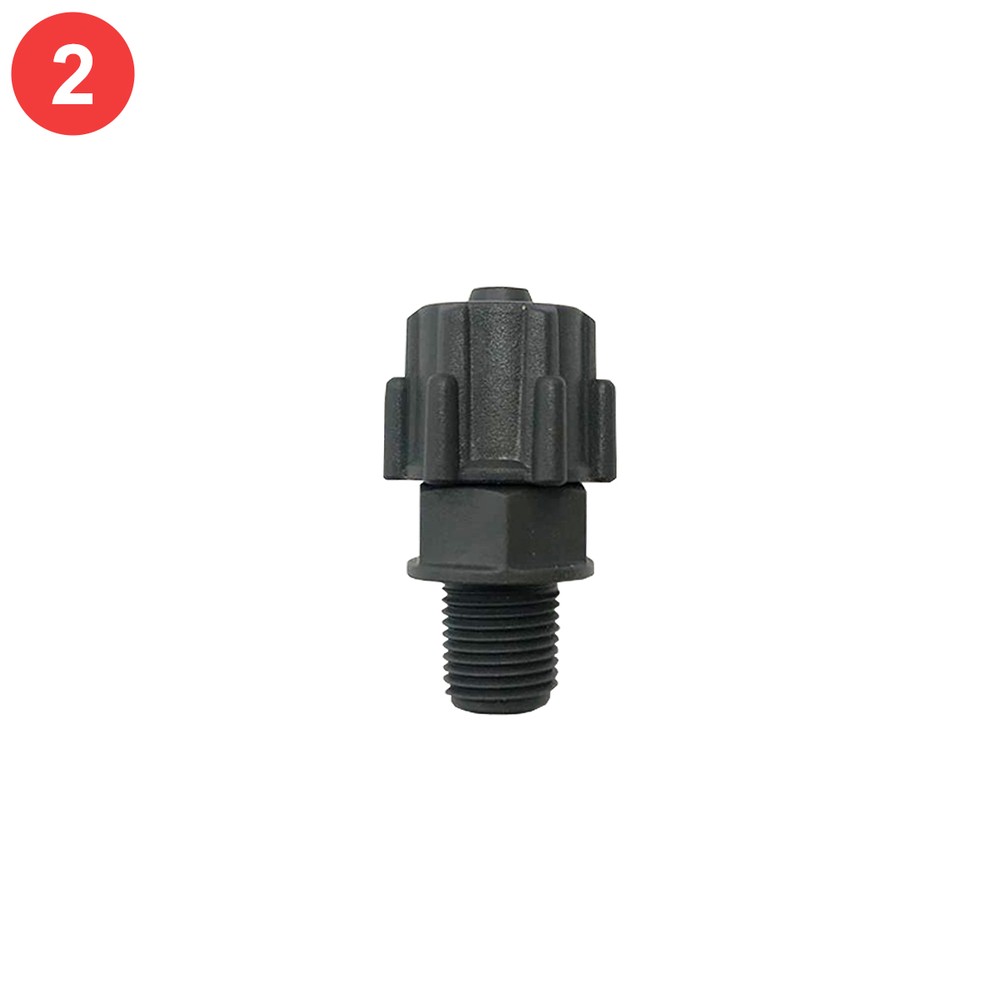

FT18

Bermad 8 mm Straight Tube/Thread 1/8"

3

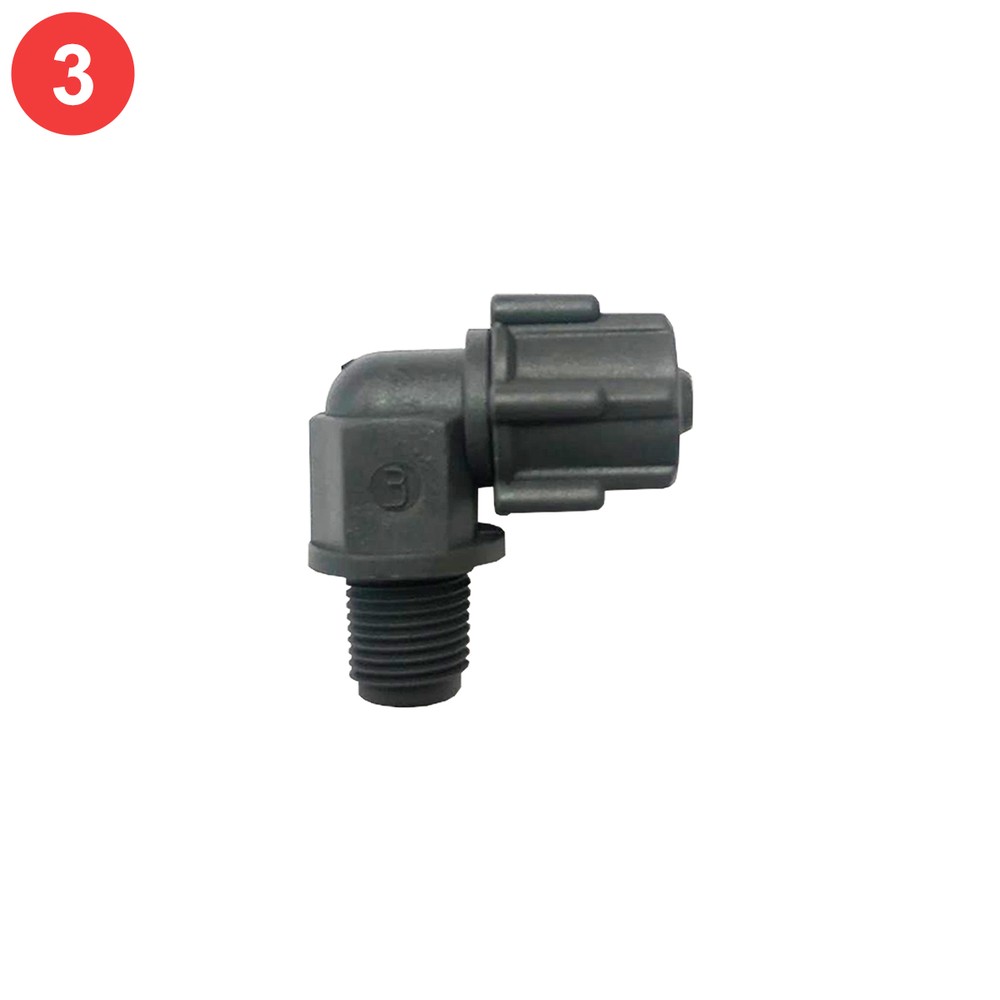

FT28

Bermad 8mm - Elbow Tube/Thread 1/8"

4

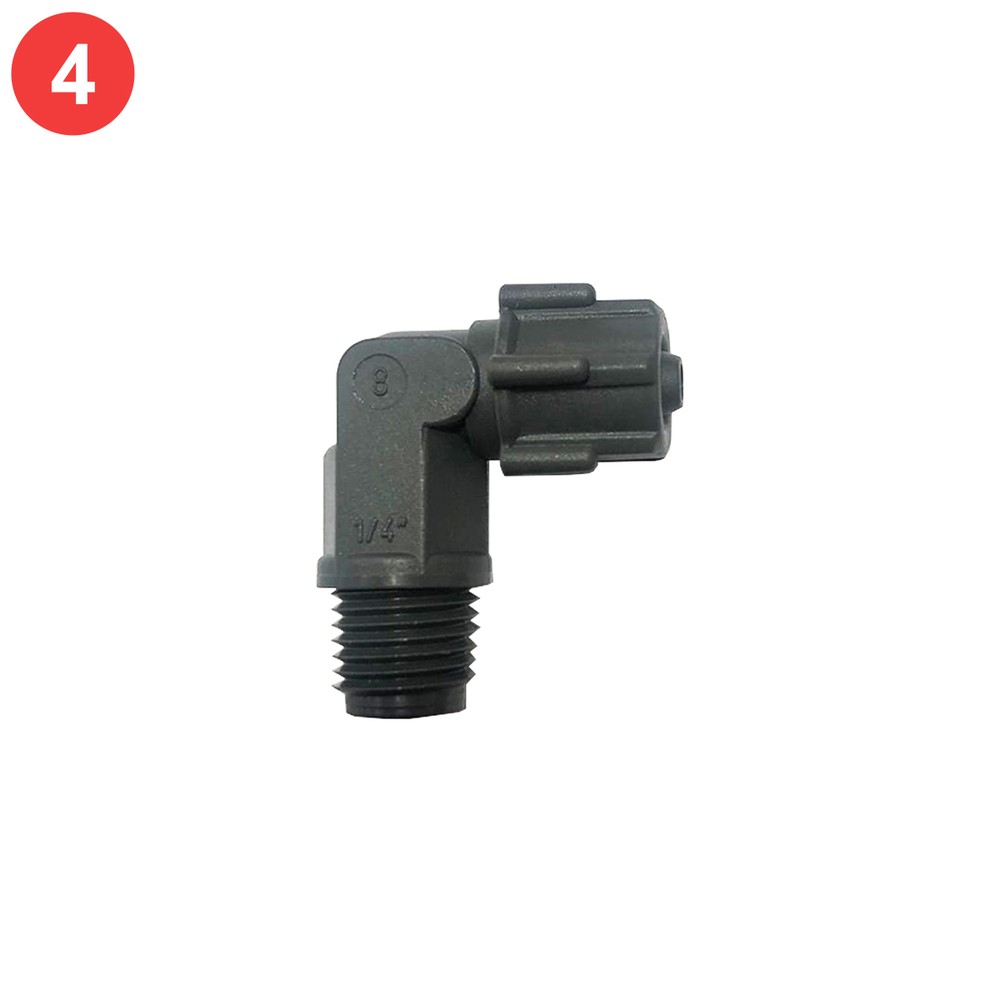

FT58

Bermad 8mm Elbow Tube/Thread 1/4"

5

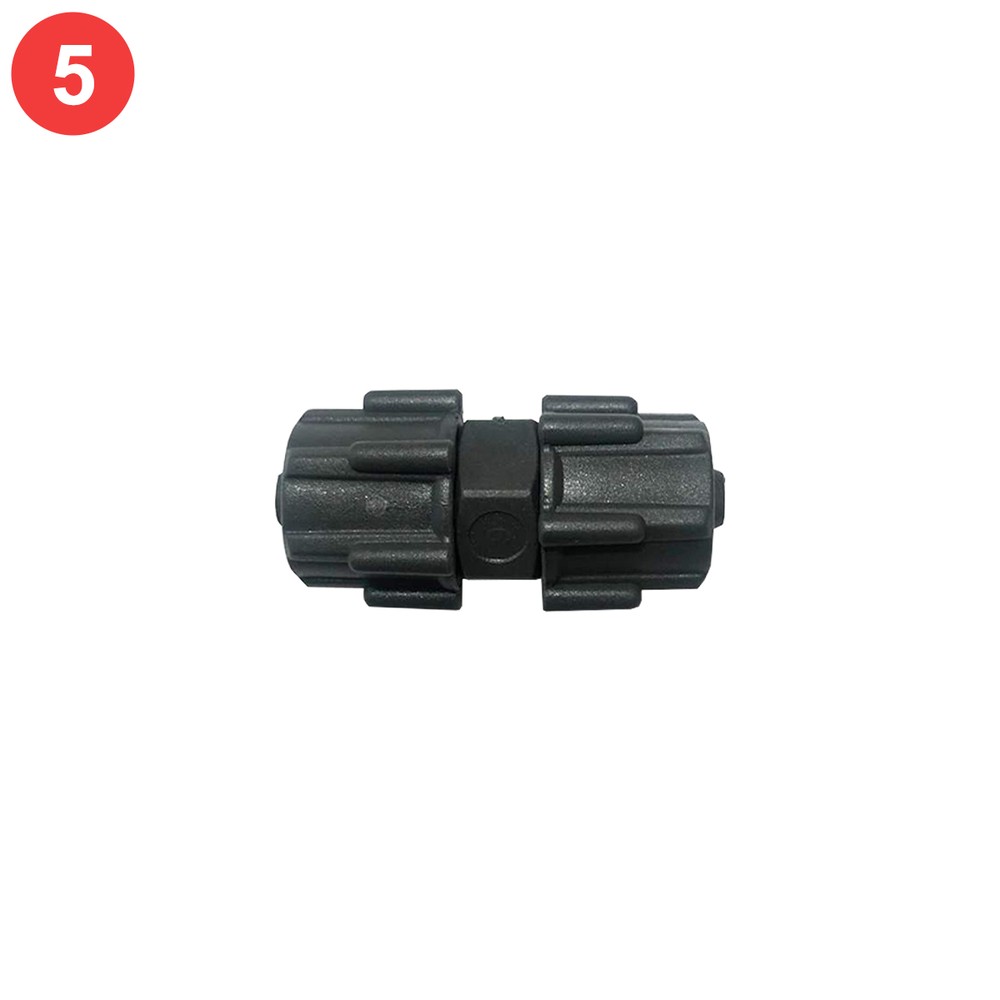

FT88

Bermad 8mm Connector Tube/Tube

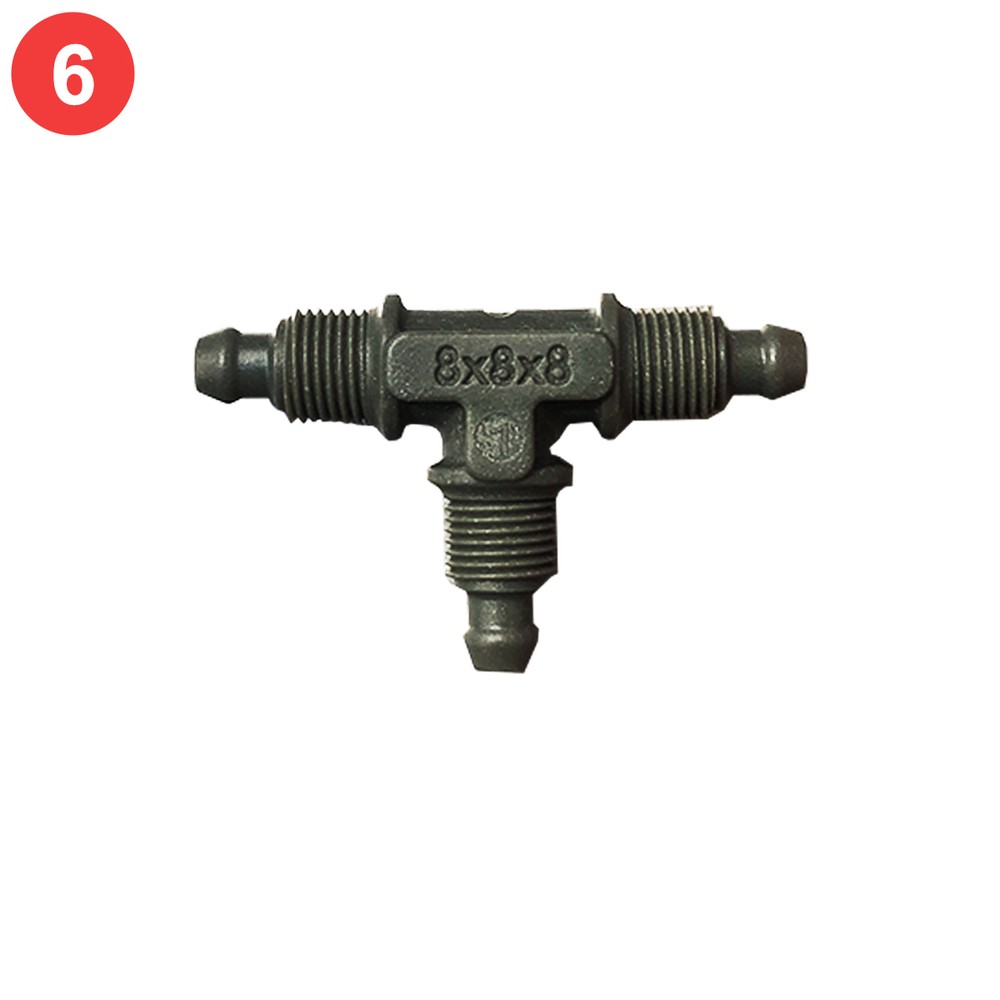

6

FT98

Bermad 8mm Tee Connector Tube/Tube/Tube

7

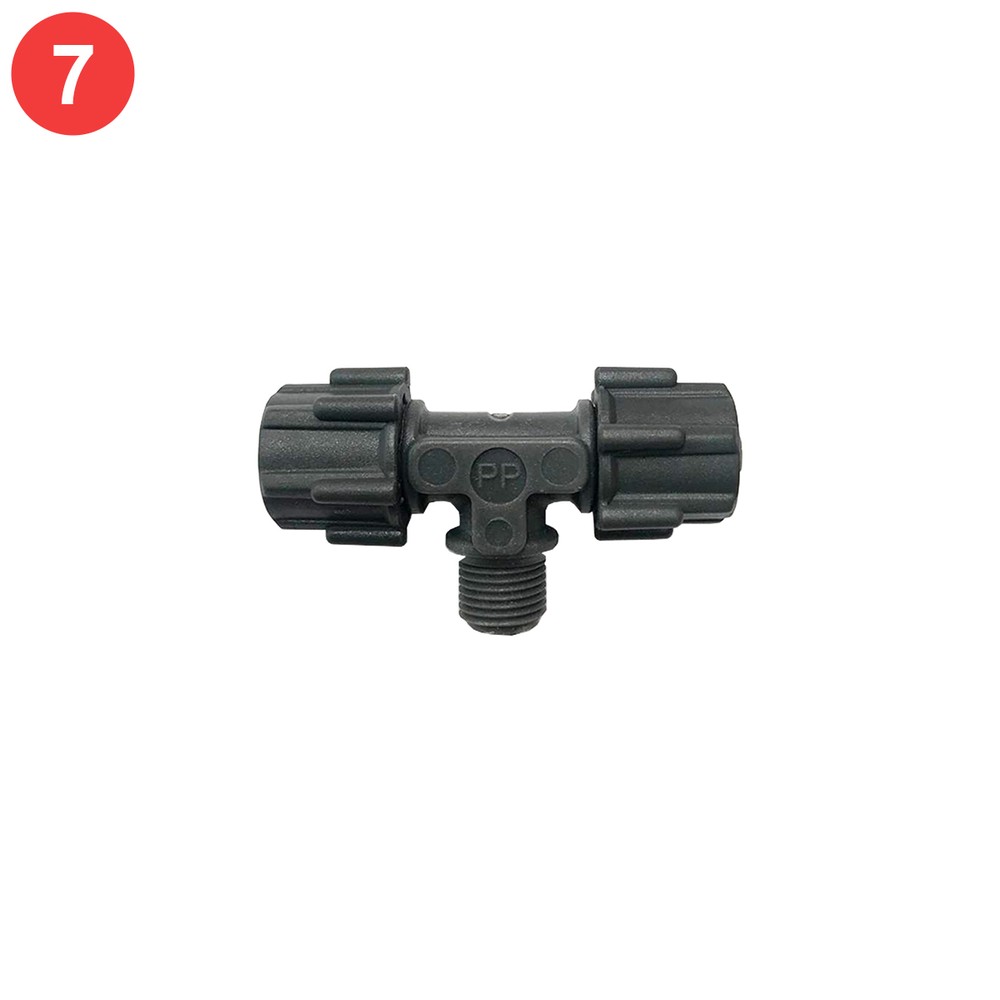

FT98/1

Bermad 8mm Tee Connector Tube/Thread/Tube. 1/8"

8

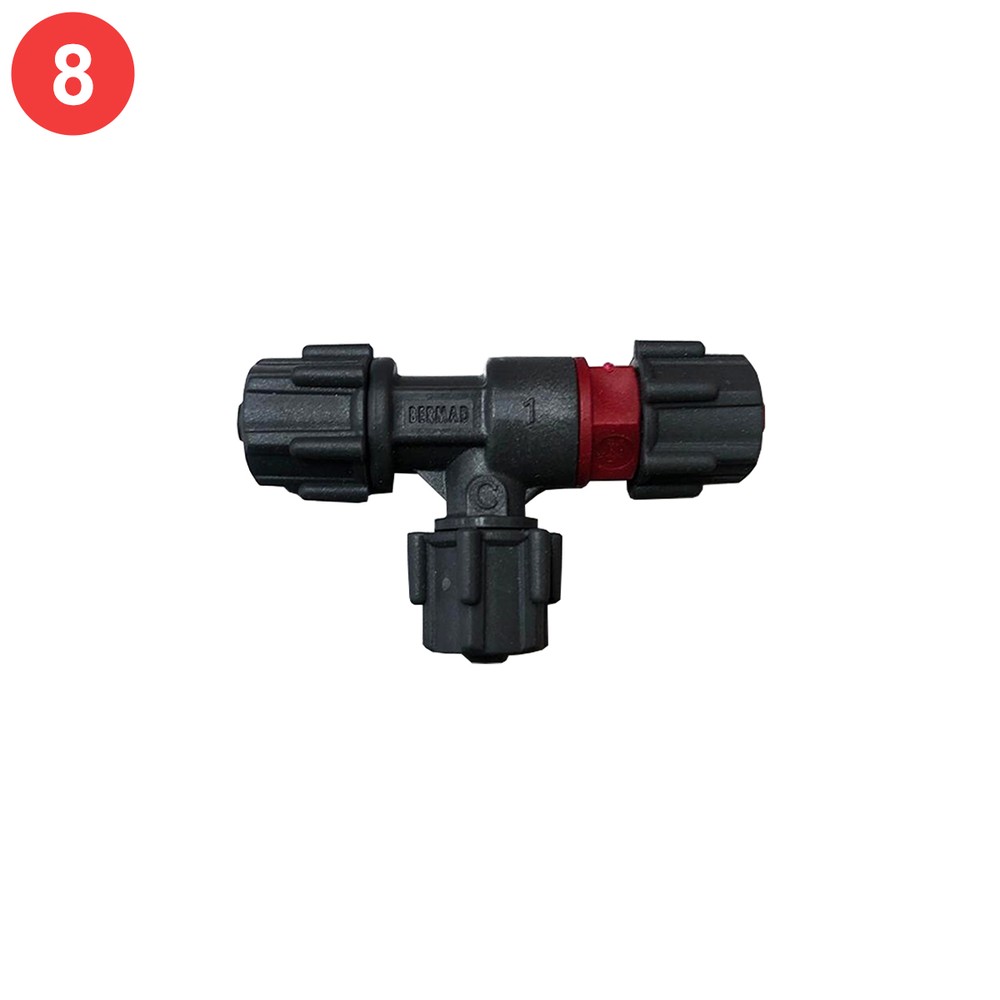

FT98/1-FT

Bermad 8mm Tube Orifice Tee Connector. Tube/Thread/Tube. 1/8" with 1.0mm restrictor

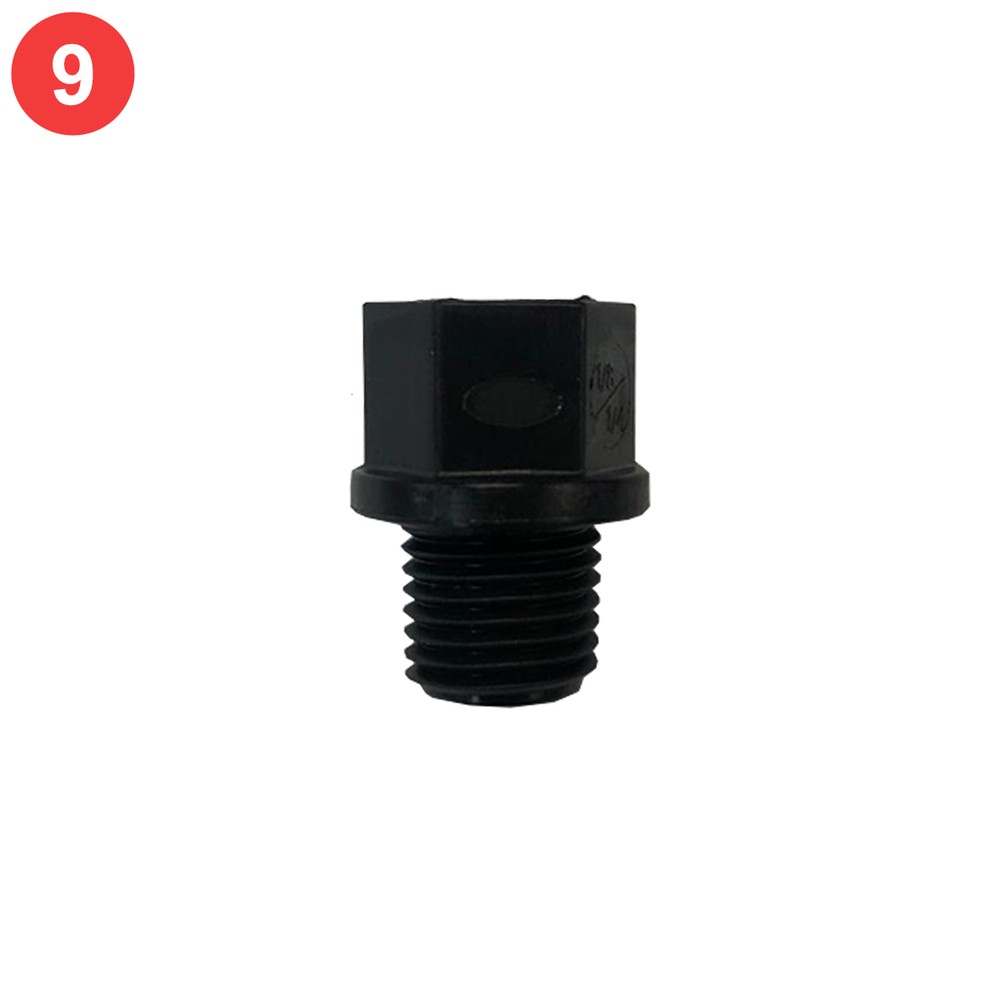

9

FT48

Bermad Thread/Thread Reducer. 1/4"M x 1/8"F

10

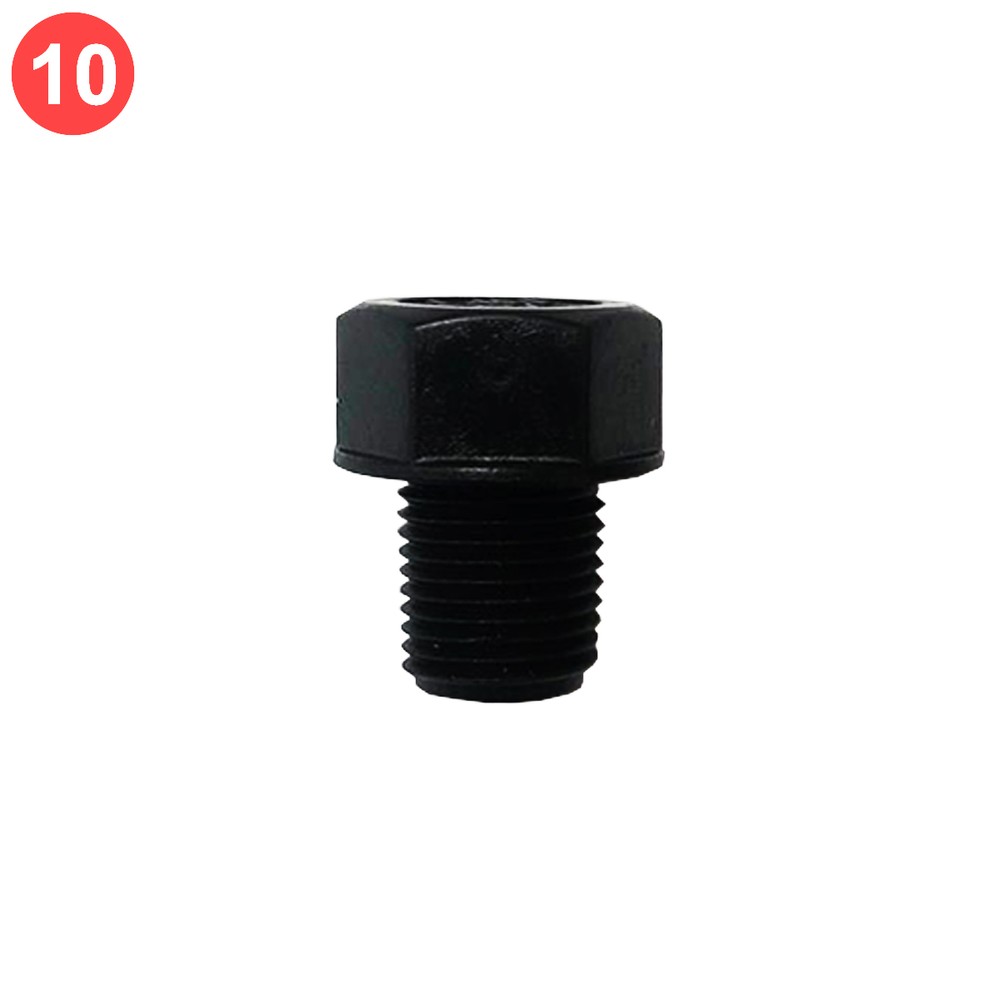

FT38

Bermad Plug. Threaded BSP 1/8"

11

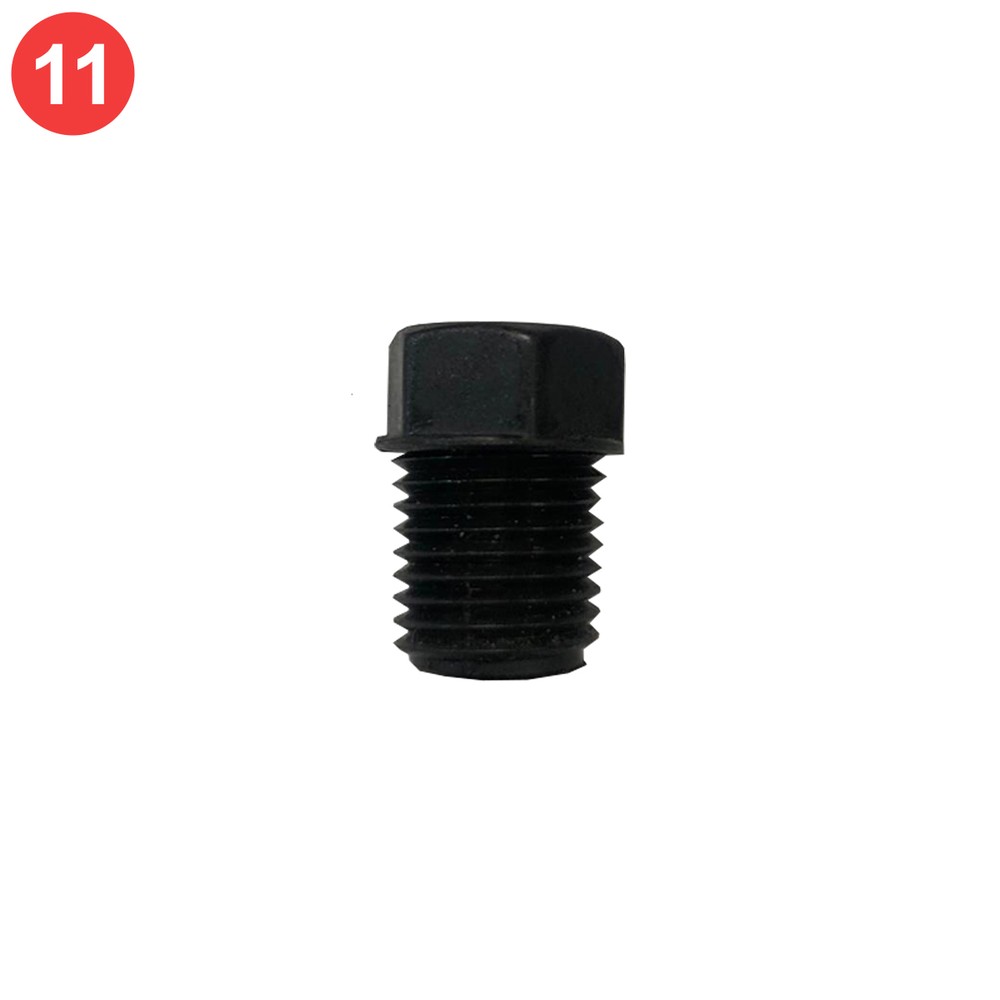

FT34

Bermad Plug. Threaded BSP 1/4"

12

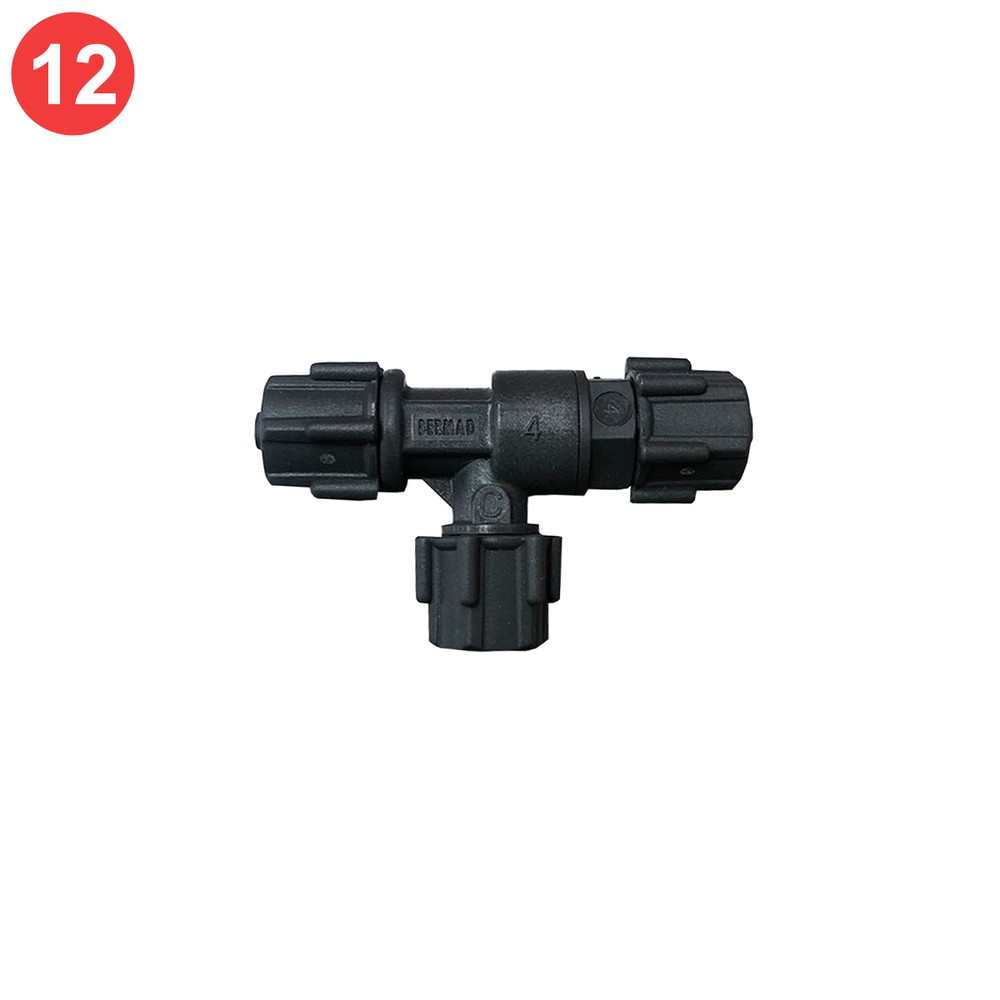

FTPS8

Bermad 8mm Pressure Selector. Tee Tube/Tube/Tube

13

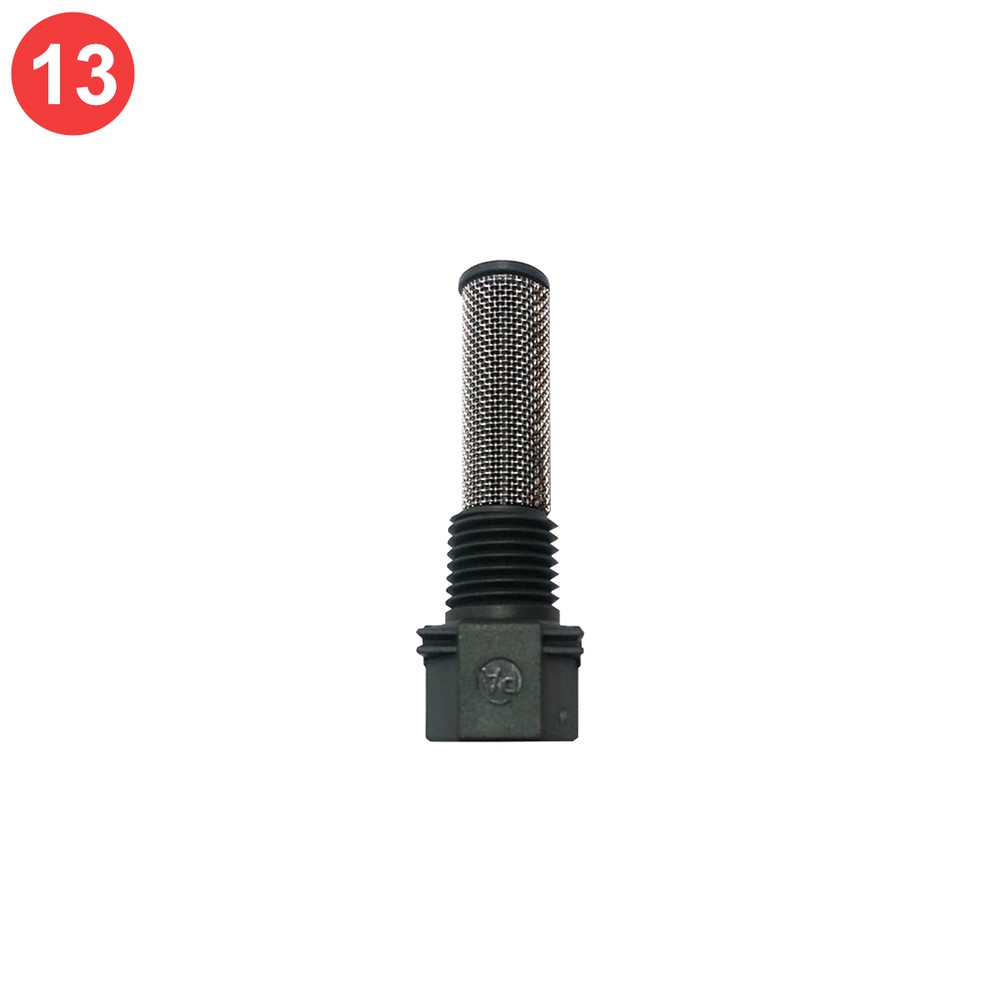

FF8PLR

Bermad 1/4" x 1/8" Inline Finger Filter Plastic

14

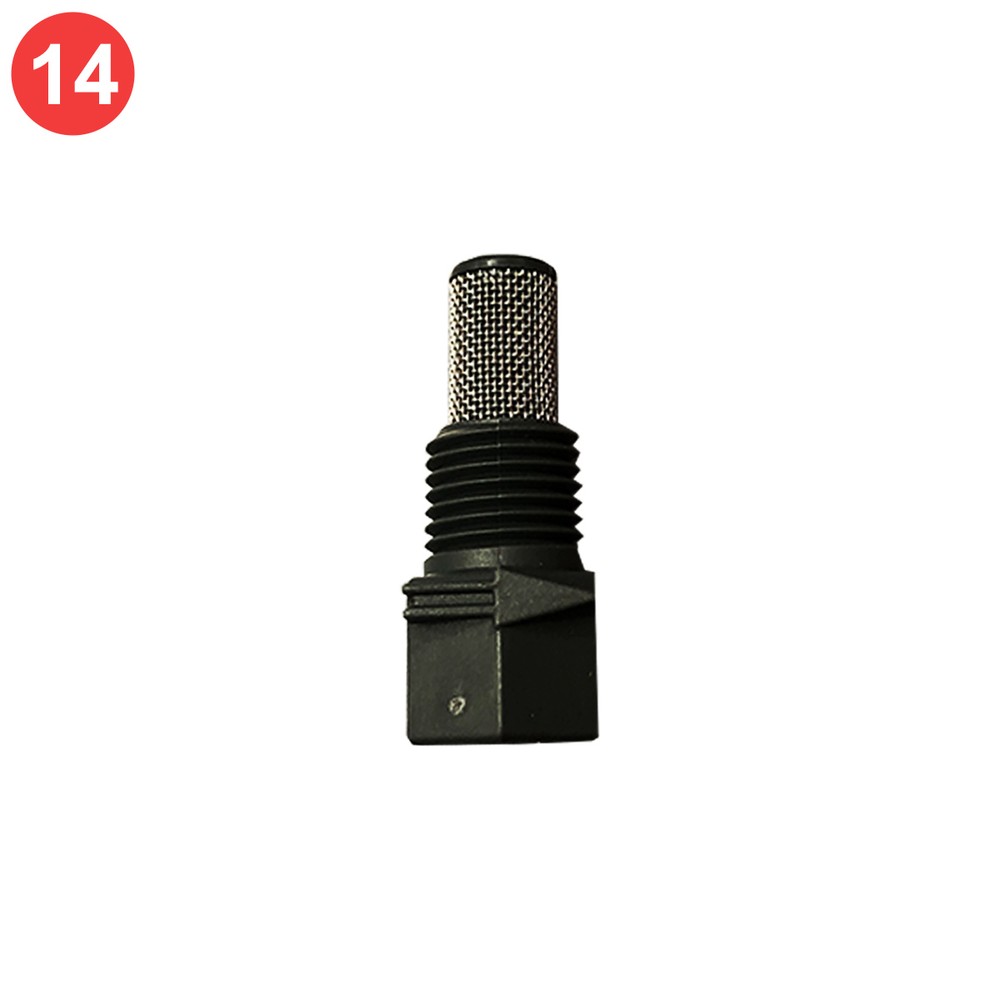

FF8SR

Bermad 1/4" Inline Finger Filter Stainless

Standard Adjustment Range 1-7 Bar with other spring ranges available on request

Pos. Product Code Description

1

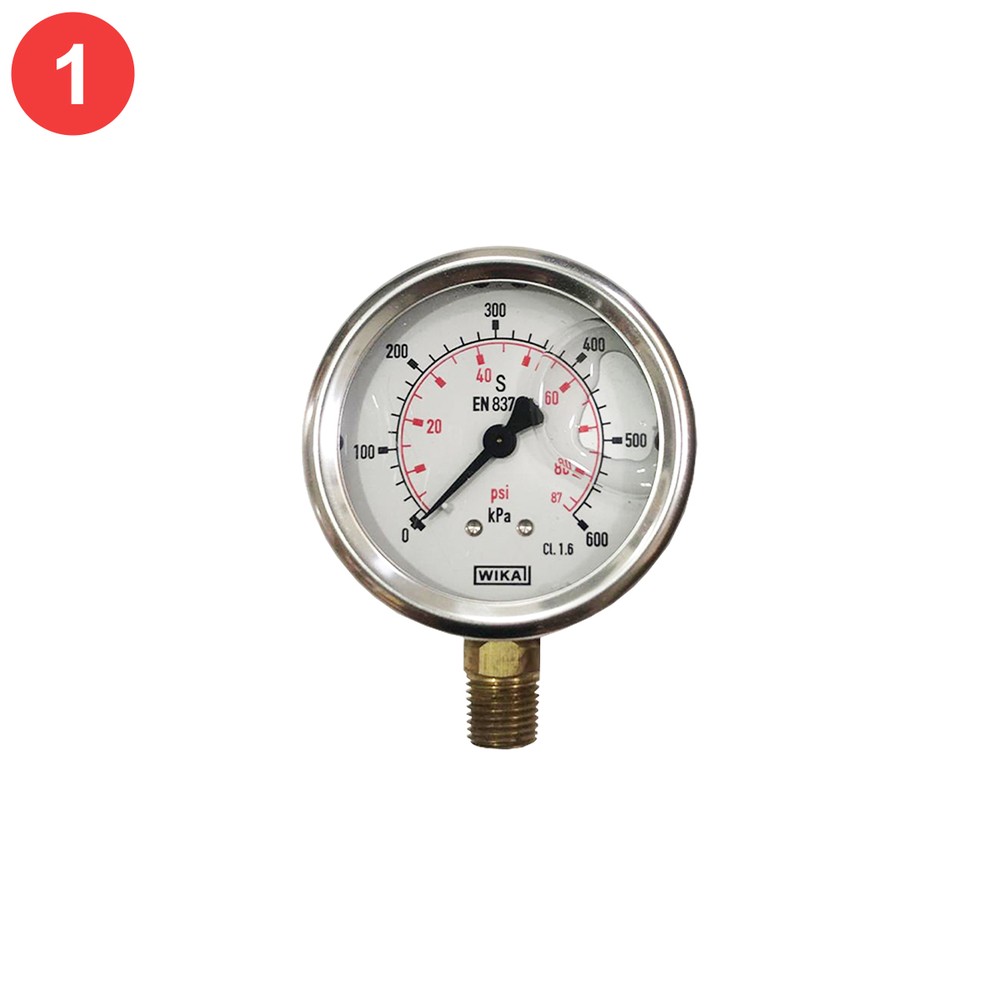

PG63/6

Stainless Cased Oil Filled Pressure Gauge. 600kPA / 90PSI

2

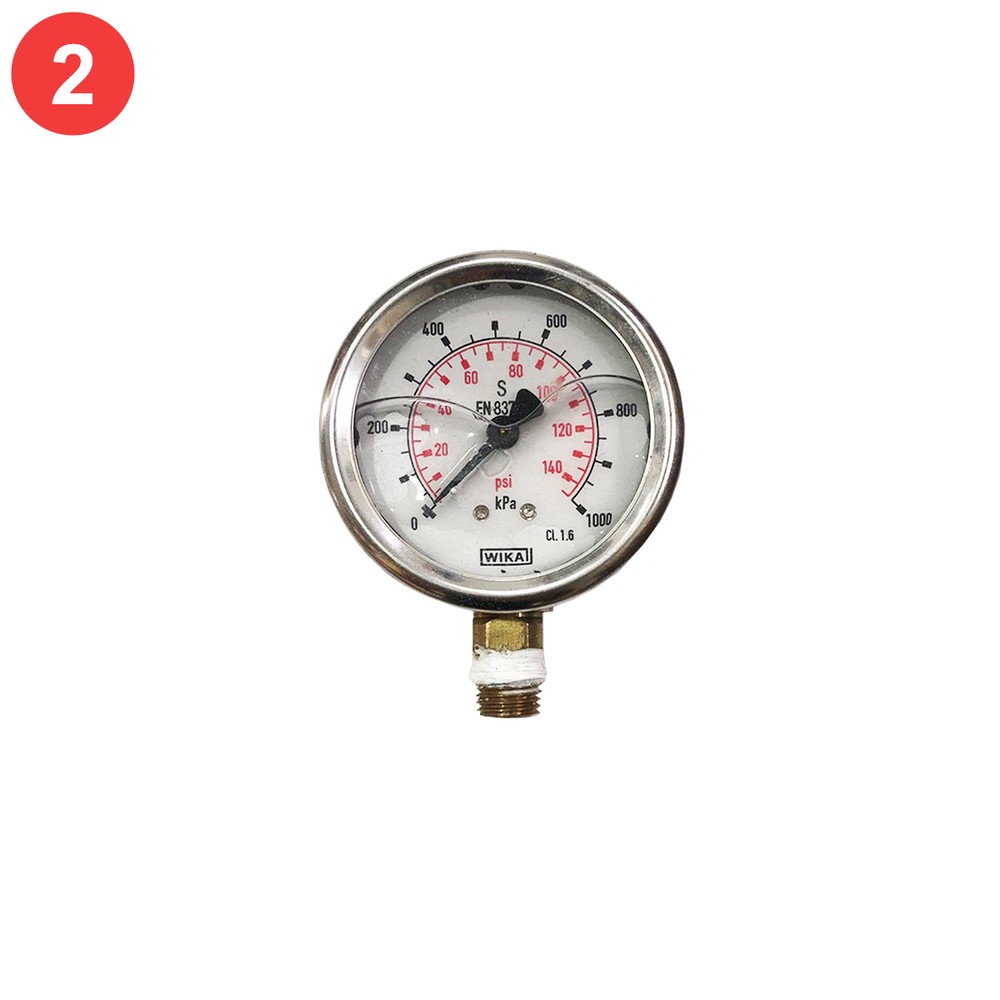

PG63/10

Stainless Cased Oil Filled Pressure Gauge. 1000kPA / 150 PSI

3

PG63/16

Stainless Cased Oil Filled Pressure Gauge. 1600kPA / 230 PSI

4

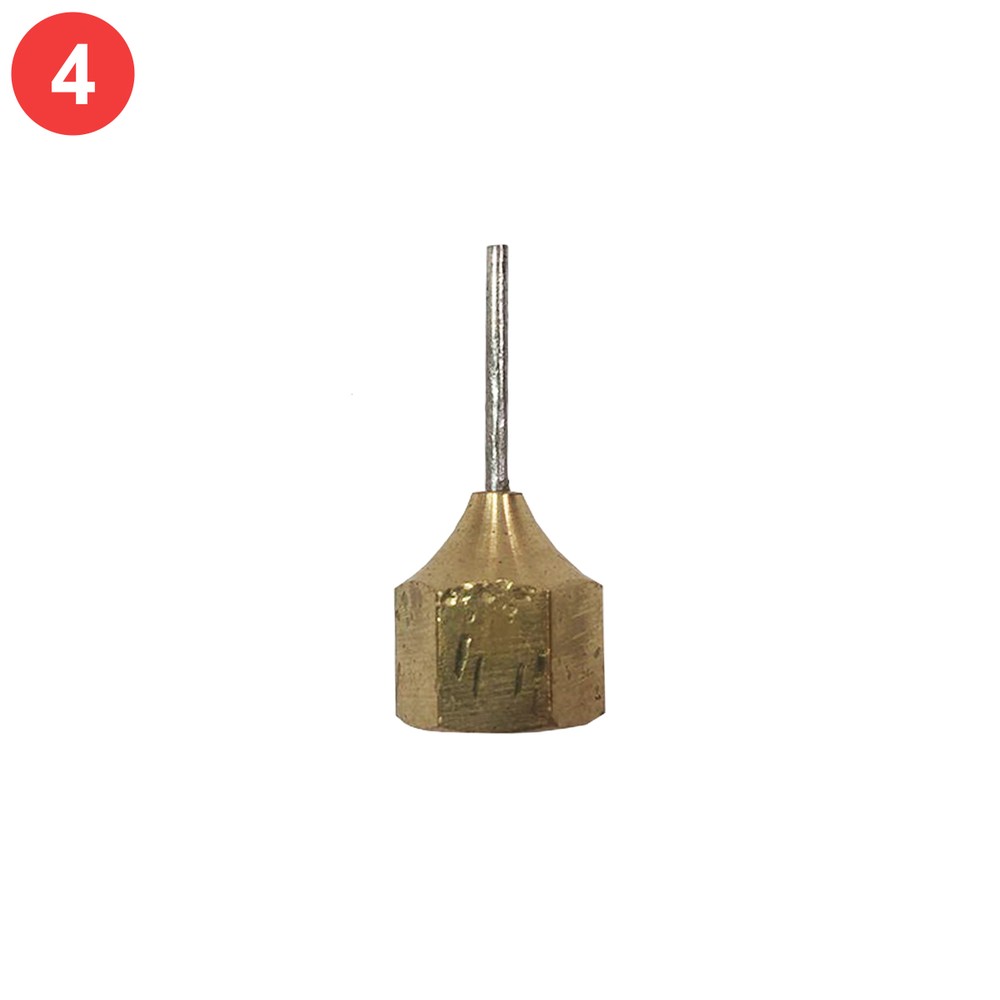

0310

Ravit Pressure Gauge Probe / Needle

5

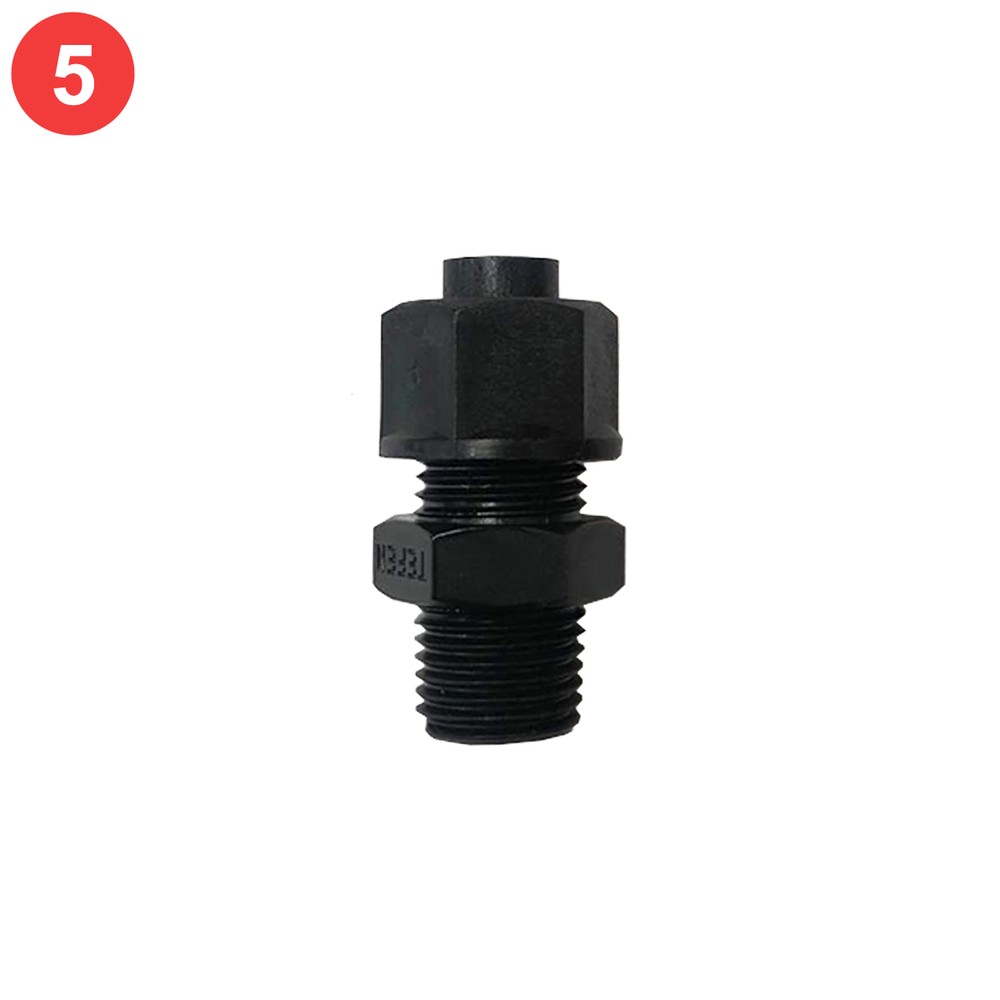

2020

Ravit Pressure Test Point / Valve

6

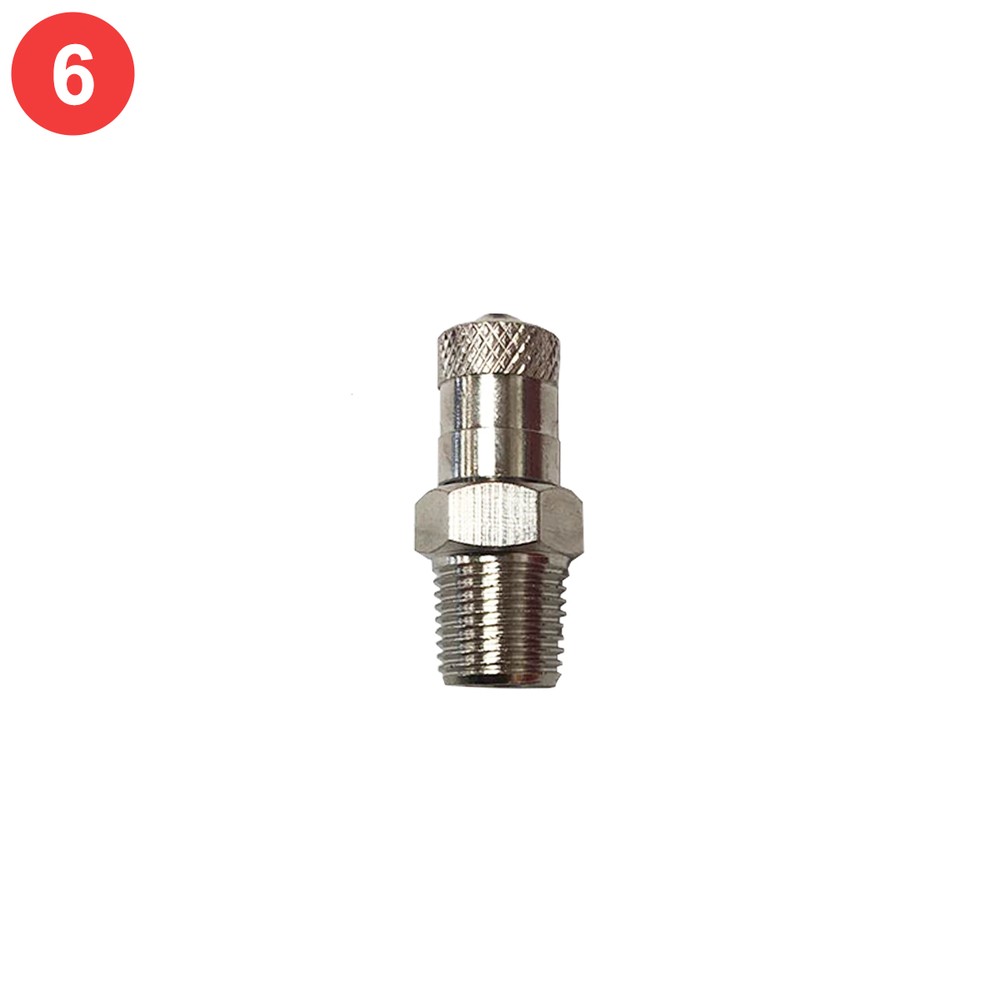

SCHRADER

Schrader Test Point

7

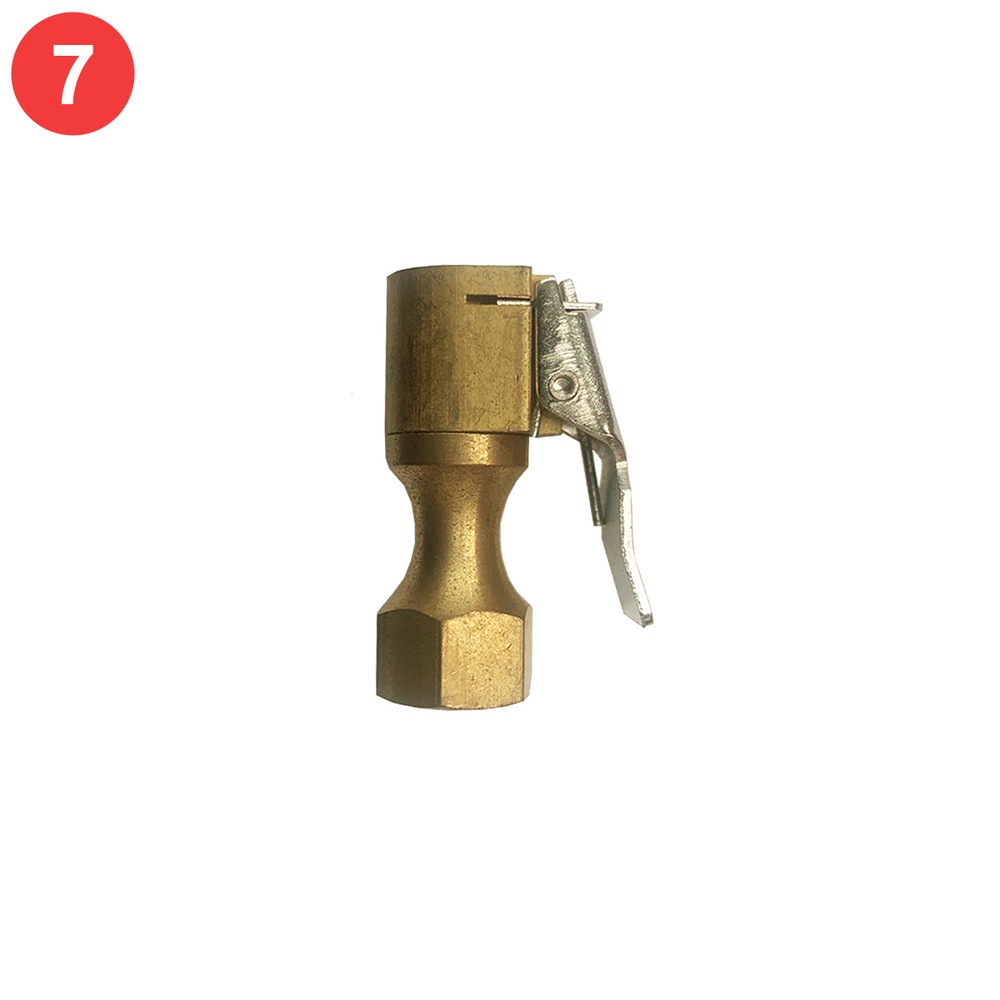

SCHRADER GF

Schrader pressure Gauge Fitting

Due to the wide range of options available and criteria for correct model selection, pricing and configuration are available on application only.

Please consult with Deeco engineers for more information.

Bermad Model 100 Series - How to Order Guide
