| Brand: | Bermad |
| Category: | Control Valves, 100 Series |
| Size Range: | 40-150mm |
| Connection: | 40-80mm - Female Threaded BSP 80-150mm - Flanged |
| Engineering Data: |
Product Description
The BERMAD 120-55-3 Way Pressure Reducing Control Valve with Solenoid Control is a hydraulically operated, diaphragm-actuated control valve that reduces higher upstream pressure to lower constant downstream pressure regardless of fluctuating demand; and opens fully upon line pressure drop. This model either opens or shuts in response to an electric signal.
Features and Benefits
- Hydraulic Pressure Control with Solenoid Control
- Line pressure driven
- Protects downstream systems
- Opens fully upon line pressure drop
- Electrically controlled On/Off
- Engineered Plastic Valve with Industrial Grade Design
- Highly durable, chemical and cavitation resistant
- No internal bolts and nuts
- hYflow ‘Y’ Valve Body with “Look Through” Design
- Ultra-high flow capacity – Low-pressure loss
- Unitized Flexible Super Travel (FST) Diaphragm and Guided Plug
- Accurate and stable regulation with the smooth closing
- Requires low opening and actuation pressure
- Prevents diaphragm erosion and distortion
- Simple In-Line Inspection and Service

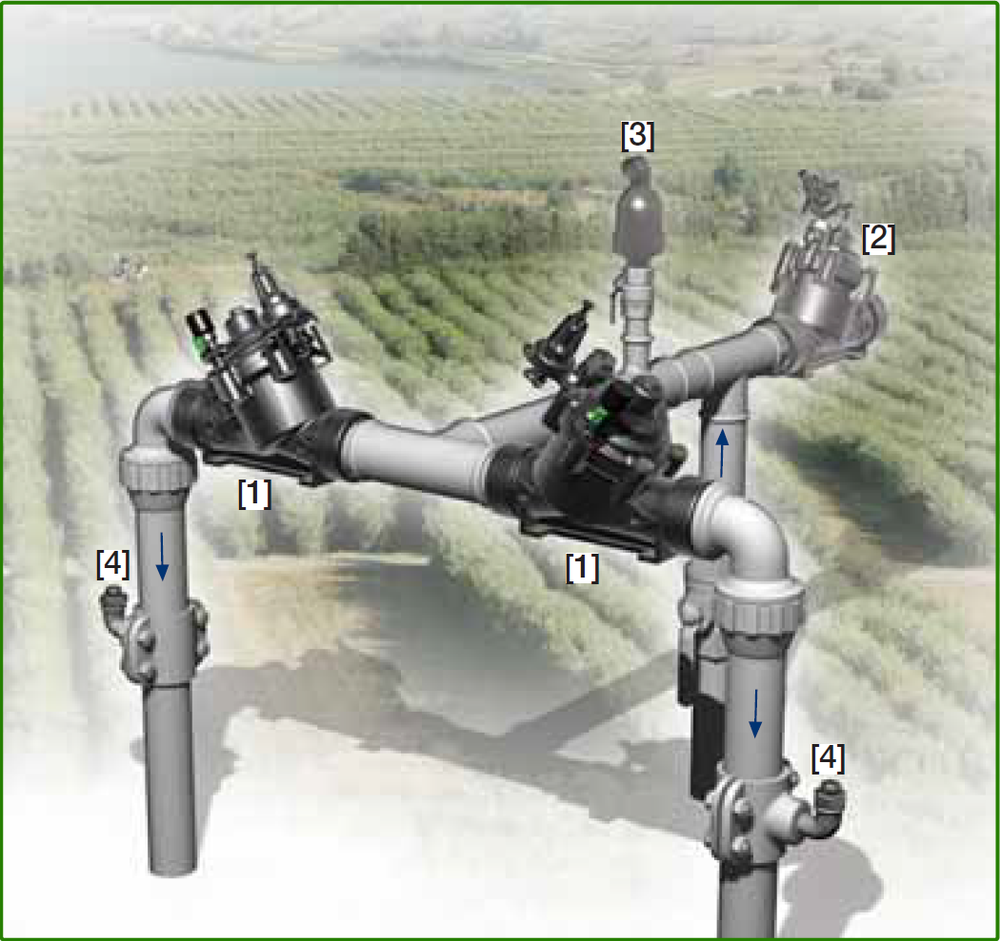

1. BERMAD Model IR-120-55-X opens in response to an electric signal; and establishes a reduced pressure zone protecting laterals and distribution line.
2. BERMAD Relief Valve Model IR-13Q
3. BERMAD Air Valve Model ARA-A-P-P
4. BERMAD Vacuum Breaker Model ½”-ARV
Typical Applications
- Computerized Irrigation Systems
- Pressure Reducing Stations
- Systems Subject to Varying Supply Pressure
- Remote and/or Elevated Plots
- Distribution Centers
- Energy Saving Irrigation Systems
Technical Data

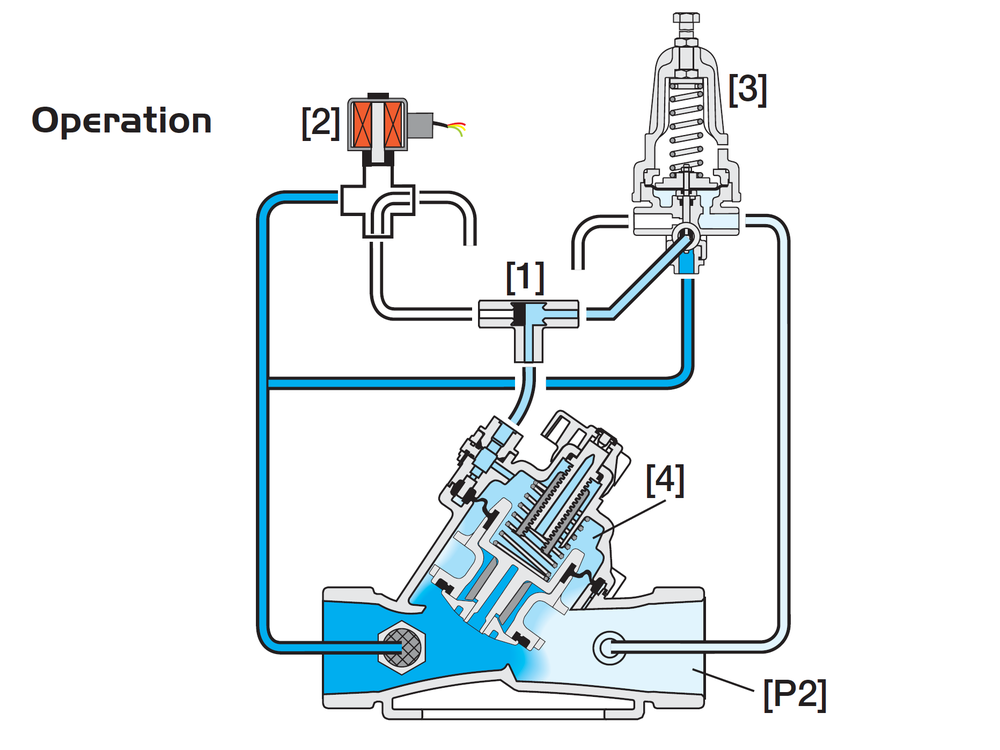

Operation
The Shuttle Valve [1] hydraulically connects the Solenoid [2] or the Pressure Reducing Pilot (PRP) [3] to the Valve Control Chamber [4]. When the solenoid is closed, the PRP commands the Valve to throttle closed should Downstream Pressure [P2] rise above the setting and to open fully when [P2] is below the setting. In response to an electric signal, the solenoid switches, directing line pressure through the shuttle valve into the control chamber, shutting the Valve. The solenoid also features local manual closing.
Materials
Body, Cover and Plug
- Glass-Filled Nylon
Diaphragm
- NR, Nylon Fabric Reinforced
Seals
- NR
Spring
- Stainless Stee
Cover Bolts
- Stainless Steel
Control Accessories
- Plastic
Tubing and Fittings
- Plastic
Valve Configurations & Size
- Oblique: DN40, 50, 50L, 80, 80L, 100, 100L, 150R, 150L
- Angle: DN50, 80, 80L, 100
End Connections
- 40-80mm - Female Threaded BSP
- 80-150mm - Flanged
Pressure Rating
- 10 bar
Operating Pressure Range
- 0.35-10 bar
Setting Range
- 1-7 bar
Setting ranges vary according to specific pilot springs. Please consult Deeco.
Solenoid Voltage Range
- S-390 & S-400: 24 VAC, 24 VDC
- S-392 & S-402: 9-20 VDC, Latch
- S-982 & S-985: 12-50 VDC, Latch
Other voltages are available

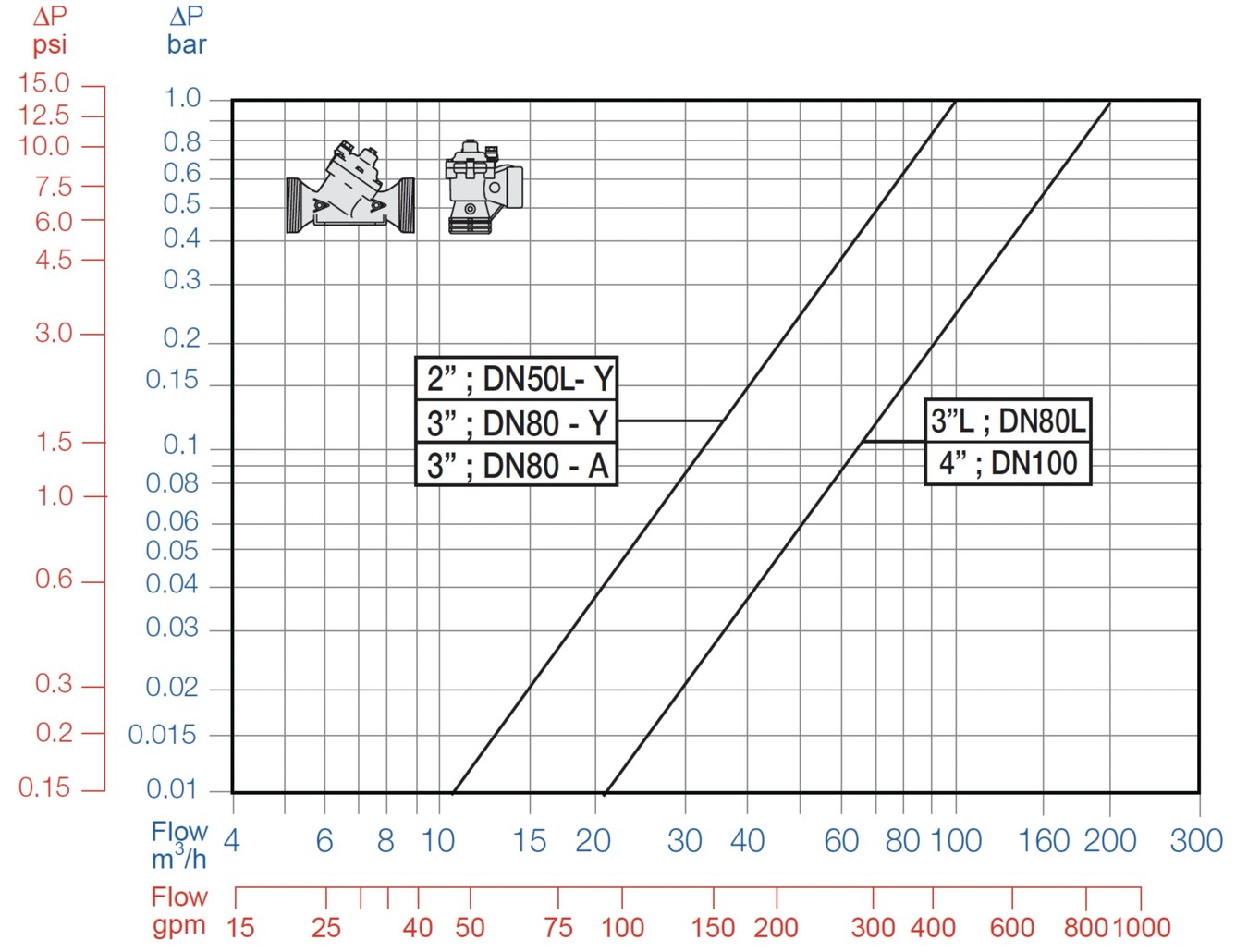

Flow Chart
Bermad - 120-55-3W - Flow Chart

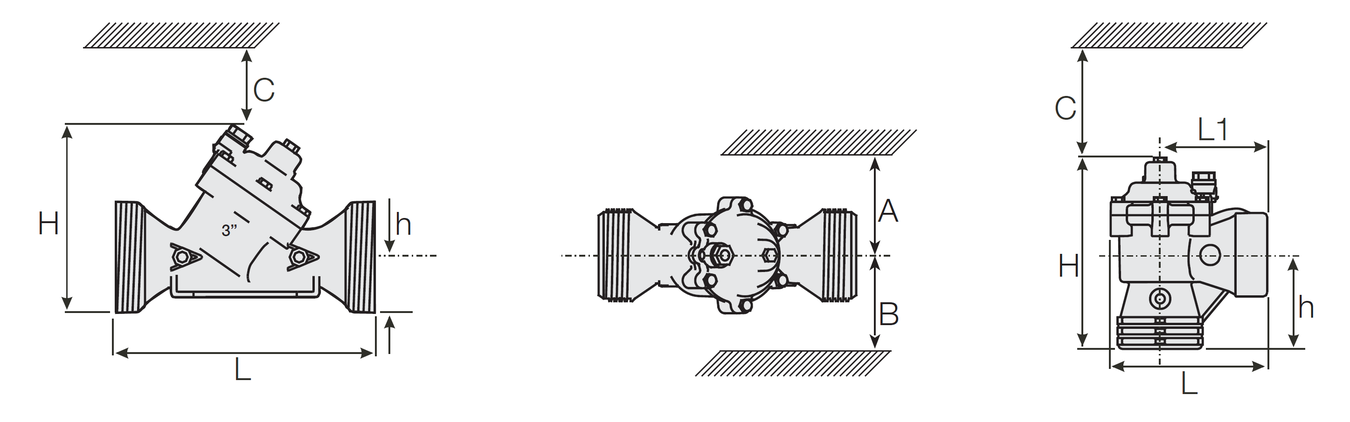

Technical Specifications

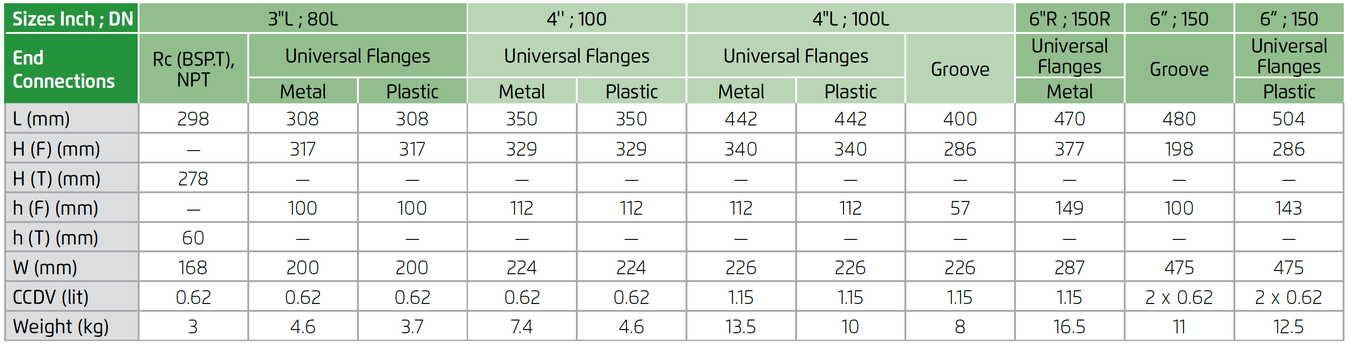

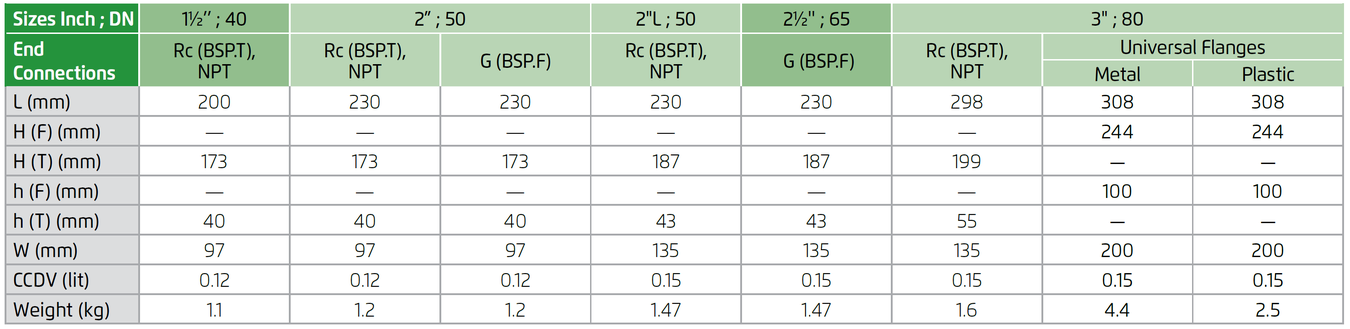

Dimensions and Weights
CCDV = Control Chamber Displacement Volume • BSP.T = Internal Threaded • BSP.F = External Threaded • Other End Connections are available on request. For dimensions and weights of adapters or valve with adapters please consult with customer service
For Spare Parts & Repair Kits - Please refer to the base model:
Due to the wide range of options available and criteria for correct model selection, pricing and configuration are available on application only.
Please consult with Deeco engineers for more information.
