Bermad - Model 120DC - 3 Way - Double Chamber Pressure Reducing Valve

The Bermad Model IR-120-DC-3W-XZ Pressure Reducing Valve is a double chambered, hydraulically operated, diaphragm actuated control valve that reduces higher upstream pressure to lower constant downstream pressure and opens fully upon line pressure drop.

• Line pressure driven, Hydraulically Controlled
• Protects downstream systems
• Opens fully upon line pressure dropֺ Double chamber
• Full powered opening and closing
• Decreased pressure loss
• Low throttling noise
• Non-slam closing characteristic
• Protected diaphragm
• Engineered Plastic Valve with Industrial Grade Designֺ hYflow ‘Y’ Valve Body with “Look Through” Design
• Ultra-high flow capacity - Low pressure lossֺ User-Friendly Design
• Simple in-line inspection and service

• Pressure Reducing Stationsֺ
• Systems Subject to Varying Supply Pressureֺ
• Energy Saving Irrigation Systems

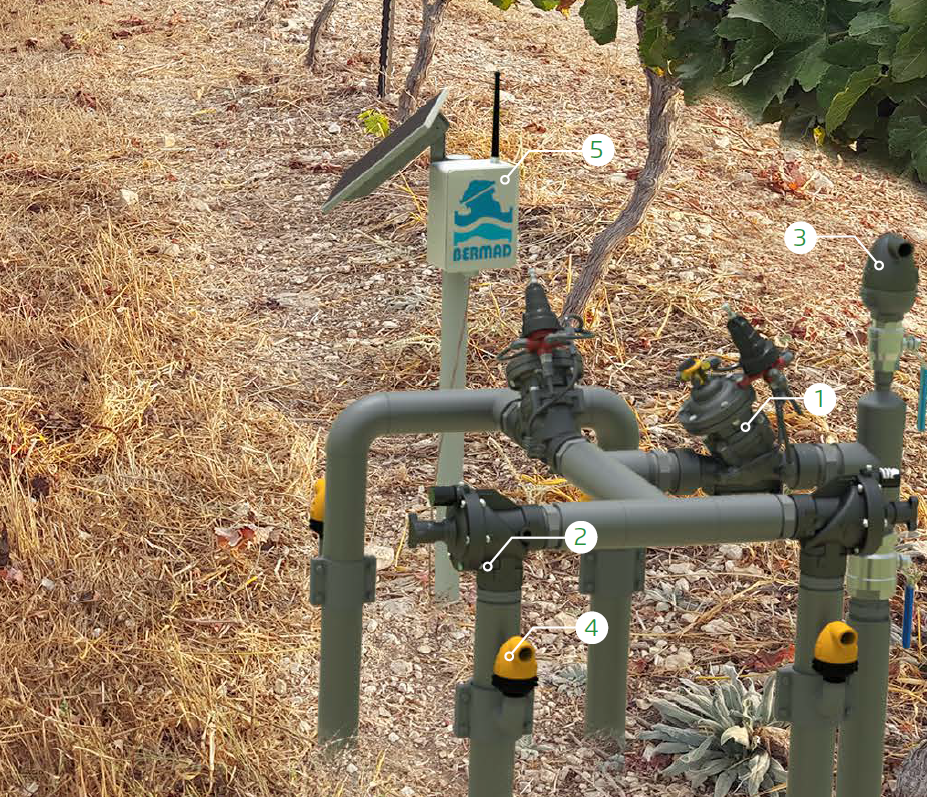

1. Bermad Model IR-120-DC-3W-XZ XZ regulates the supply pressure to a preset level, ensuring system protection
2. Bermad Solenoid Control Valves Model IR-210
3. Bermad Combination Air Valve Model IR-C10
4. Bermad Kinetic Air Valve Model IR-K10
5. Bermad RF RTU Battery Operated with Solar Kit

Operation

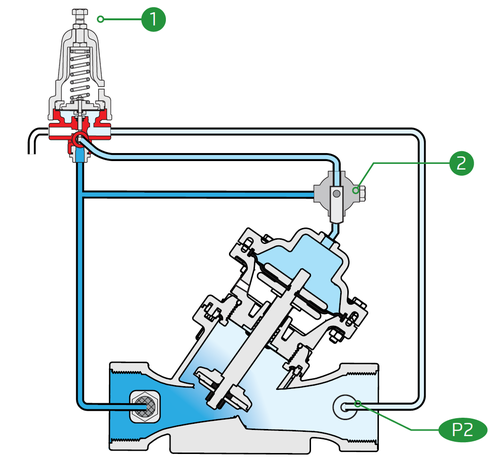

The Pressure Reducing Pilot (1) commands the main Valve to throttle closed should Downstream Pressure (P2) rise above pilot setting, and to open fully when it drops below pilot setting. The Manual Selector (2) enables local manual closing.

Pressure Rating:

10 bar

Operating Pressure Range:

0.5-10 bar

Setting Range:

1-7 bar; 15-100 psi Setting ranges vary according to specific pilot spring.

Spring Range:

Green: 0.2-1.7 bar

Gray: 0.5-3.0 bar

Colorless: 0.8-6.5 bar

Materials:

Body: Cover and Plug: Polyamid 6 & 30% GF

Diaphragm: NR, Nylon fabric reinforced

Seals: NR

Spring: Stainless Steel

Cover Bolts: Stainless Steel

Actuator: Composite Material & Stainless Steel

Tubing and Fittings: Polyethylene

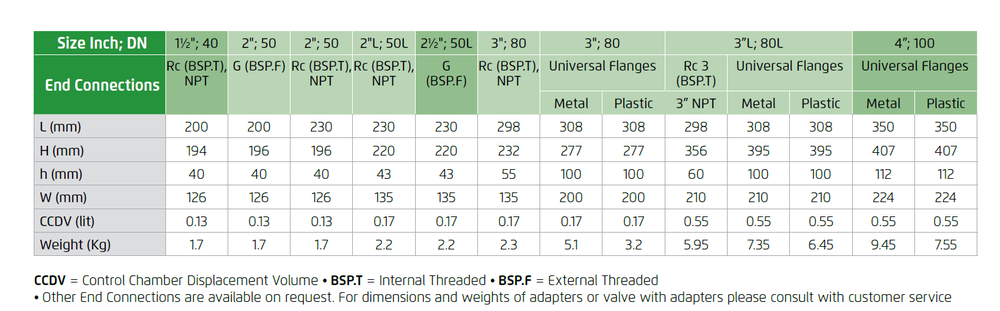

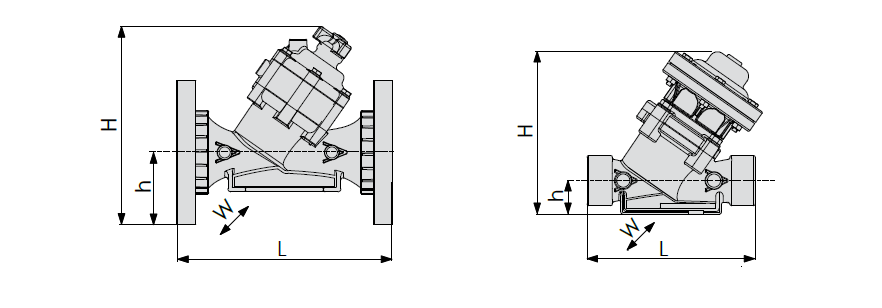

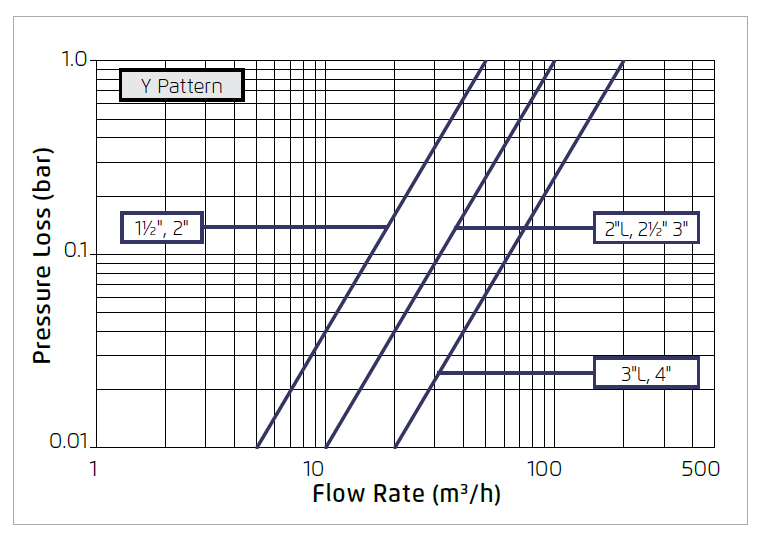

Flow Chart

Flow Properties

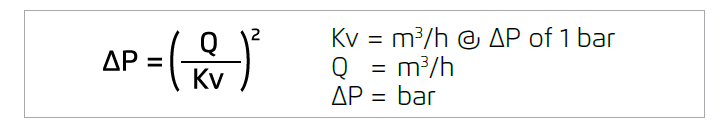

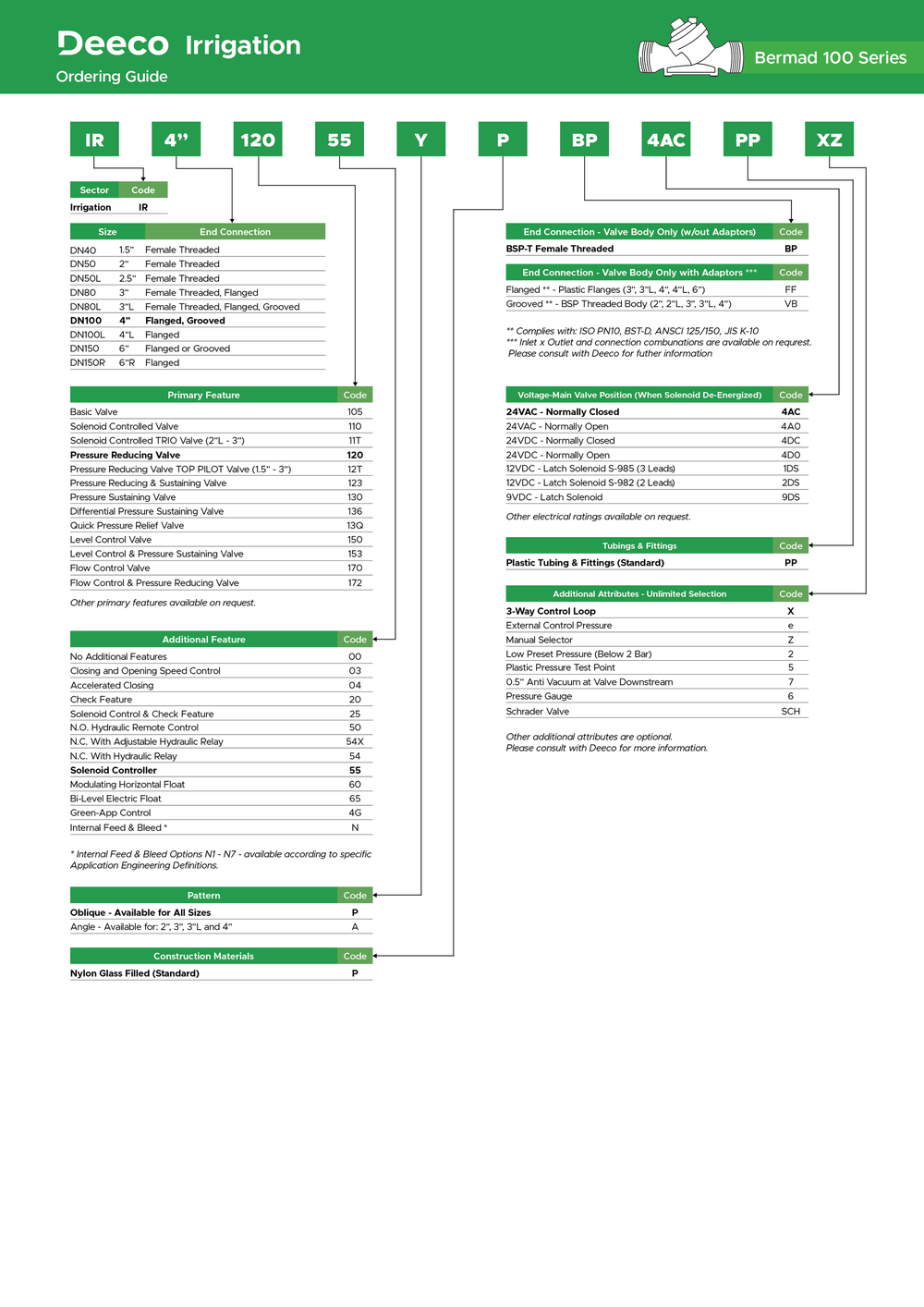

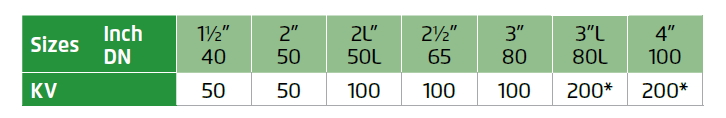

Valve Flow Coefficient
