Bermad - Model PC Sharp X - Plastic and Brass - 3 Way Universal SHARP Pilot

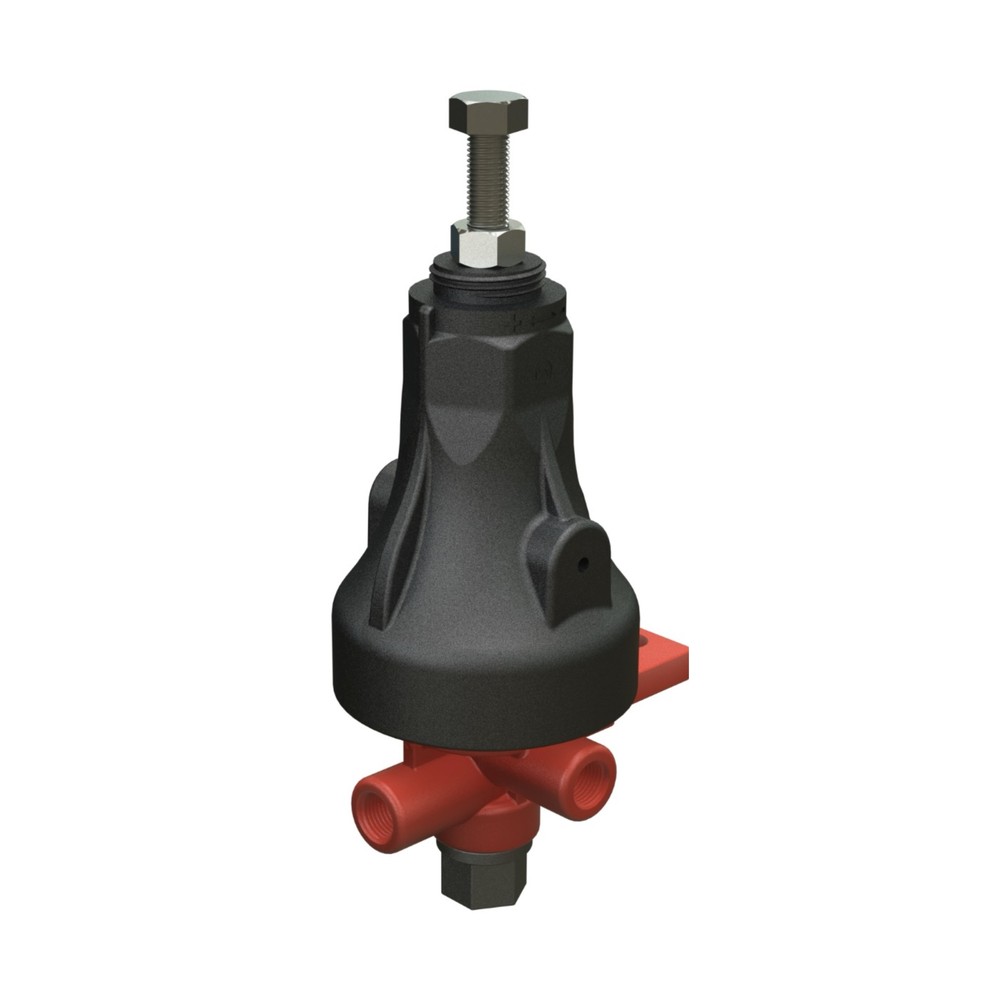

Bermad - PCX - Product Image
Brand: Bermad
Category: Control Valves, PN10 Plastic Pilots , PN16 Metal Pilots
Pressure Range:

Plastic - 0.8-8.5 Bar

Brass - 1-10 Bar

Product Description

SHARP is the most sensitive and accurate mini-pilot in the market. It is a multi-purpose 3-Way mini-pilot, diaphragm-operated, based on a balance between the hydraulic force acting on the diaphragm, and the mechanical force of the calibration spring. The SHARP replaces the PC-X mini-pilot through all applications range.

Features and Benefits

  • Universal Mini-Pilot: Serves as a pressure-reducing pilot, pressure-sustaining pilot, flow control Pilot [PC-XD] & hydraulic relay.
  • Easy fit-in: Connections are identical to PC-X & Servo (PC-S)mini-pilots, allowing easy & simple on-site upgrades.
  • High Quality: All calibration springs are made of Stainless Steel
  • Accurate & Flexible: Pressure setting range:0.5-10 bar; 8-145psi. Tolerance: < 2m; 3psi

Typical Applications

  • Pressure Reducing
  • Pressure Sustaining
  • Pressure Reducing & Sustaining
  • Flow Control (with Sealed Cover "D")
  • Hydraulic Relay

Technical Data

Operation

The SHARP Mini-Pilot sensing chamber is connected to the relevant pressure source according to application. The SHARP directs control pressure to & from the valve control chamber, by opening and closing water passages: The SHARP Mini-Pilot sensing chamber is connected to the relevant pressure source according to application. The SHARP directs control pressure to & from the valve control chamber, by opening and closing water passages:

  • When sensed pressure higher than setting: 0 <->3
  • When sensed pressure equal to setting: 2| <->|3|<-> |0 “locked”
  • When sensed pressure lower than setting: 2<-> 3

Pressure Rating

  • PN10 (Plastic)
  • PN16 (Brass)

Temperature Resistance

  • Water up to 50°C; 122°F

Flow Factor: KV (@1 bar DP); CV (@1 psi DP)

  • Ports “0” to “3”: 0.22m3 /h; 0.25gpm
  • Ports “3” to “2”: 0.16m3 /h; 0.18gpm

Construction Materials

Plastic Cover: Polyamide (Nylon) 6 with 30% Glass Fiber

Metal Cover: Brass

Plastic Body: Polyamide (Nylon) 6 with 30% Glass Fiber

Metal Body: Brass

Elastomers: NBR

Internal Metal Parts: Stainless Steel

Spring: Stainless Steel

Ports

  • 1 /8” NPT (Plastic Base) ¼” (Metal Base)

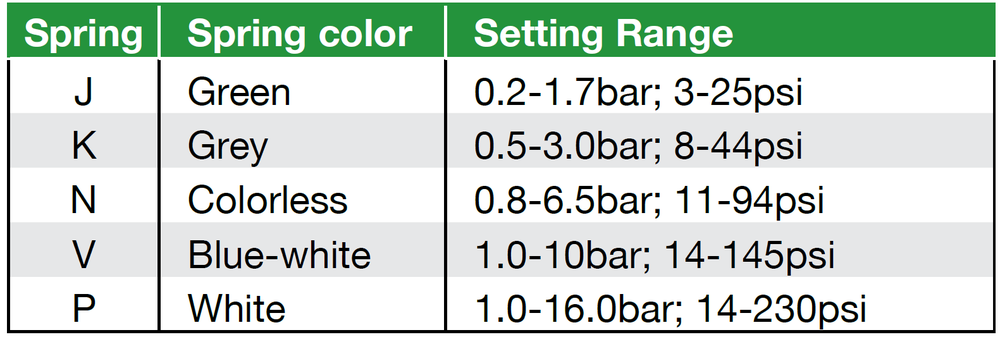

Bermad - PCX - Calibration Range of Springs

Bermad - PCX - Calibration Range of Springs

Connections

0 – Upstream - Pressure Reducing/Flow Control; Vent: Pressure Sustaining

3 – Valve Control Chamber

2 – Vent: Pressure Reducing/Flow Control; Upstream: Pressure Sustaining

1 – Sensing

Cover – Low Pressure Sensing: Flow Control (PC-XD)

Technical Specifications

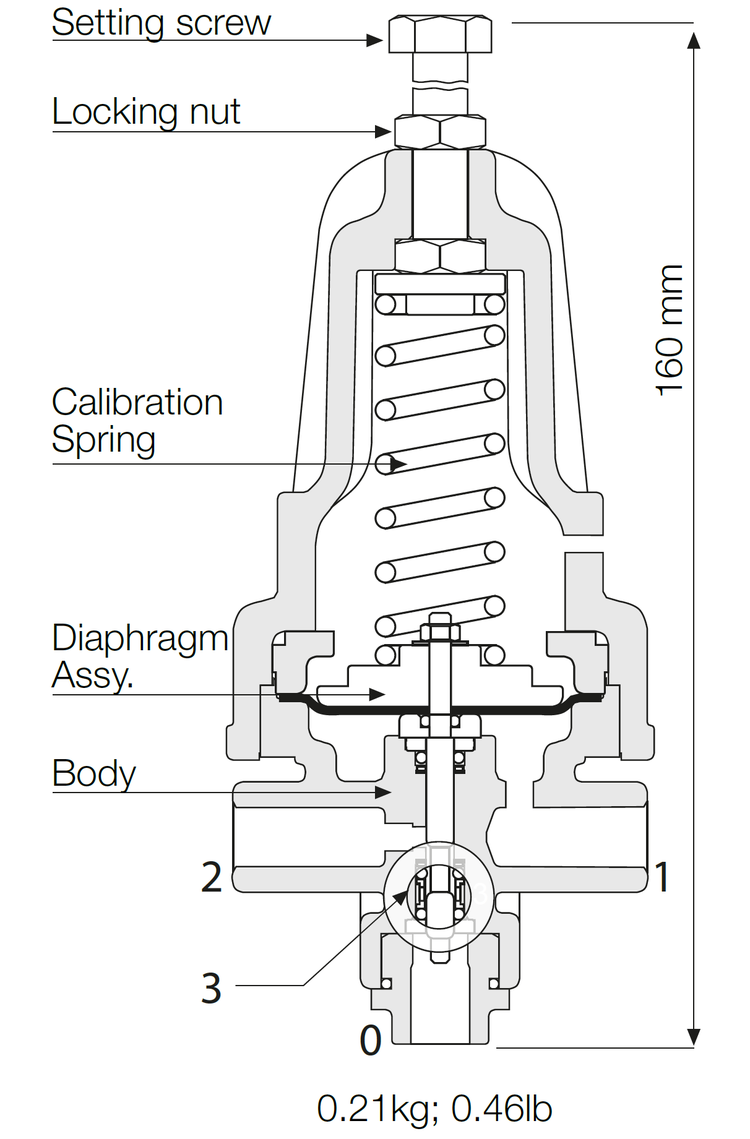

Bermad - PCX - Technical Specifications

Bermad - Model PC Sharp X - Plastic and Brass - 3 Way Universal SHARP Pilot

Bermad - PCX - Product Image
Product Code Pressure Rating Description
PCXAP PN10 Plastic Bermad 3 Way Universal Pilot. C/W Spring N (0.8-6.5 Bar)

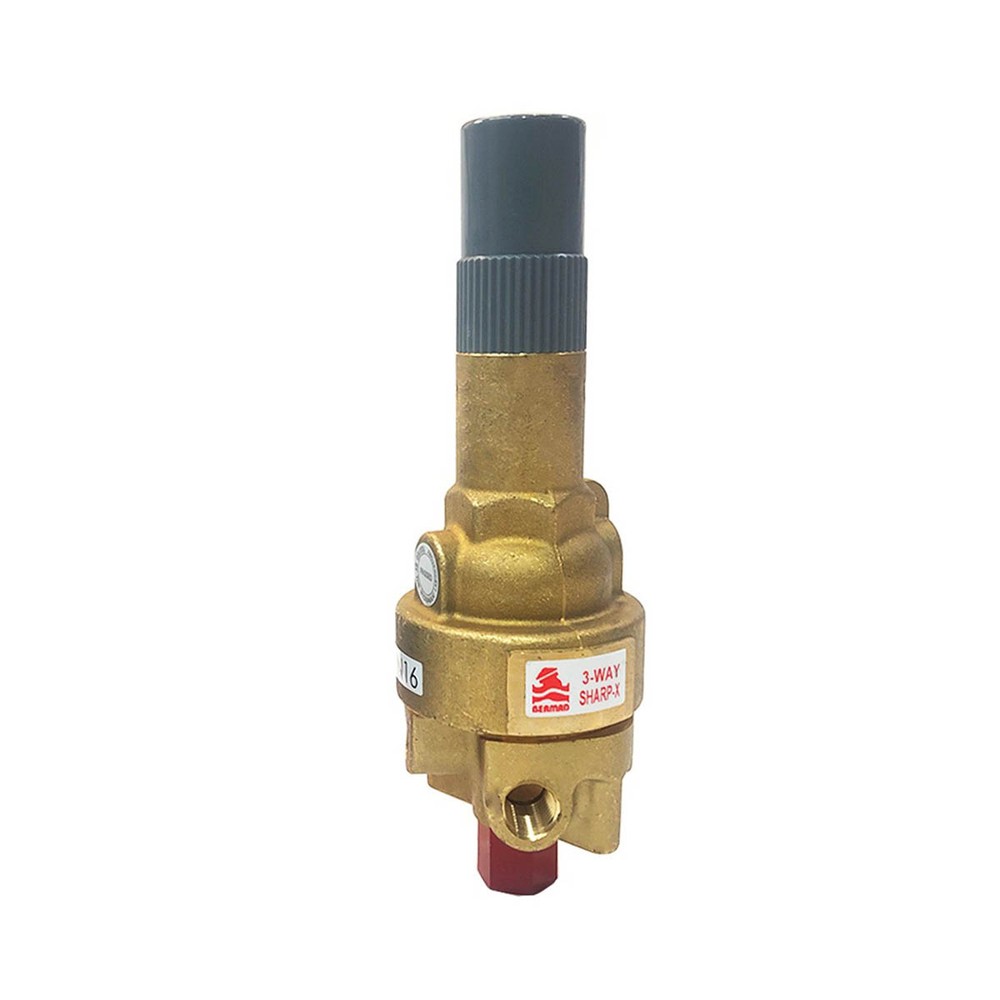

PCXAM PN16 Brass Bermad 3 Way Universal Pilot. C/W Spring V (1-10 Bar)
