![Bermad - Model A30 - Automatic Air Valve - Product Image](https://deeco-production.s3.amazonaws.com/images/Deeco_-_Bermad_-_A30_-_Product_Ima.2e16d0ba.fill-500x500.jpg)
Brand: | Bermad |
Category: | Air Valves, Automatic Air Valves |
Size Range: | 20-25mm |
Connection: | Threaded Male BSPT |
Product Description
BERMAD A30 is a high-quality automatic air release valve that allows the efficient release of air pockets from pressurized pipelines. With their advanced design, these valves provide excellent protection against air accumulation with improved sealing in low-pressure conditions.
Features & Benefits
- Large diameter automatic orifice: High flow rates.
- Dynamic sealing: Prevents leakage under low-pressure conditions (model A30 - 1.5 psi; 0.1 bar)
- Compact, simple and reliable structure with fully corrosion-resistant parts: Lower maintenance and increased life span.
- Design in compliance with EN-1074/4 standard and water service standards.
- Factory approval and Quality Control: Performance and specification tested and measured with a specialized test bench.
Additional Features & Accessories
- Service Port fitted with 1 /8” (Code P) for pressure gauge connection, checkpoint or test drain air valve function.
- Test point (code T)
Typical Applications
- Pipelines: Protection against air accumulation in high points and long horizontal lines
- In proximity to control valves and water meters: Prevention of inaccurate pressure regulation and biased readings due to air existence in these devices.
Technical Data
Inlet and Outlet Connection
- Inlets: Male Threaded DN20-25
- Outlets: Side Outlet, Optional - female threaded for retrofitting drainage pipeline or check valve.
Materials
- Body: Glass-reinforced Nylon
- Automatic Orifice: PBT (A30), Stainless Steel 316 (A31)
- Float: Polypropylene
- Elastomers: EPDM
Operational Data
- Minimum operating pressure: Model A30 - 1.5 psi; 0.1 bar.
- Maximum operating pressure: 230 psi; 16 bar
- Media and operating temperature: Water 1-60 °C.
Orifice Specifications
![Bermad - Model A30 - Orifice Specification](https://deeco-production.s3.amazonaws.com/images/Deeco_-_Bermad_-_Model_A30_-_Orifice_Specifica.width-750.png)

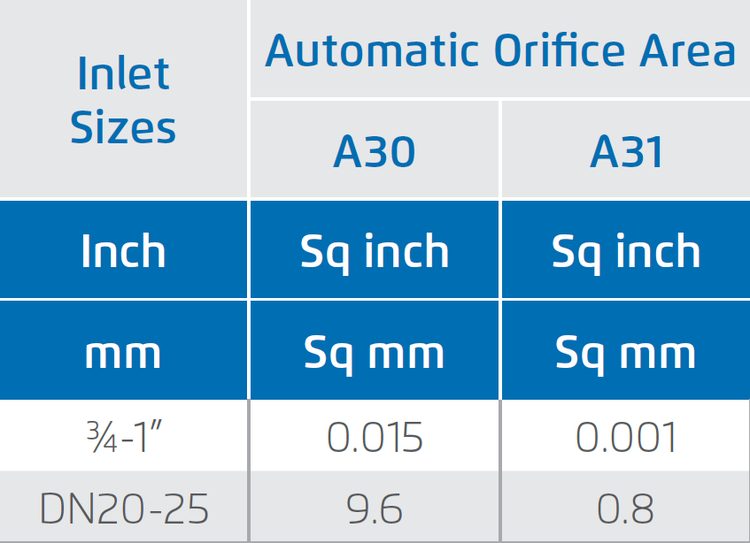

Bermad - Model A30 - Orifice Specification
Air Flow Performance Charts
![Deeco - Bermad - Model A30 - Air Flow Performance Chart](https://deeco-production.s3.amazonaws.com/images/Deeco_-_Bermad_-_Model_A30_-_Air_Flow_Perform.width-1000.png)

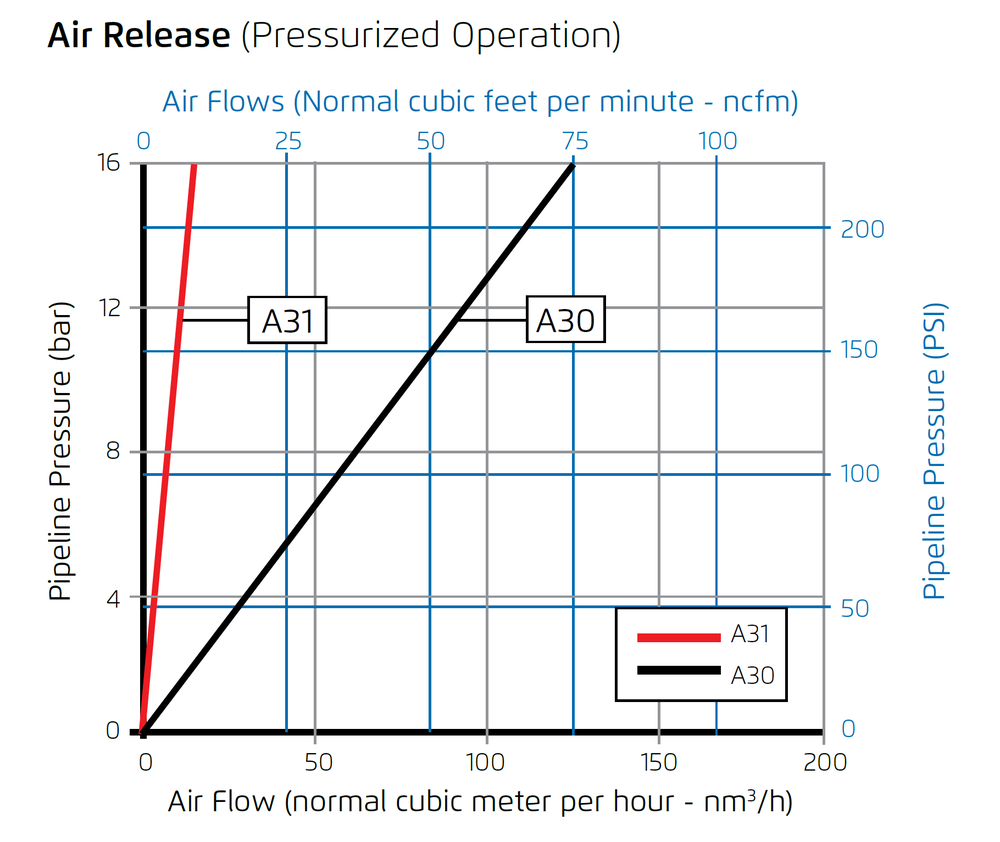

Bermad - Model A30 - Air Flow Performance Chart
Technical Specifications
![Bermad - Model A30 - Cutaway](https://deeco-production.s3.amazonaws.com/images/Deeco_-_Bermad_-_Model_A30_-_Cutaway.width-1000.png)

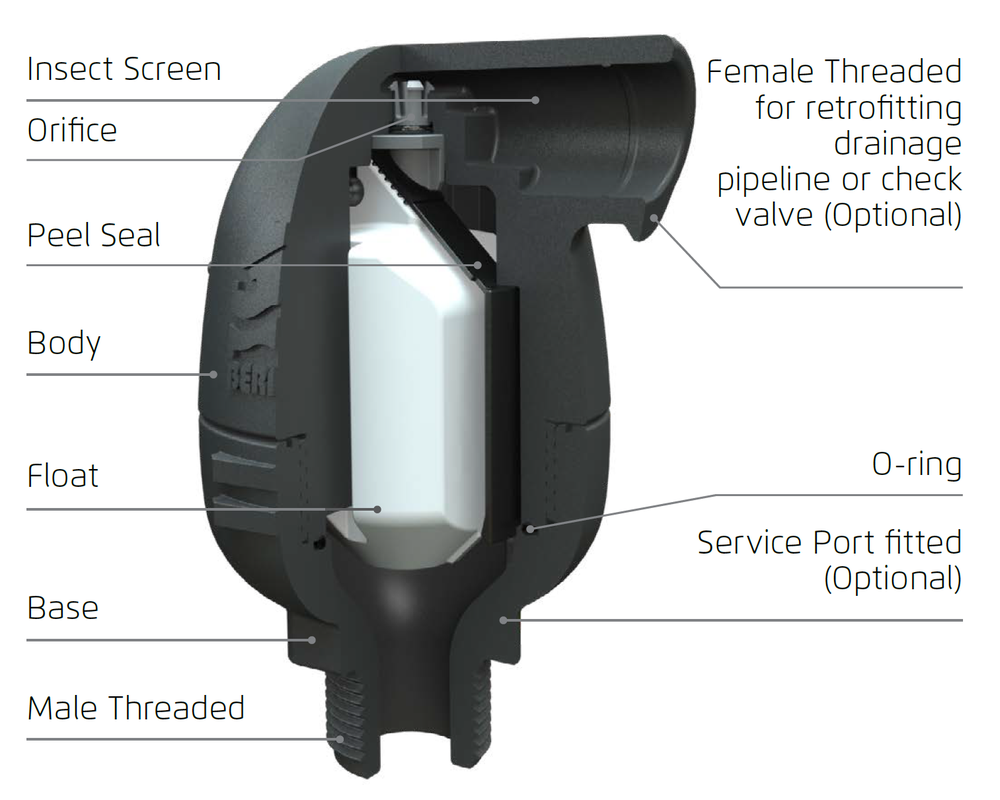

Bermad - Model A30 - Cutaway
Dimensions & Weights
![Bermad - Model A30 - Dimensions and Weight](https://deeco-production.s3.amazonaws.com/images/Deeco_-_Bermad_-_Model_A30_-_Dimensions_and_W.width-1350.png)

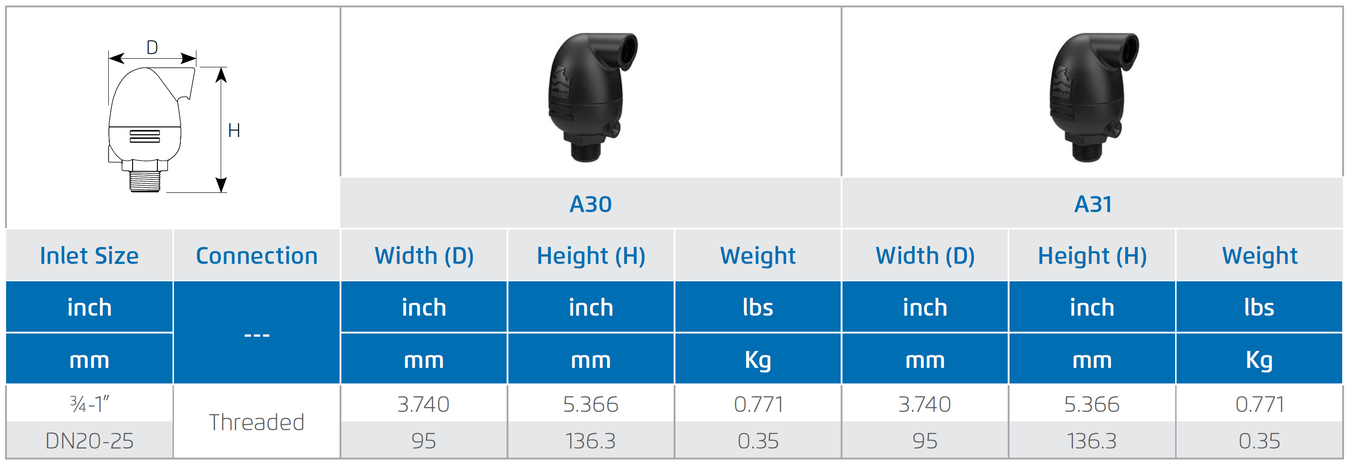

Bermad - Model A30 - Dimensions and Weight
Bermad - Model A30 - Automatic Air Valve
Suitable for release of entrapped air under pressure.
![ARA30-020](https://deeco-production.s3.amazonaws.com/images/ARA30-020.2e16d0ba.fill-1000x1000.jpg)

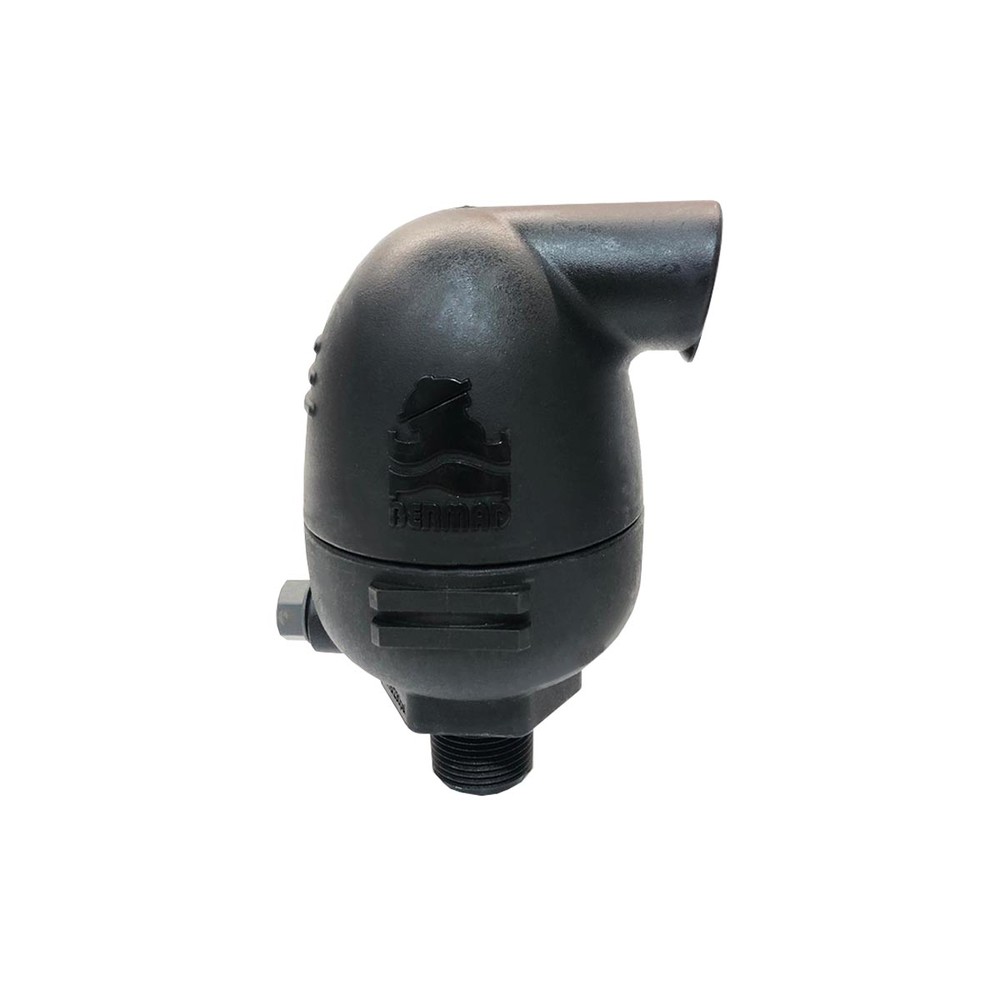

Bermad - ARA30-020
![ARA30-025](https://deeco-production.s3.amazonaws.com/images/ARA30-025_hsSNph2.2e16d0ba.fill-1000x1000.jpg)

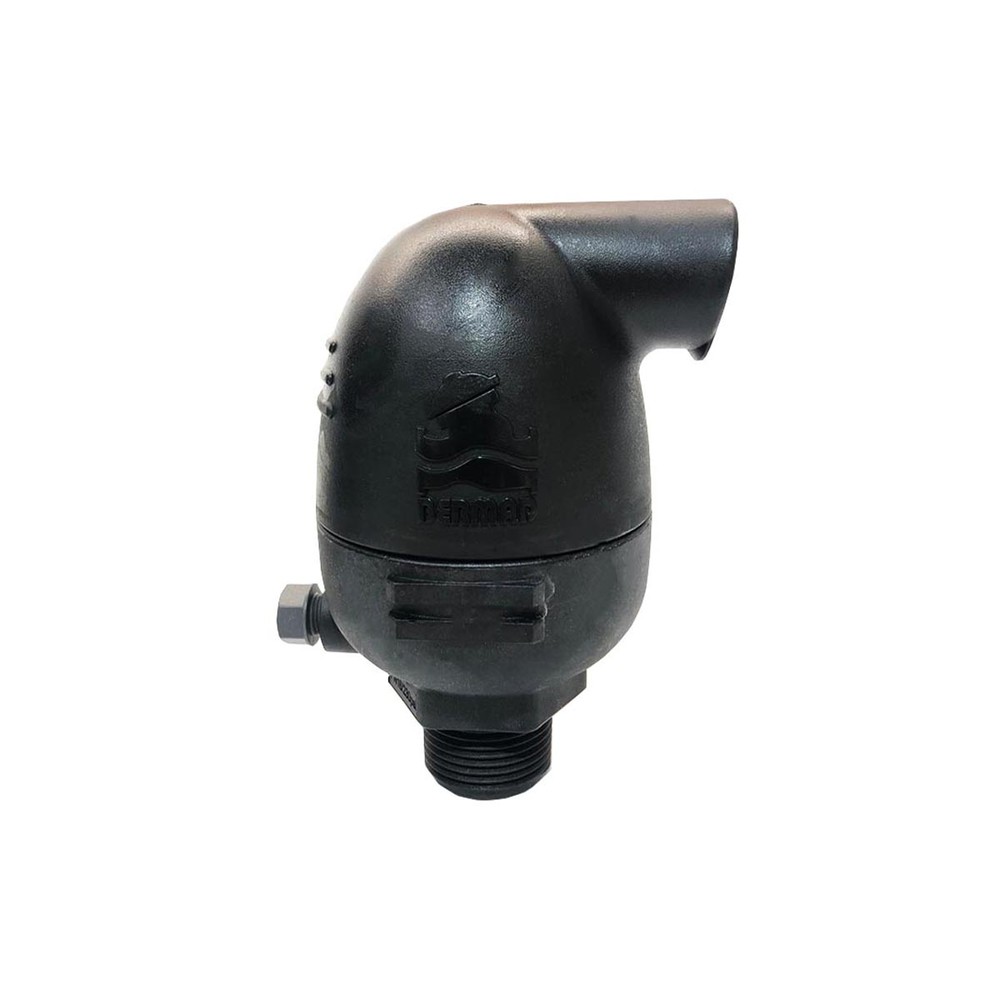

Bermad - ARA30-025
Product Code | Size | Pressure Rating | Description |
---|---|---|---|
ARA30-020 | 20mm | 16 Bar | Plastic - Automatic Orifice Air Release Valve - Threaded Male BSP |
ARA30-025 | 25mm | 16 Bar | Plastic - Automatic Orifice Air Release Valve - Threaded Male BSP |
