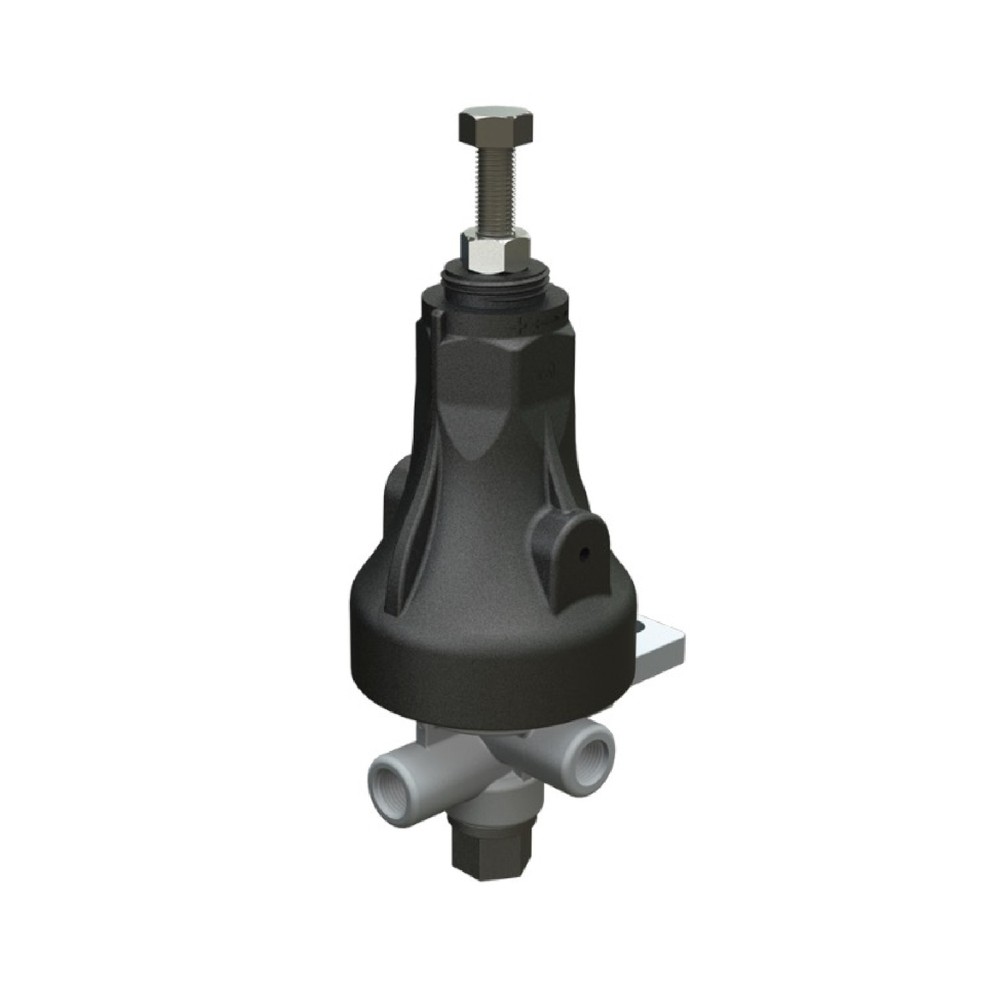

Bermad - Model PC-20-P - 2 Way Reducing Pilot

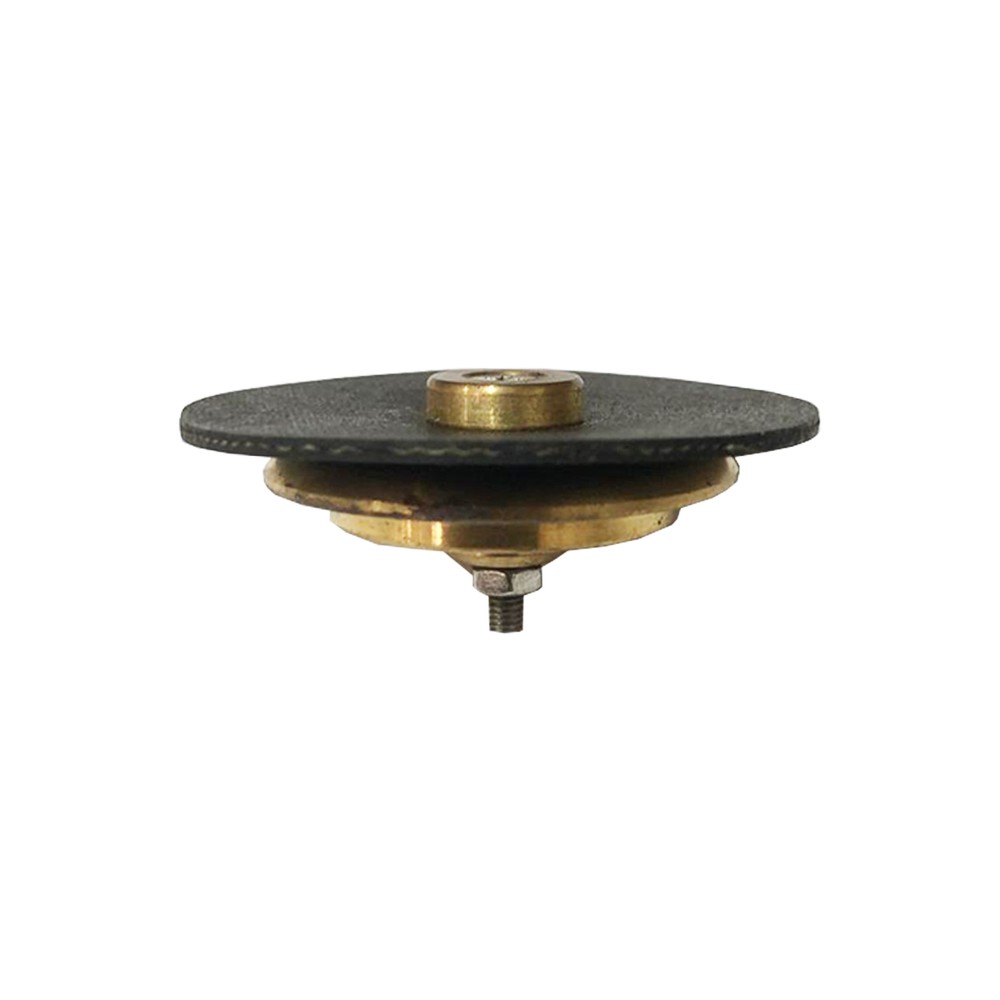

This pilot integrates all principal functions of a 2-way control circuit in a single assembly. It is a direct-acting pilot valve, actuated by a pressure-responsive diaphragm, which seeks to reach equilibrium between hydraulic and set spring forces. When used in a pressure-reducing circuit, the pilot modulates closed as downstream pressure rises above the set point. An internal restriction acts as an upstream flow restrictor

Features

• Internal or external upstream flow restrictor
• Internal or external pressure sensing
• Differential pressure sensing

Typical Applications

• Pressure Reducing Valves sizes 11/2-4” (Standard model #PC-20-P)
• Closing Surge Control (additional feature 49) for sizes 11/2-4” (Modified to external pressure sensing PC-20-P-R)

Pressure Rating

• 10 bar; 145 psi

Working Temperature

• Water up to 50˚C; 122˚F

Flow Factor

• Kv 0.22 m3/h @ 1bar ∆P; Cv 0.25 GPM @ 1psi ∆P

Standard Materials

Body & Cover: Polyamide 6+30% F.G

Elastomers: NBR

Internals: Stainless Steel & Brass

Spring: Galvanized Steel

Ports

• 1/8" NPT

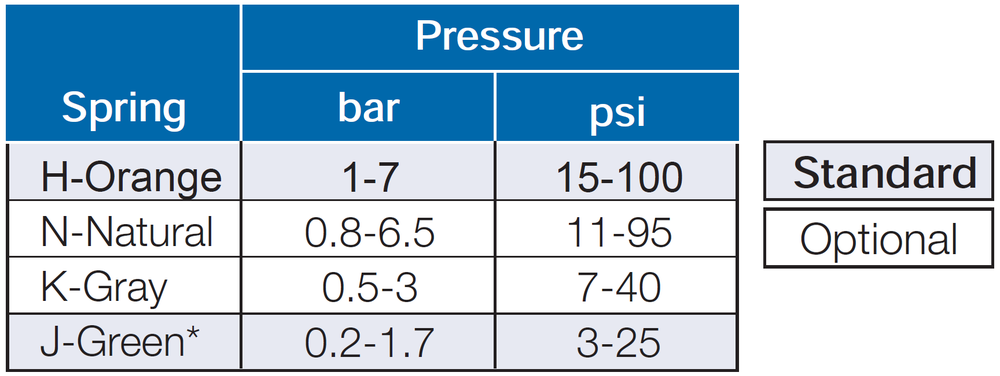

Adjustment Range

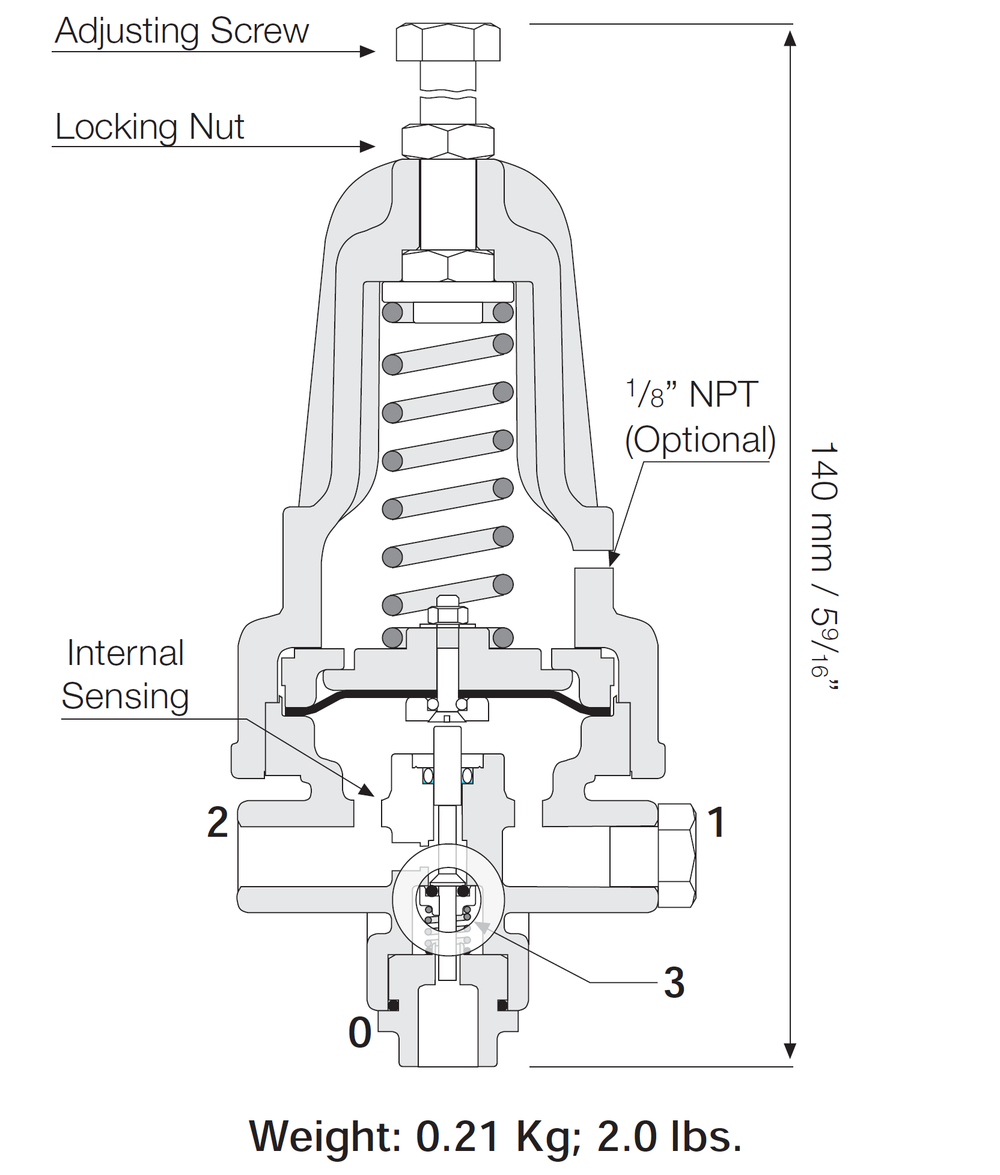

Connections

0 - Upstream

3 - Valve control chamber

2 - Downstream

1 - Plugged/ External Sensing
