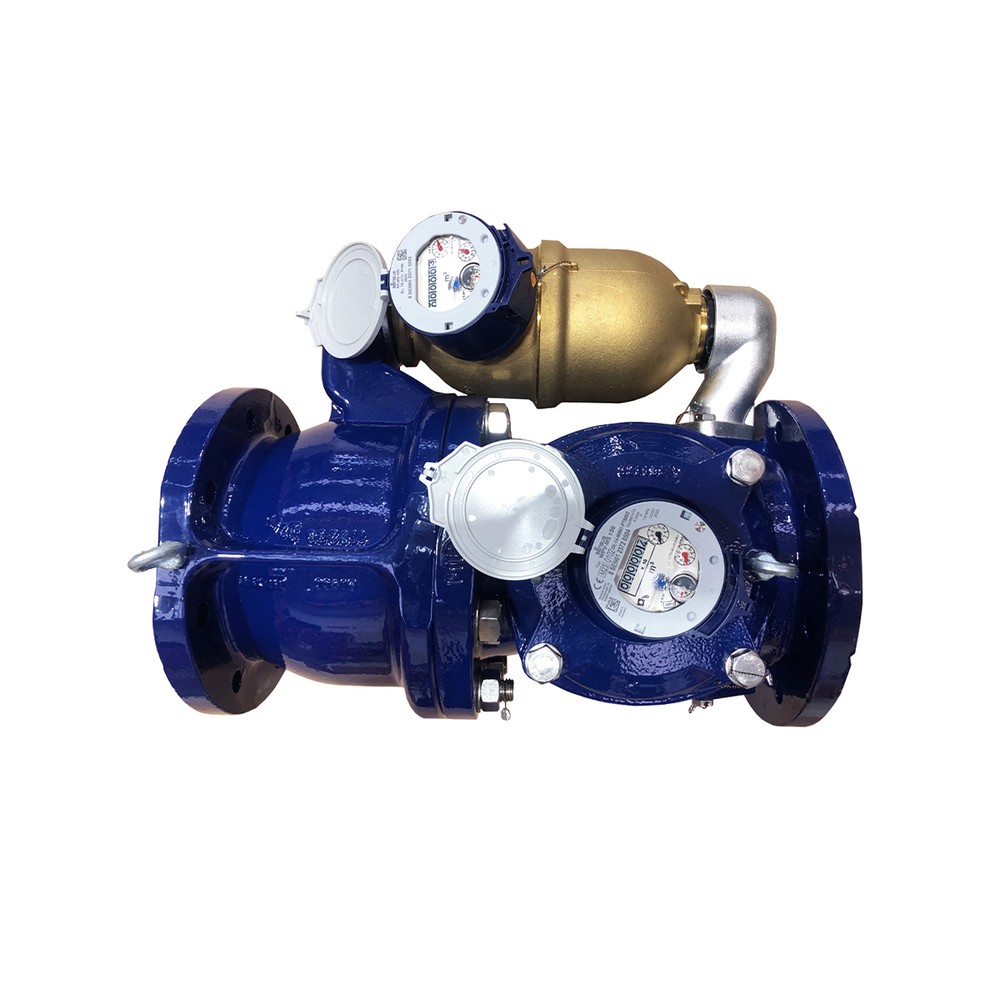

![WPV150-Product Image](https://deeco-production.s3.amazonaws.com/images/WPV150-Product_Image.2e16d0ba.fill-500x500.jpg)
Brand: | Sensus |
Category: | Metering, Bulk Water Meters |
Size Range: | 150mm |
Connection: | Flanged |
Product Description
The WPV-MS 150 water meter measures high flow rates with extremely widespread flow profiles, as well as the smallest flow rates for leakage detection. It is ideal for fire service pipes.
![WPV150-Product Image](https://deeco-production.s3.amazonaws.com/images/WPV150-Product_Image.2e16d0ba.fill-1000x1000.jpg)

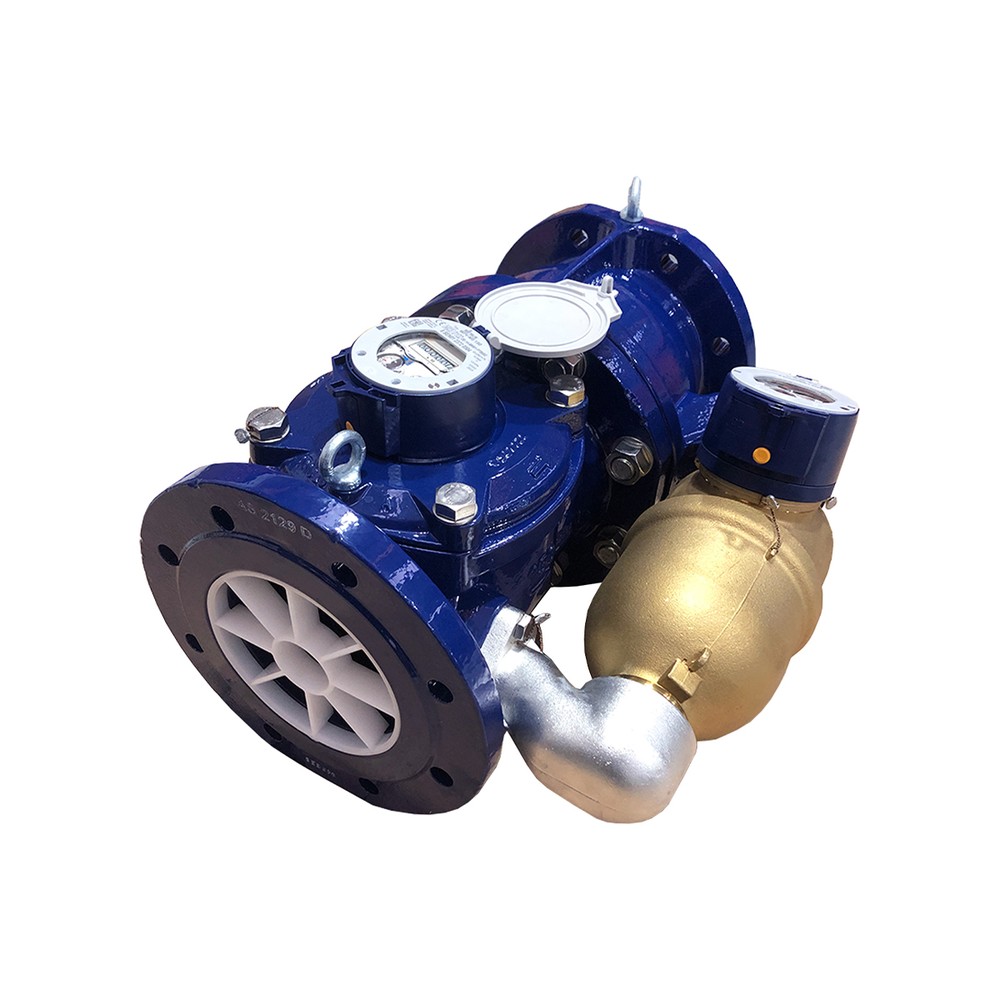

Sensus - WPVD150
![WPV150-Product Image 2](https://deeco-production.s3.amazonaws.com/images/WPV150-Product_Image_2.2e16d0ba.fill-1000x1000.jpg)
Sensus - WPVD150
![WPV150-Product Image 3](https://deeco-production.s3.amazonaws.com/images/WPV150-Product_Image_3.2e16d0ba.fill-1000x1000.jpg)

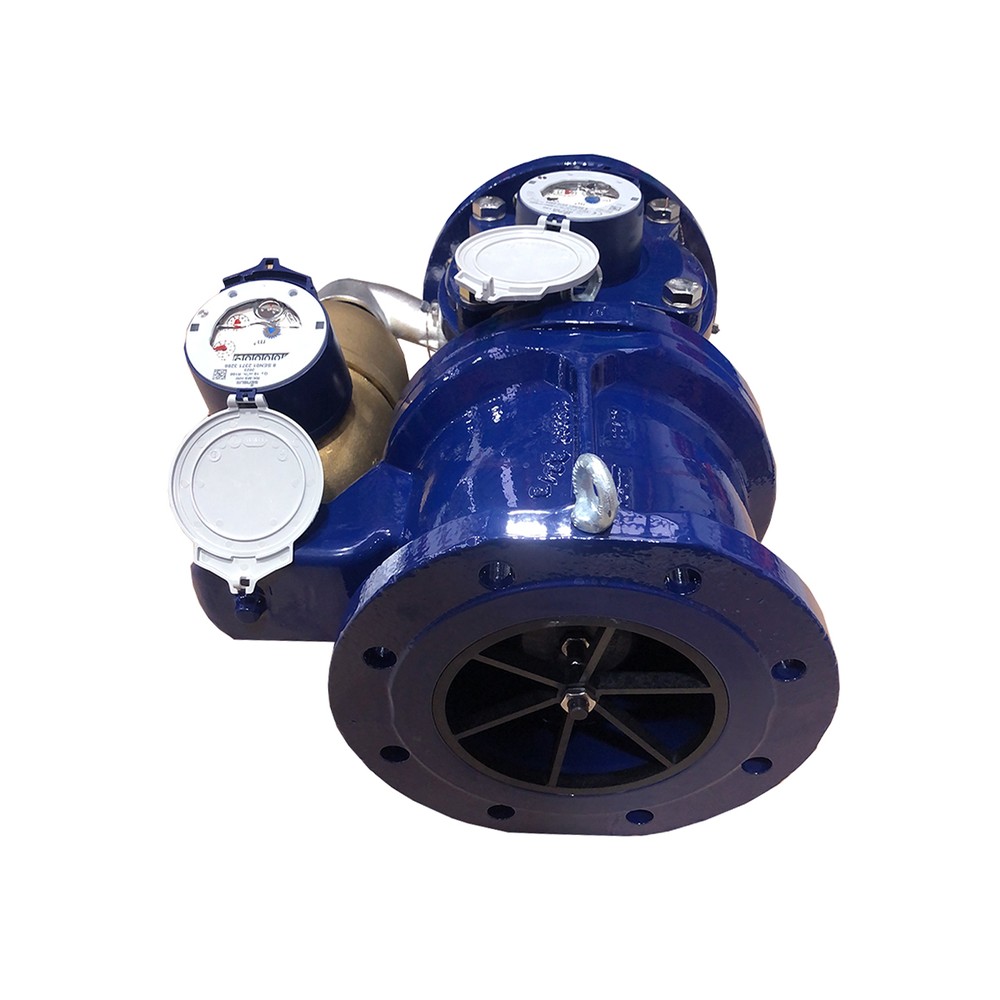

Sensus - WPVD150
Features and Benefits
- Meter with pattern approval acc. to 2004/22/EC (MID) annex MI001
- No straight upstream or downstream pipe due to integrated flow straightener (U0D0)
- Spring-loaded change-over valve with low headloss and extended lifetime
- By-pass meter specified as a piston meter RK-MS HRI, register copper/glass, protection class IP68
- Powder coating ensures maximum corrosion protection
- The meter can be submerged, protection class IP68
- Installation position horizontal
- Register prepared for HRI-Mei and Opto OD pick-up
- Used materials resistant up to 50 °C medium temperature
Typical Applications
- Measurement of high flow rates with extremely wide spread flow profile
- Measurement of smallest flow rates for leakage detection
- Ideal for fire service pipes
Pattern Approval
- Marking - CE M-XX* 0102
DE-14-MI001-PTB002
* Year of production
- Temperature class - T30
Options
- Main and by-pass meters fitted with pulse and data interface HRI-Mei and/or pulsers type OD (with by-pass meter RK-MS HRI)
- Overall length acc. to DIN with spool piece
- The main meter and By-pass meter can be equipped with an Encoder ER56 register
Technical Data

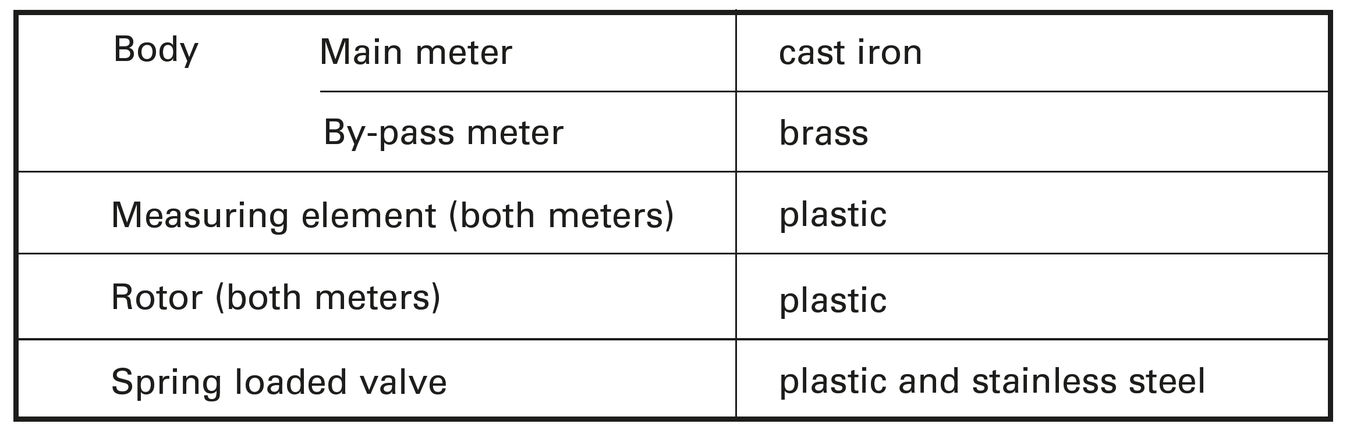

Materials
![Materials](https://deeco-production.s3.amazonaws.com/images/Materials.width-1350.png)
Performance Table

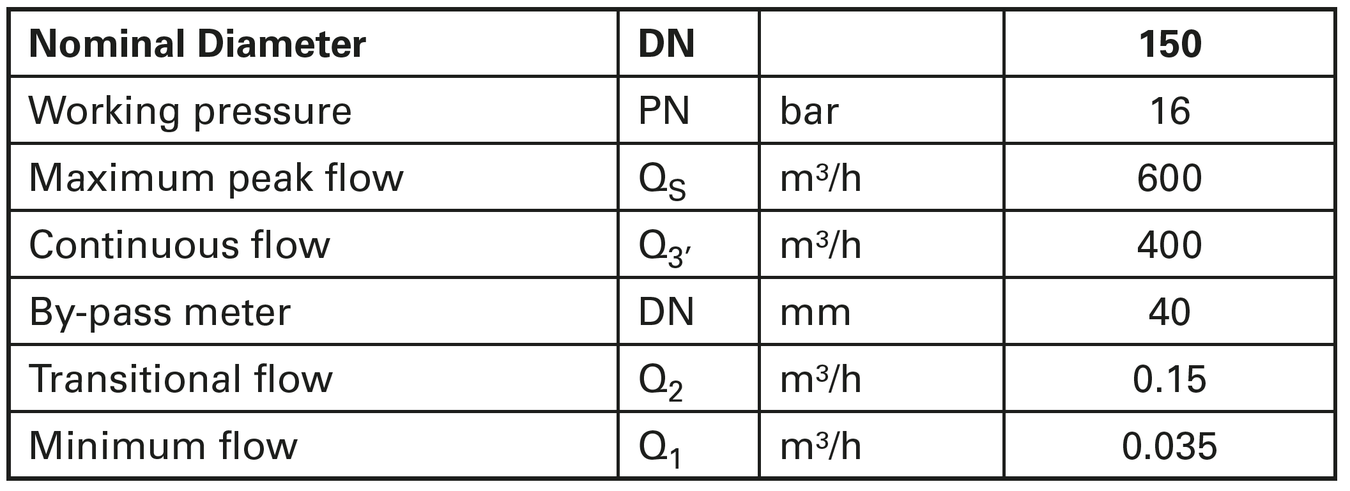

Performance table according to manufacturer's data
![Performance table 1](https://deeco-production.s3.amazonaws.com/images/Performance_table_1.width-1350.png)

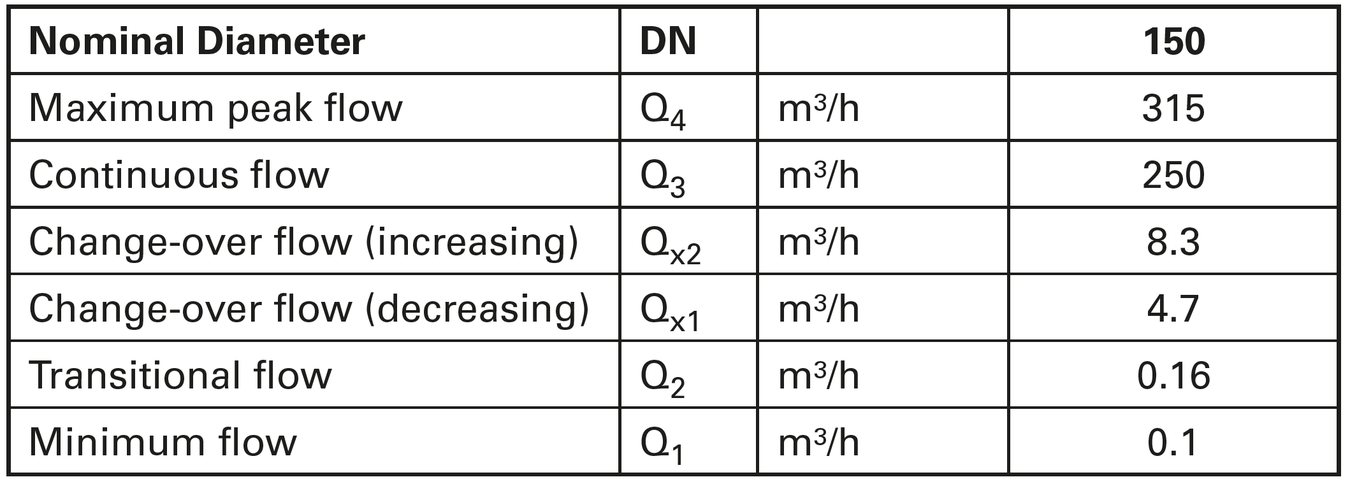

Performance table according MID pattern approval
![Performance table 2](https://deeco-production.s3.amazonaws.com/images/Performance_table_2.width-1350.png)

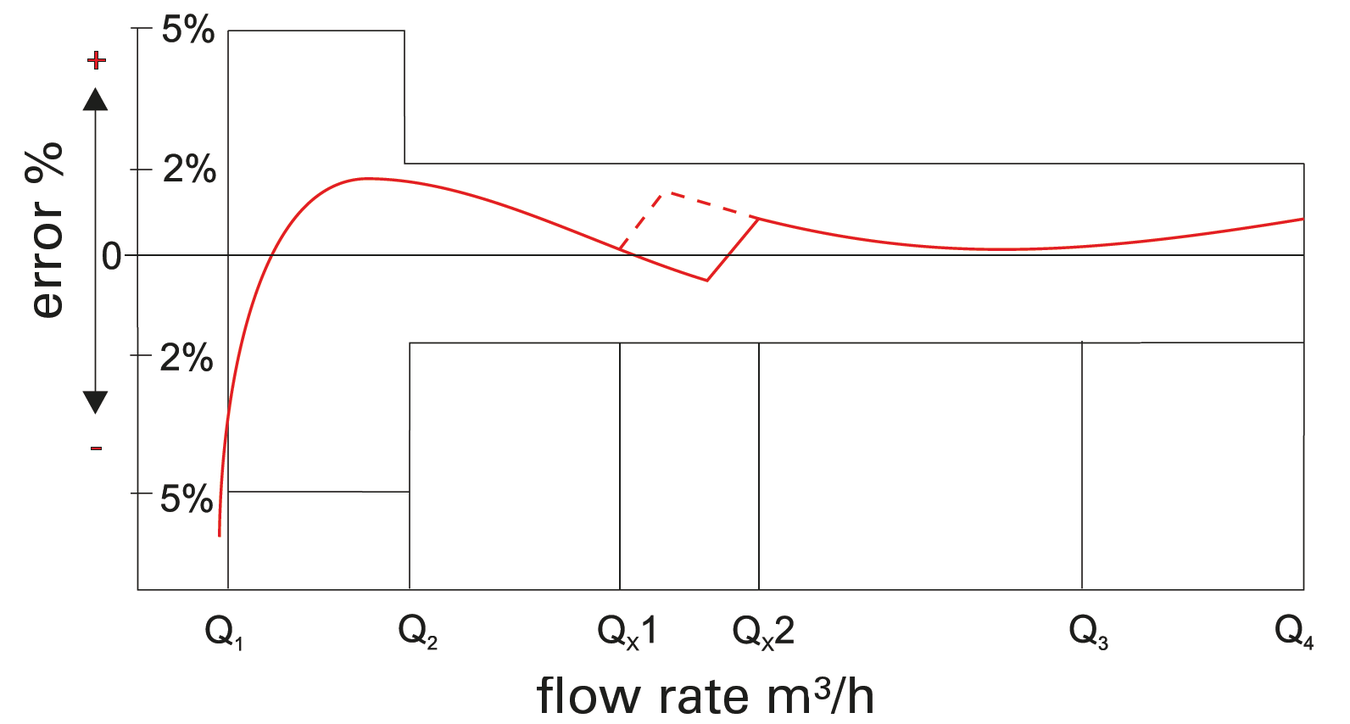

Typical Accuracy Curve
![Typical Accuracy Curve](https://deeco-production.s3.amazonaws.com/images/Typical_Accuracy_Curve.width-1350.png)
Q4 = maximum peak flow ±2%
Q3 = continuous flow ±2%
Q2 = transitional flow ±2%
Q1 = minimum flow ±5%

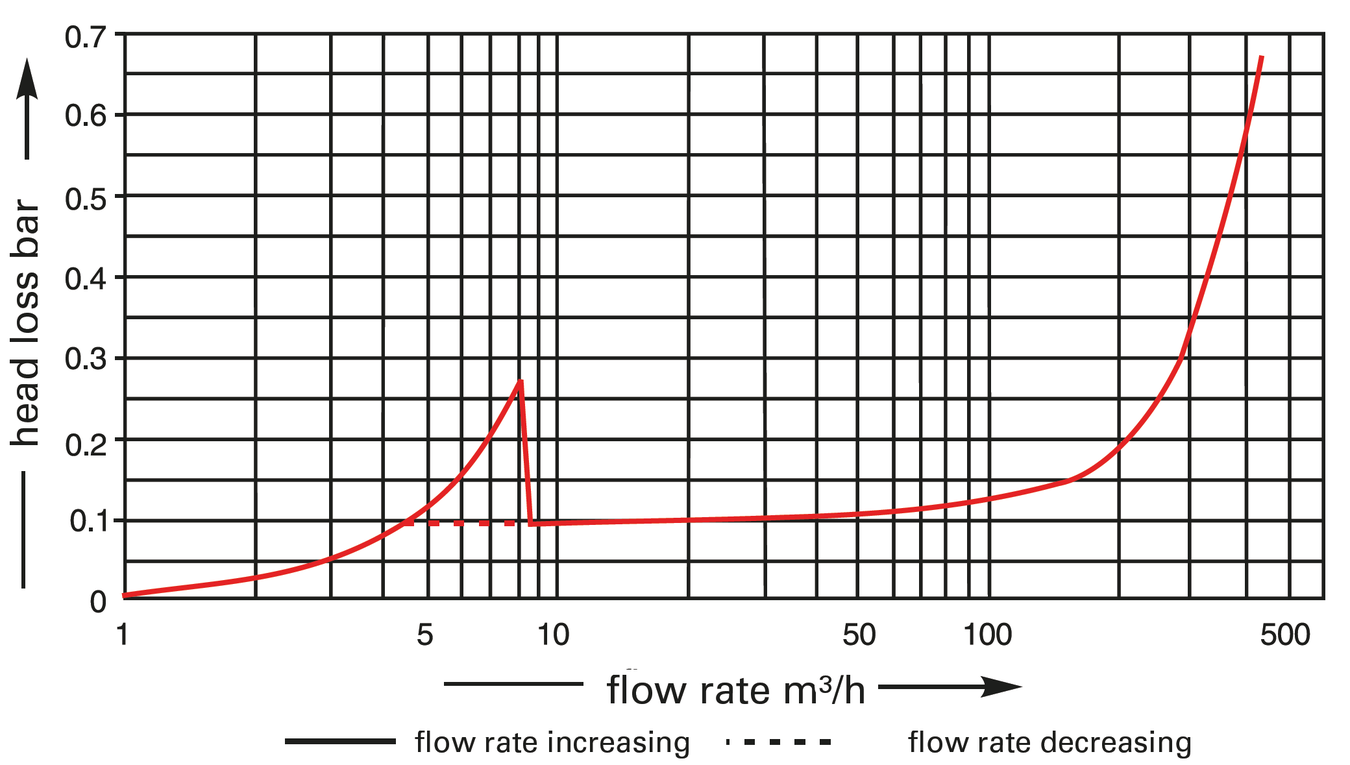

Typical Head Loss Curve
![Typical headloss Curve](https://deeco-production.s3.amazonaws.com/images/Typical_headloss_Curve.width-1350.png)

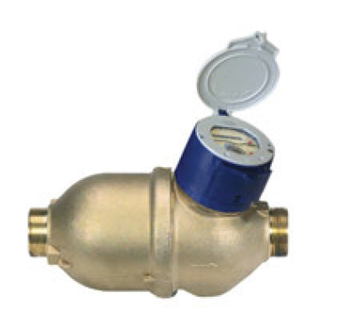

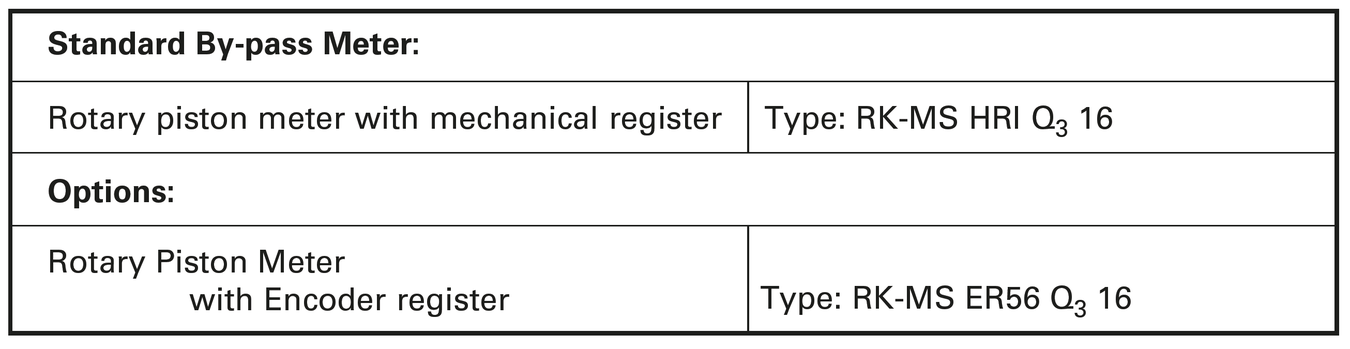

By-Pass Meters
![Meter](https://deeco-production.s3.amazonaws.com/images/Meter.width-350.png)
![Standard By-Pass Meter](https://deeco-production.s3.amazonaws.com/images/Standard_By-Pass_Meter.width-1350.png)
Technical Specifications

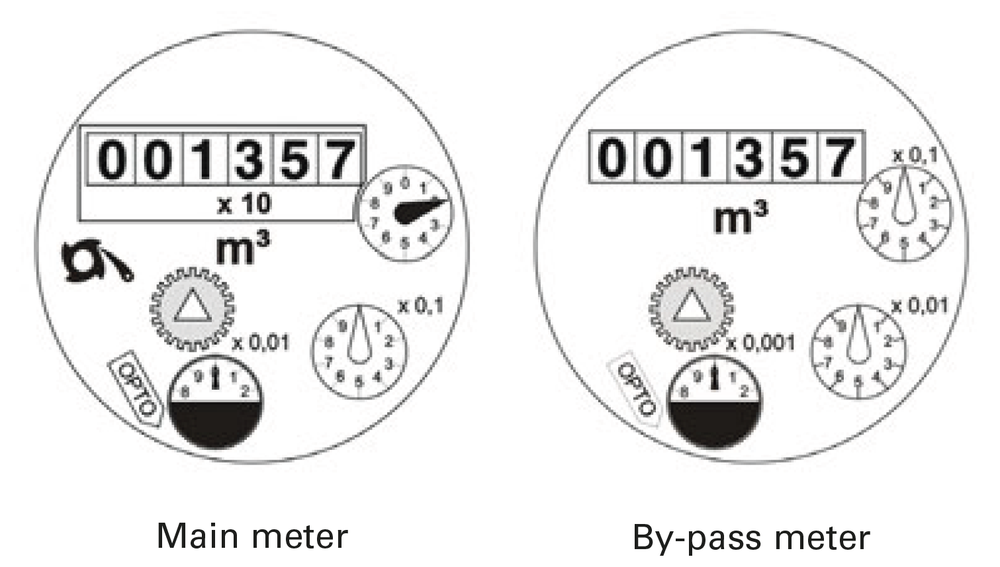

Dials
![Dials](https://deeco-production.s3.amazonaws.com/images/Dials.width-1000.png)
Pulse Values

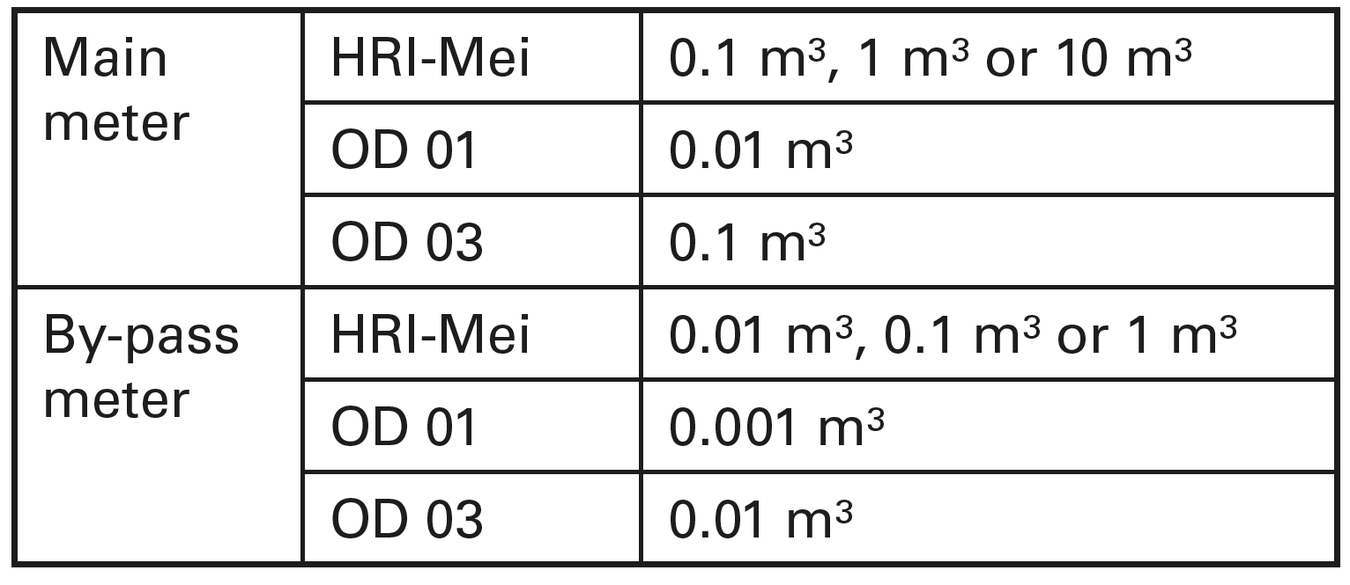

Standard Register
![standard register](https://deeco-production.s3.amazonaws.com/images/standard_register.width-1350.png)

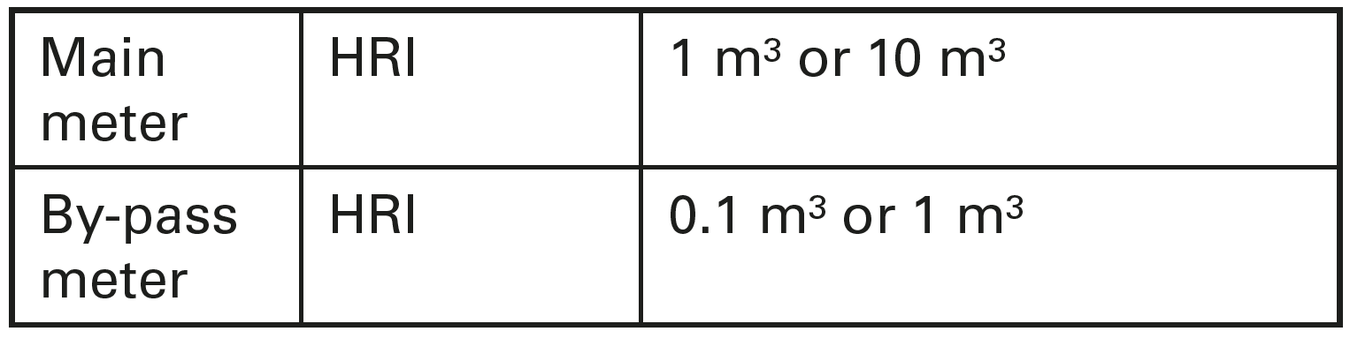

Encoder Register
![Encoder register](https://deeco-production.s3.amazonaws.com/images/Encoder_register.width-1350.png)

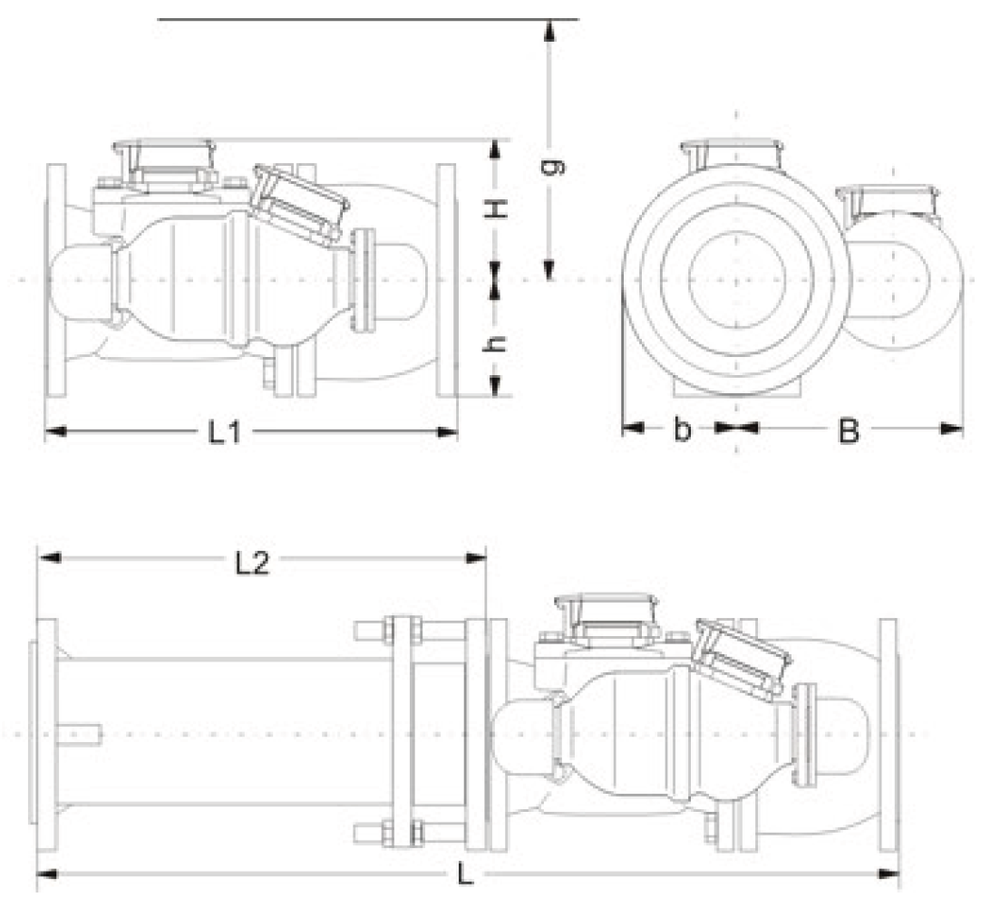

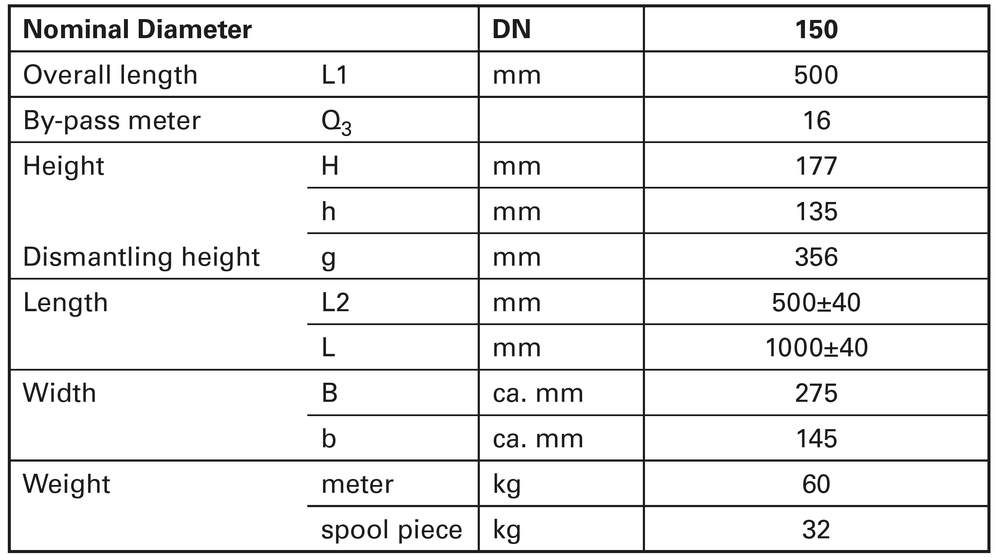

Dimensions and Weights
![Drawing](https://deeco-production.s3.amazonaws.com/images/Drawing_jfBONzb.width-1000.png)
![Dimensions and Weights](https://deeco-production.s3.amazonaws.com/images/Dimensions_and_Weights.width-1000.png)
Sensus - WPV-MS 150 - Compound Water Meter
Combination Water Meter
![WPV150-Product Image](https://deeco-production.s3.amazonaws.com/images/WPV150-Product_Image.2e16d0ba.fill-1000x1000.jpg)
Sensus - WPVD150
Product Code | Size | Description |
---|---|---|
WPVD150 | 150mm | Combination Water Meter with class C Bypass Meter |
HRISET-WPVD150 | 150mm | HRI set for WPVD 150mm - 1000/10 L/P - Model B4 |
Pulse Output
![Hri-Mei](https://deeco-production.s3.amazonaws.com/images/Hri-Mei.2e16d0ba.fill-1000x1000.jpg)
Sensus - HRI-Mei
Product Code | Size | Description |
---|---|---|
HRI Mei 40 - 10L/P | 40-125mm | Pulse Output HRI-Mei for Meistream 40-125mm - 10L/P - Model B4 |
HRI Mei 40 - 100L/P | 40-125mm | Pulse Output HRI-Mei for Meistream 40-125mm - 100L/P - Model B4 |
HRI Mei 40 - 1000L/P | 40-125mm | Pulse Output HRI-Mei for Meistream 40-125mm - 1000L/P - Model B4 |
HRI Mei 150 - 100L/P | 150-300mm | Pulse Output HRI-Mei for Meistream 150-300mm - 100L/P - Model B4 |
HRI Mei 150 - 1000L/P | 150-300mm | Pulse Output HRI-Mei for Meistream 150-300mm - 1000L/P - Model B4 |
