Brand: | Bermad |
Category: | Control Valves, 100 Series |
Size Range: | 40-150mm |
Connection: | 40-80mm - Female Threaded BSP 80-150mm - Flanged |
Engineering Data: |
Product Description
The BERMAD Model 123-X is a hydraulically operated, diaphragm-actuated control valve that sustains minimum preset upstream (back) pressure and reduces downstream pressure to a constant preset maximum.
Features and Benefits
- Line Pressure Driven, Hydraulically Controlled
- Protects downstream system
- Prioritizes pressure zones
- Controls system fill-up
- Engineered Plastic Valve with Industrial Grade Design
- Highly durable, chemical and cavitation resistant
- No internal bolts and nuts
- hYflow ‘Y’ Valve Body with "Look Through" Design
- Ultra-high flow capacity –Low-pressure loss
- Unitized Flexible Super Travel (FST) Diaphragm and Guided Plug
- Accurate and stable regulation with the smooth closing
- Requires low opening and actuation pressure
- Prevents diaphragm erosion and distortion
- User-Friendly Design
- Easy pressure setting
- Simple in-line inspection and service
![Bermad - 123 - Features and Benefits](https://deeco-production.s3.amazonaws.com/images/Bermad_-_123_-_Features_and_Benefits_bx9F8qv.width-1000.png)

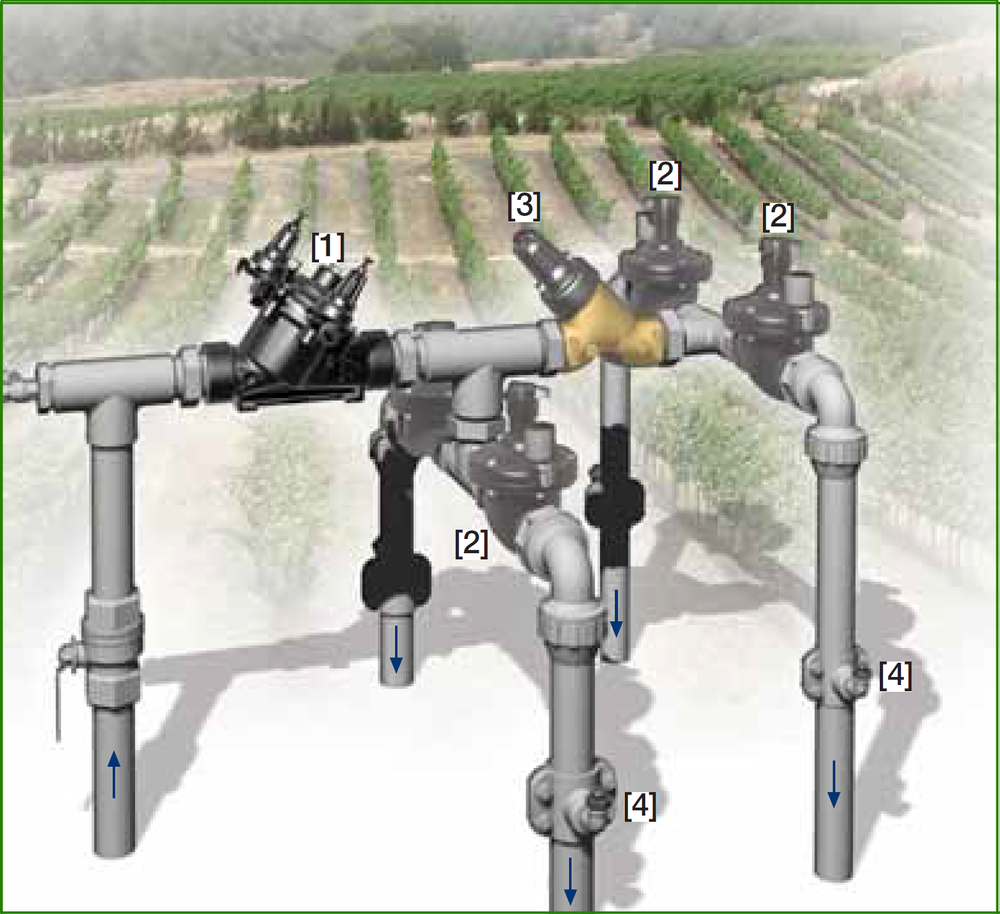

1. BERMAD Model IR-123-XZ sustains supply system pressure, and establishes reduced higher pressure zone
2. BERMAD Solenoid Controlled Valve Model 210-N1
3. BERMAD Pressure Reducer Model 1 /2-PRV
4. BERMAD Vacuum Breaker Model ½"-ARV
Typical Applications
- Line Fill-Up Control Solutions
- Line Emptying Prevention
- Pressure Reducing Systems
- Infield Filter Backwash Pressure Sustaining
- Energy Saving Irrigation Systems
Technical Data
Operation
![Bermad - 123 - Operation](https://deeco-production.s3.amazonaws.com/images/Bermad_-_123_-_Operation.width-1000.png)

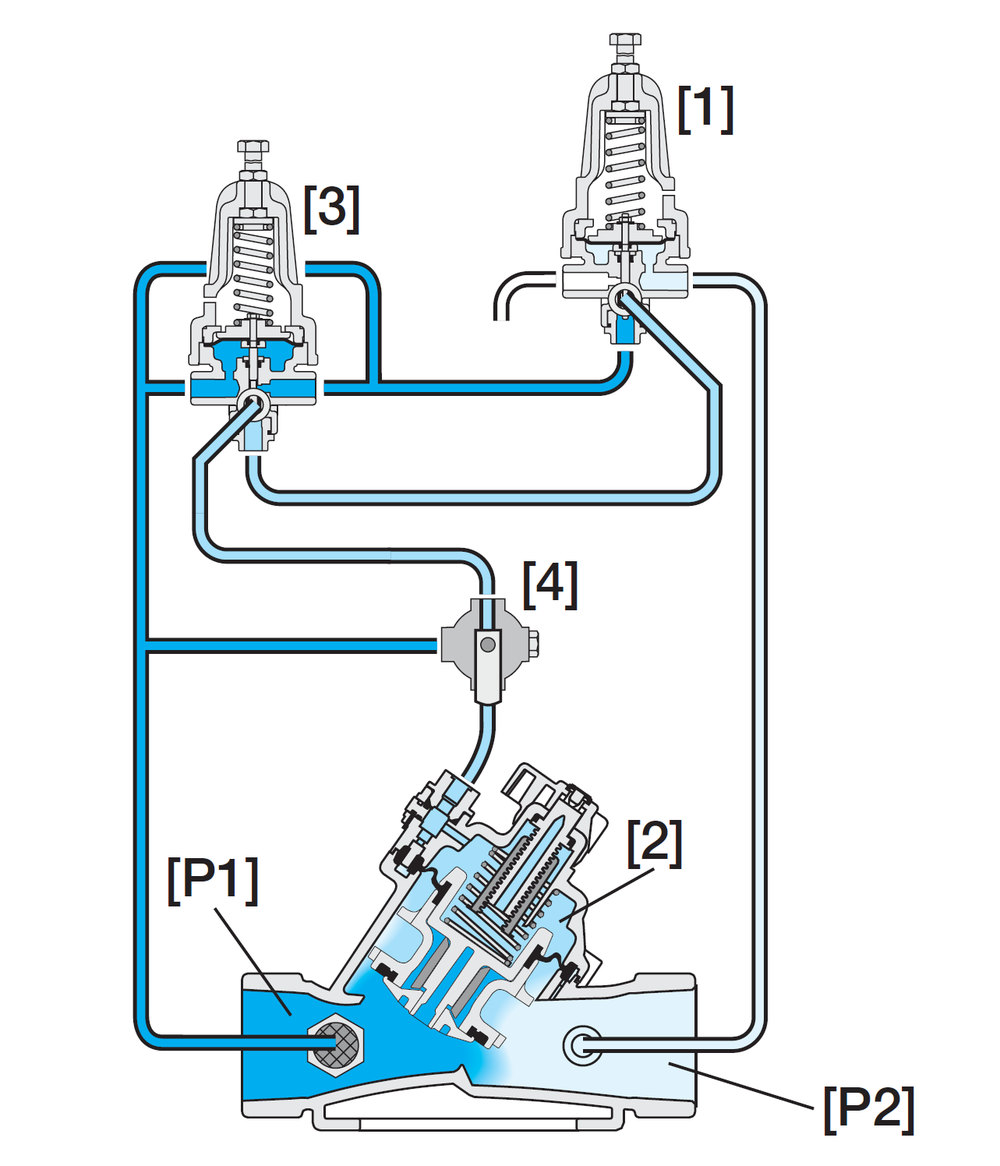

The Pressure Reducing Pilot (PRP) [1] is hydraulically connected to the Valve Control Chamber [2] through the Pressure Sustaining Pilot (PSP) [3]. The PSP commands the Valve to throttle closed should Upstream Pressure [P1] drops below the setting. When [P1] rises above the setting, the PSP switches and allows the PRP to control the Valve, commanding it to reduce Downstream Pressure [P2]. The Manual Selector [4] enables local manual closing
Materials
Body, Cover and Plug
- Glass-Filled Nylon
Diaphragm
- NR, Nylon Fabric Reinforced
Seals
- NR
Spring
- Stainless Steel
Cover Bolts
- Stainless Steel
Control Accessories
- Plastic
Tubing and Fittings
- Plastic
Valve Configurations & Size
- Oblique: DN50, 65, 80, 80L, 100 & 150
- Angle: DN80
End Connections
40-80mm - Female Threaded BSP
80-150mm - Flanged
Pressure Rating
- 10 bar.
Operating Pressure Range
- 0.35-10 bar.
Setting Range
- 1-7 bar.
Setting ranges vary according to specific pilot springs. Please consult Deeco.

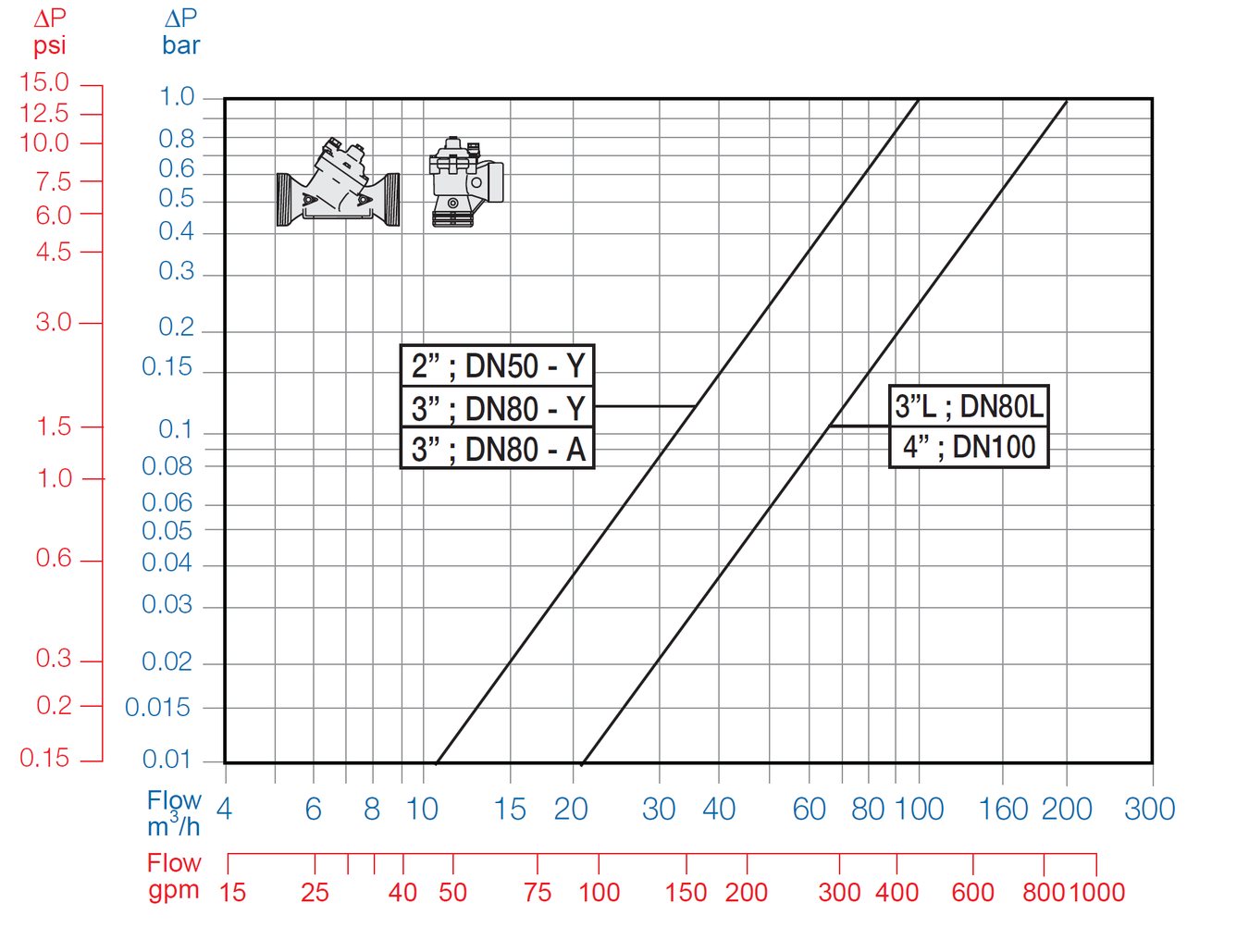

Flow Chart
![Bermad - 123 - Flow Chart](https://deeco-production.s3.amazonaws.com/images/Bermad_-_123_-_Flow_Chart.width-1350.png)
Bermad - 123 - Flow Chart
Technical Specifications
Dimensions and Weights
![Bermad - 120 -3 Way - Technical Specifications](https://deeco-production.s3.amazonaws.com/images/Bermad_-_120_-3_Way_-_Technical_Specification.width-1350.png)
![Bermad - 120-3 Way - Dimensions and Weights 1](https://deeco-production.s3.amazonaws.com/images/Bermad_-_120-3_Way_-_Dimensions_and_Weights_1.width-1350.png)
![Bermad - 120-3 Way - Dimensions and Weights 2](https://deeco-production.s3.amazonaws.com/images/Bermad_-_120-3_Way_-_Dimensions_and_Weights_2.width-1350.png)
CCDV = Control Chamber Displacement Volume • BSP.T = Internal Threaded • BSP.F = External Threaded • Other End Connections are available on request. For dimensions and weights of adapters or valve with adapters please consult with customer service
For Spare Parts & Repair Kits - Please refer to the base model:
Due to the wide range of options available and criteria for correct model selection, pricing and configuration are available on application only.
Please consult with Deeco engineers for more information.
