| Brand: | Bermad |
| Category: | Control Valves, 200 Series |
| Size Range: | 40-50mm |
| Connection: | Female Threaded BSP |
| Engineering Data: |
Product Description
The BERMAD Pressure Reducing Valve is a hydraulically operated, diaphragm-actuated control valve that reduces higher upstream pressure to lower constant downstream pressure and opens fully upon line pressure drop.
Features & Benefits
- Line Pressure Driven, Hydraulically Controlled
- Protects downstream systems
- Opens fully upon line pressure drop
- Smooth valve opening and closing
- Accurate and stable regulation
- Low operating pressure requirements
- Plastic Globe Hydro-Efficient Valve
- Unobstructed flow path
- Single moving part
- High flow capacity
- Highly durable, chemical and cavitation resistant
- Unitized Flexible Diaphragm and Guided Plug
- Excellent low flow regulation performance
- Prevents diaphragm erosion and distortion
- Fully Supported & Balanced Diaphragm
- Requires low actuation pressure
- User-Friendly Design
- Simple in-line inspection and service

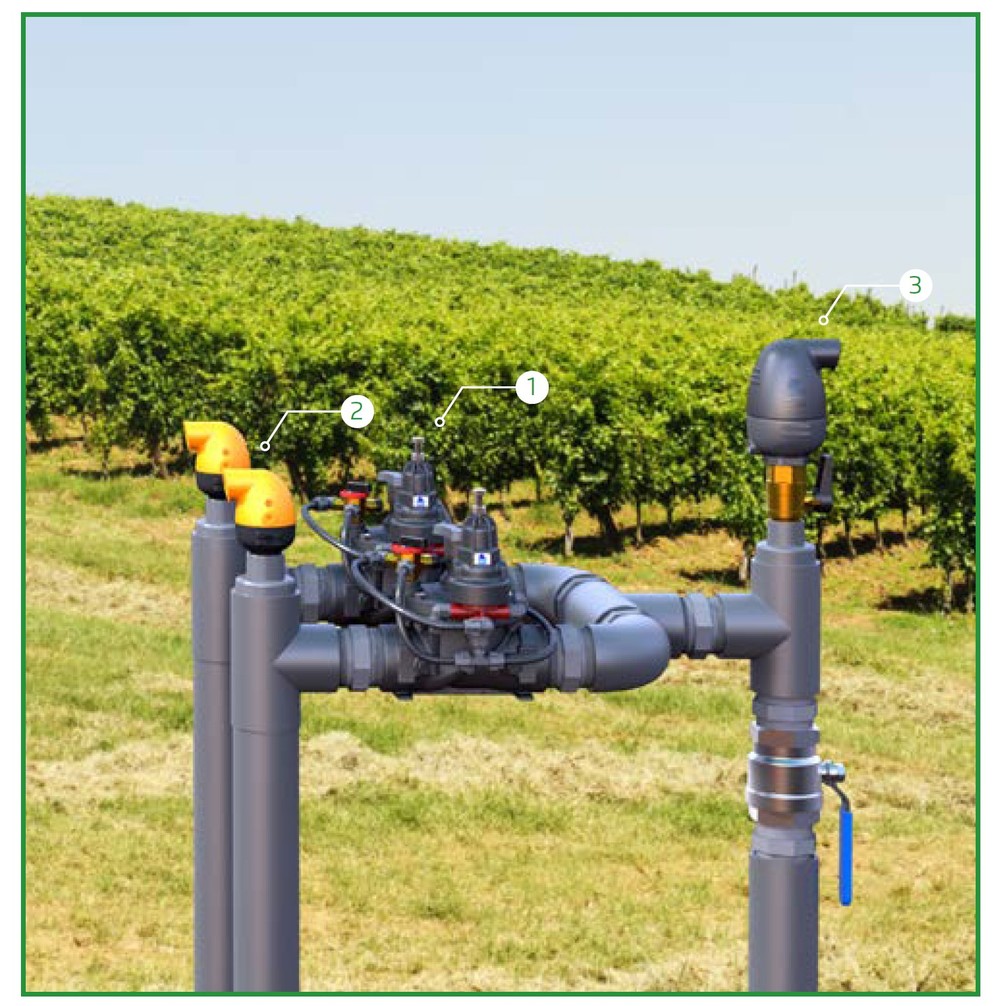

1. BERMAD Model IR-220-3W-XZ establishes a reduced pressure zone, protecting laterals and the distribution line.
2. BERMAD Kinetic Air Valve Model IR-K10
3. BERMAD Combination Air Valve Model IR-C10
Typical Applications
- Drip Systems
- Pressure Reducing Stations
- Systems Subject to Varying Supply Pressure
- Landscape
- Energy Saving Irrigation Systems
Technical Data
Operation

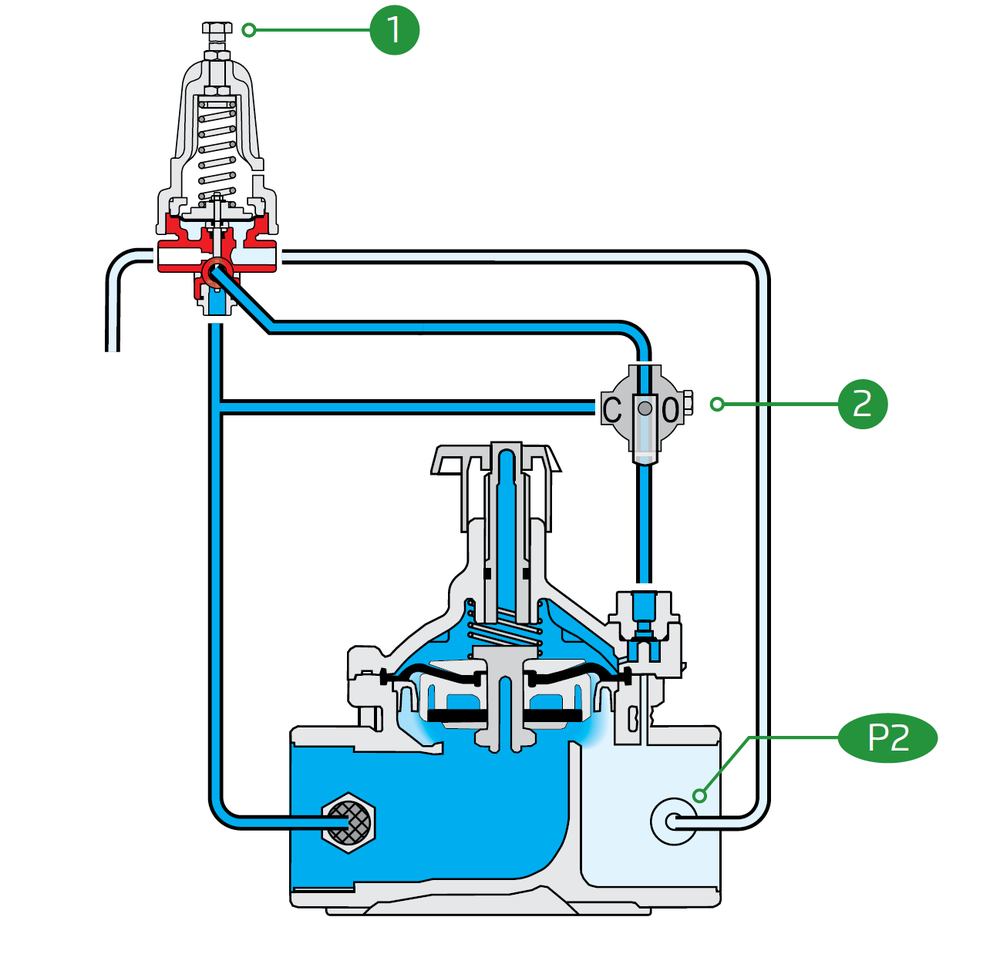

The Pressure Reducing Pilot 1 commands the main Valve to throttle closed should Downstream Pressure P2 rise above the pilot setting, and to open fully when it drops below the pilot setting. The Manual Selector 2 enables local manual closing.
Materials
Body, Cover and Plug
- Polyamid 6 & 30% GF
Diaphragm
- NBR
Seals
- NBR
Spring
- Stainless Steel
Cover Bolts
- Stainless Steel
Pressure Rating
- 10 bar
Operating Pressure Range
- 0.5-10 bar
Setting Range
- 1-7 bar
Setting ranges vary according to specific pilot springs. Please consult Deeco
Control Accessories
Tubing and Fittings
- Plastic

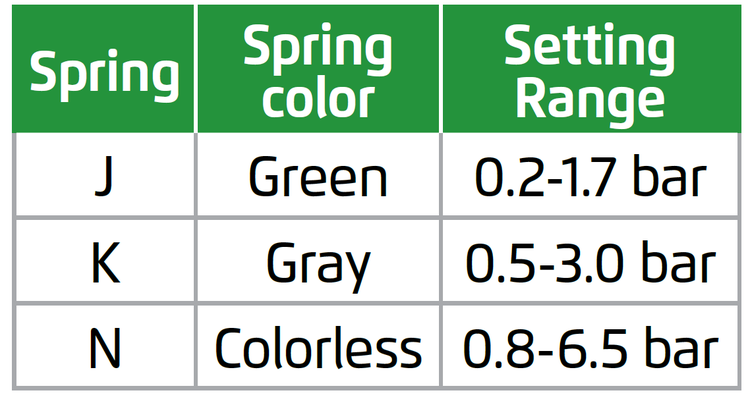

Pilot Spring Range
Bermad - 220-3W - Pilot Spring Range

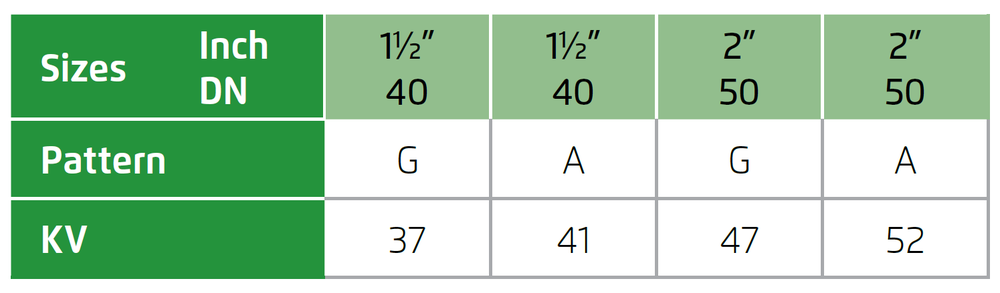

Flow Properties
Bermad - 220-3W - Flow Properties

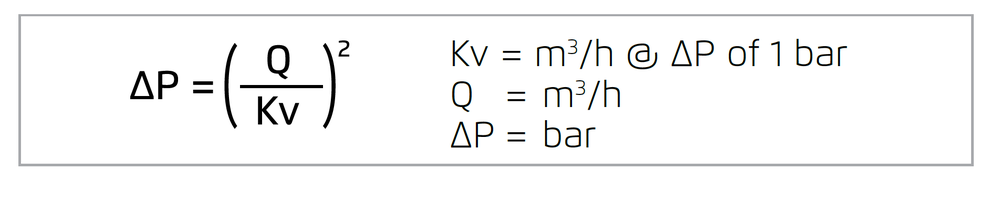

Valve Flow Coefficient
Bermad - 220-3W - Valve Flow Coefficient

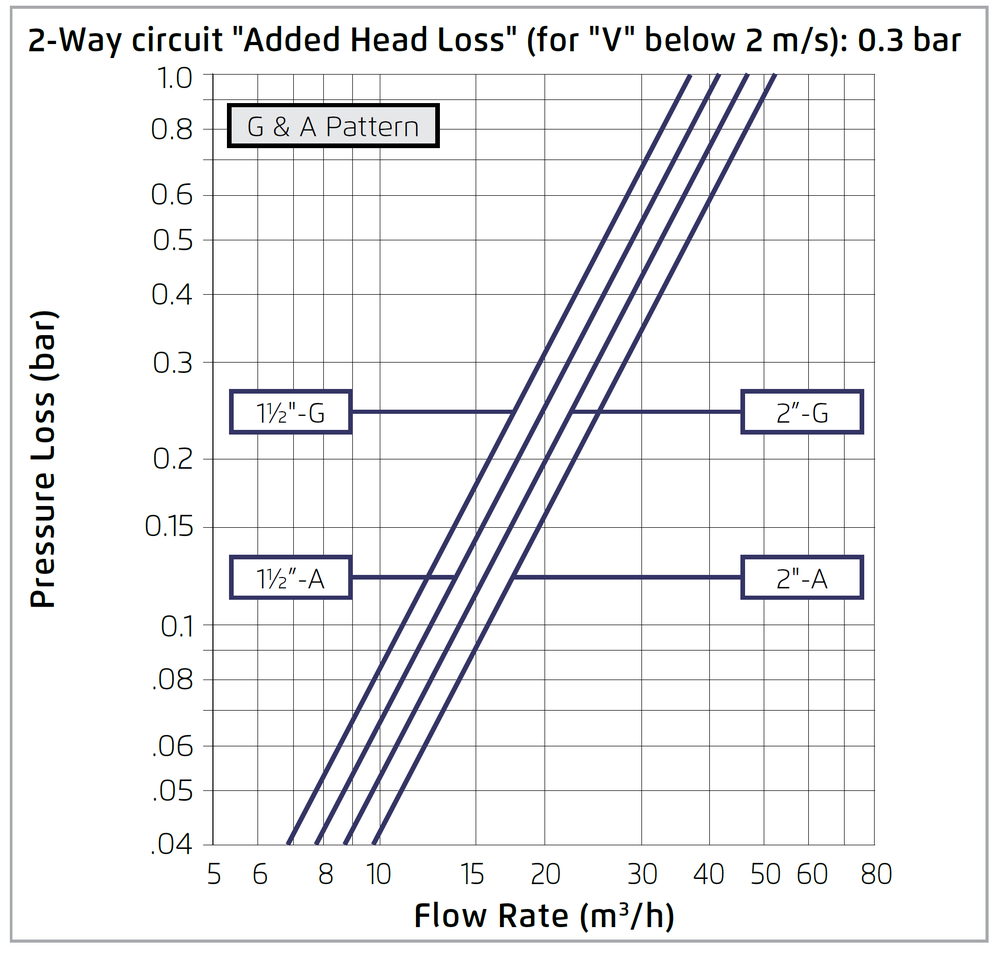

Flow Chart
Bermad - 220-3W - Flow Chart

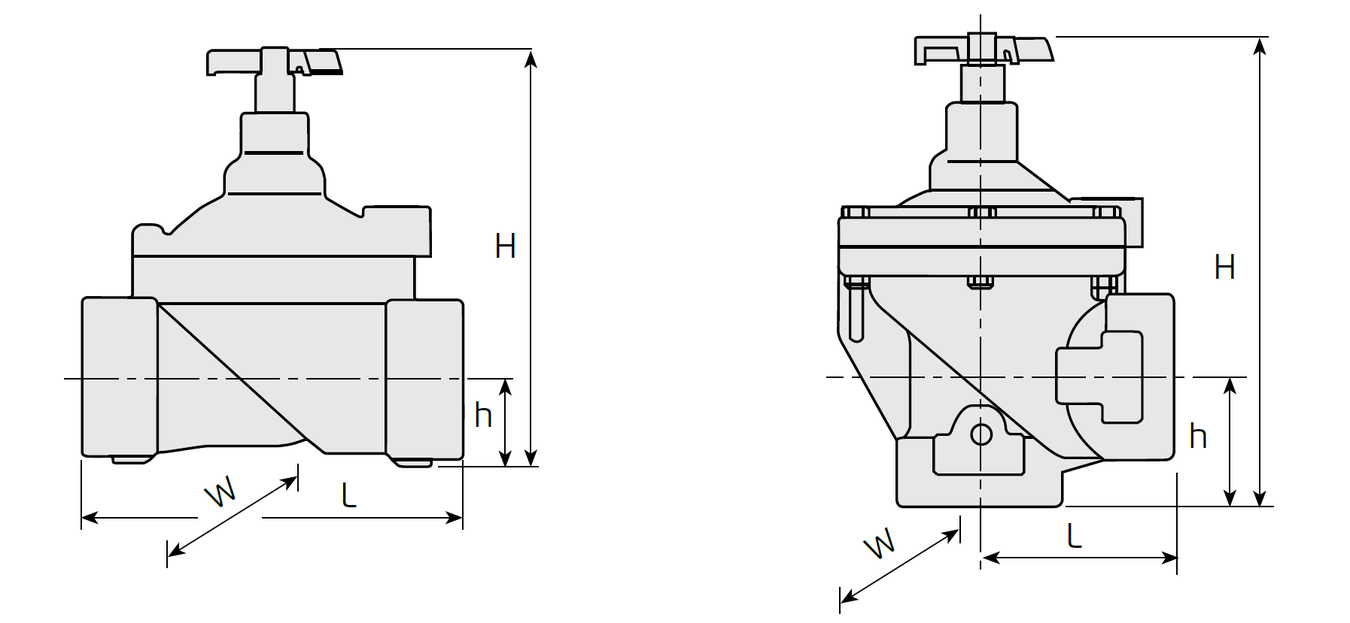

Technical Specifications

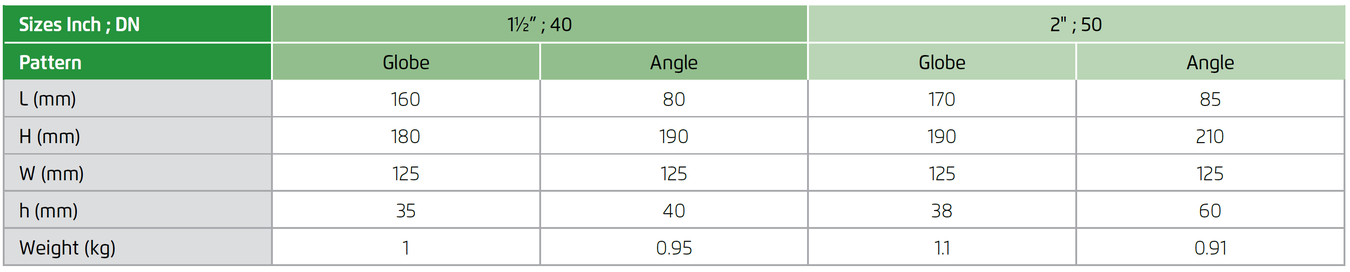

Dimensions and Weights
Bermad - 220-3W - Dimensions and Weights
For Spare Parts & Repair Kits - Please refer to the base model:
Due to the wide range of options available and criteria for correct model selection, pricing and configuration are available on application only.
Please consult with Deeco engineers for more information.
