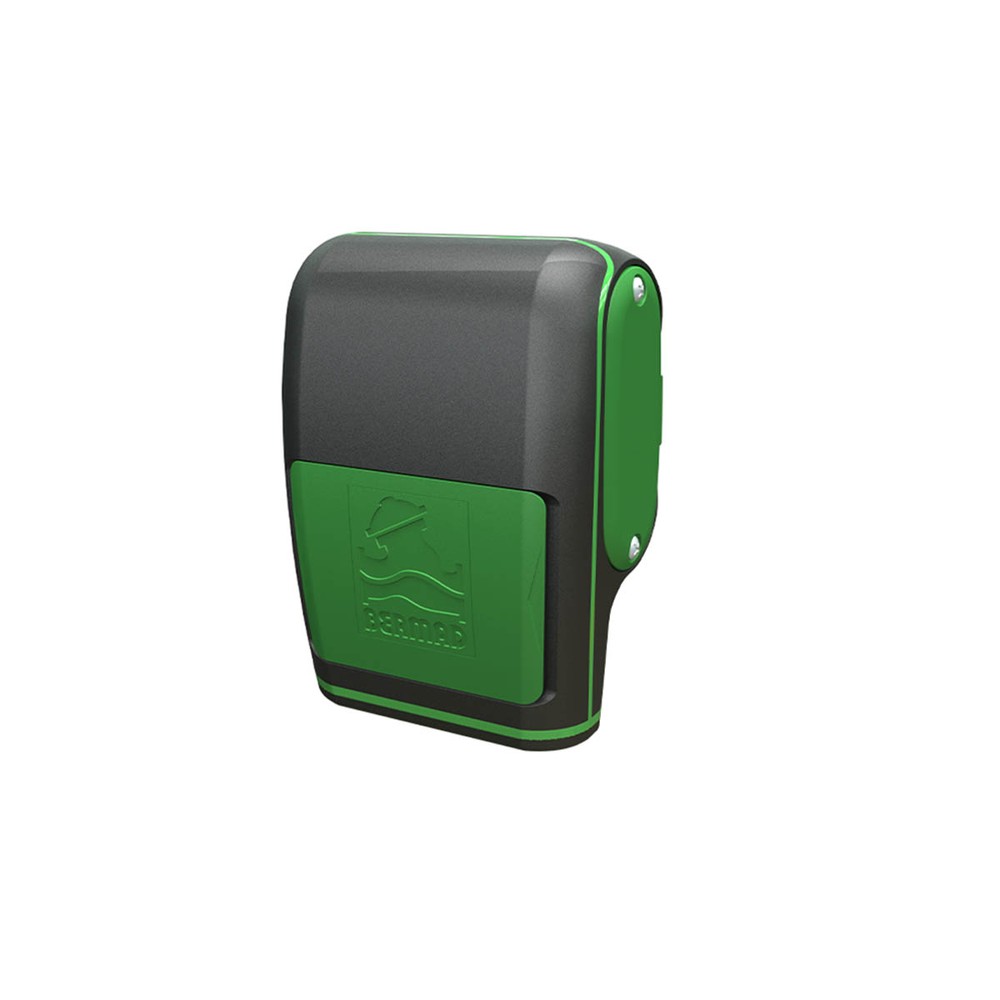

Bermad - Omega - Cloud Based Irrigation Controller

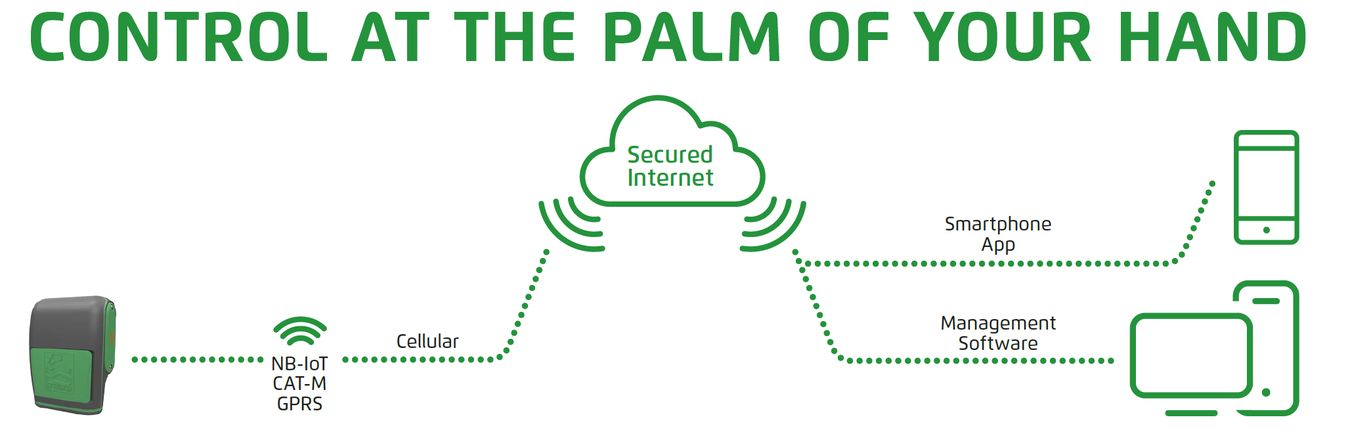

Omega is BERMAD’s advanced cloud-based irrigation controller, offering anywhere-anytime connectivity to your irrigation system using BERMAD Cloud as well as a Smartphone App for local operation.

Omega is a standalone battery-operated controller designed to provide user-friendly and cost-effective solutions for irrigation systems, water distribution, data acquisition, and pre-paid systems (districts & consortiums).

Features and Benefits

Omega Controller

• Cellular Connectivity
• Time-based and Volumetric control
• Modular solution

BERMAD Cloud & Smartphone App

• Intuitive, functional & simple to operate
• Secured end-to-end communication
• Real-Time alert notification
• Easy setup configuration
• Irrigation programming and manual operation

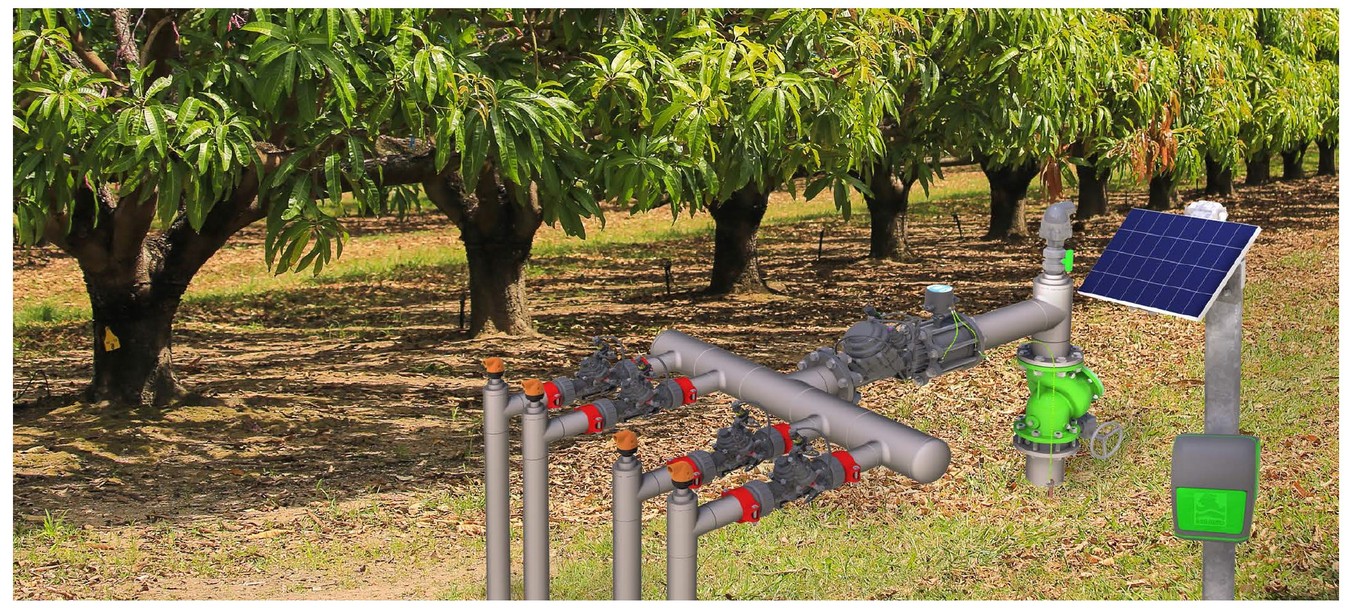

Typical Applications

• Professional Volumetric and Time-Based irrigation control
• Open fields, orchards, vineyards, mesh houses, greenhouses and landscape
• Auxiliary control of remote areas, beyond the reach of main farm control systems
• Water distribution, Pre-paid, and Data acquisition systems for Districts and consortiums

Bermad Omega Series

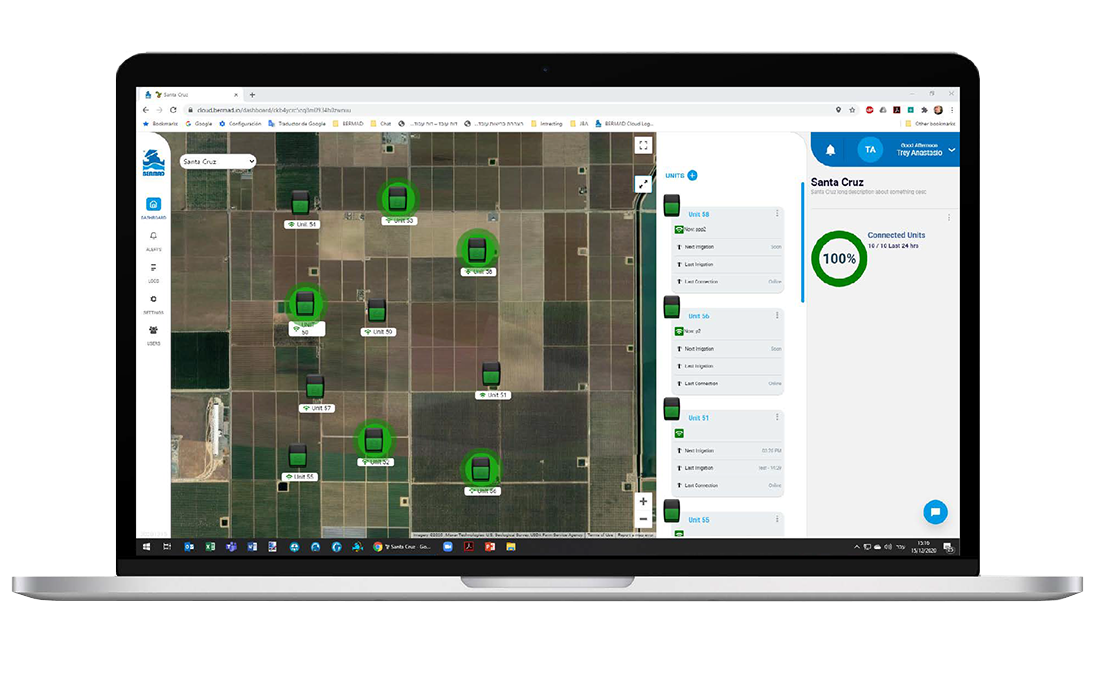

BERMAD Cloud

BERMAD cloud offers web-based internet access to your irrigation system:

• User-friendly and intuitive control features
• Global management of all your Omega controllers
• Real-time status visual monitoring of your irrigation system
• Cloud-level integration of third-party solutions

BERMAD Cloud features:

• Password Protection login:
  • Multi-user connectivity for enhanced management and technical support
  • Individual access level authorization
• Global Account Management:
  • Language and time zone selection
  • User privileges
  • Unit support (Metric, Imperial)
• Dynamic dashboard:
  • Geo-referenced map with a global view of your irrigation project
    • Current status of Omega controllers
    • Up-to-date water budget usage
  • Quick access to unit management tools
    • Unit Setup, programming, and manual operation
    • Wizard for guided unit config & I/O definition
• Alert control:
  • Alert status log and email notification
  • Alert management tools:
    • Controller reaction to each type of alert
    • Alert notification settings per user
• Log information:
  • System state, operation events & alerts
  • Periodic sensor data acquisition
    • Water meter accumulations
    • Analog sensor data
    • Battery charge
• Report generator:
  • Personalized reports for operation and traceability
  • Export to Excel and PDF
• Smartphone App:
  • Unit setup and configuration
  • Irrigation programming and manual operation

Controller Features

Volumetric and Time-based Irrigation:

• 16 programs with up to 16 sequential valve operations each
  • Weekly or Cyclic irrigation scheduling
  • 4 programmable start times or cyclic irrigation windows
  • Widespread valve run time range: 10 seconds – 4 days

High and low flow monitoring with leak and clog alerts for all types of operation.

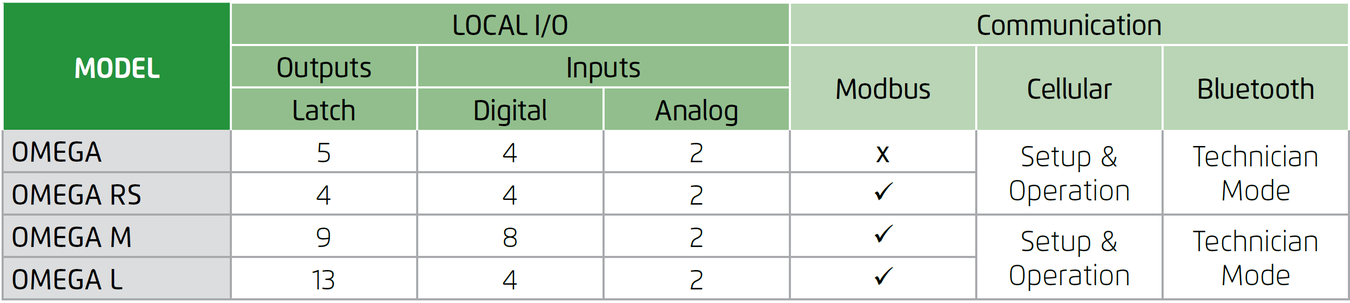

I/O Properties (depending on model):

• Local I/O:
  • 4,5,9 or 13 Latch outputs (17V DC; 100 ms pulse) with master valve/pump control assignation.
  • 4 or 8 digital inputs for water meter readings and discrete sensors
  • 2 analog inputs for 4-20mA or 0-10VDC sensors

Connectivity:

• Built-in 4G Modem with 2G fallback
  • Global Data sim card for worldwide plug-and-play internet connectivity
  • Supports NB-lot, CAT-M & GPRS communication protocols.
• Bluetooth communication for technician mode tasks

Operation modes:

• Online mode: 24/7 connection between controller and cloud (require external power source)
• Offline mode:
  • Autonomous control operation, predefined cloud communication, and real-time alerts.
  • Designed for power saving when using internal batteries.

Power Source:

• 4 LR14 (C Size) Alkaline batteries for operation in offline mode.
• 9-18VDC external power input for online mode operation (solar panel, grid power, etc.)

Internal data logger with more than 150K records, enables a comprehensive log registry that can cover long periods of offline operation

Periodic over-the-air firmware upgrades (FOTA)

Outdoor Installation: IP65 rated with UV protection

Standard Compliance: CE & FCC

Industrial grade Electronic Components: -35°C to 75°C

Push-type connectors for quick and easy wiring without the need for special tools.

Dimensions

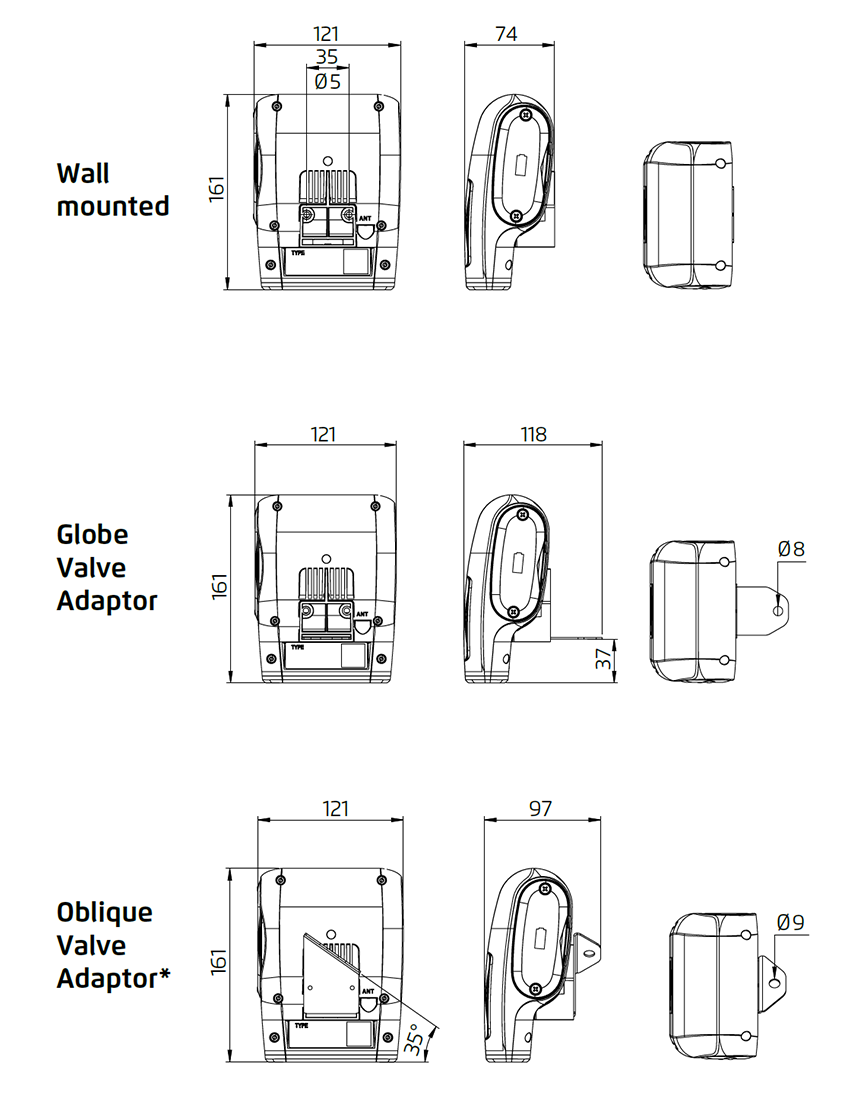

Omega, Omega RS

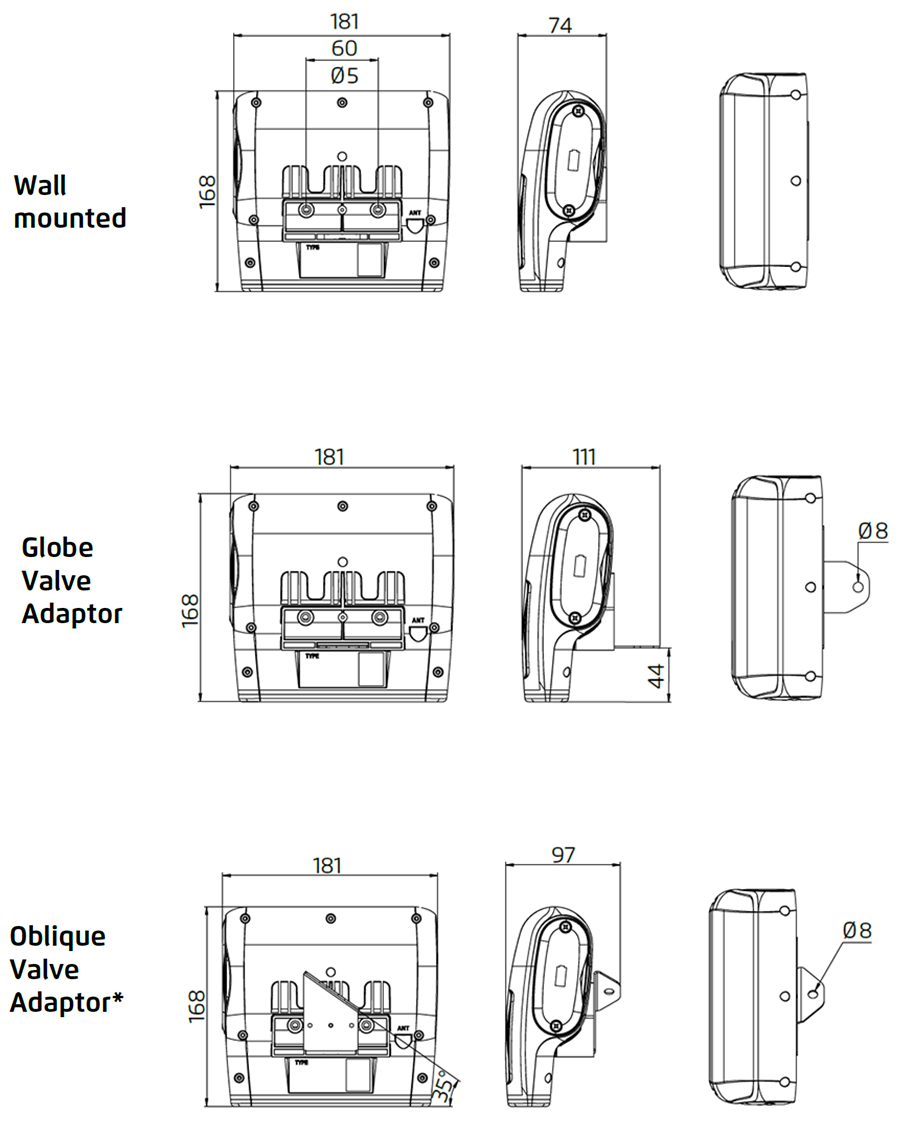

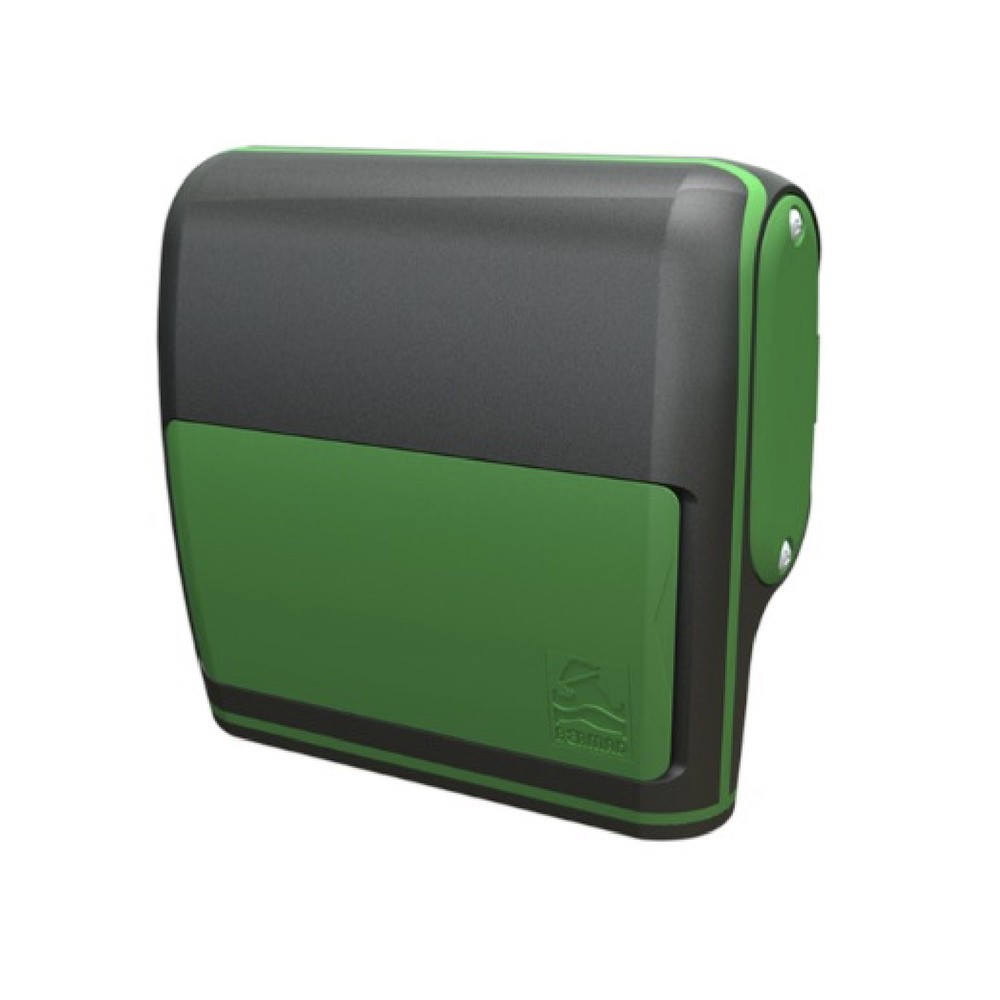

Omega M, Omega L
