| Brand: | NaanDanJain |
| Category: | Sprinklers, Metal Sprinklers |
Product Description
Metal impact sprinkler 1” female
Structure and Features
- High water distribution with spacing up to 24 m.
- Color-coded bayonet nozzles for easy service.
- Integrated stream-straightening vane for maximum range.
- Sand, and dust protection sleeve ensures reliable operation and durability.
- Red-cap completely seals and protects the drive spring and protects from frost damage.
Applications
- all overhead irrigation of crops with solid-set, mechanized or hand-line systems.
Technical Data

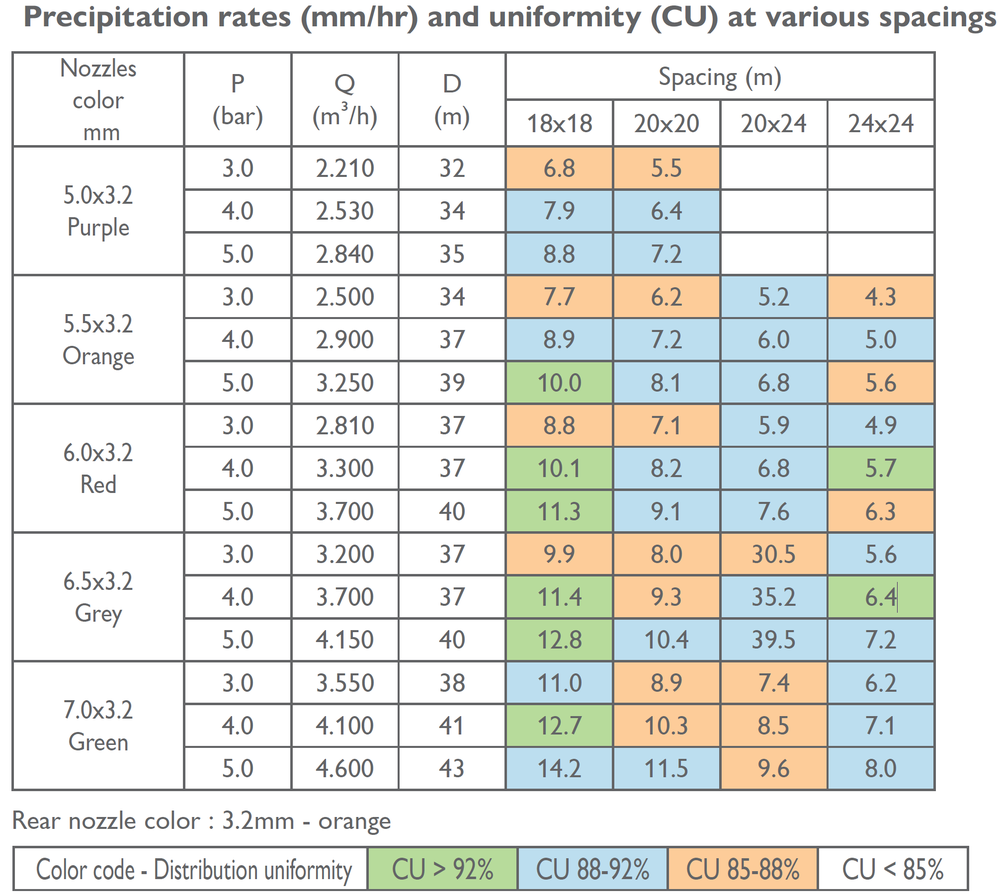

Performance Table
* Performance table prepared under laboratory conditions
* For windy conditions use closer spacing
NaanDanJain - Model 234 - Metal Sprinkler
1” Female, metal impulse sprinkler, full circle.
NDJ - 5124550
NDJ - 5124560
NDJ - 5124455
| Product Code | Size | Description | Nozzle | Box Qty |
|---|---|---|---|---|
| 5124550 | 5.0mm | 234 Sprinkler c/w 5.0mm Nozzle | Purple | 40 |
| 5124560 | 6.0mm | 234 Sprinkler c/w 6.0mm Nozzle | Red | 40 |

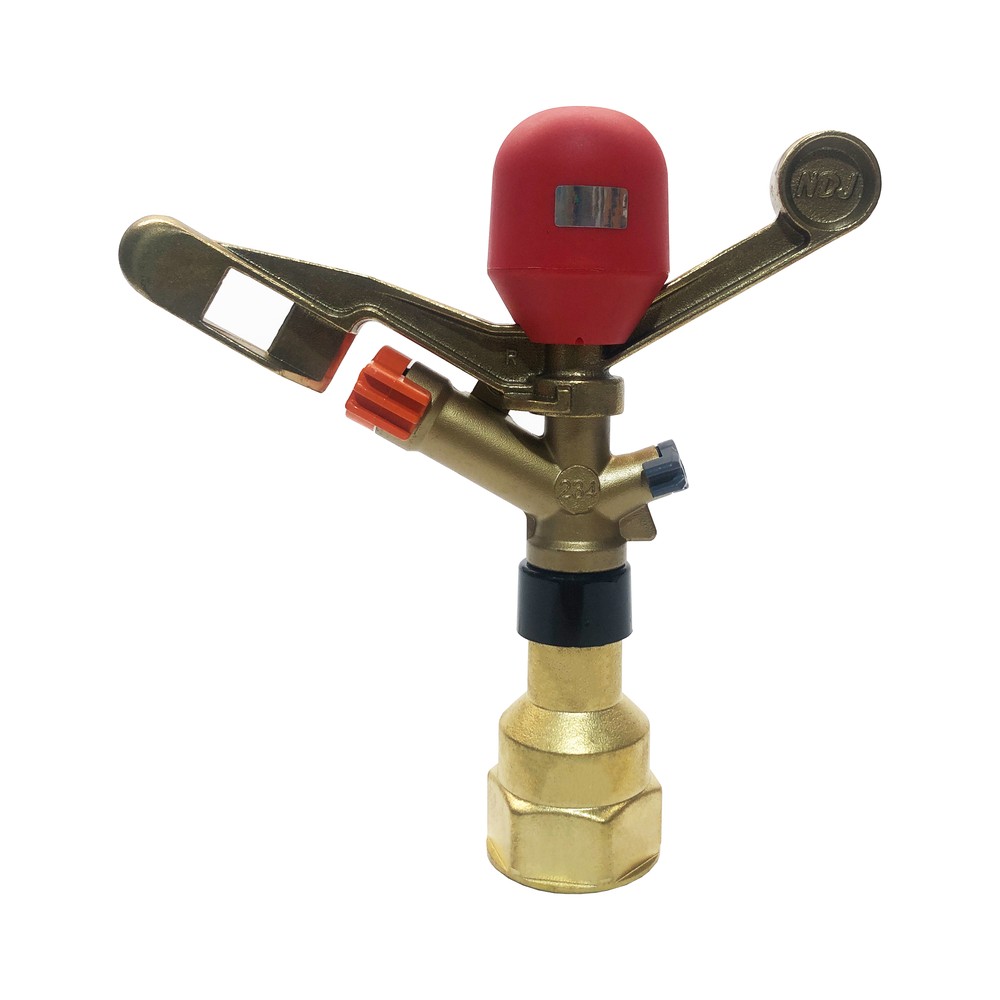

| 5124455 | 5.5mm x 3.2mm | 234 Sprinkler c/w 5.5mm x 3.2mm Nozzle | Orange / Orange | 40 |
NDJ - 585505
NDJ - 585555
NDJ - 585605
NDJ - 585655
NDJ - NA585705
NDJ - 583325
| Product Code | Size | Description | Colour |
|---|---|---|---|
| NA585505 | 5.0mm | 233/234 Bayonet Nozzle | Purple |
| NA585555 | 5.5mm | 233/234 Bayonet Nozzle | Orange |
| NA585605 | 6.0mm | 233/234 Bayonet Nozzle | Red |

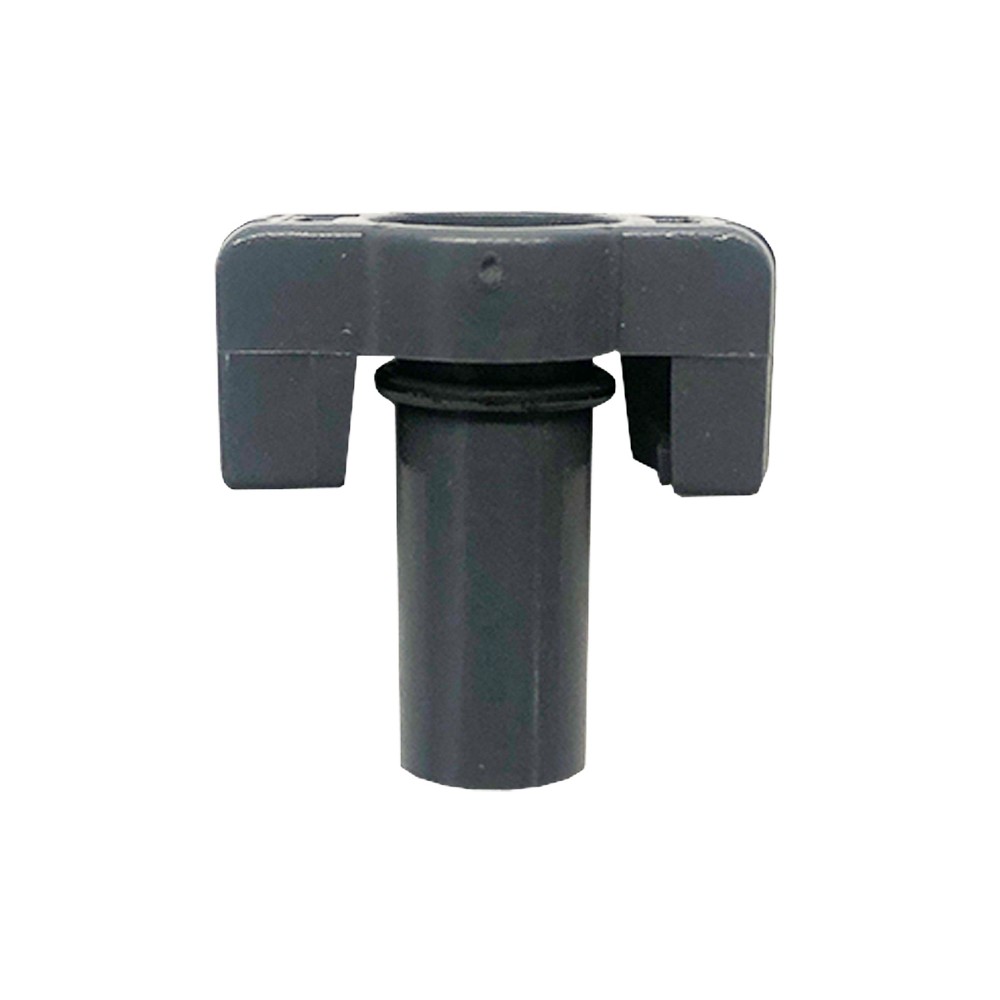

| NA585655 | 6.5mm | 233/234 Bayonet Nozzle | Grey |

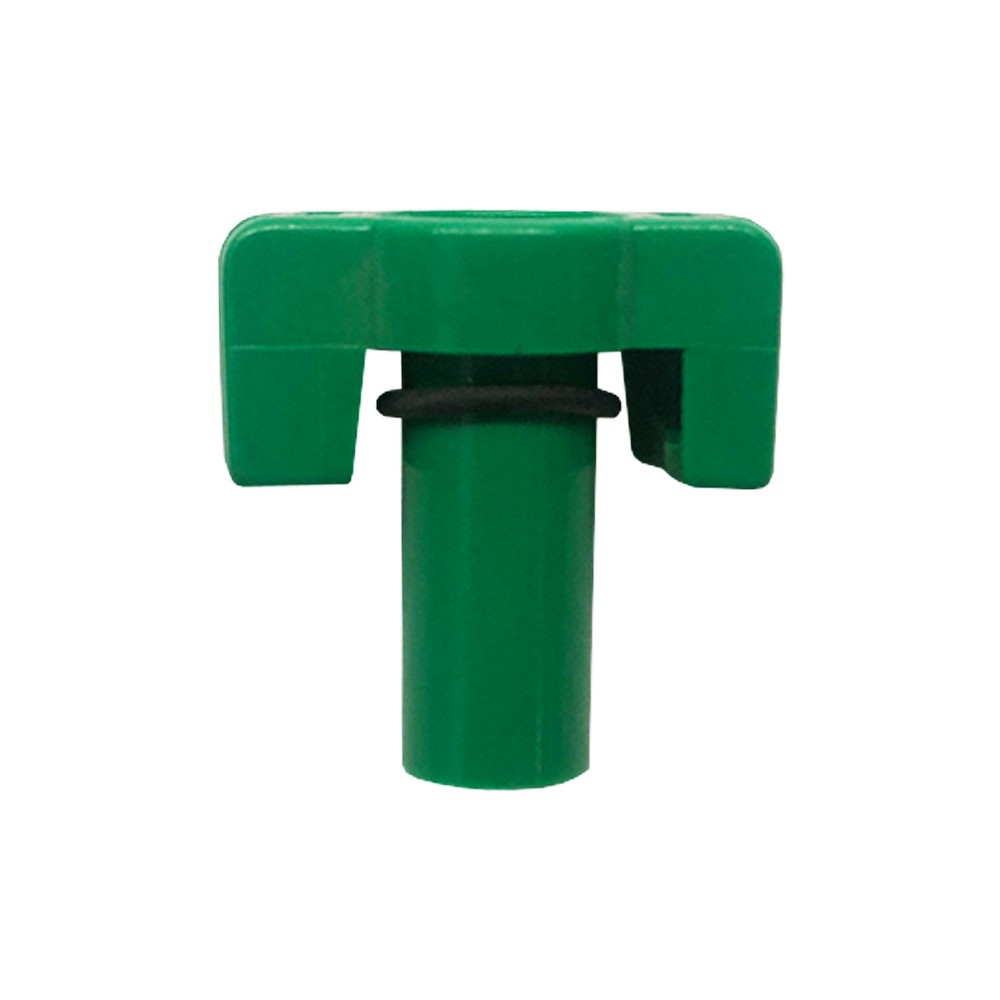

| NA585705 | 7.0mm | 233/234 Bayonet Nozzle | Green |
| NA583325 | 3.2mm | 233/234 Bayonet Back Nozzle | Slotted Orange |
NDJ - NAGLS234
NAGLS
| Product Code | Size | Description |
|---|---|---|

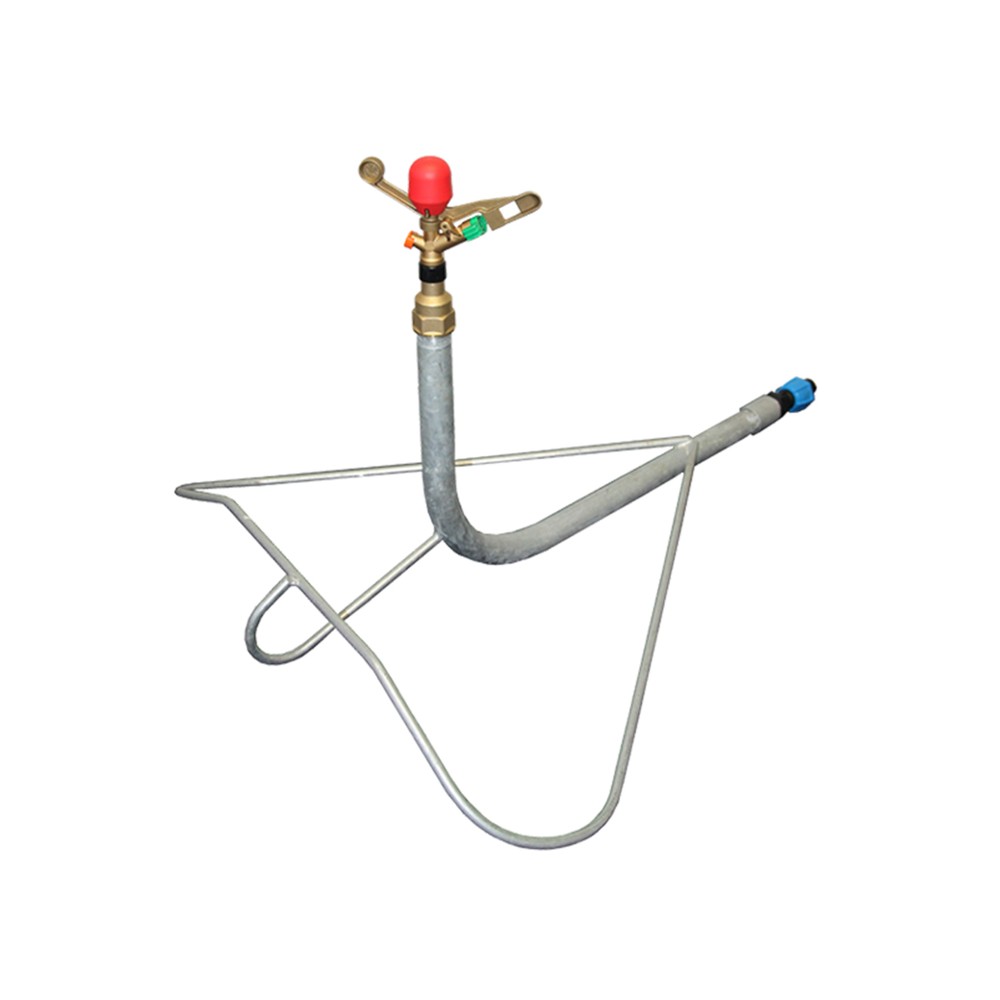

| NAGLS234 | 25mm | Galvanized Long Stand c/w NDJ 234 Sprinkler 5.0mm Purple |

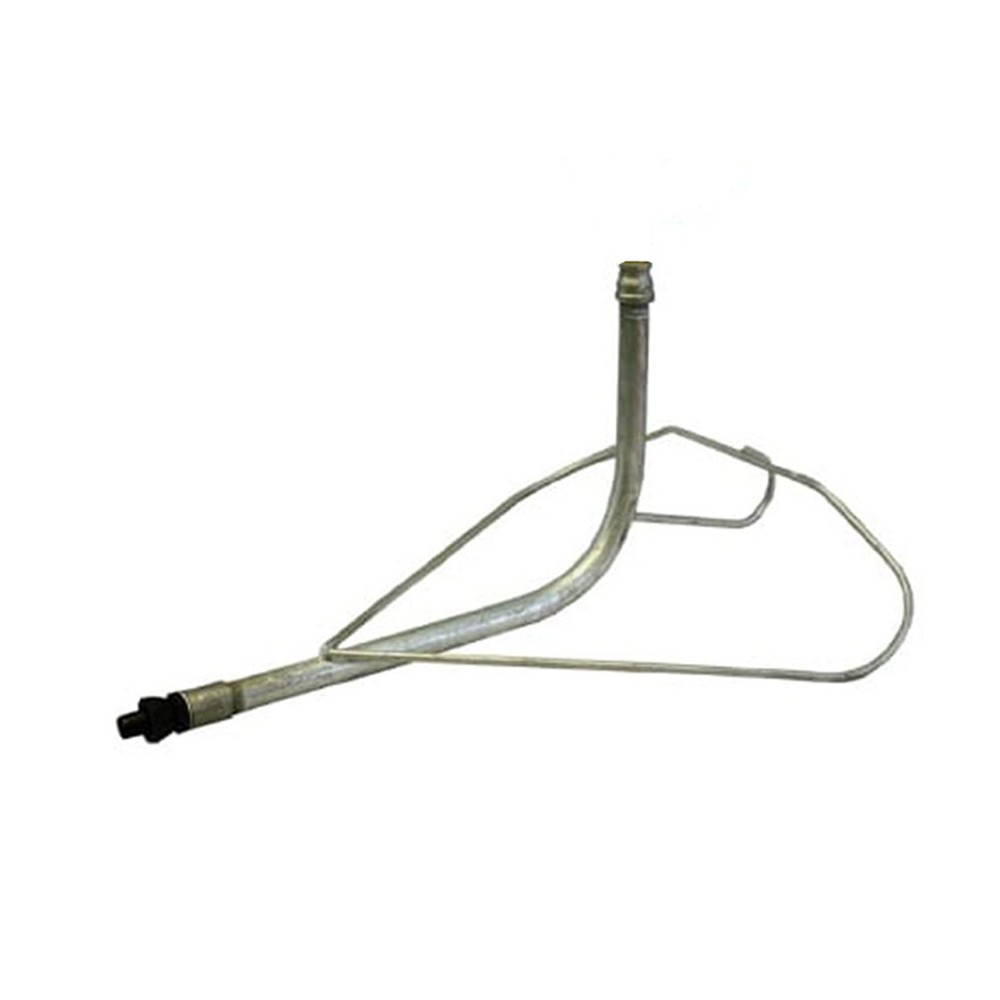

| NAGLS | 25mm | Long Line Sprinkler Stand Only |
