![Deeco - NaanDanJain - 5022-SD - Product image.](https://deeco-production.s3.amazonaws.com/images/Deeco_-_NDJ_-_5022-SD_-_Product_Im.2e16d0ba.fill-500x500.jpg)
Brand: | NaanDanJain |
Category: | Sprinklers, Plastic Sprinklers |
Product Description
Plastic impact sprinkler, 1/2” male or 3/4” female. Mounted on riser.
NDJ, The Benchmark for Uniformity
- SD sprinklers are based on an innovative concept and a unique hammer with SD (Super Diffuser) plate, designed for a higher level of distribution uniformity.
- SD sprinklers are designed to perform even at low pressure.
- The hydrodynamic design of the nozzle and special arc water passage facilitates a wider radius of throw, which reduces the number of sprinklers required per unit area.
- SD sprinklers are less sensitive to clogging and have higher wind resistance.
Here’s how to recognize a Genuine NaanDanJain SD Sprinkler:
![NaanDanJain - Genuine Sprinkler - Image](https://deeco-production.s3.amazonaws.com/images/NaanDanJain_-_Genuine_Sprinkler_-_Image.width-1350.png)
Structure and Features
- Unique hammer combined with SD (super diffuser) plate - designed for uniform distribution with single or dual nozzles.
- High distribution uniformity up to 14 m
- Reduced sensitivity to clogging and high resistance to wind
- Designed for short irrigation cycles for germination.
- Color-coded bayonet nozzles for easy service
- High impact and heavy-duty plastic materials for resistance to corrosion, chemicals and radiation
Applications
- Irrigation and germination of vegetables, flowers and nursery crops
Technical Data

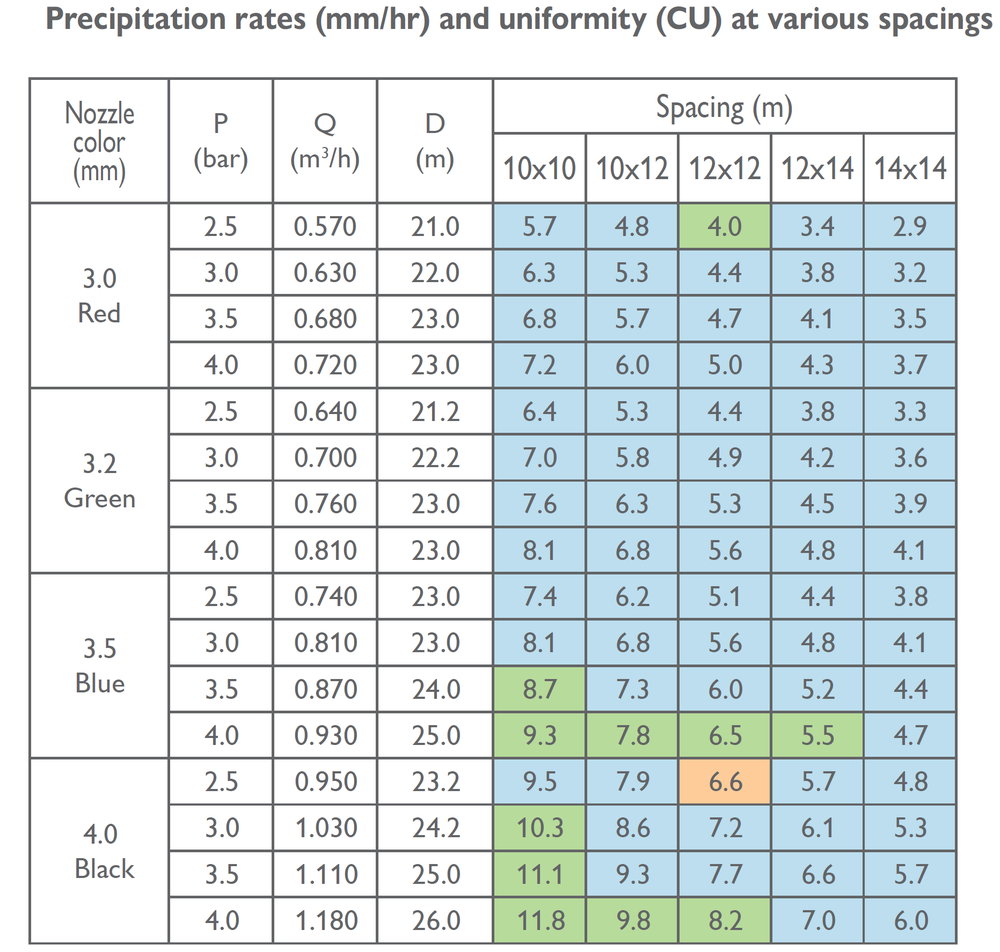

5022 SD PERFORMANCE TABLE - Single nozzle, Black long SD
![Amiad - NDJ - 5022SD - Performance Data](https://deeco-production.s3.amazonaws.com/images/Amiad_-_NDJ_-_5022SD_-_Performance_Data.width-1000.png)
For single nozzle or dual nozzle sprinkler be sure using the recommended SD unit (appears above the performance table)

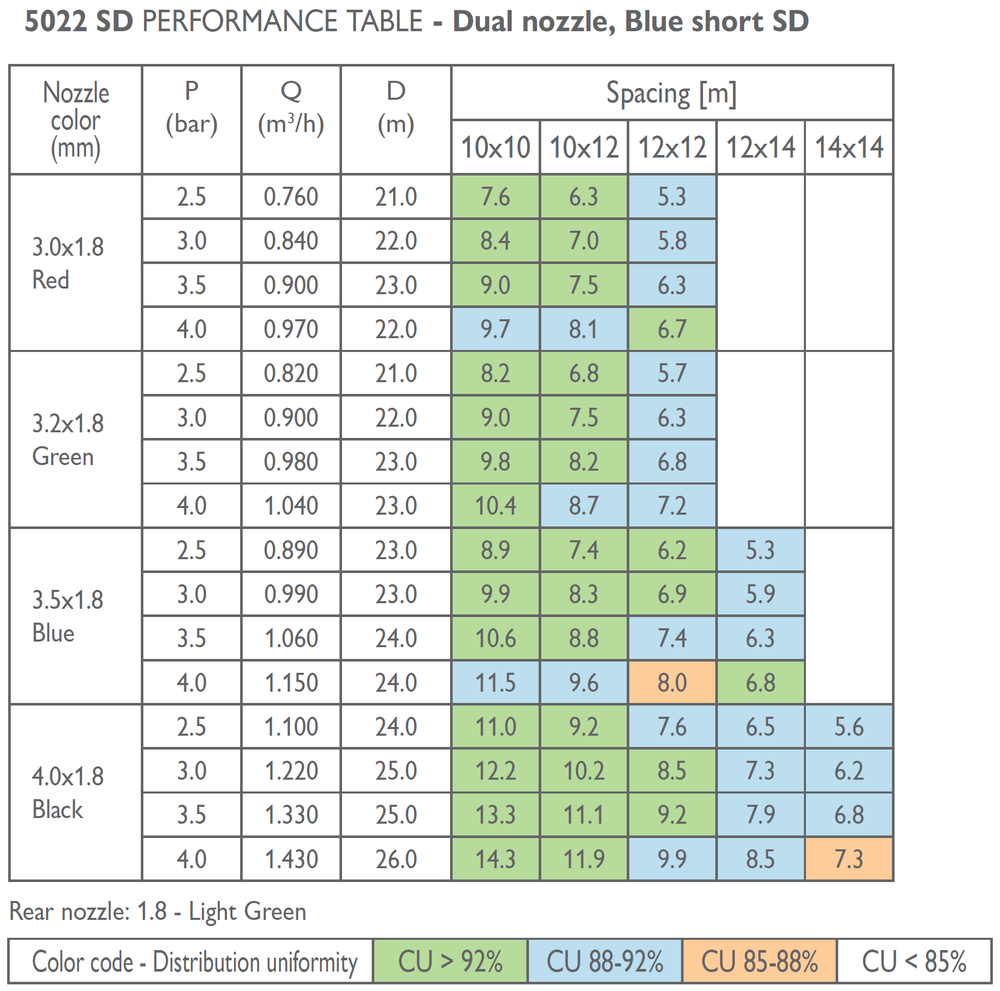

5022 SD PERFORMANCE TABLE - Dual nozzle, Blue short SD
![Amiad - NDJ - 5022SD - Performance Data 2](https://deeco-production.s3.amazonaws.com/images/Amiad_-_NDJ_-_5022SD_-_Performance_Data_2.width-1000.png)
* Performance table prepared under laboratory conditions
* For windy conditions use closer spacing
NaanDanJain - Model 5022 SD - Plastic Sprinkler
1/2” Male, plastic sprinkler with super diffuser blue (SD) hammer, bayonet nozzles, black sleeve.
![Deeco - NaanDanJain - 5022-SD - Product image.](https://deeco-production.s3.amazonaws.com/images/Deeco_-_NDJ_-_5022-SD_-_Product_.2e16d0ba.fill-1000x1000.jpg)
NDJ - 51527031
![51527041 - Image](https://deeco-production.s3.amazonaws.com/images/51527041_-_Image.2e16d0ba.fill-1000x1000.jpg)

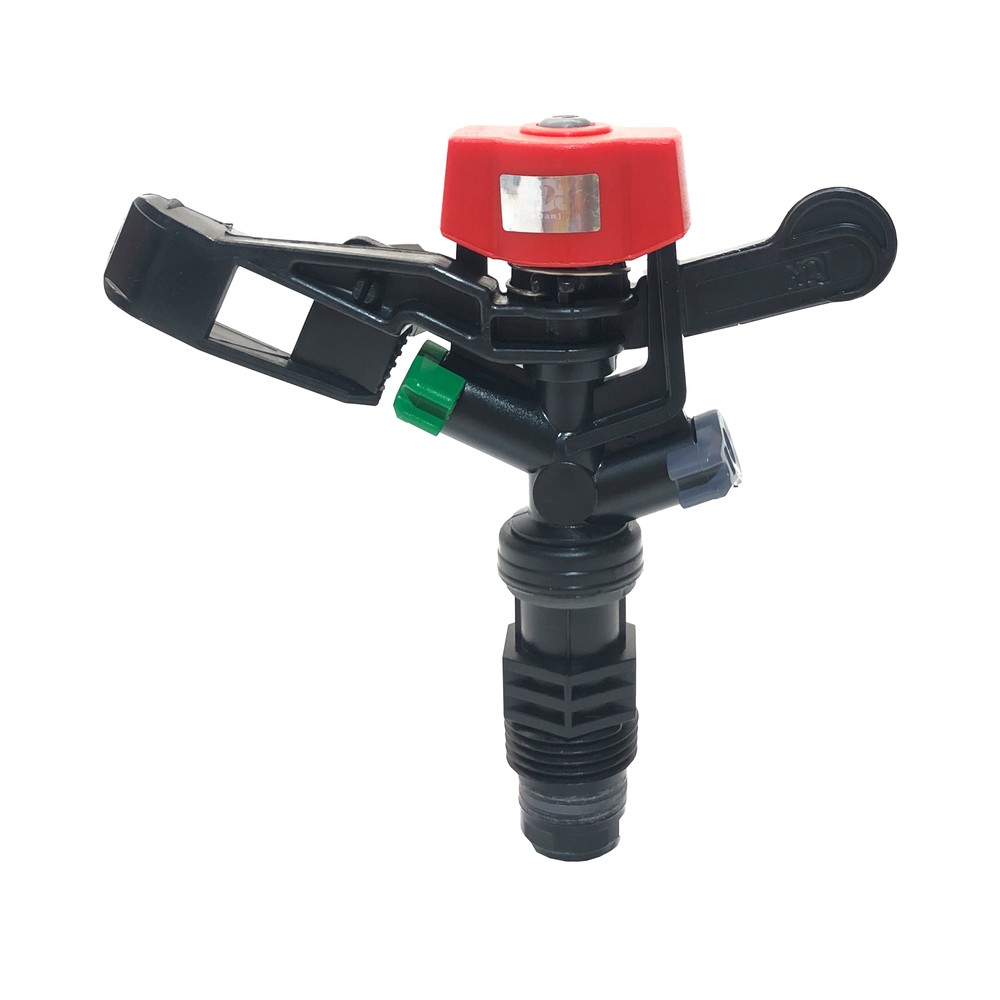

NDJ - 51527041
![51527061- Image](https://deeco-production.s3.amazonaws.com/images/51527061-_Image.2e16d0ba.fill-1000x1000.jpg)

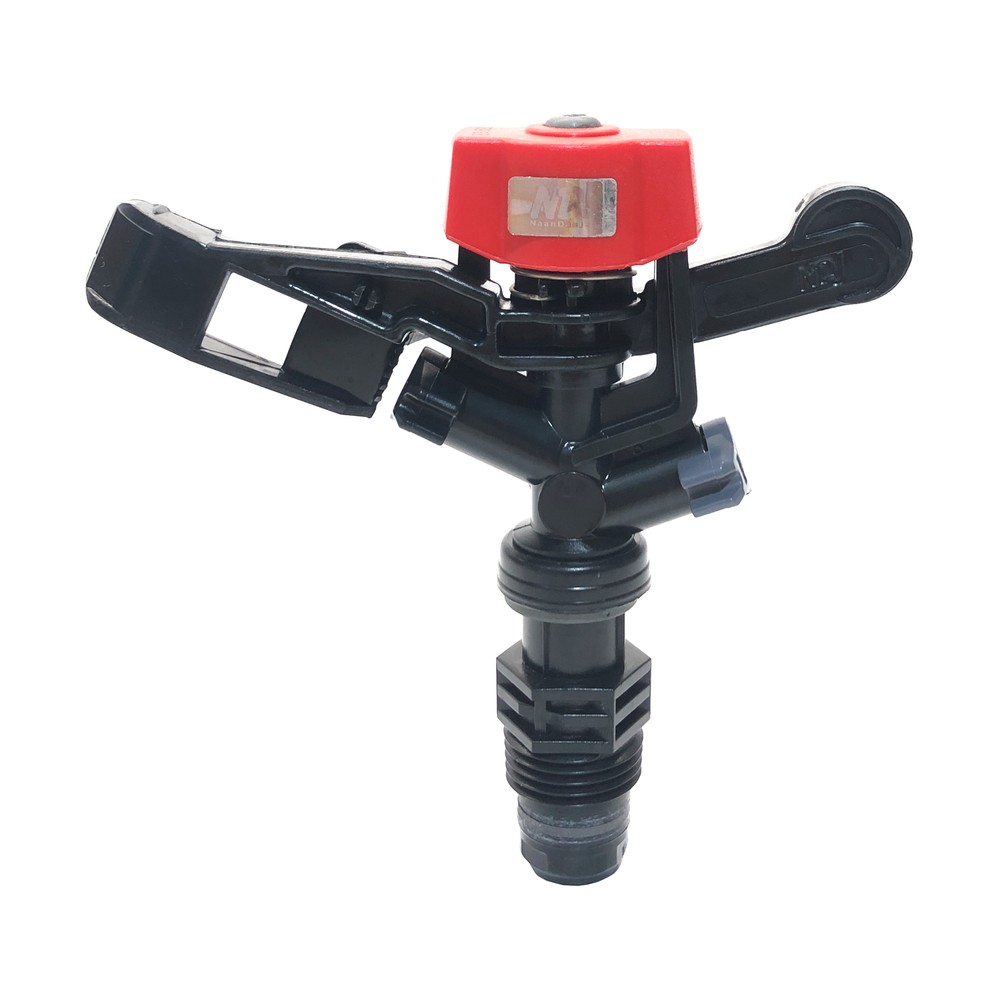

NDJ - 51527061
Product Code | Size | Description | Nozzle | Box Quantity |
---|---|---|---|---|
51527031 | 3.0mm | 5022SD-U Sprinkler c/w 3.0mm Nozzle (Black SD)* | Red | 100 |
51527041 | 3.2mm | 5022SD-U Sprinkler c/w 3.2mm Nozzle (Black SD)* | Green | 100 |
51527061 | 4.0mm | 5022SD-U Sprinkler c/w 4.0mm Nozzle (Black SD)* | Black | 100 |
*For the black nozzle, refer to the accessories table below.
![582251](https://deeco-production.s3.amazonaws.com/images/NAS582251_bbuufIb.2e16d0ba.fill-1000x1000.jpg)

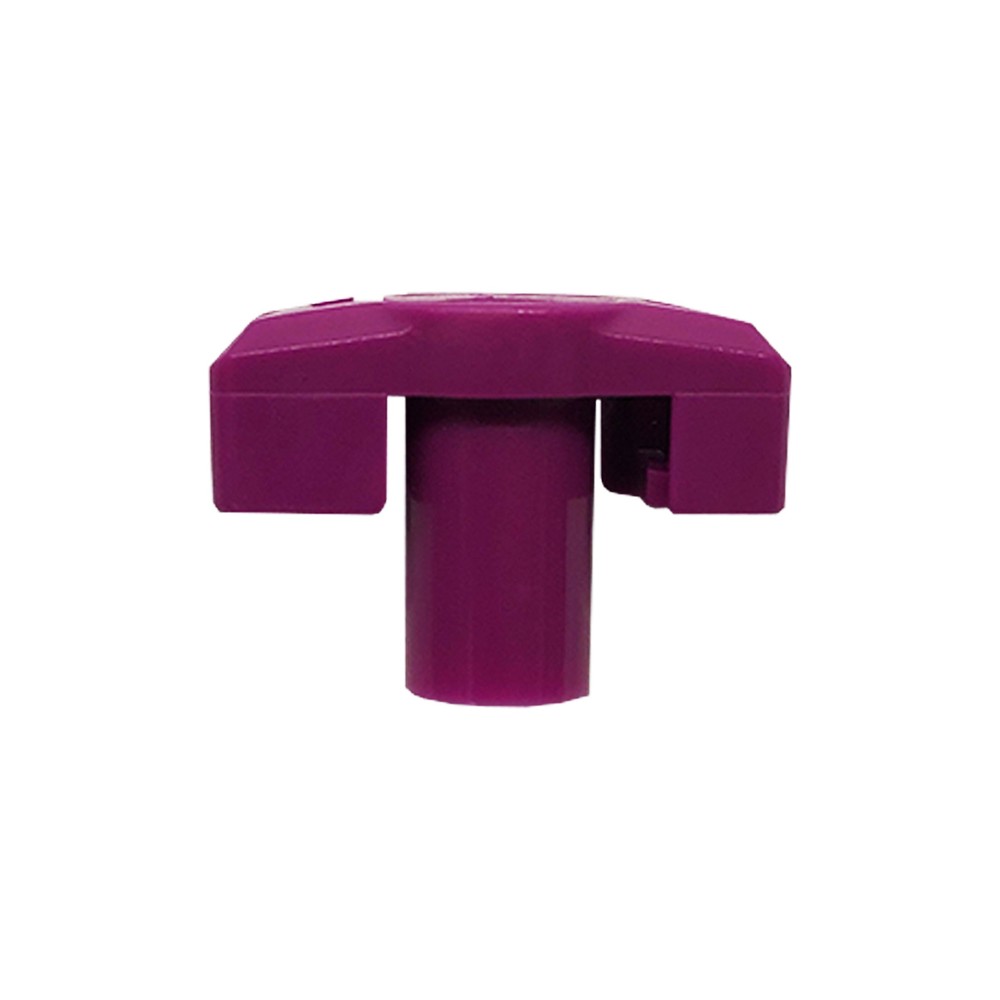

NDJ - NA582251
![582281](https://deeco-production.s3.amazonaws.com/images/NAS582281.2e16d0ba.fill-1000x1000.jpg)
NDJ - NA582281
![582301](https://deeco-production.s3.amazonaws.com/images/NAS582301.2e16d0ba.fill-1000x1000.jpg)

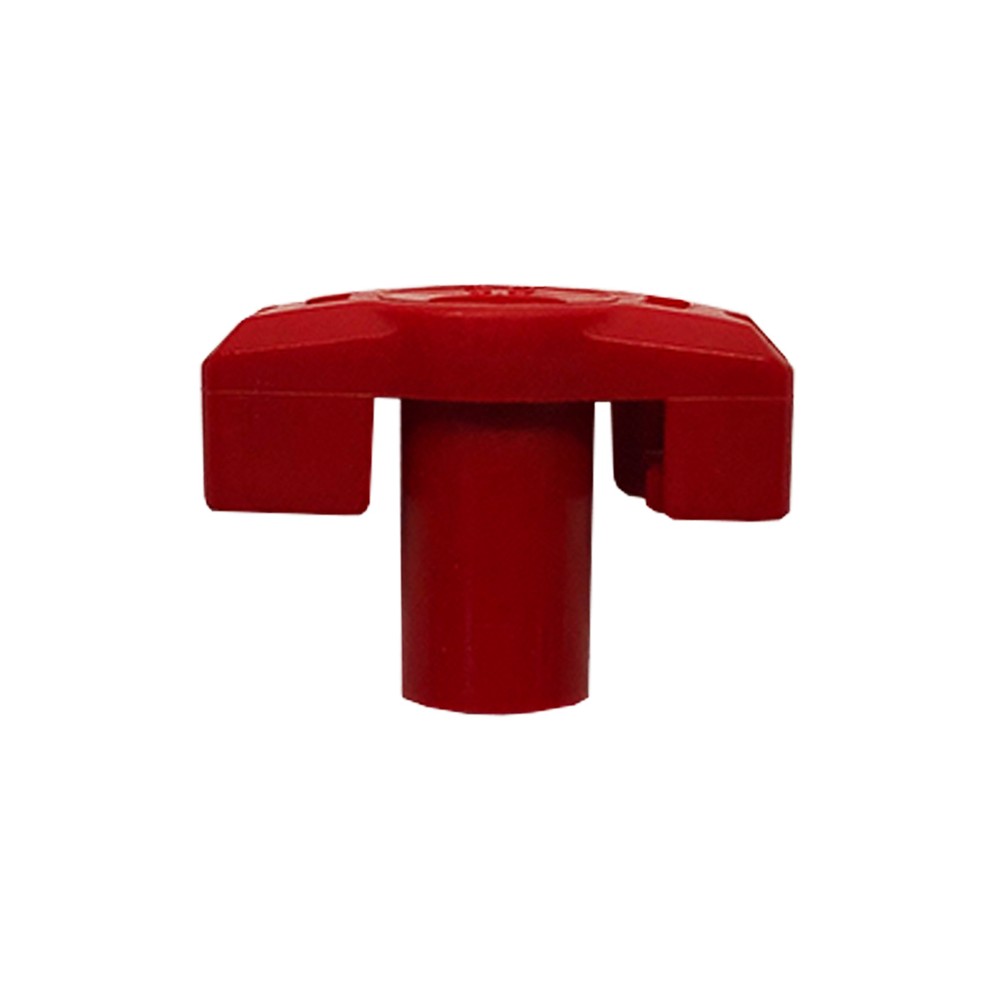

NDJ - NA582301
![582321](https://deeco-production.s3.amazonaws.com/images/NAS582321.2e16d0ba.fill-1000x1000.jpg)

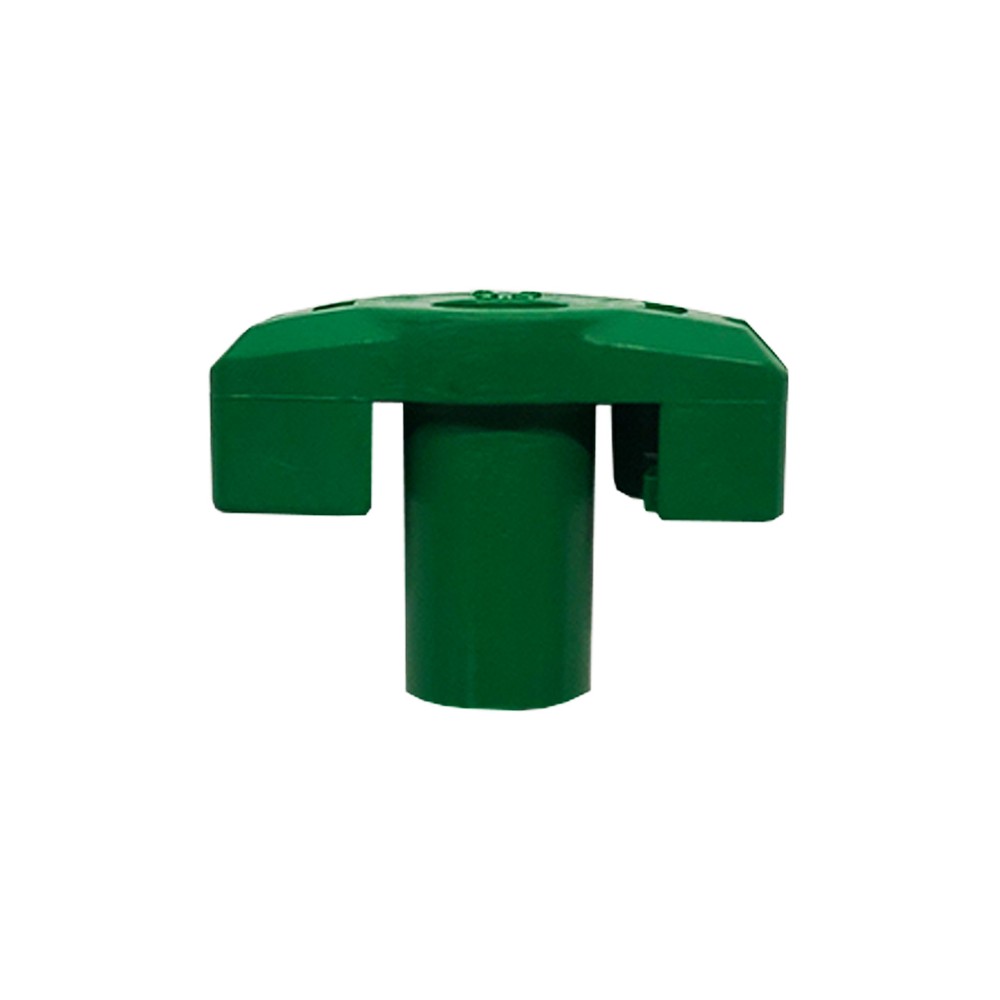

NDJ - NA582321
![582351](https://deeco-production.s3.amazonaws.com/images/NAS582351.2e16d0ba.fill-1000x1000.jpg)

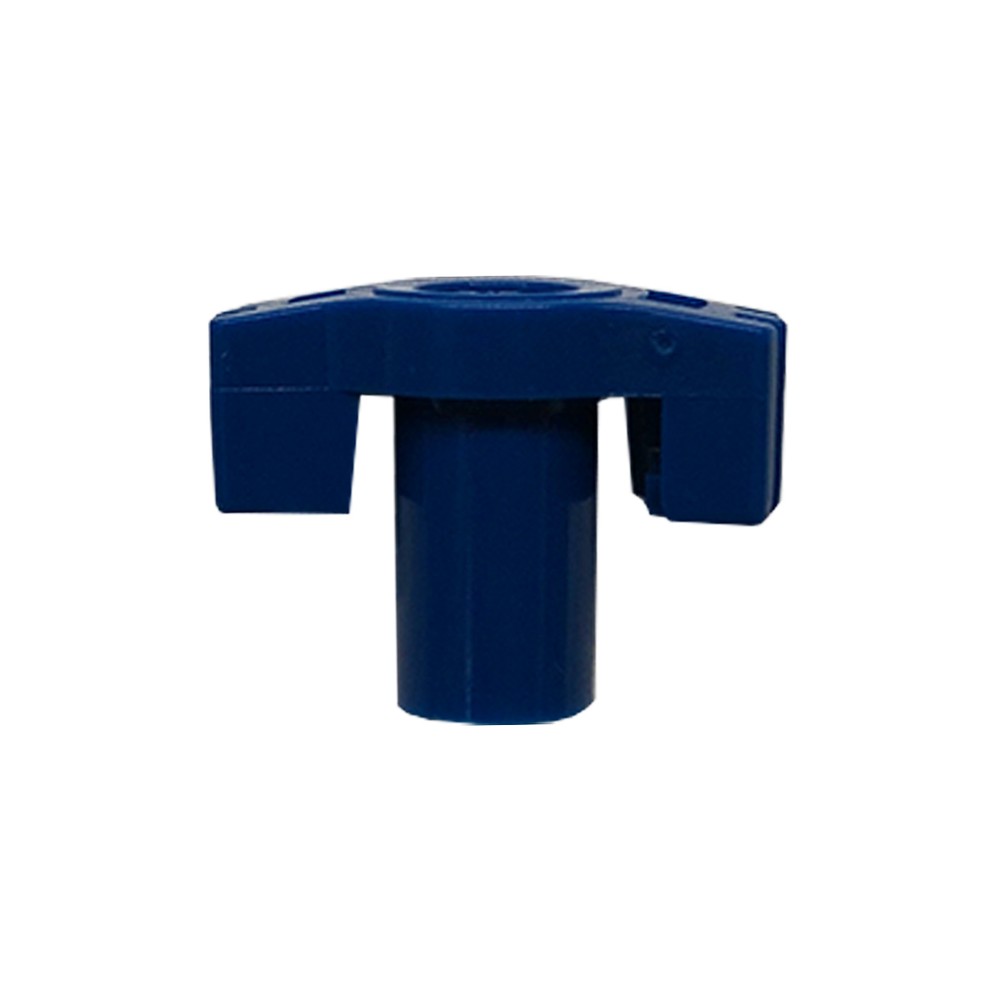

NDJ - NA582351
![582401](https://deeco-production.s3.amazonaws.com/images/NAS582401.2e16d0ba.fill-1000x1000.jpg)

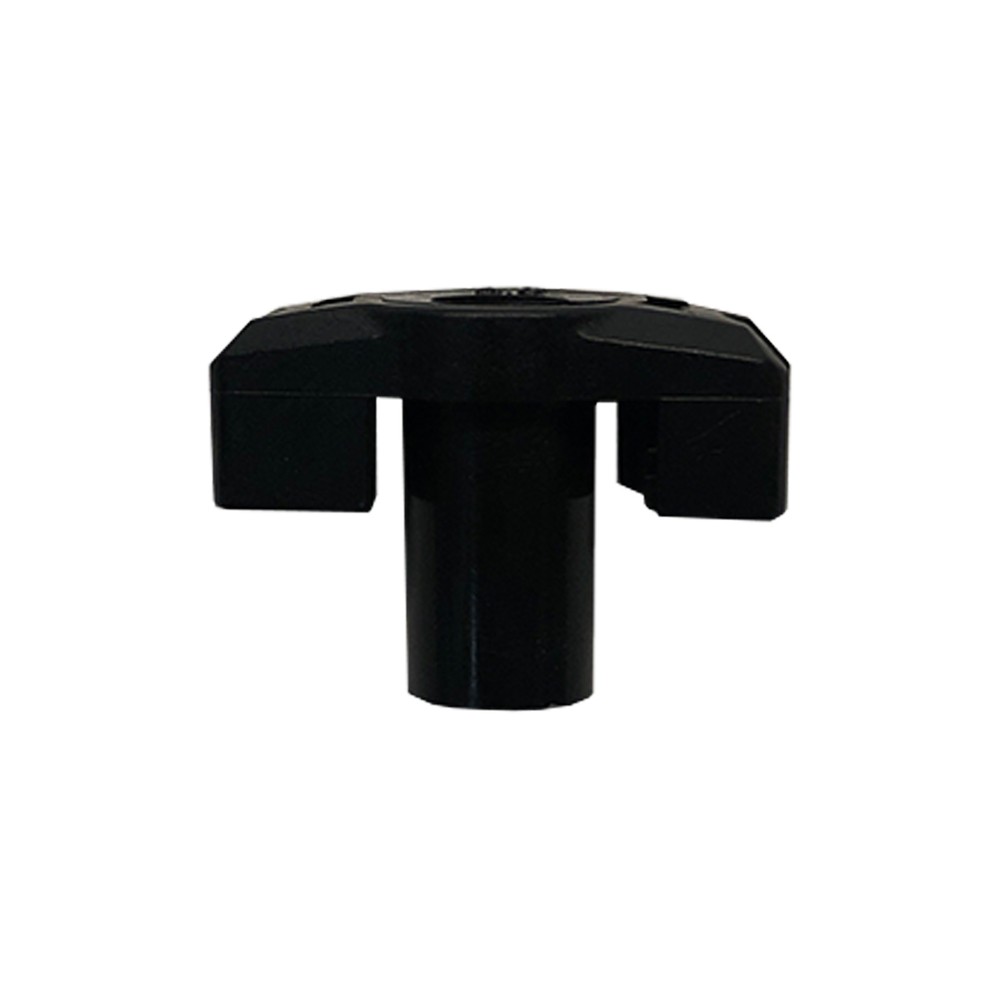

NDJ - NA582401
![WPD250-Coming Soon](https://deeco-production.s3.amazonaws.com/images/WPD250-Coming_Soon.2e16d0ba.fill-1000x1000.jpg)
NDJ - NA583181
![583251](https://deeco-production.s3.amazonaws.com/images/NAS583251.2e16d0ba.fill-1000x1000.jpg)
NDJ - NA583251
![NA582001 (1)](https://deeco-production.s3.amazonaws.com/images/NAS582001.2e16d0ba.fill-1000x1000.jpg)
NDJ - NA582001
Product Code | Size | Description | Colour |
---|---|---|---|
NA582251 | 2.5mm | 5022 Bayonet 2.5mm - Nozzle - Violet | Violet |
NA582281 | 2.8mm | 5022 Bayonet 2.8mm - Nozzle - Orange | Orange |
NA582301 | 3.0mm | 5022 Bayonet 3.0mm - Nozzle - Red | Red |
NA582321 | 3.2mm | 5022 Bayonet 3.2mm - Nozzle - Green | Green |
NA582351 | 3.5mm | 5022 Bayonet 3.5mm - Nozzle - Blue | Blue |
NA582401 | 4.0mm | 5022 Bayonet 4.0mm - Nozzle - Black | Black |
NA583181 | 1.8mm | 5022 Bayonet 1.8mm - Nozzle - Green | Green |
NA583251 | 2.5mm | 5022 Bayonet 2.5mm - Nozzle - Grey | Grey |
NA582001 | - | Back Plug B/Jet 5022SD | - |
