Product Description
1/2” Male; plastic sprinkler, full and part circle, with bayonet nozzles, adjustable diffuser pin, anti-splash hammer

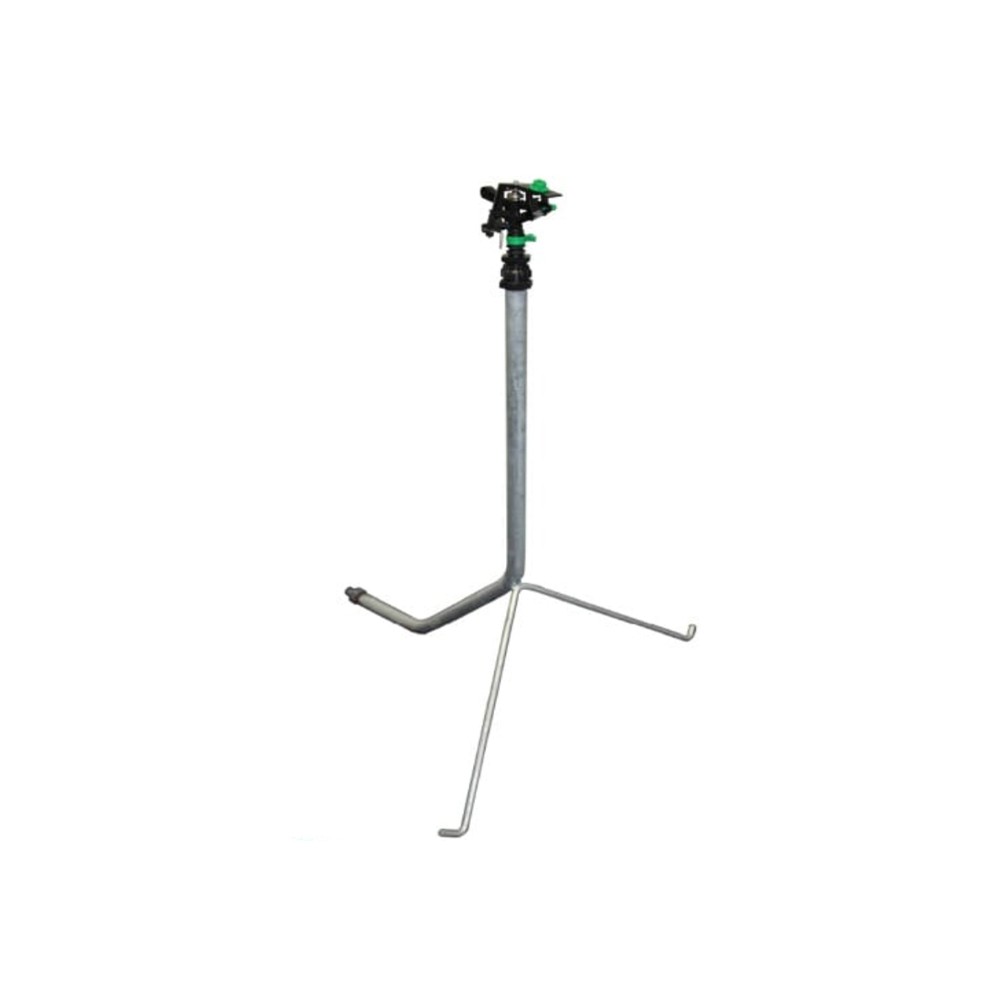

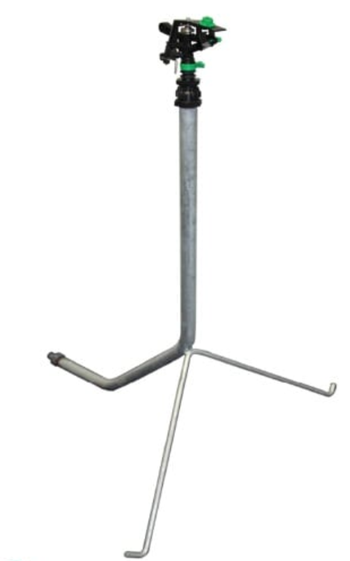

20mm Upright Stand c/w 427B GAG sprinkler

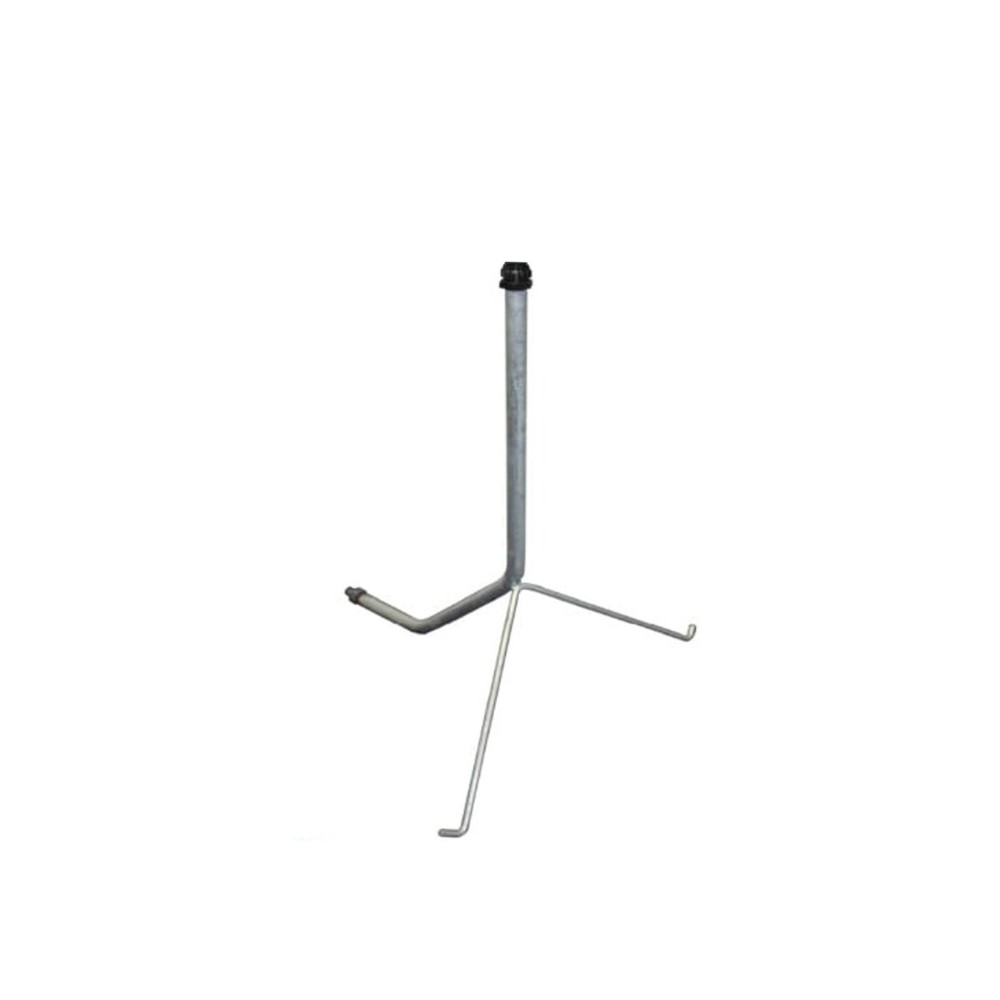

Stand
- Galvanized 20mm Upright stand
- Quick controller
Sprinkler
- 1/2" Full and part circle plastic sprinkler
- High -impact, Heavy-duty plastic materials provide resistance to corrosion, chemicals and UV radiation.
- Colour-coded bayonet nozzles for easy service
Structure and Features
- Can be used as a part circle or full circle sprinkler simply by flicking up the trip spring.
- Recommended operating pressure range of 2.0 to 4.0 bar.
- Special hammer ensures water stays within boundaries.
- Radius of throw can be adjusted by stream deflector and also by diffuser screw.
- Color-coded bayonet nozzles for easy service.
- High impact and heavy-duty plastic materials for resistance to corrosion, agricultural chemicals and UV radiation
Applications
- Specifically designed for use around field edges and headlands, also an excellent landscape irrigation sprinkler.
Technical Data

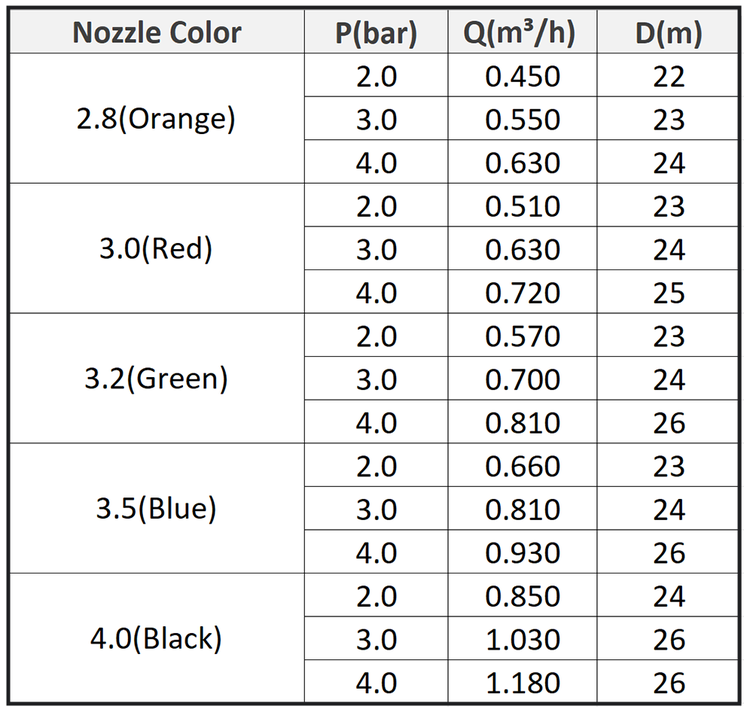

PERFORMANCE TABLE
The 427 B sprinkler uses 2.8, 3.0, 3.2, 3.5 and 4.0mm nozzles.
NDJ - 427B- Performance Table
NaanDanJain - Model 427B - Plastic Sprinkler
Product Code |
Size |
Description |
Nozzle Colour |
Q at 3.0 Bar |
D at 3.0 Bar |
Box Quantity |
5146728 |
2.8mm |
NDJ 427B-U Plastic Sprinkler - 2.8mm - Orange Box Nozzle (Red Sleeve Sprinkler) |
Orange Box |
550lph |
23.0m |
100 |

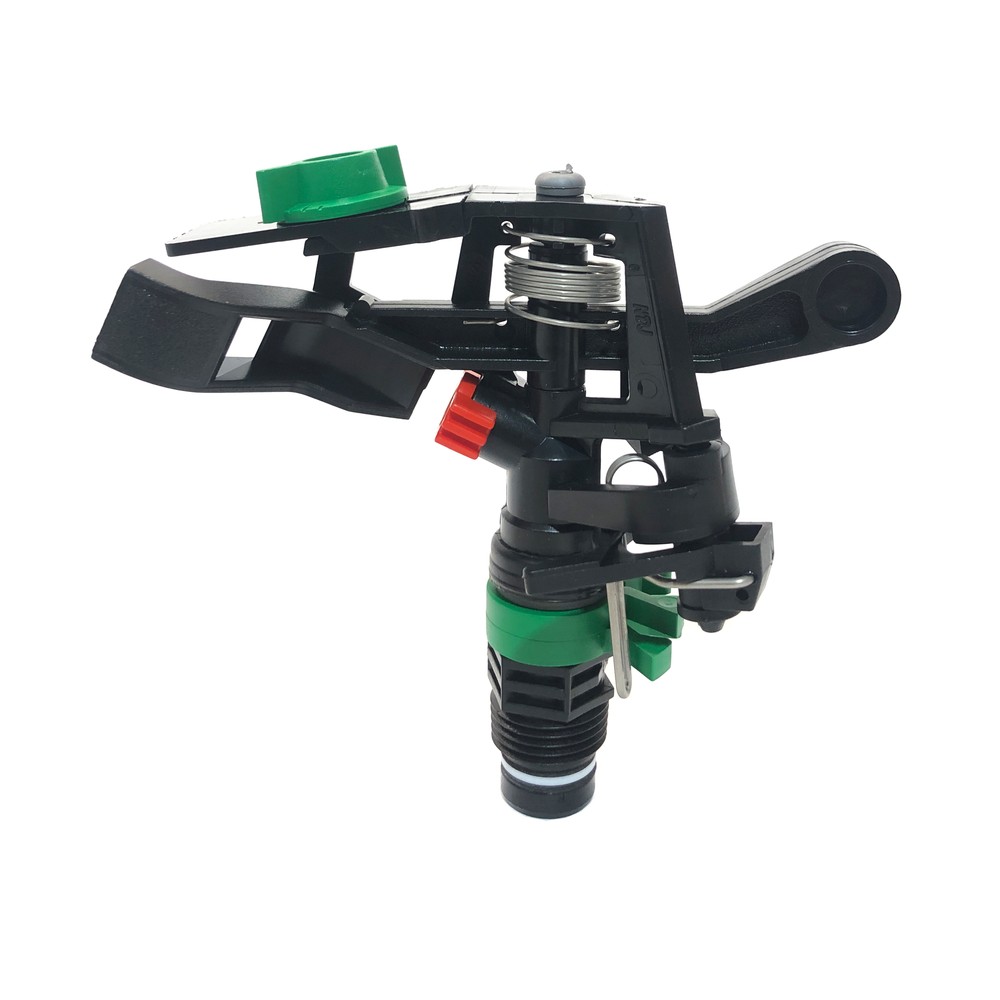

5146730 |
3.0mm |
NDJ 427B Plastic Sprinkler - 3.0mm - Red Nozzle |
Red |
630lph |
24.0m |
100 |
5146732 |
3.2mm |
NDJ 427B Plastic Sprinkler - 3.2mm - Green Nozzle |
Green |
700lph |
24.0m |
100 |
5146735 |
3.5mm |
NDJ 427B Plastic Sprinkler - 3.5mm - Blue Box Nozzle |
Blue Box |
810lph |
24.0m |
100 |
5146740 |
4.0mm |
NDJ 427B Plastic Sprinkler - 4.0mm - Black Box Nozzle |
Black Box |
1030lph |
26.0m |
100 |
Product Code |
Size |
Description |
Colour |
NA582251 |
2.5mm |
427 Bayonet 2.5mm - Nozzle - Violet |
Violet |
NA582281 |
2.8mm |
427 Bayonet 2.8mm - Nozzle - Orange |
Orange |
NA582301 |
3.0mm |
427 Bayonet 3.0mm - Nozzle - Red |
Red |
NA582321 |
3.2mm |
427 Bayonet 3.2mm - Nozzle - Green |
Green |
NA582351 |
3.5mm |
427 Bayonet 3.5mm - Nozzle - Blue |
Blue |
NA582401 |
4.0mm |
427 Bayonet 4.0mm - Nozzle - Black |
Black |
Product Code |
Size |
Description |
NAGUS427 |
20mm |
NDJ 427 Sprinkler 4.0mm Black - 20mm Upright Stand |
