Brand: | NaanDanJain |
Category: | Sprinklers, Plastic Sprinklers |
Product Description
Plastic impact sprinkler 3/4” male.
NDJ, The Benchmark for Uniformity
- SD sprinklers are based on an innovative concept and a unique hammer with SD (Super Diffuser) plate, designed for a higher level of distribution uniformity.
- SD sprinklers are designed to perform even at low pressure.
- The hydrodynamic design of the nozzle and special arc water passage facilitates a wider radius of throw, which reduces the number of sprinklers required per unit area.
- SD sprinklers are less sensitive to clogging and have higher wind resistance.

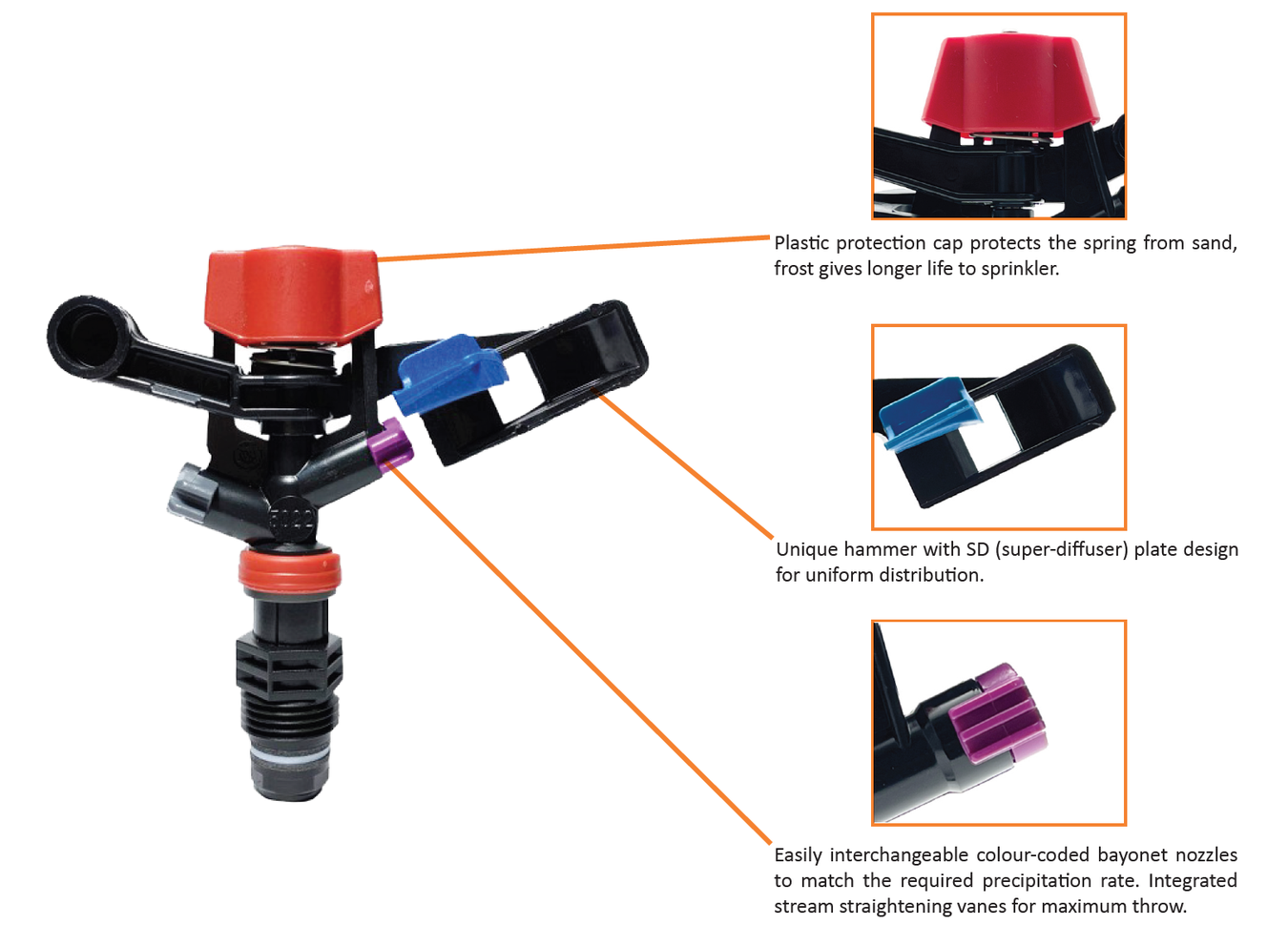

Here’s how to recognize a Genuine NaanDanJain SD Sprinkler:
![NaanDanJain - Genuine Sprinkler - Image](https://deeco-production.s3.amazonaws.com/images/NaanDanJain_-_Genuine_Sprinkler_-_Image.width-1350.png)
Structure and Features
- Unique hammer combined with SD (super diffuser) plate – designed for uniform distribution with single or dual nozzles.
- High water distribution with spacing up to 20m
- Higher resistance to wind
- Color-coded bayonet nozzle for easy service
- Integrated stream-straightening vane for maximum range
- High-impact, heavy-duty plastic materials provide resistance to corrosion, chemicals and UV radiation.
Applications
- General field use with solid-set irrigation systems
Technical Data

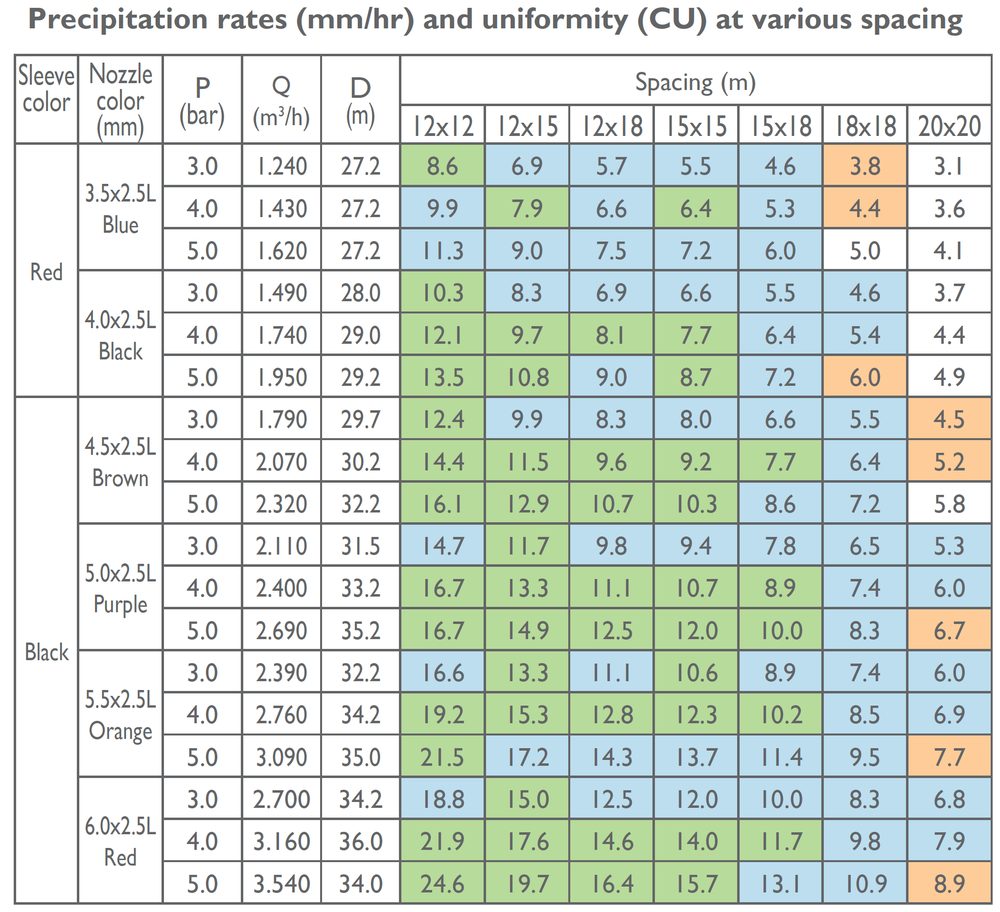

5035 SD PERFORMANCE TABLE - Dual nozzle, Blue short SD
![NDJ - 5035SD - performnace Data 1](https://deeco-production.s3.amazonaws.com/images/NDJ_-_5035SD_-_performnace_Data_1.width-1000.png)

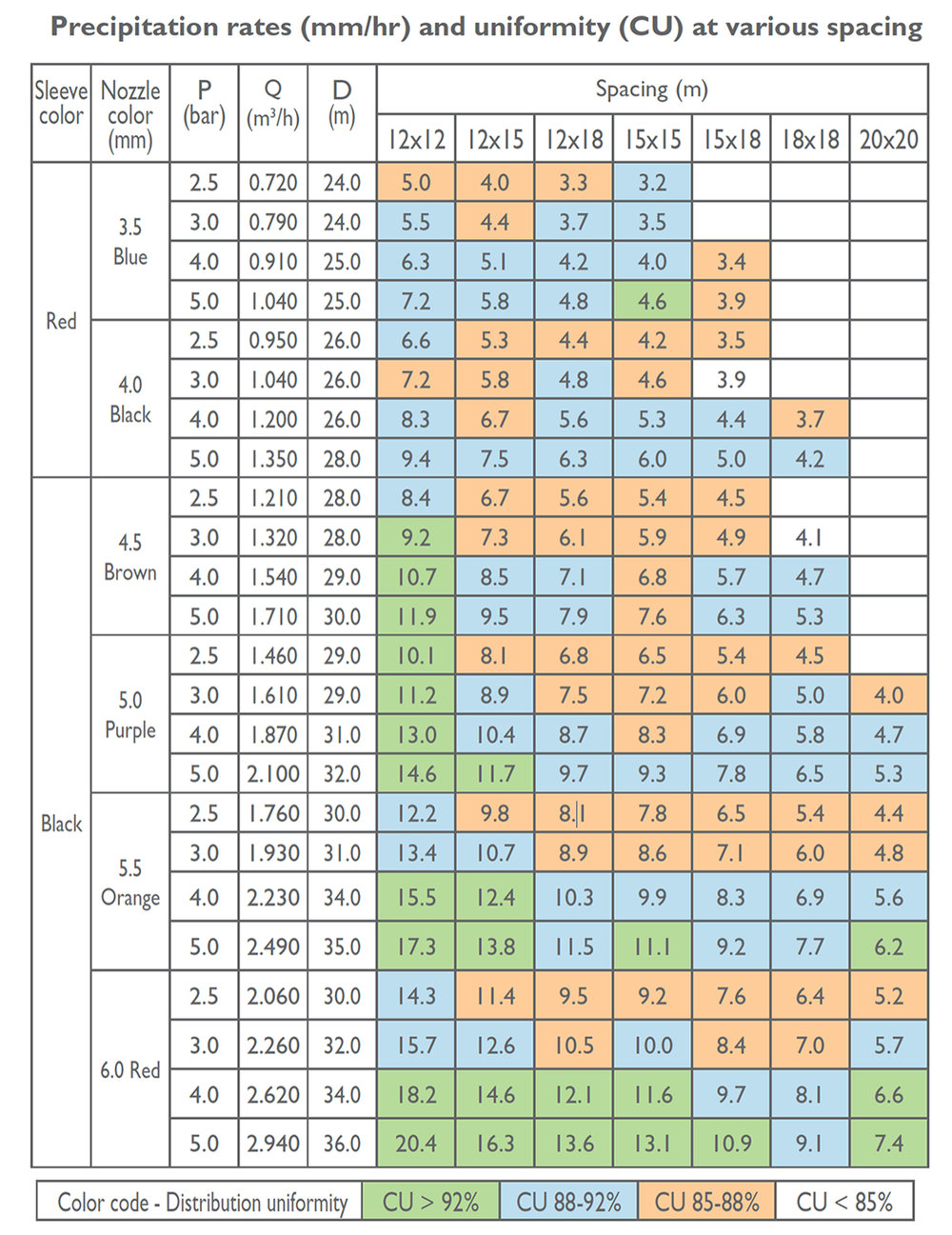

5035 SD PERFORMANCE TABLE -Singel nozzle, Black long SD
![NDJ - 5035SD - Performnace Data 2](https://deeco-production.s3.amazonaws.com/images/NDJ_-_5035SD_-_performnace_Data_2_PsWqcVb.width-1000.png)
Performance table under review
Rear nozzle color: 2.5L - grey,
Do not change nozzles from Red sleeve group to Black sleeve group or vice-versa
* Performance table prepared under laboratory conditions
* For windy conditions use closer spacing
For single nozzle or dual nozzle sprinkler, be sure using the recommended SD unit (appears above performance table)

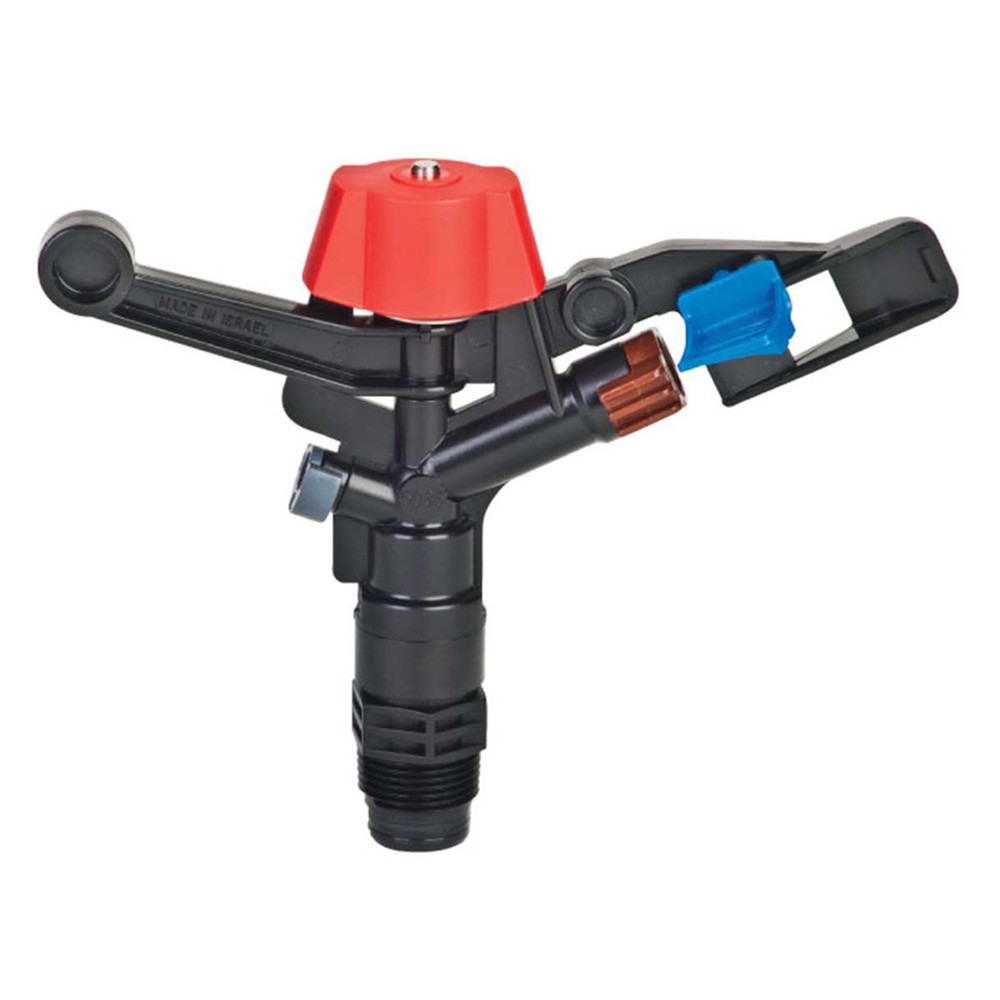

NaanDanJain - Model 5035 SD - Plastic Sprinkler
3/4” Male, heavy duty plastic impulse sprinkler with super diffuser (SD) hammer, bayonet nozzles, full circle.
![WPD250-Coming Soon](https://deeco-production.s3.amazonaws.com/images/WPD250-Coming_Soon.2e16d0ba.fill-1000x1000.jpg)
![WPD250-Coming Soon](https://deeco-production.s3.amazonaws.com/images/WPD250-Coming_Soon.2e16d0ba.fill-1000x1000.jpg)
![Deeco - NaanDanJain - 5035 SD - Product Image](https://deeco-production.s3.amazonaws.com/images/Deeco_-_NDJ_-_5035-SD_-_Product_.2e16d0ba.fill-1000x1000.jpg)
NDJ - 51535041

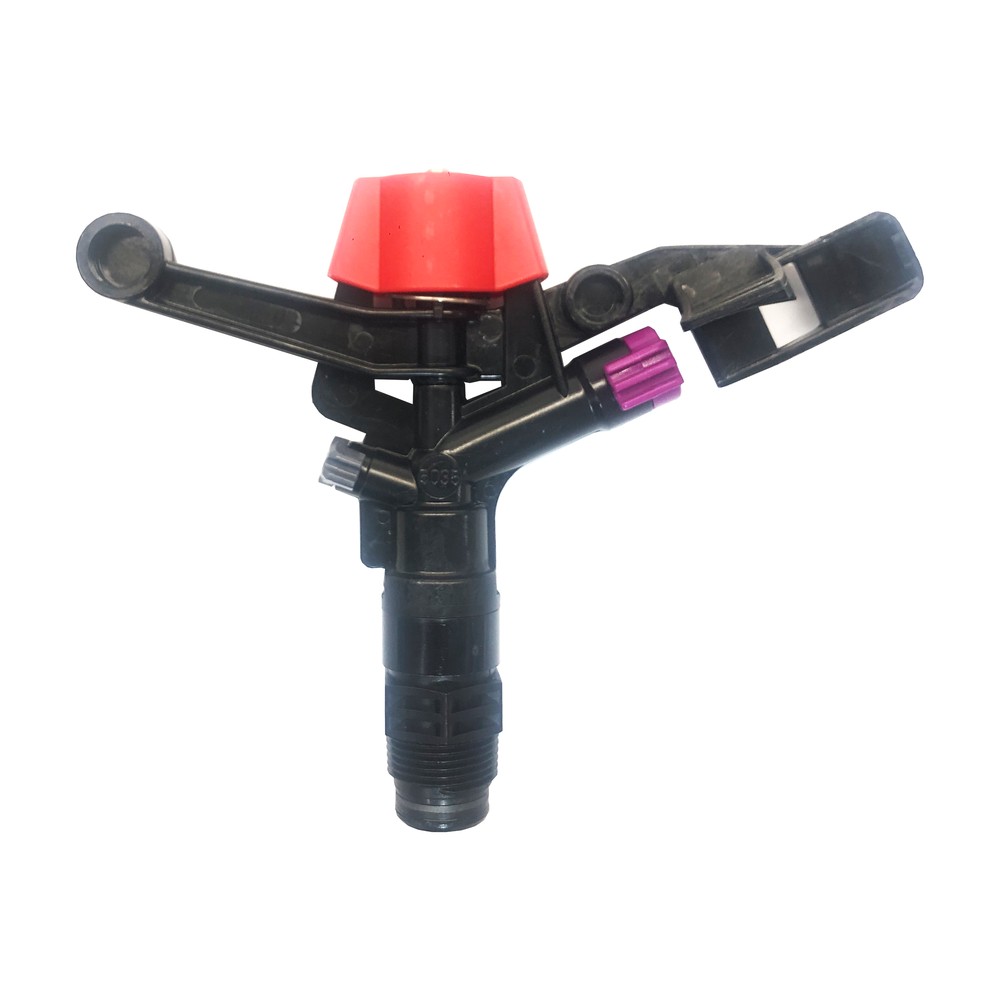

![51535051](https://deeco-production.s3.amazonaws.com/images/51535051.2e16d0ba.fill-1000x1000.jpg)
NDJ - 51535051
Product Code | Size | Description | Nozzle | Box Quantity |
---|---|---|---|---|
51535021 | 3.5mm | 5035SD-U Sprinkler c/w 3.5mm Nozzle* (Black SD)** | Blue | 45 |
51535031 | 4.0mm | 5035SD-U Sprinkler c/w 4.0mm Nozzle* (Black SD)** | Black | 45 |
51535041 | 4.5mm | 5035SD-U Sprinkler c/w 4.5mm Nozzle* (Black SD)** | Brown | 45 |
51535051 | 5.0mm | 5035SD-U Sprinkler c/w 5.0mm Nozzle* (Black SD)** | Purple | 45 |
*With high energy hammer and Red Sleeve; do not interchange larger nozzle
**Do not interchange nozzle with dual jet versions

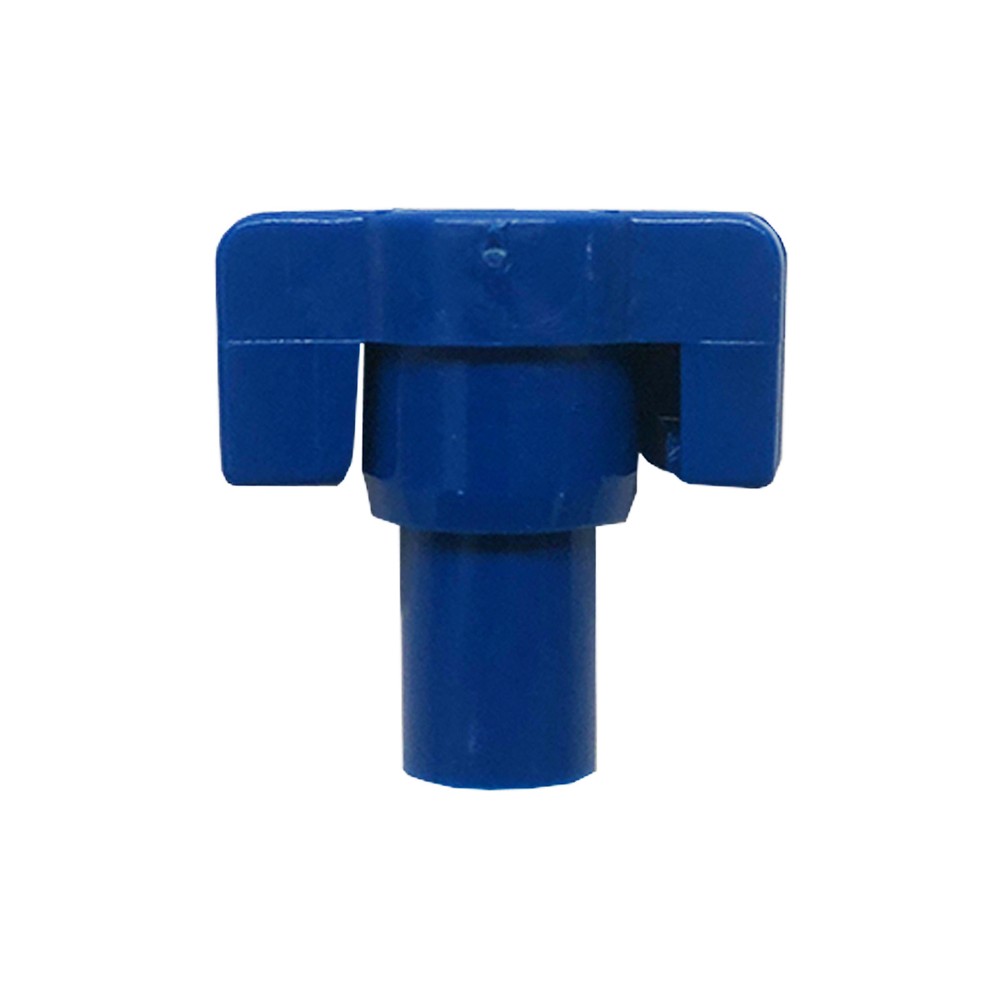

![585351](https://deeco-production.s3.amazonaws.com/images/585351.2e16d0ba.fill-1000x1000.jpg)
NDJ - 585351

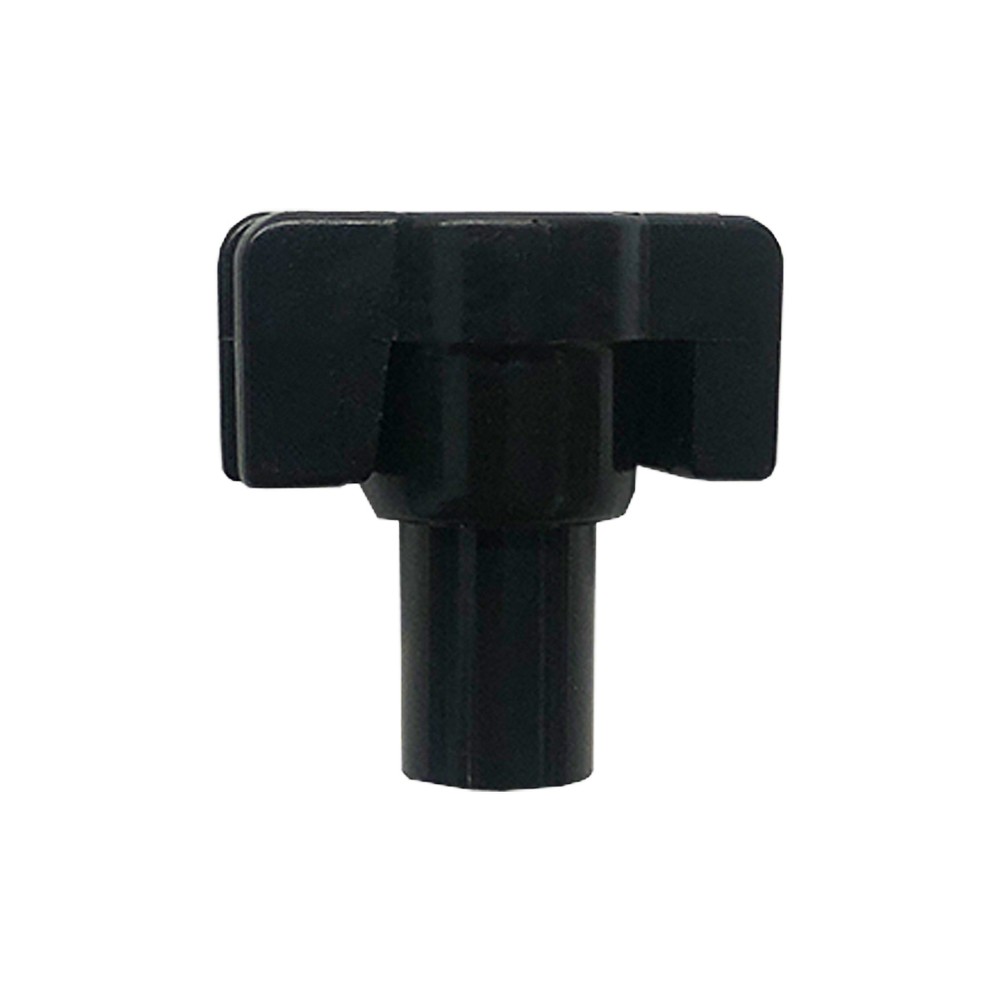

![585401](https://deeco-production.s3.amazonaws.com/images/585401.2e16d0ba.fill-1000x1000.jpg)
NDJ - 585401

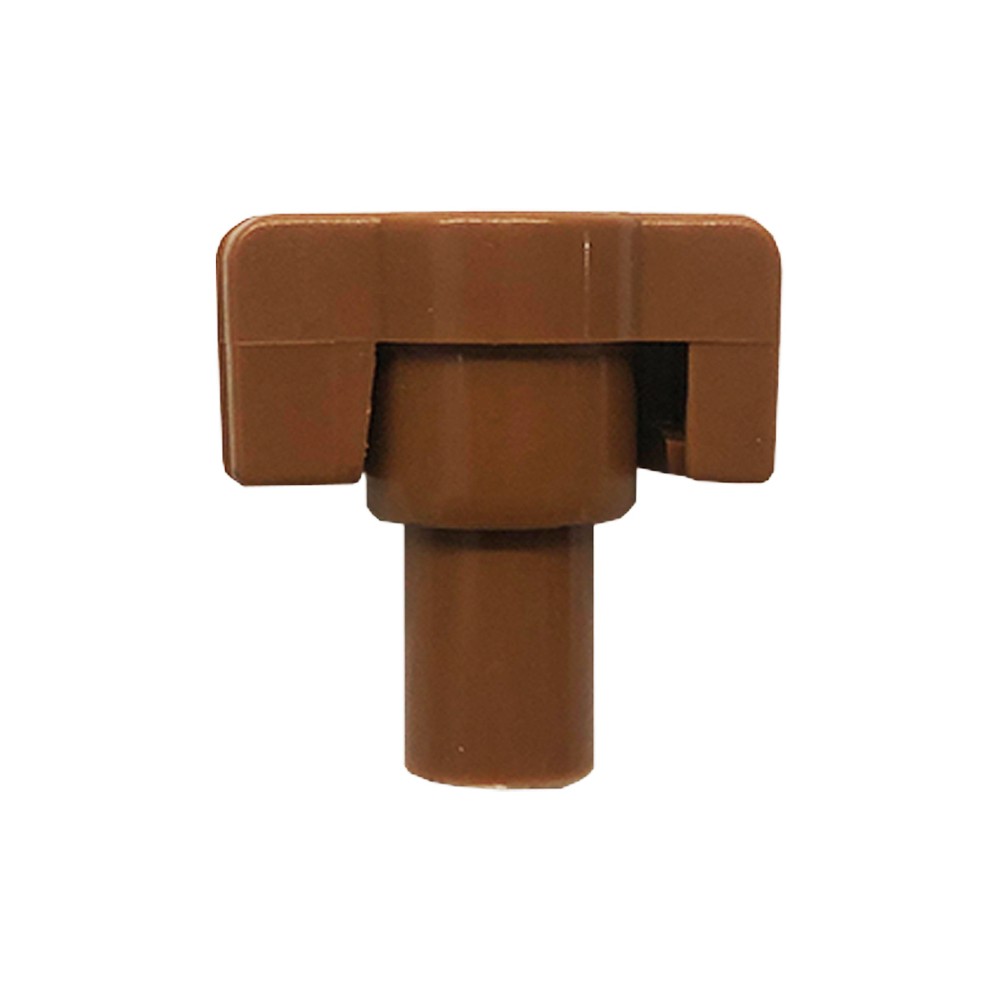

![585451](https://deeco-production.s3.amazonaws.com/images/585451.2e16d0ba.fill-1000x1000.jpg)
NDJ - NA585451
![585501](https://deeco-production.s3.amazonaws.com/images/585501.2e16d0ba.fill-1000x1000.jpg)

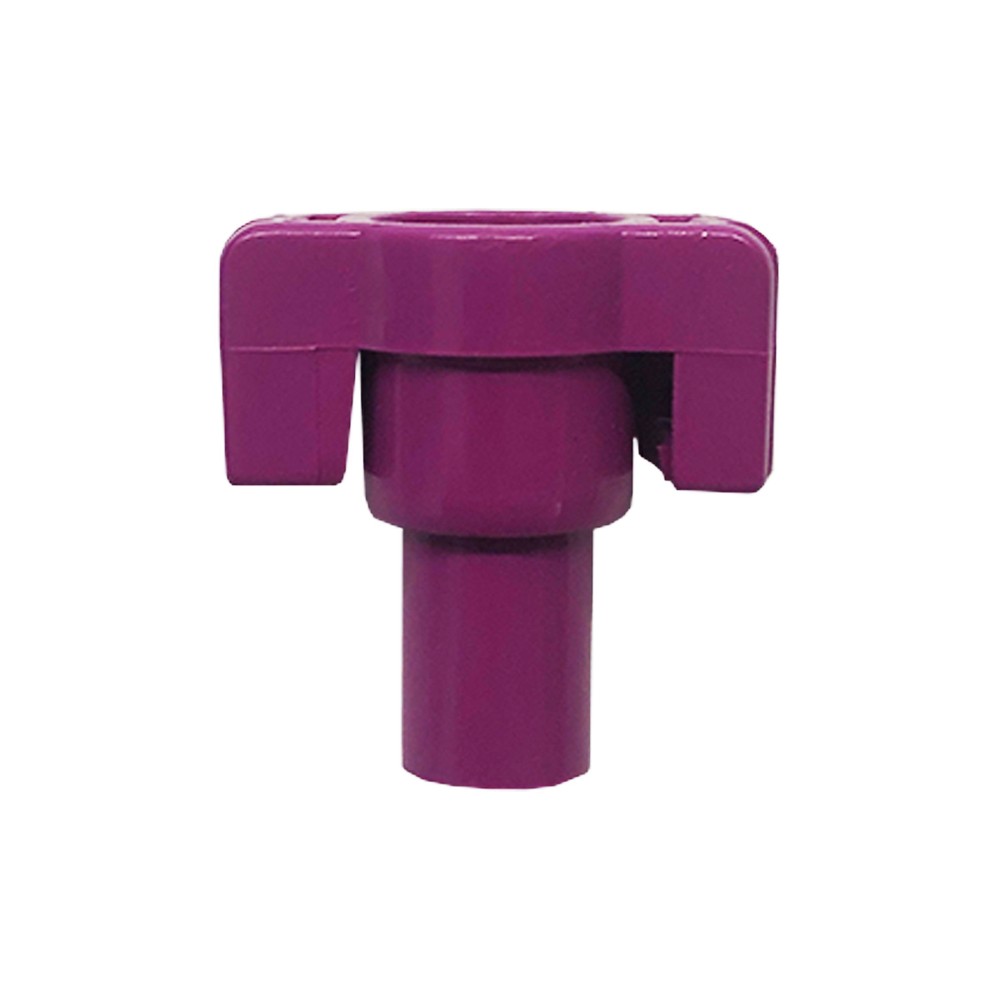

NDJ - NA585501
![WPD250-Coming Soon](https://deeco-production.s3.amazonaws.com/images/WPD250-Coming_Soon.2e16d0ba.fill-1000x1000.jpg)
NDJ - NA585551
![585601](https://deeco-production.s3.amazonaws.com/images/585601.2e16d0ba.fill-1000x1000.jpg)

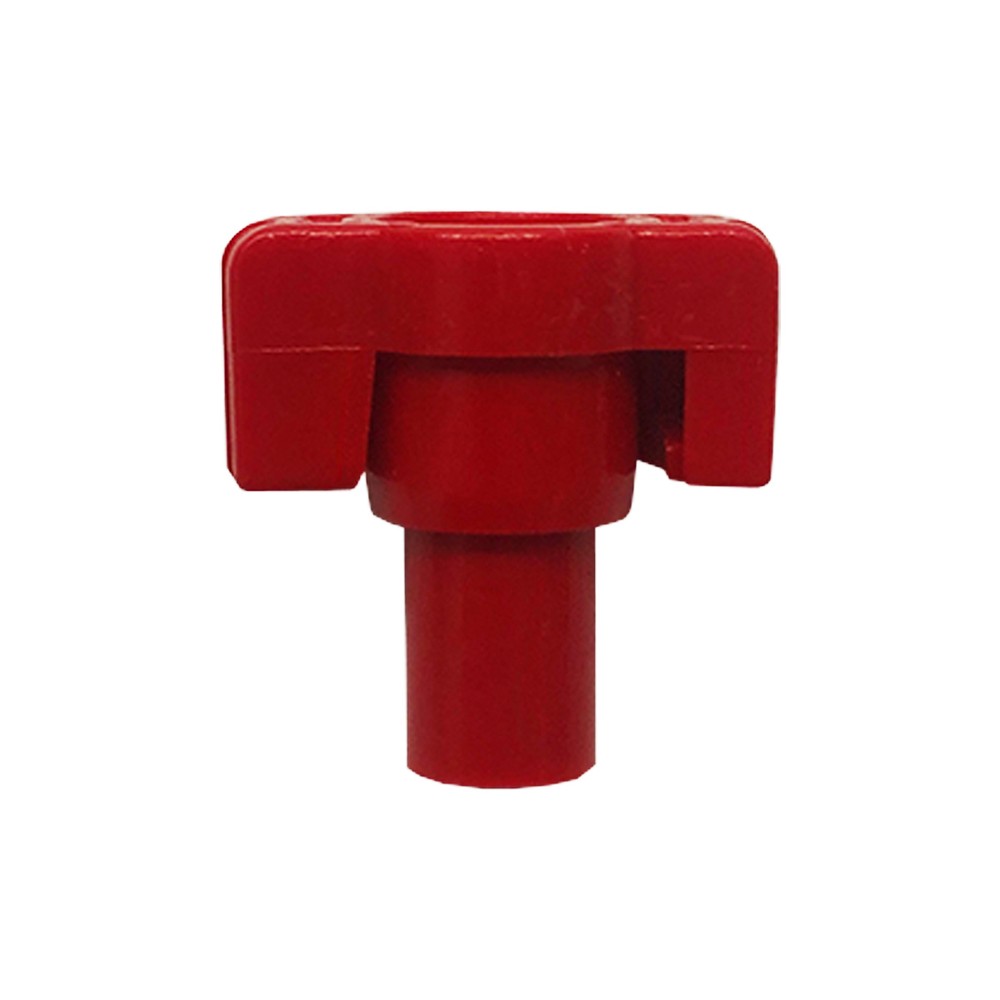

NDJ - NA585601

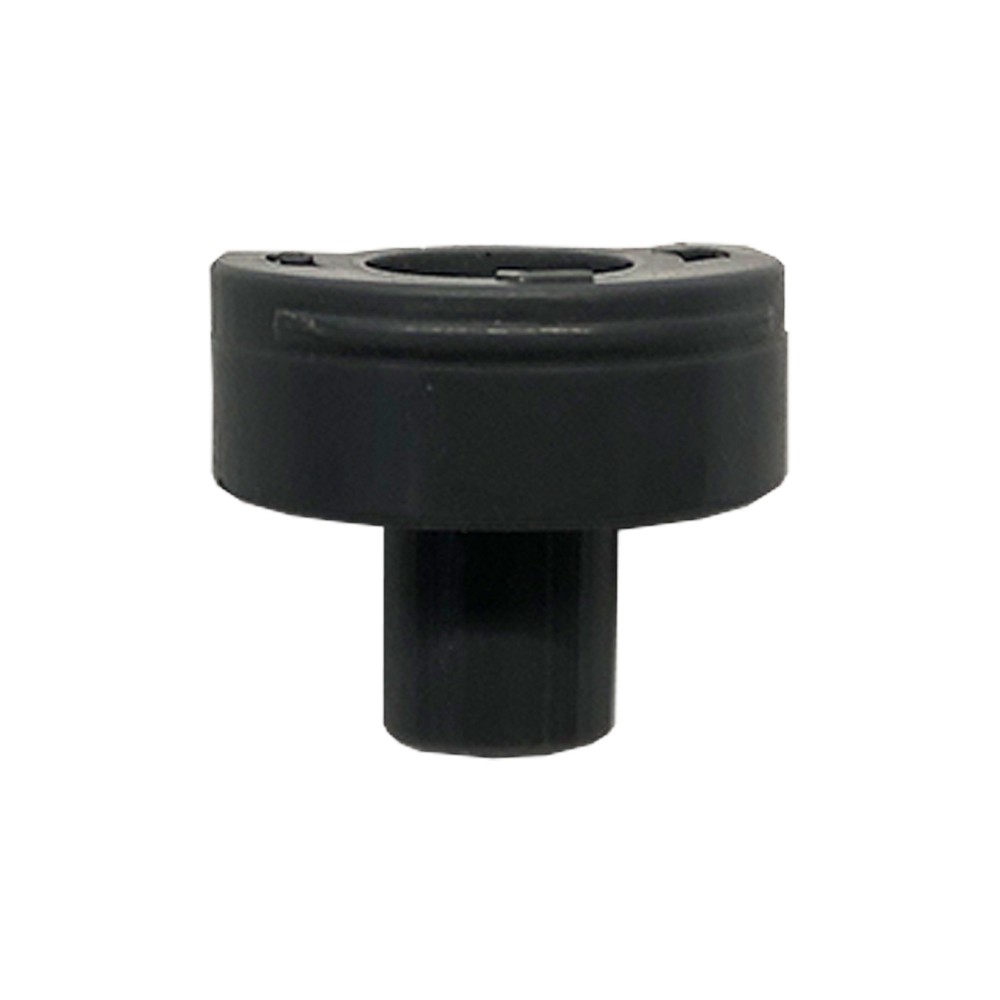

![583251](https://deeco-production.s3.amazonaws.com/images/NAS583251.2e16d0ba.fill-1000x1000.jpg)
NDJ - NA583251
![583321](https://deeco-production.s3.amazonaws.com/images/583321_If3m2Rs.2e16d0ba.fill-1000x1000.jpg)

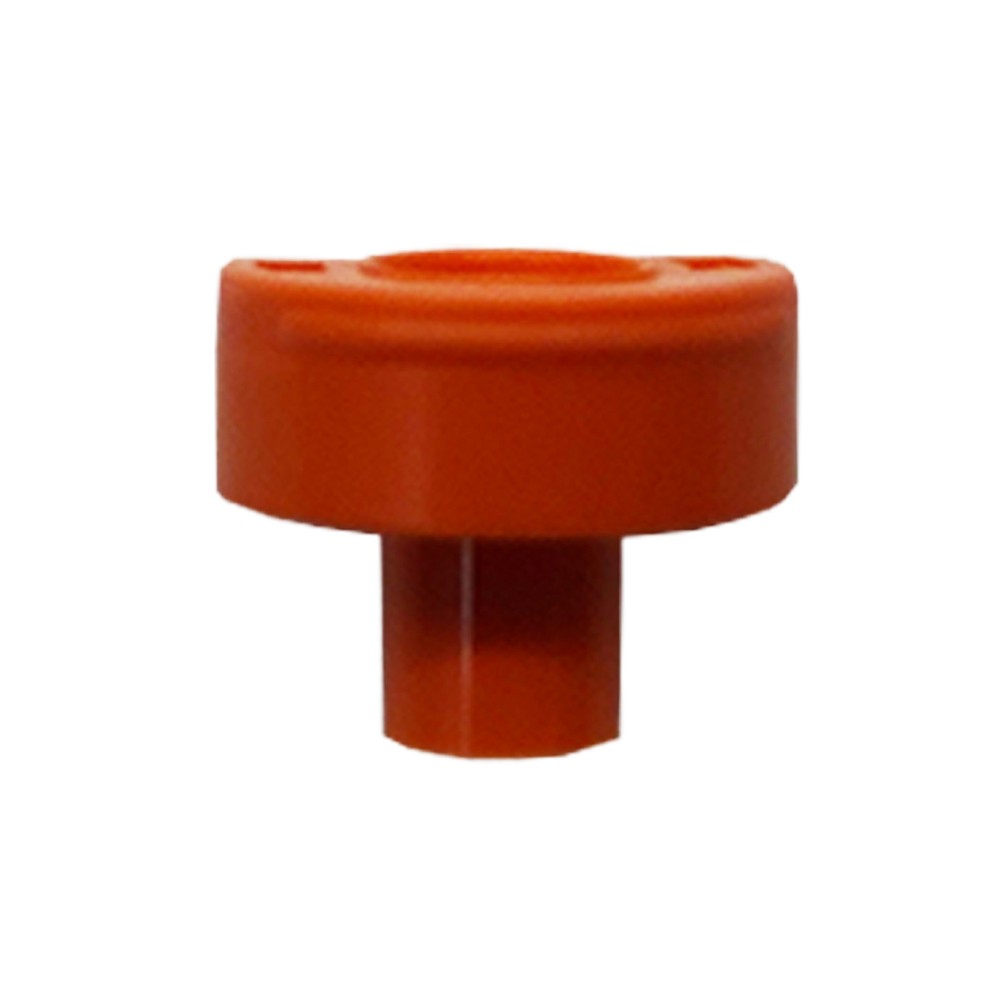

NDJ - NA583321
![WPD250-Coming Soon](https://deeco-production.s3.amazonaws.com/images/WPD250-Coming_Soon.2e16d0ba.fill-1000x1000.jpg)
NDJ - NA5196440
Product Code | Size | Description | Nozzle |
---|---|---|---|
NA585351 | 3.5mm | 5035SD Bayonet Nozzle | Blue |
NA585401 | 4.0mm | 5035SD Bayonet Nozzle | Black |
NA585451 | 4.5mm | 5035SD Bayonet Nozzle | Brown |
NA585501 | 5.0mm | 5035SD Bayonet Nozzle | Purple |
NA585551 | 5.5mm | 5035SD Bayonet Nozzle | Orange |
NA585601 | 6.0mm | 5035SD Bayonet Nozzle | Red |
NA583251 | 2.5mm | 5035SD Bayonet Back Nozzle | Grey |
NA583321 | 3.2mm | 5035SD Bayonet Back Nozzle | Slotted Orange |
NA5196440 | - | Adaptor Bush 20-25mm to make 5035G Sprinkler | - |
