Brand: | Zurn Wilkins |
Category: | Backflow Prevention, Backflow Accessories |
Product Description
The Backflow Test Kit suits all brands of RPZD and DCV making it ideal for field testing. This kit is lightweight and comes in a rugged molded plastic carry case with easy-connect hoses.
![BFTK-image](https://deeco-production.s3.amazonaws.com/images/BFTK-image.2e16d0ba.fill-1000x1000.jpg)

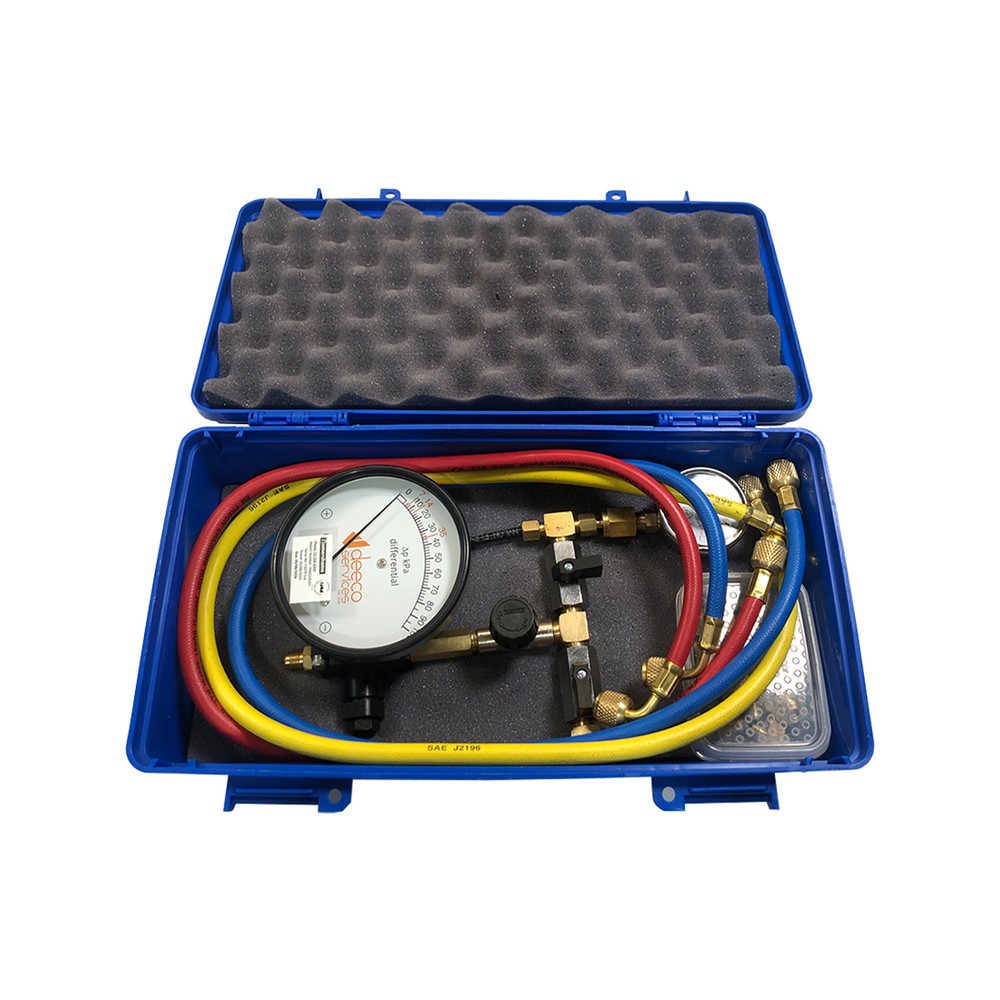

Zurn Wilkins - BFTK
![BFTK-image 2](https://deeco-production.s3.amazonaws.com/images/BFTK-image_2.2e16d0ba.fill-1000x1000.jpg)

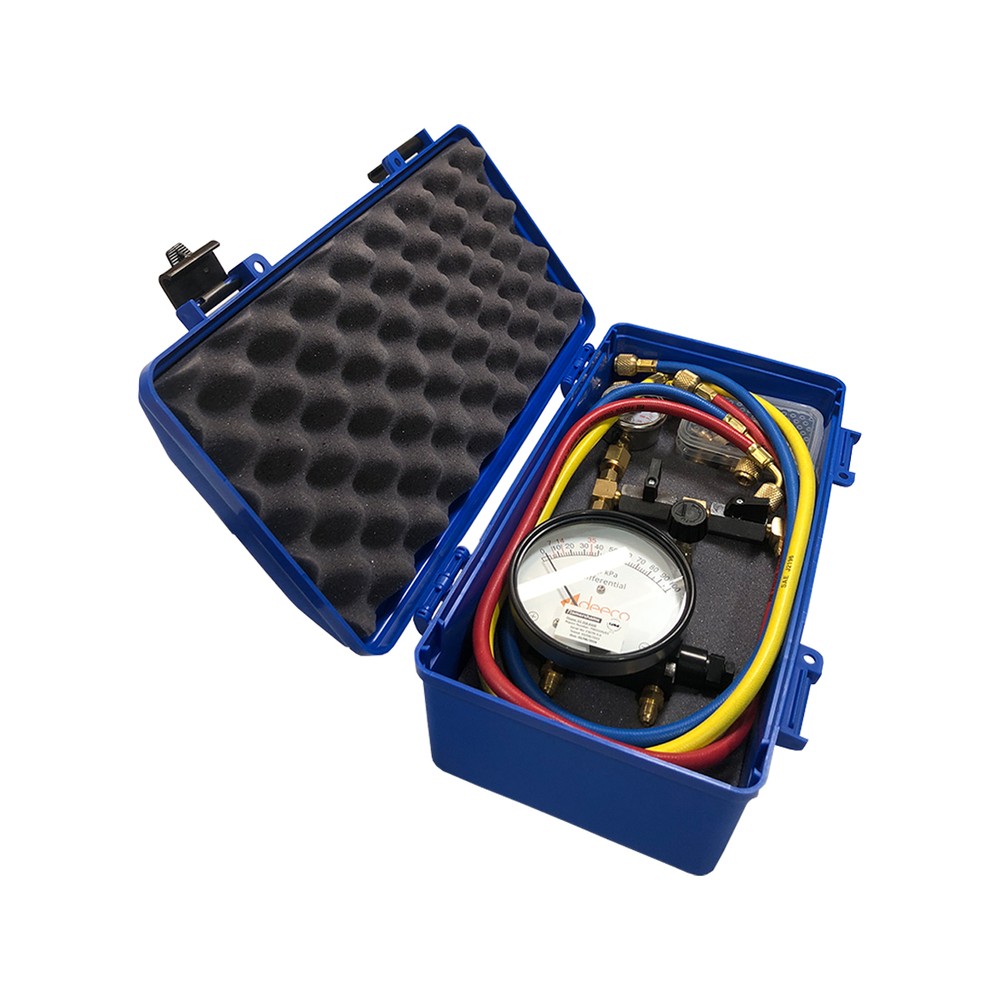

Zurn Wilkins - BFTK
![BFTK2 (1)](https://deeco-production.s3.amazonaws.com/images/BFTK2_1.2e16d0ba.fill-1000x1000.jpg)

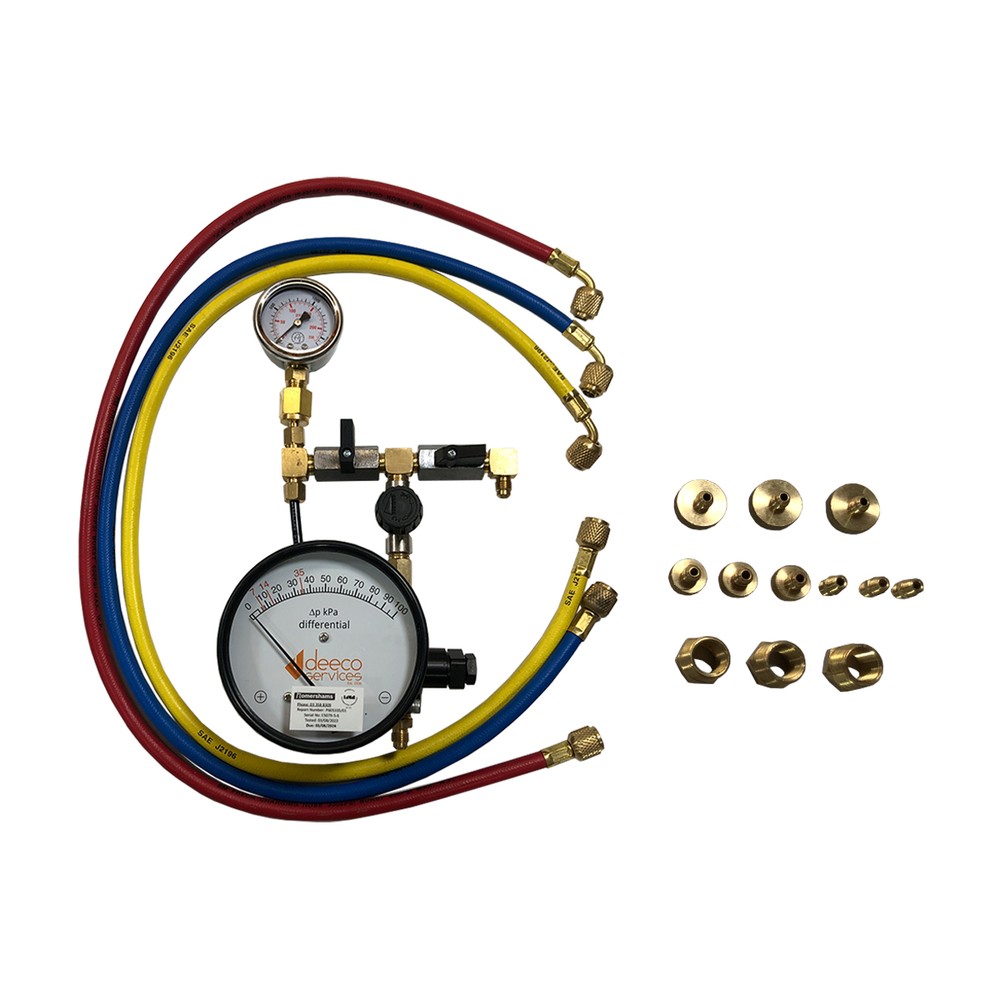

Zurn Wilkins - BFTK
Features and Benefits
- Designed for field testing
- Suits all brands of:
- Reduced Pressure Zone device Assemblies
- Double Check Valve assemblies
- Pressure Vacuum Breaker assemblies
- Easy connect hoses
- Rugged molded plastic carry case
- Supplied with calibration certificate
Note: It is recommended that the gauge is rechecked for proper calibration annually. LWG Zurn is not liable for shifts in Calibration other than those caused by defects.
Technical Data
Range: 0-100 KPa
Accuracy: +-2%
Dial Size: 115mm diameter
Max. Working Pressure: 2000Kpa
Weight: 3.3Kg
Max. Temperature: 82°C
Body Material: Aluminium
Case and Dial Material: Stainless Steel and Aluminium
Carry Case: Foam Insulated, Heavy Duty Plastic
Hoses: 900mm (Length), Color-coded
End Fittings: Made for easy finger-tight connections
Adaptor Fittings: Supplied in resealable containers
Testing Procedure - Zurn Wilkins - Backflow Test Kit - 350LXL (20-25mm)
Testing Procedure - Zurn Wilkins - Backflow Test Kit - 350LXL (32-50mm)
Testing Procedure - Zurn Wilkins - Backflow Test Kit - 350L (65-250mm)
Testing Procedure - Zurn Wilkins - Backflow Test Kit - 375LXL (20-25mm)
Testing Procedure - Zurn Wilkins - Backflow Test Kit - 375LXL (32-50mm)
Testing Procedure - Zurn Wilkins - Backflow Test Kit - 375L (65-250mm)
Backflow Test Kit
![BFTK-How to Order](https://deeco-production.s3.amazonaws.com/images/BFTK-How_to_Order.2e16d0ba.fill-1000x1000.png)

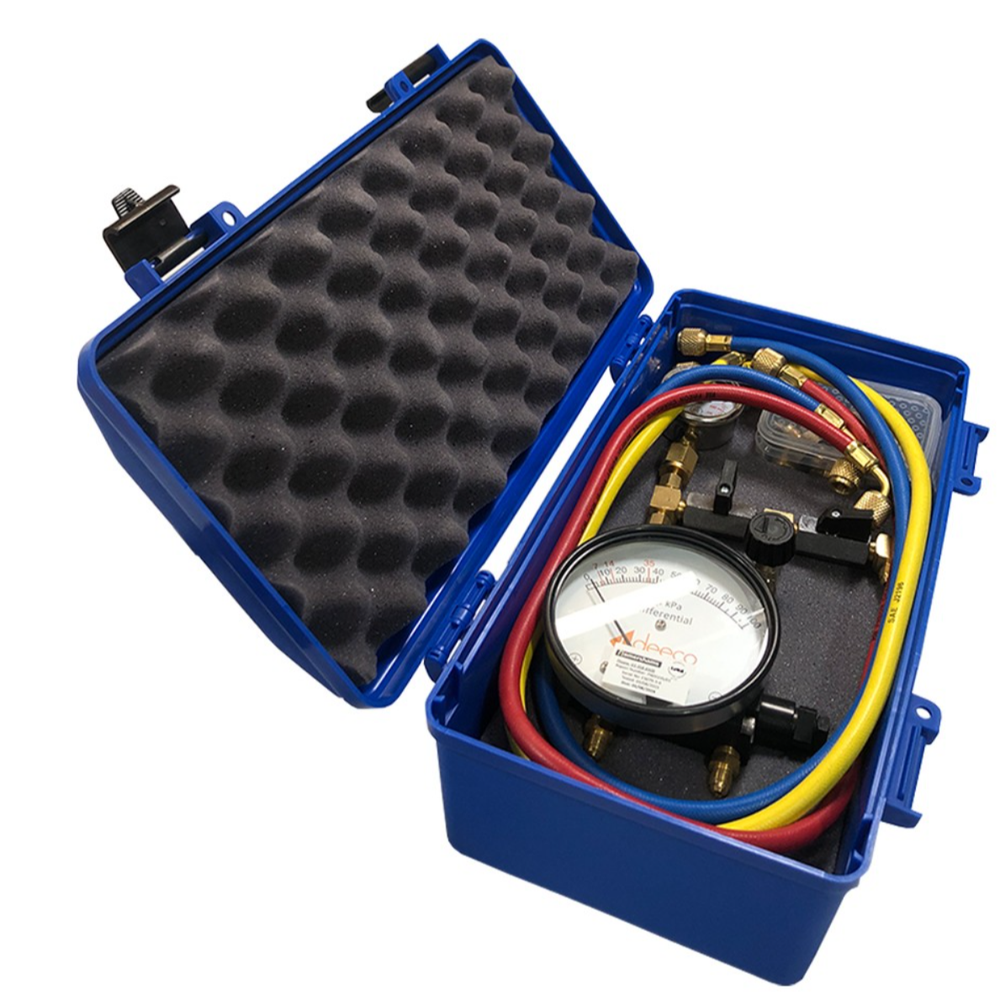

Zurn Wilkins - BFTK
Product Code | Size | Description |
---|---|---|
BFTK | ALL | Wilkins Backflow test kit with quick connect hoses in carry case |
Backflow Test Kit - Accessories
![18-860 (1)](https://deeco-production.s3.amazonaws.com/images/18-860_1.2e16d0ba.fill-1000x1000.jpg)

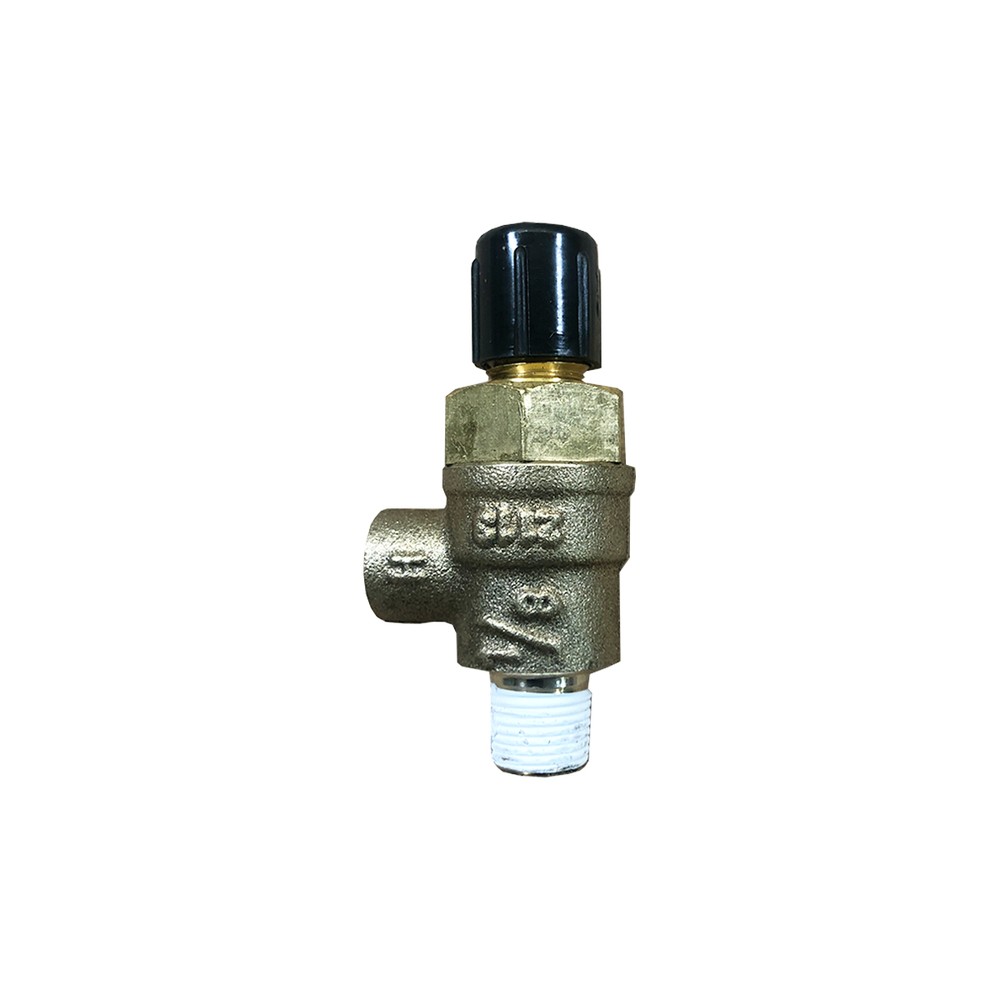

Zurn Wilkins - 18-860
![14-860 (1)](https://deeco-production.s3.amazonaws.com/images/14-860_1.2e16d0ba.fill-1000x1000.jpg)

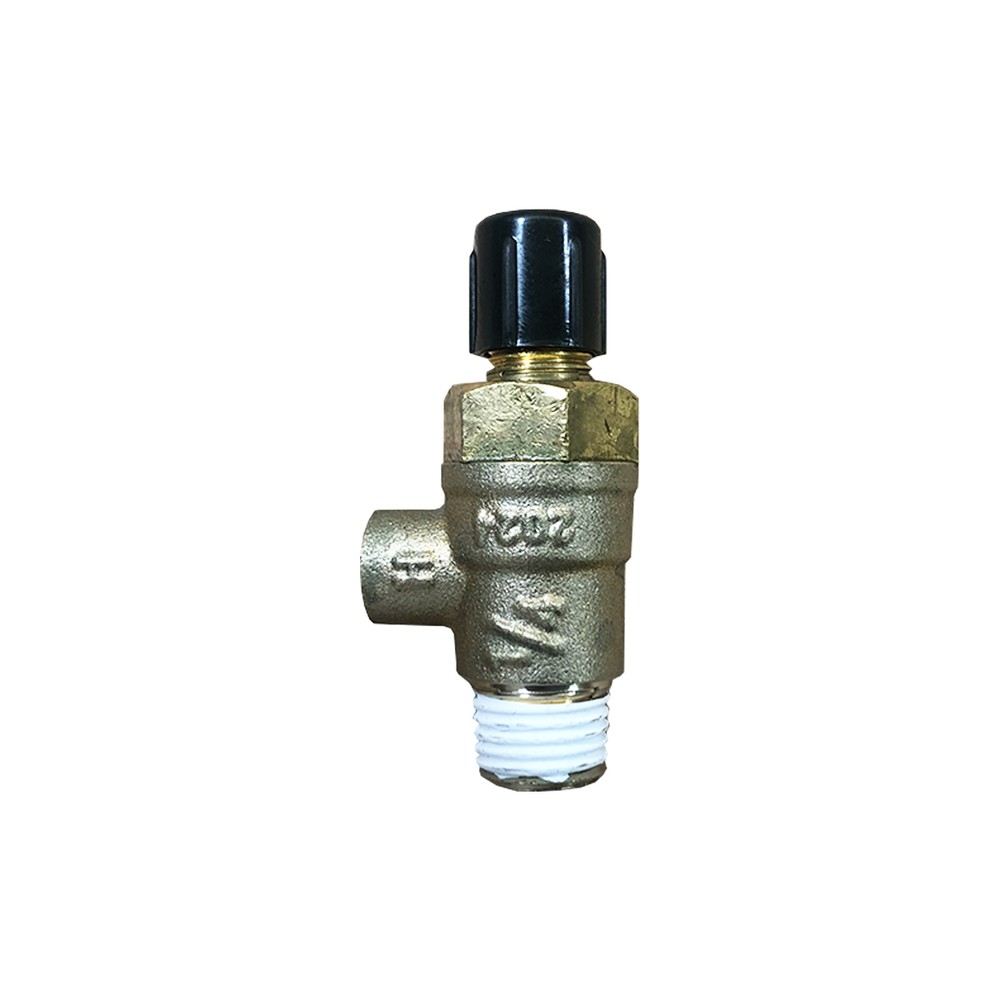

Zurn Wilkins - 14-860
Product Code | Size | Description |
---|---|---|
18-860 | 1/8" x 1/4" | Wilkins Test Cock BFP |
14-860 | 1/4" x 1/4" | Wilkins Test Cock BFP |
![BFTK](https://deeco-production.s3.amazonaws.com/images/BFTK.2e16d0ba.fill-1000x1000.jpg)

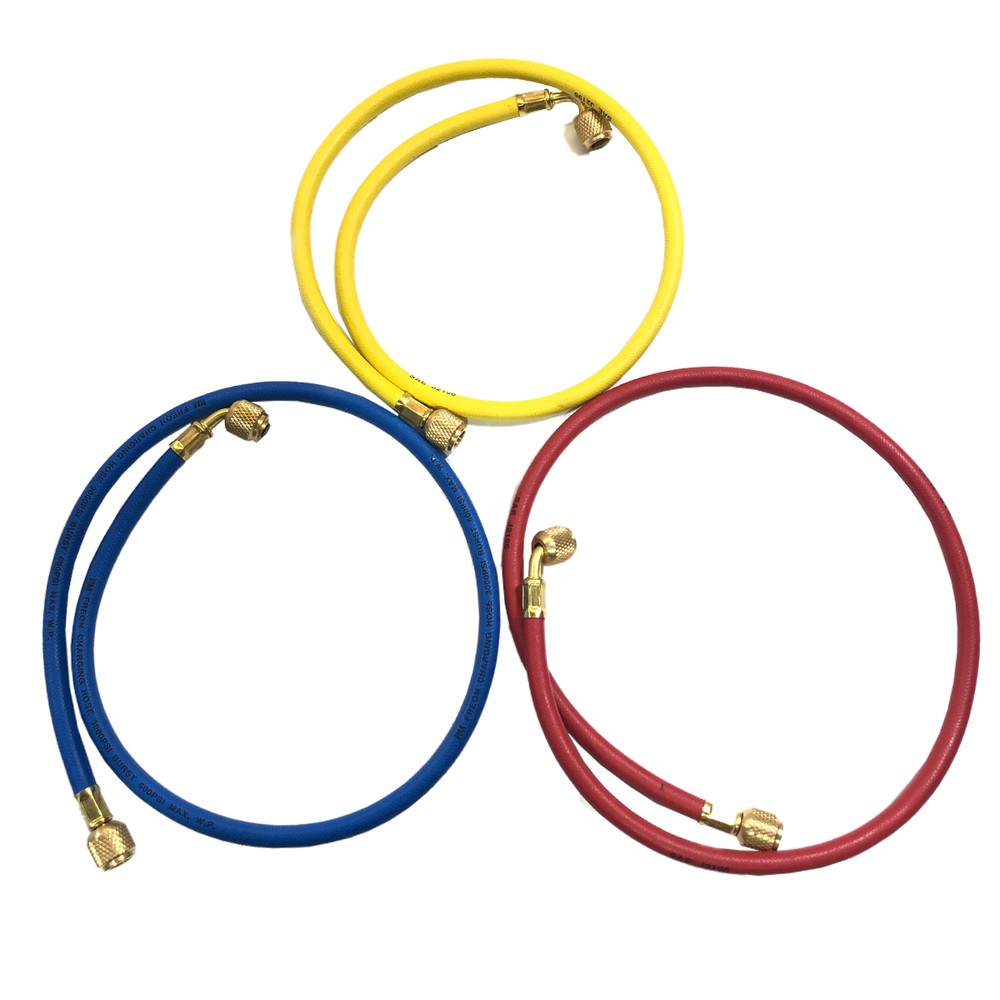

Zurn Wilkins - BFTK-HOSE KIT
Product Code | Size | Description |
---|---|---|
BFTK-HOSE KIT | ALL | Backflow Test Kit - Spare Hoses of 3 - Red, Yellow and Blue |
