| Brand: | Amiad / Arkal |
| Category: | Filtration, Automatic Filters - Screen |
| Size Range: | 200-900mm |
| Filtration Degree: | 10-800 micron |
Product Description
Automatic EBS filters are ideal for a wide range of industrial applications with challenging TSS and heavy loads. They have a large filtration area and are equipped with our electrical-drive suction-scanning cleaning technology, for reliable, uninterrupted flow and a minimal volume of reject water. With four models and a variety of flanges and sizes, the EBS Series can handle the unique requirements of various industrial water filtration applications.
Features and Benefits
- Large filtration area
- Solution for high-flow and poor-quality water.
- Available for seawater filtration applications
- Automatic flushing according to PD and/or time
- Reliable and durable
- Fine filtration

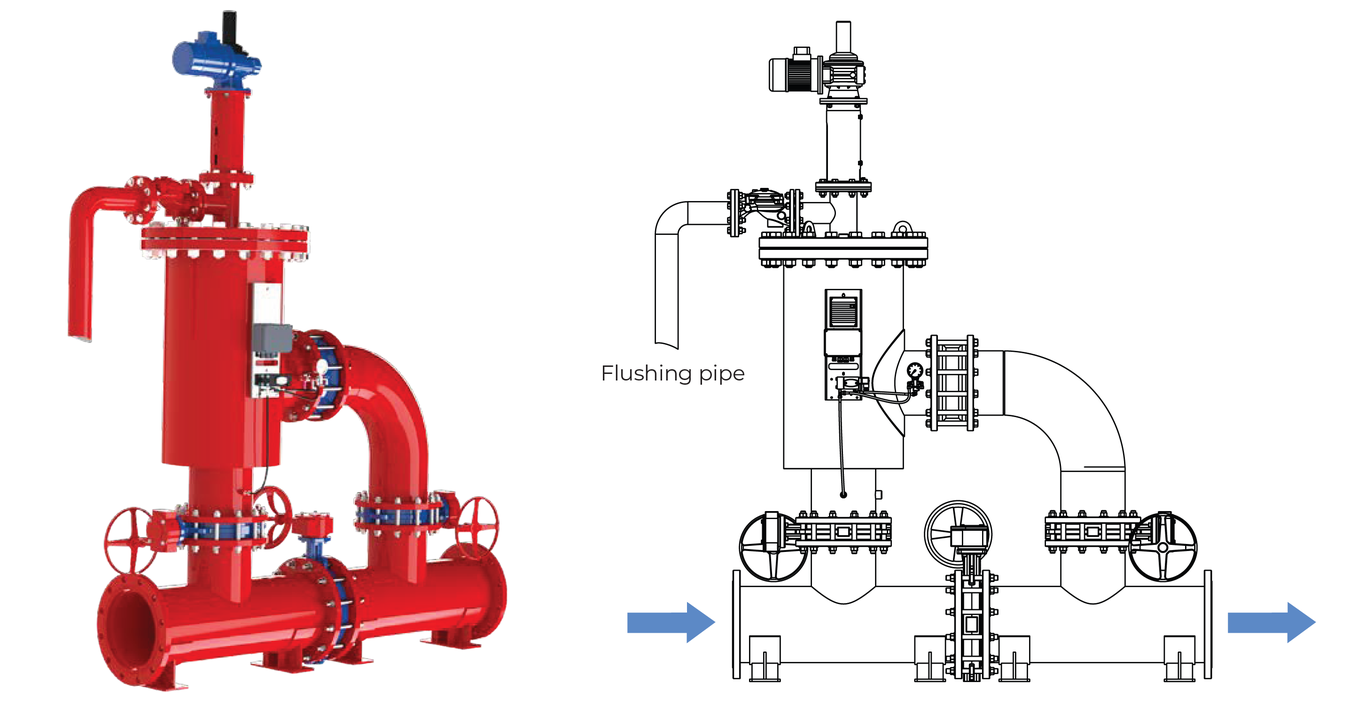

Amiad - EBS - Typical Installation
Technical Data

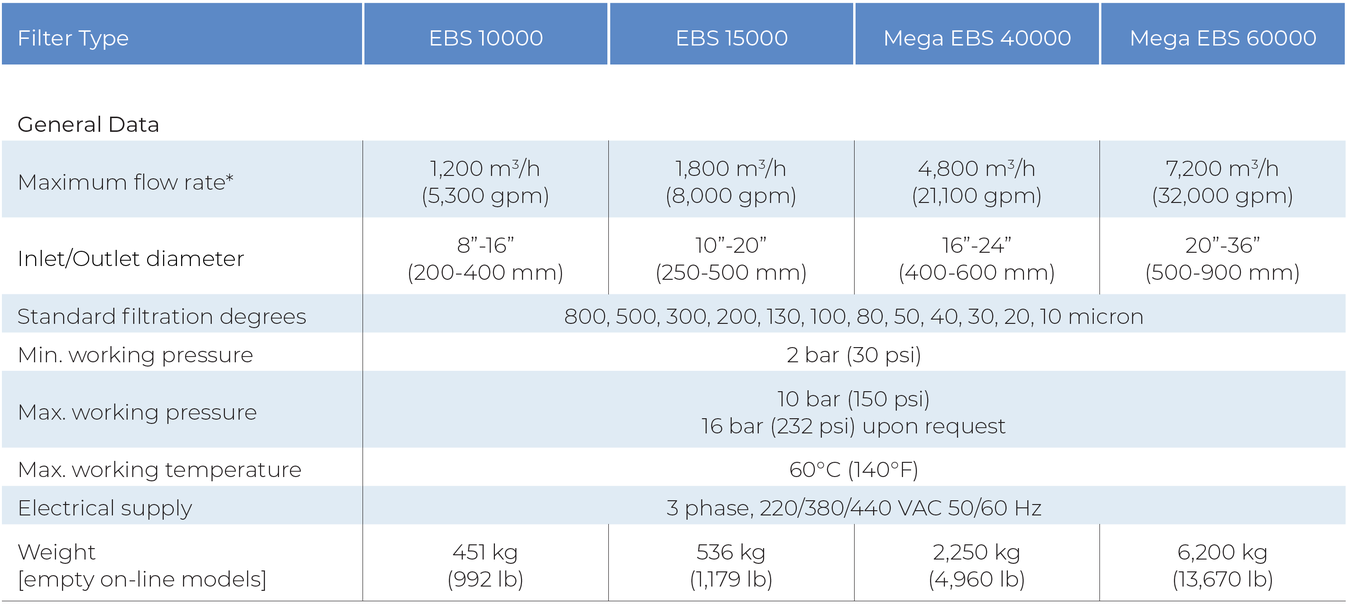

Amiad - EBS - General Data

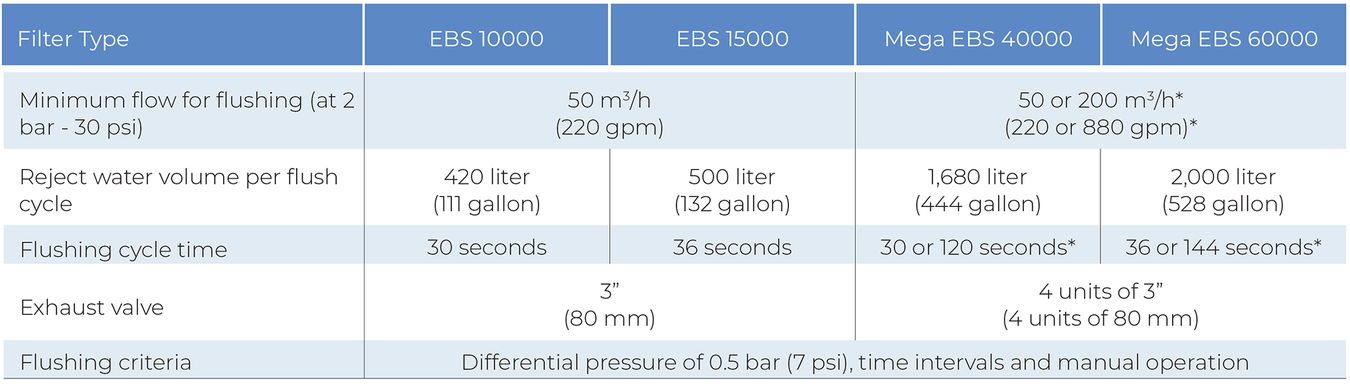

Flushing Data
Amiad - EBS - Flushing Data

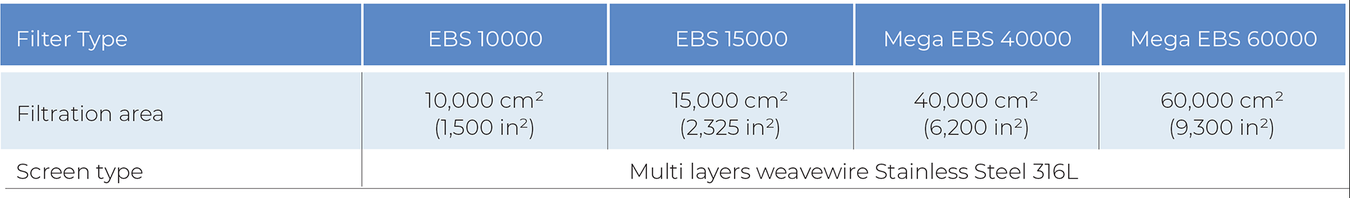

Screen Data
Amiad - EBS - Screen Data
Control and Electricity

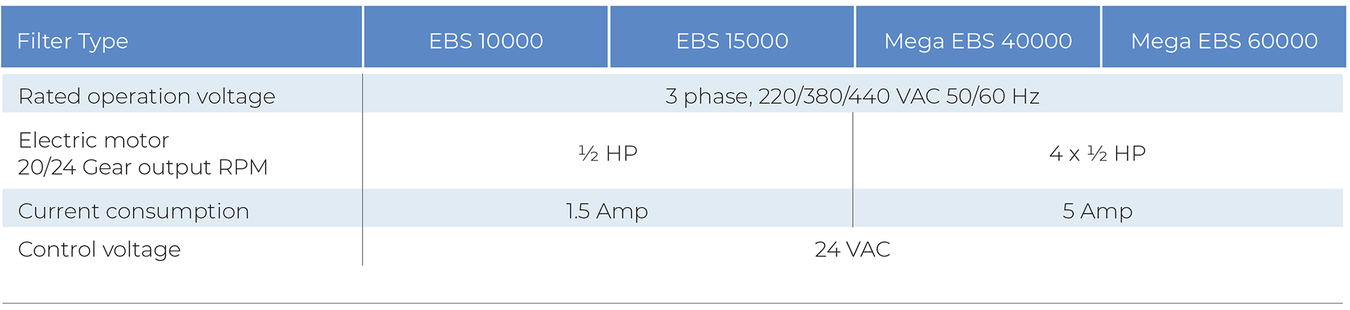

Amiad - EBS - Control and Electricity

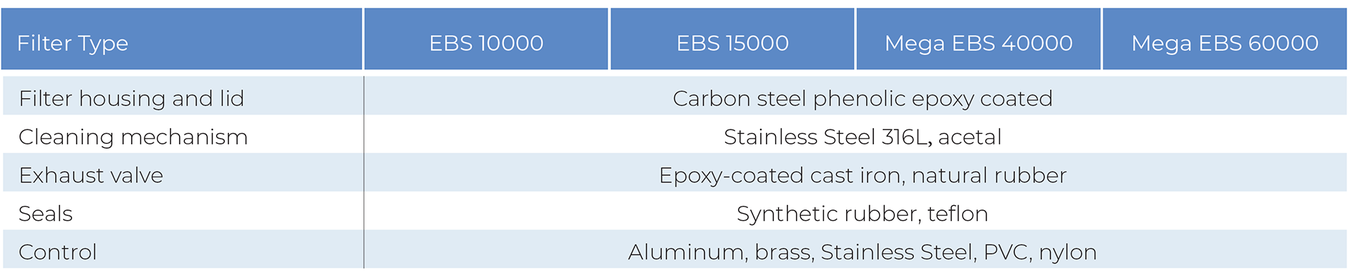

Construction Materials*
Amiad - EBS - Construction Materials
* Amiad offers a variety of construction materials and screens. Please consult Deeco for specifications.
EBS Models and Head Loss Graphs

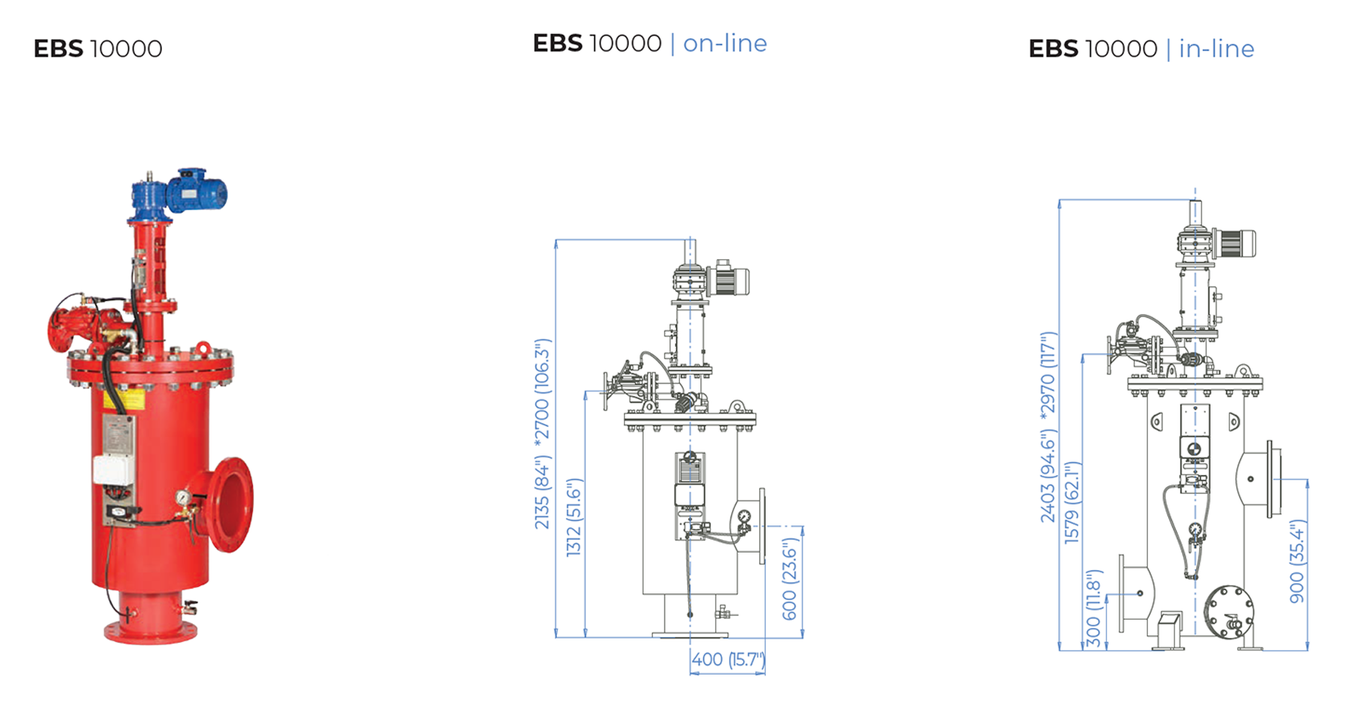

EBS 10000
Amiad - EBS - 10000

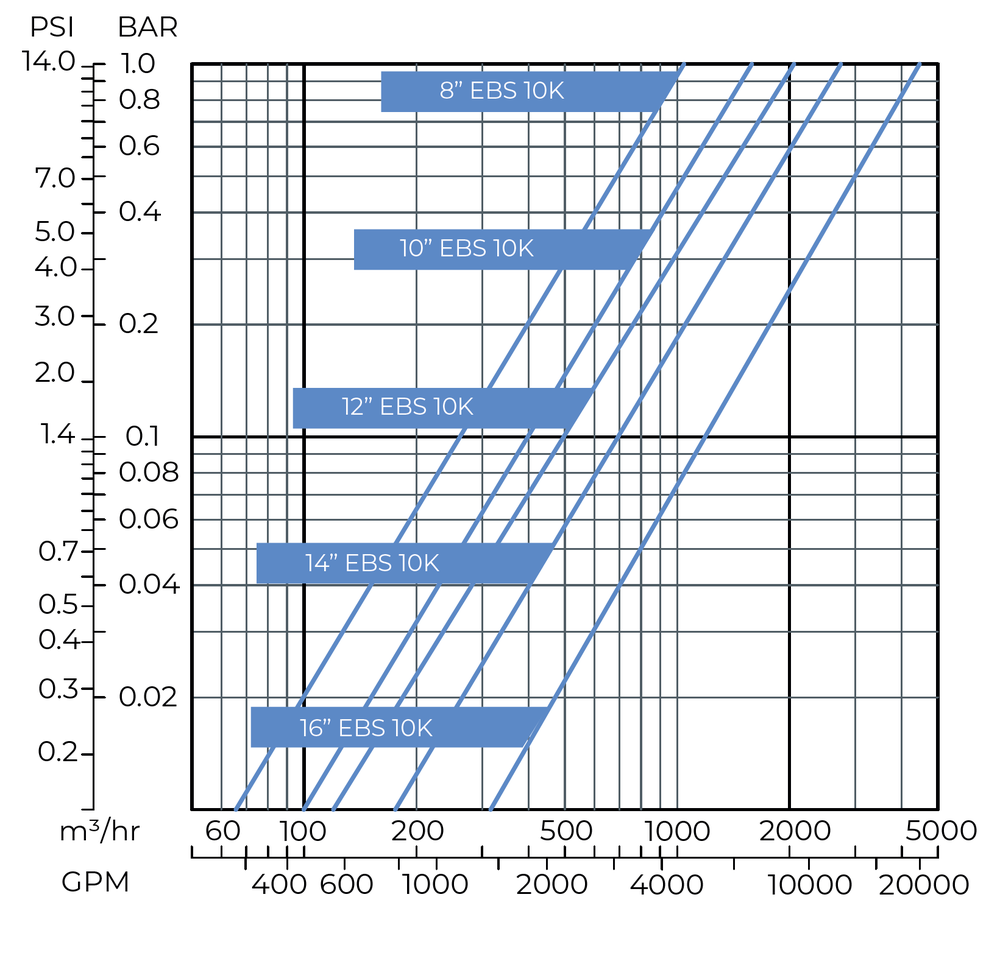

Head Loss Graph (in clean water)
Amiad - EBS - 10000 - Head Loss Graph

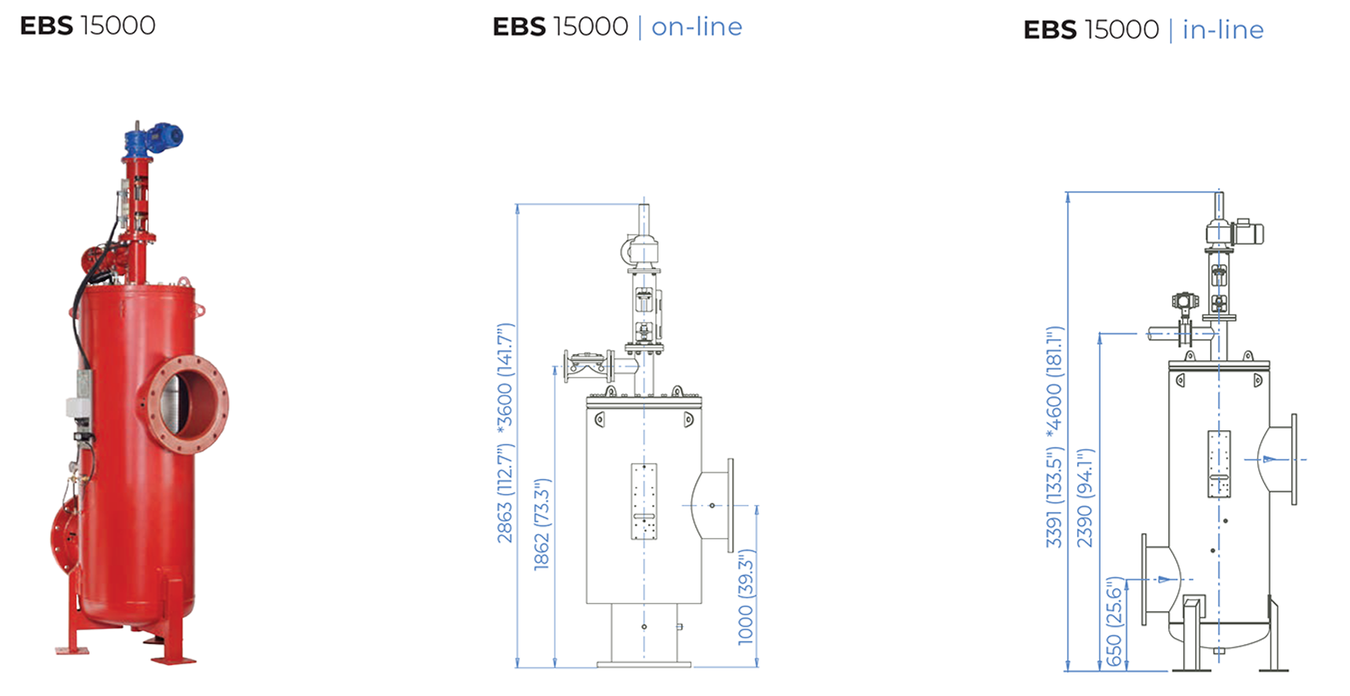

EBS 15000
Amiad - EBS - 15000

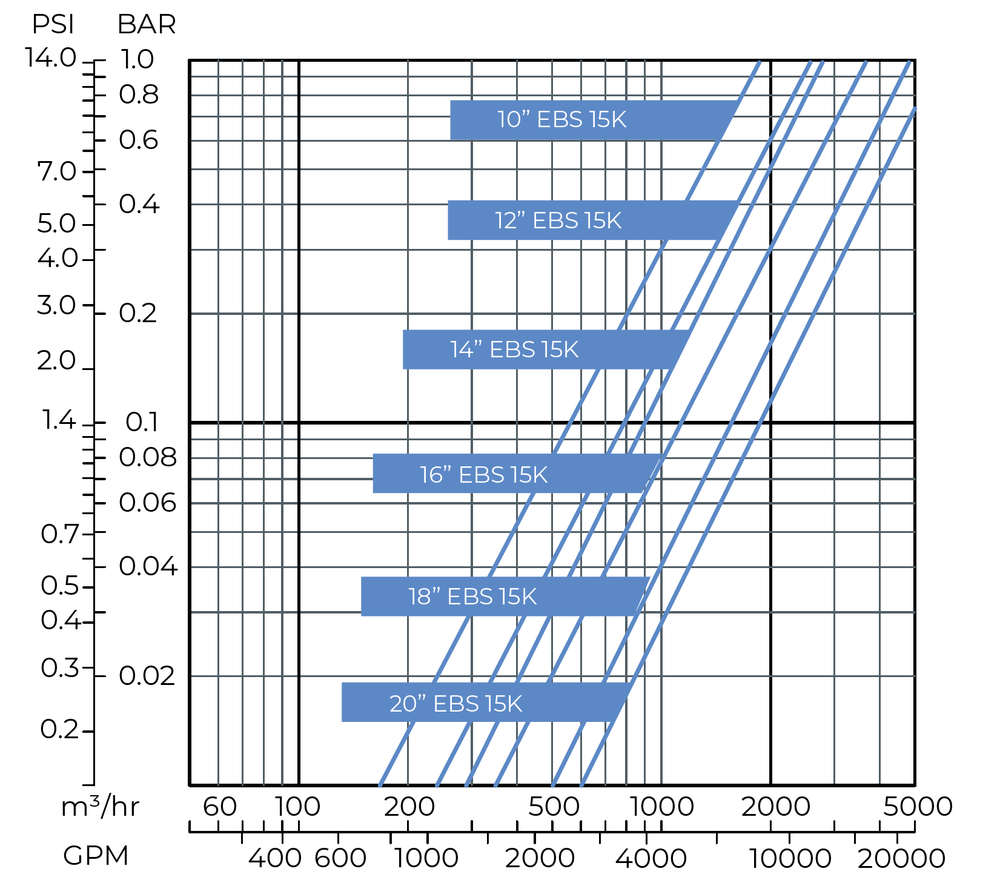

Head Loss Graph (in clean water)
Amiad - EBS - 15000 - Head Loss Graph

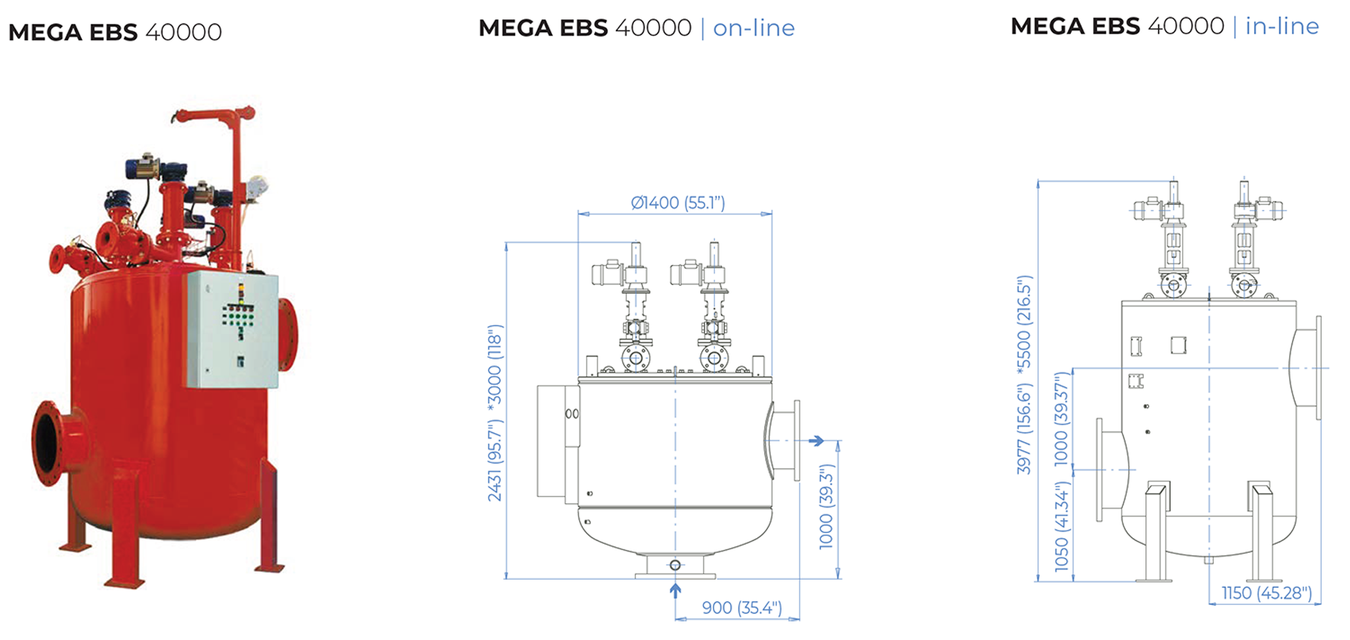

MEGA EBS 40000
Amiad - EBS - 40000

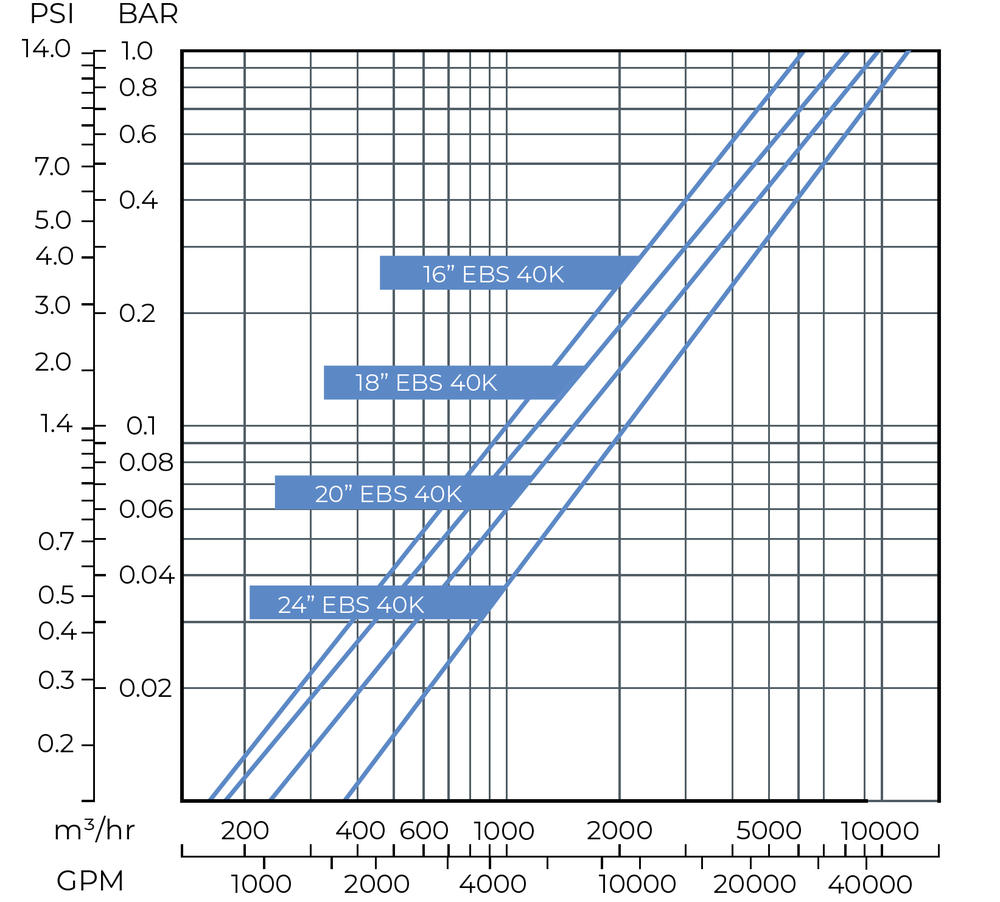

Head Loss Graph (in clean water)
Amiad - EBS - 40000 - Head Loss Graph

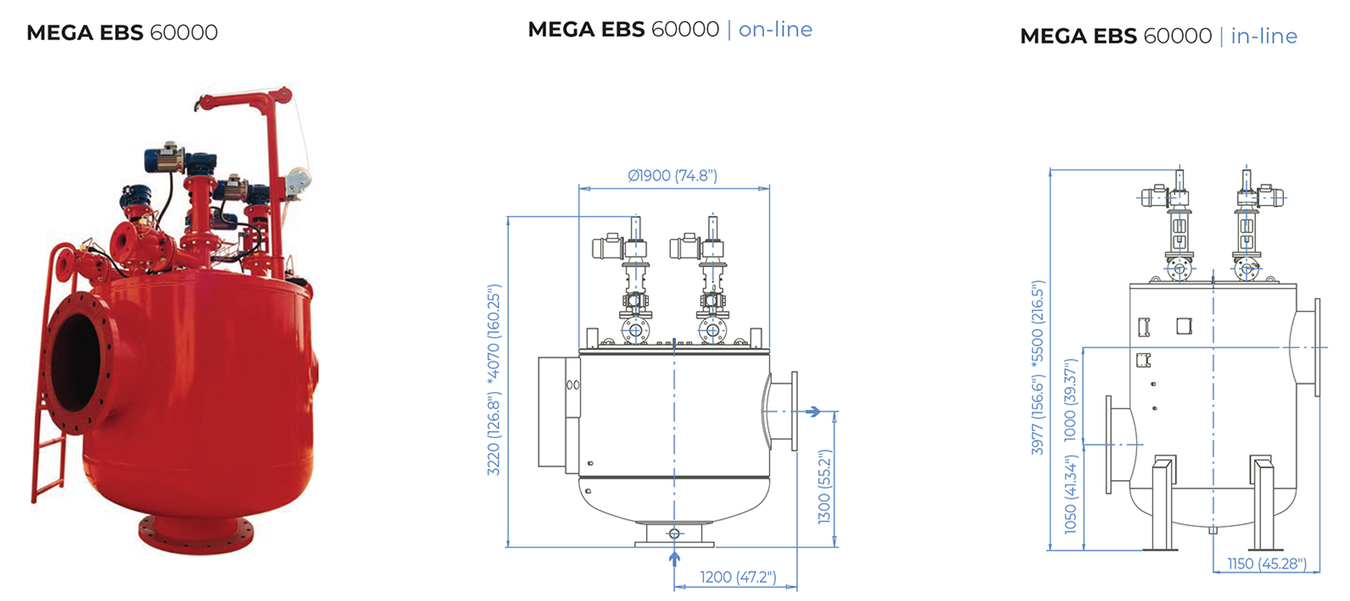

MEGA EBS 60000
Amiad - EBS - 60000

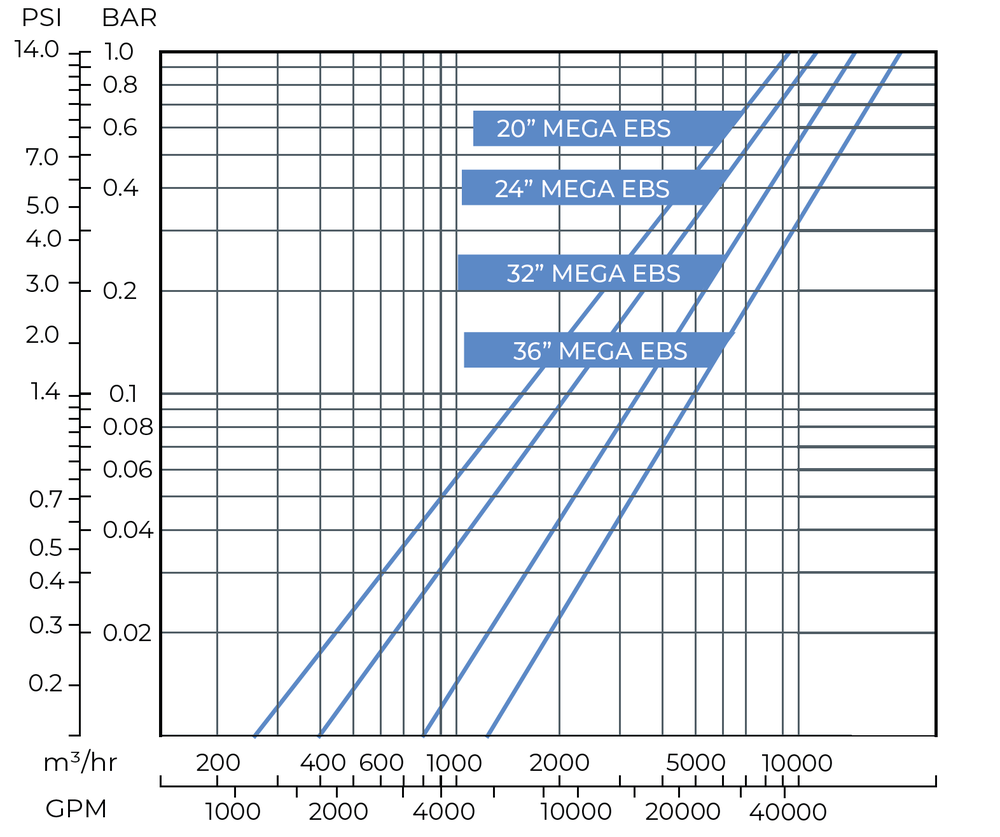

Head Loss Graph (in clean water)
Amiad - EBS - 60000 - Head Loss Graph
Technical Specifications

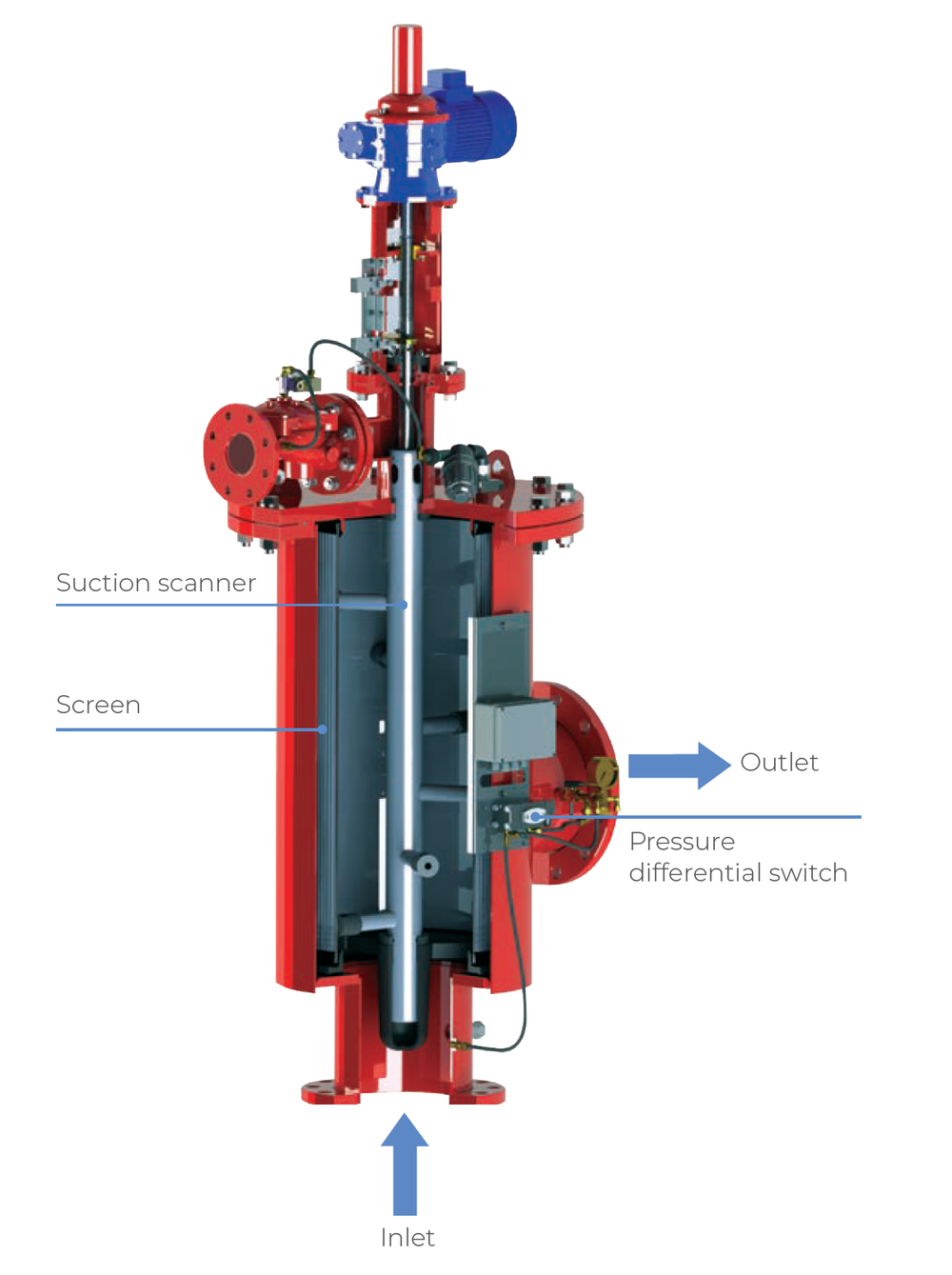

EBS Parts
Amiad - EBS - Parts
EBS Installation
Amiad - EBS - Installation
Spare Parts
| Pos. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 710105-003040 | EBS-10K HOUSING 10" ISO16 PKPK 3002 ST.37-2 FLAT LID POLYESTER | 1 |
| 2 | 710105-003048 | EBS-10K FLAT LID ISO16 PKPK 3002 ST.37-2 POLYESTER | 1 |
| 3 | 710103-002611 | BEARING UPPER EBS-10000 POM | 1 |
| 4 | 710105-001474 | EBS-10K DRIVE SHAFT HOUSING COVER PKPK 3002 ST.37-2 POLYESTER | 1 |
| 5 | 700190-002574 | "DRIVE SHAFT HOUS ASSY.EBS-10000 | 0 |
| 6 | 710105-001473 | EBS-10K DRIVE SHAFT HOUSING PKPK 3002 ST.37-2 POLYESTER | 1 |
| 7 | 710103-002540 | DRIVE SHAFT EBS-10000 S/ST303 | 1 |
| 8 | 710103-002539 | DRIVE BUSHING EBS PHOSPHOR BRONZE | 1 |
| 9 | 710103-002558 | SLING EBS-10000 S/ST316L F/LIMIT SWITCH | 1 |
| 10 | 710103-002537 | PLATE EBS-10000 BRASS F/LIMIT SWITCH | 1 |
| 11 | 700190-006457 | EBS SEALING FLANGE SHAFT ASSEMBLY IMPROVED | 1 |
| 12 | 710103-002541 | KEY 8X8MM EBS-10000 BRASS F/DRIVE SHAFT | 1 |
| 13 | 710101-001718 | EBS 10K LEAD SCREW COVER PP BLACK | 1 |
| 14 | 710103-002542 | CONNECTING PIN EBS S/ST316L | 1 |
| 15 | 760105-000038 | SPLIT PIN 2X20MM S/ST304 DIN94 | 1 |
| 16 | 700190-004371 | SUCTION SCANNER ASSEMBLY HD ROLLING EBS-10K | 1 |
| 17 | 710103-002774 | SUCTION SCANNER SHAFT EBS-10000 S/ST316L ROLLING SURFACE | 1 |
| 18 | 760105-000043 | PIN 10X53MM S/ST316 | 1 |
| 19 | 710103-002948 | PLUG 12MM EBS POM F/SUCTION SCANNER | 1 |
| 20 | 710103-002993 | SUCTION SCANNER EBS-10000 S/ST316L F/INT FILTER | 1 |
| 21 | 700190-002736 | SCANNER ASSY OUTLET FILTER EBS-40000 | 1 |
| 22 | 710103-002827 | PLUG EBS POM SCANNER FILTER | 1 |
| 23 | 760105-000042 | PIN 3X20MM S/ST316 | 1 |
| 24 | 710103-002534 | NOZZLE EBS-10000 POM SCANNER | 6 |
| 25 | 700190-004445 | SLN SUCTION SCANNER ASSEMBLY HD ROLLING EBS-10K | 1 |
| 26 | 710103-002976 | SUCTION SCANNER EBS-10000 S/ST316L SLN F/INT FILTER | 1 |
| 27 | 700190-002595 | SLN COMPLETE MEGA/EBS ASSY | 6 |
| 28 | 710103-002962 | CAP EBS HMPE F/SLN | 6 |
| 29 | 710103-002963 | TIGHTENING NUT EBS POM SLN | 6 |
| 30 | 710103-002964 | SLN HOUSING EBS S/ST316L DW | 6 |
| 31 | 710103-002960 | SUPPORT PIPE EBS S/ST316L F/SCANNER NOZZLE SLN DW | 6 |
| 32 | 760107-000052 | HELICAL SPRING SCANNER EBS FREE LENGTH:78MM WIRE DIAMETER:2MM S/ST302 DW | 6 |
| 33 | 710103-002961 | SEAT SPRING EBS POM SLN | 6 |
| 34 | 700101-001026 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 10MIC EBS-10000 | 1 |
| 34 | 700101-001028 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 50MIC EBS-10000 | 1 |
| 34 | 700101-001029 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 80MIC EBS-10000 | 1 |
| 34 | 700101-001030 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 100MIC EBS-10000 | 1 |
| 34 | 700101-001031 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 130MIC EBS-10000 | 1 |
| 34 | 700101-001032 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 200MIC EBS-10000 | 1 |
| 34 | 700101-001033 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 300MIC EBS-10000 | 1 |
| 34 | 700101-001034 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 500MIC EBS-10000 | 1 |
| 34 | 700101-001035 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 800MIC EBS-10000 | 1 |
| 34 | 700101-001997 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 40MIC EBS-10000 | 1 |
| 34 | 700101-002123 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 30MIC EBS-10000 | 1 |
| 34 | 700101-002216 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 20MIC EBS-10000 | 1 |
| 35 | 710103-002924 | LOWER BEARING EBS POM | 1 |
| 36 | 710105-001639 | SCREEN SUPPORT CAST IRON RLEBS-10K +ISOLATION ASSY | 1 |
| 100 | 770102-000188 | PARKER O-RING 2-471 NBR 70 SHORE | 1 |
| 101 | 770102-000168 | PARKER O-RING 2-433 NBR 70 SHORE NO FLASH | 1 |
| 102 | 770102-000077 | PARKER O-RING 2-041 NBR 70 SHORE | 1 |
| 103 | 770101-000059 | MM O-RING SEAL ID71MM TH5MM NBR 70 SHORE NO FLASH | 2 |
| 104 | 770102-000126 | PARKER O-RING 2-237 NBR 70 SHORE NO FLASH | 1 |
| 105 | 770104-000076 | SHAPED SEAL NBR 55 SHORE SCREEN EBS-10000 | 2 |
| 106 | 770103-000046 | FLAT SEAL 3" NBR+CLOTH OD124MM ID92MM 70 SHORE AMIAD | 1 |
| 110 | 770101-000046 | MM O-RING SEAL ID18MM TH2MM NBR 70 SHORE | 6 |
| 111 | 770104-000100 | SHAPED SEAL PTFE 95 SHORE SLN EBS | 12 |
| 200 | 760101-000375 | HEX BOLT PARTIALTHRD M22 100MM C/ST DIN931 Z.PLATED | 16 |
| 201 | 760103-000079 | FLAT WASHER M22 DIN125 C/ST ZINC PLATED | 32 |
| 203 | 760102-000069 | HEX NUT M22 C/ST ZINC PLATED DIN934 | 16 |
| 204 | 760101-000328 | HEX BOLT PARTIALTHRD M16 60MM C/ST DIN931 Z.PLATED | 8 |
| 205 | 760103-000069 | FLAT WASHER M 16 DIN125 C/ST ZINC PLATED | 32 |
| 207 | 760102-000067 | HEXNUT M 16 C/ST ZINC PLATED DIN 934 | 16 |
| 208 | 760101-000314 | HEX BOLT FULL THRD M10 40MM C/ST DIN 933 Z. PLATED | 4 |
| 209 | 760103-000067 | FLAT WASHER M 10 DIN 125 C/ST ZINC PLATED | 8 |
| 210 | 760103-000086 | SPRING WASHER M 10 DIN 127 C/ST ZINC PLATED | 4 |
| 211 | 760102-000064 | HEXNUT M 10 C/ST ZINC PLATED DIN 934 | 4 |
| 212 | 760101-000524 | SOCKET HEAD CAP SCREW M8 30 MM S/ST316 DIN 912 | 2 |
| 213 | 760101-000605 | HEX BOLT FULL THRD M6 35 MM S/ST316 DIN 933 | 3 |
| 214 | 760103-000094 | FLAT WASHER M6 DIN 125 S/ST316 | 10 |
| 215 | 760103-000109 | SPRING WASHER M6 DIN 127 S/ST316 | 2 |
| 216 | 760102-000142 | NYLON INSERT LOCKNUT M6 S/ST316 DIN 985 | 3 |
| 217 | 760101-000603 | HEX BOLT FULL THRD M6 20MM S/ST316 DIN 933 | 2 |
| 218 | 760102-000085 | HEX NUT M6 S/ST 316 DIN 934 | 2 |
| 219 | 760101-000683 | PHILLIPS PAN MACHINE SCREW M4 20 MM S/ST316 DIN 7985 | 4 |
| 220 | 760102-000141 | NYLON INSERT LOCKNUT M4 S/ST316 DIN 985 | 4 |
| 221 | 760103-000122 | FLAT WASHER M4 DIN 125 S/ST316 | 4 |
| 224 | 760101-000329 | HEX BOLT PARTIAL THRD M 16 65 MM C/ST DIN 931 Z.PLATED | 8 |
| 225 | 760101-000527 | SOCKET SET SCREW M 10 50 MM S/ST 316 DIN 916 | 2 |
| 226 | 760103-000028 | FLAT WASHER M 10 DIN 125 S/ST304 | 2 |
| 227 | 760102-000087 | HEX NUT M 10 S/ST316 DIN 934 | 2 |
| 228 | 760101-000695 | SOCKET SET SCREW M4 16MM S/ST316 DIN916 | 2 |
| 300 | 720201-000022 | DRIVE UNIT EBS10K 380/480V AC 50/60HZ 3P .375KW 1400RPM IP55 71 B5 RMI70 1/70 | 1 |
| 301 | 720203-000032 | MOTOR SITI 380/480V AC 50/60HZ 3-PH 0.375KW 1370RPM IP55 71 | 0 |
| 302 | 720202-000018 | GEAR RMI70 71 B5 1/70 SITI MT-5010 | 0 |
| 303 | 720302-000004 | LIMIT SWITCH PIZZATO FA 4131-2DN METALEBS/SAF 2M CABLE NC | 2 |
| 304 | 720501-000207 | STRAIGHT CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK-RED TEFEN | 1 |
| 305 | 730103-000521 | VALVE 3" DOROT GAL47 BSTD RED HYDRAULIC CAST IRON FLUSHING | 1 |
| 305 | 730103-000522 | VALVE 3" BERMAD RAM405 ISO16 RED HYDRAULIC CAST IRON FLUSHING | 1 |
| 306 | 720501-000206 | CONNECTOR 5/16" X1/4" BRASS AIGNEP | 2 |
| 307 | 720502-000036 | CONTROLTUBE 5/16" PA BLACK BACCARA | 2 |
| 308 | 710103-000591 | NIPPLE 1/4" BRASS BSPT PRESSURE CHECK | 1 |
| 309 | 720501-000204 | L-CONNECTOR 1/8"M X5/16" BSPT BRASS AIGNEP | 4 |
| 310 | 720103-000182 | SOL ASCO 3/2 NO 24AC 60HZ 2MM BRAS | 1 |
| 310 | 720103-000766 | SOL BACC 3/2 NO 24AC 50/60HZ 2MM BRAS | 1 |
| 311 | 720501-000202 | L-CONNECTOR 1/4"M X5/16" BSPT BRASS AIGNEP | 3 |
| 312 | 700190-001971 | RACCORD CONNECTOR ASSEMBLY 3/4"X1/4" | 0 |
| 313 | 010000-000041 | 3/4" I/L BSPT POM BLACK MOLDED SCREEN POLYESTER 130MIC NBR | 1 |
| 314 | 780101-000789 | ELBOW 3/4" FEMALE/MALE GALVANIZED | 1 |
| 315 | 730104-000220 | 2-WAY BALL VALVE 3/4" M/F S.A BRASS/NICKEL PLATED MANUAL SAGIV | 2 |
| 316 | 720501-000259 | T-CONNECTOR 1/8"MX5/16" X5/16" BSP BRASS AIGNEP | 1 |
| 317 | 730104-000202 | 3-WAY BALL VALVE 1/4" BSP S.Y-3 BRASS MANUAL SAGIV | 1 |
| 318 | 720501-000214 | T-CONNECTOR 1/4"FX1/4"F X1/4"M BSPT BRASS/NICKEL PLATED AIGNEP | 1 |
| 319 | 700190-002336 | MANOMETER VALVE 1/4" W/ DRAIN ASSY | 1 |
| 320 | 700190-002457 | PRESSOSTAT SUB-ASSY UE W/O FITTINGS | 1 |
| 320 | 700190-002618 | PD SWITCH SUB-AS. MIDWEST W/O FITTING ASSY | 1 |
| 321 | 720301-000044 | PRESSURE GAUGE 0-16 BAR/PSI GOLDEN BRASS 1/4" BSP BOTTOM 2" W/GLYCERINE | 1 |
| 322 | 700190-002421 | ELECTRIC JUNCTION BOX OSEA 24VDC IP55 GEWISS POLYESTER SOLENOID L.S. DPS | 1 |
| 700194-000001 | 700194-000001 | EBS-10K SEALS SET | 1 |
| Pos. | Part No. | Description |
|---|---|---|
| 1 | 710105-EBS 10K IL | EBS-10K HOUSING IN-LINE - BY DEMAND |
| 2 | 710105-EBS 10K LID | EBS-10K LID - BY DEMAND |
| 3 | 710103-002611 | BEARING UPPER EBS-10000 POM |
| 4 | 710105-001474 | EBS-10K DRIVE SHAFT HOUSING COVER PKPK 3002 ST.37-2 POLYESTER |
| 5 | 700190-002574 | DRIVE SHAFT HOUS ASSY.EBS-10000 |
| 6 | 710105-001473 | EBS-10K DRIVE SHAFT HOUSING PKPK 3002 ST.37-2 POLYESTER |
| 7 | 710103-002540 | DRIVE SHAFT EBS-10000 S/ST303 |
| 8 | 710103-002539 | DRIVE BUSHING EBS PHOSPHOR BRONZE |
| 9 | 710103-002558 | SLING EBS-10000 S/ST316L F/LIMIT SWITCH |
| 10 | 710103-002537 | PLATE EBS-10000 BRASS F/LIMIT SWITCH |
| 11 | 700190-006457 | EBS SEALING FLANGE SHAFT ASSEMBLY IMPROVED |
| 12 | 710103-002541 | KEY 8X8MM EBS-10000 BRASS F/DRIVE SHAFT |
| 13 | 710101-001718 | EBS 10K LEAD SCREW COVER PP BLACK |
| 14 | 710103-002542 | CONNECTING PIN EBS S/ST316L |
| 15 | 760105-000038 | SPLIT PIN 2X20MM S/ST304 DIN94 |
| 16 | 700190-004371 | SUCTION SCANNER ASSEMBLY HD ROLLING EBS-10K |
| 17 | 710103-002774 | SUCTION SCANNER SHAFT EBS-10000 S/ST316L ROLLING SURFACE |
| 18 | 760105-000043 | PIN 10X53MM S/ST316 |
| 19 | 710103-002948 | PLUG 12MM EBS POM F/SUCTION SCANNER |
| 20 | 710103-002993 | SUCTION SCANNER EBS-10000 S/ST316L F/INT FILTER |
| 21 | 700190-002736 | SCANNER ASSY OUTLET FILTER EBS-40000 |
| 22 | 710103-002827 | PLUG EBS POM SCANNER FILTER |
| 23 | 760105-000042 | PIN 3X20MM S/ST316 |
| 24 | 710103-002534 | NOZZLE EBS-10000 POM SCANNER |
| 25 | 700190-004445 | SLN SUCTION SCANNER ASSEMBLY HD ROLLING EBS-10K |
| 26 | 710103-002976 | SUCTION SCANNER EBS-10000 S/ST316L SLN F/INT FILTER |
| 27 | 700190-002595 | SLN COMPLETE MEGA/EBS ASSY |
| 28 | 710103-002962 | CAP EBS HMPE F/SLN |
| 29 | 710103-002963 | TIGHTENING NUT EBS POM SLN |
| 30 | 710103-002964 | SLN HOUSING EBS S/ST316L DW |
| 31 | 710103-002960 | SUPPORT PIPE EBS S/ST316L F/SCANNER NOZZLE SLN DW |
| 32 | 760107-000052 | HELICAL SPRING SCANNER EBS FREE LENGTH:78MM WIRE DIAMETER:2MM S/ST302 DW |
| 33 | 710103-002961 | SEAT SPRING EBS POM SLN |
| 34 | 700101-001026 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 10MIC EBS-10000 |
| 34 | 700101-001028 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 50MIC EBS-10000 |
| 34 | 700101-001029 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 80MIC EBS-10000 |
| 34 | 700101-001030 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 100MIC EBS-10000 |
| 34 | 700101-001031 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 130MIC EBS-10000 |
| 34 | 700101-001032 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 200MIC EBS-10000 |
| 34 | 700101-001033 | WEAVEWIRE SCREEN S/ST316L 10000SQ.CM 300MIC EBS-10000 |
| Pos. | Part No. | Description |
|---|---|---|
| 2 | 710105-EBS 15K LID | EBS-15K LID - BY DEMAND |
| 3 | 710103-002803 | BEARING UPPER EBS-15000 |
| 4 | 710105-001779 | Drive Shaft Housing Cover EBS-15 |
| 5 | 700190-002720 | Drive Shaft Housing Assmebly (Limit Switch) EBS-15000 |
| 6 | 710105-001781 | EBS-10K DRIVE SHAFT HOUSING PKPK 3002 |
| 7 | 710103-002797 | DRIVE SHAFT EBS-15000 |
| 8 | 710103-002539 | DRIVE BUSHING EBS PHOSPHOR BRONZE |
| 9 | 710103-002814 | SLING EBS-15K F/LIMIT SWITCH |
| 10 | 700190-006537 | PLATE EBS-15K BRASS F/LIMIT SWITCH ASSEMBLY |
| 11 | 700190-006457 | EBS SEALING FLANGE SHAFT ASSEMBLY IMPROVED |
| 12 | 710103-002807 | Drive Shaft Key Brass (EBS-15000) |
| 13 | 710105-001783 | EBS-15000 Drive Shaft Cover |
| 14 | 710103-002542 | CONNECTING PIN EBS S/ST316L |
| 15 | 760105-000038 | SPLIT PIN 2X20MM S/ST304 DIN94 |
| 16 | 700190-004307 | SUCTION SCANNER ASSY EBS-15K |
| 17 | 710103-005456 | SUCTION SCANNER SHAFT EBS-15000 |
| 18 | 760105-000043 | PIN 10X53MM S/ST316 |
| 19 | 710103-002948 | PLUG 12MM EBS POM F/SUCTION SCANNER |
| 20 | 710103-002834 | SUCTION SCANNER PIPE EBS-15K |
| 21 | 700190-002687 | SCANNER ASSY OUTLET FILTER EBS-15K |
| 22 | 710103-002827 | PLUG EBS POM SCANNER FILTER |
| 23 | 760105-000042 | PIN 3X20MM S/ST316 |
| 24 | 710103-002534 | NOZZLE EBS-10000 POM SCANNER |
| 25 | 700190-005335 | SLN SUCTION SCANNER ASSEMBLY HD ROLLING EBS-15K |
| 26 | 710103-002892 | SUCTION SCANNER EBS-15000 S/ST316L SLN F/INT FILTER |
| 27 | 700190-002595 | SLN COMPLETE MEGA/EBS ASSY |
| 28 | 710103-002962 | CAP EBS HMPE F/SLN |
| 29 | 710103-002963 | TIGHTENING NUT EBS POM SLN |
| 30 | 710103-002964 | SLN HOUSING EBS S/ST316L DW |
| 31 | 710103-002960 | SUPPORT PIPE EBS S/ST316L F/SCANNER NOZZLE SLN DW |
| 32 | 760107-000052 | HELICAL SPRING SCANNER EBS FREE LENGTH:78MM WIRE DIAMETER:2MM S/ST302 DW |
| 33 | 710103-002961 | SEAT SPRING EBS POM SLN |
| 34 | 700101-001062 | Weavewire St316 15000sq.cm screen 100mic for EBS-15K |
| 34 | 700101-001063 | WEAVEWIRE SCREEN S/ST316L 15000SQ.CM 130MIC EBS-15000 |
| 34 | 700101-001064 | WEAVEWIRE SCREEN S/ST316L 15000SQ.CM 200MIC EBS-15000 |
| 34 | 700101-002049 | WEAVEWIRE SCREEN S/ST316L 15000SQ.CM 40MIC EBS-15000 |
| 35 | 710103-002924 | LOWER BEARING EBS POM |
| 36 | 710105-001763 | Screen SupportEBS-15K RL |
| 100 | 770102-000165 | PARKER O-RING 2-392 NBR 70 SHORE |
| 101 | 770102-000168 | PARKER O-RING 2-433 NBR 70 SHORE NO FLASH |
| 102 | 770102-000126 | PARKER O-RING 2-237 NBR 70 SHORE NO FLASH |
| 103 | 770101-000059 | MM O-RING SEAL ID71MM TH5MM NBR 70 SHORE NO FLASH |
| 105 | 770104-000077 | SHAPED SEAL NBR 55 SHORE SCREEN EBS-15000 |
| 106 | 770103-000046 | FLAT SEAL 3" NBR+CLOTH OD124MM ID92MM 70 SHORE AMIAD |
| 110 | 770101-000046 | MM O-RING SEAL ID18MM TH2MM NBR 70 SHORE |
| 111 | 770104-000100 | SHAPED SEAL PTFE 95 SHORE SLN EBS |
| 200 | 760101-000374 | Hex Bolt Full Thread M22X65 Z.Plated C/ST |
| 201 | 760103-000079 | FLAT WASHER M22 DIN125 C/ST ZINC PLATED |
| 204 | 760101-000328 | HEX BOLT PARTIALTHRD M16 60MM C/ST DIN931 Z.PLATED |
| 205 | 760103-000069 | FLAT WASHER M16 DIN125 C/ST ZINC PLATED |
| 207 | 760102-000067 | HEX NUT M16 C/ST ZINC PLATED DIN934 |
| 208 | 760101-000314 | HEX BOLT FULLTHRD M10 40MM C/ST DIN933 Z.PLATED |
| 209 | 760103-000067 | FLAT WASHER M10 DIN125 C/ST ZINC PLATED |
| 210 | 760103-000086 | SPRING WASHER M10 DIN127 C/ST ZINC PLATED |
| 211 | 760102-000064 | HEX NUT M10 C/ST ZINC PLATED DIN934 |
| 212 | 760101-000524 | SOCKET HEAD CAP SCREW M8 30MM S/ST316 DIN912 |
| 213 | 760101-000605 | HEX BOLT FULLTHRD M6 35MM S/ST316 DIN933 |
| 214 | 760103-000094 | FLAT WASHER M6 DIN125 S/ST316 |
| 215 | 760103-000109 | SPRING WASHER M6 DIN127 S/ST316 |
| 216 | 760102-000142 | NYLON INSERT LOCKNUT M6 S/ST316 DIN985 |
| 217 | 760101-000603 | HEX BOLT FULLTHRD M6 20MM S/ST316 DIN933 |
| 218 | 760102-000085 | HEX NUT M6 S/ST316 DIN934 |
| 219 | 760101-000683 | PHILLIPS PAN MACHINE SCREW M4 20MM S/ST316 DIN7985 |
| 220 | 760102-000141 | NYLON INSERT LOCKNUT M4 S/ST316 DIN985 |
| 221 | 760103-000122 | FLAT WASHER M4 DIN125 S/ST316 |
| 224 | 760101-000329 | HEX BOLT PARTIALTHRD M16 65MM C/ST DIN931 Z.PLATED |
| 225 | 760101-000527 | SOCKET SET SCREW M10 50MM S/ST316 DIN916 |
| 226 | 760103-000028 | FLAT WASHER M10 DIN125 S/ST304 |
| 227 | 760102-000087 | HEX NUT M10 S/ST316 DIN934 |
| 300 | 720201-000022 | DRIVE UNIT EBS10K 380/480V AC 50/60HZ 3P .375KW 1400RPM IP55 71 B5 RMI70 1/70 |
| 301 | 720203-000032 | MOTOR SITI 380/480V AC 50/60HZ 3-PH 0.375KW 1370RPM IP55 71 |
| 302 | 720202-000018 | GEAR RMI70 71 B5 1/70 SITI MT-5010 |
| 303 | 720302-000004 | LIMIT SWITCH PIZZATO FA 4131-2DN METALEBS/SAF 2M CABLE NC |
| 304 | 720501-000207 | STRAIGHT CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK-RED TEFEN |
| 305 | 730103-000521 | VALVE 3" DOROT GAL47 BSTD RED HYDRAULIC CAST IRON FLUSHING |
| 305 | 730103-000522 | VALVE 3" BERMAD RAM405 ISO16 RED HYDRAULIC CAST IRON FLUSHING |
| 306 | 720501-000206 | CONNECTOR 5/16" X1/4" BRASS AIGNEP |
| 307 | 720502-000036 | CONTROLTUBE 5/16" PA BLACK BACCARA |
| 308 | 710103-000591 | NIPPLE 1/4" BRASS BSPT PRESSURE CHECK |
| 309 | 720501-000204 | L-CONNECTOR 1/8"M X5/16" BSPT BRASS AIGNEP |
| 310 | 720103-000182 | SOL ASCO 3/2 NO 24AC 60HZ 2MM BRAS |
| 310 | 720103-000766 | SOL BACC 3/2 NO 24AC 50/60HZ 2MM BRAS |
| 311 | 720501-000202 | L-CONNECTOR 1/4"M X5/16" BSPT BRASS AIGNEP |
| 312 | 700190-001971 | RACCORD CONNECTOR ASSEMBLY 3/4"X1/4" |
| 313 | 010000-000041 | 3/4" I/L BSPT POM BLACK MOLDED SCREEN POLYESTER 130MIC NBR |
| 314 | 780101-000789 | ELBOW 3/4" FEMALE/MALE GALVANIZED |
| 315 | 730104-000220 | 2-WAY BALL VALVE 3/4" M/F S.A BRASS/NICKEL PLATED MANUAL SAGIV |
| 316 | 720501-000259 | T-CONNECTOR 1/8"MX5/16" X5/16" BSP BRASS AIGNEP |
| 317 | 730104-000202 | 3-WAY BALL VALVE 1/4" BSP S.Y-3 BRASS MANUAL SAGIV |
| 318 | 720501-000214 | T-CONNECTOR 1/4"FX1/4"F X1/4"M BSPT BRASS/NICKEL PLATED AIGNEP |
| 319 | 700190-002336 | MANOMETER VALVE 1/4" W/ DRAIN ASSY |
| 320 | 700190-002457 | PRESSOSTAT SUB-ASSY UE W/O FITTINGS |
| 320 | 700190-002618 | PD SWITCH SUB-AS. MIDWEST W/O FITTING ASSY |
| 321 | 720301-000044 | PRESSURE GAUGE 0-16 BAR/PSI GOLDEN BRASS 1/4" BSP BOTTOM 2" W/GLYCERINE |
| 322 | 700190-002421 | ELECTRIC JUNCTION BOX OSEA 24VDC IP55 GEWISS POLYESTER SOLENOID L.S. DPS |
| 700194-000093 | 700194-000093 | EBS15K SCAN PREVE MAINTE ONE YEAR |
| 700194-000094 | 700194-000094 | EBS15K SLN PREVENTIVE MAINT ONE YEAR |
| 700194-000007 | 700194-000007 | EBS10 SCANNER SLN PREVENTIVE MAINT ONE YEAR |
| 700194-000006 | 700194-000006 | EBS10 SCANNER STD PREVENTIVE MAINT ONE YEAR |
| 700194-000005 | 700194-000005 | EBS-15K SEALS SET |
| Pos. | Part No. | Description |
|---|---|---|
| 1 | 710105-EBS 15K OL | EBS-15K HOUSING IN-LINE - BY DEMAND |
| 2 | 710105-EBS 15K LID | EBS-15K LID - BY DEMAND |
| 3 | 710103-002803 | BEARING UPPER EBS-15000 |
| 4 | 710105-001779 | Drive Shaft Housing Cover EBS-15 |
| 5 | 700190-002720 | Drive Shaft Housing Assmebly (Limit Switch) EBS-15000 |
| 6 | 710105-001781 | EBS-10K DRIVE SHAFT HOUSING PKPK 3002 |
| 7 | 710103-002797 | DRIVE SHAFT EBS-15000 |
| 8 | 710103-002539 | DRIVE BUSHING EBS PHOSPHOR BRONZE |
| 9 | 710103-002814 | SLING EBS-15K F/LIMIT SWITCH |
| 10 | 700190-006537 | PLATE EBS-15K BRASS F/LIMIT SWITCH ASSEMBLY |
| 11 | 700190-006457 | EBS SEALING FLANGE SHAFT ASSEMBLY IMPROVED |
| 12 | 710103-002807 | Drive Shaft Key Brass (EBS-15000) |
| 13 | 710105-001783 | EBS-15000 Drive Shaft Cover |
| 14 | 710103-002542 | CONNECTING PIN EBS S/ST316L |
| 15 | 760105-000038 | SPLIT PIN 2X20MM S/ST304 DIN94 |
| 16 | 700190-004307 | SUCTION SCANNER ASSY EBS-15K |
| 17 | 710103-005456 | SUCTION SCANNER SHAFT EBS-15000 |
| 18 | 760105-000043 | PIN 10X53MM S/ST316 |
| 19 | 710103-002948 | PLUG 12MM EBS POM F/SUCTION SCANNER |
| 20 | 710103-002834 | SUCTION SCANNER PIPE EBS-15K |
| 21 | 700190-002687 | SCANNER ASSY OUTLET FILTER EBS-15K |
| 22 | 710103-002827 | PLUG EBS POM SCANNER FILTER |
| 23 | 760105-000042 | PIN 3X20MM S/ST316 |
| 24 | 710103-002534 | NOZZLE EBS-10000 POM SCANNER |
| 25 | 700190-005335 | SLN SUCTION SCANNER ASSEMBLY HD ROLLING EBS-15K |
| 26 | 710103-002892 | SUCTION SCANNER EBS-15000 S/ST316L SLN F/INT FILTER |
| 27 | 700190-002595 | SLN COMPLETE MEGA/EBS ASSY |
| 28 | 710103-002962 | CAP EBS HMPE F/SLN |
| 29 | 710103-002963 | TIGHTENING NUT EBS POM SLN |
| 30 | 710103-002964 | SLN HOUSING EBS S/ST316L DW |
| 31 | 710103-002960 | SUPPORT PIPE EBS S/ST316L F/SCANNER NOZZLE SLN DW |
| 32 | 760107-000052 | HELICAL SPRING SCANNER EBS FREE LENGTH:78MM WIRE DIAMETER:2MM S/ST302 DW |
| 33 | 710103-002961 | SEAT SPRING EBS POM SLN |
| 34 | 700101-001062 | Weavewire St316 15000sq.cm screen 100mic for EBS-15K |
| 34 | 700101-001063 | WEAVEWIRE SCREEN S/ST316L 15000SQ.CM 130MIC EBS-15000 |
| 34 | 700101-001064 | WEAVEWIRE SCREEN S/ST316L 15000SQ.CM 200MIC EBS-15000 |
| 34 | 700101-002049 | WEAVEWIRE SCREEN S/ST316L 15000SQ.CM 40MIC EBS-15000 |
| 35 | 710103-002924 | LOWER BEARING EBS POM |
| 36 | 710105-001763 | Screen SupportEBS-15K R |
| 100 | 770102-000165 | PARKER O-RING 2-392 NBR 70 SHORE |
| 101 | 770102-000168 | PARKER O-RING 2-433 NBR 70 SHORE NO FLASH |
| 102 | 770102-000126 | PARKER O-RING 2-237 NBR 70 SHORE NO FLASH |
| 103 | 770101-000059 | MM O-RING SEAL ID71MM TH5MM NBR 70 SHORE NO FLASH |
| 105 | 770104-000077 | SHAPED SEAL NBR 55 SHORE SCREEN EBS-15000 |
| 106 | 770103-000046 | FLAT SEAL 3" NBR+CLOTH OD124MM ID92MM 70 SHORE AMIAD |
| 110 | 770101-000046 | MM O-RING SEAL ID18MM TH2MM NBR 70 SHORE |
| 111 | 770104-000100 | SHAPED SEAL PTFE 95 SHORE SLN EBS |
| 200 | 760101-000374 | Hex Bolt Full Thread M22X65 Z.Plated C/ST |
| 201 | 760103-000079 | FLAT WASHER M22 DIN125 C/ST ZINC PLATED |
| 204 | 760101-000328 | HEX BOLT PARTIALTHRD M16 60MM C/ST DIN931 Z.PLATED |
| 205 | 760103-000069 | FLAT WASHER M16 DIN125 C/ST ZINC PLATED |
| 207 | 760102-000067 | HEX NUT M16 C/ST ZINC PLATED DIN934 |
| 208 | 760101-000314 | HEX BOLT FULLTHRD M10 40MM C/ST DIN933 Z.PLATED |
| 209 | 760103-000067 | FLAT WASHER M10 DIN125 C/ST ZINC PLATED |
| 210 | 760103-000086 | SPRING WASHER M10 DIN127 C/ST ZINC PLATED |
| 211 | 760102-000064 | HEX NUT M10 C/ST ZINC PLATED DIN934 |
| 212 | 760101-000524 | SOCKET HEAD CAP SCREW M8 30MM S/ST316 DIN912 |
| 213 | 760101-000605 | HEX BOLT FULLTHRD M6 35MM S/ST316 DIN933 |
| 214 | 760103-000094 | FLAT WASHER M6 DIN125 S/ST316 |
| 215 | 760103-000109 | SPRING WASHER M6 DIN127 S/ST316 |
| 216 | 760102-000142 | NYLON INSERT LOCKNUT M6 S/ST316 DIN985 |
| 217 | 760101-000603 | HEX BOLT FULLTHRD M6 20MM S/ST316 DIN933 |
| 218 | 760102-000085 | HEX NUT M6 S/ST316 DIN934 |
| 219 | 760101-000683 | PHILLIPS PAN MACHINE SCREW M4 20MM S/ST316 DIN7985 |
| 220 | 760102-000141 | NYLON INSERT LOCKNUT M4 S/ST316 DIN985 |
| 221 | 760103-000122 | FLAT WASHER M4 DIN125 S/ST316 |
| 224 | 760101-000329 | HEX BOLT PARTIALTHRD M16 65MM C/ST DIN931 Z.PLATED |
| 225 | 760101-000527 | SOCKET SET SCREW M10 50MM S/ST316 DIN916 |
| 226 | 760103-000028 | FLAT WASHER M10 DIN125 S/ST304 |
| 227 | 760102-000087 | HEX NUT M10 S/ST316 DIN934 |
| 300 | 720201-000022 | DRIVE UNIT EBS10K 380/480V AC 50/60HZ 3P .375KW 1400RPM IP55 71 B5 RMI70 1/70 |
| 301 | 720203-000032 | MOTOR SITI 380/480V AC 50/60HZ 3-PH 0.375KW 1370RPM IP55 71 |
| 302 | 720202-000018 | GEAR RMI70 71 B5 1/70 SITI MT-5010 |
| 303 | 720302-000004 | LIMIT SWITCH PIZZATO FA 4131-2DN METALEBS/SAF 2M CABLE NC |
| 304 | 720501-000207 | STRAIGHT CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK-RED TEFEN |
| 305 | 730103-000521 | VALVE 3" DOROT GAL47 BSTD RED HYDRAULIC CAST IRON FLUSHING |
| 305 | 730103-000522 | VALVE 3" BERMAD RAM405 ISO16 RED HYDRAULIC CAST IRON FLUSHING |
| 306 | 720501-000206 | CONNECTOR 5/16" X1/4" BRASS AIGNEP |
| 307 | 720502-000036 | CONTROLTUBE 5/16" PA BLACK BACCARA |
| 308 | 710103-000591 | NIPPLE 1/4" BRASS BSPT PRESSURE CHECK |
| 309 | 720501-000204 | L-CONNECTOR 1/8"M X5/16" BSPT BRASS AIGNEP |
| 310 | 720103-000182 | SOL ASCO 3/2 NO 24AC 60HZ 2MM BRAS |
| 310 | 720103-000766 | SOL BACC 3/2 NO 24AC 50/60HZ 2MM BRAS |
| 311 | 720501-000202 | L-CONNECTOR 1/4"M X5/16" BSPT BRASS AIGNEP |
| 312 | 700190-001971 | RACCORD CONNECTOR ASSEMBLY 3/4"X1/4" |
| 313 | 010000-000041 | 3/4" I/L BSPT POM BLACK MOLDED SCREEN POLYESTER 130MIC NBR |
| 314 | 780101-000789 | ELBOW 3/4" FEMALE/MALE GALVANIZED |
| 315 | 730104-000220 | 2-WAY BALL VALVE 3/4" M/F S.A BRASS/NICKEL PLATED MANUAL SAGIV |
| 316 | 720501-000259 | T-CONNECTOR 1/8"MX5/16" X5/16" BSP BRASS AIGNEP |
| 317 | 730104-000202 | 3-WAY BALL VALVE 1/4" BSP S.Y-3 BRASS MANUAL SAGIV |
| 318 | 720501-000214 | T-CONNECTOR 1/4"FX1/4"F X1/4"M BSPT BRASS/NICKEL PLATED AIGNEP |
| 319 | 700190-002336 | MANOMETER VALVE 1/4" W/ DRAIN ASSY |
| 320 | 700190-002457 | PRESSOSTAT SUB-ASSY UE W/O FITTINGS |
| 320 | 700190-002618 | PD SWITCH SUB-AS. MIDWEST W/O FITTING ASSY |
| 321 | 720301-000044 | PRESSURE GAUGE 0-16 BAR/PSI GOLDEN BRASS 1/4" BSP BOTTOM 2" W/GLYCERINE |
| 322 | 700190-002421 | ELECTRIC JUNCTION BOX OSEA 24VDC IP55 GEWISS POLYESTER SOLENOID L.S. DPS |
| 325 | 780101-000779 | 2" PLUG |
| 700194-000005 | 700194-000005 | EBS-15K SEALS SET |
| 700194-000093 | 700194-000093 | EBS15K SCAN PREVE MAINTE ONE YEAR |
| 700194-000094 | 700194-000094 | EBS15K SLN PREVENTIVE MAINT ONE YEAR |
Due to the wide range of options and criteria for correct model selection, pricing and configuration are available on application only.
Please contact us for more information.
