| Brand: | Bermad |
| Category: | Control Valves, 100 Series |
| Engineering Data: | |
| Size Range: | 40-150mm |
| Connection: | 40-80mm - Female Threaded BSP 80-150mm - Flanged |
Product Description
The BERMAD Model IR-13Q is a hydraulically operated, diaphragm-actuated control valve designed to relieve excessive line pressure when it rises above the preset maximum. It responds to rises in system pressure immediately, accurately, and with high repeatability, by opening fully. The BERMAD Model IR-13Q provides smooth drip-tight closing
Features and Benefits
- Hydraulic Control Valve
- Line pressure driven
- Short response time
- Long-term drip-tight sealing
- Engineered Plastic Valve with Industrial Grade Design
- Adaptable on-site to a wide range of end connection sizes and types
- Highly durable, chemical & cavitation resistant
- hYflow ‘Y’ Valve Body with “Look Through” Design
- Ultra-high flow capacity at Low-pressure loss
- Unitized Flexible Super Travel Diaphragm with a Guided Plug
- Accurate and stable regulation with smooth closing
- Requires low actuation pressure
- Prevents diaphragm erosion and distortion
- Simple In-Line Inspection and Service

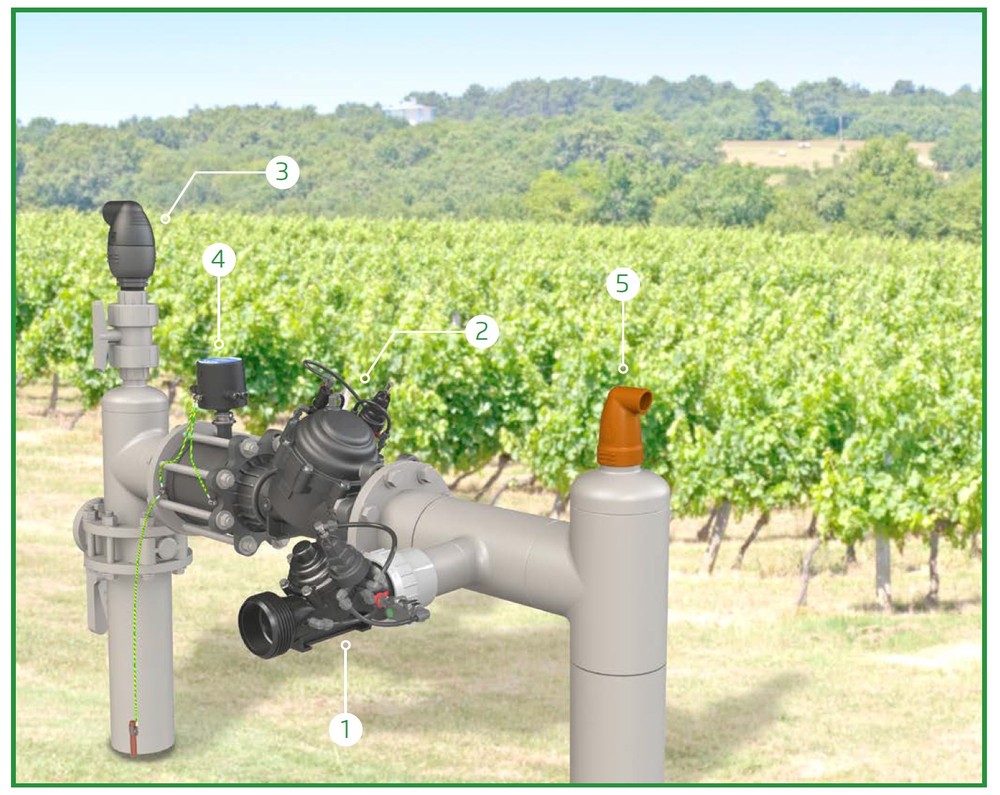

[1] BERMAD Model IR-13Q protects the system from pressure spikes
[2] Pressure Reducing Valve
[3] Combination Air Valve
[4] Electromagnetic Water Meter
[5] Kinetic Air Valve
Typical Application
- System Burst Protection
- Momentary Pressure Peak Elimination
- System Failure Visual Indication
- Filter Burst Protection
Technical Data
Operation

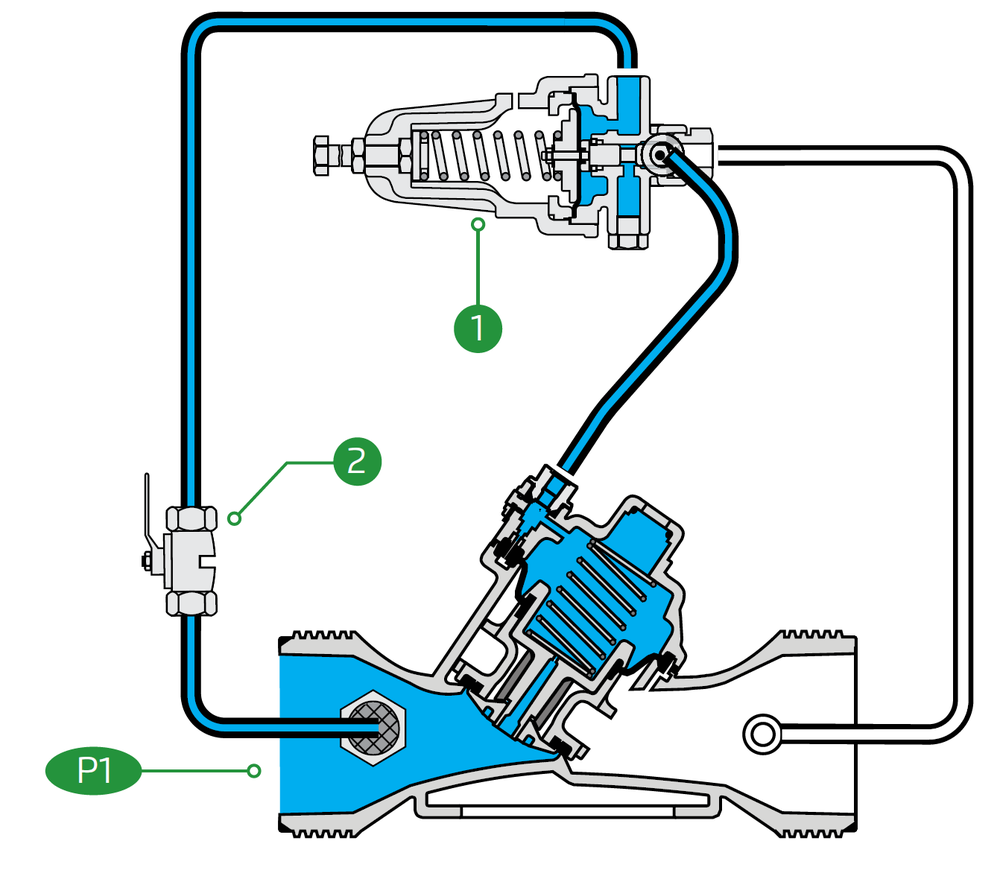

The Pressure Relief Pilot 1 commands the valve to open immediately should the upstream pressure P1 abruptly rise above the pilot setting, and to close smoothly when it falls below the pilot setting, sealing drip tight. The Cock Valve 2 enables manual operating test.
Materials
Body, Cover and Plug
- Polyamid 6 & 30% GF
Diaphragm
- NR, Nylon fabric reinforced
Seals:
- NR
Spring
- Stainless Steel
Cover Bolts
- Stainless Steel
Pressure Rating
- 10 bar; 145 psi
Operating Pressure Range
- 0.5-10 bar; 7-145 psi
Setting Range
- 1-7 bar; 15-100 psi
Setting ranges vary according to specific pilot springs. Please consult Deeco.
Control Accessories:
Tubing and Fittings:
- Plastic

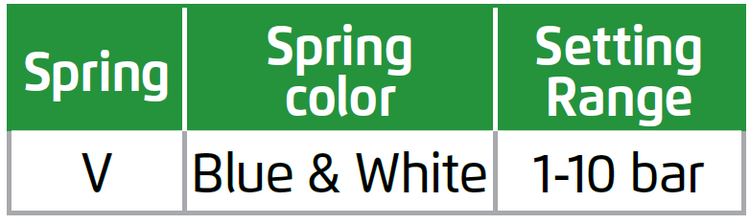

Pilot Spring Range:

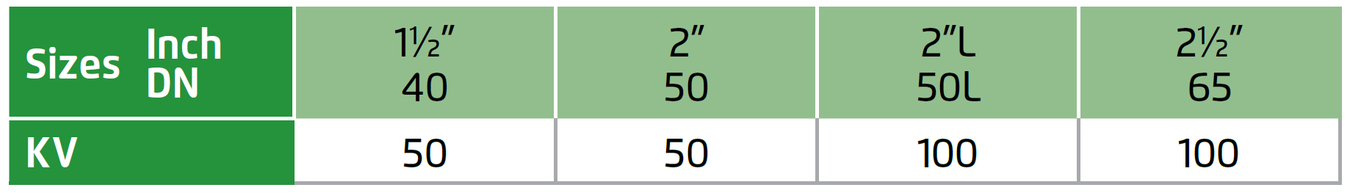

Flow Properties

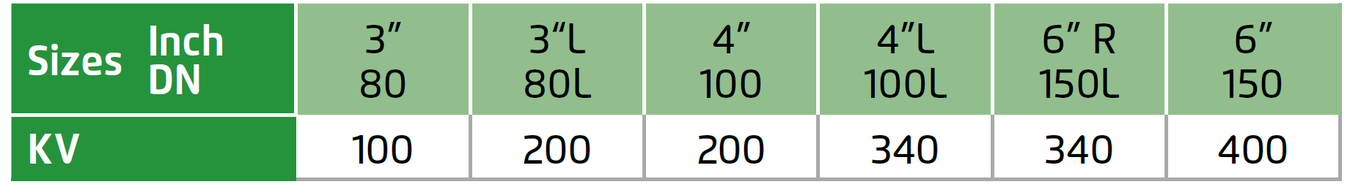

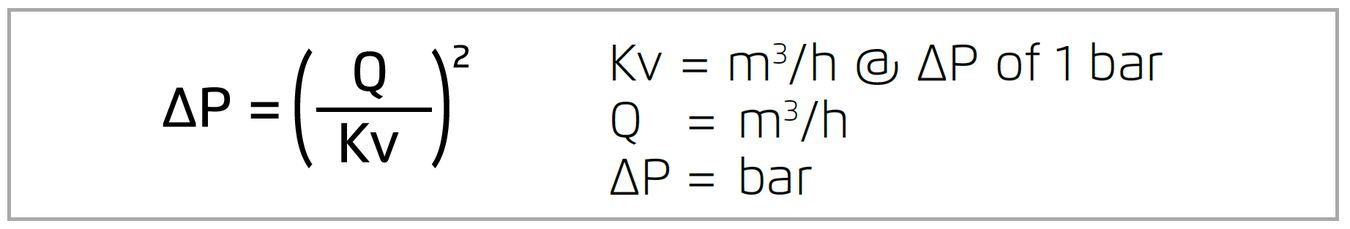

Valve Flow Coefficient

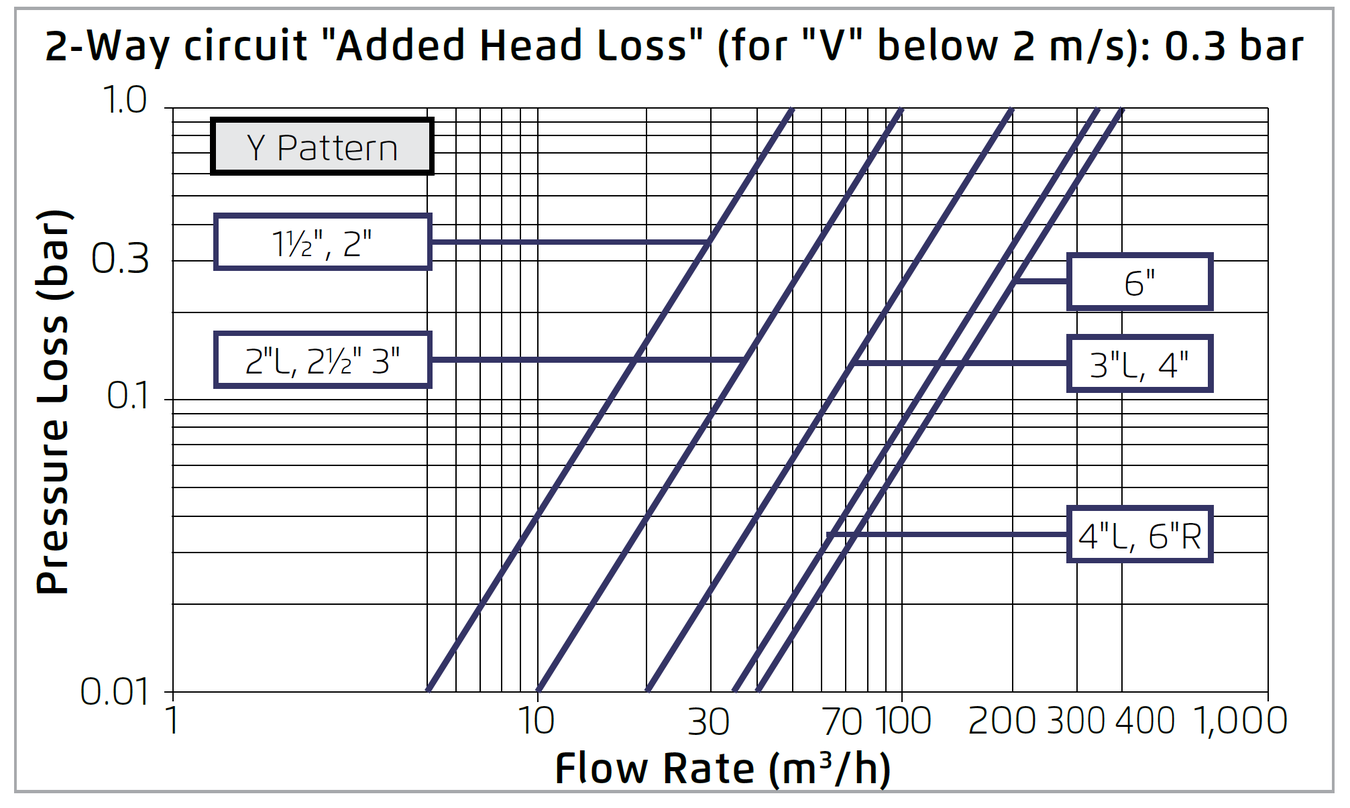

Flow Chart
Technical Specifications

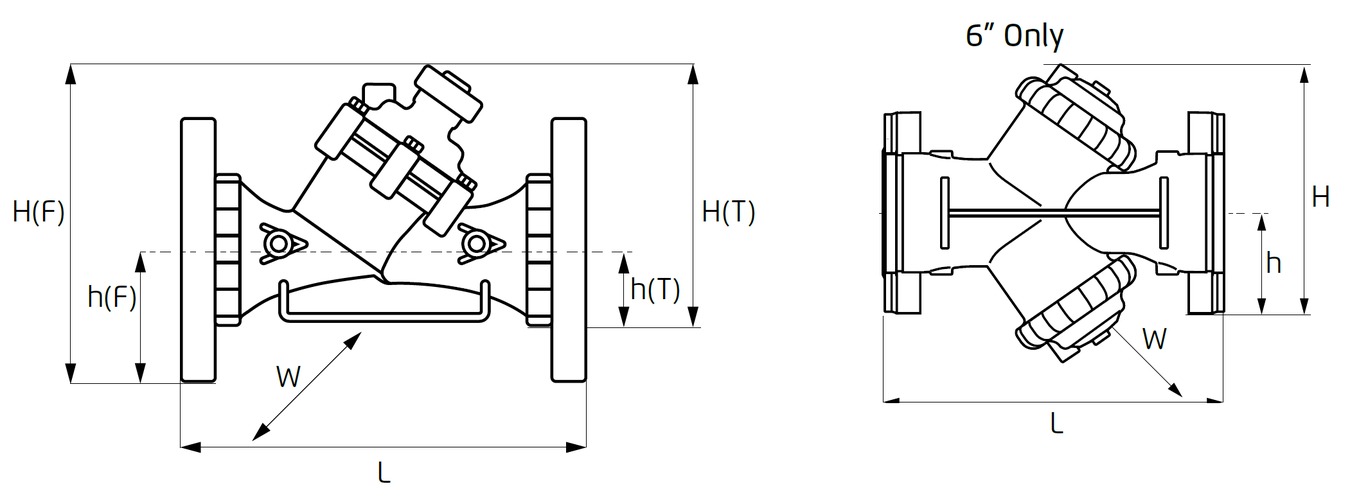

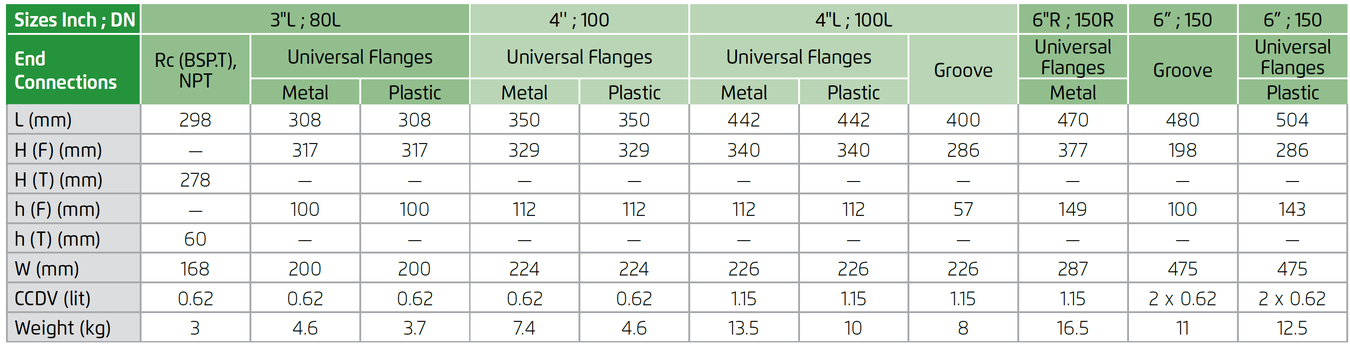

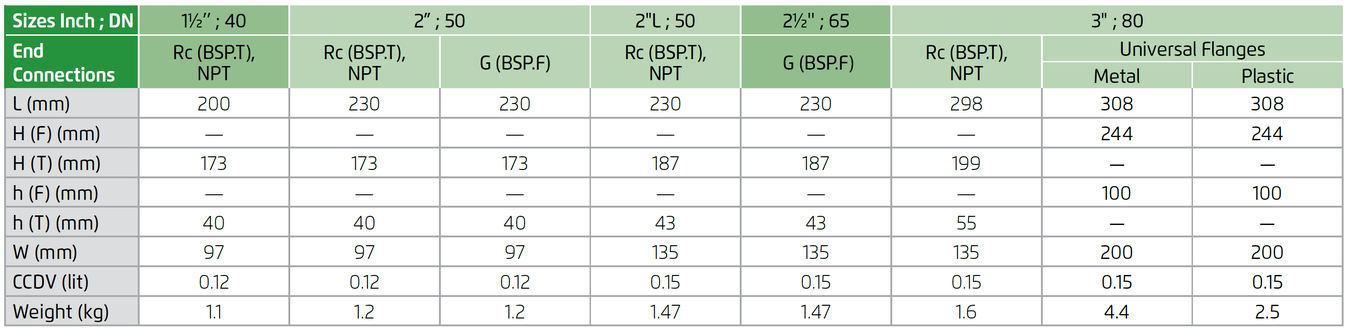

Dimensions and Weights
CCDV = Control Chamber Displacement Volume • BSP.T = Internal Threaded • BSP.F = External Threaded • Other End Connections are available on request. For dimensions and weights of adapters or valves with adapters please consult with customer service
For Spare Parts & Repair Kits - Please refer to the base model:
Due to the wide range of options available and criteria for correct model selection, pricing and configuration are available on application only.
Please consult with Deeco engineers for more information.
