| Brand: | Bermad |
| Category: | Control Valves, 400 Series |
| Size Range: | 25-300mm |
| Connection: | 25-80mm - Female Threaded BSP 80-300mm - Flanged |
| Engineering Data: |
Product Description
The BERMAD Quick Pressure Relief Valve is a hydraulically operated, diaphragm-actuated control valve that relieves excessive line pressure when it rises above the preset maximum. It responds to a rise in system pressure immediately, accurately, drip-tight, and with high repeatability, by opening fully. The BERMAD Model 43Q provides smooth drip tight closing.
Features and Benefits
- Hydraulic Pressure Control
- Line pressure driven
- Long-term drip-tight sealing
- Long-term setting stability
- Wide setting range
- Tight setting window with minimal hysteresis
- Advanced Globe Hydro-Efficient Design
- Unobstructed flow path
- Single moving part
- High flow capacity
- Fully Supported & Balanced Diaphragm
- Requires low opening and actuation pressure
- Progressively restrains valve closing
- Prevents diaphragm distortion
- User-Friendly Design
- Easy pressure setting

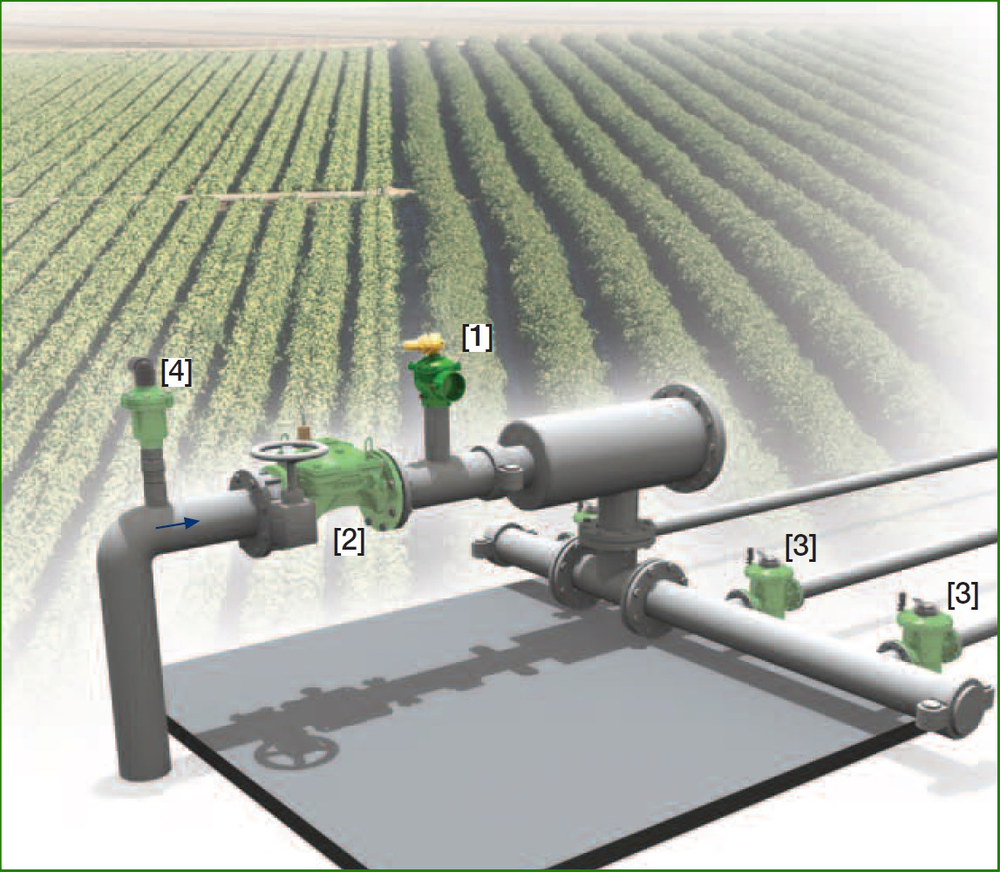

1. BERMAD Model IR-43Q protects the filter and system from overpressure.
2. BERMAD Pressure Reducing Valve Model IR-420-R
3. BERMAD Hydrometer with Solenoid Control Model IR-910-M0-X
4. BERMAD Air Valve Model ARC-A-I-I
Typical Applications
- System Burst Protection
- Momentary Pressure Peak Elimination
- System Failure Visual Indication
- Filter Burst Protection
Technical Data
Operation

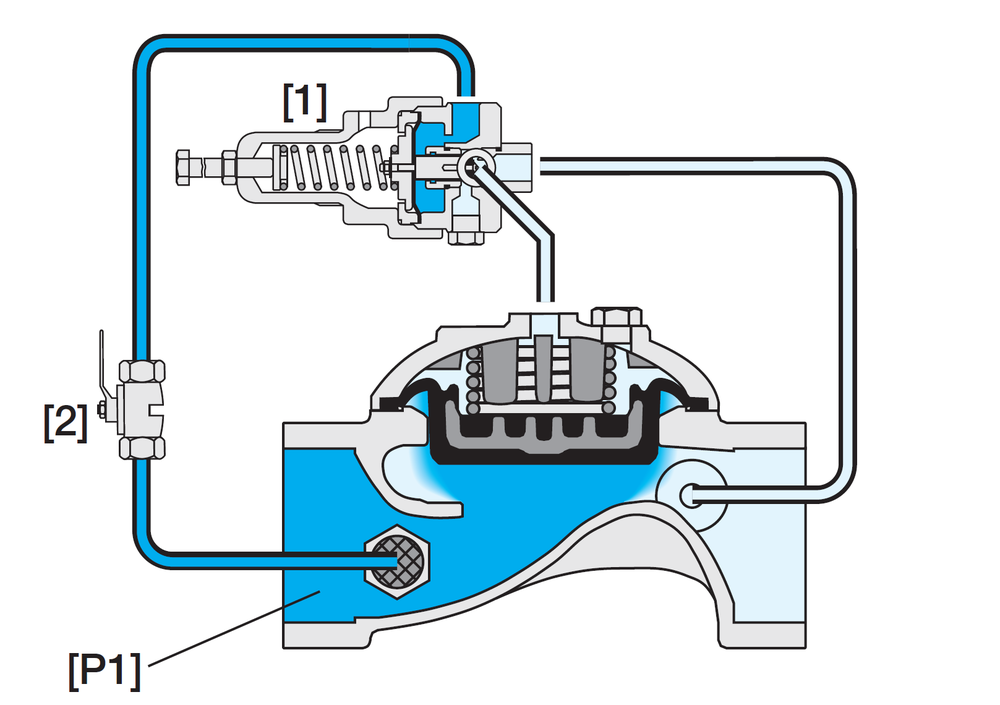

The Pressure Relief Pilot [1] commands the Valve to open immediately should the Upstream Pressure [P1] abruptly rise above the setting, and to close smoothly when it falls below the setting. The Vented Cock Valve [2] enables manual operating tests.
Pressure Rating
- 16 bar
Operating Pressure Range
- 0.5-16 bar
For lower pressure requirements, consult Deeco
Setting Range
- 1-12 bar
Setting ranges vary according to specific pilot springs. Please consult Deeco.
Valve Configurations and Sizes
- Globe: DN40-400
- Angle: DN50-100
End connections
- 25-80mm - Female Threaded BSP
- 80-400mm - Flanged

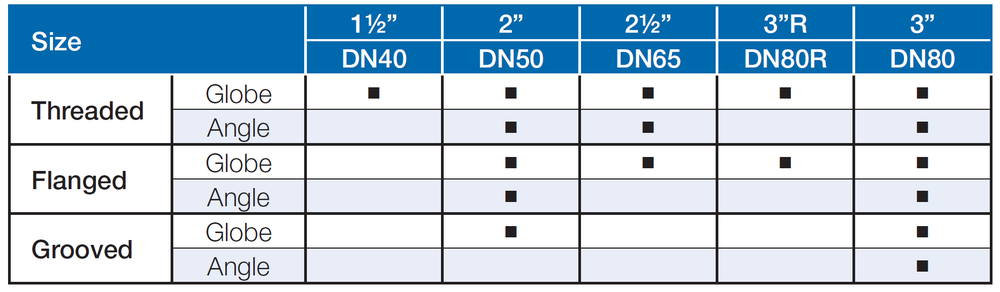

Bermad - 43Q-2W - End Connections
Technical Specifications

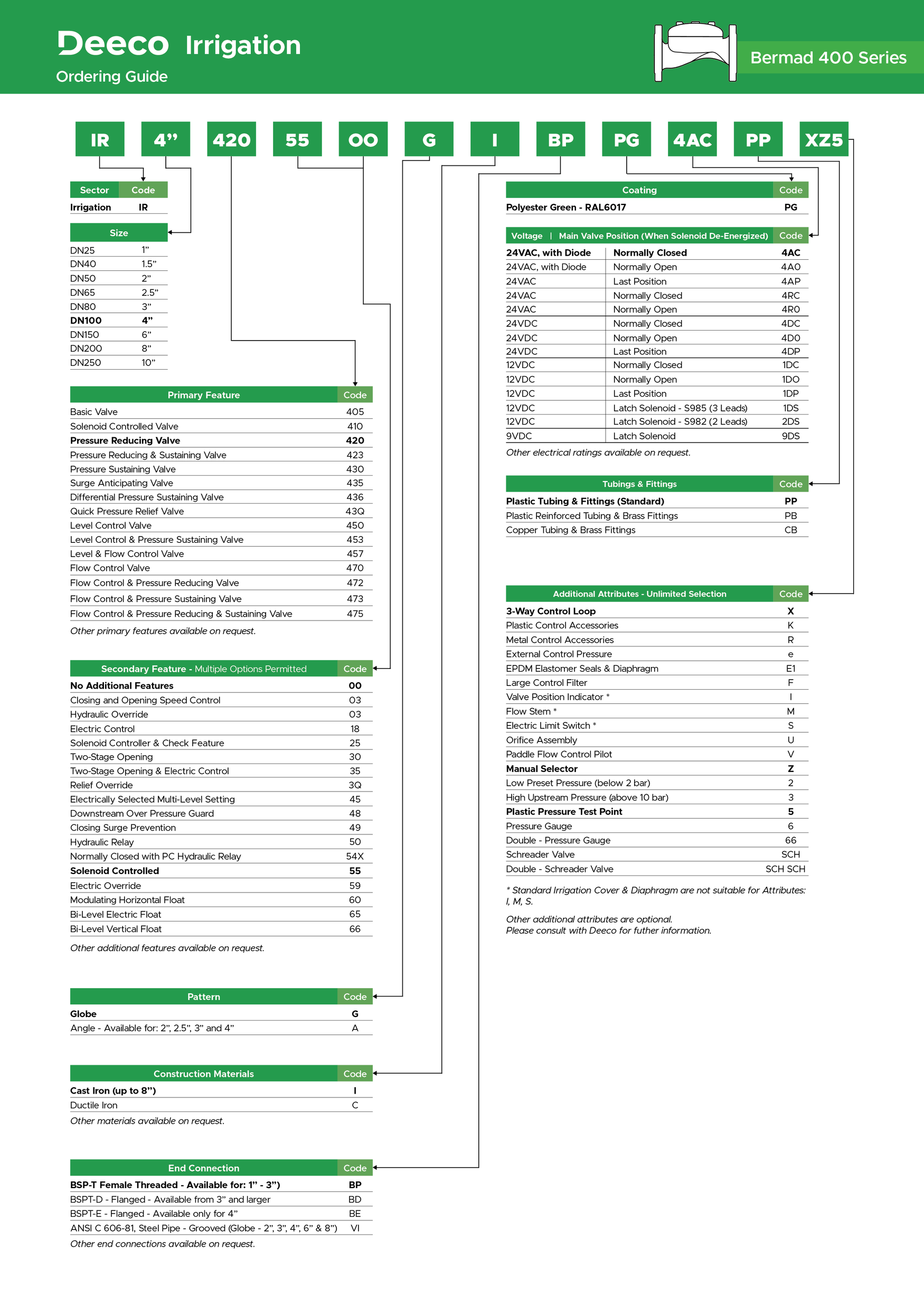

For technical specifications (Flow charts, valve characteristics, dimensions, etc.) - Please refer to the Engineering Data:
For Spare Parts & Repair Kits - Please refer to the base model:
Due to the wide range of options available and criteria for correct model selection, pricing and configuration are available on application only.
Please consult with Deeco engineers for more information.
