Amiad - Filtomat M100 - Automatic Screen Filter

Amiad - Filtomat - Product Image
Brand: Amiad / Arkal
Category: Filtration, Automatic Filters - Screen
Size Range:

50-250mm

Filtration Degree:

80-500 micron

Product Description

The Filtomat is a hydraulic self-cleaning screen filter, controlled by the new generation, advanced ADI-P controller. It is ideal for remote industrial installation sites, with a water-driven self-cleaning system that doesn’t require an external power source for operation. The perfect solution for industrial filtration requirements.

The Filtomat’s simple construction requires minimal and easy maintenance and has a reliable operation mechanism. There is no interruption of downstream flow during automatic flushing according to pressure differential.

Features and Benefits

  • Easy maintenance - disassembles in only 5 parts.
  • Simple construction
  • Reliable and durable
  • Automatic flushing according to pressure differential or set time.
  • Designed for industrial filtration needs.
  • No interruption of downstream flow during flushing

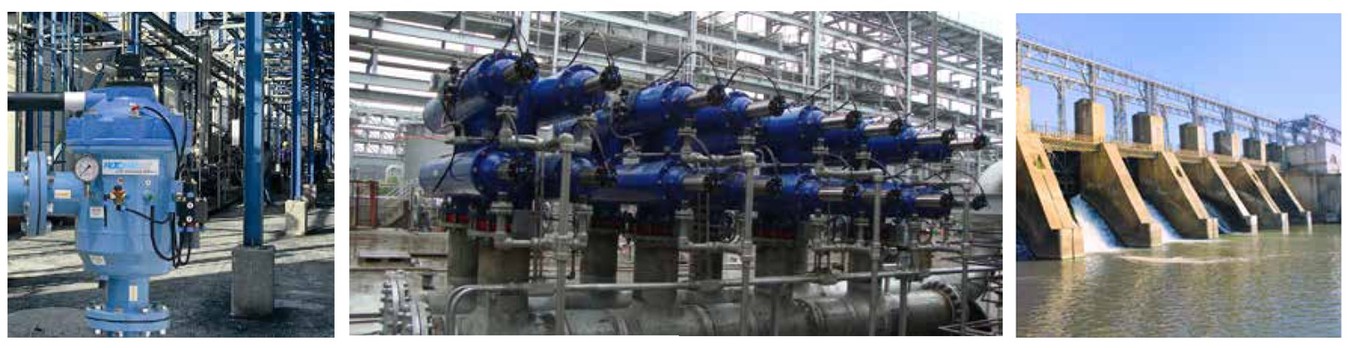

Amiad - Filtomat - Features and Benefits

Amiad - Filtomat - Typical Installations

Additional Features & Accessories

The ADI-P Controller

The ADI-P Controller operates the automated processes that flush your Mini Sigma filters, allowing you to control and monitor them easily and conveniently.

The ADI-P App

Access your site’s filtration performance data directly from the ADI-P app.

Here are some of the data that you can access via the ADI-P app:

  • Flush logs
  • Flush frequency
  • Current DP
  • Current outlet and inlet pressure
  • Flush quality - measuring DP on the filter before and after the flush cycle
  • Malfunctions with descriptions of each event
  • Battery status and low battery alerts
Amiad - Filtomat - Additional Features and Benefits

Amiad - Filtomat - Additional Features and Benefits

The Filtration Process

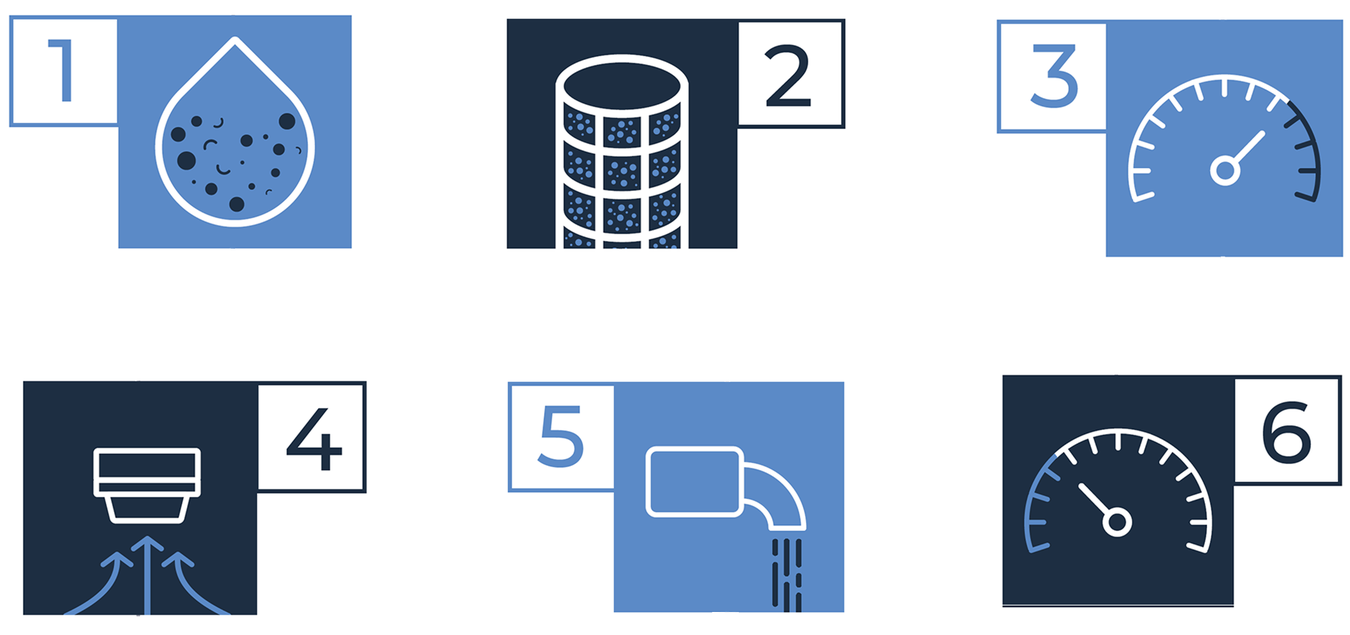

Amiad - Filtomat - Filtration Process

1- Raw water flows through the filter inlet and to the coarse screen for the removal of large debris and sediment.

2- Water then passes through the fine screen for removal of the remaining small particles.

3- A differential pressure switch (DPS) monitors the pressure caused by the accumulation of debris on the inner screen and initiates the self-cleaning process at 7 psi (0.5 bar).

4- The flush valve opens to the atmosphere to create a strong suction force at the scanner nozzles, effectively removing dirt particles from the screen.

5- Dirty backflush water is drained out via the drainage pipe.

6- After efficient cleaning, the DP returns to its original value, enabling the filter to operate continuously without downtime.

Technical Data

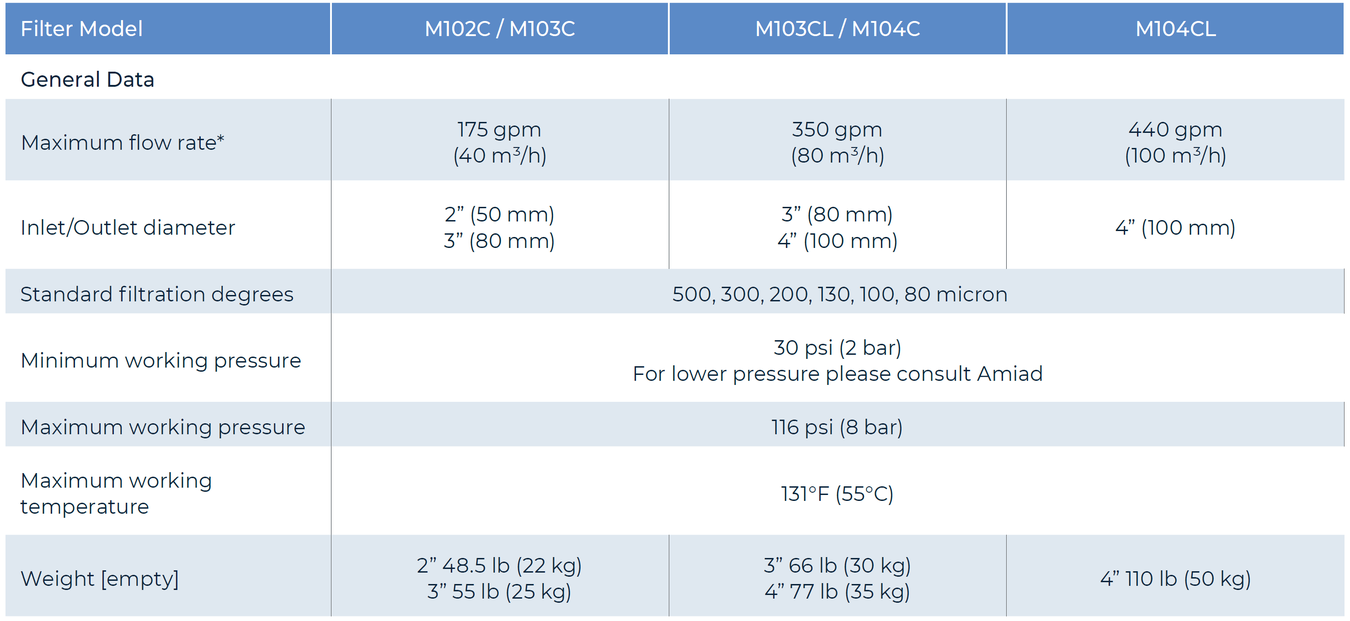

Amiad - FiltomatM100 - General Data

Amiad - FiltomatM100 - General Data for Models M102C/M103C, M103CL / M104C, M104CL

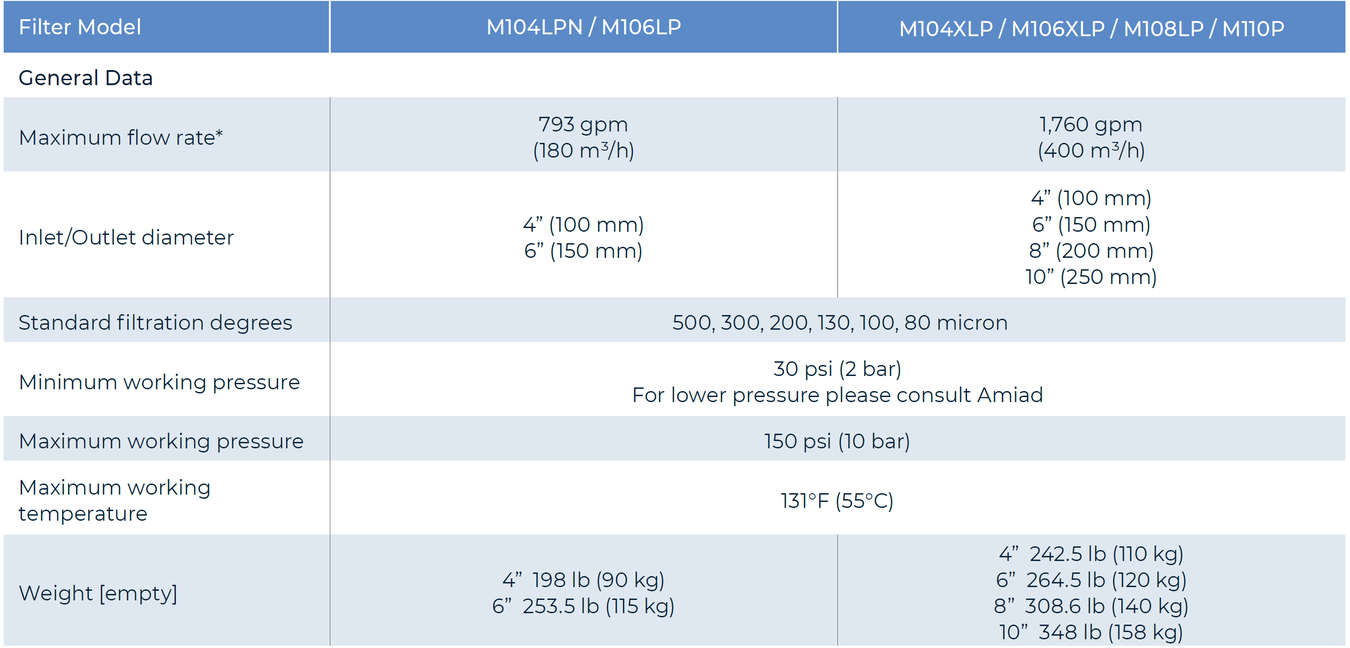

Amiad - FiltomatM100 - General Data 2

Amiad - FiltomatM100 - General Data for Models M104LPN / M106LP, M104XLP / M106XLP / M108LP / M110P

* Consult Deeco for optimum flow depending on filtration degree and water quality

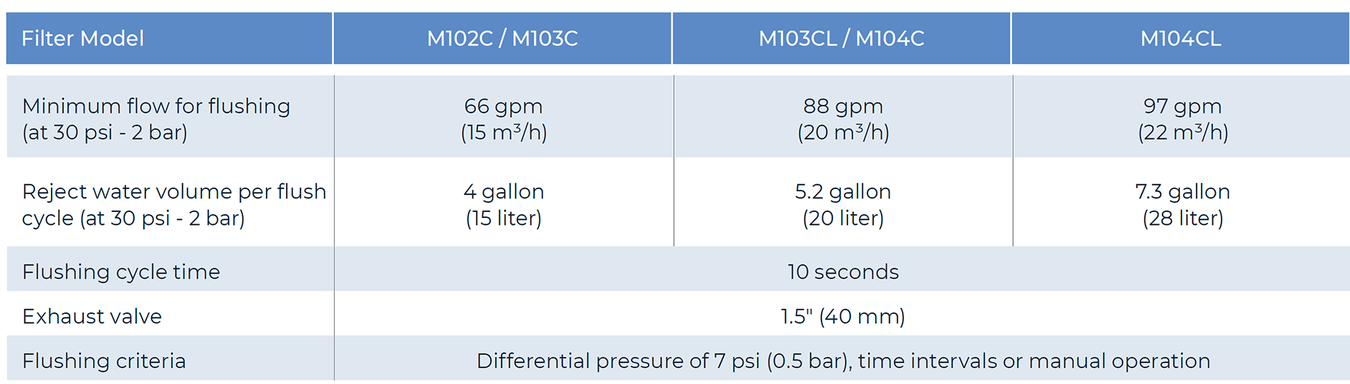

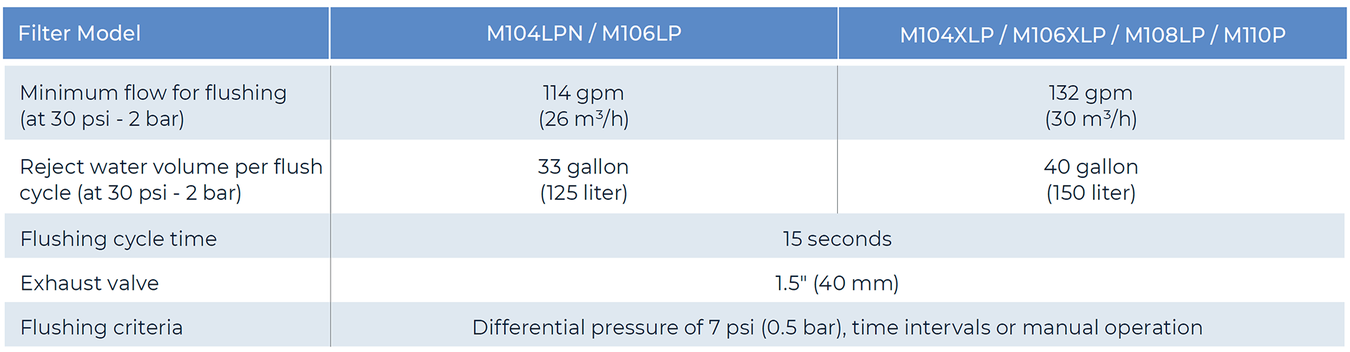

Flushing Data

Amiad - FiltomatM100 - Flushing Data

Amiad - FiltomatM100 - Flushing Data for Models M102C/M103C, M103CL / M104C, M104CL

Amiad - FiltomatM100 - Flushing Data 2

Amiad - FiltomatM100 - Flushing Data for Models M104LPN / M106LP, M104XLP / M106XLP / M108LP / M110P

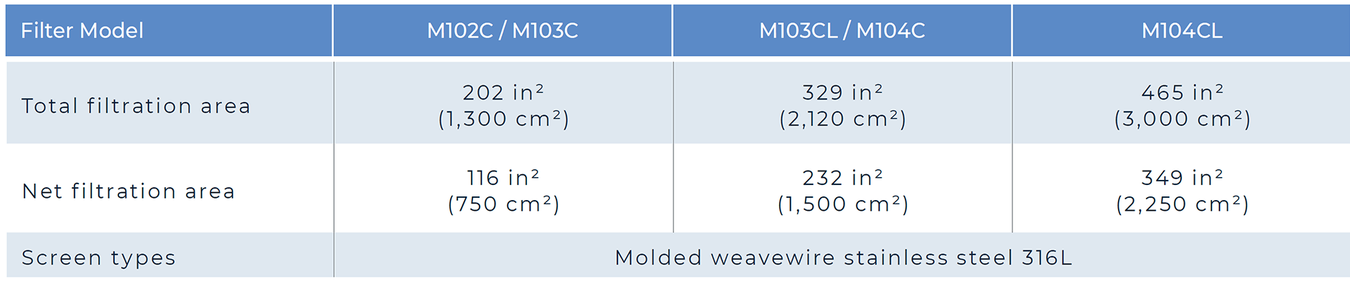

Screen Data

Amiad - FiltomatM100 - Screen Data 1

Amiad - FiltomatM100 - Screen Data for Models M102C/M103C, M103CL / M104C, M104CL

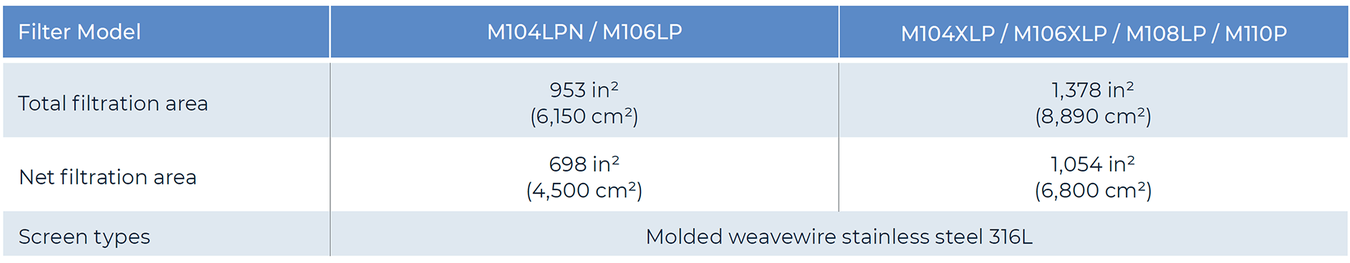

Amiad - FiltomatM100 - Screen Data 2

Amiad - FiltomatM100 - Screen Data for Models M104LPN / M106LP, M104XLP / M106XLP / M108LP / M110P

Construction Materials

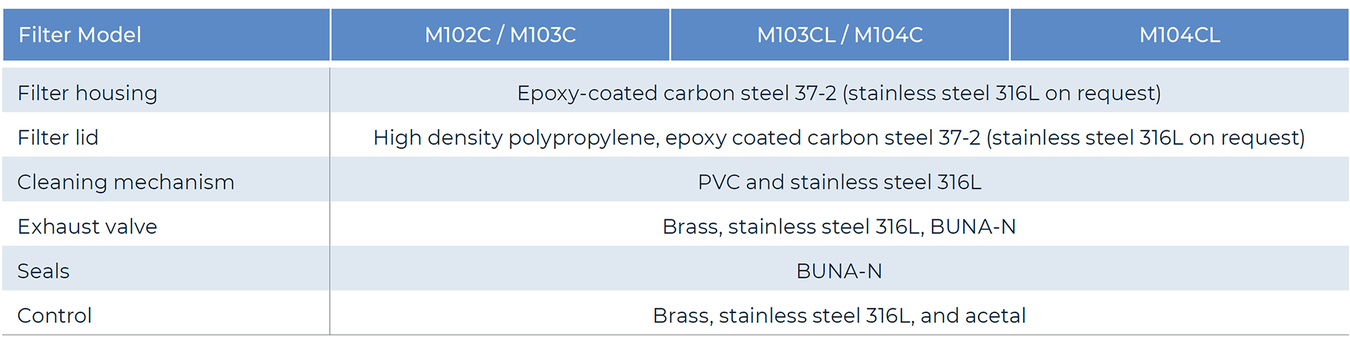

Amiad - FiltomatM100 - Construction Materials 1

Amiad - FiltomatM100 - Construction Materials for Models M102C/M103C, M103CL / M104C, M104CL

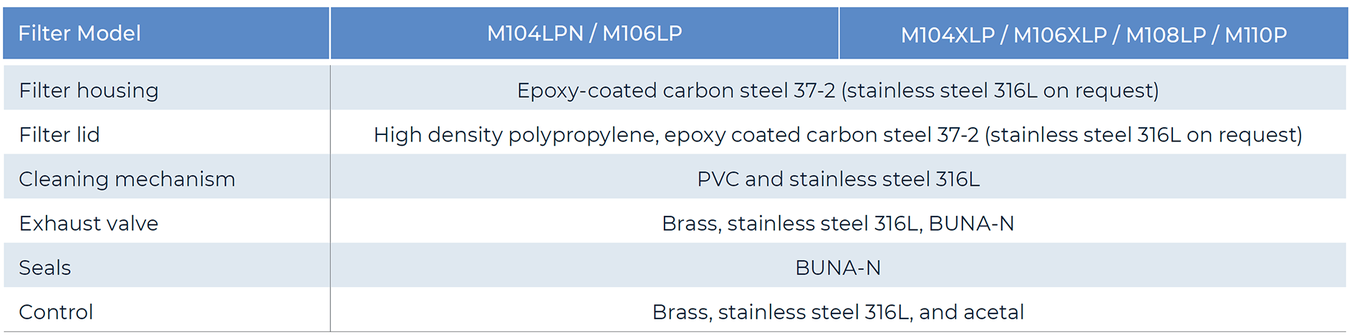

Amiad - FiltomatM100 - Construction Materials 2

Amiad - FiltomatM100 - Construction Materials for Models M104LPN / M106LP, M104XLP / M106XLP / M108LP / M110P

Filtomat M100 Models and Head Loss Graphs

Filtomat M100 models are available as a standalone or as a filter bank assembly, with a single ADI-P electronic control system.

  • M102C/M103C: ≤ 176 gpm (40 m³/h)
  • M103CL/M104C: ≤ 350 gpm (80 m³/h)
  • M104CL: ≤ 440 gpm (100 m3/h)
  • M104LPN/M106LP: ≤ 793 gpm (180 m³/h)
  • M104XLP/M106XLP/M108LP/M110P: ≤ 1,760 gpm (400 m³/h)

Filtomat M102C / M103C

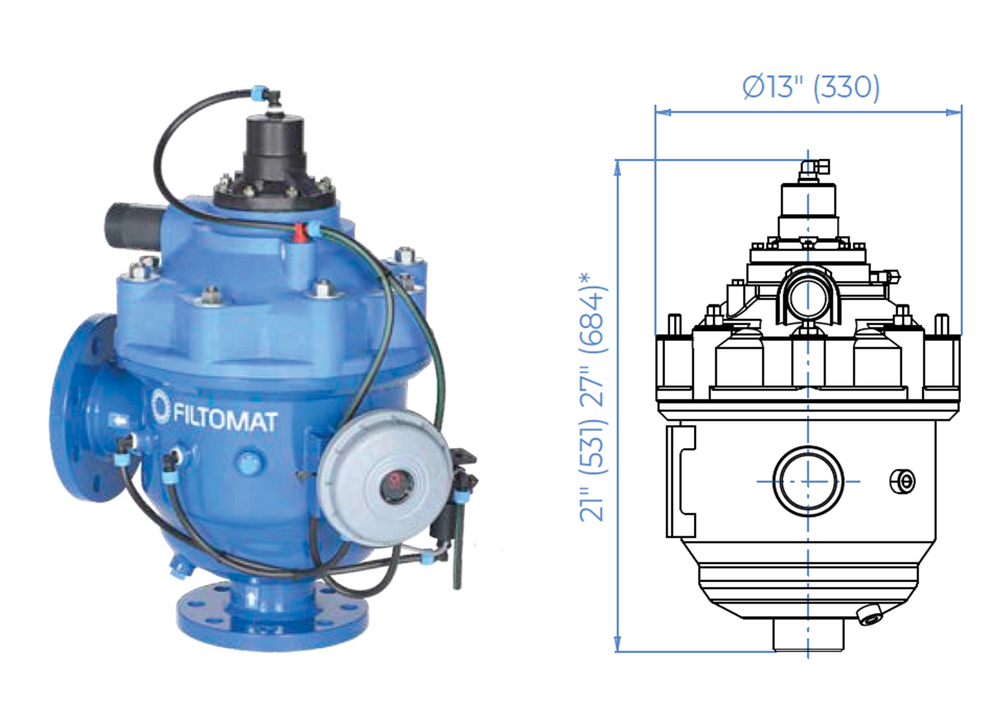

Amiad - Filtomat - M102C M103C

Amiad - FiltomatM100 - M102C/M103C

Head Loss Graph (in clean water)

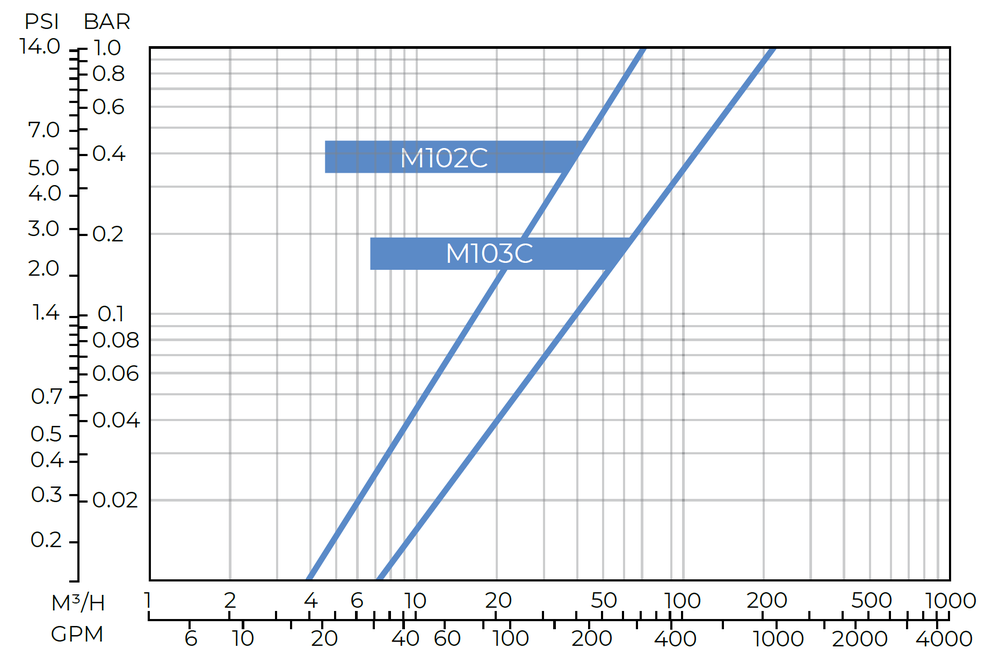

Amiad - FiltomatM100 - M102CM103C - Head Loss Graph

Amiad - FiltomatM100 - M102CM/103C - Head Loss Graph

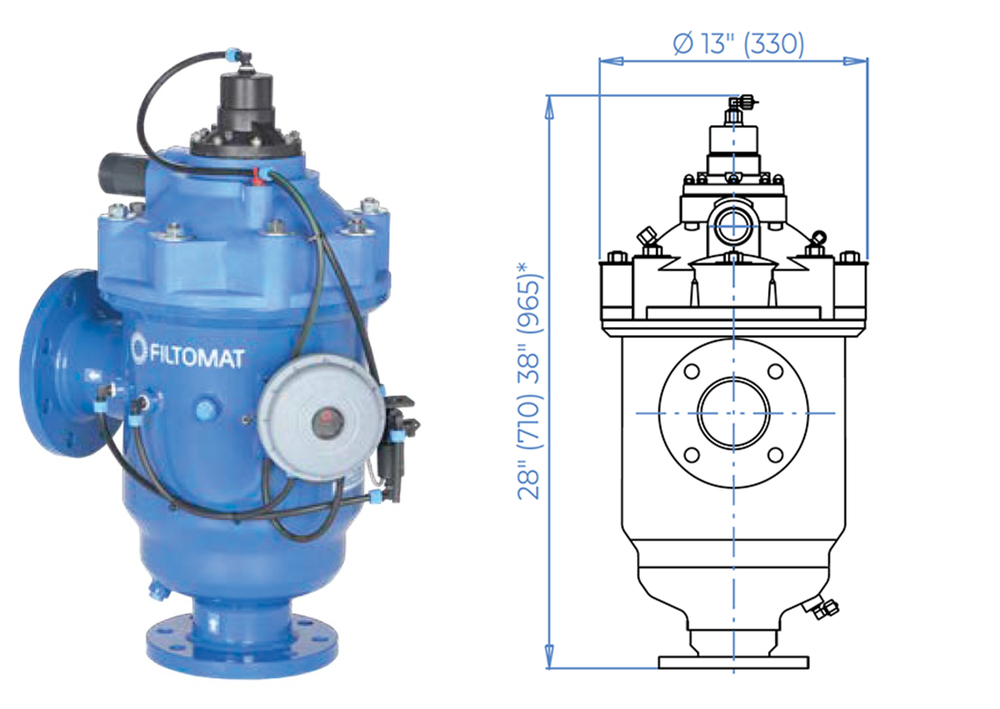

Filtomat M103CL / M104C

Amiad - Filtomat - M103CL M104C

Amiad - FiltomatM100 - M103CL/M104C

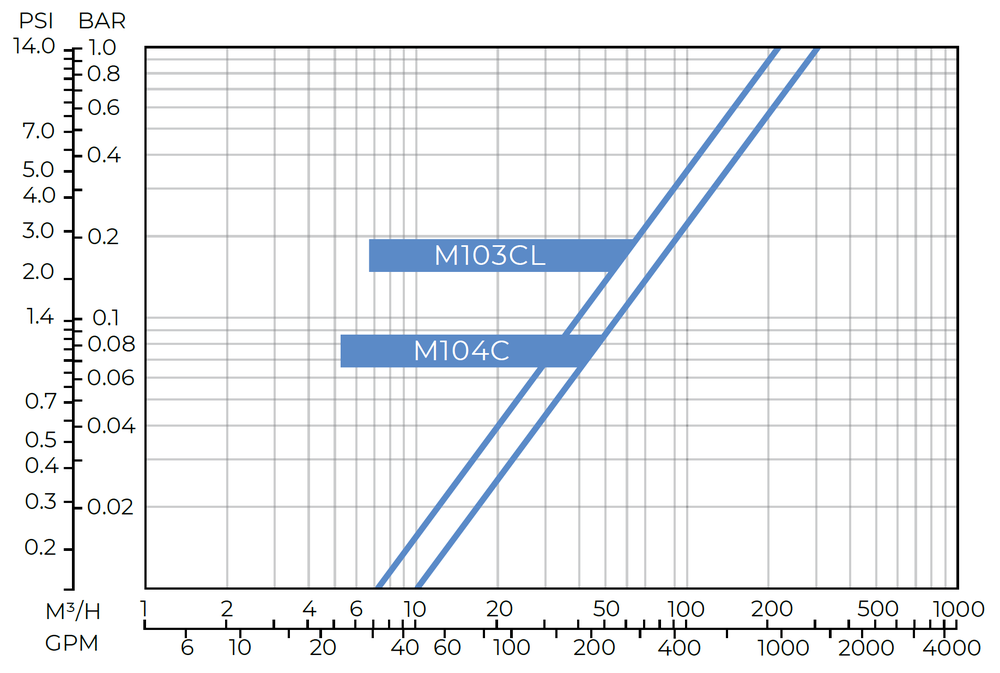

Head Loss Graph (in clear water)

Amiad - FiltomatM100 - M103CLM104C - Head Loss Graph

Amiad - FiltomatM100 - M103CL/M104C - Head Loss Graph

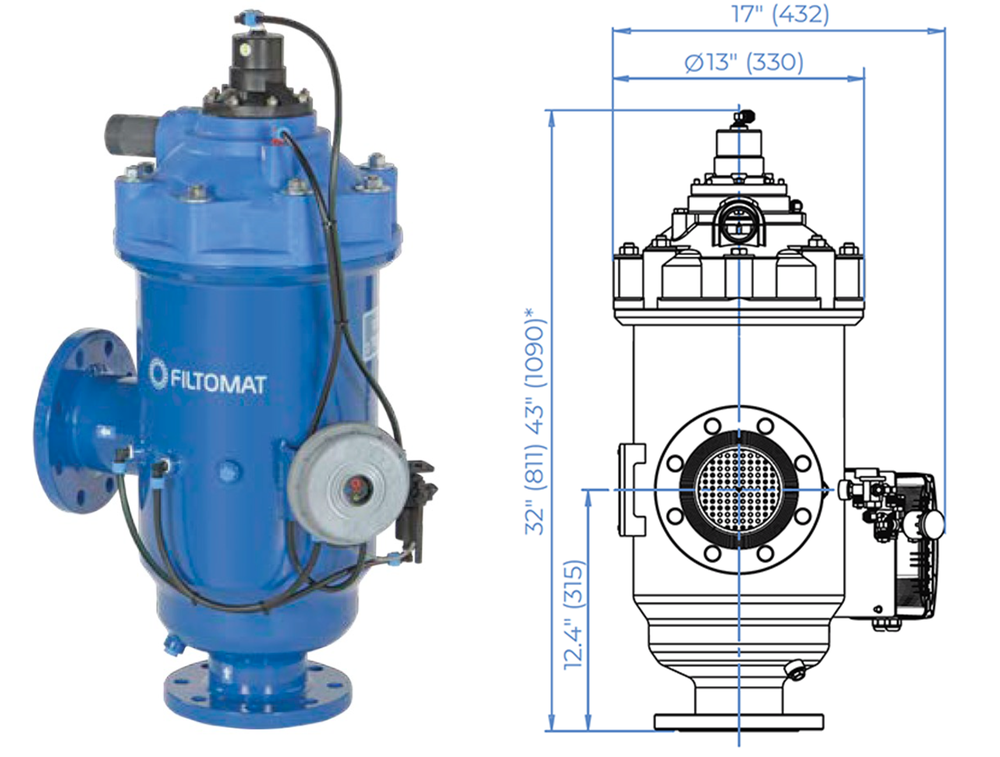

Filtomat M104CL

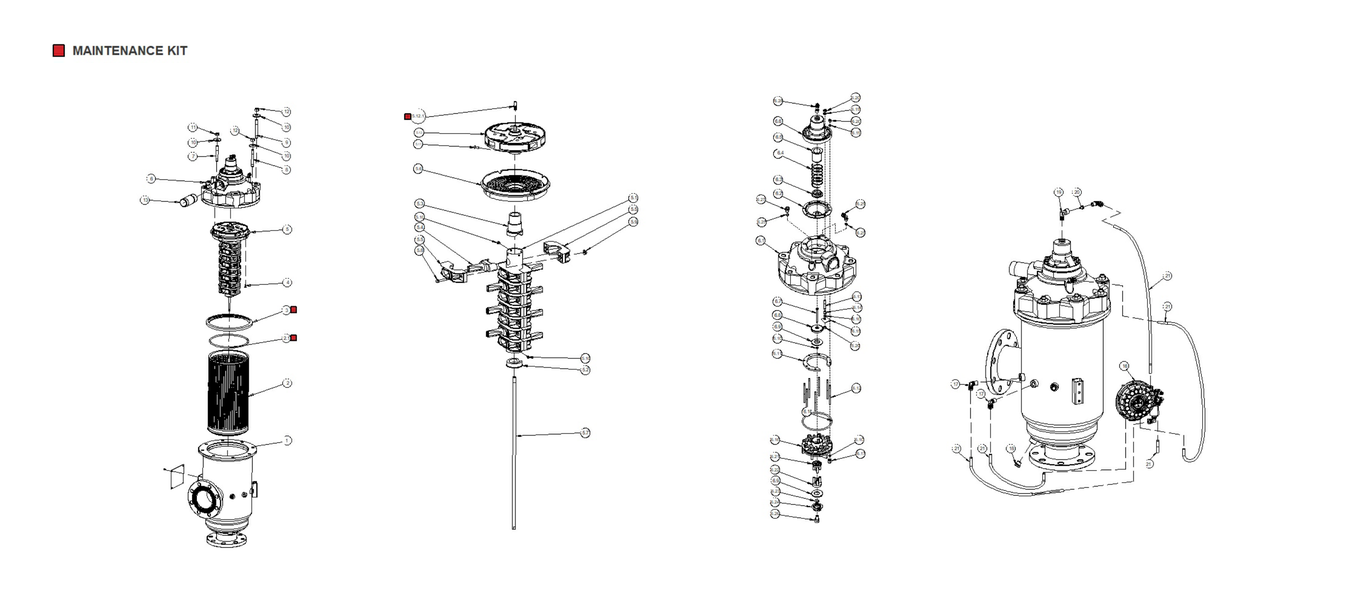

Amiad - Filtomat - M104CL

Amiad - FiltomatM100 - M104CL

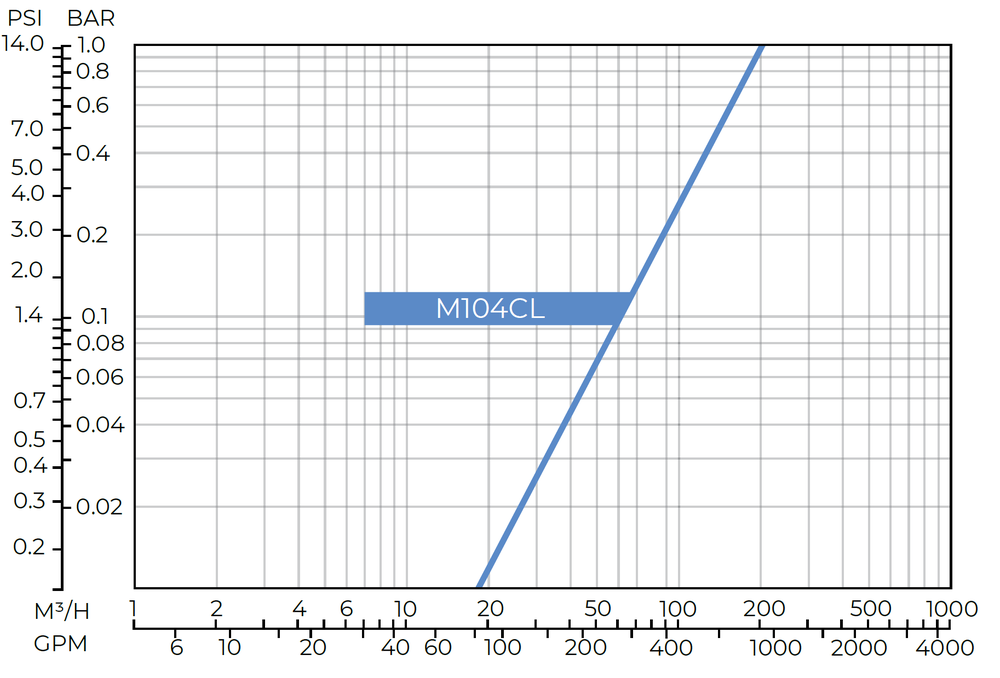

Head Loss Graph (in clear water)

Amiad - FiltomatM100 - M104CL - Head Loss Graph

Amiad - FiltomatM100 - M104CL - Head Loss Graph
*Approx. length required for maintenance

Filtomat M104LPN / M106LP

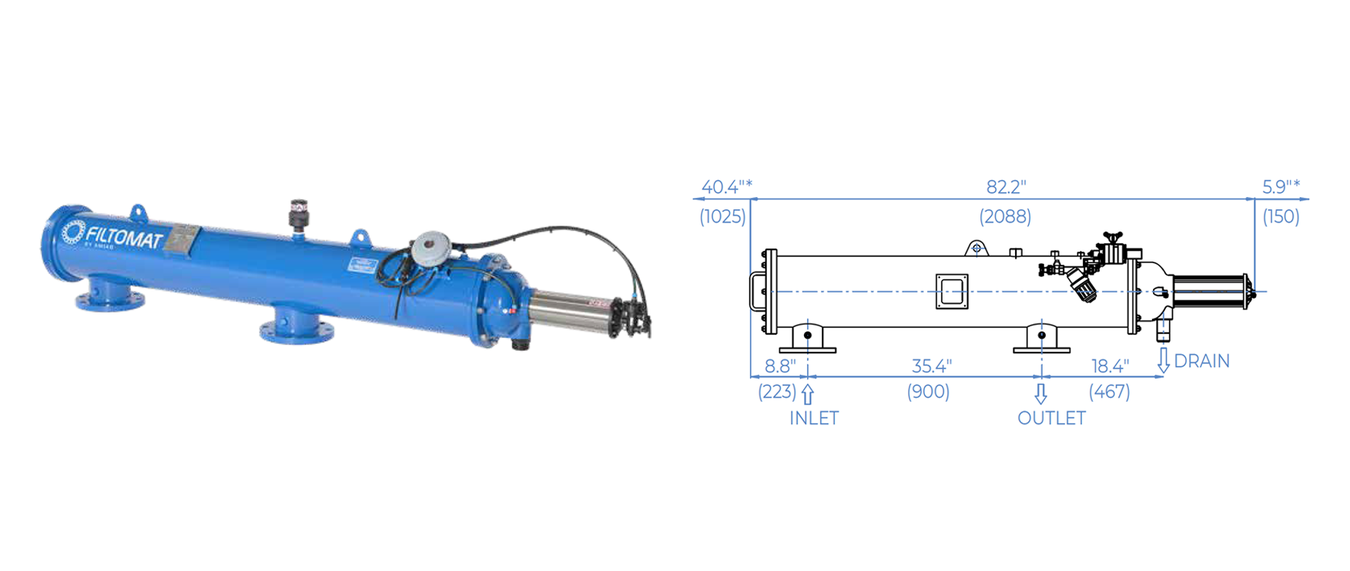

Amiad - FiltomatM100 - M104LPN M106LP

Amiad - FiltomatM100 - M104LPN/M106LP

Head Loss Graph (in clear water)

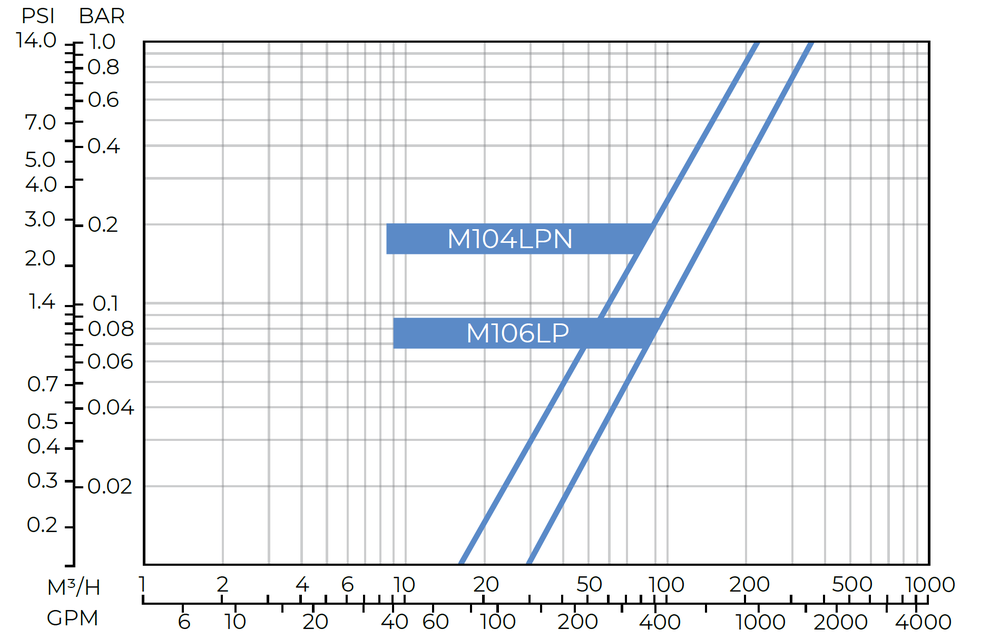

Amiad - FiltomatM100 - M104LPN M106LP - Head Loss Graph

Amiad - FiltomatM100 - M104LPN/M106LP - Head Loss Graph

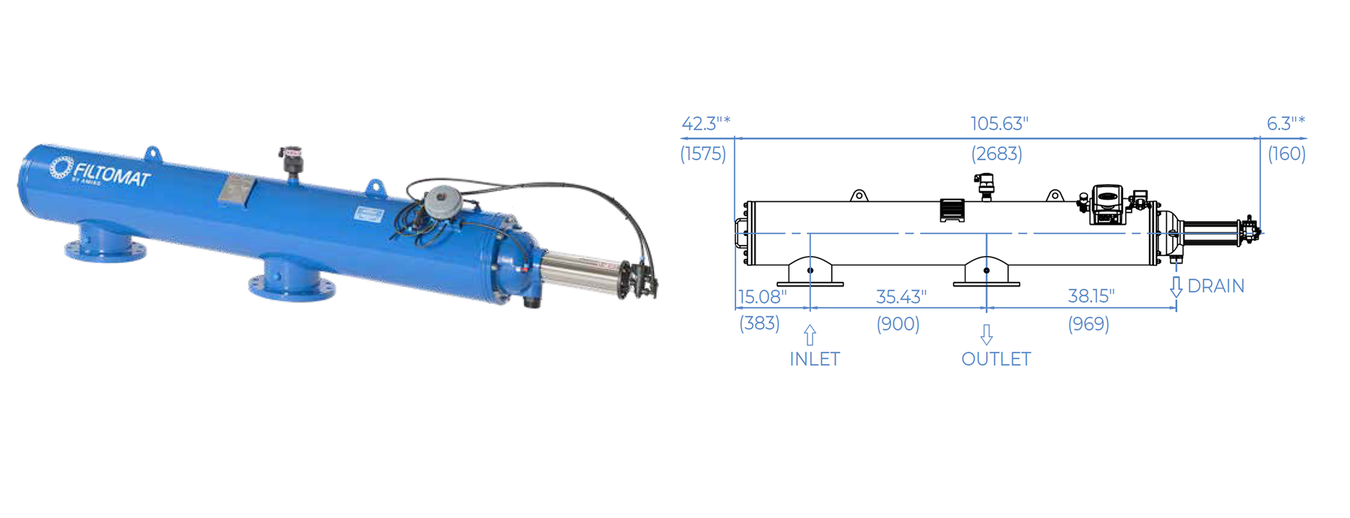

Filtomat M104XLP / M106XLP / M108LP / M110P

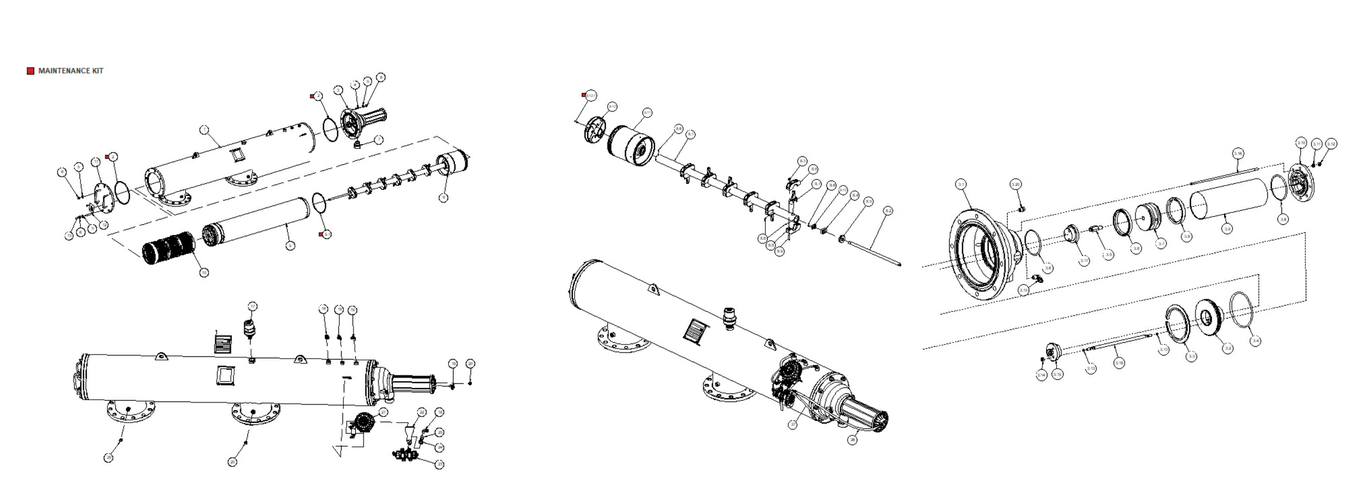

Amiad - FiltomatM100 - M104XLP M106XLP M108LP M110P

Amiad - FiltomatM100 - M104XLP/M106XLP/M108LP/M110P

Head Loss Graph (in clear water)

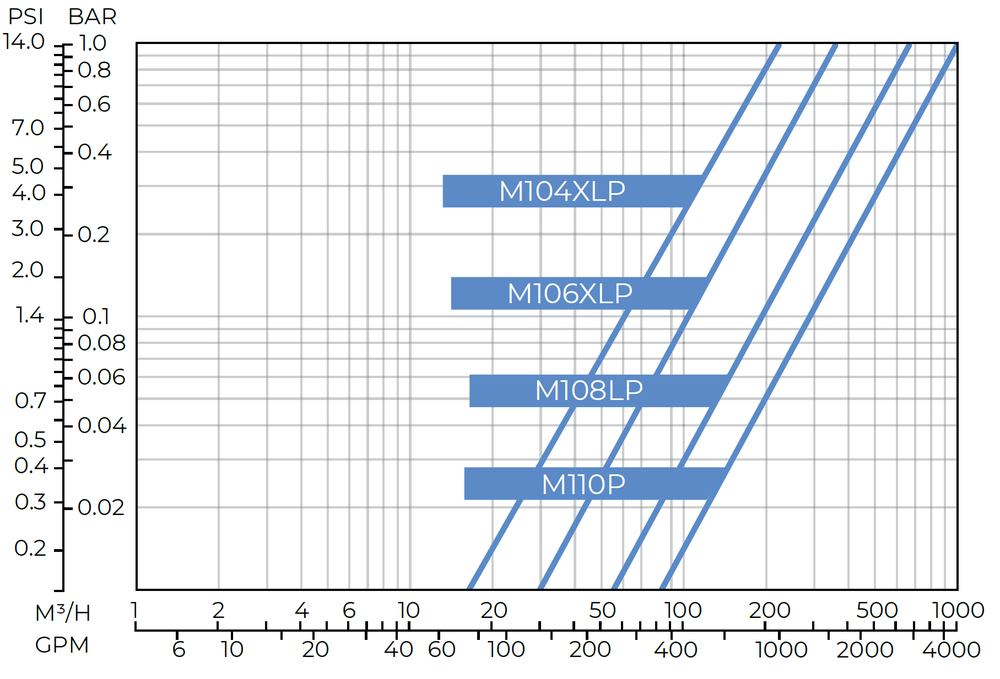

Amiad - FiltomatM100 - M104XLP M106XLP M108LP M110P - Head Loss Graph

Amiad - FiltomatM100 - M104XLP/M106XLP/M108LP/M110P - Head Loss Graph

*Approx. length required for maintenance

Technical Specifications

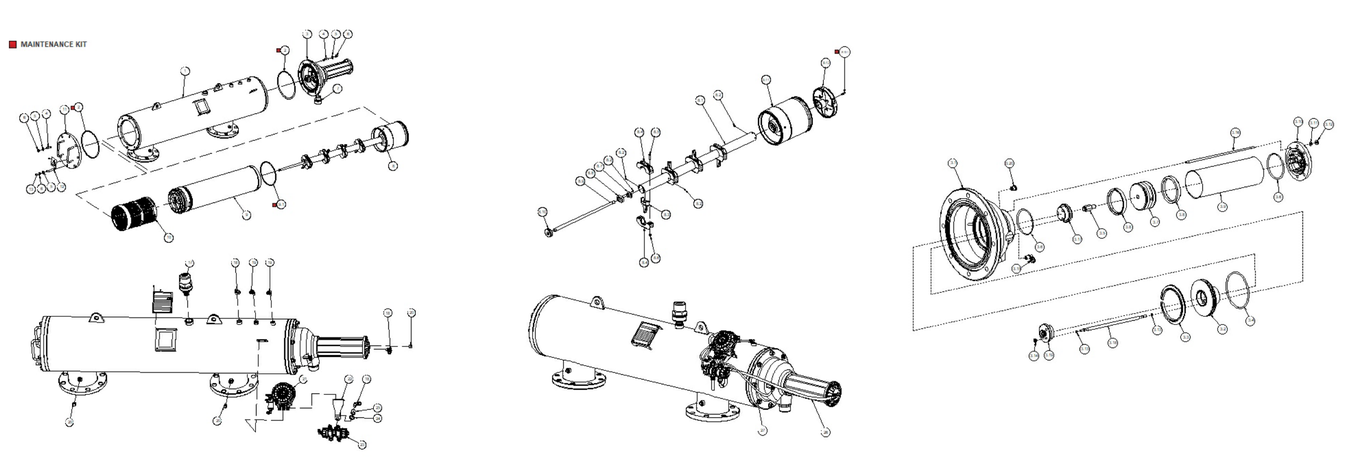

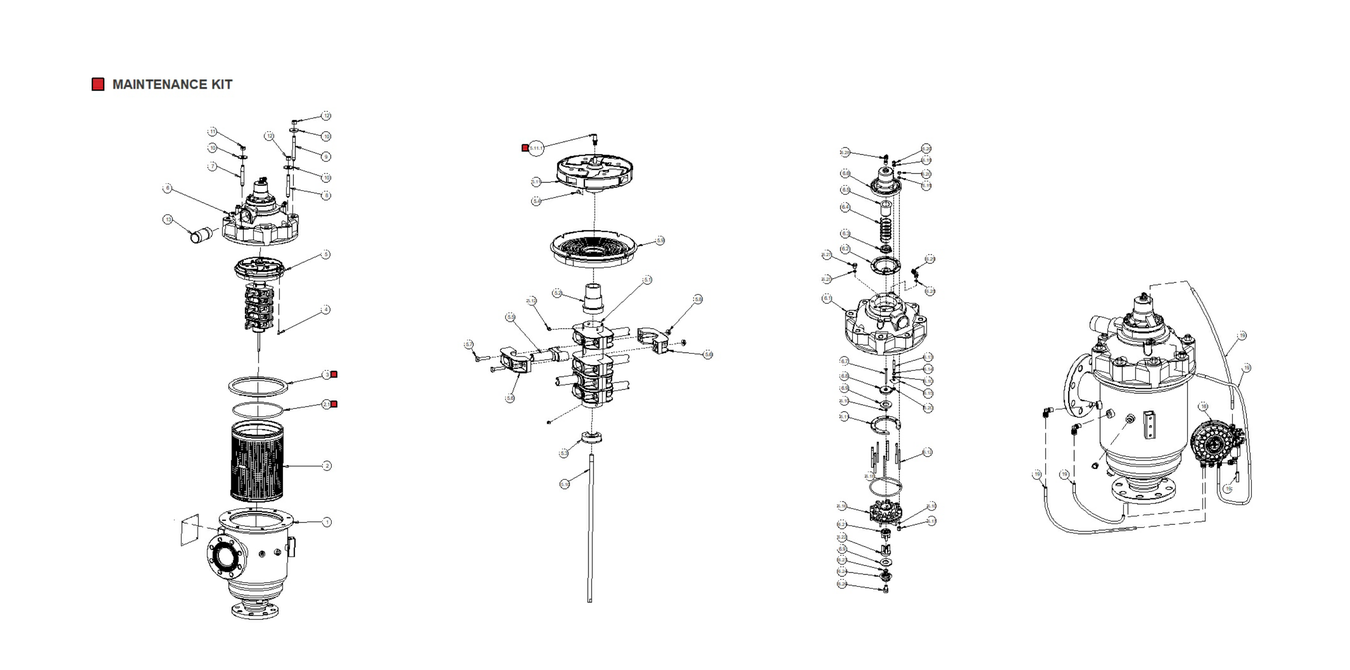

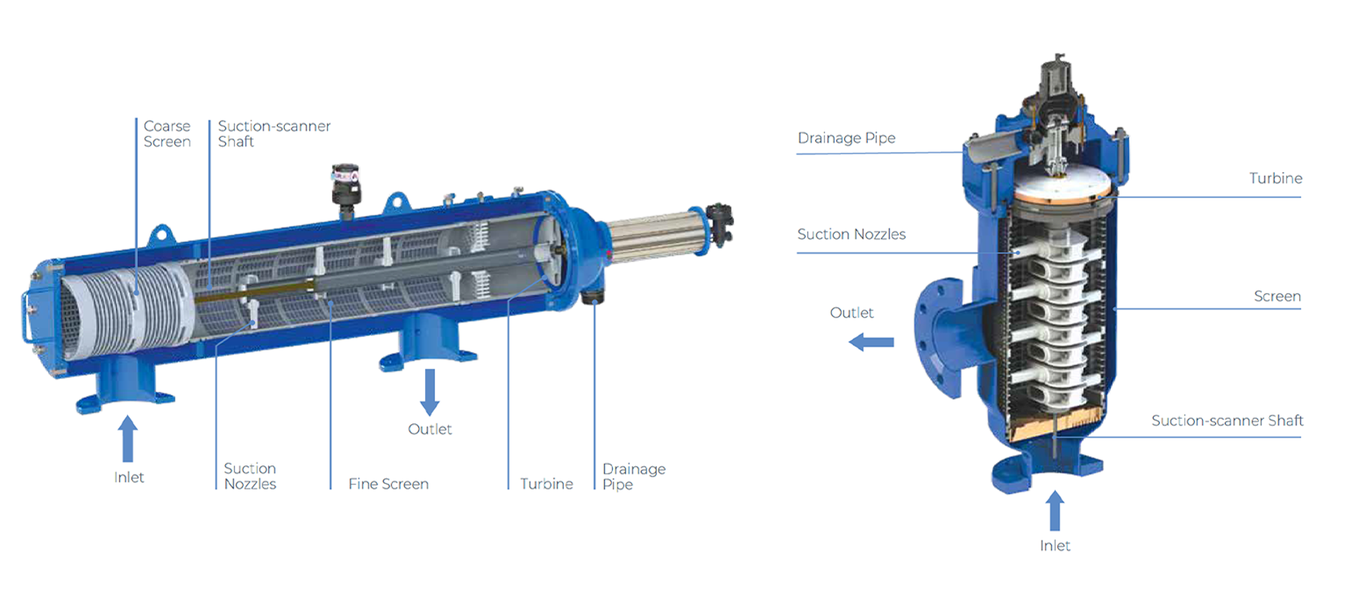

Filtomat Cutaway

Amiad - FiltomatM100 - Cutaway

Amiad - FiltomatM100 - Cutaway

Spare Parts

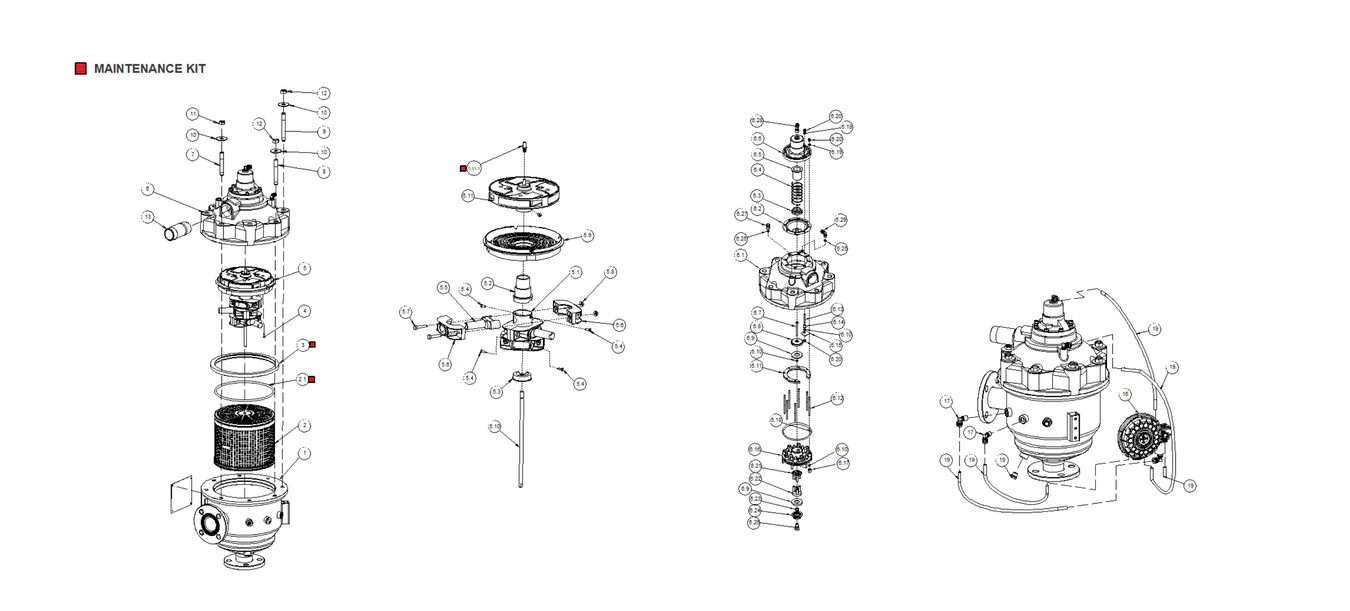

FiltomatM102C103C
Pos. Part No. Description Qty
1 710105-M102C M102C Filter Housing RAL5010 PLOYESTER - By Demand 1
1 710105-M103C M103C Filter Housing RAL5010 PLOYESTER - By Demand 1
2 700101-000612 MOLDED WEAVEWIRE SCREEN S/ST316L 1300SQ.CM 80MIC M100 NBR SEALS 1
2 700101-000613 MOLDED WEAVEWIRE SCREEN S/ST316L 1300SQ.CM 100MIC M100 NBR SEALS 1
2 700101-000614 MOLDED WEAVEWIRE SCREEN S/ST316L 1300SQ.CM 130MIC M100 NBR SEALS 1
2 700101-000615 MOLDED WEAVEWIRE SCREEN S/ST316L 1300SQ.CM 200MIC M100 NBR SEALS 1
2 700101-000616 MOLDED WEAVEWIRE SCREEN S/ST316L 1300SQ.CM 300MIC M100 NBR SEALS 1
2 700101-000617 MOLDED WEAVEWIRE SCREEN S/ST316L 1300SQ.CM 500MIC M100 NBR SEALS 1
2 700101-001608 MOLDED WEAVEWIRE SCREEN S/ST316L 1300SQ.CM 50MIC M100 NBR SEALS 1
2.1 770102-000217 DOWTY O-RING SEAL 674 ID=208.92MM TH=6.99MM NBR 55 SHORE 2
3 770104-000156 HYDRAULIC SEAL NATURAL 55 SHORE LID M102-104 1
4 760101-000508 PHILLIPS FLAT TAPPING SCREW NO.8 3/4" S/ST316 ASME B18.6.4 TYPE-AB 4
5 700190-001724 DIRT COL.ASSY 3 NOZ (M102C)/103C INCL.ROTOR AND P 1
5.10 710103-001087 SHAFT DIRT COLLECTOR M102/3C S/ST303 1
5.1 710103-001095 BODY M102/3C S/ST316 F/DIRT COLLECTOR 1
5.11 710101-001637 M100 TURBINE BELL RPP BLACK 1
5.11.1 710103-011620 BEARING M100 PISTON K110/D2 1
5.2 710103-001096 PLUG M102/3C PVC F/DIRT COLLECTOR 1
5.3 710103-001113 PLUG M103CL/4C PVC F/DIRT COLLECTOR 1
5.4 760101-000689 PHILLIPS FLAT TAPPING SCREW NO.8 5/8" S/ST304 ASME B18.6.4 TYPE-AB 8
5.5 710101-000692 F100 NOZZLE RPA NATURAL 3
5.6 710101-000693 F100 CLIP RPA NATURAL 6
5.7 760101-000417 HEX BOLT PARTIALTHRD 1/4"UNC 1 1/4" S/ST304 ASME B18.2.1 6
5.8 760102-000097 NYLON INSERT LOCKNUT 1/4"UNC S/ST316 DIN985 6
5.9 710103-000986 PARTITION M100 RPA 1
6 700190-001727 COVER ASSY (M102C)/3C(L)/4C 1
6.1 710103-000816 COVER M100 PP 8 HOLES 1
6.10 770102-000079 PARKER O-RING 2-107 NBR 70 SHORE 9
6.11 710103-001089 ROD TIE SUPPORT M102/3C BRASS PISTONLESS COVER ASSEMBLY 1
6.12 710103-001097 ROD TIE LONG M102/3C BRASS PISTONLESS COVER ASSEMBLY 7
6.13 710103-001083 ROD TIE SHORT M102/3C S/ST303 PISTONLESS COVER ASSEMBLY 1
6.14 710103-000896 BUSHING M104/6LP BRASS PISTONLESS COVER ASSEMBLY 1
6.15 710103-001084 SQUARE WASHER 30MM M102/3C S/ST316 PISTONLESS COVER ASSEMBLY 1
6.16 710103-000990 SEAT VALVE M102/3C RPA F/COVER 1
6.17 710103-001080 NUT M102/3C BRASS PISTONLESS COVER ASSEMBLY 7
6.18 770102-000156 PARKER O-RING 2-351 NBR 50 SHORE 1
6.19 760103-000094 FLAT WASHER M6 DIN125 S/ST316 8
6.20 760102-000078 HEX NUT 1/4"UNC S/ST316 B18.2.2 9
6.2 770106-000028 DIAPHRAGM SEAL M102-M104 NBR 70 SHORE 1
6.21 710101-000697 VALVE 102/3 UPPER GUIDE RPA NATURAL 1
6.22 710101-000696 VALVE 102/3 LOWER GUIDE RPA NATURAL 1
6.23 770102-000082 PARKER O-RING 2-112 NBR 70 SHORE NO FLASH 1
6.24 710101-000694 VALVE 102/3 LOWER SEAT RPA NATURAL 1
6.25 770101-000042 MM O-RING SEAL ID6MM TH3MM NBR 70 SHORE NO FLASH 2
6.26 710103-001015 LOWER BEARING M102/3C S/ST316 FEMALE 1
6.27 720501-000190 PLUG 1/4"M BSPT PA66 BLUE TEFEN 1
6.28 720501-000194 L-CONNECTOR 1/4"M X6MM BSPT ACETAL BLACK-BLUE TEFEN 1
6.29 720501-000200 L-CONNECTOR 1/4"M X6MM BSPT RPP RED TEFEN 1
6.3 710101-000703 M102/4 SPRING GUIDE RPP BLACK 1
6.4 710101-000698 VALVE 102/3 UPPER SEAT RPA NATURAL 1
6.4 710101-000702 M102/3 PLUG RPP BLACK 1
6.4 710103-000984 COVER M102C/104C RPA F/DIAPHGRAM 1
6.4 760101-000699 SOCKET FLAT HEAD SCREW M6 70MM S/ST316 DIN7991 1
6.4 760107-000070 HELICAL SPRING PISTON 100 S/ST302 1
6.4 770104-000133 SHAPED SEAL NR 55 SHORE VALVE M102-104 2
7 760104-000081 STUD BOLT 1/2" UNC 92MM S/ST303 1
8 760104-000082 STUD BOLT 1/2" UNC 100MM S/ST304 3
9 760104-000084 STUD BOLT 1/2" UNC 100MM S/ST304 4
10 760103-000068 FLAT WASHER 1/2" SPECIAL C/ST ZINC PLATED OD1.57'' THK3MM 8
11 760102-000096 HEX JAM NUT 1/2"UNC S/ST304 B18.2.2 1
12 760102-000052 HEX NUT 1/2"UNC C/ST ZINC PLATED B18.2.2 7
13 780101-000932 NIPPLE 1 1/2"X105MM BSP M PVC 1
14 760105-000036 RIVET BLIND 3X6MM S/ST316 DIN7337 4
16 700103-001749 ADI-P DC KIT PACKAGE ONE SOLENOID NO 1
16 700103-001749 ADI-P DC KIT PACKAGE TWO SOLENOIDS NO/NC 2
17 720501-000229 L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK-BLUE TEFEN 2
18 720501-000229 PLUG 1/4"M BSPT PA66 BLUE TEFEN 2
19 720502-000017 CONTROLTUBE 8MM LDPE BLACK W/GREEN STRIPE TEFFEN 2
FiltomatM103CLM104C
Pos. Part No. Description Qty
1 710105-M103CL M103CL Filter Housing RAL5010 PLOYESTER - By Demand 1
1 710105-M104C M104C Filter Housing RAL5010 PLOYESTER - By Demand 1
2 700101-000629 MOLDED WEAVEWIRE SCREEN S/ST316L 2120SQ.CM 80MIC M100 NBR SEALS 1
2 700101-000630 MOLDED WEAVEWIRE SCREEN S/ST316L 2120SQ.CM 100MIC M100 NBR SEALS 1
2 700101-000632 MOLDED WEAVEWIRE SCREEN S/ST316L 2120SQ.CM 200MIC M100 NBR SEALS 1
2 700101-000633 MOLDED WEAVEWIRE SCREEN S/ST316L 2120SQ.CM 300MIC M100 NBR SEALS 1
2 700101-000634 MOLDED WEAVEWIRE SCREEN S/ST316L 2120SQ.CM 500MIC M100 NBR SEALS 1
2 700101-001676 MOLDED WEAVEWIRE SCREEN S/ST316L 2120SQ.CM 50MIC M100 NBR SEALS 1
2.1 770102-000217 DOWTY O-RING SEAL 674 ID=208.92MM TH=6.99MM NBR 55 SHORE 2
3 770104-000156 HYDRAULIC SEAL NATURAL 55 SHORE LID M102-104 1
4 760101-000508 PHILLIPS FLAT TAPPING SCREW NO.8 3/4" S/ST316 ASME B18.6.4 TYPE-AB 4
5 700190-001756 DIRT COL.ASSY 5 NOZ (M103C)L/104C + ROTOR AND PART 1
5.1 710103-001114 BODY 52MM M103CL/4C S/ST316 F/DIRT COLLECTOR 1
5.10 710103-001115 SHAFT DIRT COLLECTOR M103CL/4C S/ST303 1
5.11 710101-001637 M100 TURBINE BELL RPP BLACK 1
5.11.1 710103-011978 BEARING M100 S/ST316 1
5.12 760101-000688 PHILLIPS PAN TAPPING SCREW NO.8 3/8" S/ST316 ASME B18.6.4 TYPE-AB 6
5.2 710103-001096 PLUG M102/3C PVC F/DIRT COLLECTOR 1
5.3 710103-001113 PLUG M103CL/4C PVC F/DIRT COLLECTOR 1
5.4 760101-000689 PHILLIPS FLAT TAPPING SCREW NO.8 5/8" S/ST304 ASME B18.6.4 TYPE-AB 4
5.5 710101-000692 F100 NOZZLE RPA NATURAL 5
5.6 710101-000693 F100 CLIP RPA NATURAL 10
5.7 760101-000417 HEX BOLT PARTIALTHRD 1/4"UNC 1 1/4" S/ST304 ASME B18.2.1 10
5.8 760102-000097 NYLON INSERT LOCKNUT 1/4"UNC S/ST316 DIN985 10
5.9 710103-000986 PARTITION M100 RPA 1
6 700190-001727 COVER ASSY (M102C)/3C(L)/4C 1
6.1 710103-000816 COVER M100 PP 8 HOLES 1
6.1 770102-000079 PARKER O-RING 2-107 NBR 70 SHORE 9
6.11 710103-001089 ROD TIE SUPPORT M102/3C BRASS PISTONLESS COVER ASSEMBLY 1
6.12 710103-001097 ROD TIE LONG M102/3C BRASS PISTONLESS COVER ASSEMBLY 7
6.13 710103-001083 ROD TIE SHORT M102/3C S/ST303 PISTONLESS COVER ASSEMBLY 1
6.14 710103-000896 BUSHING M104/6LP BRASS PISTONLESS COVER ASSEMBLY 1
6.15 710103-001084 SQUARE WASHER 30MM M102/3C S/ST316 PISTONLESS COVER ASSEMBLY 1
6.16 710103-000990 SEAT VALVE M102/3C RPA F/COVER 1
6.17 710103-001080 NUT M102/3C BRASS PISTONLESS COVER ASSEMBLY 7
6.18 770102-000156 PARKER O-RING 2-351 NBR 50 SHORE 1
6.19 760103-000094 FLAT WASHER M6 DIN125 S/ST316 8
6.20 760102-000078 HEX NUT 1/4"UNC S/ST316 B18.2.2 9
6.2 770106-000028 DIAPHRAGM SEAL M102-M104 NBR 70 SHORE 1
6.21 710101-000697 VALVE 102/3 UPPER GUIDE RPA NATURAL 1
6.22 710101-000696 VALVE 102/3 LOWER GUIDE RPA NATURAL 1
6.23 770102-000082 PARKER O-RING 2-112 NBR 70 SHORE NO FLASH 1
6.24 710101-000694 VALVE 102/3 LOWER SEAT RPA NATURAL 1
6.25 770101-000042 MM O-RING SEAL ID6MM TH3MM NBR 70 SHORE NO FLASH 2
6.26 710103-001015 LOWER BEARING M102/3C S/ST316 FEMALE 1
6.27 720501-000190 PLUG 1/4"M BSPT PA66 BLUE TEFEN 1
6.28 720501-000194 L-CONNECTOR 1/4"M X6MM BSPT ACETAL BLACK-BLUE TEFEN 1
6.29 720501-000200 L-CONNECTOR 1/4"M X6MM BSPT RPP RED TEFEN 1
6.3 710101-000703 M102/4 SPRING GUIDE RPP BLACK 1
6.4 710101-000698 VALVE 102/3 UPPER SEAT RPA NATURAL 1
6.4 710101-000702 M102/3 PLUG RPP BLACK 1
6.4 710103-000984 COVER M102C/104C RPA F/DIAPHGRAM 1
6.4 760101-000699 SOCKET FLAT HEAD SCREW M6 70MM S/ST316 DIN7991 1
6.4 760107-000070 HELICAL SPRING PISTON 100 S/ST302 1
6.4 770104-000133 SHAPED SEAL NR 55 SHORE VALVE M102-104 2
7 760104-000081 STUD BOLT 1/2" UNC 92MM S/ST303 1
8 760104-000082 STUD BOLT 1/2" UNC 100MM S/ST304 3
9 760104-000084 STUD BOLT 1/2" UNC 108MM S/ST304 4
10 760103-000068 FLAT WASHER 1/2" SPECIAL C/ST ZINC PLATED OD1.57'' THK3MM 8
11 760102-000096 HEX JAM NUT 1/2"UNC S/ST304 B18.2.2 1
12 760102-000052 HEX NUT 1/2"UNC C/ST ZINC PLATED B18.2.2 7
13 780101-000932 NIPPLE 1 1/2"X105MM BSP M PVC 1
14 760105-000036 RIVET BLIND 3X6MM S/ST316 DIN7337 4
16 700103-001749 ADI-P DC KIT PACKAGE ONE SOLENOID NO 1
16 700103-001765 ADI-P DC KIT PACKAGE TWO SOLENOIDS NO/NC 2
17 720501-000229 L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK-BLUE TEFEN 2
18 720501-000190 PLUG 1/4"M BSPT PA66 BLUE TEFEN 2
19 720502-000017 CONTROLTUBE 8MM LDPE BLACK W/GREEN STRIPE TEFFEN 2
FiltomatM104CL
Pos. Part No. Description Qty
1 710105-M104CL M104CL Filter Housing RAL5010 PLOYESTER - By Demand 1
2 700101-001987 MOLDED WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 130MIC M100 NBR SEALS 1
2 700101-002001 MOLDED WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 100MIC M100 NBR SEALS 1
2 700101-002018 MOLDED WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 200MIC M100 NBR SEALS 1
2 700101-002022 MOLDED WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 80MIC M100 NBR SEALS 1
2 700101-002023 MOLDED WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 300MIC M100 NBR SEALS 1
2 700101-002024 MOLDED WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 500MIC M100 NBR SEALS 1
2.1 770102-000217 DOWTY O-RING SEAL 674 ID=208.92MM TH=6.99MM NBR 55 SHORE 2
3 770104-000156 HYDRAULIC SEAL NATURAL 55 SHORE LID M102-104 1
4 760101-000508 PHILLIPS FLAT TAPPING SCREW NO.8 3/4" S/ST316 ASME B18.6.4 TYPE-AB 4
5 700190-005075 DIRT COLLECTOR ASSEMBLY 8 NOZZLE M104CL + ROTOR AND PARTS 1
5.1 710103-009351 BODY 52MM M104CL S/ST304 DIRT COLLECTOR 8 NOZZ 1
5.1 760101-000688 PHILLIPS PAN TAPPING SCREW NO.8 3/8" S/ST316 ASME B18.6.4 TYPE-AB 6
5.11 760101-000689 PHILLIPS FLAT TAPPING SCREW NO.8 5/8" S/ST304 ASME B18.6.4 TYPE-AB 4
5.12 710101-001637 M100 TURBINE BELL RPP BLACK 1
5.12.1 710103-011978 BEARING M100 S/ST316 1
5.2 710103-001113 PLUG M103CL/4C PVC F/DIRT COLLECTOR 1
5.3 710103-001096 PLUG M102/3C PVC F/DIRT COLLECTOR 1
5.4 710101-000704 F100 SUCTION NOZZLE OVAL RPA BLACK 4
5.5 710101-000693 F100 CLIP RPA NATURAL 8
5.6 710103-000986 PARTITION M100 RPA 1
5.7 710103-009352 SHAFT DIRT COLLECTOR 3/8" M104CL S/ST303 THR M 1
5.8 760101-000417 HEX BOLT PARTIALTHRD 1/4"UNC 1 1/4" S/ST304 ASME B18.2.1 8
5.9 760102-000097 NYLON INSERT LOCKNUT 1/4"UNC S/ST316 DIN985 8
6 700190-001727 COVER ASSY (M102C)/3C(L)/4C 1
6.1 710103-000816 COVER M100 PP 8 HOLES 1
6.10 770102-000079 PARKER O-RING 2-107 NBR 70 SHORE 9
6.11 710103-001089 ROD TIE SUPPORT M102/3C BRASS PISTONLESS COVER ASSEMBLY 1
6.12 710103-001097 ROD TIE LONG M102/3C BRASS PISTONLESS COVER ASSEMBLY 7
6.13 710103-001083 ROD TIE SHORT M102/3C S/ST303 PISTONLESS COVER ASSEMBLY 1
6.14 710103-000896 BUSHING M104/6LP BRASS PISTONLESS COVER ASSEMBLY 1
6.15 710103-001084 SQUARE WASHER 30MM M102/3C S/ST316 PISTONLESS COVER ASSEMBLY 1
6.16 710103-000990 SEAT VALVE M102/3C RPA F/COVER 1
6.17 710103-001080 NUT M102/3C BRASS PISTONLESS COVER ASSEMBLY 7
6.18 770102-000156 PARKER O-RING 2-351 NBR 50 SHORE 1
6.19 760103-000094 FLAT WASHER M6 DIN125 S/ST316 8
6.20 760102-000078 FLAT WASHER M6 DIN125 S/ST316 9
6.2 770106-000028 DIAPHRAGM SEAL M102-M104 NBR 70 SHORE 1
6.21 710101-000697 VALVE 102/3 UPPER GUIDE RPA NATURAL 1
6.22 710101-000696 VALVE 102/3 LOWER GUIDE RPA NATURAL 1
6.23 770102-000082 PARKER O-RING 2-112 NBR 70 SHORE NO FLASH 1
6.24 710101-000694 VALVE 102/3 LOWER SEAT RPA NATURAL 1
6.25 770101-000042 MM O-RING SEAL ID6MM TH3MM NBR 70 SHORE NO FLASH 2
6.26 710103-001015 LOWER BEARING M102/3C S/ST316 FEMALE 1
6.27 720501-000190 PLUG 1/4"M BSPT PA66 BLUE TEFEN 1
6.28 720501-000194 L-CONNECTOR 1/4"M X6MM BSPT ACETAL BLACK-BLUE TEFEN 1
6.29 720501-000200 L-CONNECTOR 1/4"M X6MM BSPT RPP RED TEFEN 1
6.3 710101-000703 M102/4 SPRING GUIDE RPP BLACK 1
6.4 710101-000698 VALVE 102/3 UPPER SEAT RPA NATURAL 1
6.4 710101-000702 M102/3 PLUG RPP BLACK 1
6.4 710103-000984 COVER M102C/104C RPA F/DIAPHGRAM 1
6.4 760101-000699 SOCKET FLAT HEAD SCREW M6 70MM S/ST316 DIN7991 1
6.4 760107-000070 HELICAL SPRING PISTON 100 S/ST302 1
6.4 770104-000133 SHAPED SEAL NR 55 SHORE VALVE M102-104 2
7 760104-000081 STUD BOLT 1/2" UNC 92MM S/ST303 1
8 760104-000082 STUD BOLT 1/2" UNC 100MM S/ST304 3
9 760104-000084 STUD BOLT 1/2" UNC 108MM S/ST304 4
10 760103-000068 FLAT WASHER 1/2" SPECIAL C/ST ZINC PLATED OD1.57'' THK3MM 8
11 760102-000096 HEX JAM NUT 1/2"UNC S/ST304 B18.2.2 1
12 760102-000052 HEX NUT 1/2"UNC C/ST ZINC PLATED B18.2.2 7
13 780101-000932 NIPPLE 1 1/2"X105MM BSP M PVC 1
14 760105-000036 RIVET BLIND 3X6MM S/ST316 DIN7337 1
16 700103-001749 ADI-P DC KIT PACKAGE ONE SOLENOID NO 1
16 700103-001765 ADI-P DC KIT PACKAGE TWO SOLENOIDS NO/NC 1
17 720501-000229 L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK-BLUE TEFEN 3
18 720501-000190 PLUG 1/4"M BSPT PA66 BLUE TEFEN 2
19 720501-000218 L-CONNECTOR 1/4"F X1/4"M BSPT BRASS/NICKEL PLATED AIGNEP 1
20 710101-001309 PISTON NOZZLE 1.5 MM PP GREEN 1
21 720502-000017 CONTROLTUBE 8MM LDPE BLACK W/GREEN STRIPE TEFFEN 2
FiltomatM104LPNM106LP
Pos. Part No. Description Qty
1 710105-M104LPN M104-LPN Filter Housing RAL5010 PLOYESTER - By Demand 1
1 710105-M106LP M106-LP Filter Housing RAL5010 PLOYESTER - By Demand 1
2 770102-000174 PARKER O-RING 2-448 NBR 70 SHORE 1
3 700190-001541 COVER ASSY CAST-IRON W/PIS AND VALVE PISTON MOD 2
3.10 710103-000799 PLUG PISTON M104/6LP RPA M10X(L)(P) 1
3.1 710103-000819 M100 COVER PMPM 5010 CAST-IRON POLYESTER 1
3.11 760103-000094 FLAT WASHER M6 DIN125 S/ST316 1
3.12 760102-000097 NYLON INSERT LOCKNUT 1/4"UNC S/ST316 DIN985 8
3.13 770102-000058 PARKER O-RING 2-009 NBR 70 SHORE 8
3.14 760102-000078 HEX NUT 1/4"UNC S/ST316 B18.2.2 10
3.15 720501-000908 L-CONNECTOR 1/4"M X8MM BSPT RPP RED-BLUE TEFEN 5
3.16 710103-000903 ROD M104/6LP S/ST303 PISTON COVER ASSEMBLY 1
3.17 710104-000039 M104/6LP VALVE SEAT BRASS NR 8
3.18 710103-000895 SPACER BOLT VALVE M104/6LP S/ST303 PISTON COVER ASSEMBLY 1
3.19 710104-000040 M104/6LP VALVE BEARING BRASS RL (NEOPREN) COMBINED ASSY 3
3.2 710103-000901 SEAT SEAL M100 POM VALVE 1
3.20 720501-000190 PLUG 1/4"M BSPT PA66 BLUE TEFEN 1
3.3 710103-000902 RING RETAINING M104/6LP PVC PISTON COVER ASSEMBLY 1
3.4 770102-000156 PARKER O-RING 2-351 NBR 50 SHORE 1
3.5 710103-000869 ROD M104/6LP S/ST316 PISTON COVER ASSEMBLY 1
3.6 770102-000126 PARKER O-RING 2-237 NBR 70 SHORE NO FLASH 2
3.7 710103-000900 HOLDER CYLINDER SEAL M104/6LP POM PISTON COVER ASSEMBLY 1
3.8 770105-000019 U-CUP SEAL NBR OD95MM ID75MM H10MM 65 SHORE 2
3.9 710103-000843 CYLINDER 95MM M104/6LP S/ST316 POLISH F/PISTON 1
4 760104-000075 STUD BOLT 1/2" UNC 50MM S/ST303 15
5 760103-000077 FLAT WASHER M12 DIN125 C/ST ZINC PLATED 16
6 760102-000052 HEX NUT 1/2"UNC C/ST ZINC PLATED B18.2.2 16
7 760102-000052 REDUCER 2"X1 1/2" PP PLASSON 1
8 700190-001508 DIRT COL.A 4NOZ.+ ROTOR AND PART M104LP/106LP ASSY 1
8.10 710103-000802 PLUG TOP M104/6LP RPA DIRT COLLECTOR 1
8.1 710103-001103 BODY M100 PISTON S/ST304 F/DIRT COLLECTOR 1
8.11 710101-001614 M100 FLUSHING CHAMBER RPP BLACK 1
8.12 710101-001629 M100 TURBINE PISTON RPP BLACK 1
8.12.1 710103-011620 BEARING M100 PISTON K110/D2 1
8.2 760101-000688 PHILLIPS PAN TAPPING SCREW NO.8 3/8" S/ST316 ASME B18.6.4 TYPE-AB 12
8.3 710101-000704 F100 SUCTION NOZZLE OVAL RPA BLACK 4
8.4 710101-000693 F100 CLIP RPA NATURAL 8
8.5 760101-000417 HEX BOLT PARTIALTHRD 1/4"UNC 1 1/4" S/ST304 ASME B18.2.1 8
8.6 760102-000097 NYLON INSERT LOCKNUT 1/4"UNC S/ST316 DIN985 8
8.7 710103-010021 CONNECTOR M100 BRASS F/DIRT COLLECTOR 1
8.8 710103-000800 CENTRAL SUPPORT COLLECTOR M104/6LP RPA 1
8.9 710103-001483 SHAFT DIRT COLLECTOR M300-3000A BRASS 1
9 700101-002070 MOLDED WEAVEWIRE SCREEN S/ST316L 6150SQ.CM 50MIC M100 NBR SEALS 1
9 700101-002073 MOLDED WEAVEWIRE SCREEN S/ST316L 6150SQ.CM 130MIC M100 NBR SEALS 1
9 700101-002074 MOLDED WEAVEWIRE SCREEN S/ST316L 6150SQ.CM 300MIC M100 NBR SEALS 1
9 700101-002075 MOLDED WEAVEWIRE SCREEN S/ST316L 6150SQ.CM 200MIC M100 NBR SEALS 1
9 700101-002077 MOLDED WEAVEWIRE SCREEN S/ST316L 6150SQ.CM 80MIC M100 NBR SEALS 1
9 700101-002078 MOLDED WEAVEWIRE SCREEN S/ST316L 6150SQ.CM 100MIC M100 NBR SEALS 1
9 700101-002079 MOLDED WEAVEWIRE SCREEN S/ST316L 6150SQ.CM 500MIC M100 NBR SEALS 1
9.1 770102-000217 DOWTY O-RING SEAL 674 ID=208.92MM TH=6.99MM NBR 55 SHORE 2
10 700190-004630 INJECTED COARSE SCREEN ASSEMBLY M104/6 LP/XLP 1
11 710105-000362 INJECTED COARSE SCREEN ASSEMBLY M104/6 LP/XLP 1
12 760104-000081 STUD BOLT 1/2" UNC 92MM S/ST303 1
13 760190-000666 RUBBER BOLT COVER 1/2" BLACK 1
16 760105-000036 RIVET BLIND 3X6MM S/ST316 DIN7337 4
17 730108-000120 AIR RELEASE VALVE A.R.I BARAK D-040-P 1" BSPT NYLON3 16BAR W/3/8" DRAIN OUT 1
18 720501-000172 L-CONNECTOR 3/8"M X12MM BSPT ACETAL BLACK TEFEN 3
19 720501-000229 L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK-BLUE TEFEN 2
20 720501-000190 PLUG 1/4"M BSPT PA66 BLUE TEFEN 3
21 700103-001763 ADI-P DC KIT PACKAGE ONE SOLENOID NC 1
21 700103-001765 ADI-P DC KIT PACKAGE TWO SOLENOIDS NO/NC 1
22 710103-011846 BRACKET M100 PISTON S/ST304 BOOSTER 1
23 700190-006136 AMIAD ACCELERATOR ASSEMBLY 1
24 760103-000128 FLAT WASHER M16 DIN125 S/ST316 1
25 720501-000157 COUPLING 3/8"F BSPT PA66 BLUE TEFEN 1
26 720502-000021 CONTROLTUBE 12MM LDPE BLACK TEFFEN 1
27 720502-000017 CONTROLTUBE 8MM LDPE BLACK W/GREEN STRIPE TEFFEN 2
FiltomatM104XLP M106XLP M108LP M110P
Pos. Part No. Description Qty
1 710105-M104XLP M104-XLP Filter Housing RAL5010 PLOYESTER - By Demand 1
1 710105-M106XLP M106-XLP Filter Housing RAL5010 PLOYESTER - By Demand 1
1 710105-M108LP M108-LP Filter Housing RAL5010 PLOYESTER - By Demand 1
1 710105-M110P M110-P Filter Housing RAL5010 PLOYESTER - By Demand 1
2 770102-000174 PARKER O-RING 2-448 NBR 70 SHORE 2
3 700190-001541 COVER ASSY CAST-IRON W/PIS AND VALVE PISTON MOD 1
3.10 710103-000799 PLUG PISTON M104/6LP RPA M10X(L)(P) 1
3.1 710103-000819 M100 COVER PMPM 5010 CAST-IRON POLYESTER 1
3.11 760103-000094 FLAT WASHER M6 DIN125 S/ST316 8
3.12 760102-000097 NYLON INSERT LOCKNUT 1/4"UNC S/ST316 DIN985 8
3.13 770102-000058 PARKER O-RING 2-009 NBR 70 SHORE 10
3.14 760102-000078 HEX NUT 1/4"UNC S/ST316 B18.2.2 5
3.15 720501-000908 L-CONNECTOR 1/4"M X8MM BSPT RPP RED-BLUE TEFEN 1
3.16 710103-000903 ROD M104/6LP S/ST303 PISTON COVER ASSEMBLY 8
3.17 710104-000039 M104/6LP VALVE SEAT BRASS NR 1
3.18 710103-000895 SPACER BOLT VALVE M104/6LP S/ST303 PISTON COVER ASSEMBLY 3
3.19 710104-000040 M104/6LP VALVE BEARING BRASS RL (NEOPREN) COMBINED ASSY 1
3.2 710103-000901 SEAT SEAL M100 POM VALVE 1
3.20 720501-000190 PLUG 1/4"M BSPT PA66 BLUE TEFEN 1
3.3 710103-000902 RING RETAINING M104/6LP PVC PISTON COVER ASSEMBLY 1
3.4 770102-000156 PARKER O-RING 2-351 NBR 50 SHORE 1
3.5 710103-000869 ROD M104/6LP S/ST316 PISTON COVER ASSEMBLY 1
3.6 770102-000126 PARKER O-RING 2-237 NBR 70 SHORE NO FLASH 2
3.7 710103-000900 HOLDER CYLINDER SEAL M104/6LP POM PISTON COVER ASSEMBLY 1
3.8 710103-000900 U-CUP SEAL NBR OD95MM ID75MM H10MM 65 SHORE 2
3.9 710103-000843 CYLINDER 95MM M104/6LP S/ST316 POLISH F/PISTON 1
4 710103-000843 STUD BOLT 1/2" UNC 50MM S/ST303 15
5 760103-000077 FLAT WASHER M12 DIN125 C/ST ZINC PLATED 16
6 760102-000052 HEX NUT 1/2"UNC C/ST ZINC PLATED B18.2.2 16
7 780101-000611 REDUCER 2"X1 1/2" PP PLASSON 1
8 700190-001670 DIRT COL.ASSY 6 NOZ+PATITION STD M104XLP/110P 1
8.1 710103-000920 BODY M104/6LP S/ST304 F/DIRT COLLECTOR 6 NOZZLES 1
8.10 710103-010021 CONNECTOR M100 BRASS F/DIRT COLLECTOR 1
8.11 710101-001614 M100 FLUSHING CHAMBER RPP BLACK 1
8.12 710101-001629 M100 TURBINE PISTON RPP BLACK 1
8.12.1 710103-011620 BEARING M100 PISTON K110/D2 1
8.2 710103-001483 SHAFT DIRT COLLECTOR M300-3000A BRASS 1
8.3 760102-000097 NYLON INSERT LOCKNUT 1/4"UNC S/ST316 DIN985 12
8.4 710103-000800 CENTRAL SUPPORT COLLECTOR M104/6LP RPA 1
8.5 710103-000802 PLUG TOP M104/6LP RPA DIRT COLLECTOR 1
8.6 760101-000688 PHILLIPS PAN TAPPING SCREW NO.8 3/8" S/ST316 ASME B18.6.4 TYPE-AB 12
8.7 710101-000704 F100 SUCTION NOZZLE OVAL RPA BLACK 6
8.8 710101-000693 F100 CLIP RPA NATURAL 12
8.9 760101-000417 HEX BOLT PARTIALTHRD 1/4"UNC 1 1/4" S/ST304 ASME B18.2.1 12
9 700101-000597 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 80MIC M100 NBR SEALS PVC ENDS 1
9 700101-000598 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 100MIC M100 NBR SEALS PVC ENDS 1
9 700101-000599 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 130MIC M100 NBR SEALS PVC ENDS 1
9 700101-000600 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 200MIC M100 NBR SEALS PVC ENDS 1
9 700101-000601 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 300MIC M100 NBR SEALS PVC ENDS 1
9 700101-000602 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 500MIC M100 NBR SEALS PVC ENDS 1
9 700101-001645 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 50MIC M100 NBR SEALS 1
9.1 770102-000217 DOWTY O-RING SEAL 674 ID=208.92MM TH=6.99MM NBR 55 SHORE 2
10 700190-004629 INJECTED COARSE SCREEN ASSEMBLY M108LP/M110P 1
11 710105-000362 M104/6LP COVER PKPK 5010 ST.37-2 POLYESTER 1
12 760104-000081 STUD BOLT 1/2" UNC 92MM S/ST303 1
13 760190-000666 RUBBER BOLT COVER 1/2" BLACK 1
16 760105-000036 RIVET BLIND 3X6MM S/ST316 DIN7337 4
17 730108-000120 AIR RELEASE VALVE A.R.I BARAK D-040-P 1" BSPT NYLON3 16BAR W/3/8" DRAIN OUT 1
18 720501-000172 L-CONNECTOR 3/8"M X12MM BSPT ACETAL BLACK TEFEN 3
19 720501-000229 L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK-BLUE TEFEN 2
20 720501-000190 PLUG 1/4"M BSPT PA66 BLUE TEFEN 5
21 700103-001763 ADI-P DC KIT PACKAGE ONE SOLENOID NC 1
21 700103-001765 ADI-P DC KIT PACKAGE TWO SOLENOIDS NO/NC 1
22 710103-011846 BRACKET M100 PISTON S/ST304 BOOSTER 1
23 700190-006136 AMIAD ACCELERATOR ASSEMBLY 1
24 760103-000128 FLAT WASHER M16 DIN125 S/ST316 1
25 720501-000157 COUPLING 3/8"F BSPT PA66 BLUE TEFEN 1
26 720502-000021 CONTROLTUBE 12MM LDPE BLACK TEFFEN 1
27 720502-000017 CONTROLTUBE 8MM LDPE BLACK W/GREEN STRIPE TEFFEN 2

Amiad - Filtomat M100 - Automatic Screen Filter

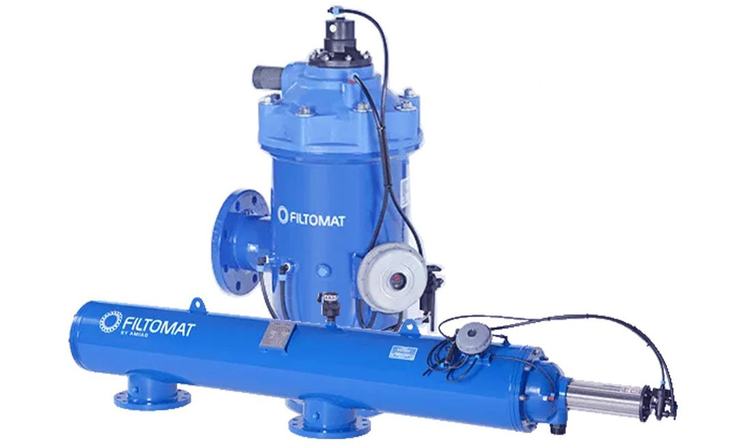

Filtomat M100- How to order
Product Code Size Self Cleaning System Description
M100-750-50 50mm BSP Water Driven Amiad - Stand alone Filtomat Hydraulic - M100-750 - 50mm
M100-750-50F 50mm Flanged Water Driven Amiad - Stand alone Filtomat Hydraulic - M100-750 - 50mm Flanged
M100-1500 80, 100mm Flanged Water Driven Amiad - Stand alone Filtomat Hydraulic - M100-1500 - 80, 100mm Flanged
M100-2250 100mm Flanged Water Driven Amiad - Stand alone Filtomat Hydraulic - M100-2250 - 100mm Flanged
M100-4500 100, 150mm Flanged Water Driven Amiad - Stand alone Filtomat Hydraulic - M100-4500 - 100,150mm Flanged
M100-6800 100-250mm Flanged* Water Driven Amiad - Stand alone Filtomat Hydraulic - M100-6800 - 100-250mm Flanged *
Contact Form
